Model 8102 DB9 2-Position Switch, All Male Connectors, Manual, Catalog # 308102

    Model 8102R DB9 A/B Switch, All Male ConnectorsModel 8102R DB9 A/B Switch, All Male ConnectorsModel 8102R DB9 A/B Switch, All Male ConnectorsModel 8102R DB9 A/B Switch, All Male Connectors
Click image to enlarge
    • Model 8102R DB9 A/B Switch, All Male Connectors
    • Model 8102R DB9 A/B Switch, All Male Connectors
    • Model 8102R DB9 A/B Switch, All Male Connectors
    • Model 8102R DB9 A/B Switch, All Male Connectors
Base Price:
$332.00
Catalog No: 308102
Model No: 8102
Product Type:Switches: Copper
Positions:3
Cable Type/Port Connector:DB9 Switch Ports
Manual Control/No Power Required:LineSelect® Manual Operation
Configuration:Desktop
Pins Switched:9
Local Control:Rotary Knob

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

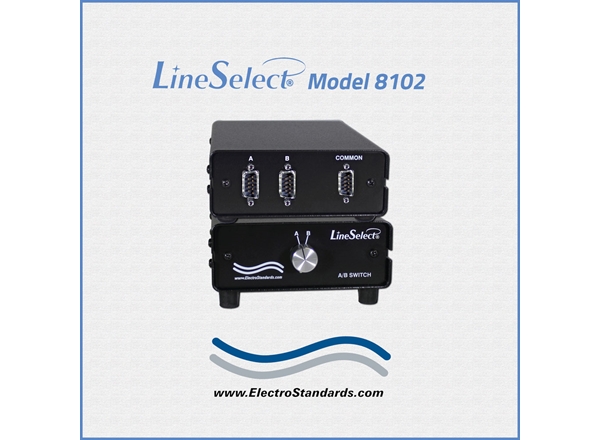

LineSelect® Model 8102 DB9 A/B Switch, All (M) Connectors, Manual, Desktop, RoHS Compliant

Overview

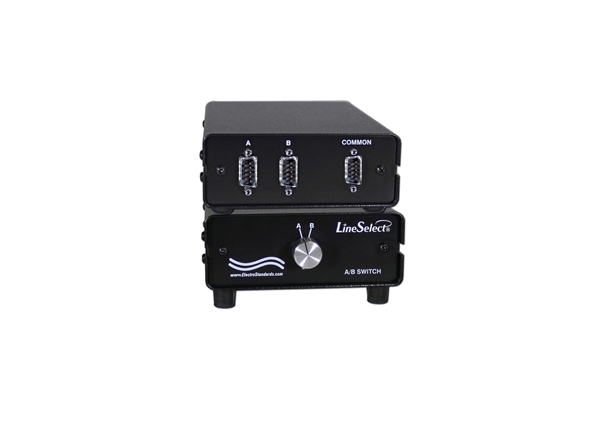

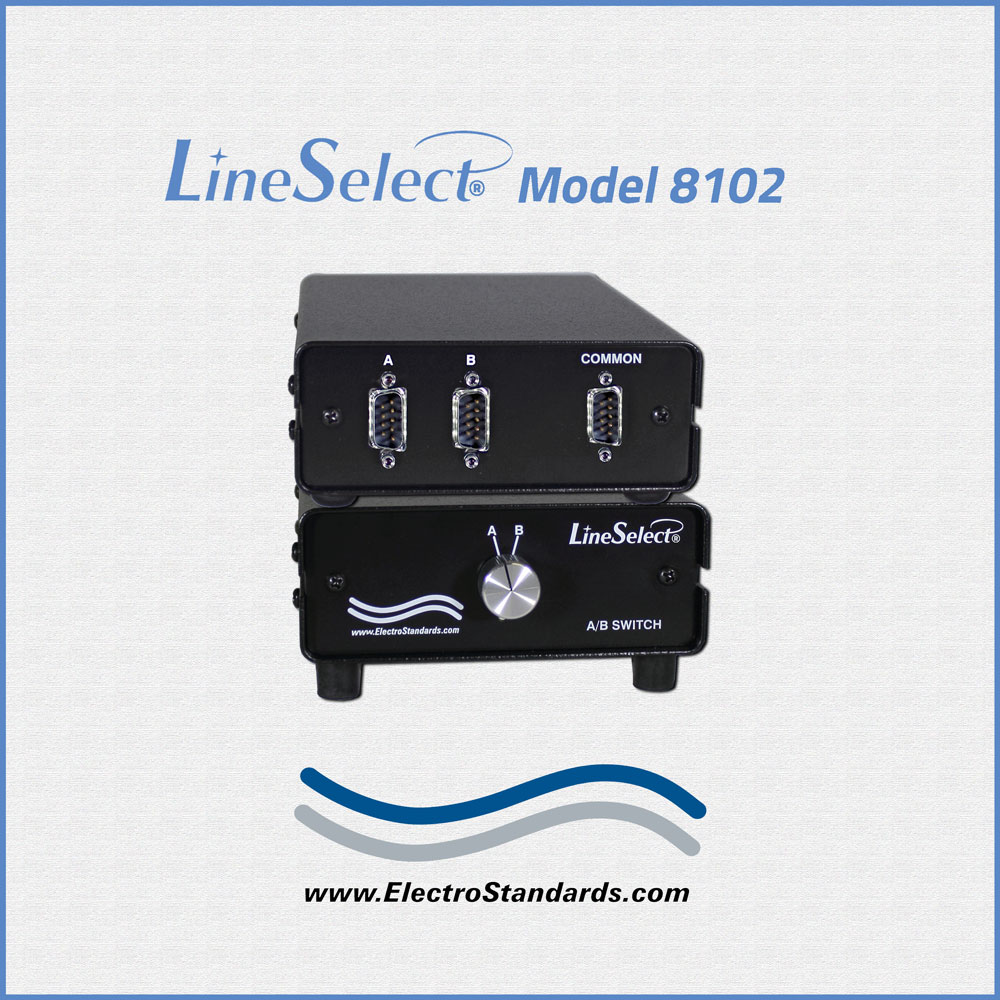

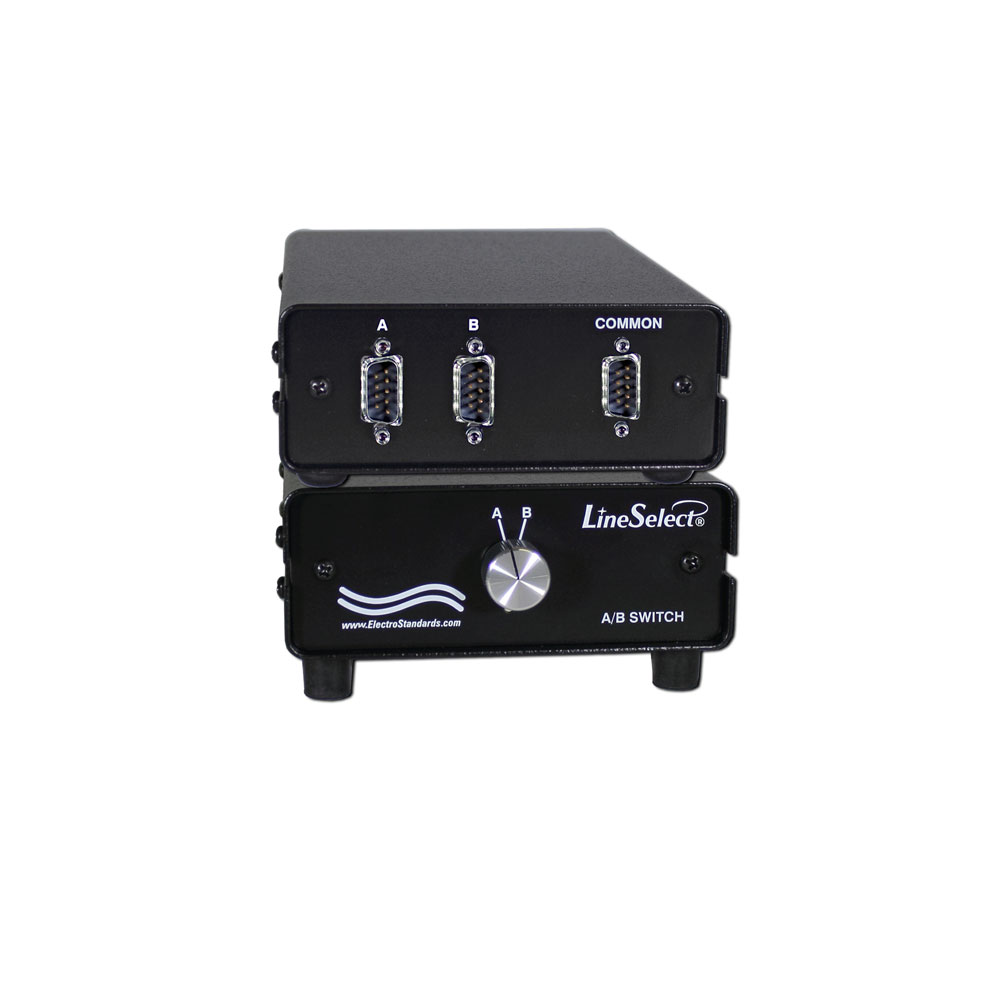

The LineSelect® Model 8102 allows the user to access two DB9 devices connected to the A and B ports from one DB9 device connected to the COMMON port. Switching between devices A and B is quick and easy via the front panel rotary selector - No need to plug and unplug cables; no chance for network reconfiguration errors. The LineSelect® Model 8102 is packaged in a slim desktop style enclosure.

  •  Adds efficiency to network; allows sharing of ANY DB9 interface devices.

FEATURES OF THE MODEL 8102 DB9 MANUAL SWITCH:

  • Allows quick connection to any one of two DB9 interface devices from one COMMON device.

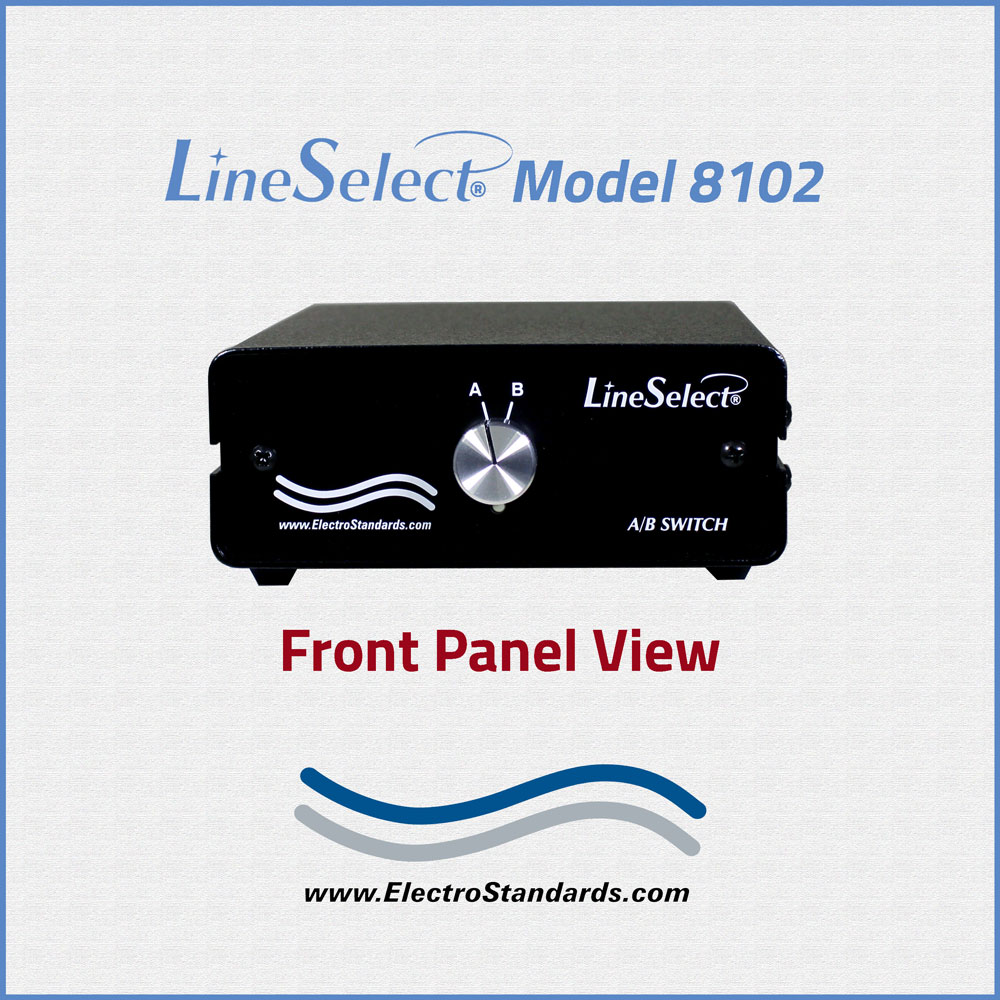

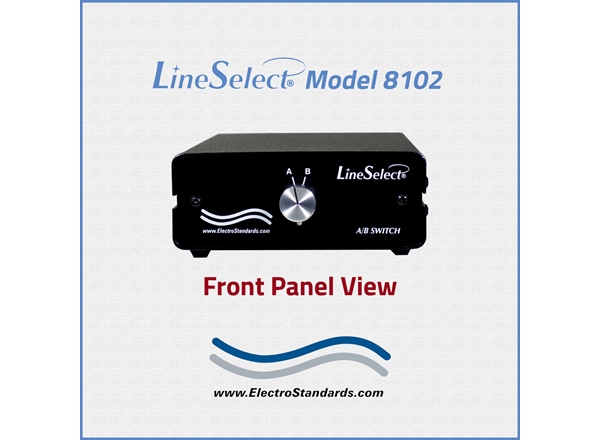

  • Manual operation via front-panel rotary switch.
  • High quality sealed switch with self-wiping low impedance contacts.
  • Transparent to data speed and format.
  • All (9) pins of the DB9 interface are switched via a break-before-make rotary switch.
  • Eliminates the need to plug and unplug cables.
  • Improves computer network efficiency by allowing sharing or peripherals.
  • No external power required.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length DB9 cables available for your switch installation.
  • Lifetime warranty against manufacturing defects.

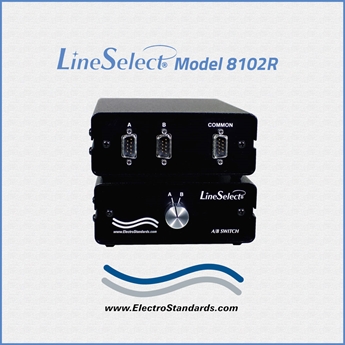

  • For a RoHS Version of the Model 8102, See Model 8102R, Cat. No. 308102R

TECHNICAL SPECIFICATIONS:

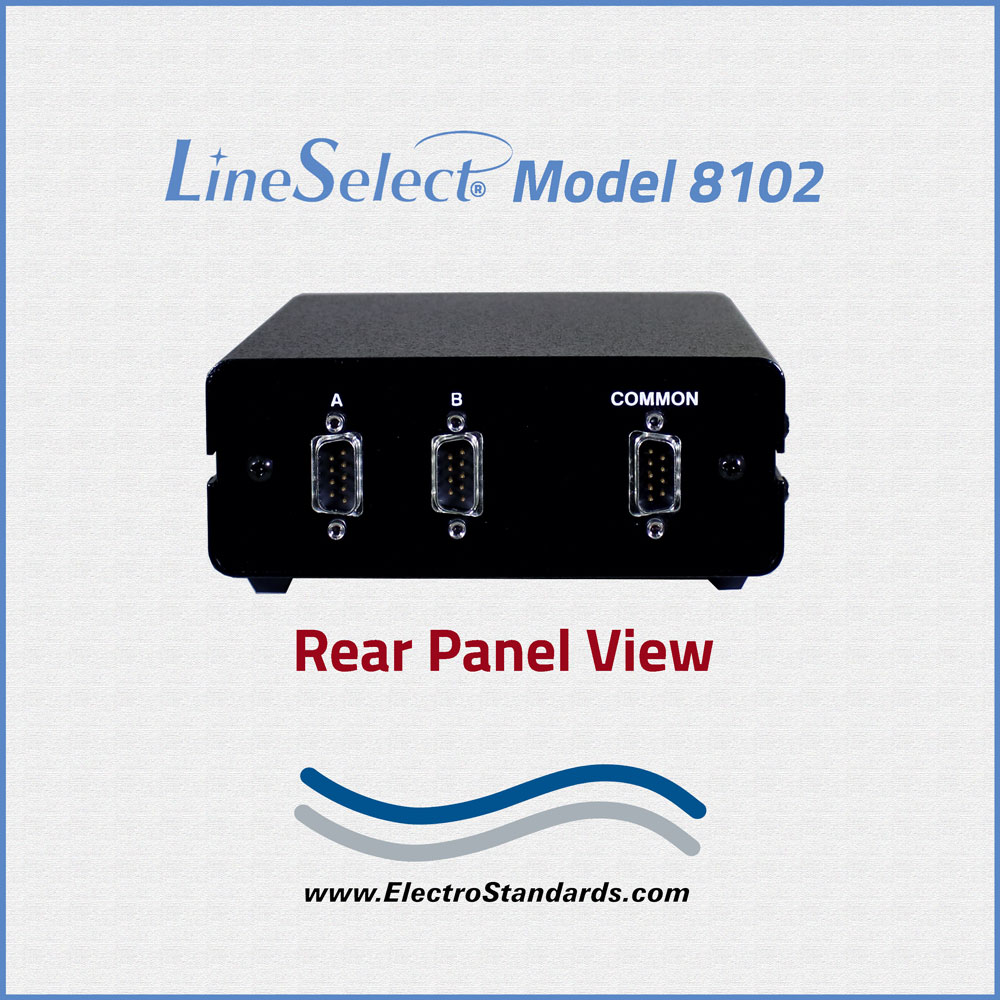

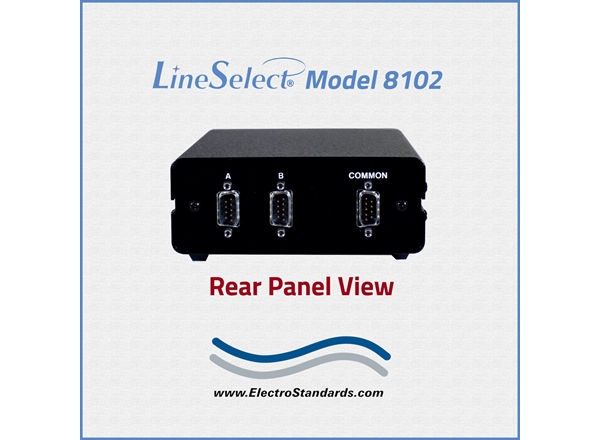

  • CONNECTORS: (3) DB9(M) ports on rear panel.
  • CONTROL: (1) Rotary switch on front panel selects A or B.
  • PINS SWITCHED: All 9 pins switched.
  • POWER: No power required
  • ENCLOSURE: Shielded Aluminum Enclosure.
  • DIMENSIONS: 5.25” W x 2.0” H x 7.25” D. (13.3 x 5.1 x 18.4 cm)
  • WEIGHT: Approximately 1.5 lbs (0.7 kg)

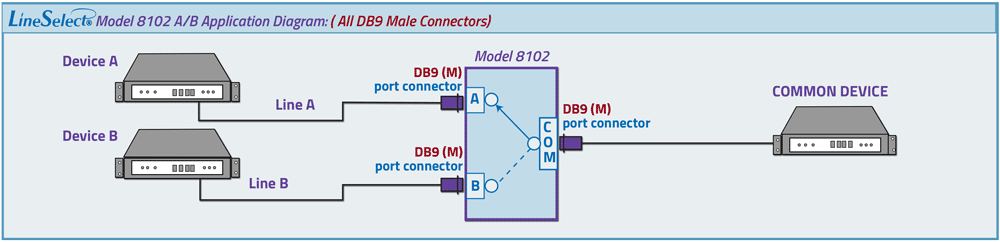

LineSelect® Model 8102 DB9 A/B Application Diagram: (All DB9 Male Connectors)

The Model 8102 DB9 A/B Switch has all DB9 Male Connectors for A, B, and Common ports. Device A and Device B have access to the COMMON Device via a Rotary Switch knob to connect Device A to the Common port
or Device B to the COMMON port.

Ordering Information

  • Catalog Number: 308102
  • Model Number: 8102
  • Base Price: See website or contact us for current pricing and availability.

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.

Shipping and Returns           UPS

  • Shipped via UPS ground (unless otherwise requested).
  • Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
  • Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

Don't forget to order your DB9 Cables!

Custom Length DB9 cables available for your switch installation.
State cable length (in Feet) when ordering.
Part Number  Description
990127 DB9 F/F, 9-Conductor Unshielded PVC Cable
990125 DB9 M/F, 9-Conductor Unshielded PVC Cable
990126 DB9 M/M, 9-Conductor Unshielded PVC Cable

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
