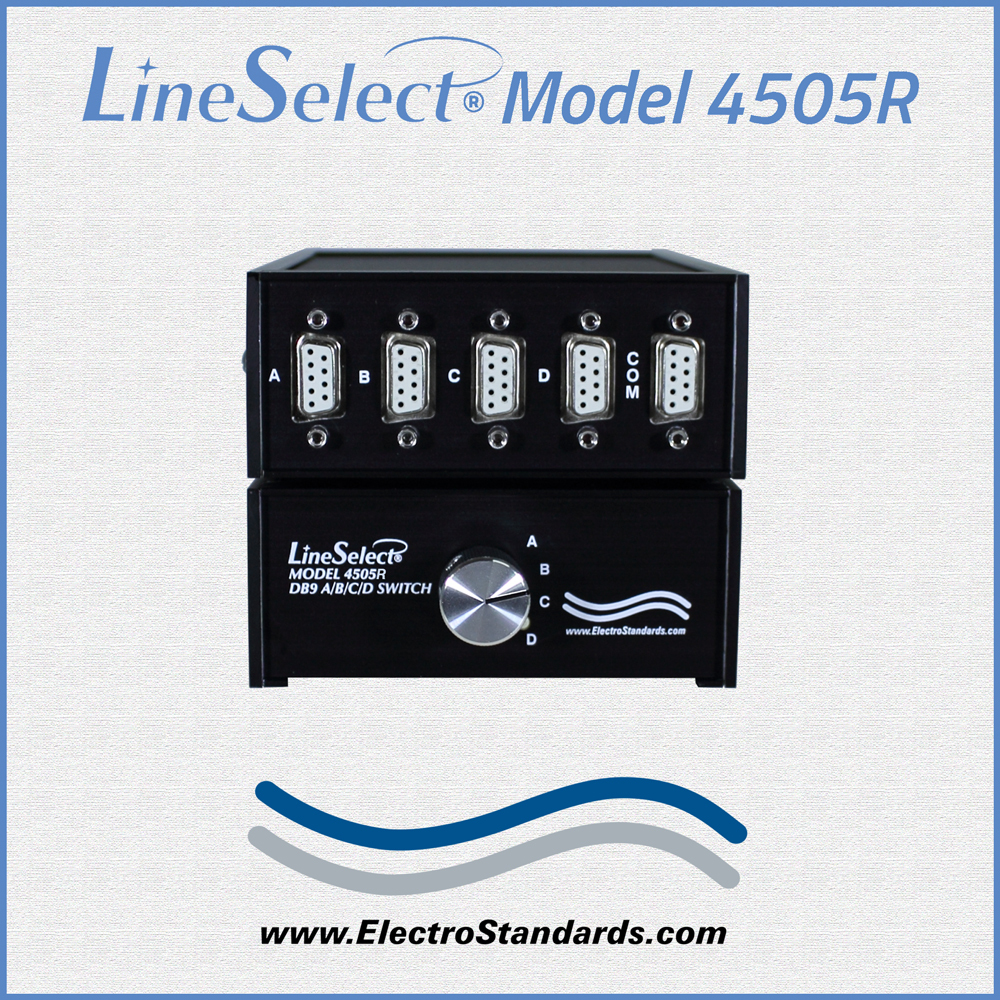

LineSelect® Model 4505R DB9 A/B/C/D Switch with Manual Operation, RoHS

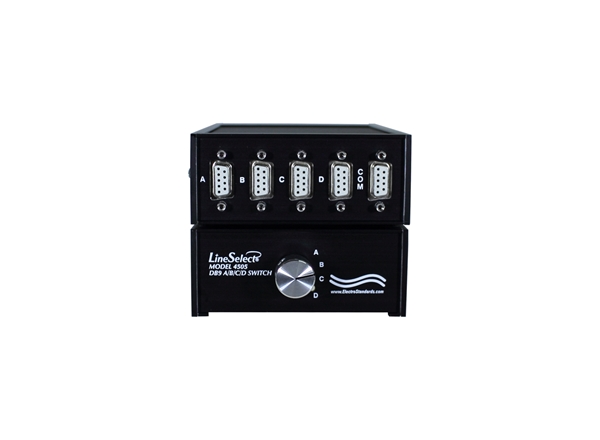

Overview

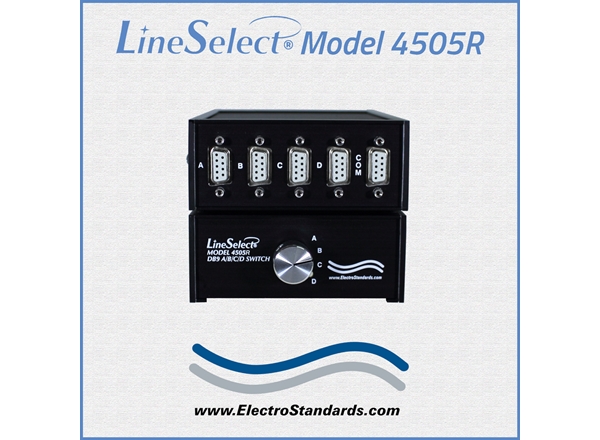

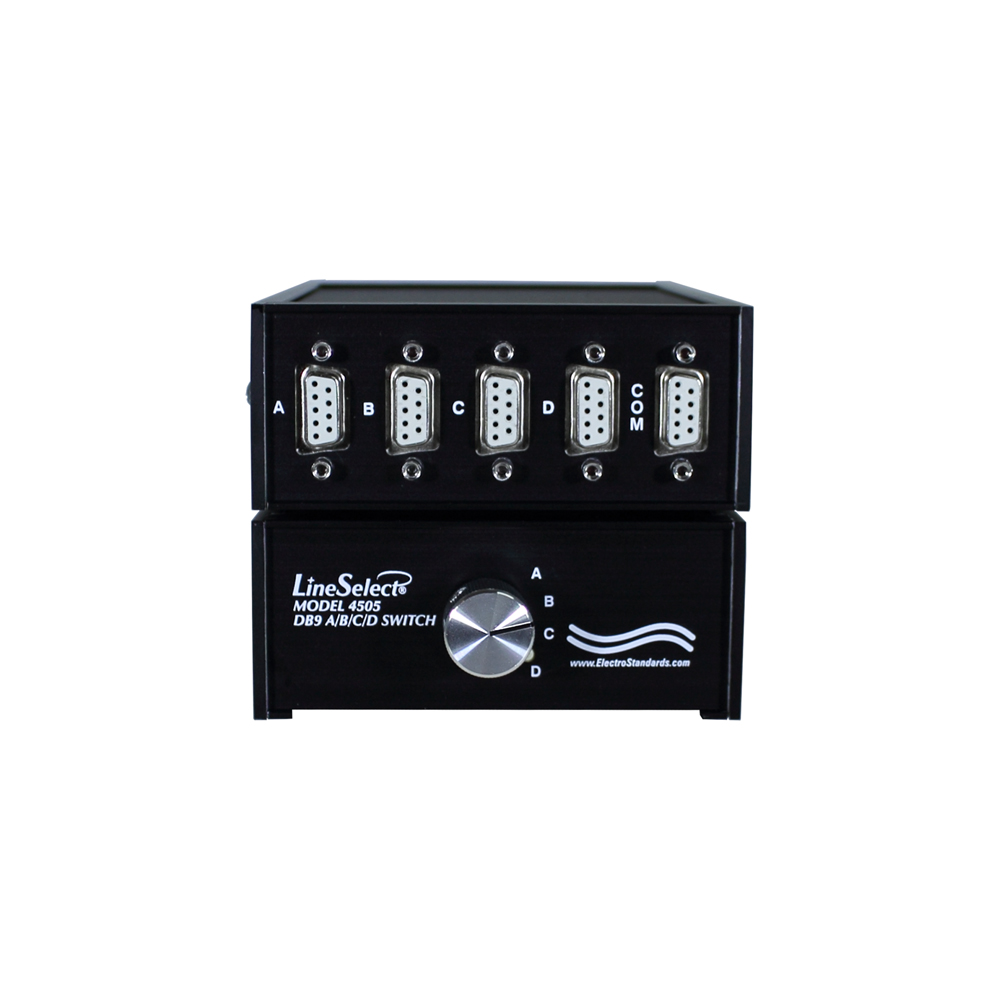

The LineSelect® Model 4505R DB9 A/B/C/D Switch with RoHS compliance allows the user to reroute data between any one of four devices to one COMMON device with the simple rotation of a selector switch.  All nine pins of the DB9 interface are supported. No need to plug and unplug interconnection cables thereby eliminating connector wear and/or errors when reconfiguring networks. The LineSelect® Model 4505R is packaged in a slim desktop style enclosure.

  • Ideal for device-sharing applications; Applicable to ANY DB9 interface devices

  • RoHS compliant

FEATURES OF THE MODEL 4505R DB9 A/B/C/D:

  • Allows quick connection to any one of four devices from one COMMON device.
  • High quality sealed switch with self-wiping contacts.
  • The switch ports are transparent to all data.
  • All (9) pins of the DB9 interface are switched via break-before-make rotary switch.
  • Eliminates the need to plug and unplug cables.
  • Manual operation, no power required.
  • Ground post terminal inside chassis and outside chassis.

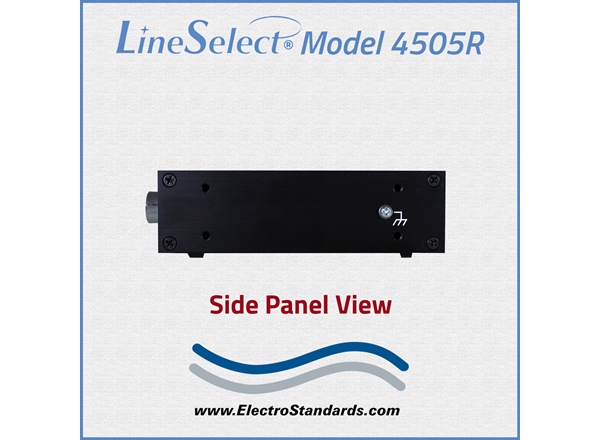

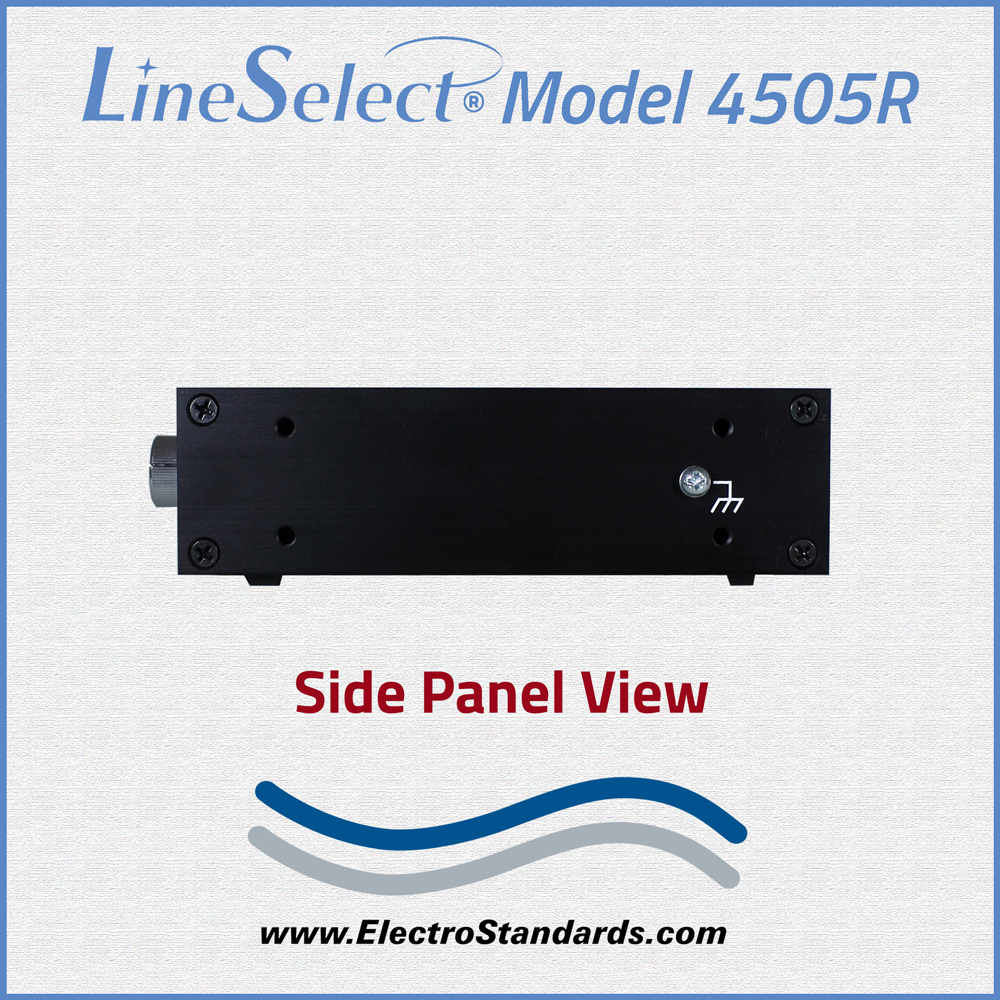

  • Rear panel chassis stud accepts spade lug for secure grounding,
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Lifetime warranty against manufacturing defects.
  • Certified RoHS compliant.
  • Custom length DB9 cables available for your switch installation.

TECHNICAL SPECIFICATIONS:

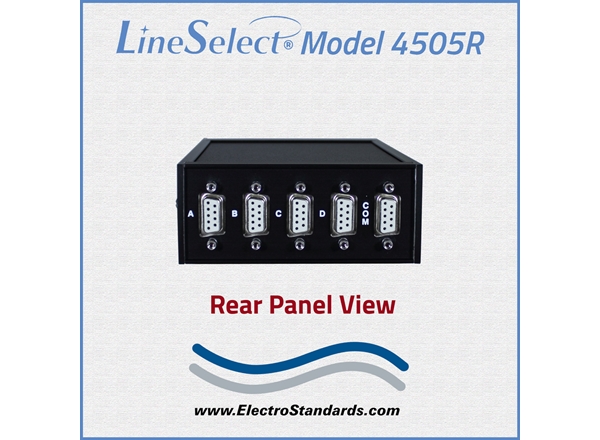

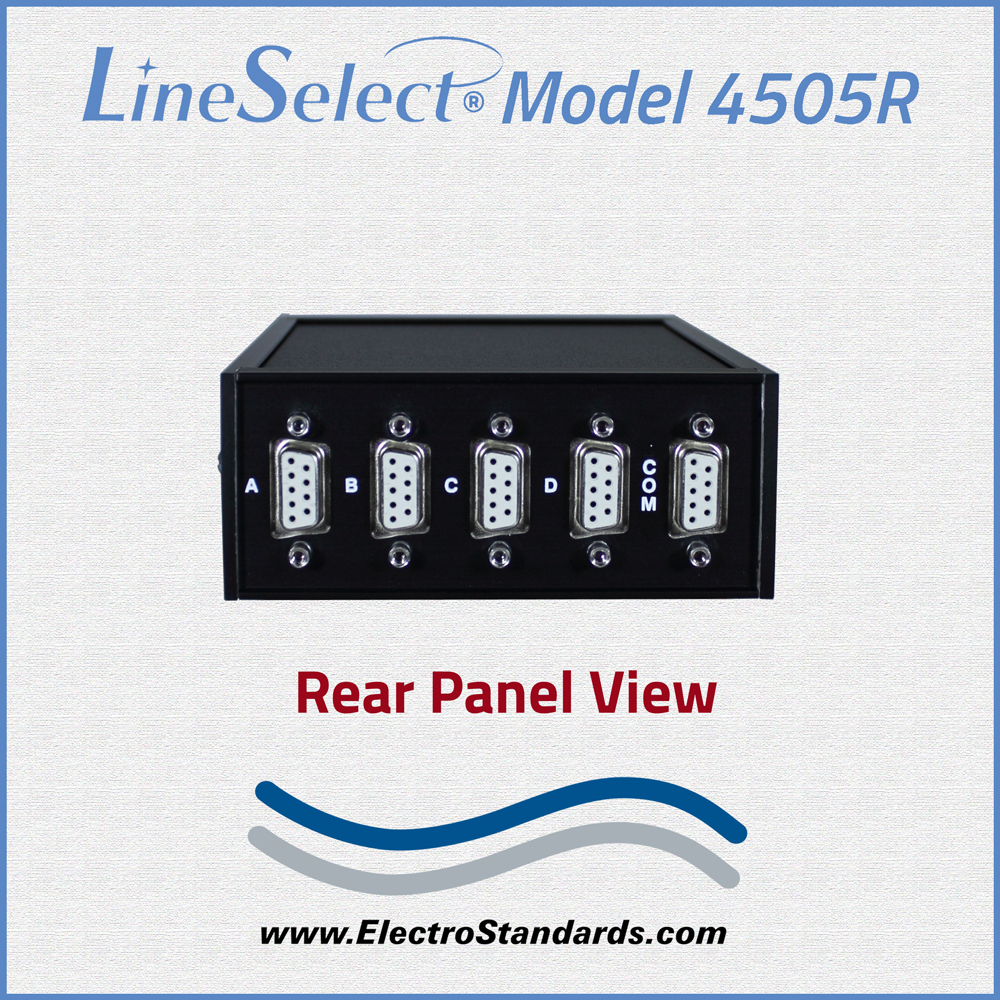

  • PORT CONNECTORS: (5) DB9 female connectors labeled A, B, C, D, and COMMON.

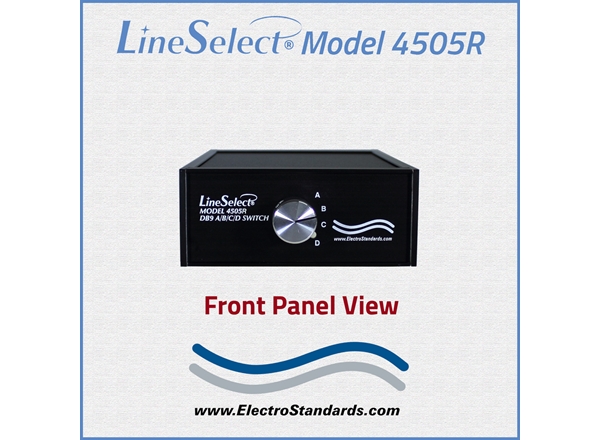

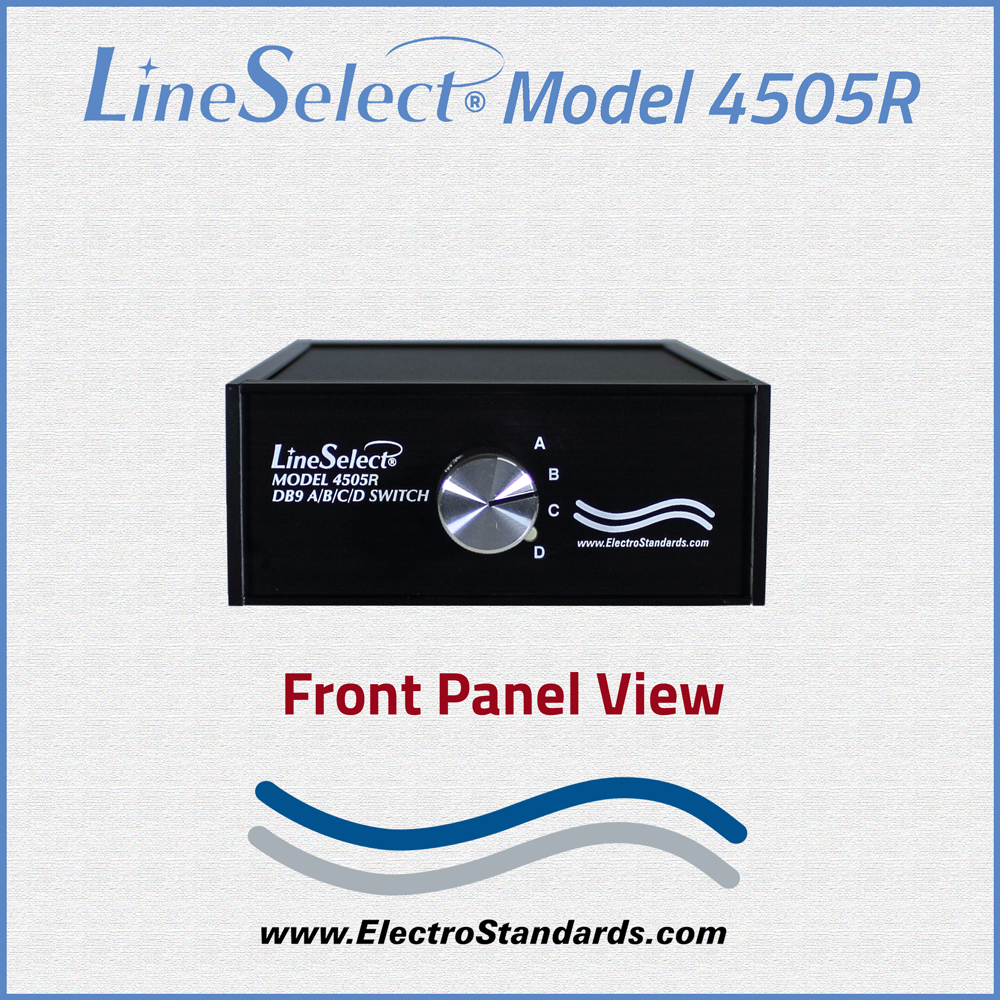

  • FRONT PANEL CONTROL: (1) Front panel rotary switch allows selection of switch position.
  • POWER: No power required. Manually operated.
  • DIMENSIONS: 4.18" W x 1.86" H x 6.68" D. (10.7 x 4.5 x 17 cm)
  • WEIGHT: Approximately 1.2 lbs. (0.6 kg)

LineSelect® Model 4505R Manually Operated DB9 A/B/C/D Switch Application:

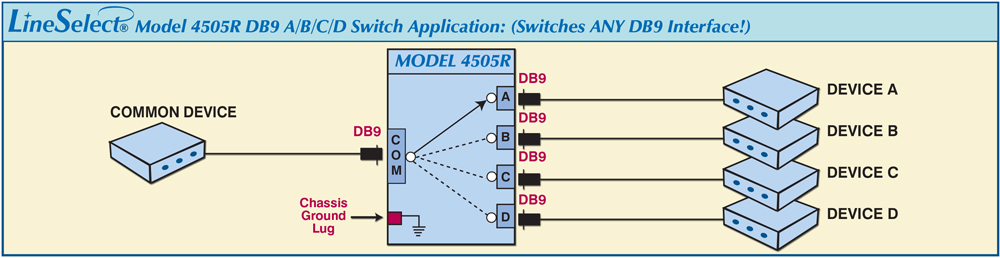

The drawing illustrates a four-position switch that is manually operated via front panel rotary knob. A COMMON device connected to the DB9 COMMON port has access to any one of four DB9 interface devices connected to the four DB9 ports labeled A, B, C and D via the front panel rotary switch selector knob.

LineSelect® Model 4505R DB9 A/B/C/D APPLICATION: Switch any DB9 interface

Internal Switch Mechanism Environmental Properties:

• HUMIDITY: To be dried in air for 30 minutes after remaining for 48 hours at the conditions of temperature 40 ±2 degrees
   Celsius and Humidity 90 – 95%.
• INSULATION RESISTANCE: More than 10 megohms
• CONTACT RESISTANCE: Less than 25 milliohms
• OPERATION/ROTATION TORQUE: Within 10% -30% of initial value.
• Whole should not defect in appearance or in mechanical function.
• TEMPERATURE: -10 degrees Celsius to 60 degress Celisus

Don't forget to order your DB9 Cables!

Custom Length DB9 cables available for your switch installation.
State cable length (in Feet) when ordering.
Part Number  Description
990127 DB9 F/F, 9-Conductor Unshielded PVC Cable
990125 DB9 M/F, 9-Conductor Unshielded PVC Cable
990126 DB9 M/M, 9-Conductor Unshielded PVC Cable

Ordering Information

  • Catalog Number: 304505R
  • Model Number: 4505R
  • Base Price: See website or contact us for current pricing and availability.

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.
