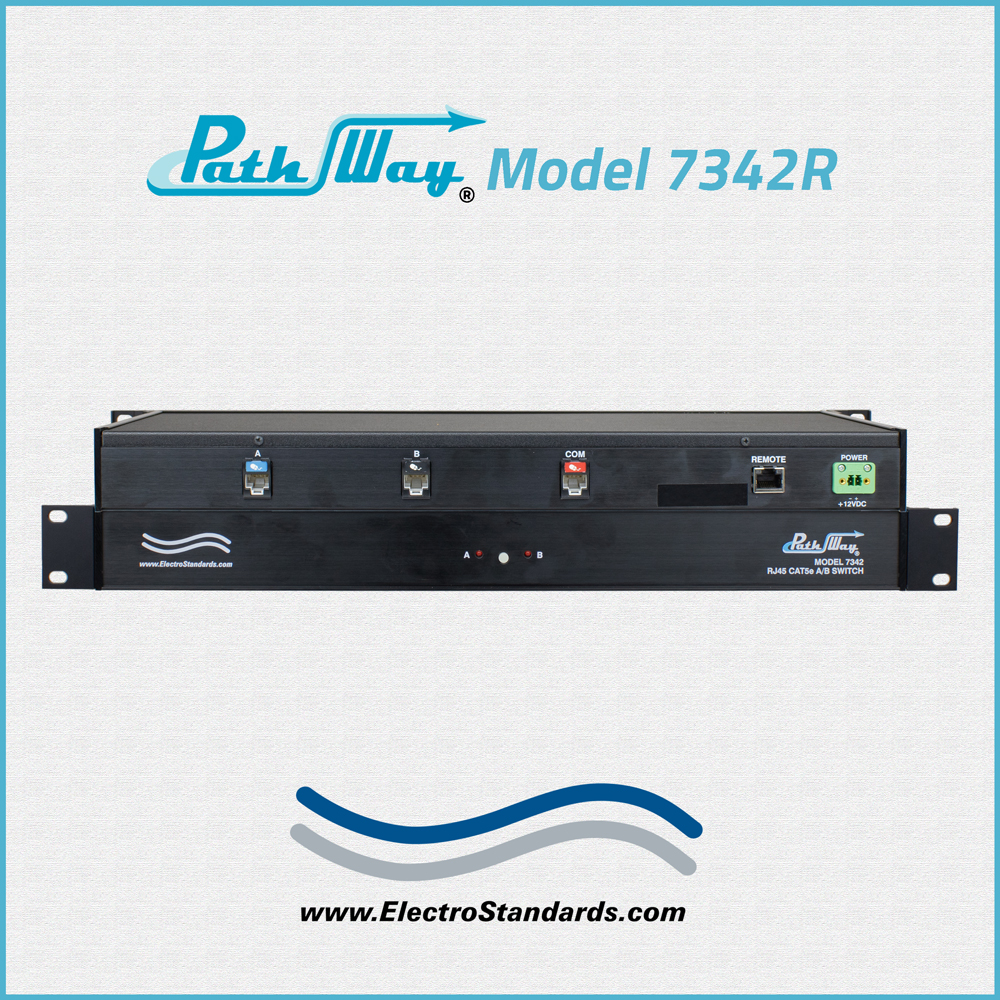

Catalog # 304243R - Model 7342R RJ45 CAT5e A/B Switch, Telnet, RoHS

    RJ45 Cat5e A/B Switch, Telnet Remote, RoHSRJ45 Cat5e A/B Switch, Telnet Remote, RoHSRJ45 Cat5e A/B Switch, Telnet Remote, RoHSRJ45 Cat5e A/B Switch, Telnet Remote, RoHS
Click image to enlarge
    • RJ45 Cat5e A/B Switch, Telnet Remote, RoHS
    • RJ45 Cat5e A/B Switch, Telnet Remote, RoHS
    • RJ45 Cat5e A/B Switch, Telnet Remote, RoHS
    • RJ45 Cat5e A/B Switch, Telnet Remote, RoHS
Base Price:
$1,494.00
Catalog No: 304243R
Model No: 7342R
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:RJ45
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Ethernet
Compliance/Standards:Cat5e, RoHS
Configuration:Rackmount
Remote Port:RJ45

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Path Way® Remotely Controllable Network Switch, RJ45, Cat5e
Model 7342R RJ45 A/B Cat5e Switch / Rackmount with 10/100 Base-T Remote Interface, RoHS

  • IP Addressable, Cat 5e Compliant! Remote Control Port accepts TELNET commands.

SPECIFICATIONS:

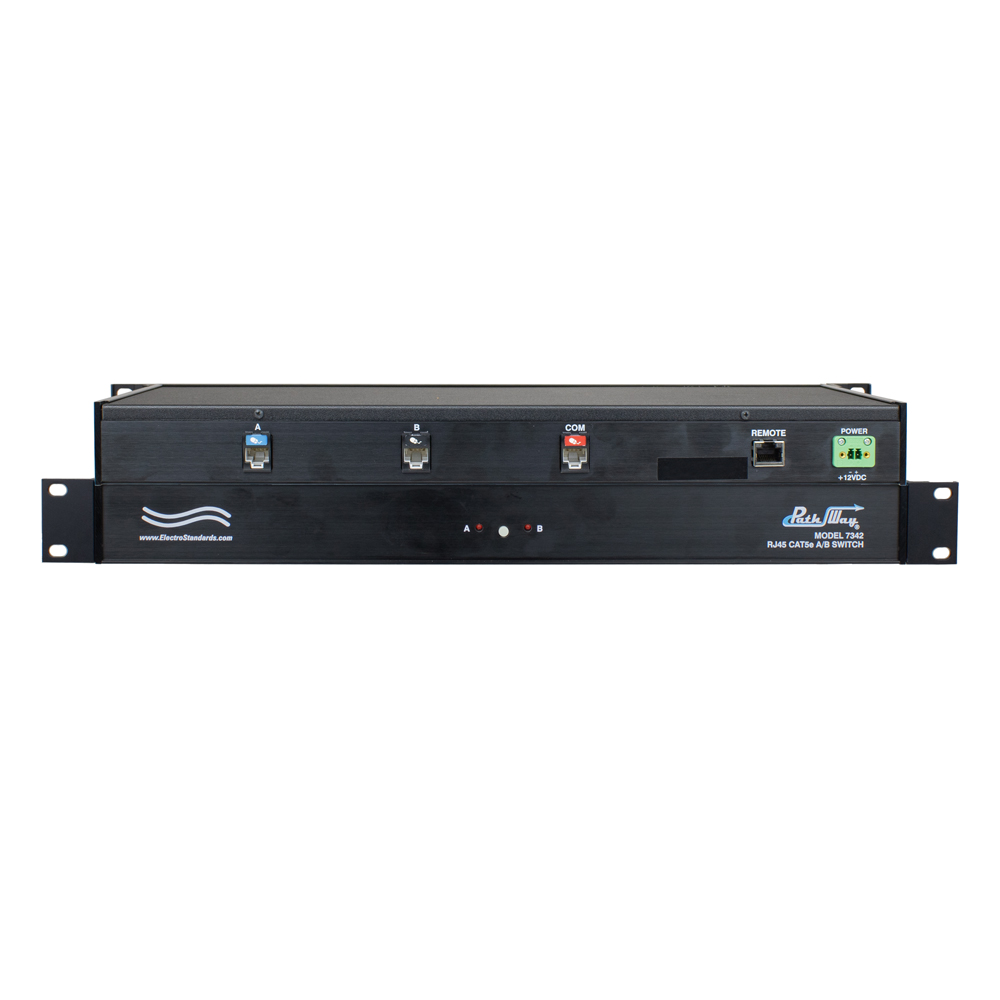

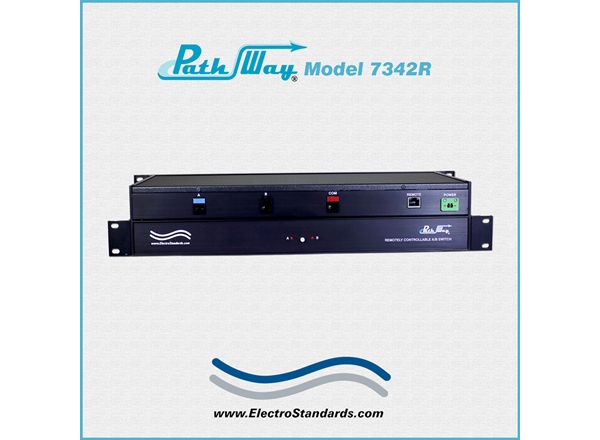

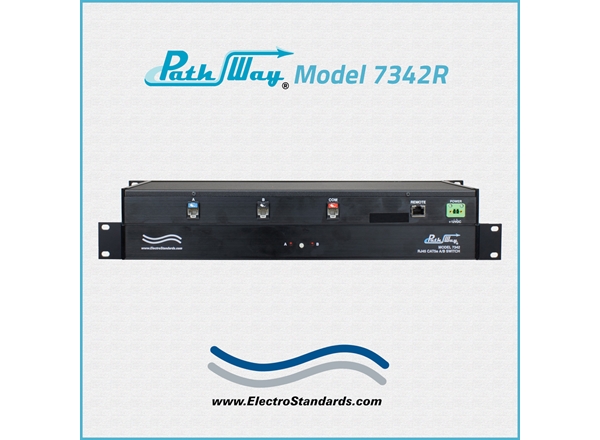

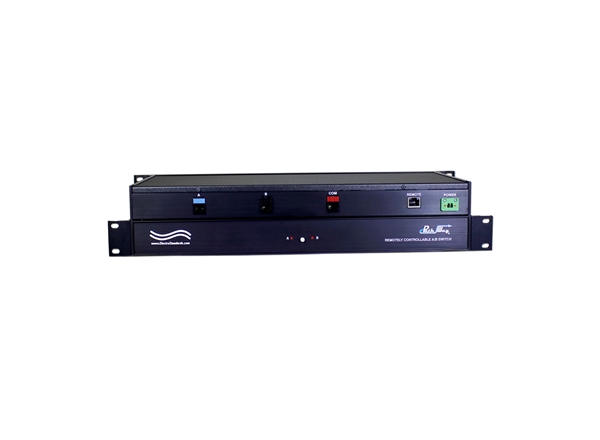

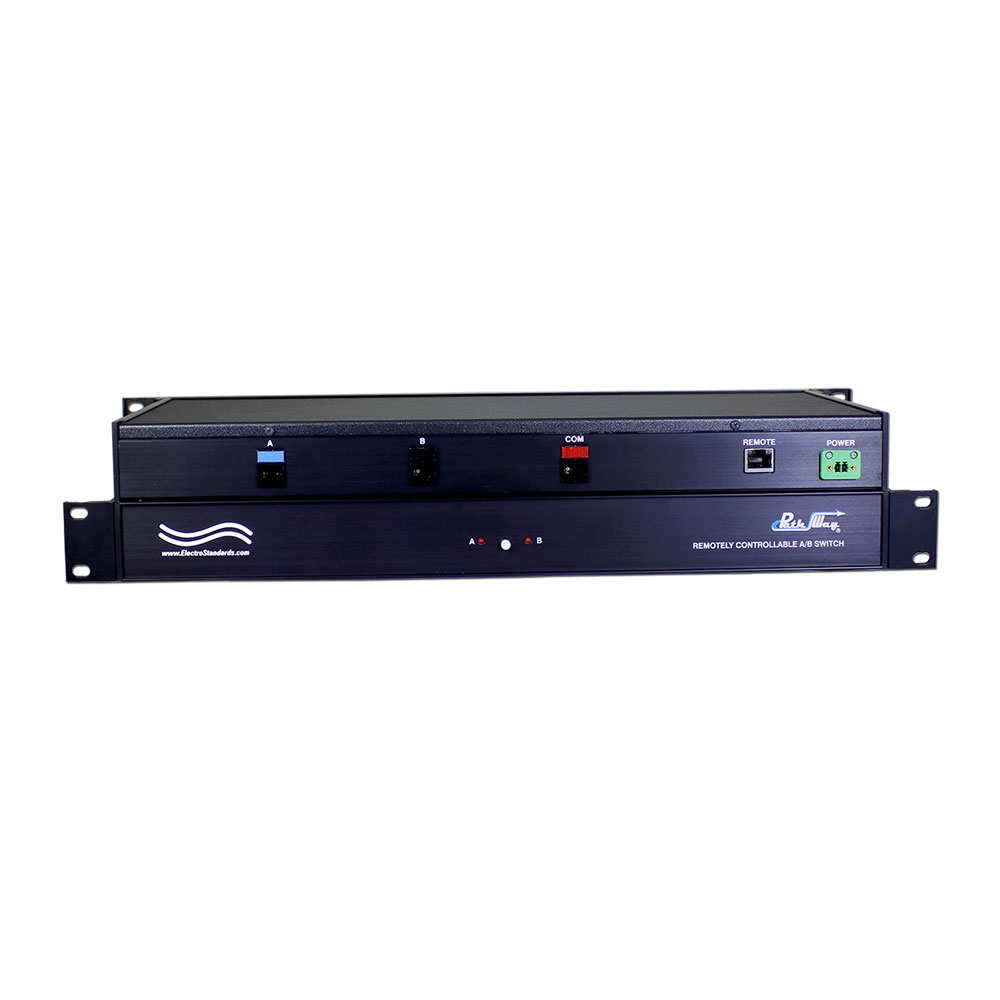

  • PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and COMMON.

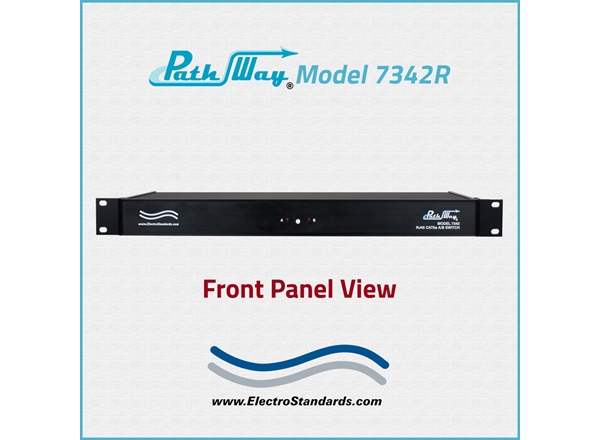

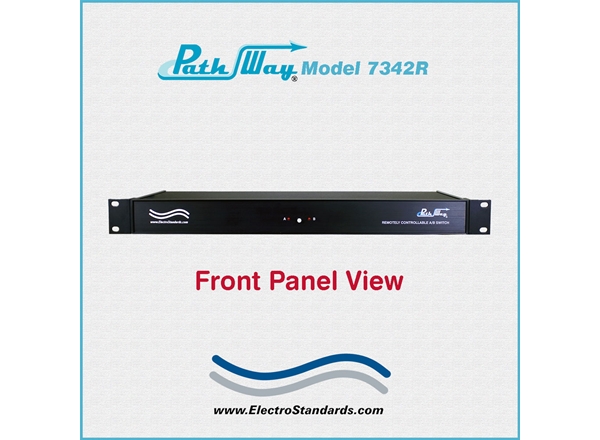

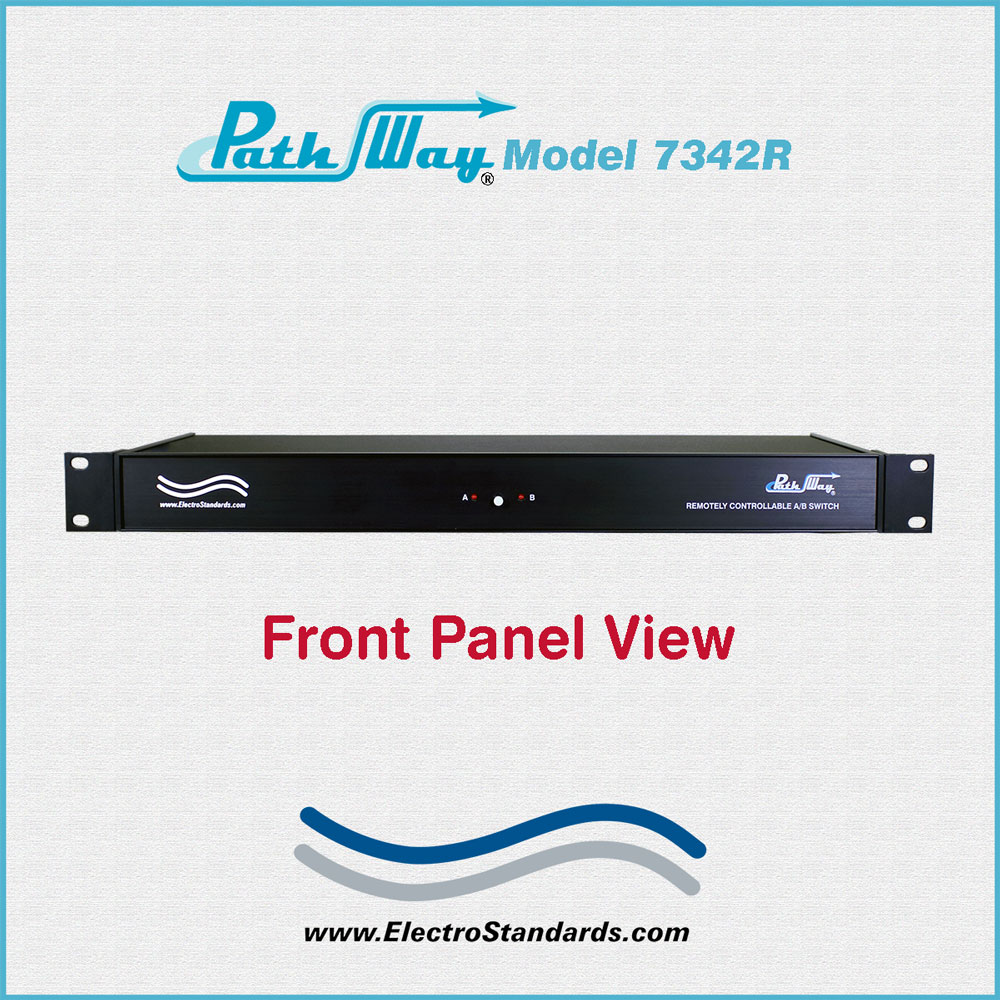

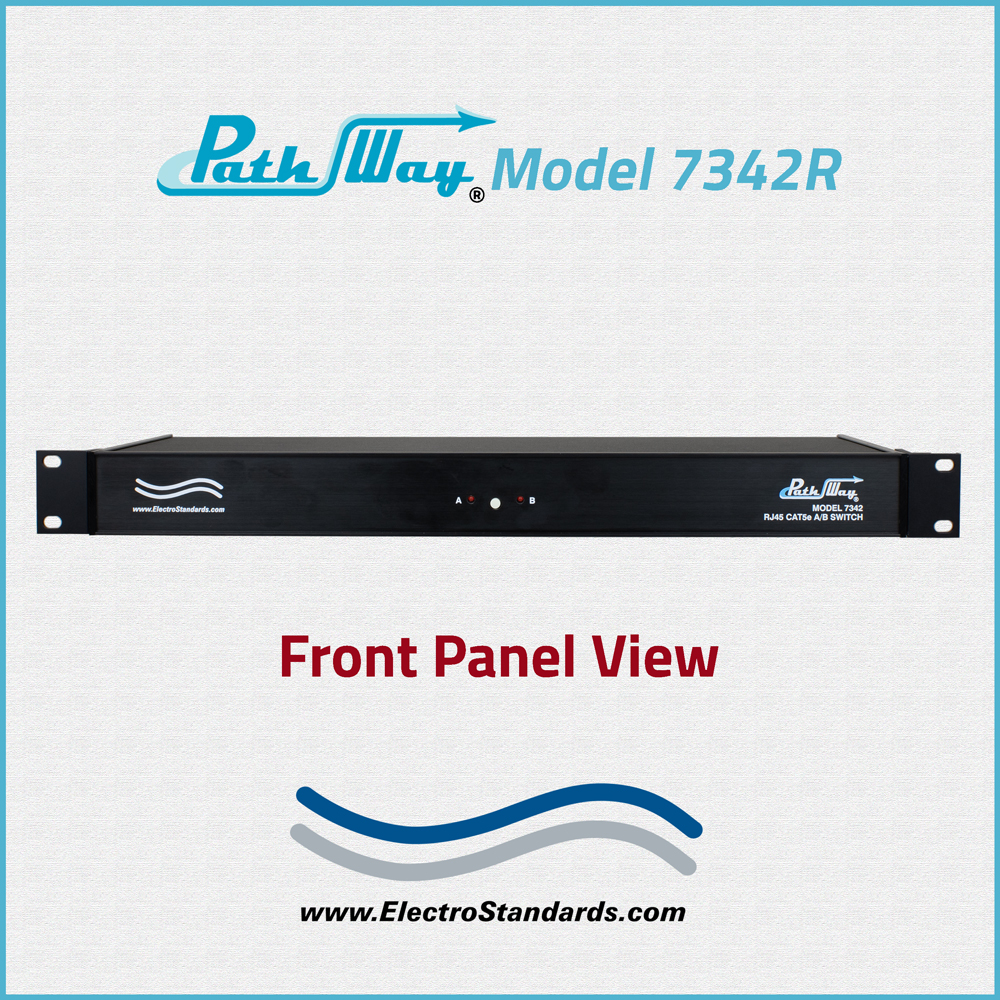

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.

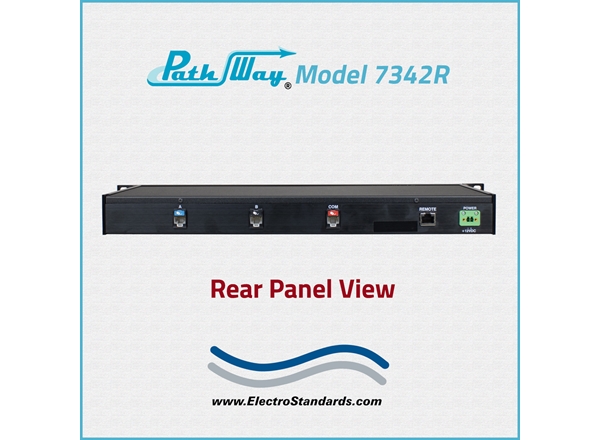

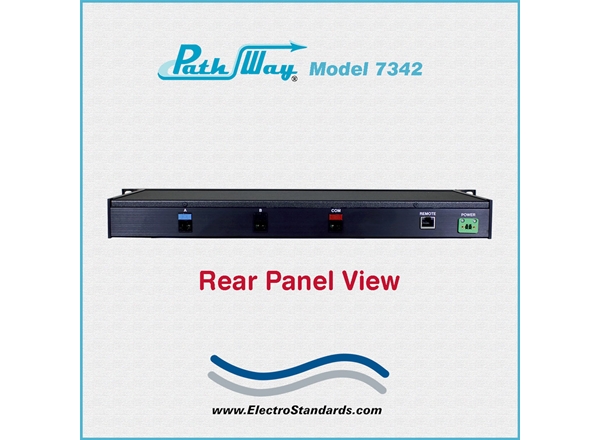

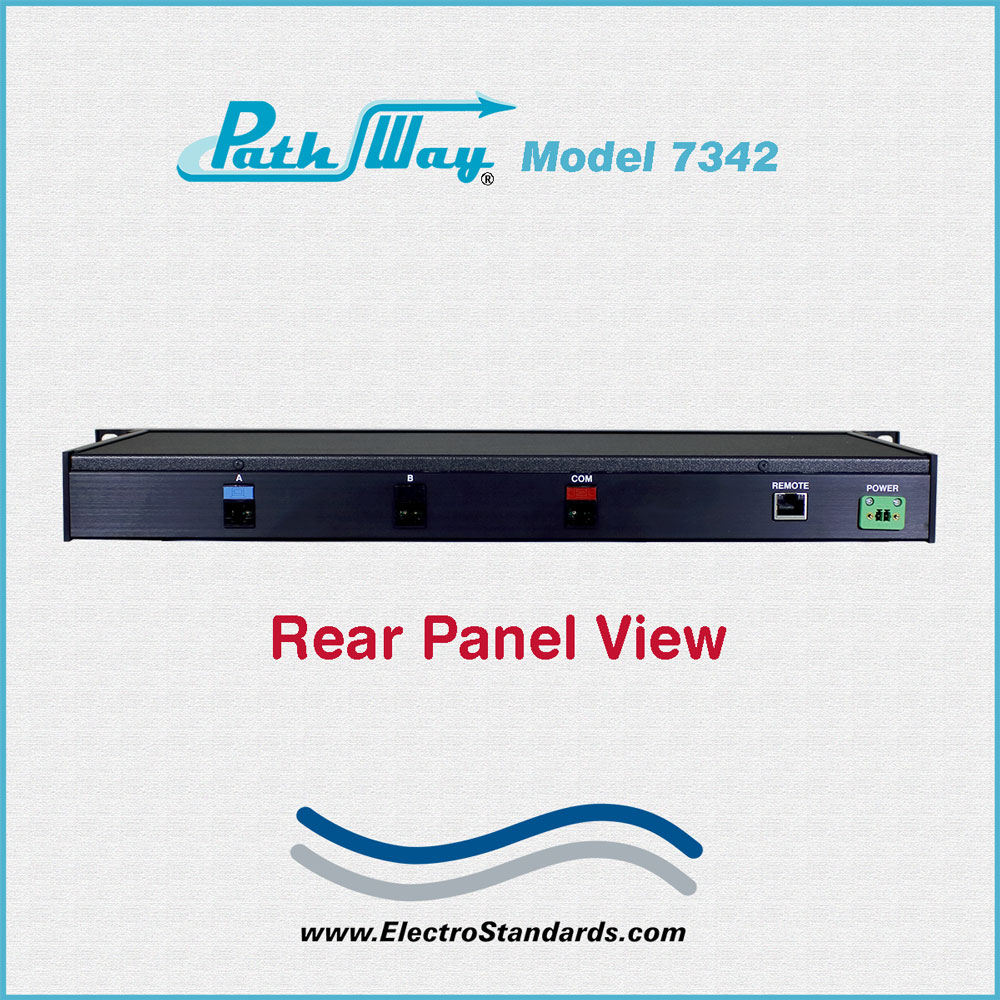

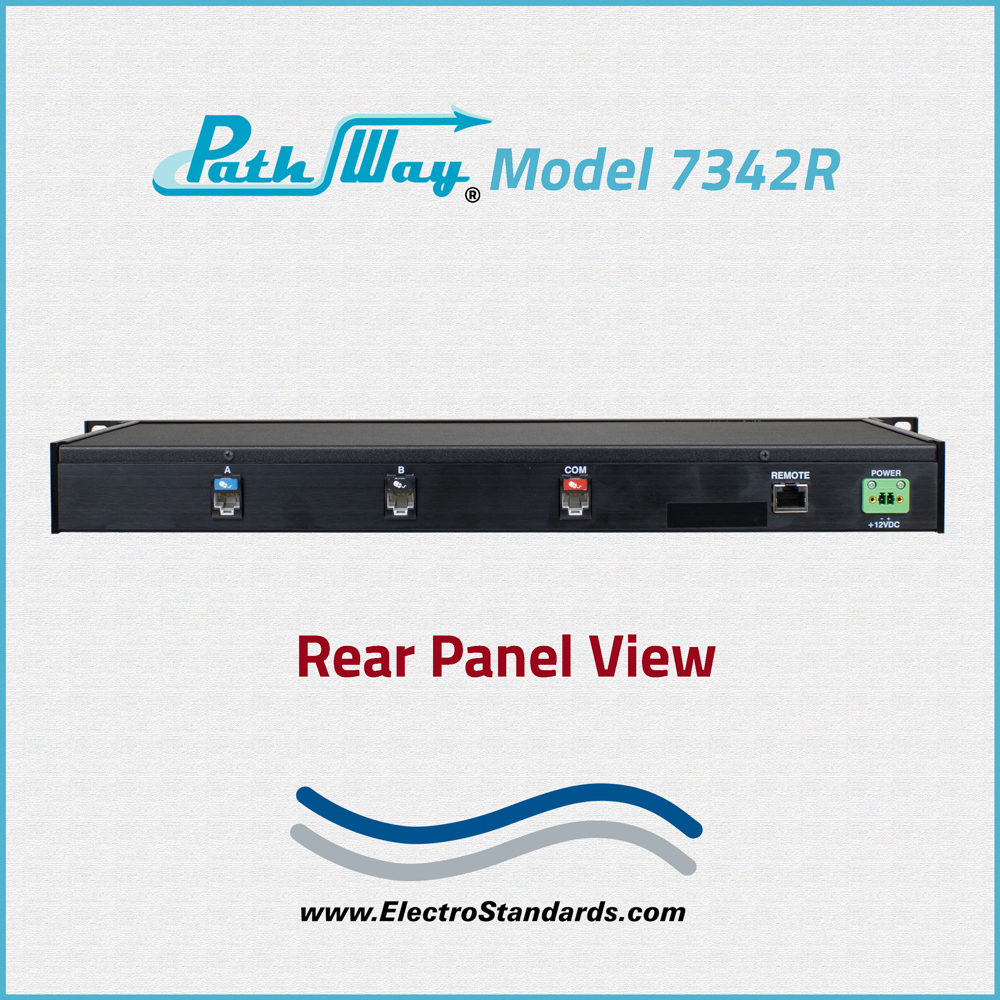

  • REMOTE CONTROL: (1) RJ45 female connector on rear panel accepts 10/100 Base-T LAN access Ethernet for Remote Control operation. Password Protected.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US non-polarized plug.
  • DIMENSIONS: Rackmount 19.0" W x 8.0" D x 1.75" H. (48.3 x 4.4 x 20.3 cm).
  • WEIGHT: Approximately 4.5 lbs. (2.0 kg)

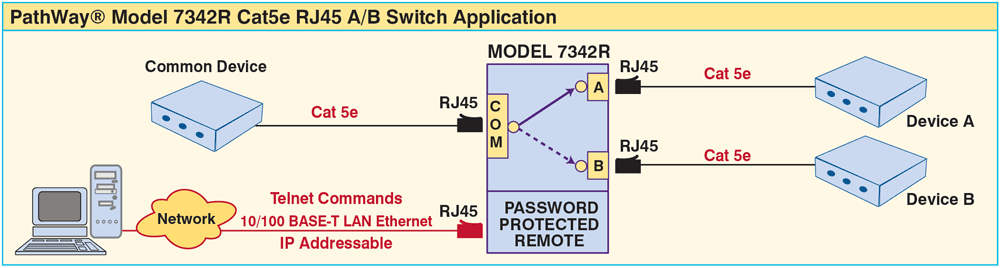

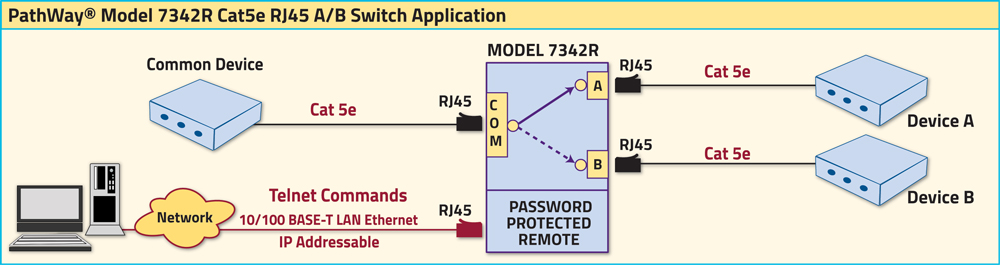

PathWay® Model 7342R Cat5e RJ45 A/B Switch Application w/10/100 BASE-T REMOTE (Telnet Commands):

The drawing illustrates a Cat5e RJ45 A/B switch with 10/100 Base-T Remote.  An interface device connected to the RJ45 COMMON port  is sharing between two interface devices connected to the RJ45 A and B ports. The RJ45 Remote accepts 10/100 Base-T LAN access Ethernet for Remote Control Operation via Telnet Commands. The Remote is password protected.

PathWay® Model 7342R Cat5e A/B Switch application w/Remote

FEATURES:

  • Allows quick connection to any one of two RJ45 devices from one COMMON device.
  • The switch ports are transparent to all data.
  • Cat 5e compliance.
  • RoHS compliance.
  • Rated for 10/100/1000 Base-T networks.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • Front panel pushbutton control.
  • Switch maintains position on power loss and continues to pass data.
  • Control of the switch position from a 10/100 Base-T LAN Ethernet environment. IP addressable.
  • Remote Control Telnet command interface that allows the user to control switch position, lockout front panel operations, obtain switch status, as well as, query firmware version number, query serial number, and enable/disable autosend of switch positions.
  • Remote control of the switch is password protected.
  • Front panel LED's display switch position and power status.
  • Attractive all metal black box packaging provides EMI/RFI shielding.
  • Custom length Cat 5e cables available for your switch installation.

PathWay® Model 7342R RJ45 Cat5e A/B Switch with Telnet allows the user the capability of sharing a single port RJ45 interface device connected to the "COMMON" port among two other devices connected to the "A" and "B" ports. The Model 7342R is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

Remote access can be accomplished using an Ethernet 10/100 Base-T connection and Telnet.

Proper authentication is required for remote access via the 10/100 Base-T connection. Users can then monitor status, lockout front panel pushbutton control, and control switch position.

OPTION: WIDE RANGE POWER MODULE (Cat. No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
