LineSelect® Model 9061 RJ45 2-Pair 10 Base-T A/B Switch Module

Overview

The LineSelect® Model 9061 switch module allows the user to switch devices connected to the COMMON port between devices connected to ports A or B with a simple push of a button. The pushbutton face changes color to indicate A or B switch status. The LineSelect® Model 9061 is an open frame module designed to be installed in the Model 9025 Rack.

The Model 9025 Rack accommodates up to 8 LineSelect® Model 9061's. The Model 9025 is a 3U, full rack size chassis designed to fit in a standard 19" rack.

Signals paired for 10Base-T compliance (1,2)(3,6).
Enables access to two networks from one computer / workstation.

FEATURES OF THE MODEL 9061 RJ45 10 BASE-T A/B SWITCH:

Manually select switch position from front panel rotary switch.
Four pins of the RJ45 interface are switched, 2-pair (1,2(3,6).
High quality sealed switch with self-wiping precious metal contacts.
Attractive anodized all aluminum packaging provides EMI/RFI shielding.
No external power required.
Up to eight Model 9061 Switch Modules can be housed in one Model 9025 Rack Chassis (Cat No 305972).
Add more modules having various switch functions as your system grows.
Municipalities, schools, government: The Model 9061 is on GSA Schedule!

TECHNICAL SPECIFICATIONS:

PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and COMMON.
FRONT PANEL CONTROL: (1) Pushbutton switch selects A or B.
POWER: Manually operated. No Power required.
DIMENSIONS: 2.0"W x 5.25"H x 7.0"D (5.1 x 13.3 x 17.8 cm)
WEIGHT: Approximately 1.0 lb. (0.45 kg)

LineSelect® Model 9061 A/B Switch Module Application:

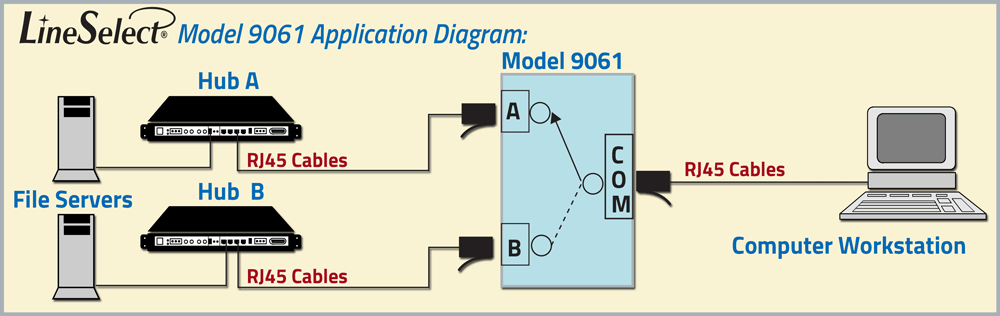

The application drawing illustrates the COMMON devices connected to the RJ45 Common port with access to Device A or Device B connected to the RJ45 A and B ports, respectively.

Lineselect Model 9061 RJ45 (2 Pair) 10 Base-T A/B Switch Module Application

System Expands to meet your needs!

This modular approach to switch system requirements allows expansion to more channels on an as-needed bases. Filler panels are available to attractively cover unused module slots. Model 9008, Cat No 305983 for a two-inch filler panel.

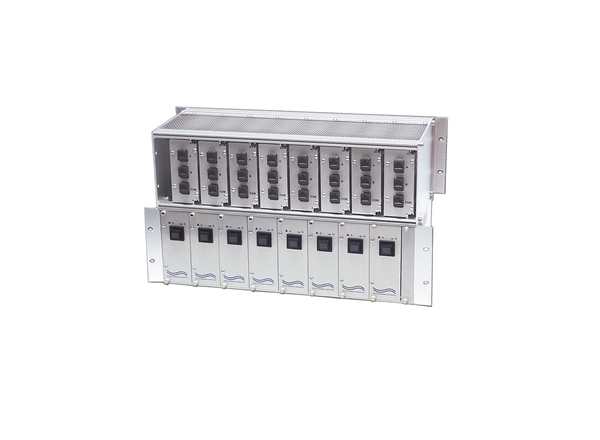

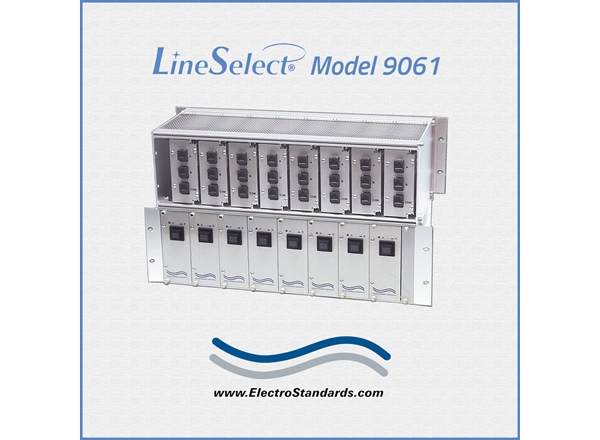

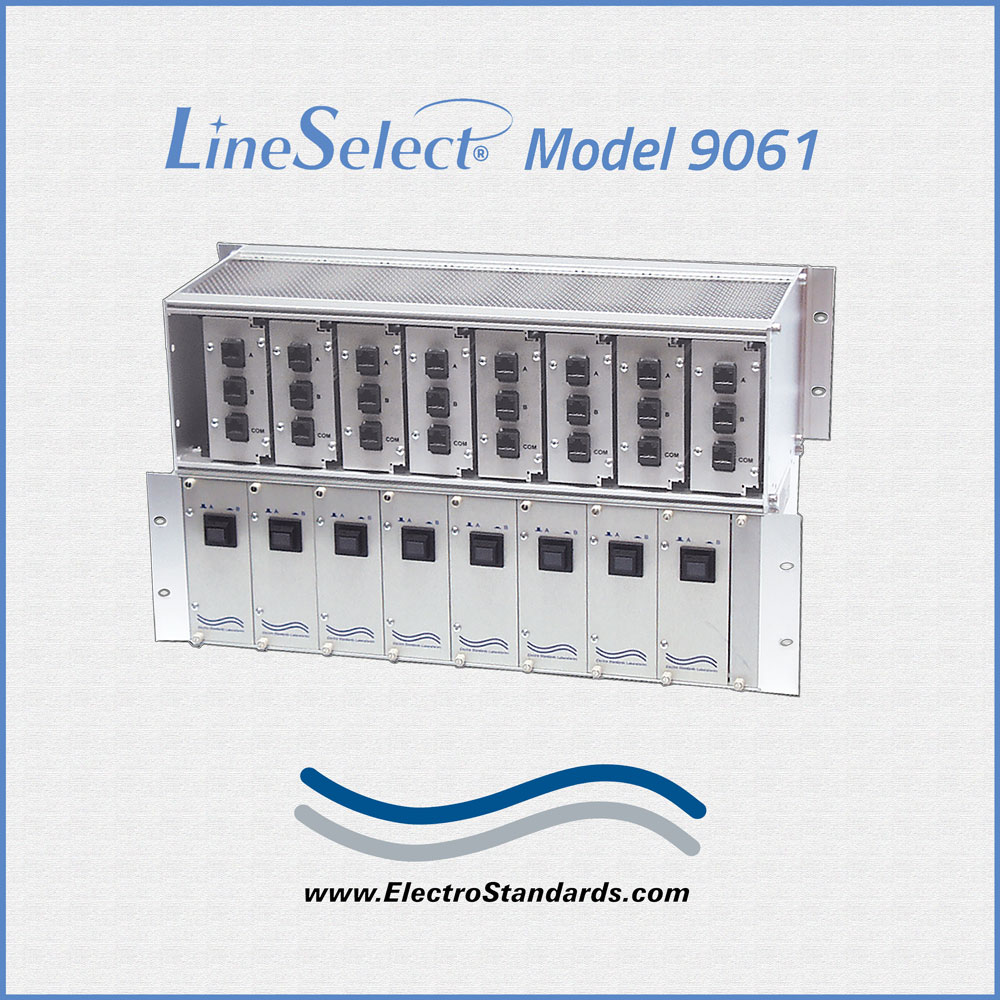

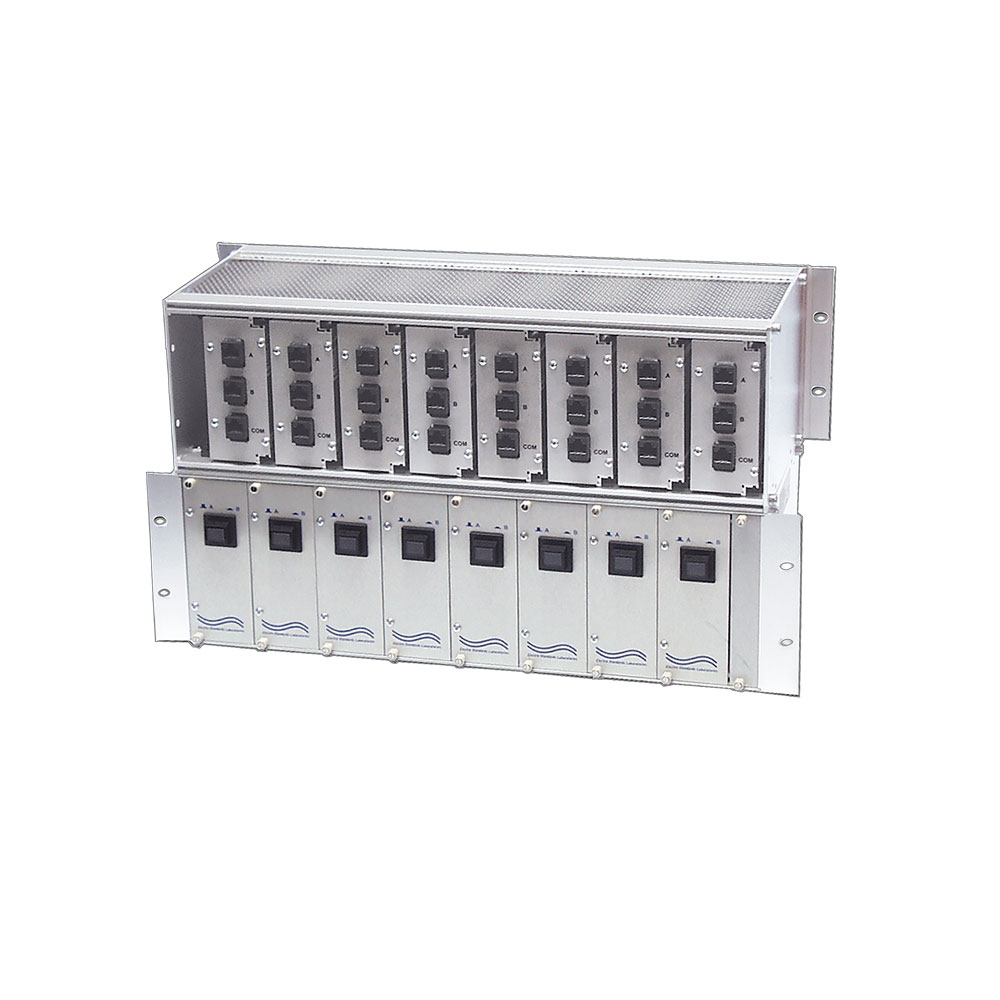

Model 9025 Rackmount Chassis for Switch Modules (Cat No 305972) Features:

Rack can accommodate up to eight Model 9061 A/B modules (2.0" W). (5.1 cm)
Rackmount chassis supports multiple switch module chassis of various widths.
Rack Size: 19" W x 5.25" H x 7" D (3U Ht). (48.3 x 13.3 x 17.8 cm)
Full opening for modules is 16.8" W. (42.7 cm)

Model 9025 Rack Mount Chassis Cat No 305972

Ordering Information

Catalog Number: 309061
Model Number: 9061
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
