Path Way® Model 7330 Remotely Controllable DB25 A/B/C/D Switch

Overview

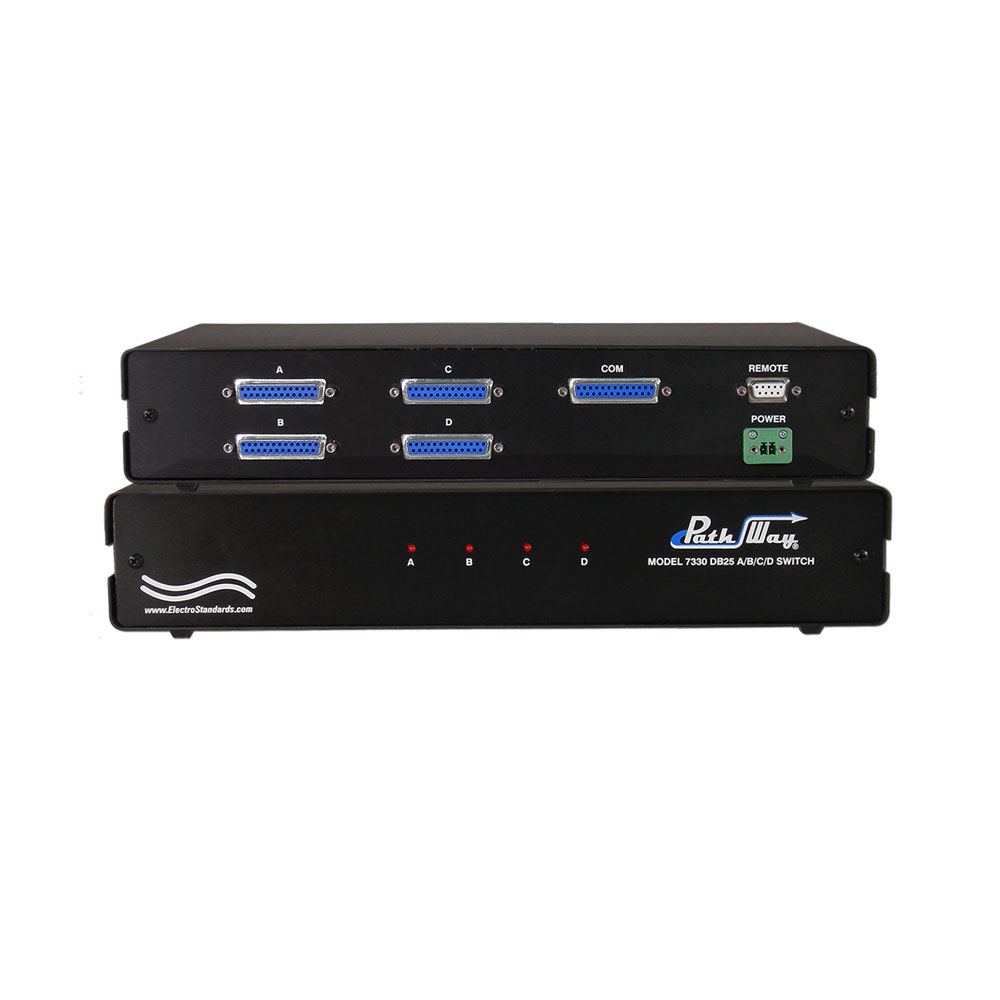

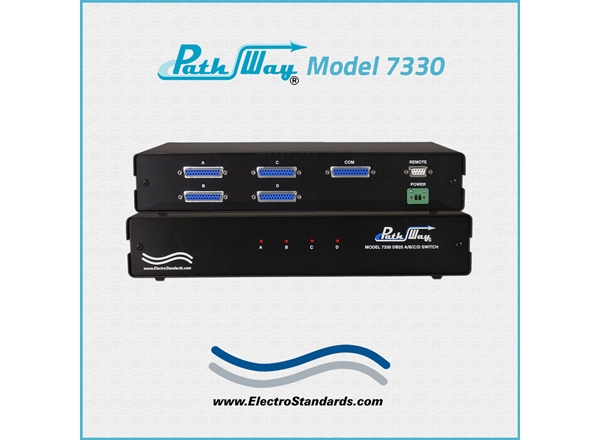

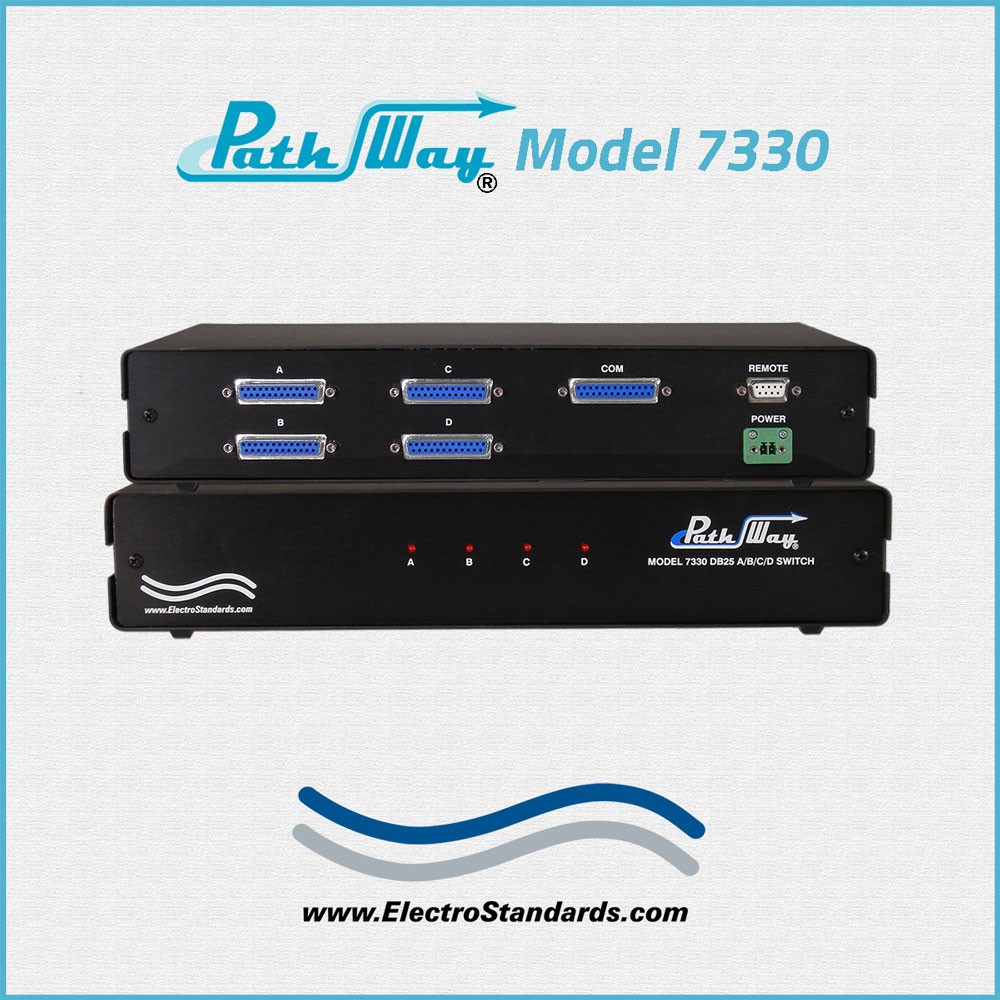

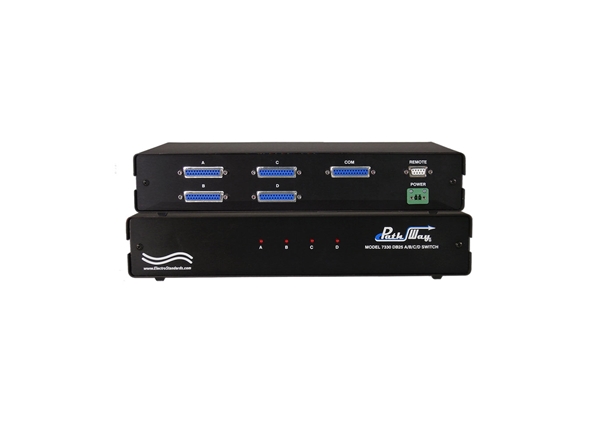

The PathWay® Model 7330 DB25 A/B/C/D Switch with RS232 Remote allows the user the capability of sharing a single DB25 interface device connected to the COMMON port among four other devices connected to the A, B, C, and D ports.  The Model 7330 is packaged in a slim desktop style enclosure.

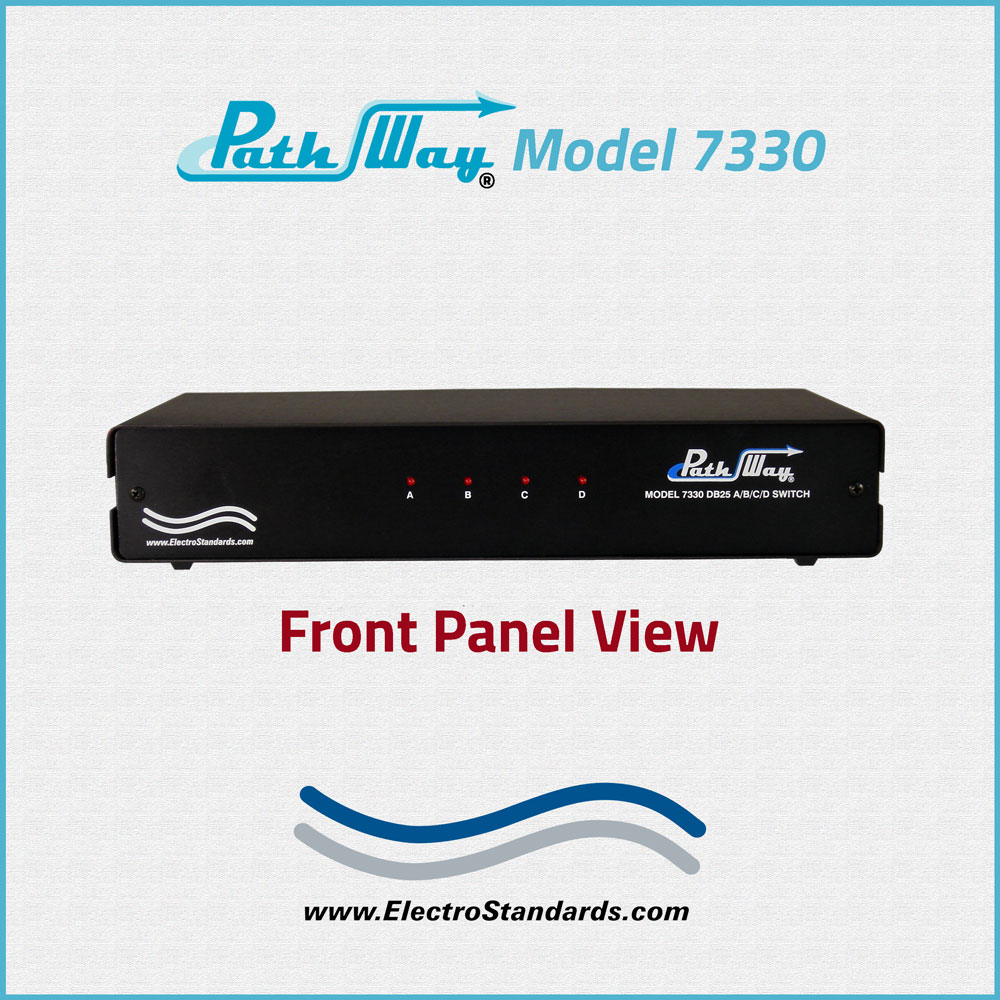

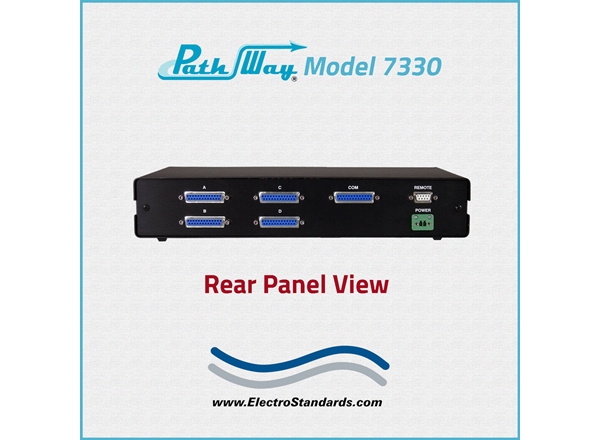

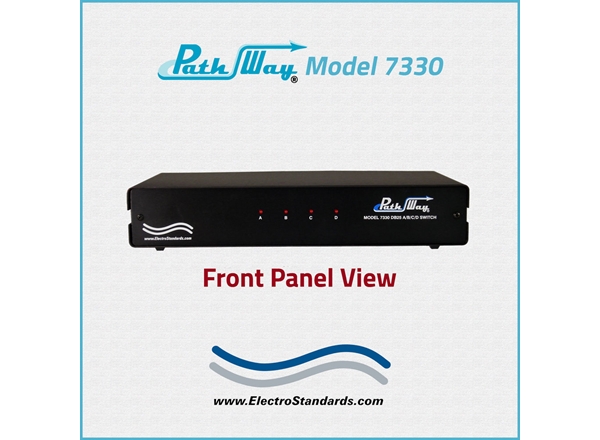

There is no "local" or front panel switch control on the unit.  The Model 7330 can ONLY be switched remotely from the DB9 Female Serial Interface Remote port located on the rear of the unit.  The front panel LED display indicates the switch position and unit power status.

FEATURES OF THE MODEL 7330 REMOTELY CONTROLLABLE A/B/C/D SWITCH:

  • Switch between four DB25 ports via a serial remote port located on rear panel.
  • The switch ports are transparent to all data.
  • All (25) pins of the DB25 interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • No front panel control.
  • Remote RS232 ASCII commands that allow the user to control switch position and obtain switch status.
  • Front panel LED's display present position and power status.
  • Exclusive remote control of switch position.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length DB25 cables are available.

TECHNICAL SPECIFICATIONS:

  • PORT CONNECTORS: (5) DB25 Female connectors labeled A, B, C, D and COMMON.
  • FRONT PANEL CONTROL: None. Switch position remotely controlled, only.
  • DISPLAY: (4) Front panel LED's display switch position and power status.

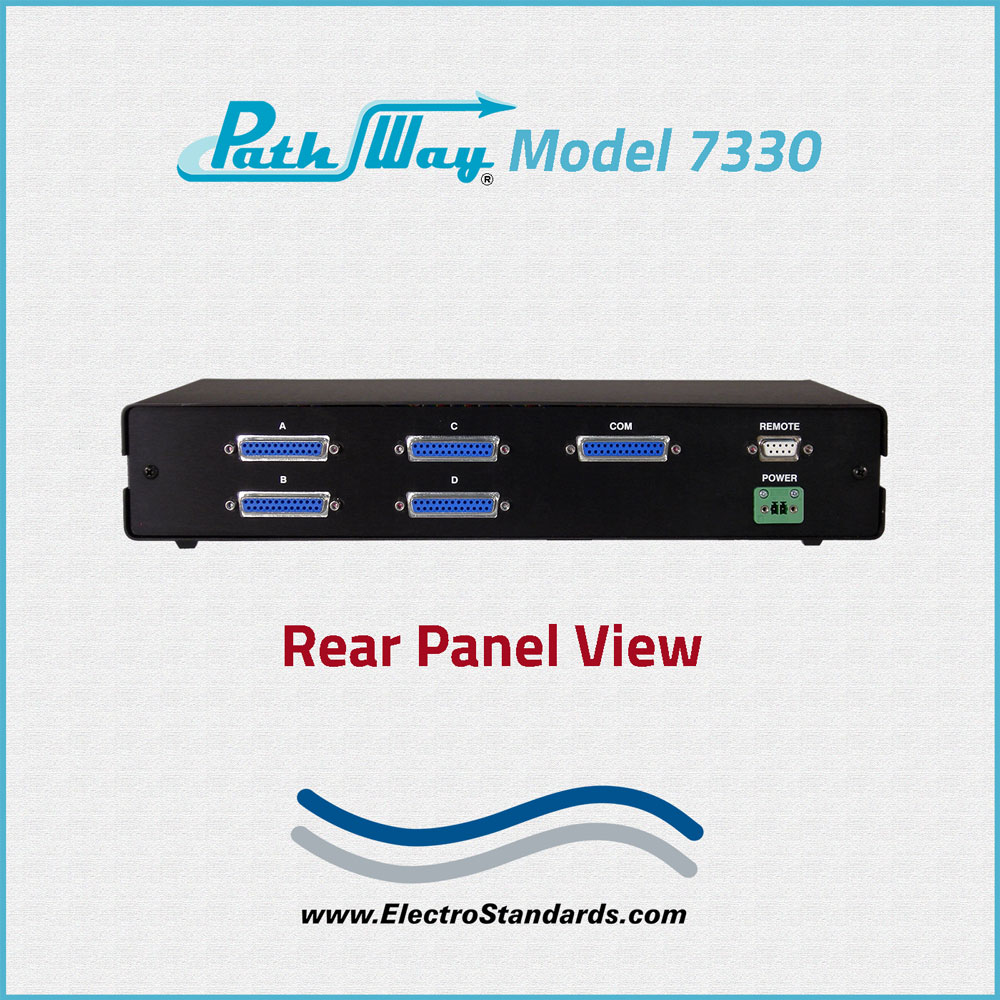

  • REMOTE CONTROL: (1) DB9 Female connector on rear panel accepts ASCII RS232 Serial Data for Remote Control Operation.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60 Hz wall mount power module supplies 12 VDC, 500mA to the unit.  Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Desktop 13.7" W x 2.7" H x 7.3" D. (34.8 x 6.9 x 18.6 cm)
  • WEIGHT: Approximately 3.3 lbs. (1.5 kg)

PathWay® Model 7330 DB25 A/B/C/D Switch Application with Exclusive Remote Control:

  • Switching "ANY" 25-Conductor Interface

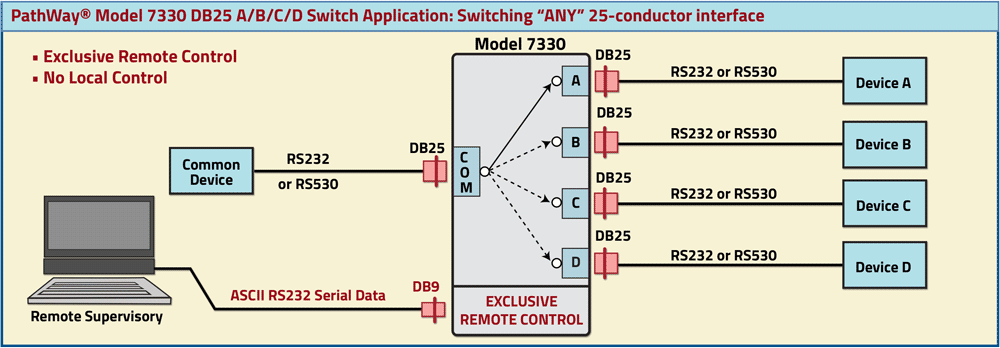

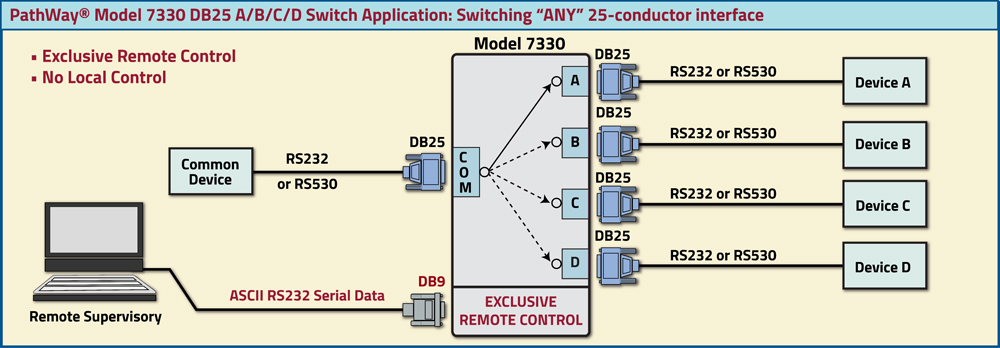

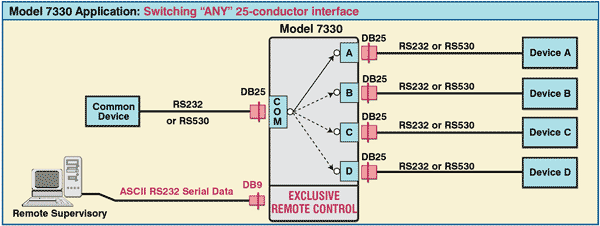

The PathWay Model 7330 application drawing illustrates a COMMON device connected to the DB25 COMMON port. The COMMON device has access to four devices connected the A, B, C and D ports. The switch is controlled remotely only via the DB9 Exclusive Remote Port using ASCII RS232 serial data commands.

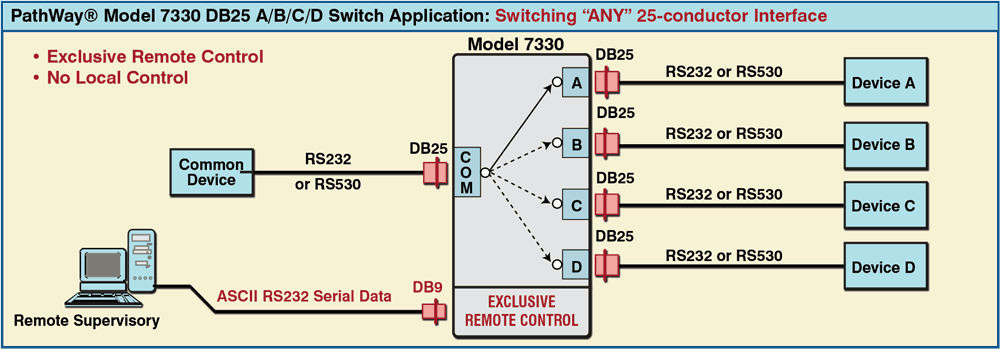

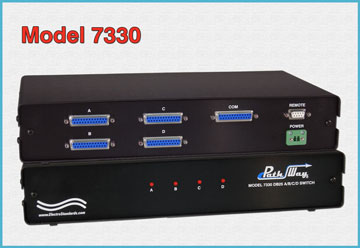

PathWay Model 7330 DB25 A/B/C/D Switch with Exclusive Remote Control

Ordering Information

  • Catalog Number: 307330
  • Model Number: 7330
  • Base Price: See website or contact us for current pricing and availability.
  • Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.
