Overview

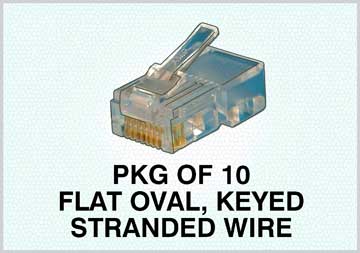

Amp Modular Plugs,
8 Position Keyed, Flat Oval, Stranded Wire
(Pkg. of 10)
Features:
- These high quality Amp modular plugs offer a true mass displacement termination of jacketed cable for stranded wire.
- These modular plugs are a one piece construction with preloaded contacts and can be terminated with round or flat cable, stranded wire.
- Construction:
- Housing: Polycarbonate, UL 94V-0
- Terminal: Phosphor Bronze: underplated with 100 µin Nickel and plated with 50µin Gold in contact region and gold flash on remainder of terminal.
- Listing/Ratings: UL and CSA. Meets FCC and EIA/TIA Industry Standard size and performance.
- Application: 8 Position Keyed, Flat Oval, Stranded Wire.
- Type: RJ-45K.

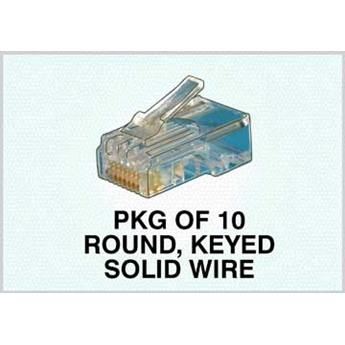

For RJ45K Round, Keyed, Solid Wire, See Cat No 502945.
Electro Standards Laboratories also manufactures all types of Copper and Fiber Optic Cable Assemblies, including MTP/MPO Fiber Solutions and Mil Spec.
We have the capability to custom design and over 30 years experience in the business!For a Custom Copper Data Network Cable Design Form:
/Products-Custom/Data-Cable/
We would be happy to quote any requirement or answer any questions you may have at 401-943-1164. We are here to assist!
*Prices online are subject to change and verification.
All ESL products are availabe for export.
