Model 4406 RJ45 Code-Operated A/B Switch, RS232 Remote, Catalog # 305967

Click image to enlarge

Base Price:

$711.00

Catalog No:

305967

Model No:

4406

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

RJ45

Channels per Switch Chassis:

Electronic Switches/Power Required:

PathWay® Copper

Remote Control:

RS232 Serial

Configuration:

Desktop

Remote Port:

DB9

Local Control:

Pushbutton

Feature:

Code Operated

Protocol:

ASCII RS232

Qty

Add to Cart

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

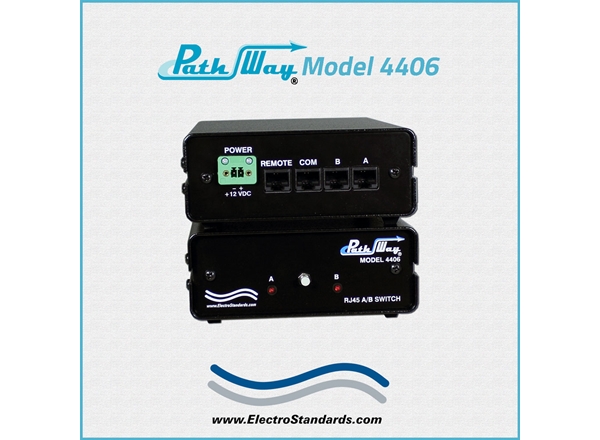

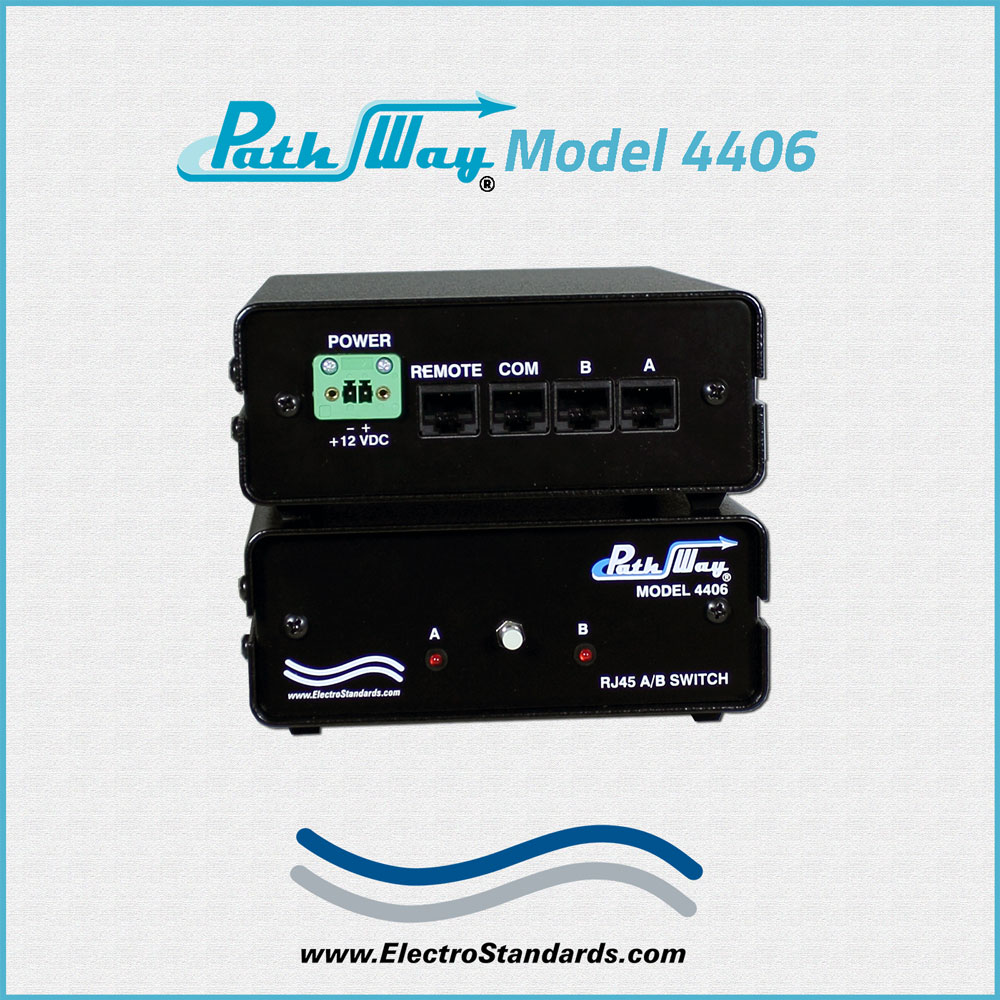

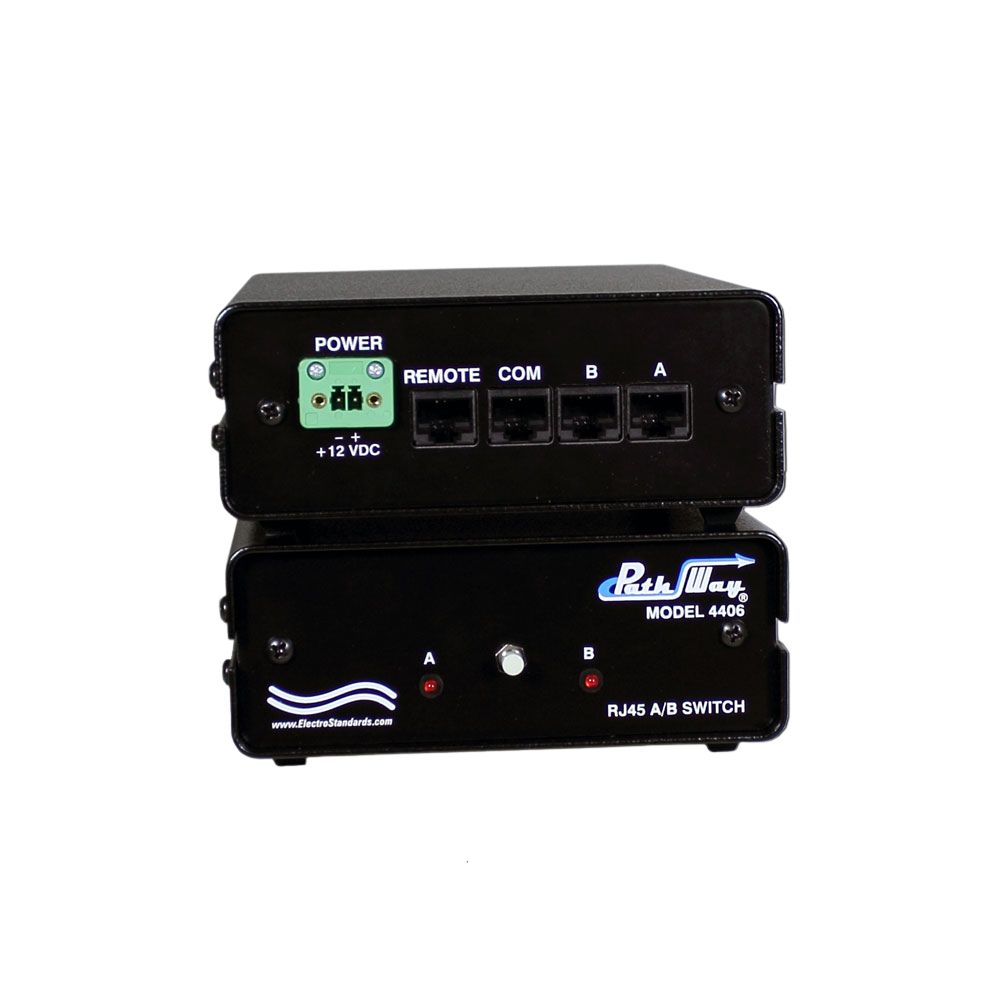

PathWay® Model 4406 Single Channel RJ45 A/B Code Operated Switch with RS232 Remote

Overview

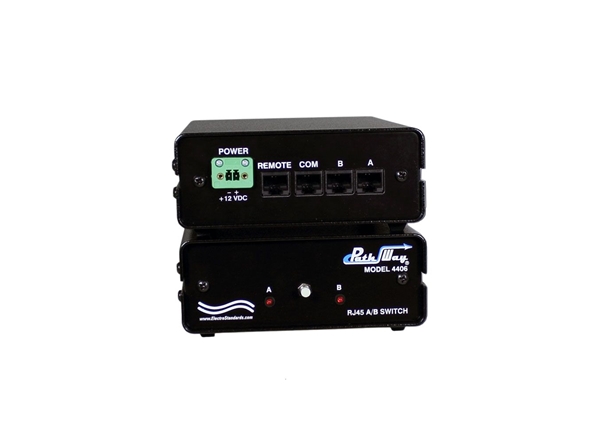

The PathWay Model 4406 Single Channel RJ45 A/B Switch with RS232 Remote allows the user the capability of sharing a single port interface device, connected to the "COMMON" port, among two other devices, connected to the "A" and "B" ports, with remote access functionality. The Model 4406 is packaged in a slim desktop style enclosure.

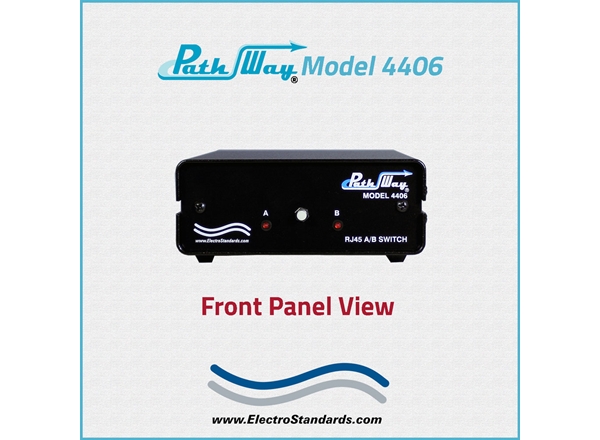

The switch may be controlled locally by manually operating the front panel pushbutton or remotely from the RJ45 Serial Interface Remote port located on the rear of the unit. The front panel LED display indicates the switch position and unit power status.

Field Proven, high reliability!

FEATURES OF THE MODEL 4406 SINGLE CHANNEL CODE OPERATED SWITCH:

Allows access to two networks from one COMMON network or device.
The switch ports are transparent to all data.
All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
The unit maintains last set position on power loss and continues to pass data.
Front panel pushbutton control.
Remote RS232 ASCII commands that allow the user to control switch position, obtain switch status, query model number and firmware version number.
Front panel LED's display present position and power status.
Attractive anodized black box packaging provides EMI/RFI shielding.
Custom length RJ45 cables available for your switch installation.
Municipalities, schools, government: This product is on GSA Schedule!

TECHNICAL SPECIFICATIONS:

PORT CONNECTORS: (3) RJ45(F) connectors labeled A, B, and COMMON.

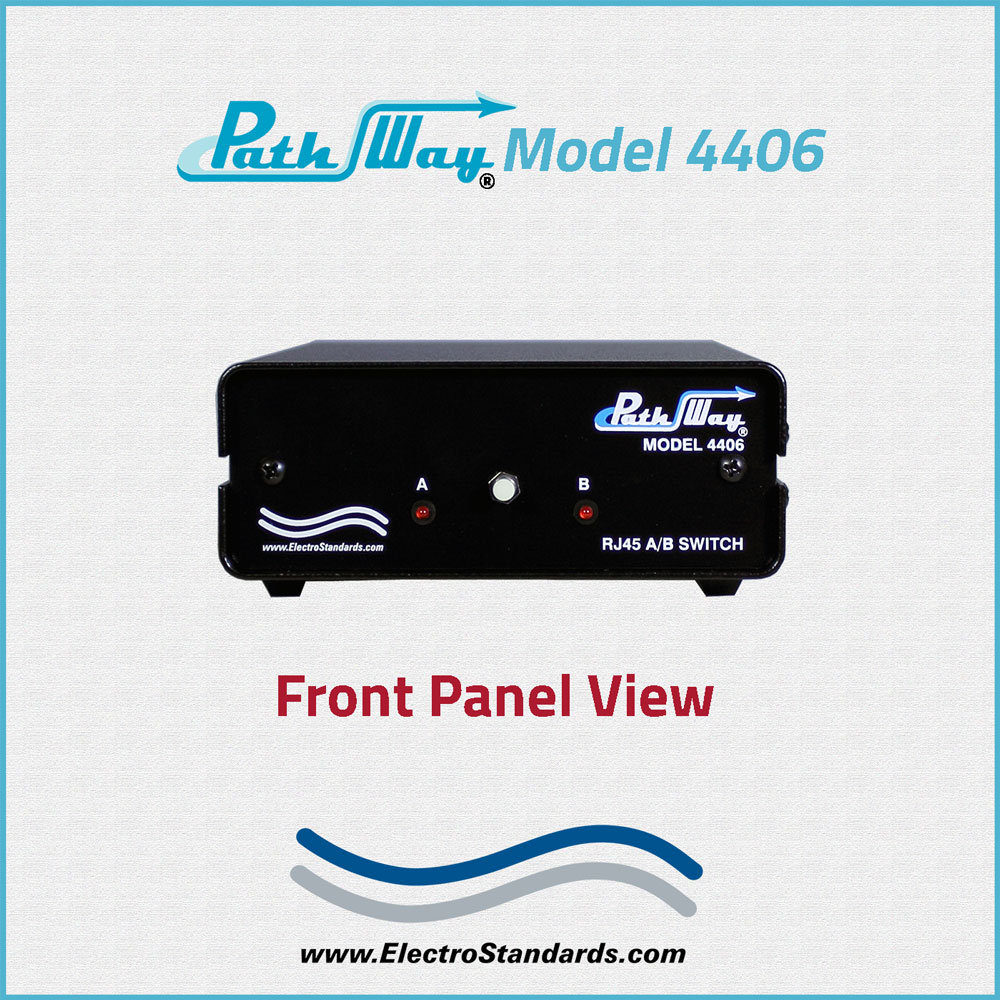

FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
DISPLAY: (2) Front panel LED's display switch position and power status.

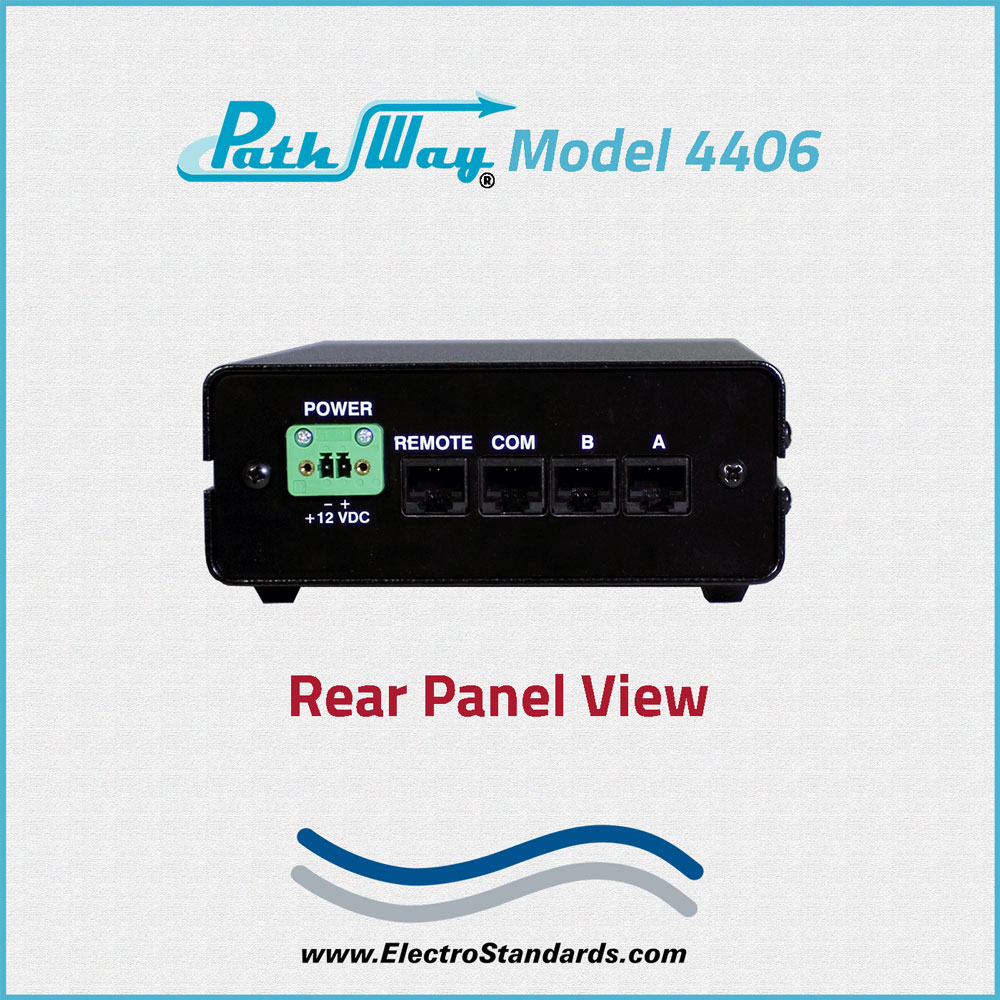

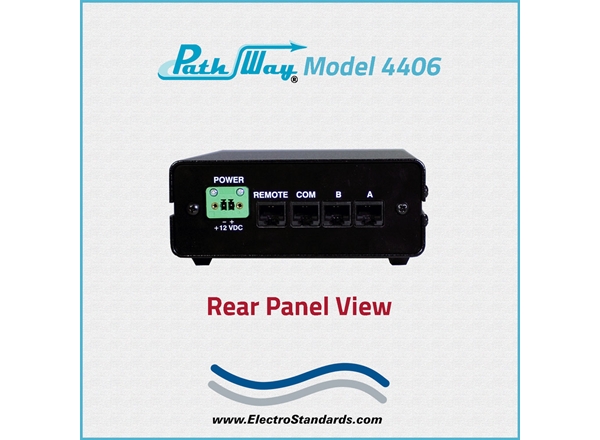

REMOTE CONTROL: (1) RJ45 female connector on rear panel accept ASCII RS232 Serial Data for Remote Control operation.
POWER: UL approved 100VAC-240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug. (Cat No 516682)
DIMENSIONS: 5.45" W x 2.3" H x 7.7" D. (13.9 x 5.9 x 19.6 cm)
WEIGHT: Approximately 1.2 lbs, (0.6 kg)

PathWay® Model 4406 RJ45 A/B SWITCH APPLICATION w/RS232 REMOTE:

The drawing illustrates a Network or COMMON device connected to the RJ45 COM port with access to Network or Device "A" connected to RJ45 port "A", and Network or Device "B" connected to the RJ45 port "B". The RJ45 Remote port accepts commands from a Control Device connected to the Remote port via ASCII RS232 Serial data commands.

PathWay® Model 4406 Single Channel RJ45 A/B Switch application

Ordering Information

Catalog Number: 305967
Model Number: 4406
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

OPTION: WIDE RANGE POWER MODULE

(Cat. No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 4406 Single Channel RJ45 A/B Switch w/RS232 Remote Control unit is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
