Catalog # 309462R - Model 9462R 5-Channel RJ45 Cat5e A/B/C Switch, RoHS

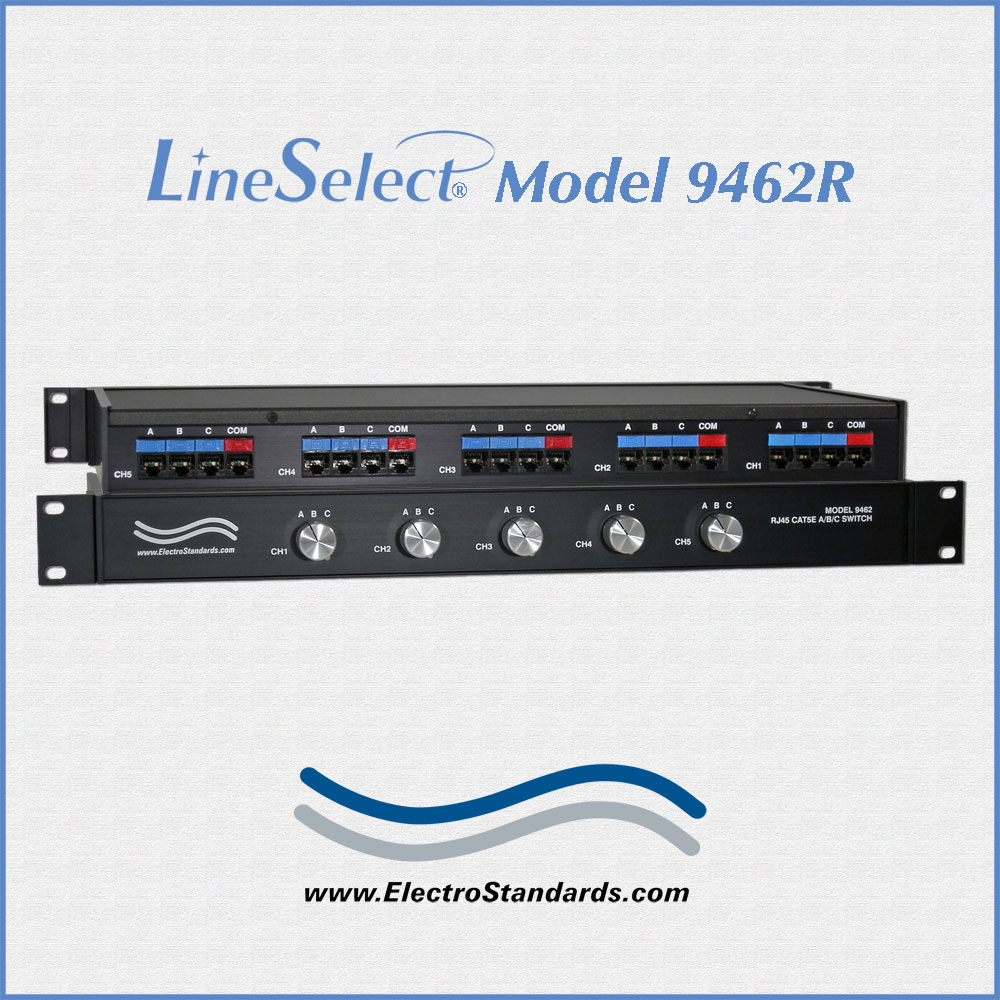

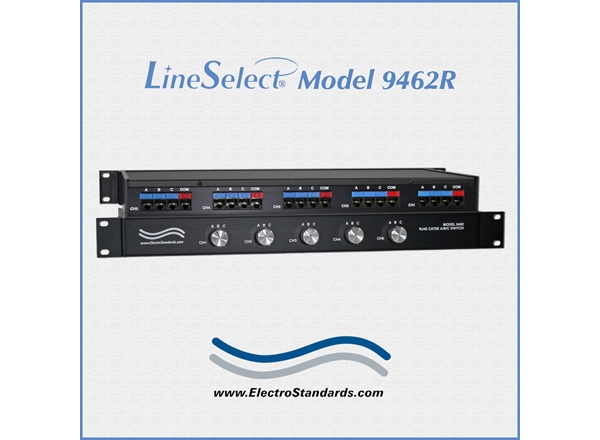

    LineSelect® 9462R 5-Channel RJ45 Cat5e A/B/C Switch, RoHS
Click image to enlarge
Base Price:
$1,397.00
Catalog No: 309462R
Model No: 9462R
Product Type:Switches: Copper
Interface:RJ45
Positions:3
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:5
Manual Control/No Power Required:LineSelect® Manual Operation
Channel Control:Independent Channel Control
Compliance/Standards:Cat5e, RoHS
Configuration:Rackmount
Pins Switched:8 pins
Local Control:Rotary Knob

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Cat5e Manual Network Switch, RJ45
LineSelect® Model 9462R Five-Channel Cat5e RJ45 A/B/C Switch, Manual, Independent Switching, Rackmount, RoHS Compliant

  • Applicable to switching ANY RJ45 interface, quickly and reliably.

  • Outstanding RJ45 Interface Switching Capability in Only 1U Height!

  • Reliable and Efficient Network Switch

SPECIFICATIONS:

  • PORT CONNECTORS: (4) RJ45 female connectors labeled A, B, C and Common, for each of the 5 channels.
  • FRONT PANEL CONTROLS: (5) Rotary switches on front panel selects A, B, or C position for each of the 5 channels.
  • POWER: No power required. Manually operated.
  • DIMENSIONS: Rackmount 19.0" W x 1.75" H x 8.67" D. (48.3 x 4.4 x 22.1 cm)
  • WEIGHT: Approximately 5.2 lbs. (2.4 kg)

5 CHANNELS OF CAT5e RJ45 A/B/C SWITCHING, INDEPENDENT, MANUAL, RoHS COMPLIANT:

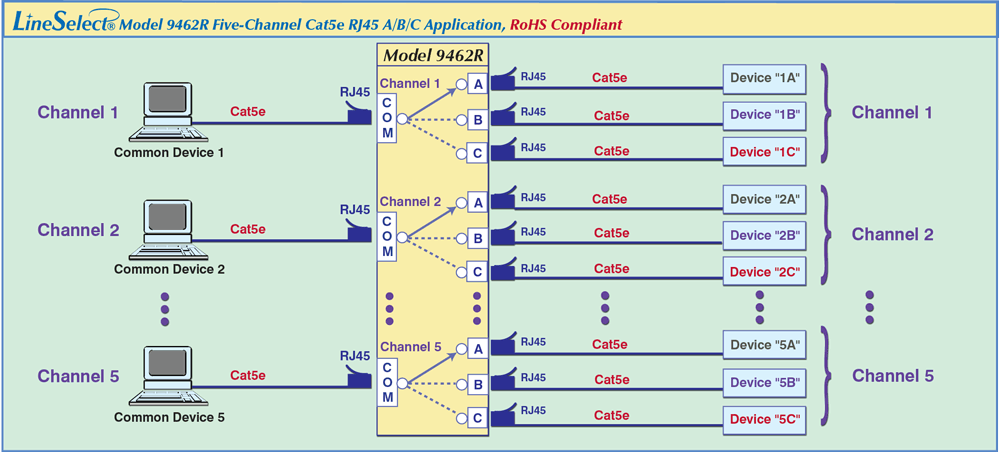

The drawing illustrates five independently controlled channels labeled, Channel 1, Channel 2, Channel 3, Channel 4 and Channel 5. Each channel has a COMMON Device connected to an RJ45 COMMON port with access to three devices or networks connected to the RJ45 A, B, and C ports. The switch is controlled locally via five front panel rotary switches.

LineSelect® Model 9462R Five-channel Cat5e RJ45 A/B/C Switch application drawing

FEATURES:

  • Efficient use of panel space; five complete A/B/C switches in a 1U panel height (1.75").
  • Each of the five channels allows quick connection to any one of three networks from one COMMON network.
  • RoHS Compliant.
  • Tested for Cat5e Compliance.
  • Independently switches each of the five channels via five front-panel rotary switches.
  • High quality sealed switch with self-wiping low impedance contacts.
  • All 8 pins of the RJ45 interface are switched via break-before-make rotary switches.
  • Manually operated. No power required.
  • Attractive all metal black box packaging provides EMI/RFI shielding.
  • Rackmount configuration is standard.
  • Lifetime warranty against manufacturing defects.

The LineSelect® Model 9462R enables access to three 10/100/1000 Base-T Cat5e networks for each channel.  Each of the five channels of the Model 9462R Category 5e A/B/C Switch allows the user to reroute data between three networks with a simple turn of the rotary switch knobs.  The unit supports all 8 pins of the RJ45 Cat5e interface.  No need to plug and unplug cables thereby eliminating connector wear. The LineSelect® Model 9462R is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
