Model 9459 RJ45 Cat6 3-Channel ONLINE/OFFLINE Switch, Catalog # 309459

Click image to enlarge

Base Price:

$1,652.00

Catalog No:

309459

Model No:

9459

Product Type:

Switches: Copper

Interface:

RJ45

Positions:

2, Offline

Cable Type/Port Connector:

RJ45

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Channel Control:

Independent Channel Control

Security:

Offline Position

Compliance/Standards:

Cat6

Configuration:

Rackmount

Local Control:

Rotary Knob

Qty

Add to Cart

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

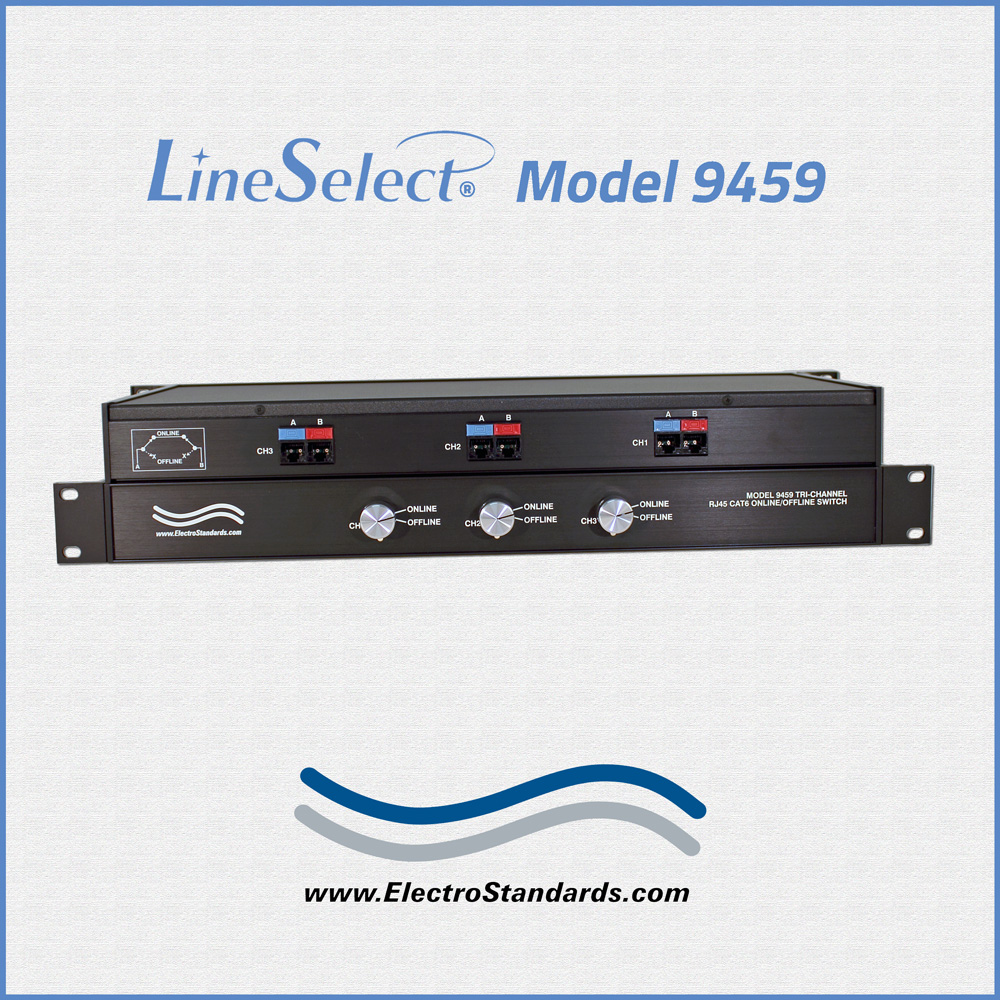

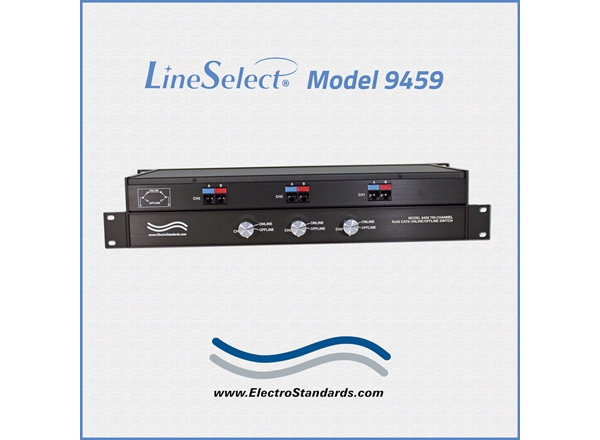

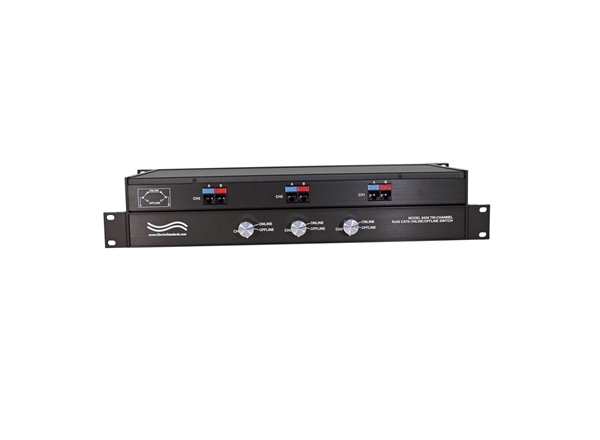

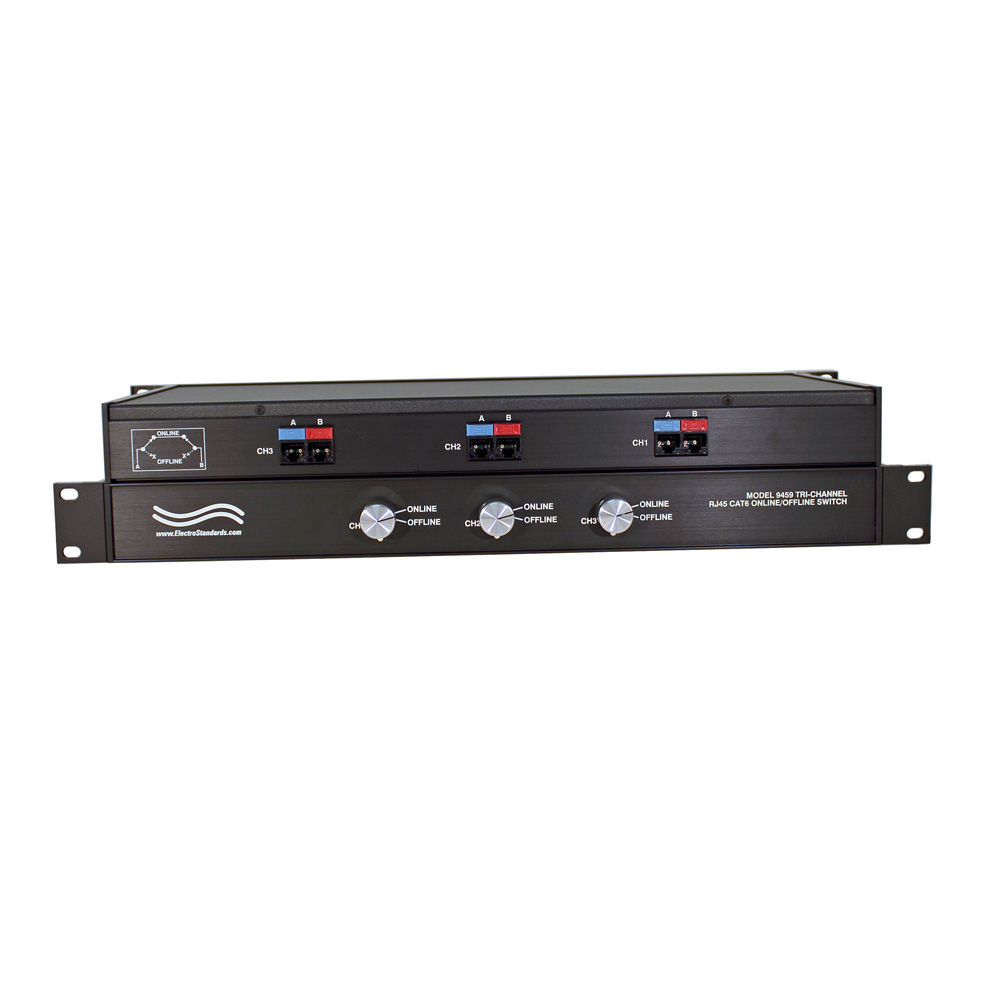

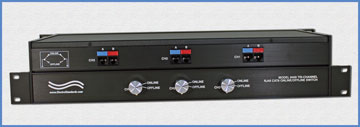

LineSelect® Model 9459 RJ45 3-Channel ONLINE/OFFLINE Switch, Cat 6 with Individual Channel Control

Overview

The LineSelect® Model 9459 allows ONLINE/OFFINE switching for three independent channels. The unit supports all 8 pins of the RJ45 Cat6 interface. No need to plug and unplug cables thereby eliminating connector wear. The LineSelect® Model 9459 is enclosed in a slim 1U, full rack size, all metal black anodized chassis designed to provide EMI/RFI shielding and fit in a standard 19” rack.

Quick and Easy ONLINE/OFFLINE Connection!
Certified for Cat6 Compliance.

FEATURES OF THE MODEL 9459 RJ45 3-CHANNEL SWITCH:

Efficient use of panel space; three complete ONLINE/OFFLINE switches in 1U panel height (1.75").
Individual Channel Control.
Tested for Cat 6 compliance.
Manually control each channel separately via three knobs located on the front panel, one knob per channel.
Each channel consists of one A, B, port.
All (6) RJ45 Female ports are located on the rear panel; (3) A Ports and (3) B Ports.
Each channel switches (8) RJ45 leads.
Attractive anodized black box packaging provides EMI/RFI shielding.
Switching, mechanism is a sealed precious metal contact switch.
Manually operated. No power required.
Lifetime guarantee against manufacturing defects.
Custom length Cat6 cables available for your switch installation for improved system performance.

TECHNICAL SPECIFCATIONS:

PORT CONNECTORS: (6) RJ45 female Cat6 ports on rear panel; (3) A ports, (3) B ports.
FRONT PANEL CONTROL: (3) Rotary Switches on front panel selects ONLINE or OFFLINE.
PINS SWITCHED: All 8 pins are switched.
POWER: Manually operated. No power required.
ENCLOSURE: Shielded aluminum enclosure.
DIMENSIONS: 19 W x 1.75 H x 8.0 D (48.3 x 4.4 x 20.4 cm)
WEIGHT: 4.2 lbs. (1.9 kg)

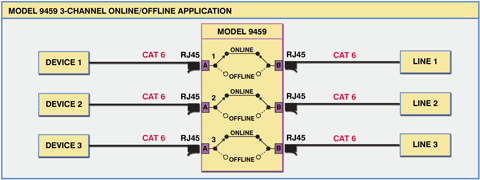

LineSelect® Cat 6 ONLINE/OFFLINE 3-Channel Independent Channel Switching application:

The drawing illustrates three independent channels. For each channel, a Device is connected to the CAT6 RJ45 Port A and a Line is connected to the CAT6 RJ45 Port B. In the ONLINE position the Device is CONNECTED to Line; in the OFFLINE position the Device is DISCONNECTED from Line for each of the three channels.

LineSelect® Model 9459 RJ45 Cat6 3-Channel Online/Offline Switch application

Ordering Information

Catalog Number: 309459
Model Number: 9459
Base Price: See website or contact us for current pricing and availability.

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur, equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
