LineSelect® Model 9456 Six Channel RJ45 A/B Switch, T1, 1U Height, Rackmount

Overview

The LineSelect® Model 9456 Six-Channel RJ45 A/B Switch allows devices connected to COMMON port of each channel to access the A or B port of each channel. All channels are switched simultaneously. The LineSelect® Model 9456 network switch is enclosed in a standard 1U full rack size, all metal black chassis designed to provide EMI/RFI shielding. Four pins of each RJ45 T1 channels are switched (paired, pins 1, 2 and pins 4, 5).

Switches Six Primary Rate Interface (PRI) Input Channels to Output Devices "A" or "B"

FEATURES OF THE MODEL 9456 SIX CHANNEL A/B SWITCH:

Manually switches all six PRI channels simultaneously between switch positions A and B via one knob located on the front panel.
Each channel consists of one A, B, and Common port.
All (18) RJ45 Female ports are located on the rear panel. (6) Common, (6) "A" ports, (6) "B" ports.
Four pins of each RJ45 T1 channel are switched (paired, 1 & 2, and 4 & 5).
High quality sealed switch mechanism with self-wiping contacts.
No power required. The switch is operated manually.
Switch case is rugged all-aluminum enclosure for EMI/RFI protection.
Municipalities, schools, government: This product is on GSA Schedule?

TECHNICAL SPECIFICATIONS:

Port Connectors: (18) RJ45 (F) ports labeled A1 to A6, B1 to B6, and COMMON 1 to COMMON 6.
Front Panel Control: (1) Manual rotary switch allows local switching of all six channels to A or all six channels to B.
Power: No power required.
Dimensions: 19" W x 1.75" H x 8" D. [48.3 X 4.4 X 20.9 cm}
Weight: 3 lbs. [1.4 kg]

LineSelect® Model 9456 Switches Primary Rate Interface PRI to Devices A or Devices B.

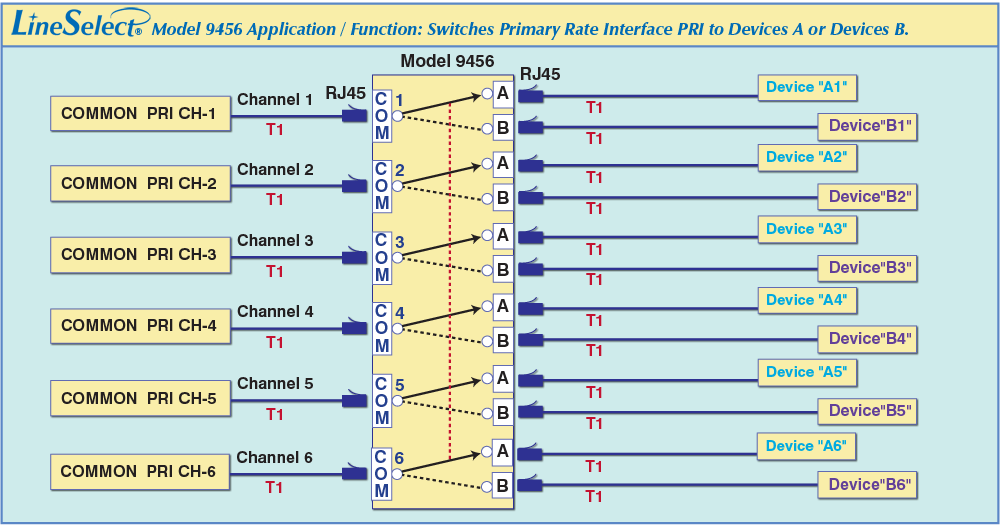

The LineSelect® Model 9456 Application drawing shows six T1 channels. Each channel has a COMMON port device connected to the COMMON port with access to either a Device A or Device B.
All channels switch simultaneously from Device A to Device B for each of six channels.

LineSelect® Model 9456 application, Simultaneous Switching to T1
