Model 9081 RJ45 3-Position, Cat 5e Manual Network Switch, Catalog # 309081

Click image to enlarge

Base Price:

$775.00

Catalog No:

309081

Model No:

9081

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

RJ45

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Compliance/Standards:

Cat5e

Configuration:

Rackmount

Pins Switched:

Local Control:

Rotary Knob

Qty

Add to Cart

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

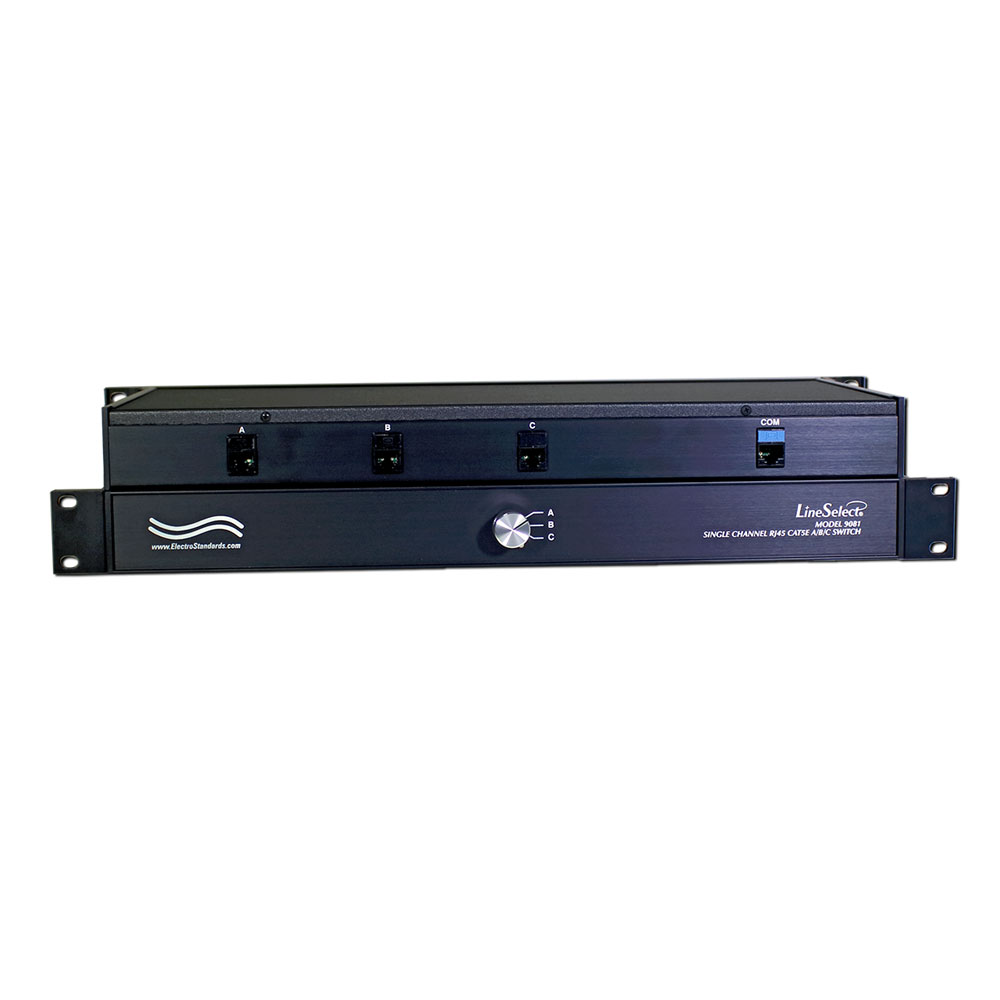

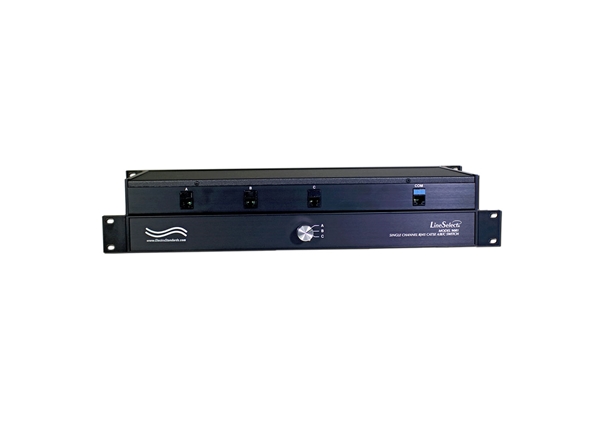

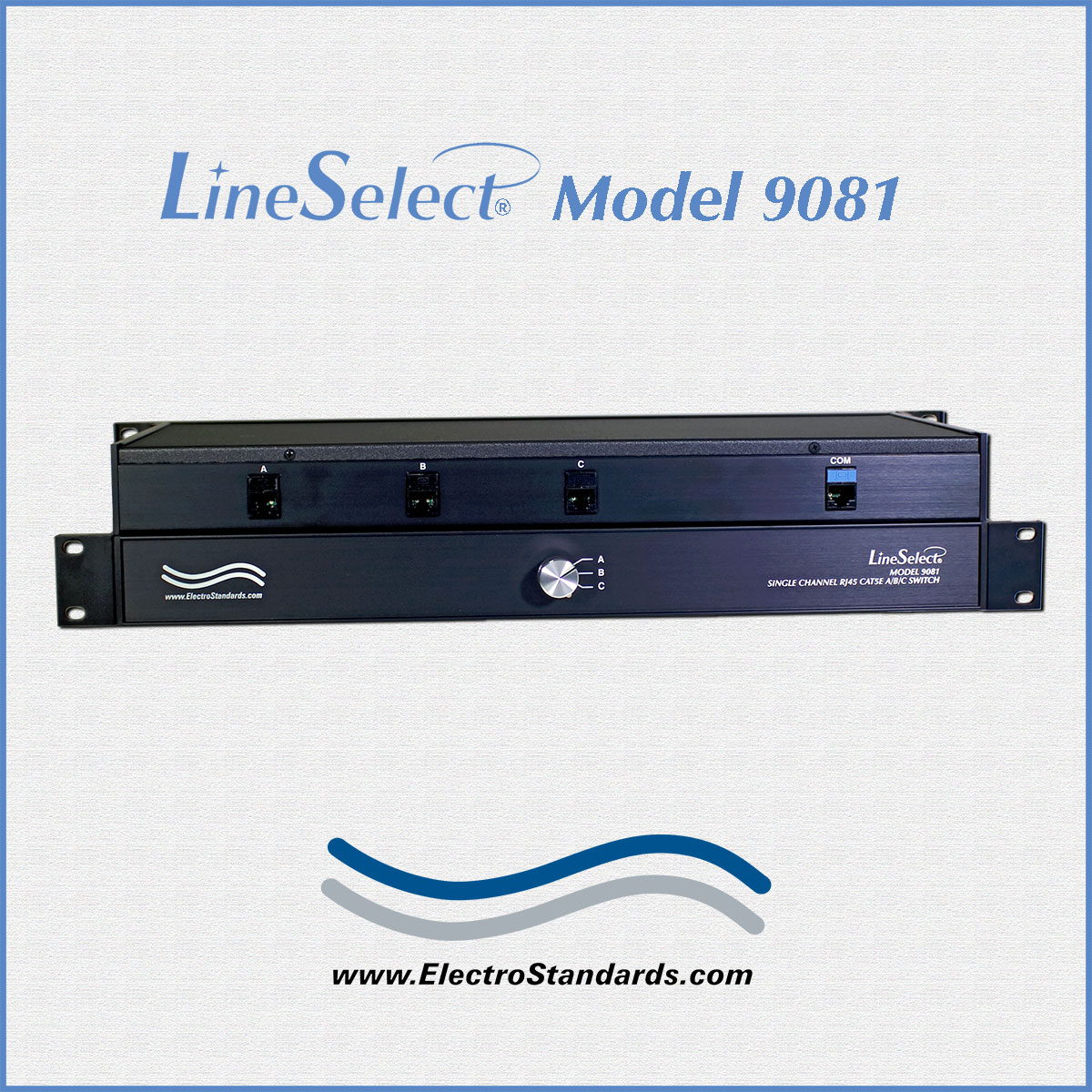

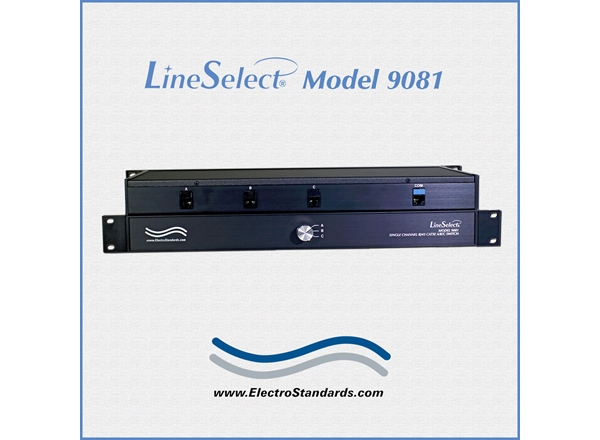

LineSelect® Model 9081 RJ45 A/B/C Network Switch, Manual, Rackmount, Cat5e Compliant

Overview

The LineSelect® Model 9081 RJ45 A/B/C switch allows the user to access three RJ45 devices connected to its A, B, and C ports with one RJ45 device connected to its COMMON port. The unit is manually operated, requiring no power. Port selection is quick and easy via a front panel rotary knob.

Applicable to ANY RJ45 Transfer Switch Requirement
High Quality Manual Data Network Switches Increase the Reliability of Your Network!

FEATURES OF THE MODEL 9081 A/B/C NETWORK SWITCH:

Allows quick connection to any one of three Cat 5e RJ45 devices from one COMMON port.
Manual operation via front-panel rotary switch.
High quality sealed switch with self-wiping low impedance contacts.
Transparent to data speed and format.
All 8 pins of the RJ45 interface are switched via break-before-make rotary switch.
Certified for Cat5e compliance.
Eliminates the need to plug and unplug cables.
Improve computer network efficiency by allowing sharing of peripherals.
No external power required.
Attractive black box packaging provides EMI/RFI shielding.
Custom length Cat5e cables available for your switch installation.
Lifetime warranty against manufacturing defects.

TECHNICAL SPECIFICATIONS:

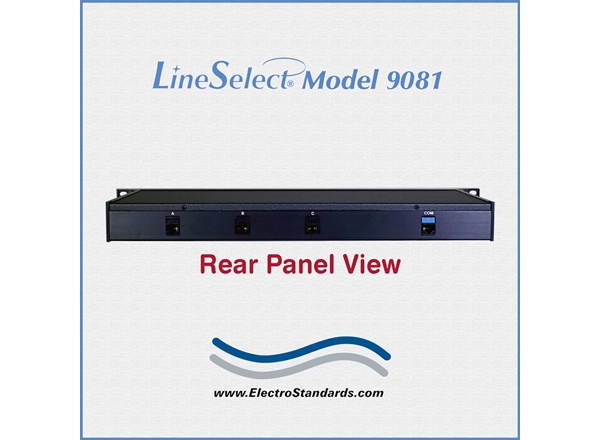

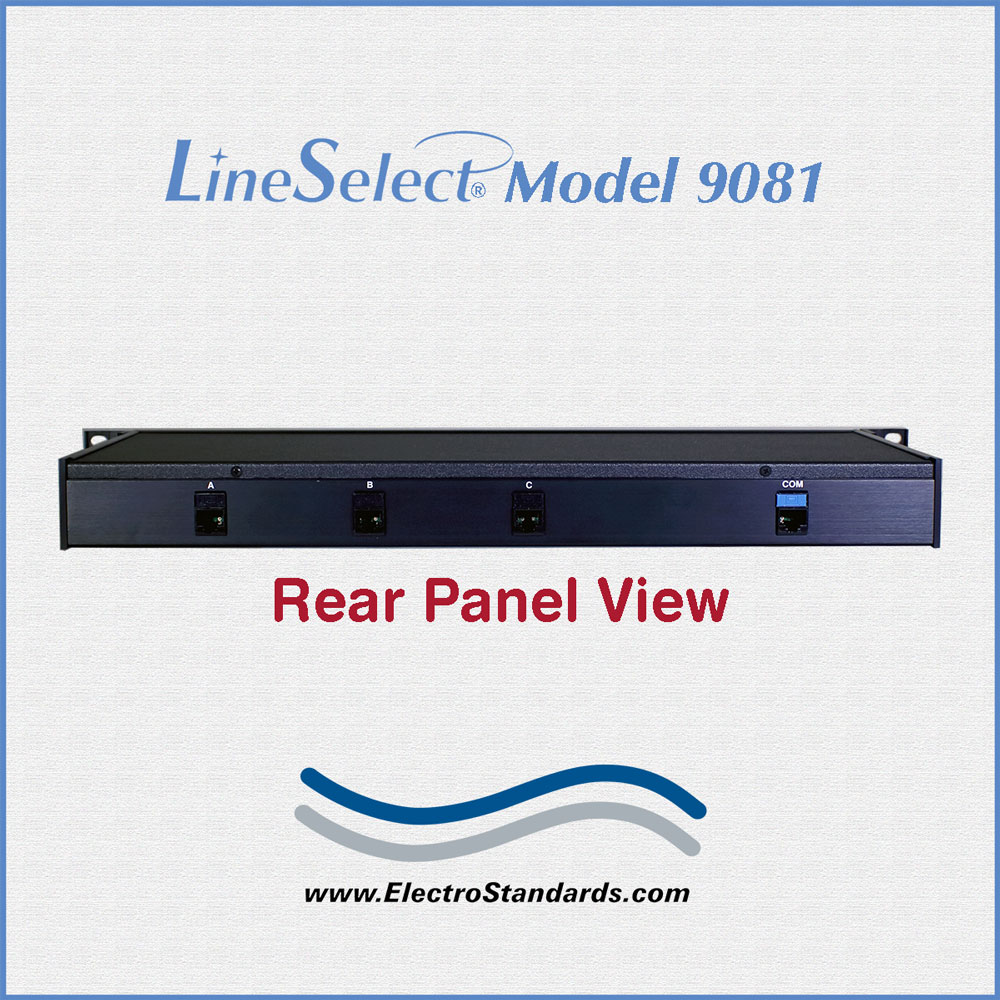

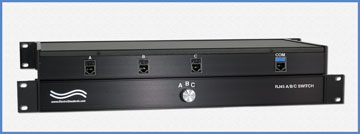

PORT CONNECTORS: (4) R45 female connectors labeled A, B, C and COMMON.

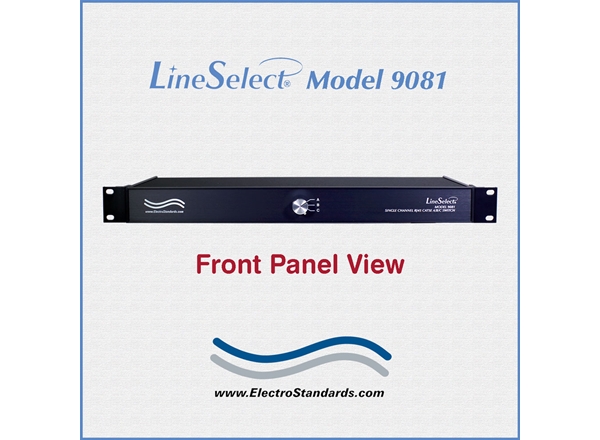

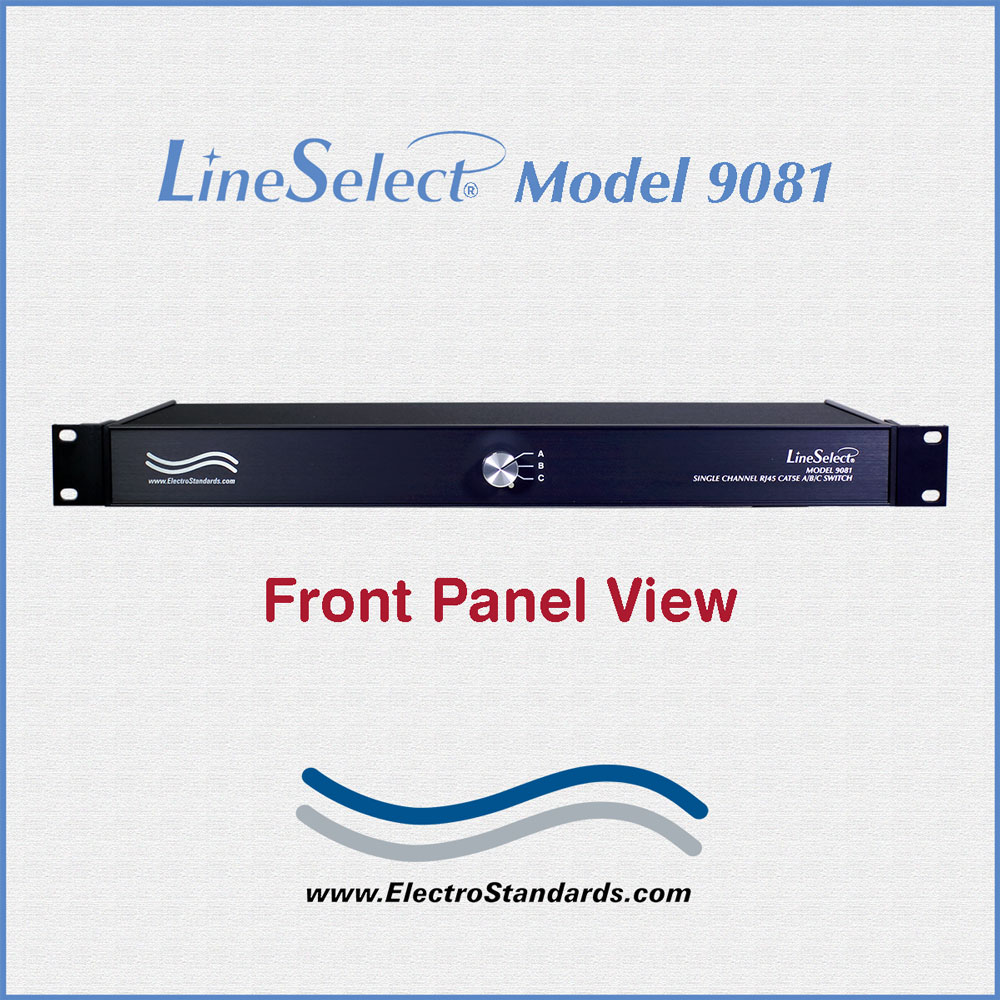

FRONT PANEL CONTROL: (1) Rotary switch on front panel selects A, B, C.
POWER: No power required. Manually operated.
ENCLOSURE: Shielded aluminum Enclosure
DIMENSIONS: Rackmount: 19" W x 1.75" H x 8.0" D [48.3 x 4.4 x 20.3 cm]
WEIGHT: Approximately 2.0 lbs. [0.9 kg]

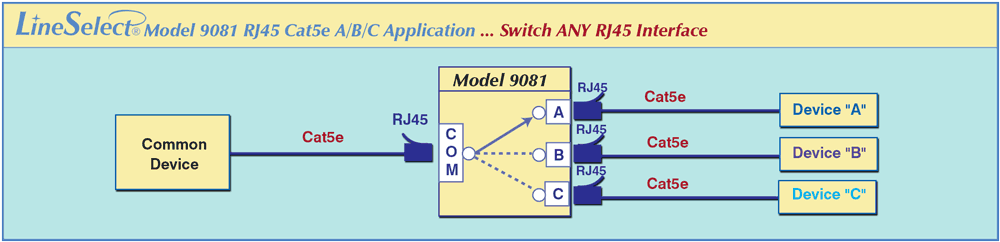

LineSelect® Model 9081 Cat5e RJ45 A/B/C Application: Switch ANY RJ45 Interface!

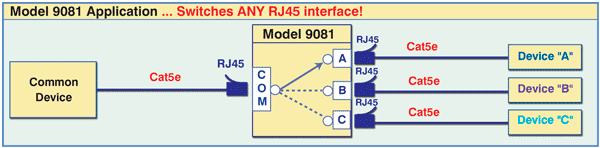

LineSelect Model 9081 application drawing illustrates a COMMON device connected to the RJ45 COMMON port with access to three other devices (Device A, Device B, and Device C) connected to the RJ45 ports A, B, and C, respectively.

LineSelect Model 9081 RJ45 Cat5e A/B/C Application

Ordering Information

Catalog Number: 309081
Model Number: 9081
Base Price: See website or contact us for current pricing and availability.

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
