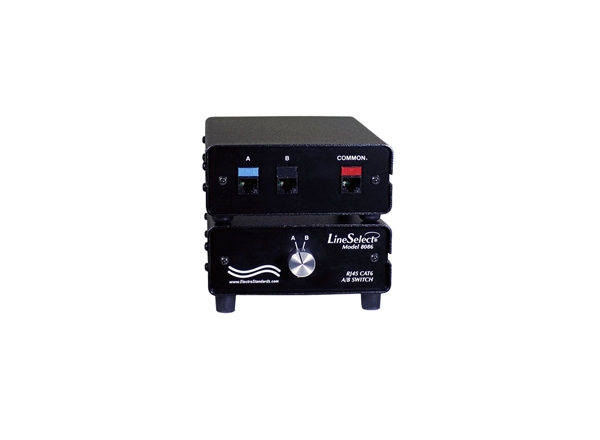

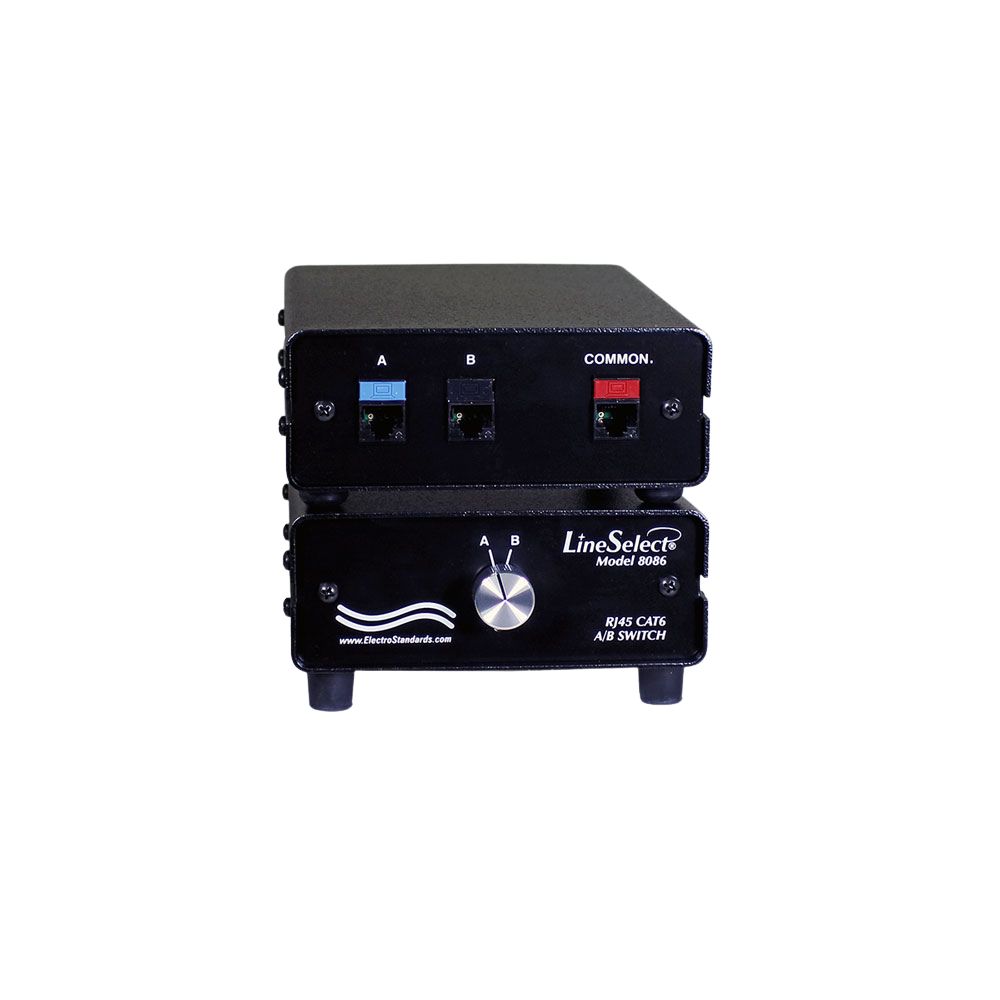

Catalog # 308086 Model 8086 RJ45 Cat6 A/B Switch with Manual Front Panel Knob Switches 2 Positions, Networks or Devices

Click image to enlarge

Base Price:

$613.00

Catalog No:

308086

Model No:

8086

Product Type:

Switches: Copper

Interface:

RJ45

Positions:

Cable Type/Port Connector:

RJ45

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Compliance/Standards:

Cat6

Configuration:

Desktop

Local Control:

Rotary Knob

Qty

Add to Cart

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

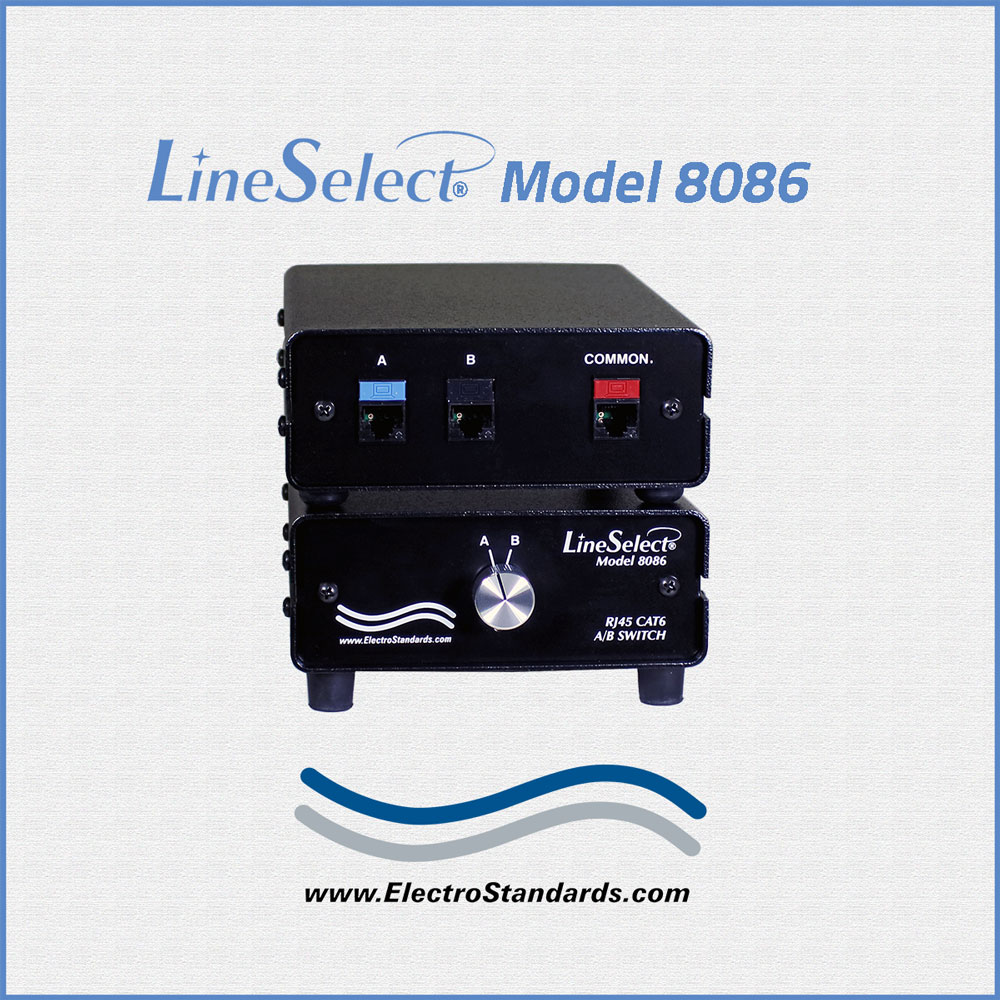

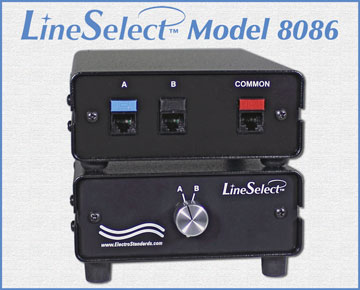

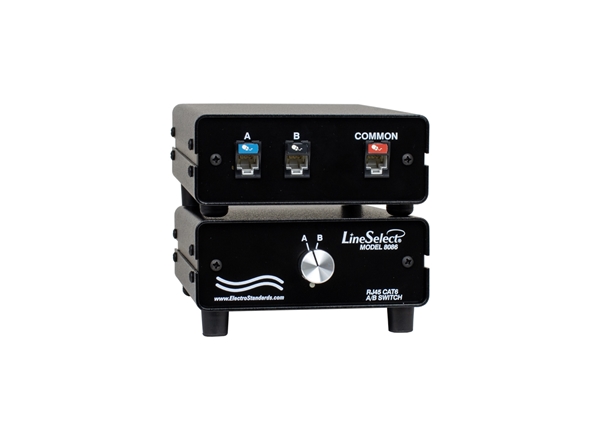

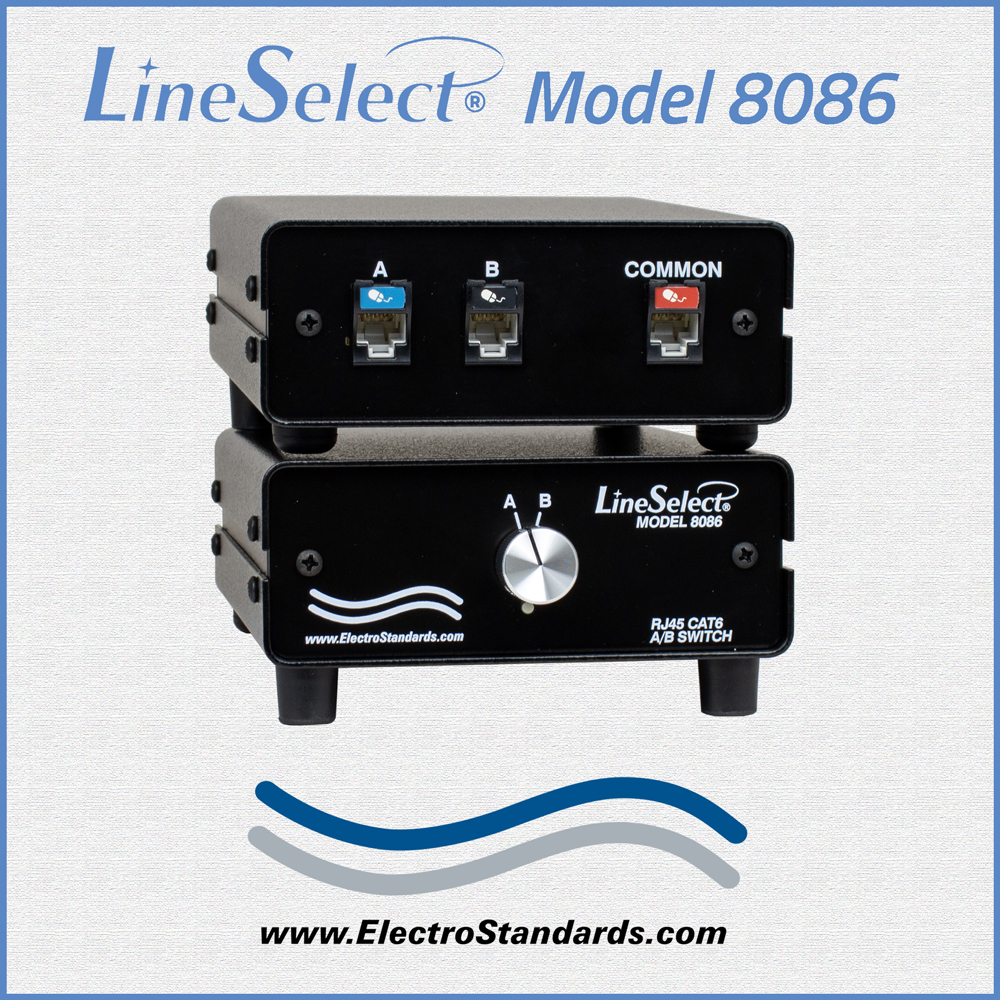

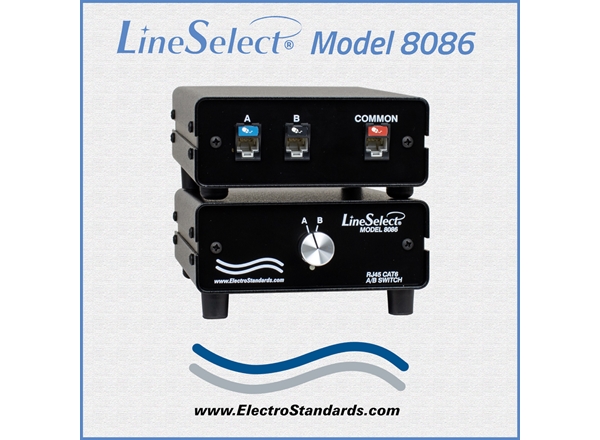

LineSelect® Model 8086 Cat6 Compliant, RJ45 A/B Switch with Manual Control

Cat6 compatibility and fully mechanical, no-power design make the Model 8086 ideal for network engineers, test labs, and environments where dependable network selection is needed without complexity. The LineSelect® Model 8086 Cat6 Switcher enables access to two 10/100/1000 Base-T networks. The unit allows the user to reroute data between two networks or devices with a simple turn of a knob. The Model 8086 supports all 8 pins of the RJ45 Cat6 interface. No need to plug and unplug cables thereby eliminating connector wear.

Switches all 8 pins. Allows compatibility with ALL RJ45 interfaces.
Provides robust reliability with uncomplicated operation.
Field proven data network switch, highly reliable.

FEATURES:

Allows access to two networks from one computer or workstation.
Certified for Cat6 compliance.
High quality sealed switch with self-wiping contacts.
Eliminates the need to plug and unplug cables.
Transparent to data format.
All 8 pins of the RJ45 interface are switched via a break-before-make rotary switch.
No external power required.

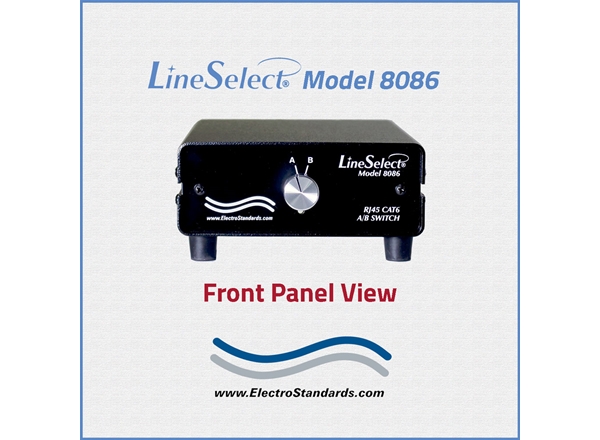

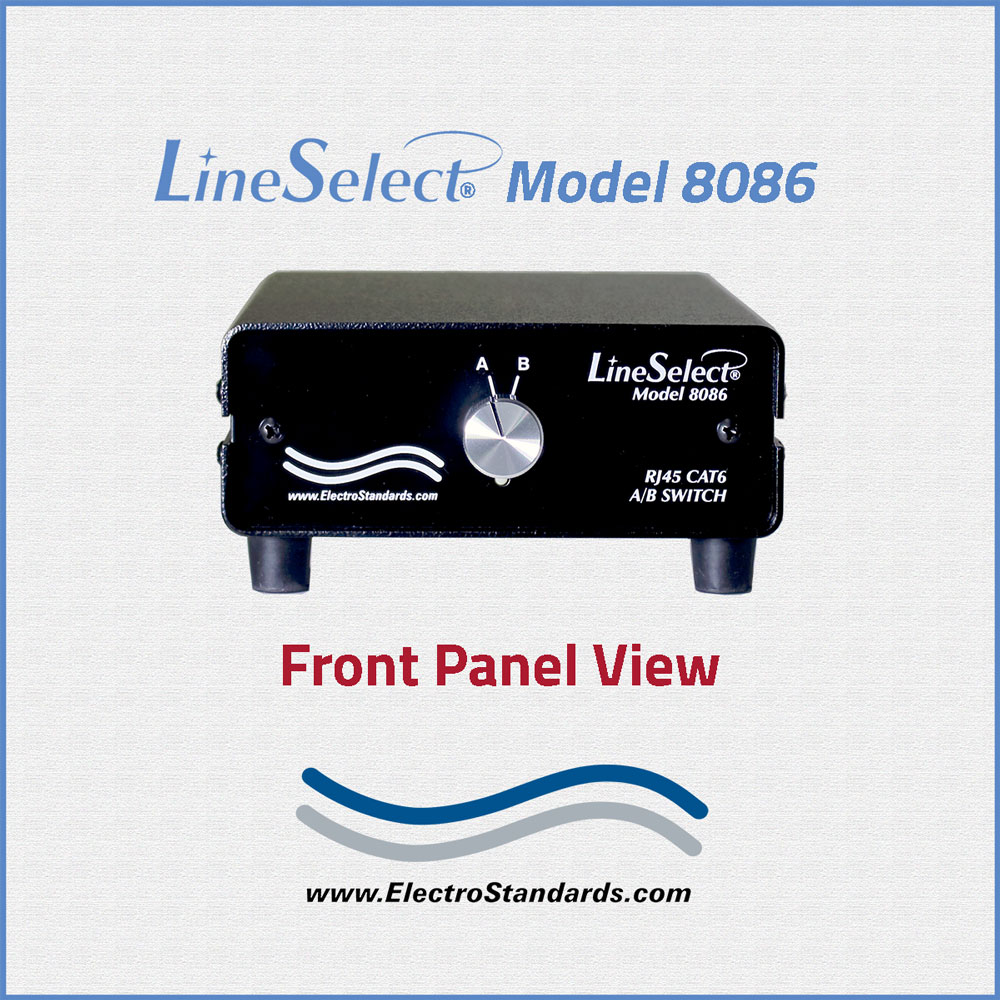

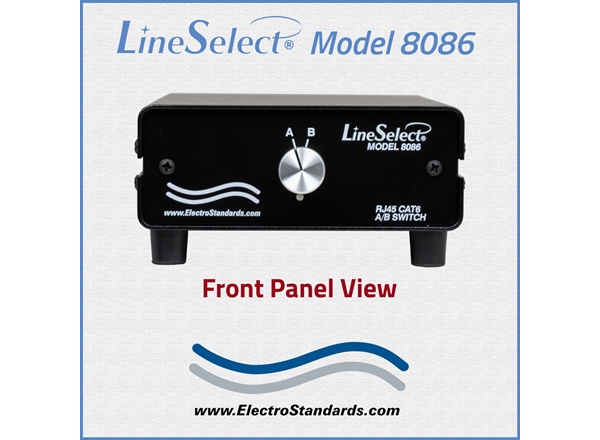

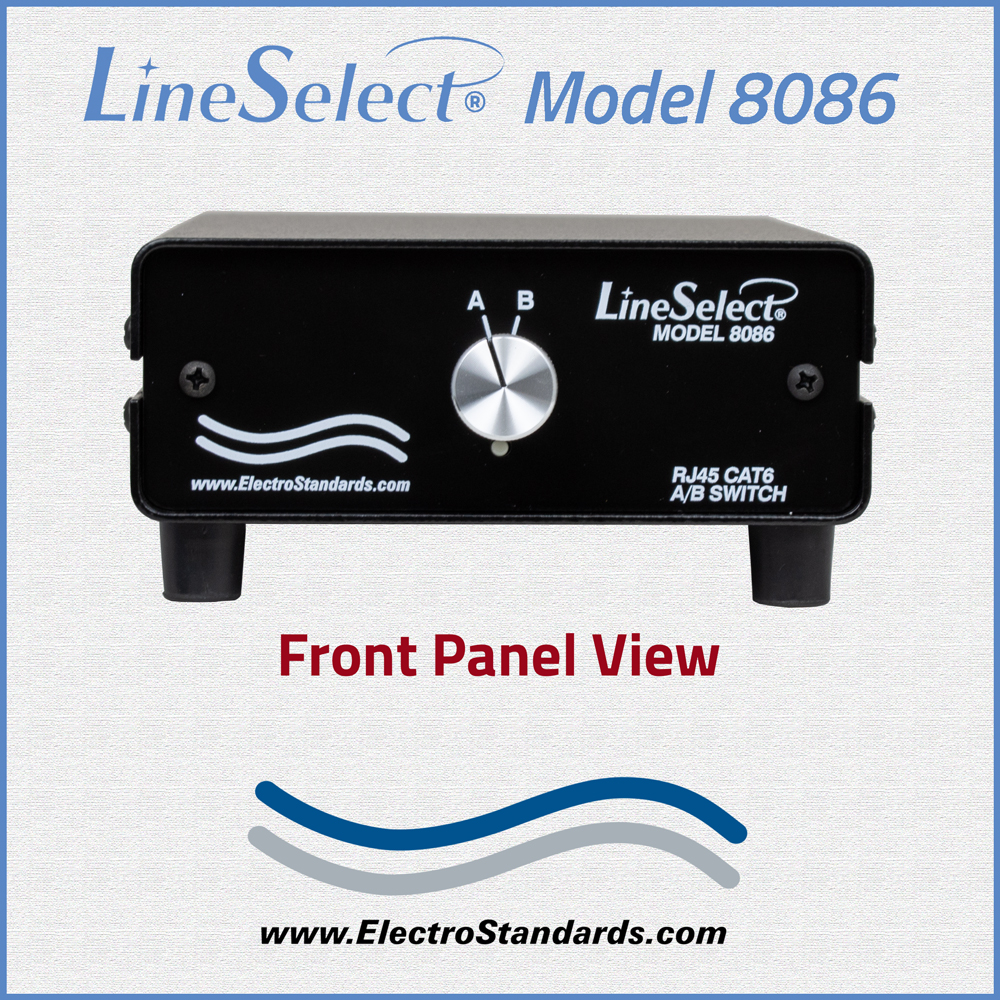

Manual control via knob located on front panel.
Rated for 10/100/1000 networks (Up to Cat6).

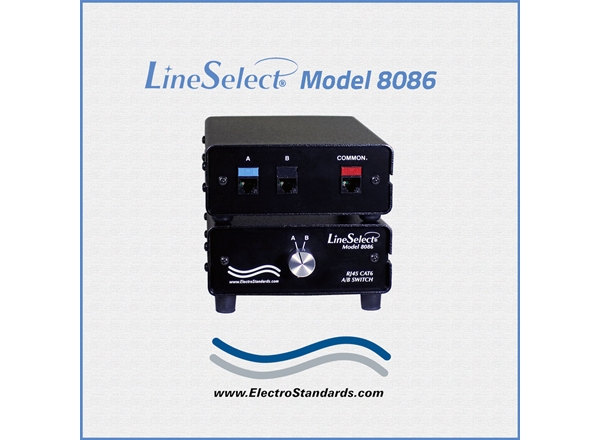

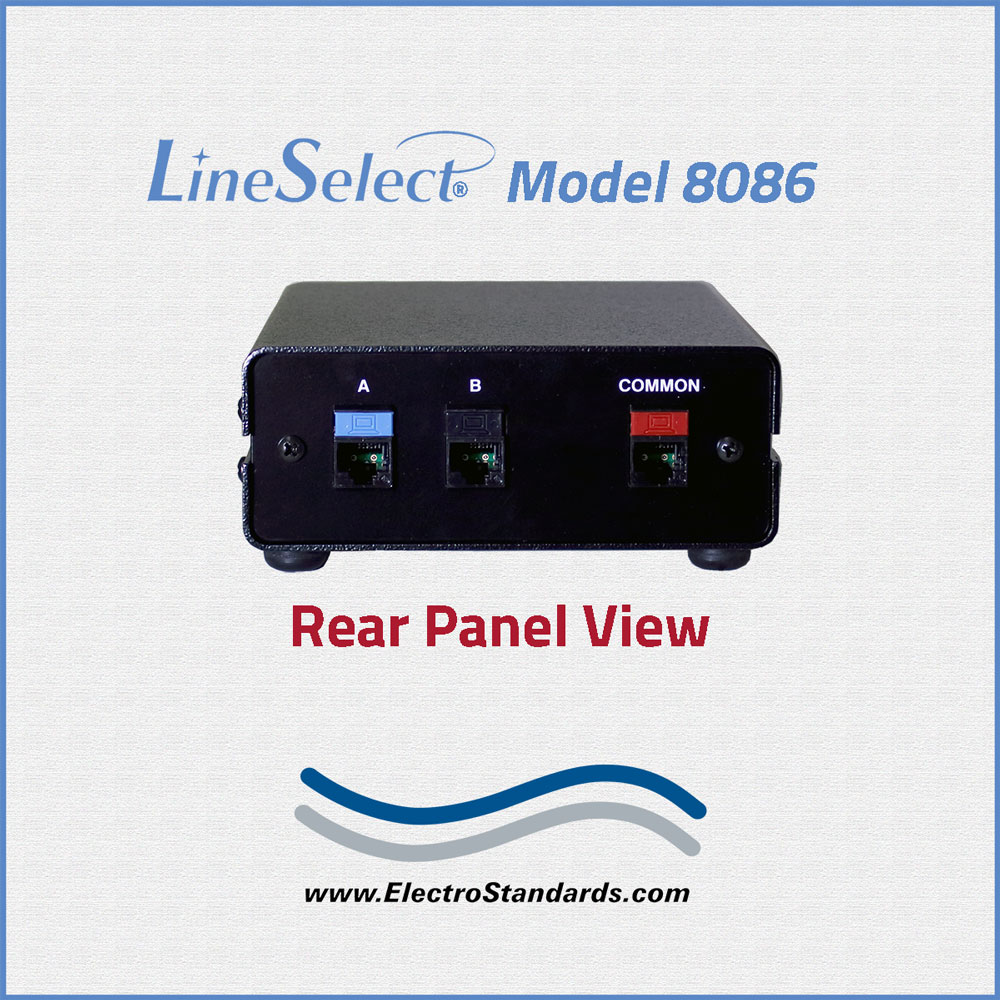

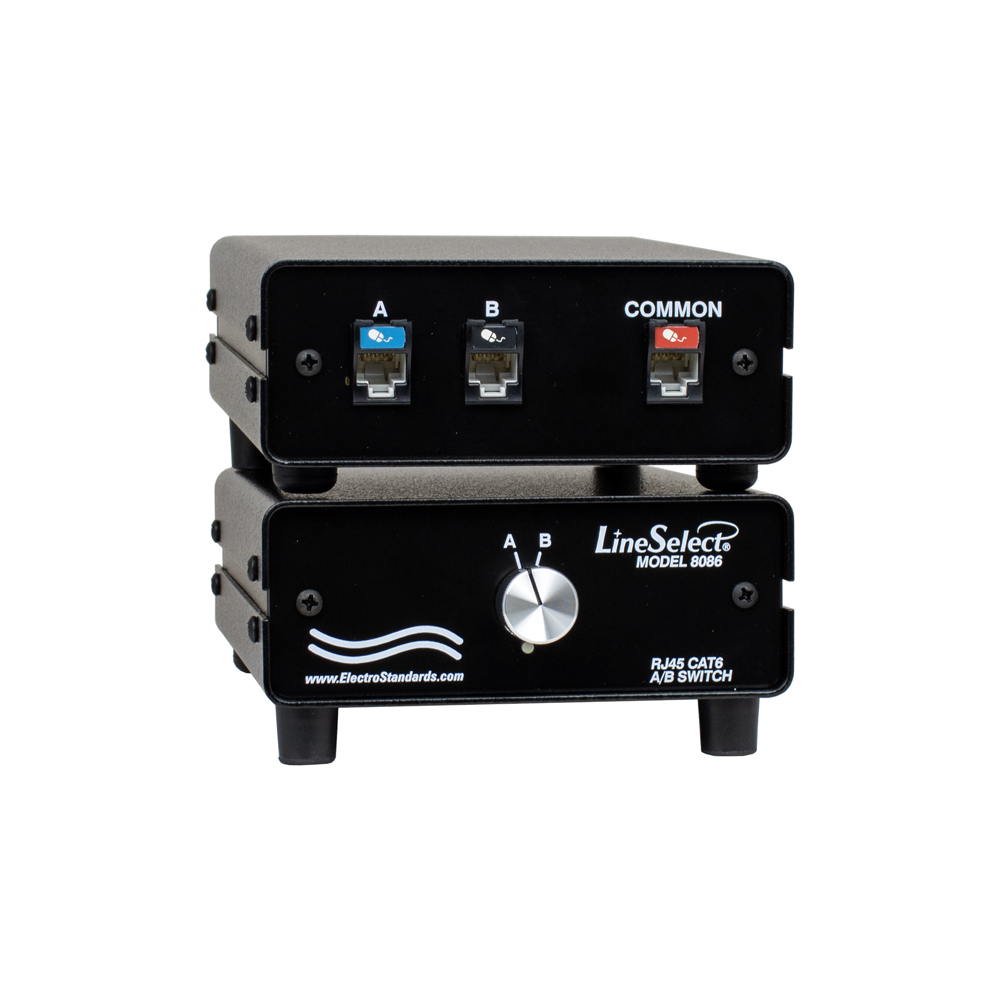

(3) RJ45 Connections, ports A, B, and Common, located on rear panel.
Attractive anodized black box packaging provides EMI/RFI shielding.
Switching mechanism is sealed precious metal contact switch.
Custom length CAT6 cables available for your switch installation.
Lifetime warranty against manufacturing defects.

SPECIFICATIONS:

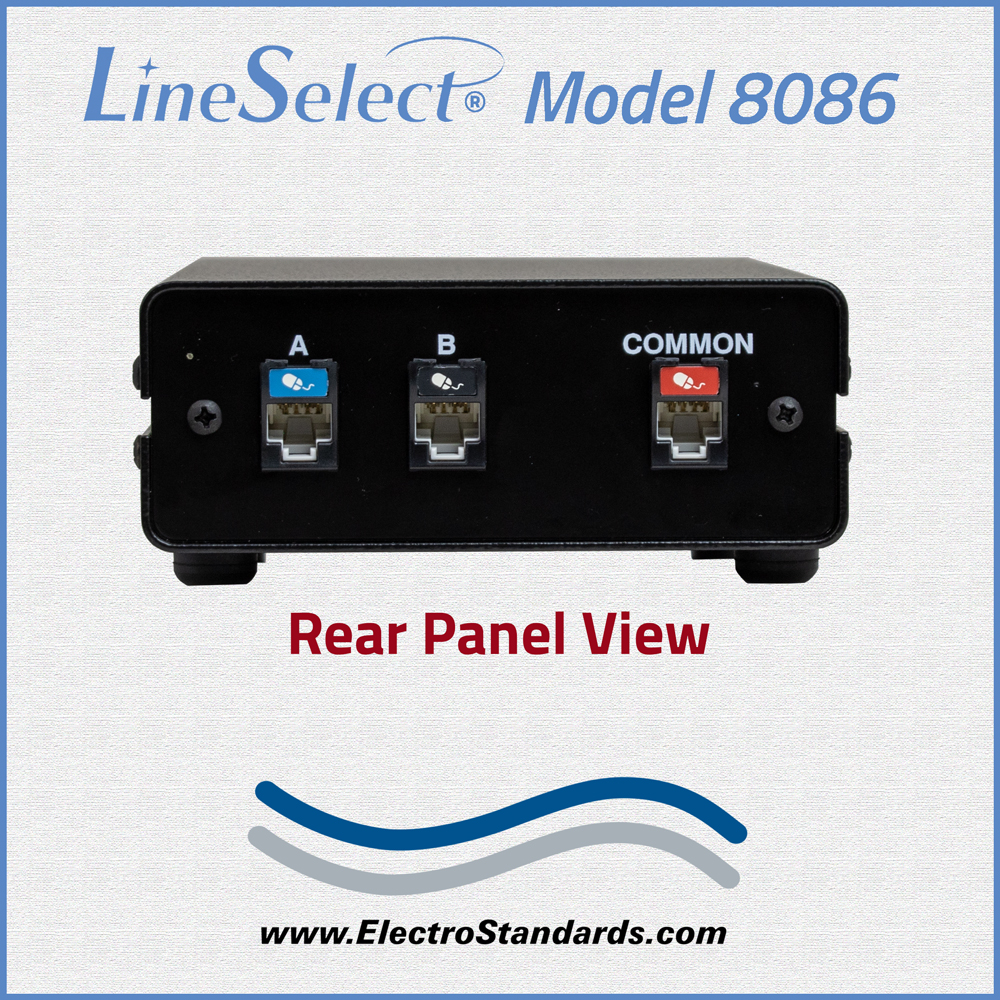

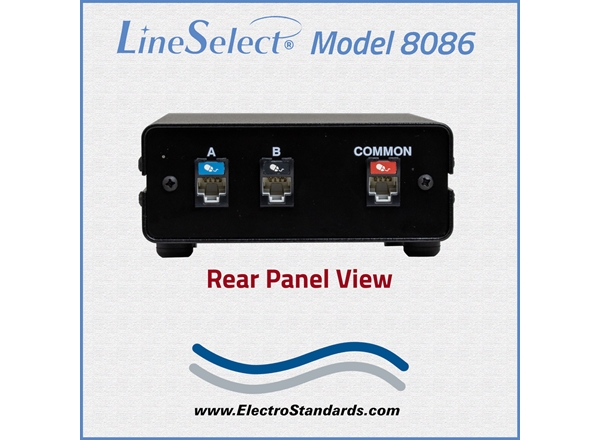

PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and COMMON.
FRONT PANEL CONTROL: (1) Rotary Switch on front panel selects A or B.
PINS SWITCHED: All 8 pins are switched.
POWER: Manually operated. No power required.
ENCLOSURE: Shielded aluminum enclosure.
DIMENSIONS: 5.45"W x 2.65"H x 7.75"D (13.9 x 6.8 x 19.7 cm)
WEIGHT: Approximately 1.1 lb. (0.5 kg)

LineSelect® Model 8086 RJ45 CAT6 A/B Network Application:

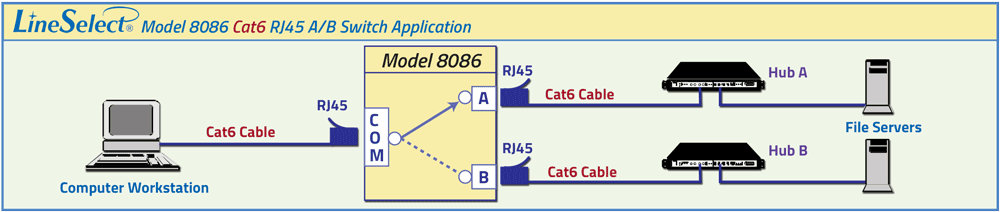

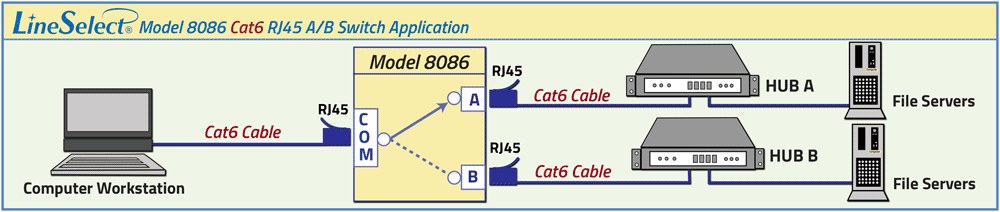

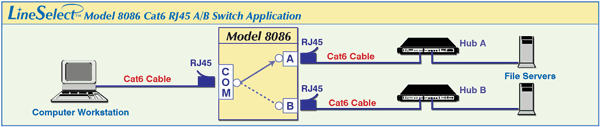

The diagram illustrates a COMMON device connected to the COMMON port allowing the user to switch between to two 10/100/1000 Base-T networks, connected to the RJ45 ports A and B via the front panel rotary switch knob.

Model 8086 Cat6 A/B Switch Application

Key Capabilities & Uses of Model 8086

Simple Manual Network Switching
The Model 8086 is a Cat6 compliant RJ45 A/B manual network selector switch that lets a single device connected to the COMMON port toggle between two separate network connections (A and B) with a physical rotary knob — no software or power required. It switches all 8 pins of the Cat6 interface and supports speeds up to Gigabit Ethernet standards.

Redundancy & Fail-Over Support
In environments where reliable connectivity is critical (e.g., control rooms, substations), the switch provides a fast way to change between primary and backup networks without disconnecting cables. This can help during maintenance windows or when a network segment is offline.

Diagnostic Access & Field Use
Engineers can use the 8086 to connect diagnostic workstations, laptops, or portable tools to different network segments safely — ideal for on-site troubleshooting or commissioning tasks where switching is needed quickly and manually.

Eliminates Wear & Cable Handling
By providing a hardware switch, it avoids frequent unplugging/replugging of RJ45 cables, which reduces connector and cable wear and maintains cleaner, more reliable physical network connections.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur, equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
