Model 7467 8-Channel Cat6 RJ45 A/B Switch with Contact Closure Remote & Position Feedback

Overview

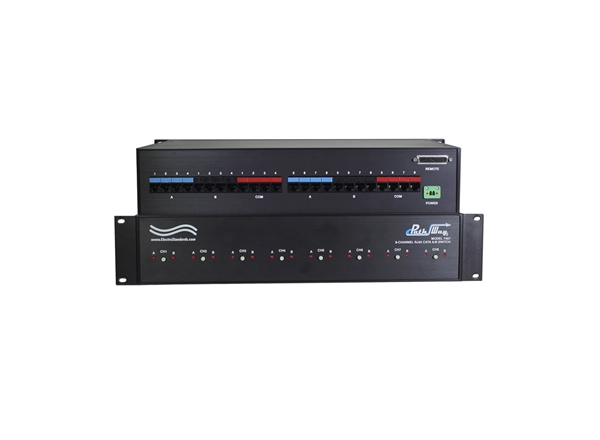

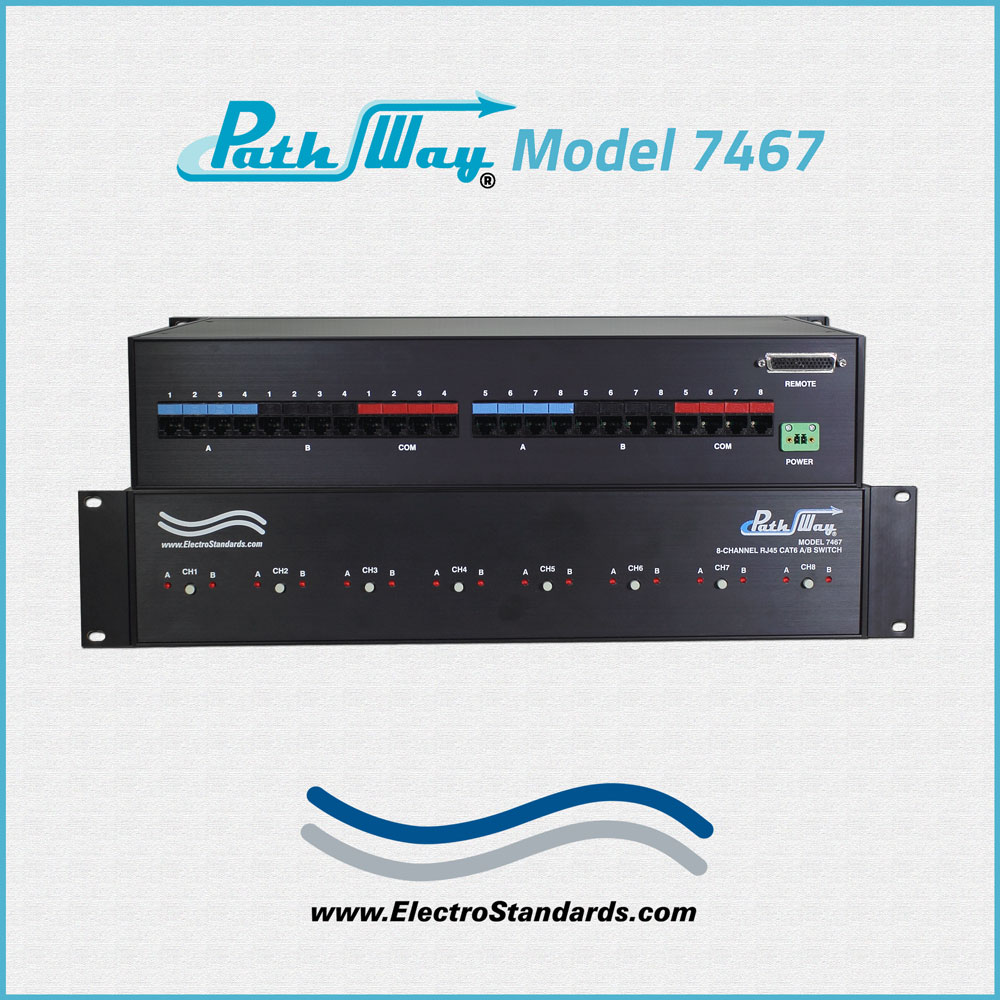

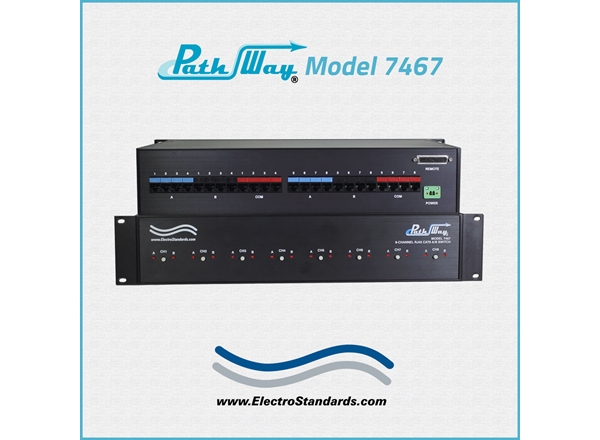

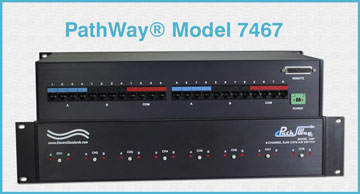

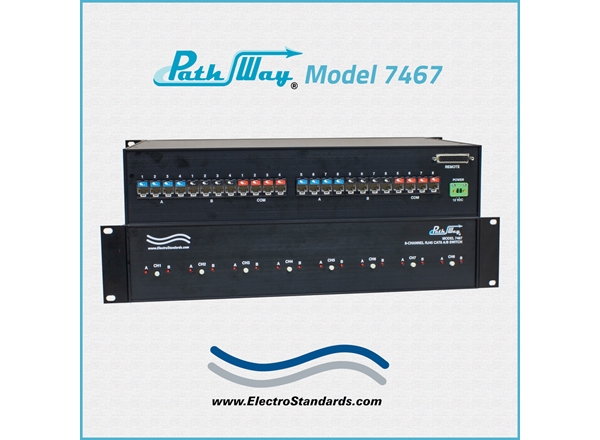

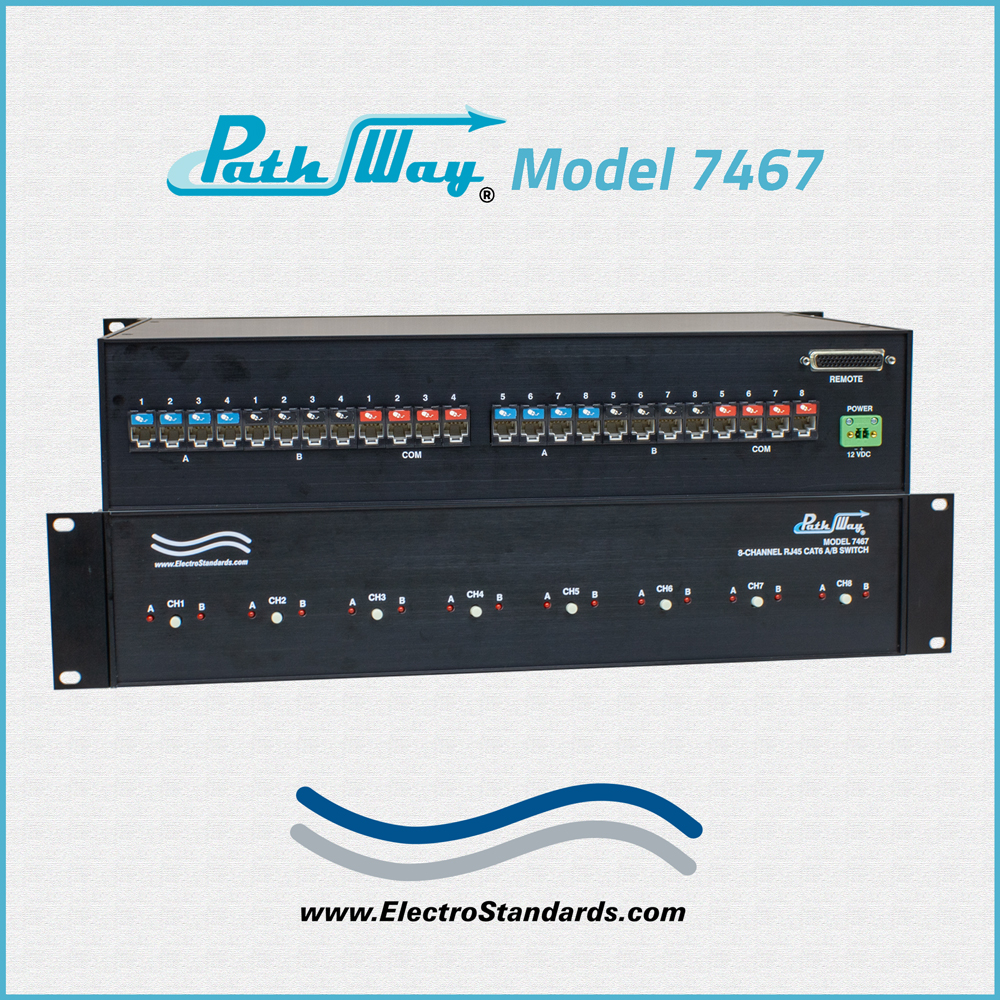

The PathWay® Model 7467 8-Channel RJ45 Cat 6 A/B Switch with Contact Closure Remote and Position Feedback allows the user the capability of accessing two separate devices, ports A and B, via connection through a device connected to the Common port for each of eight channels.

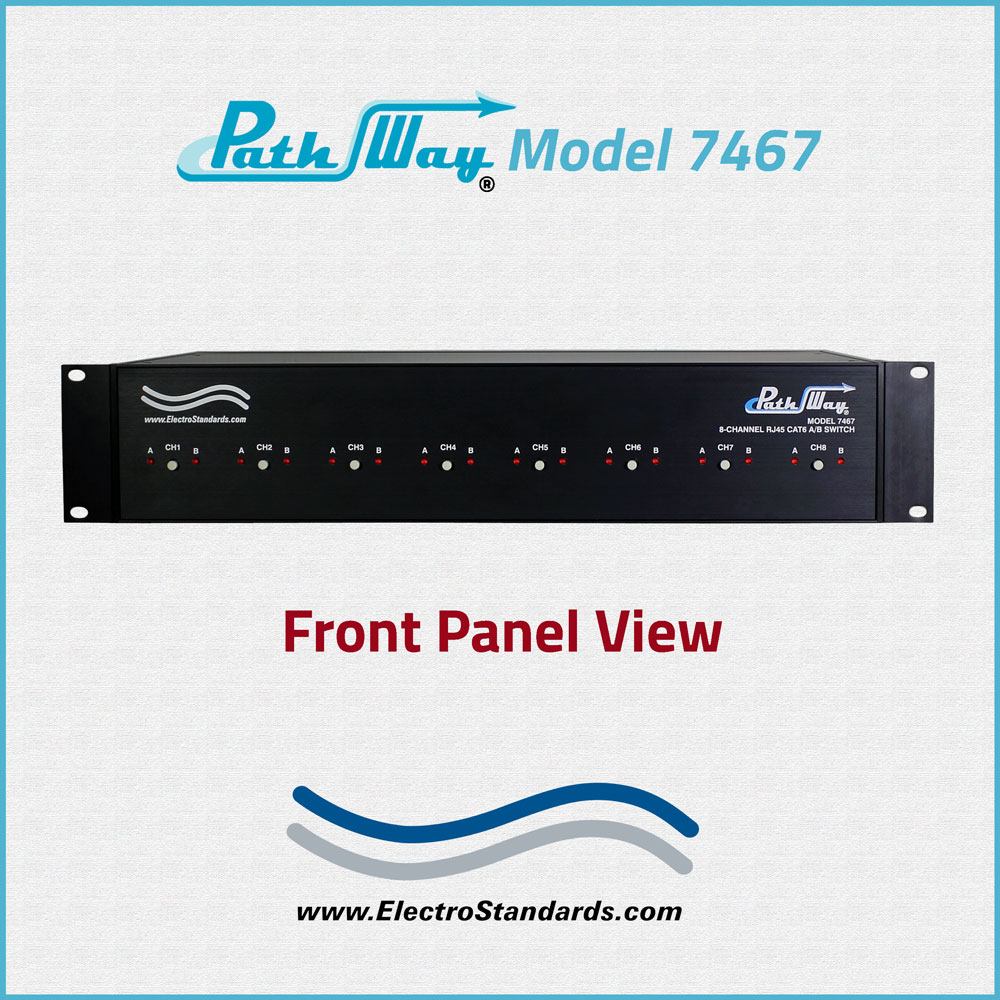

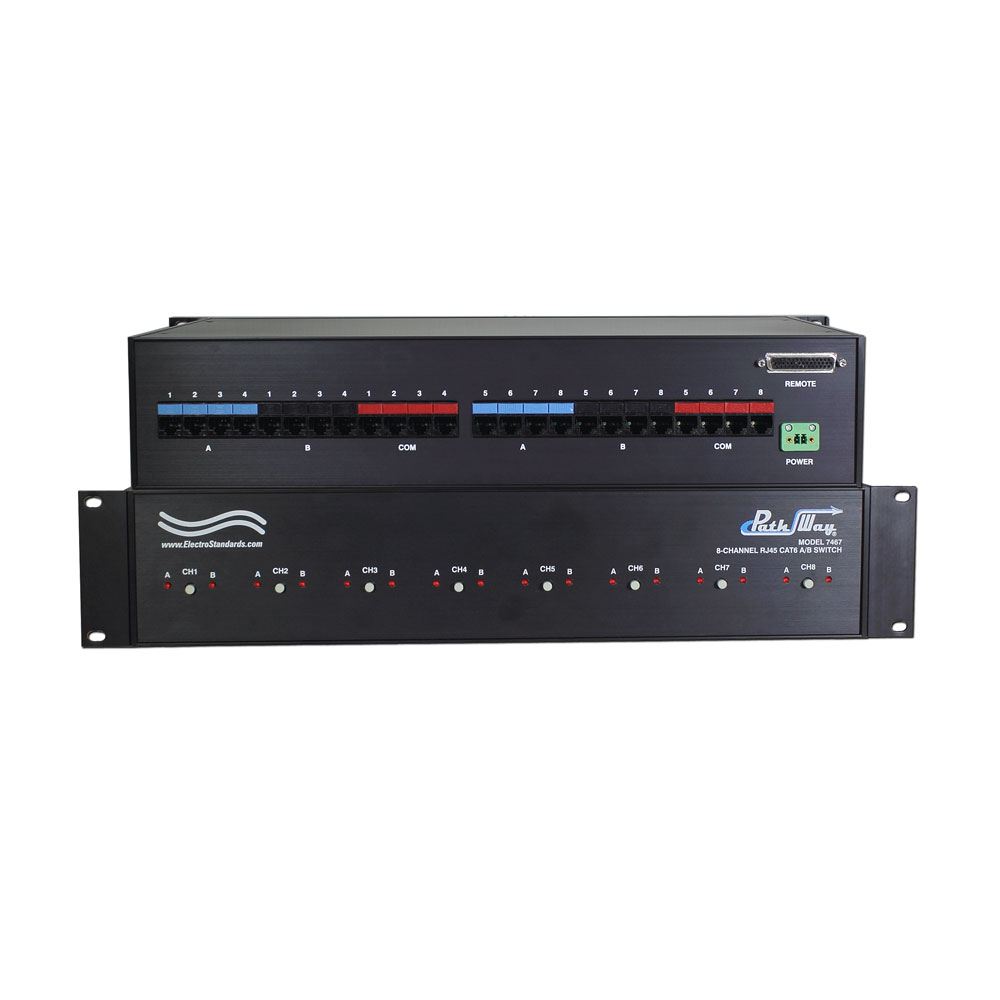

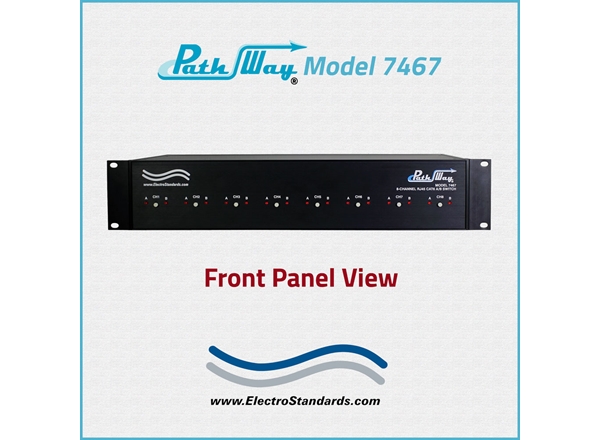

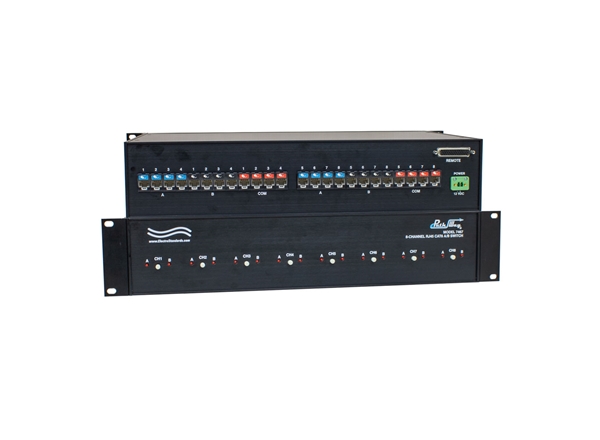

The PathWay® Model 7467 is enclosed in a 2U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack. The switch may be controlled manually via the front panel pushbuttons or remotely from a HD44/F port located on the rear of the unit. Switch position state may be attained via the front panel LED.

Certified for Cat 6 compliance!

FEATURES OF THE MODEL 7467 RJ45 CAT 6 SWITCH:

Allows quick connection to any one of two devices from one COMMON device for each of eight channels.
The switch ports are transparent to all data.
All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
Independent control of channels.
Front panel pushbutton control.
The unit maintains last set position on power loss and continues to pass data.
Upon power up, the unit will switch based on Remote Contact Closure state.
Remote Contact Closure control and status provides dry contact logic to allow the control of the switch position and obtain the present position.
Contact Closure provides a set of contacts for position feedback allowing reporting of each channel's position to a Supervisory Control Device.
Front panel LED's display present position and power status.
Certified for Cat 6 compliance.
Attractive all metal, black box packaging provides EMI/RFI shielding.

TECHNICAL SPECIFICATIONS:

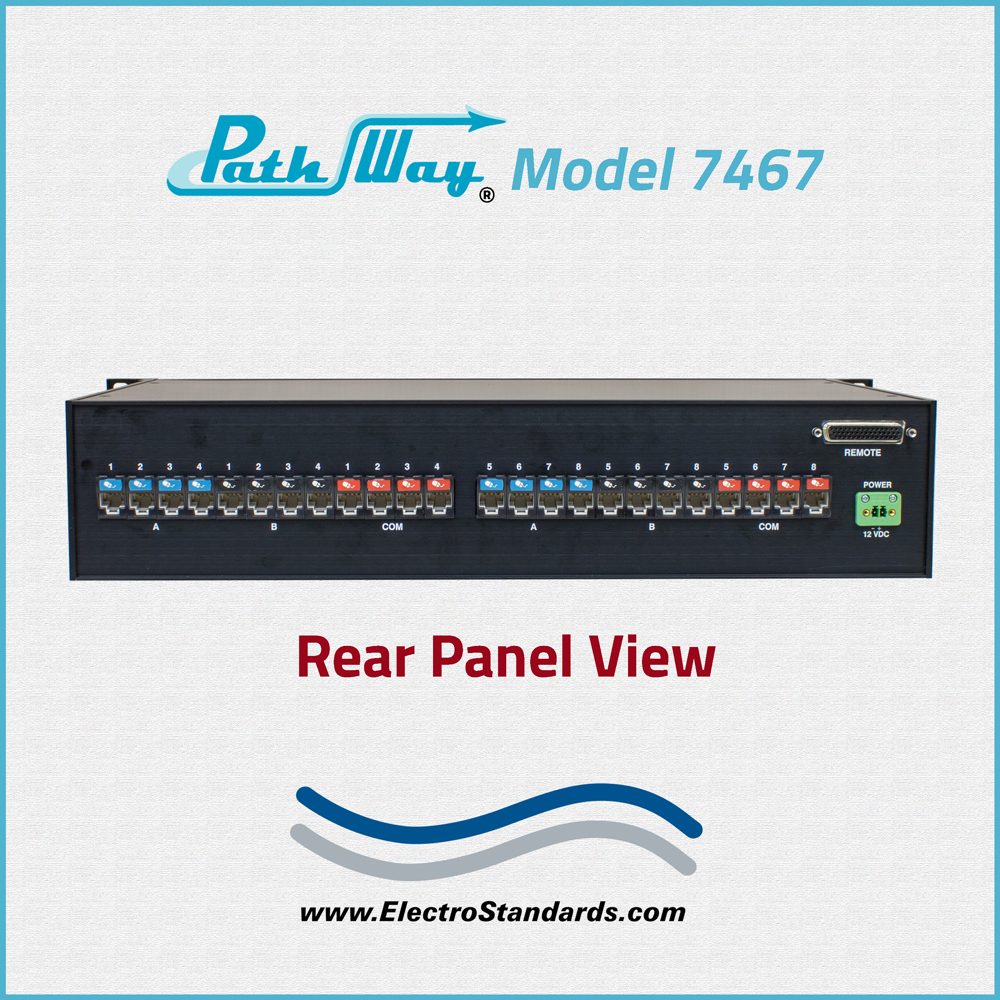

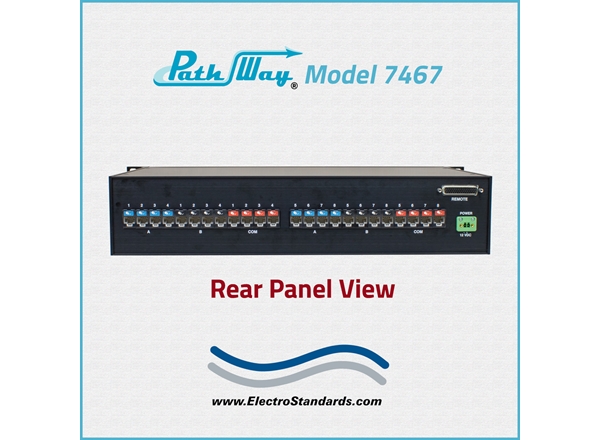

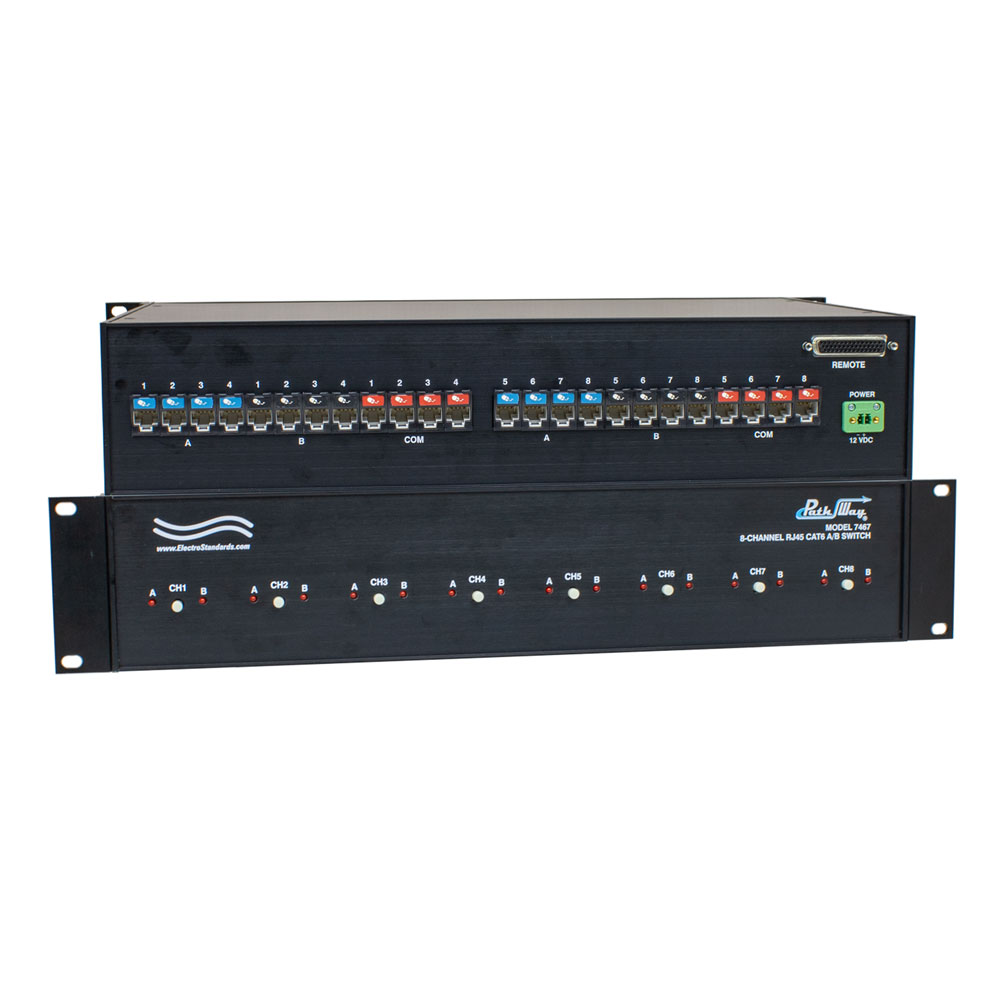

PORT CONNECTORS: (24) RJ45(F) labeled A, B, and COMMON (3) RJ45 (F) connectors for each of eight channels.

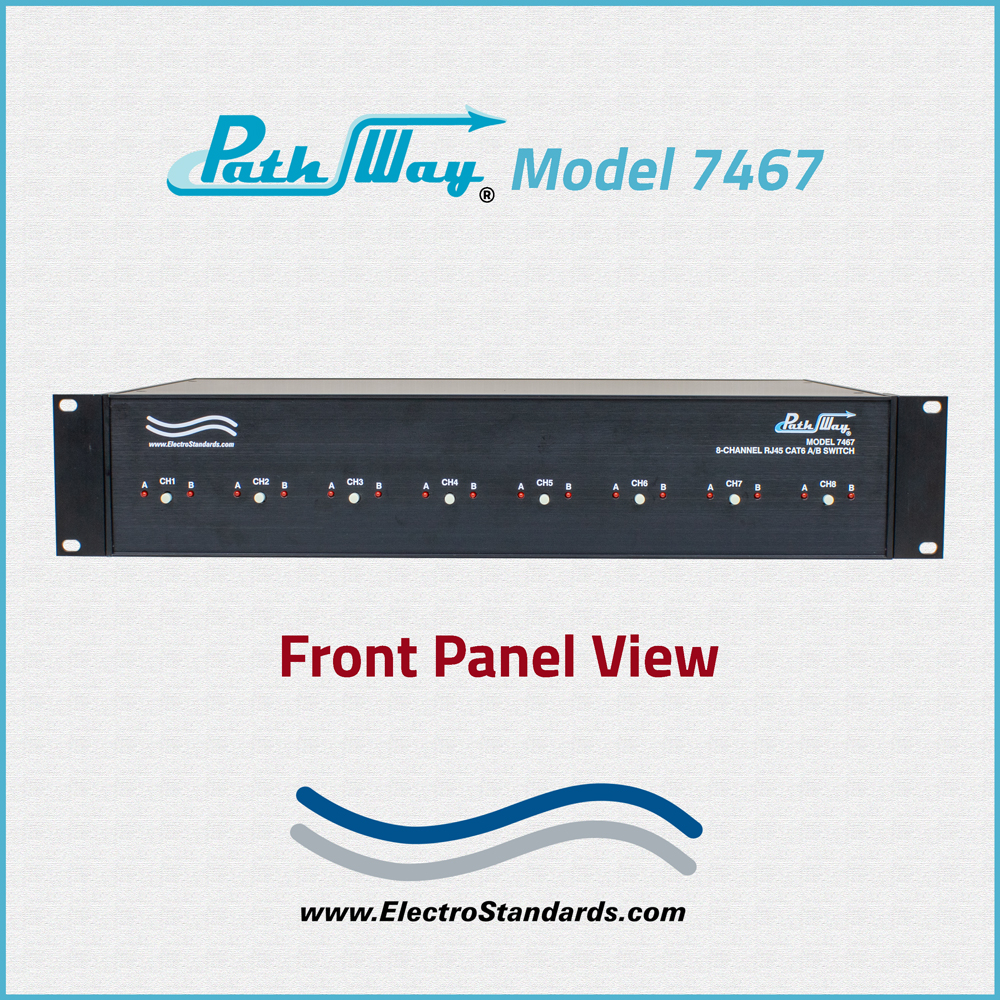

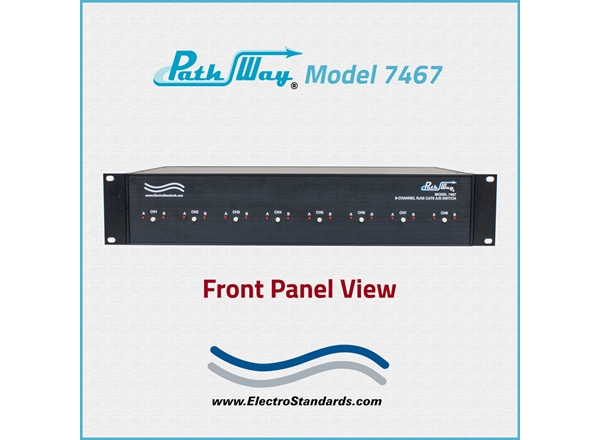

FRONT PANEL CONTROL: (8) Pushbuttons to select port A or B for each channel.
DISPLAY: (2) Red LEDs display switch position and power status for each channel.

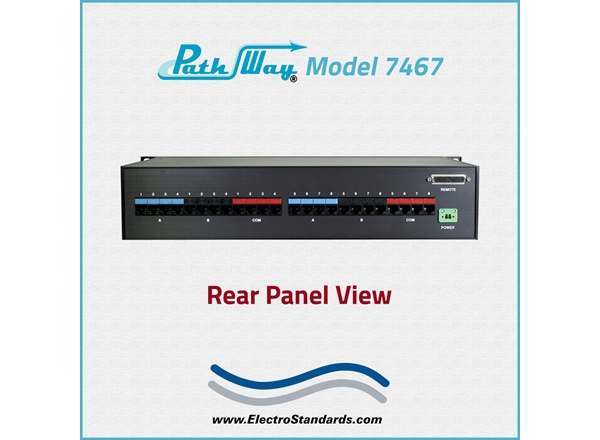

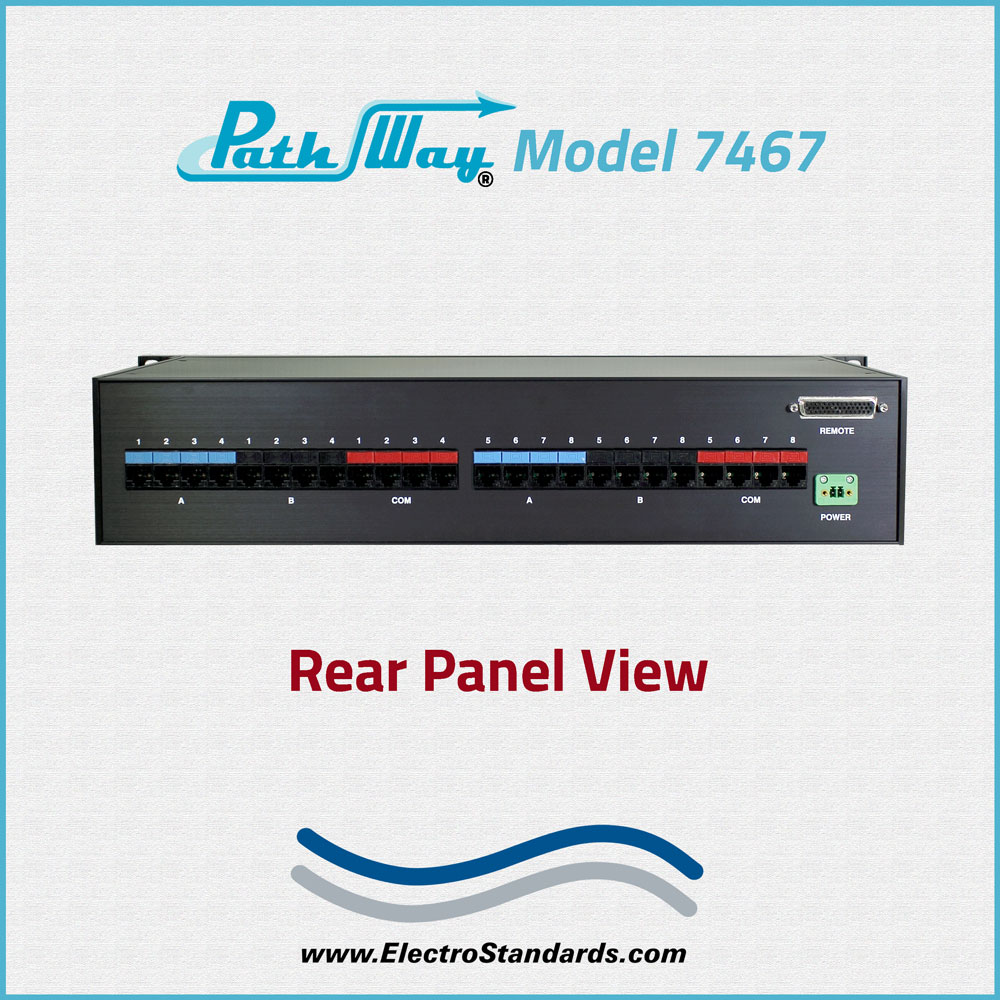

REMOTE PORT: (1) HD44(F), 44-Pin connector on rear supports Contact Closure Control and Feedback Status.
POWER: UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
DIMENSIONS: Rackmount Configuration, 19.0" W x 3.50" H x 10.16" D (48.3 x 8.9 x 25.9 cm)
WEIGHT: Approximately 6.0 lb. (2.8 kg)

PathWay® Model 7467 8-Channel Cat6 RJ45 A/B Switch w/Contact Closure Remote & Position Feedback Application:

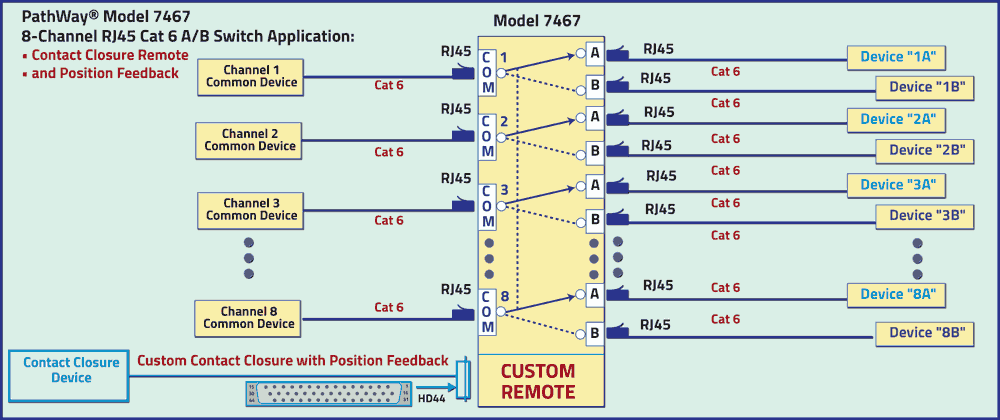

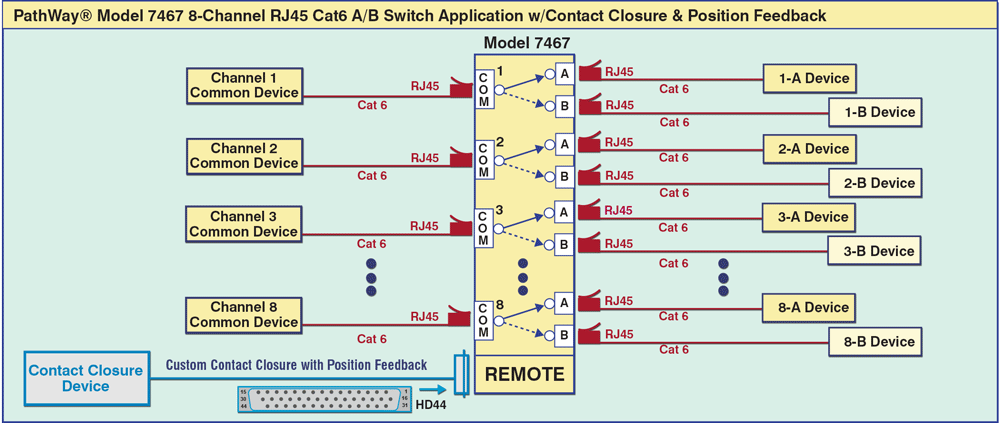

The drawing illustrates a COMMON Device connected to the COM port with access to two other devices connected to Port A and Port B for each of eight channels. A Remote port connector HD44 is used to control the unit via Customized Contact Closure and Position Feedback signals.

PathWay Model 7467 8-Channel Cat6 RJ45 A/B Switch w/Contact Closure Remote Application

Ordering Information

Catalog Number: 307467
Model Number: 7467
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC - 240 VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.
