Catalog # 307446 - Model 7446 DB9 One-Half Crossover Switch, with Contact Control Remote

    DB9 One-Half Crossover Switch, with Contact Control RemoteDB9 One-Half Crossover Switch, with Contact Control RemoteDB9 One-Half Crossover Switch, with Contact Control Remote
Click image to enlarge
    • DB9 One-Half Crossover Switch, with Contact Control Remote
    • DB9 One-Half Crossover Switch, with Contact Control Remote
    • DB9 One-Half Crossover Switch, with Contact Control Remote
Base Price:
$1,055.00
Catalog No: 307446
Model No: 7446
Feature:One-Half Crossover and Custom Remote Contact Control Port
Protocol:Dry contact closure transition signals
Product Type:Switches: Copper
Positions:2, Normal/Crossover
Cable Type/Port Connector:DB9 Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Contact Closure
Configuration:Rackmount
Pins Switched:9
Remote Port:DB9
Local Control:Pushbutton

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Path Way® Remotely Controllable Network Switch, DB9, One-Half Crossover

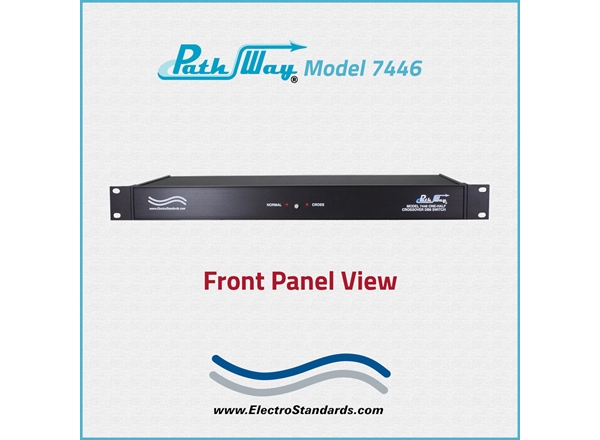

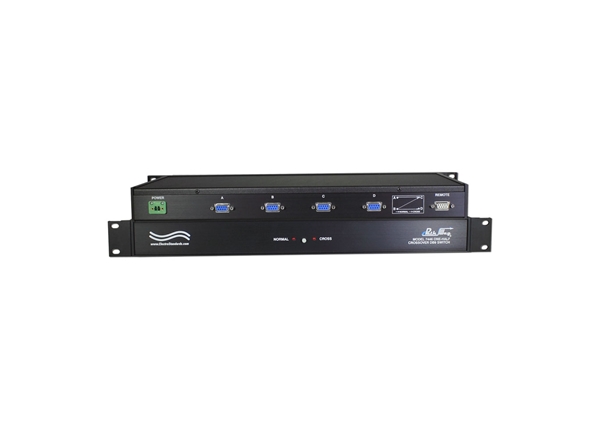

Model 7446 DB9 One-Half Crossover Switch with Contact Control Remote

  • Designed for switching between data sources to either of two destinations.

  • Applicable to switching ANY DB9 interface devices.

SPECIFICATIONS:

  • PORT CONNECTORS: (4) DB9(F) connectors labeled A, B, C, and D.
  • REMOTE CONTROL: (1) DB9(F) custom remote contact control port accepts dry contact closure transition signals for Remote Control Operation.
  • DISPLAY: (2) LED's labeled NORMAL and CROSS front panel display indicate switch position and power status.
  • LOCAL CONTROL: (1) Front panel pushbutton allows local control of switch between NORMAL and ONE-HALF CROSSOVER state.
  • POWER: UL Approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit.Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: 19" W x 1.75" H x 8.23" D (48.3 x 4.4 x 21.0 cm)
  • WEIGHT: 4.3 lbs. (2.0 kg)

DB9 ONE-HALF CROSSOVER APPLICATION w/CONTACT CLOSURE REMOTE:

  • There are two drawings with one  illustrating "NORMAL" position and the other drawing illustrating "One-Half Crossover" position.

Model 7446C DB9 One-Half Crossover switch shown in Normal position with Contact Closure Remote.

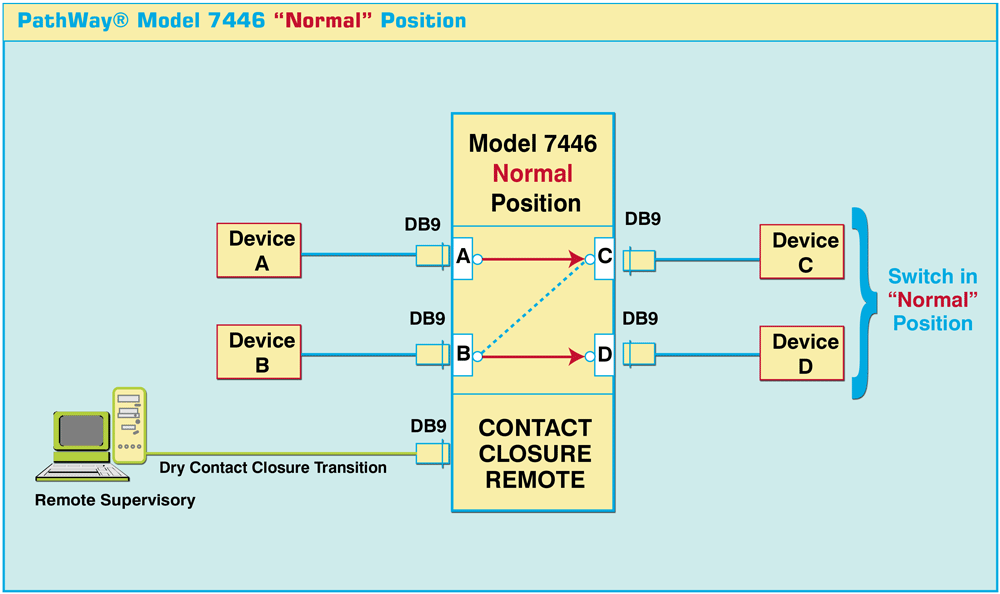

"Normal" position illustrates Device A connected to Device C, and Device B connected to Device D. A Contact Closure Remote allows the user to change the "Normal" position to "One-half Crossover" position via the DB9 Remote.

PathWay® 7446C Normal Position connections

Model 7446 DB9 Crossover Switch shown in the Crossover Position with Contact Closure Remote.

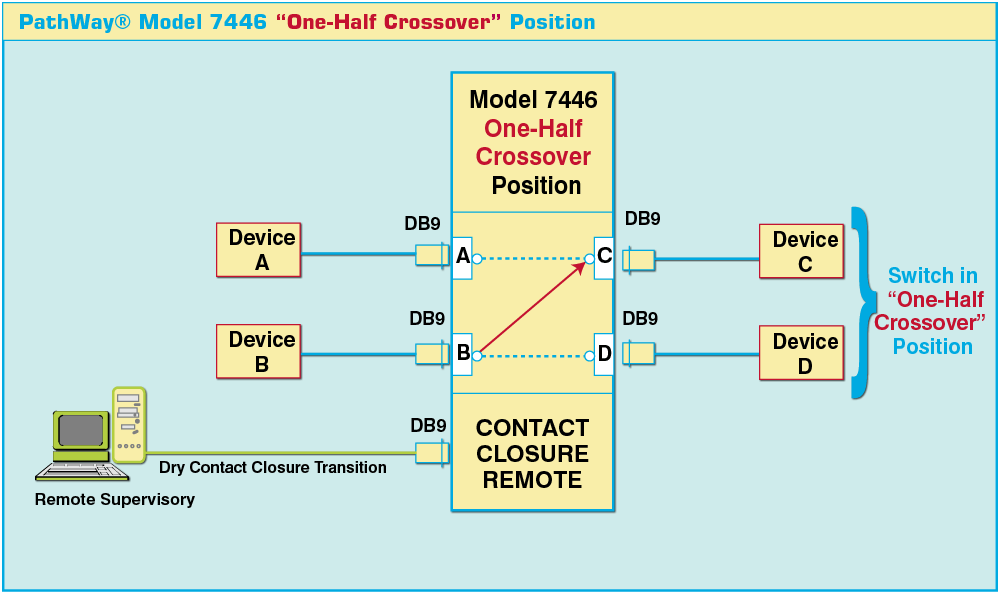

"One-Half Crossover" position illustrates Device B connected to Device C, with no connection from Device A to Device C or Device D. A Contact Closure Remote allows the user to change the "One-Half Crossover" position to Normal" position via the DB9 Remote.

Model 7446 DB9 Crossover Switch shown in the Crossover Position with Contact Closure Remote.

FEATURES:

  • This Network Switch allows selection between Normal and One-Half Crossover position.
  • The ports are transparent to all data.
  • All (9) signals of the interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • Front panel pushbutton control.
  • When the unit is in NORMAL position, Port A is connected to Port C and Port B is connected to Port D.
  • When the unit is in CROSS position, Port B is connected to Port C, while Port A is not connected to either Port C or Port D.
  • Remote Contact Closure control and status provides dry contact logic to allow the control of the switch position and lockout state as well as obtain the present position.
  • Front panel LEDs display the present switch position and power status.
  • Custom length data cables available.

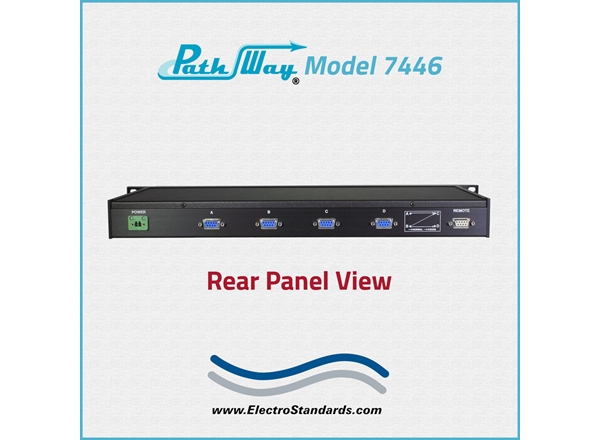

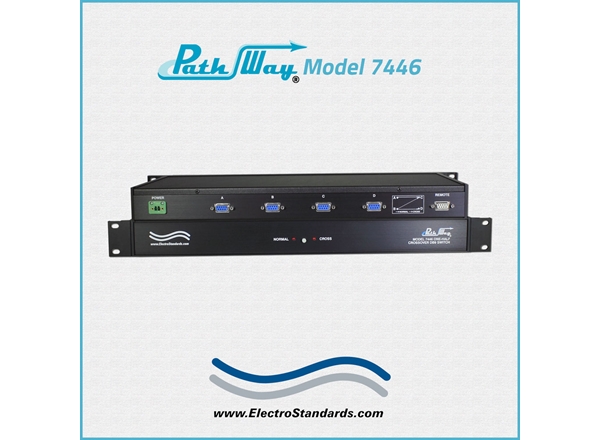

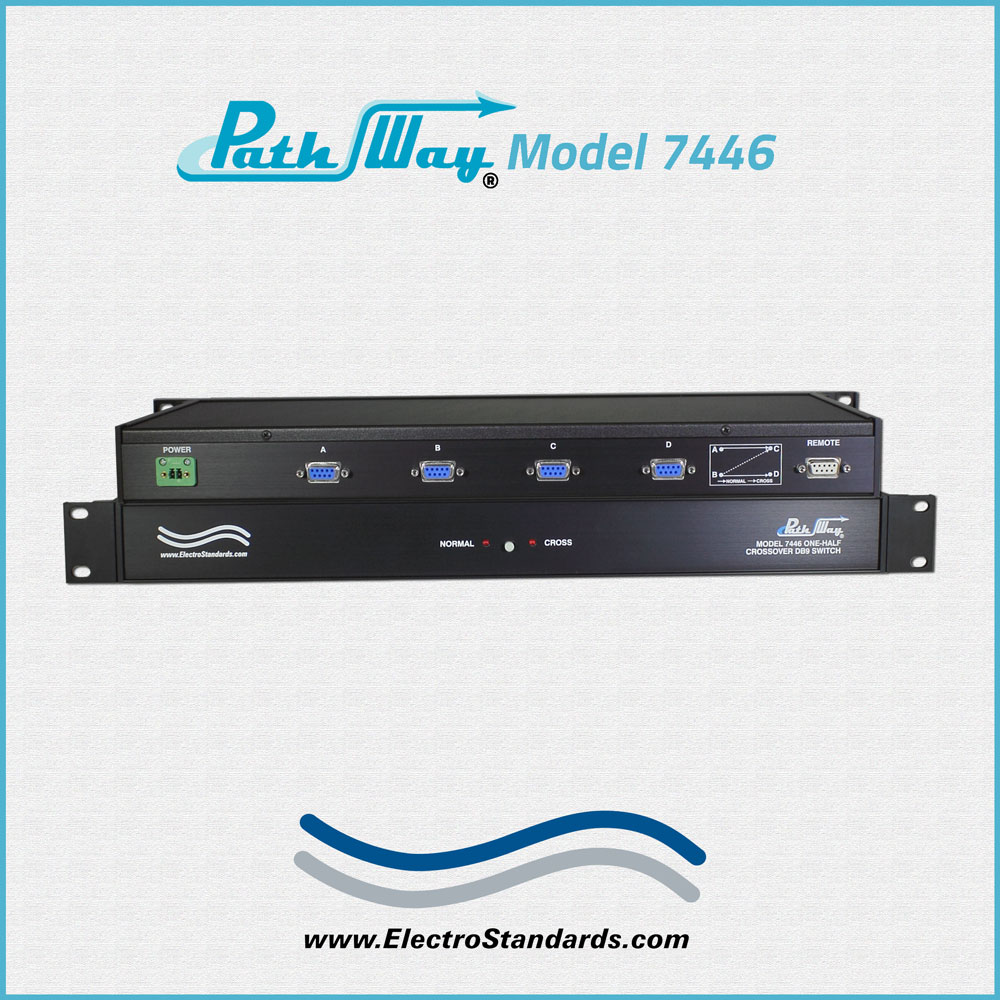

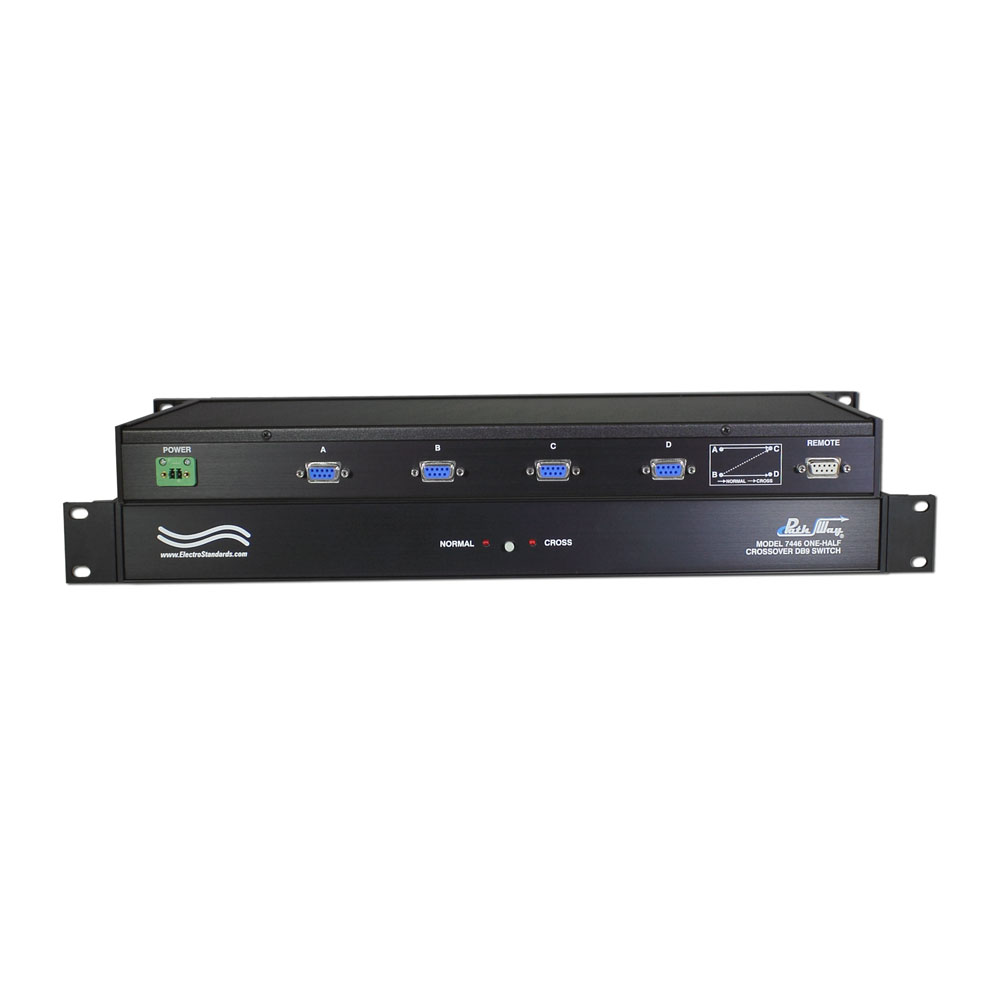

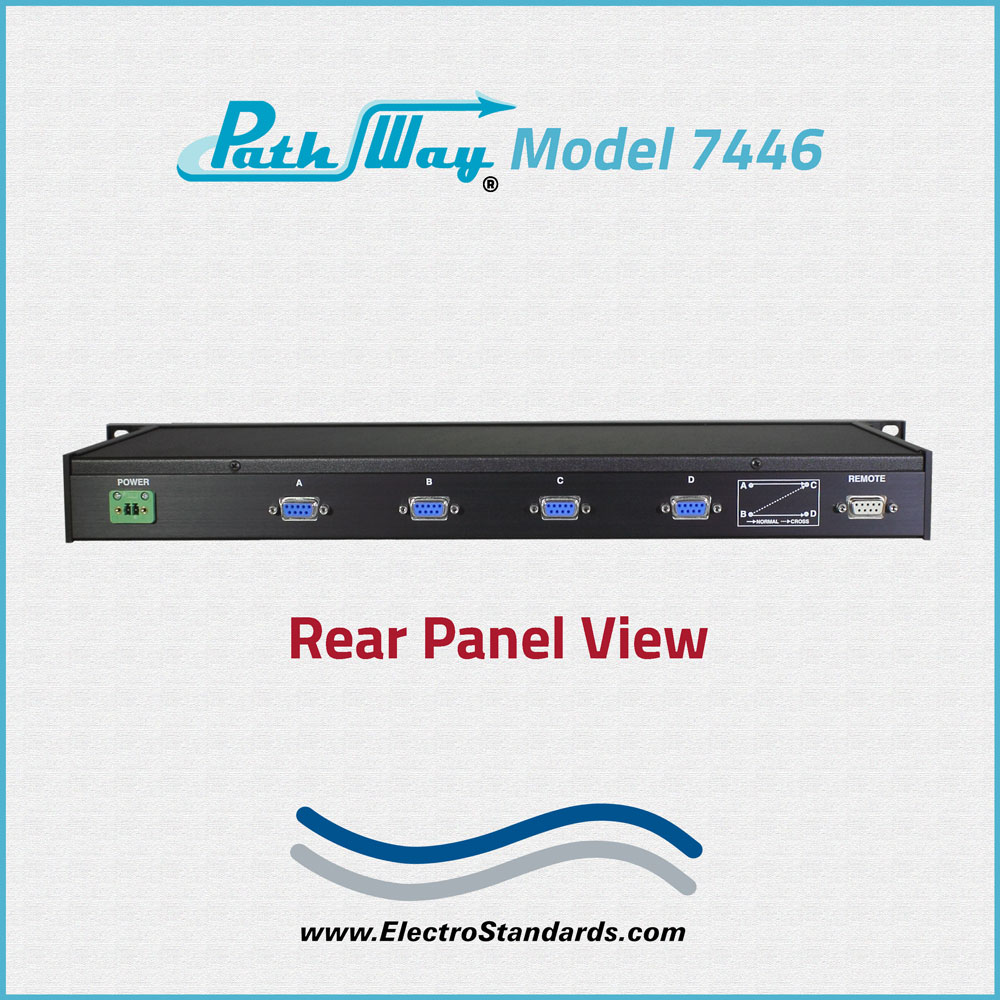

The PathWay® Model 7446 DB9 One-Half Crossover Switch Box with Contact Control Remote Port supports connections between four devices or peripherals connected to ports A, B, C, and D, in either a "Normal or "Cross" configuration.  The Model 7446C is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

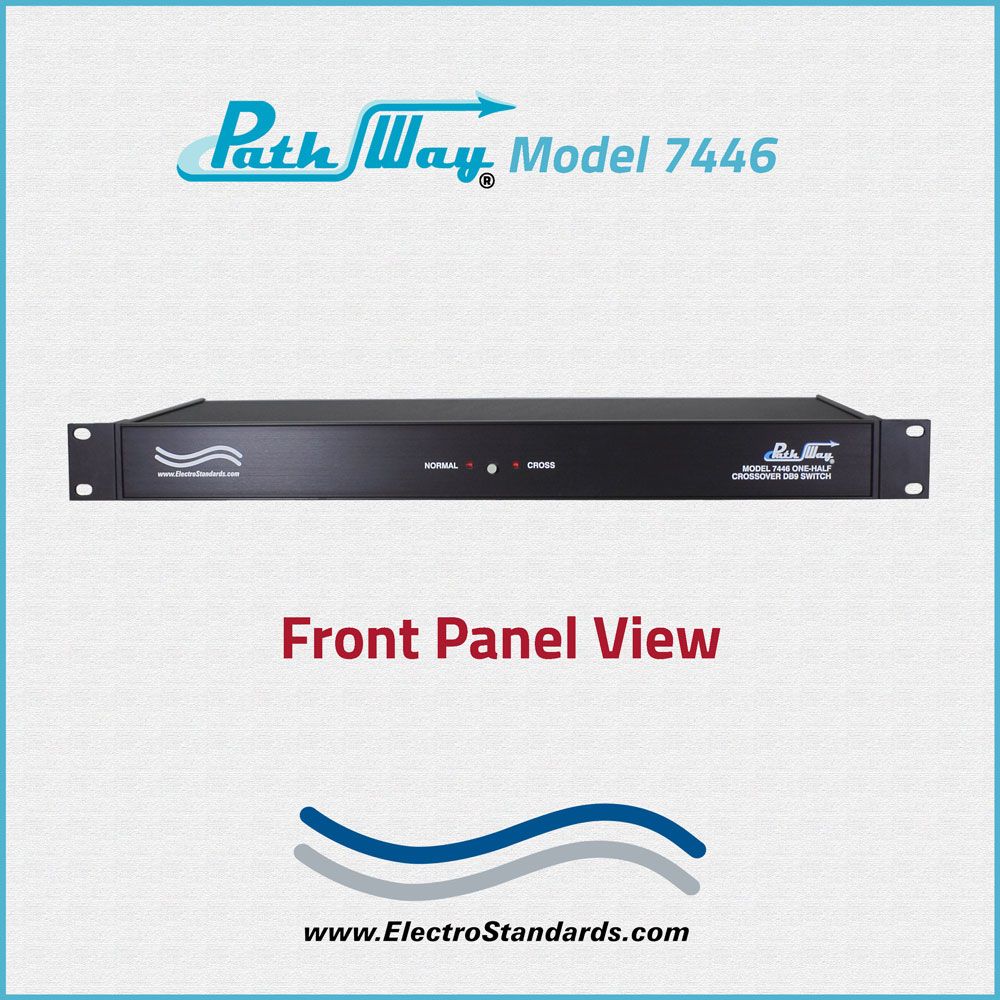

The data switch may be controlled manually via the front panel pushbutton or remotely from a DB9 port located on the rear of the unit. The switch position state may be attained via the front panel LED or by a set of dry contacts on the Remote DB9 port.

OPTION: WIDE RANGE POWER MODULE (Cat. No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
