Path Way® Remotely Controllable Network Switch, DB9

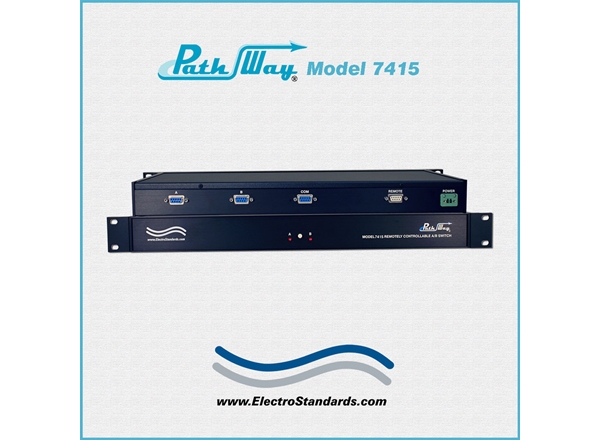

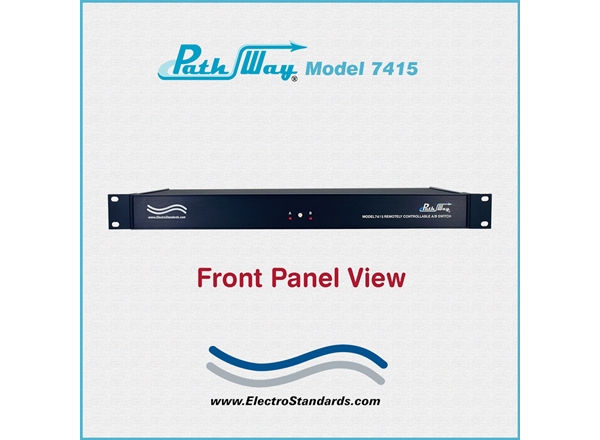

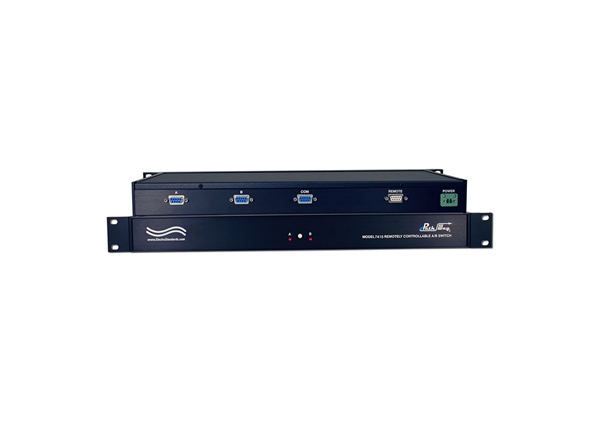

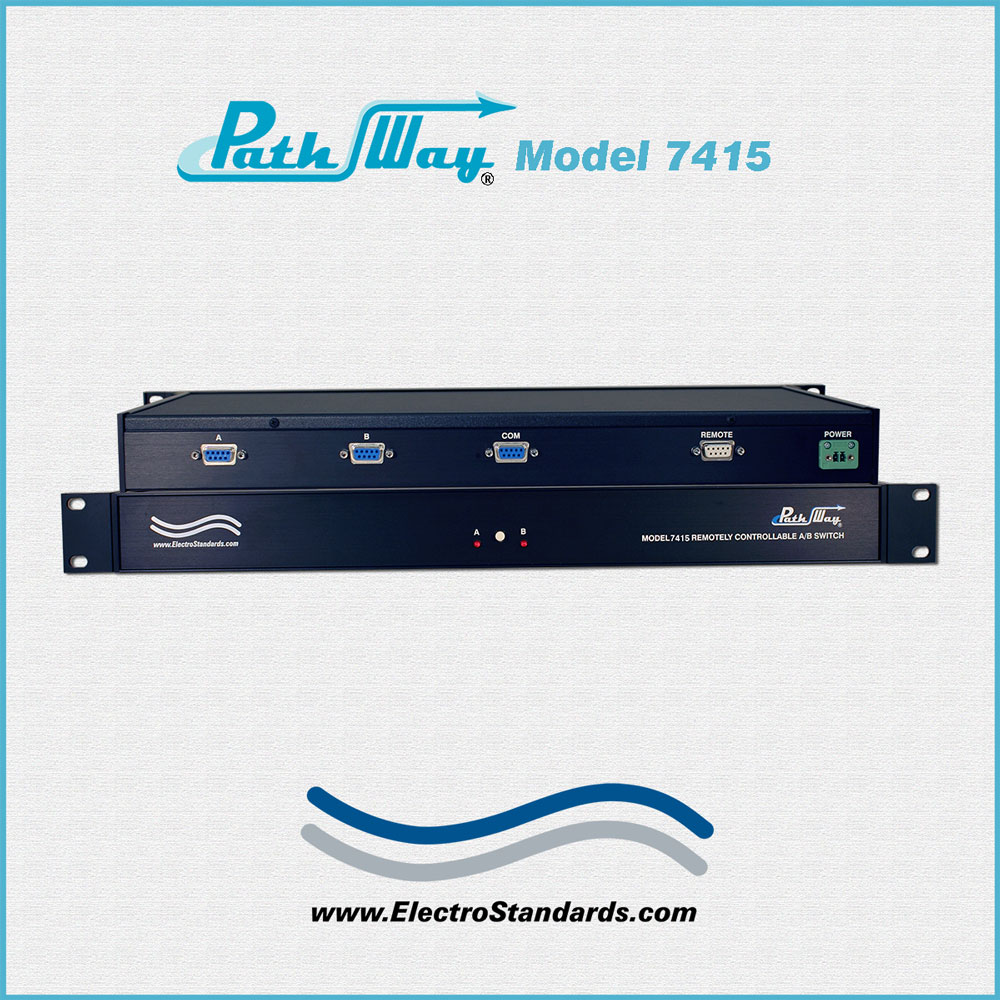

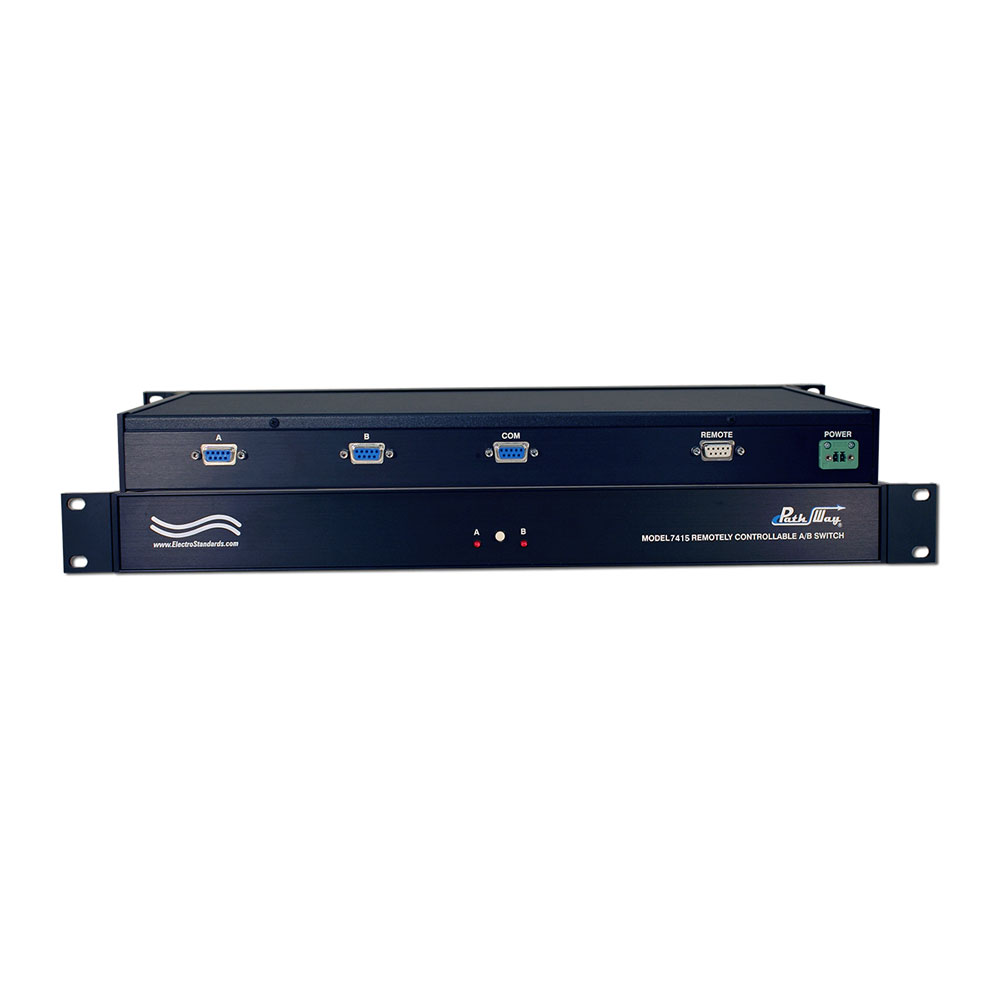

Model 7415 DB9 A/B Switch, with Contact Closure Remote Port, 1U Rackmount

  • Operating temperature based on component rating is -20°C to 70°C

  • Share a common network device between multiple network resources

SPECIFICATIONS:

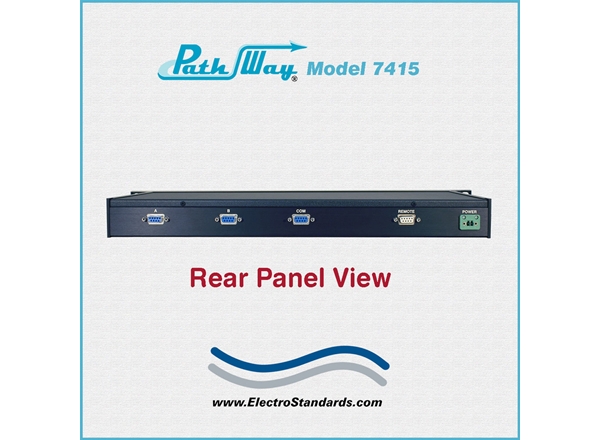

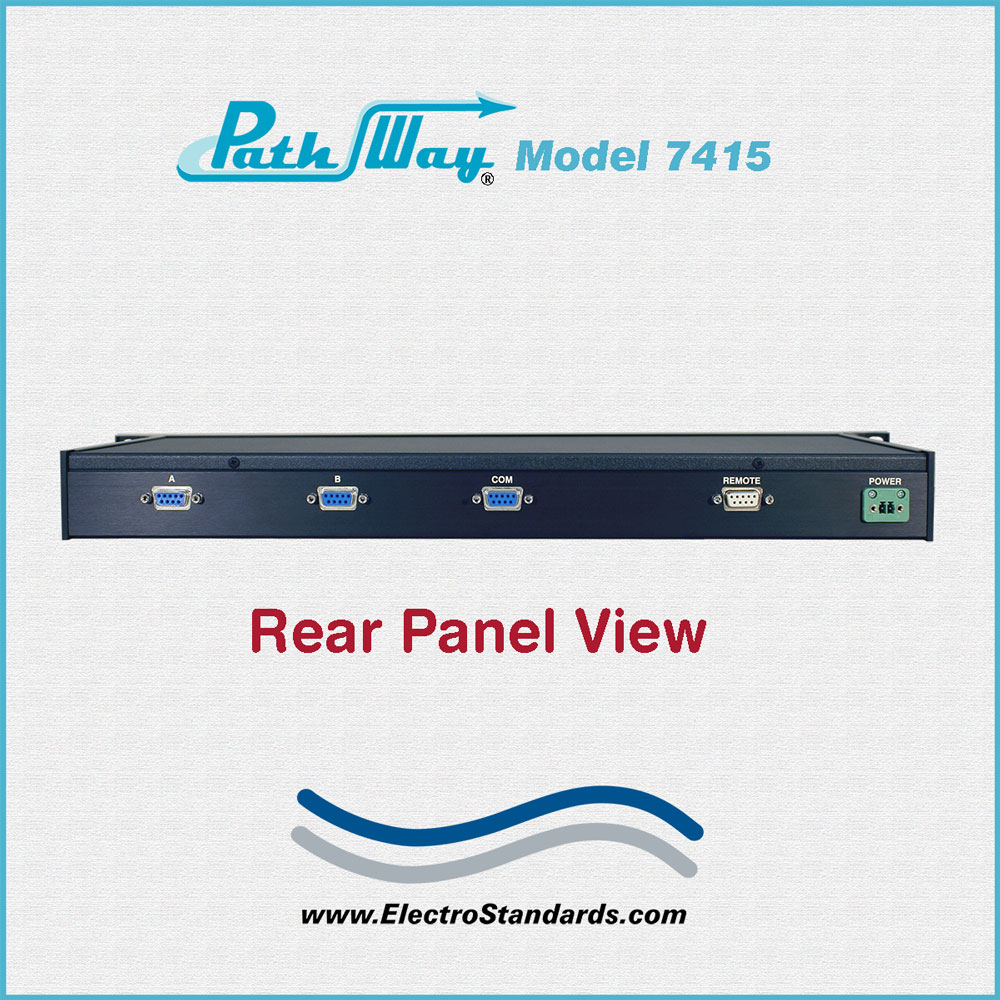

  • PORT CONNECTORS: (3) DB9(F) connectors on rear panel labeled A, B, and COM.
  • FRONT PANEL CONTROL: Manual pushbutton allows selection of switch position.
  • REMOTE CONTROL PORT: (1) DB9(F) Control connector accepts contact closure signals from a remote device.

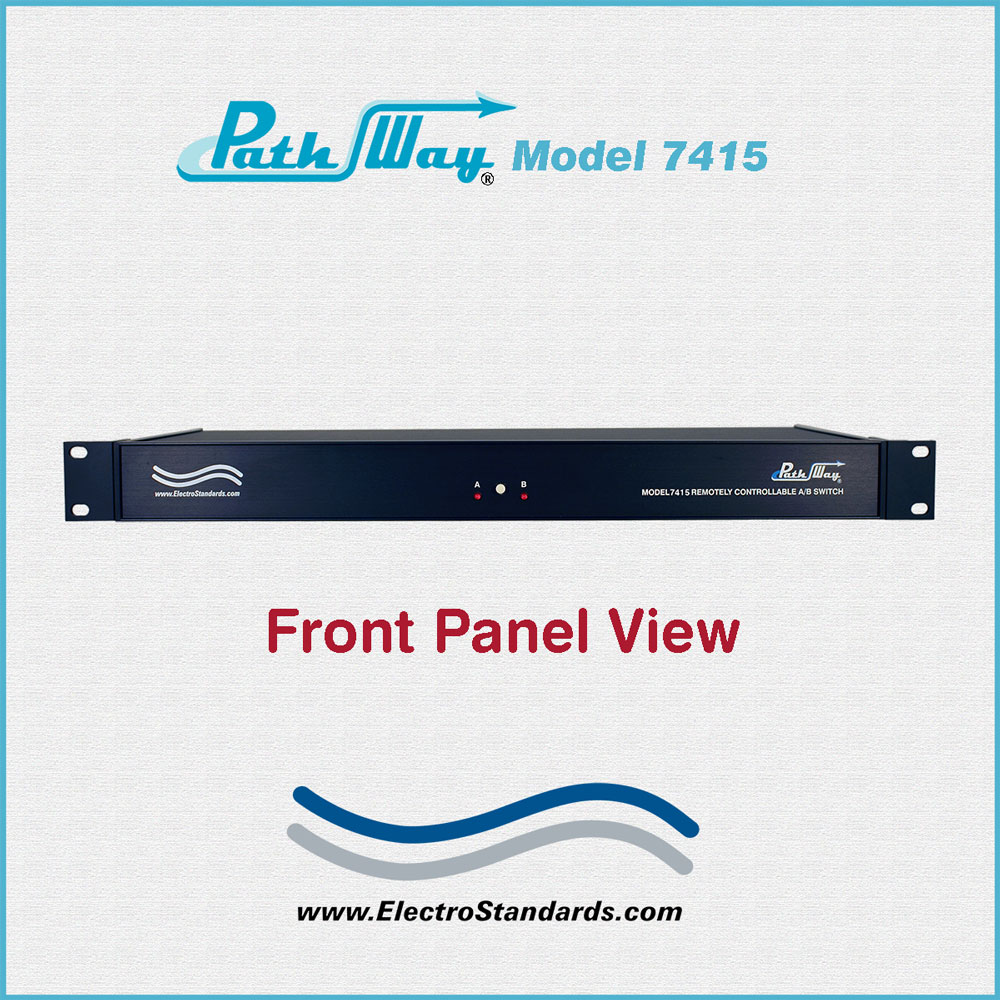

  • FRONT PANEL DISPLAY: (2) LED's A, B, indicate switch state and power status.
  • POWER: Unit requires 12VDC, 0.5 Amps. Includes one Phoenix male connector to mate with the power port.  The power supply is not included with the unit and can be ordered separately.
  • DIMENSIONS: Rackmount, 19" W x 1.75" H x 8" D. (48.3 X 4.4 X 20.3 cm)
  • WEIGHT: Approximately 4.5 lbs (2 kg).

PathWay® Model 7415 DB9 A/B Application with Contact Closure Remote:

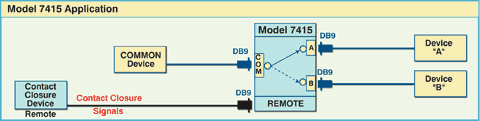

The drawing illustrates a COMMON device connected to the DB9 COMMON port with access to Device A and Device B connected to the DB9 A and DB9 B ports, respectively. A Contact Closure Device is connected to the DB9 Remote port for remote control using contact closure signals.

Network Application Diagram for Model 7415 DB9 A/B Switch with Contact Closure Remote

FEATURES:

  • Allows quick connection to any one of two DB9 interface devices from one COMMON device.
  • Switches all 9 pins of the DB9 interface.
  • Eliminates the need to plug and unplug cables.
  • Transparent to data speed and format.
  • Local control via front-panel pushbutton.
  • The Remote-Control port accepts dry contact open/close commands for switch position control and front panel lockout.  It also supplies contact closure signals indicating switch state.
  • Front panel LED's display switch position and power status.
  • Operating temperature based on component rating is -20°C to 70°C
  • Unit requires 12 VDC, 0.5 Amps.
  • Ideal for fallback applications.
  • Retains last switch position in the event of a power loss and continues to pass data.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length DB9 cables available for your switch installation.

The PathWay® Model 7415 DB9 A/B Switch with Contact Closure Remote Control Port allows the user the capability of accessing two separate devices, ports A and B, via connection through a device connected to the Common port.

The switch may be controlled manually via the front panel pushbutton or remotely from a DB9 port located on the rear of the unit.

Switch position state may be attained via the front panel LED or by a set of dry contacts on the remote DB9 port.

OPTION: WIDE RANGE POWER MODULE (Cat. No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC-240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

SPECIFICATIONS: USB to DB9 Serial Converter Cable Available! If only USB ports are available on the computer or if a USB port is chosen to be used for any reason, a USB to DB9 serial converter cable will be needed.  This cable can be provided by ESL under part number 528693.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 7213 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.
