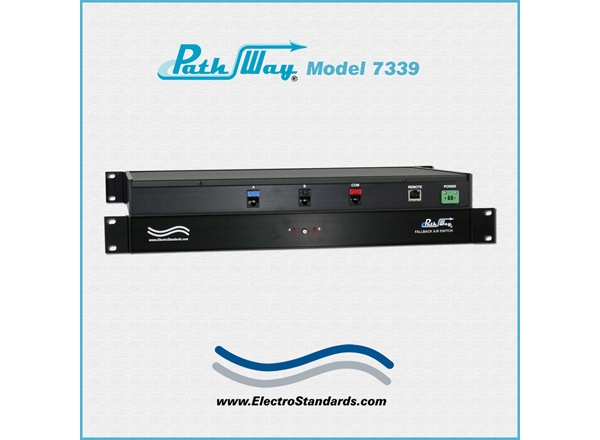

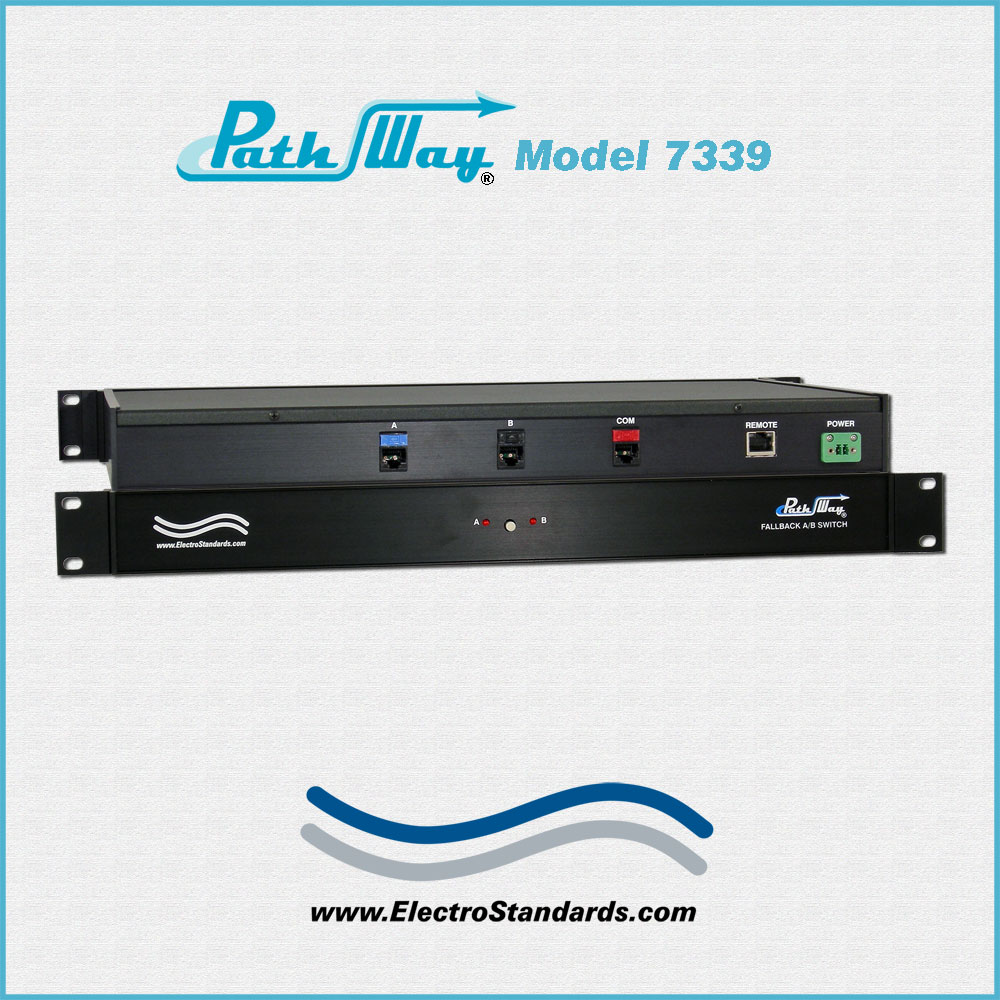

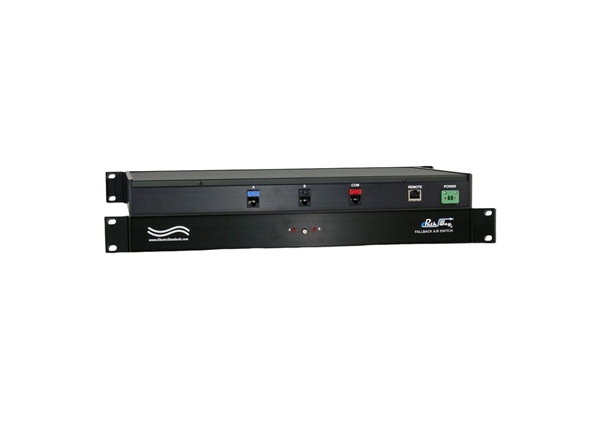

Catalog # 307339 - Model 7339 Full/Half-Duplex RJ45 CAT5e A/B Switch with GUI Remote

    Full/Half-Duplex RJ45 CAT5e A/B SwitchFull/Half-Duplex RJ45 CAT5e A/B SwitchFull/Half-Duplex RJ45 CAT5e A/B SwitchFull/Half-Duplex RJ45 CAT5e A/B Switch
Click image to enlarge

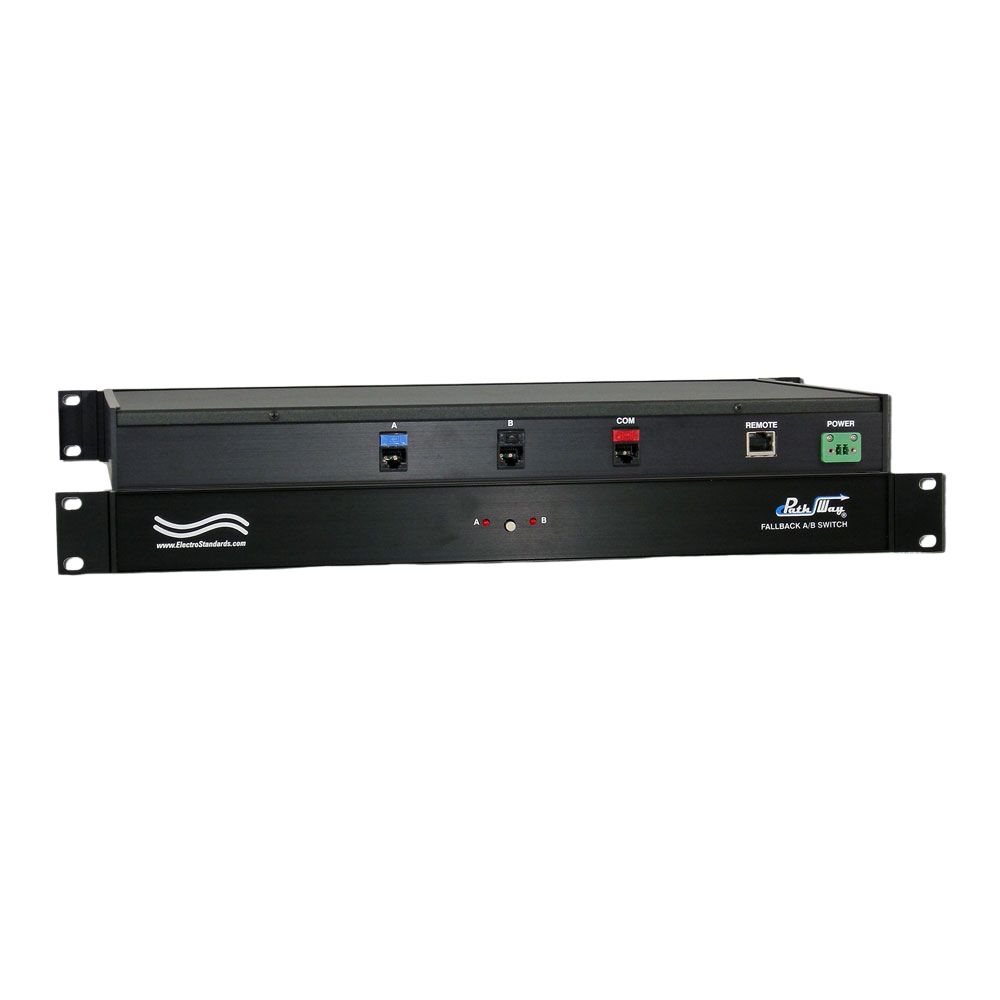

    • Full/Half-Duplex RJ45 CAT5e A/B Switch
    • Full/Half-Duplex RJ45 CAT5e A/B Switch
    • Full/Half-Duplex RJ45 CAT5e A/B Switch
    • Full/Half-Duplex RJ45 CAT5e A/B Switch
Base Price:
$3,191.00
Catalog No: 307339
Model No: 7339
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Auto Fallback, Ethernet
Compliance/Standards:Cat5e
Configuration:Rackmount
Auto Fallback:Data Monitor Port A & Port B
Pins Switched:8
Remote Port:RJ45
Local Control:Pushbutton
Protocol:Telnet Commands/GUI

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

PathWay®

Model 7339 Cat5e 10/100/1000BASE-T Full/Half-Duplex RJ45 A/B Automatic Fallback Switch with 10/100 BASE-T Remote Port and GUI

  • Auto-switch to backup channel B when data is lost on primary channel.

  • Data activity "Watch Dog" switch keeps data flowing.

  • Doubles the reliability of data throughput in critical network applications.

SPECIFICATIONS:

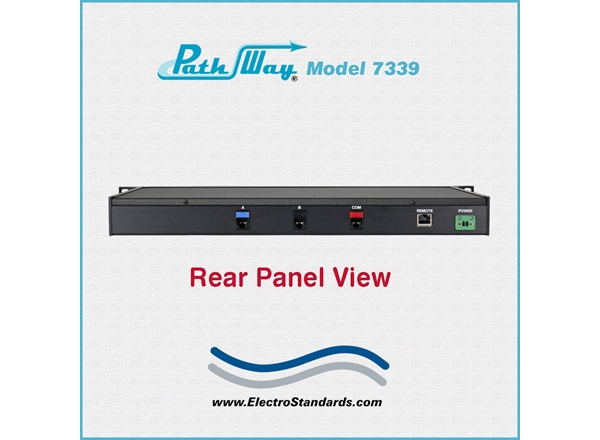

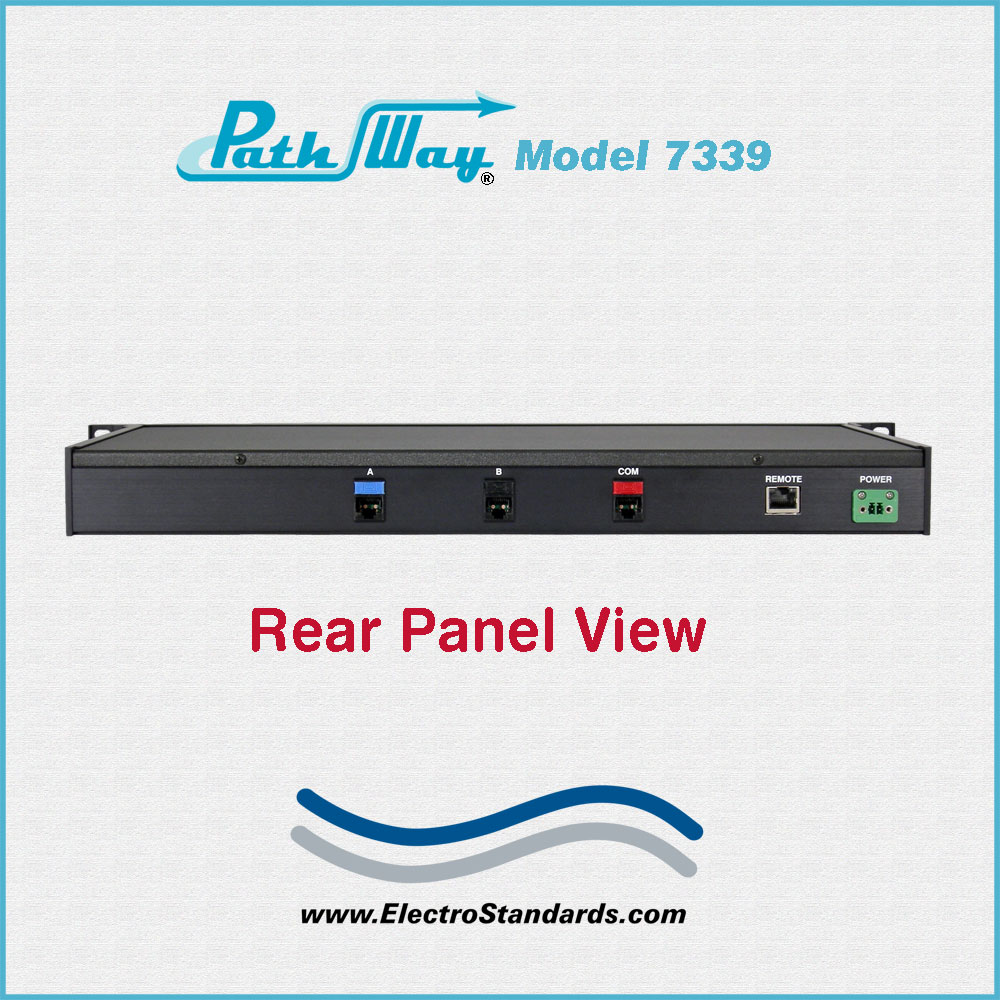

  • PORT CONNECTORS: (3) RJ45(F) connectors labeled A, B, and COMMON.

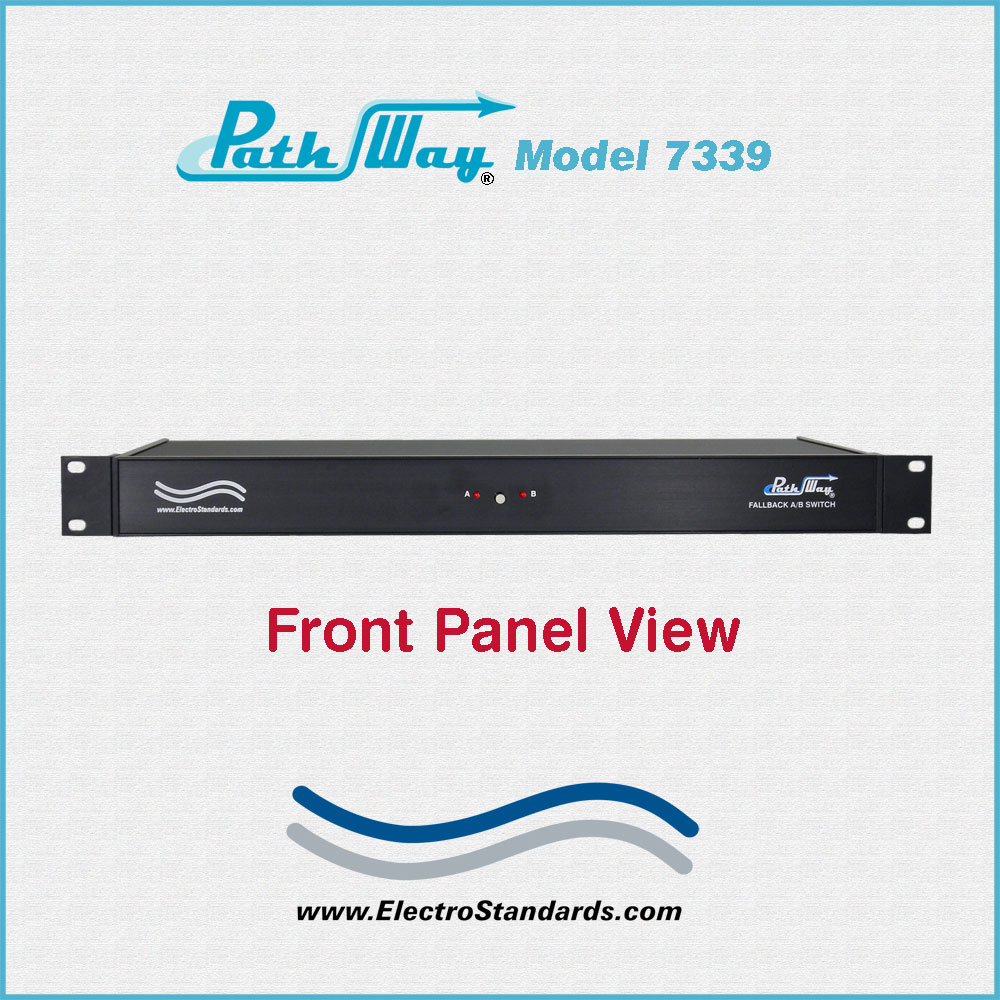

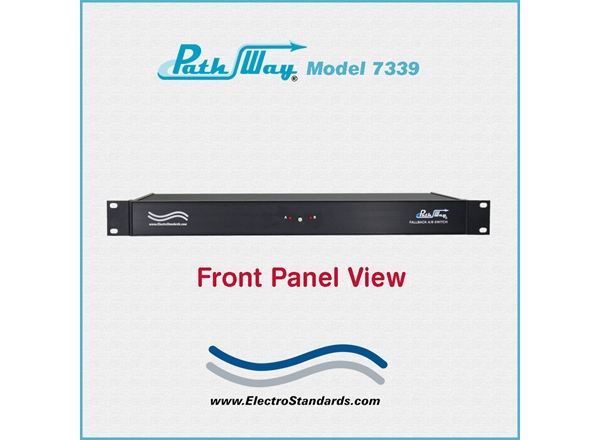

  • FRONT PANEL CONTROLS: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.
  • REMOTE CONTROL: (1) RJ45(F) Connector on rear panel accepts 10/100-Base-T LAN Access Ethernet and Graphical User Interface (GUI) for Remote Control operation.
  • POWER: "WIDE RANGE" CE and UL listed table mount power module (Cat No. 521895) 100VAC/240VAC, 50Hz/60Hz. Has IEC 60320 C14 inlet.Ideal for international applications.
  • DIMENSIONS: 19" W x 1.75" H x 10" D. (48.3 x 4.4 x 25.4 cm)
  • WEIGHT: 5.5 lbs. (2.49 kg)

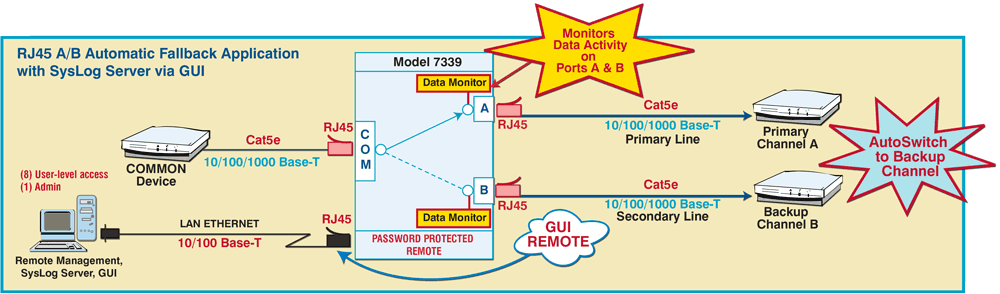

CAT5e A/B APPLICATION: AUTO FALLBACK SWITCHING.

  • Auto-switch to backup channel B when data is lost on primary channel.
  • The Model 7339 switch monitors data activity on Ports A and B.
  • Password Protected Remote
    • (8) User-level access
    • (1) Admin

PathWay Model 7339 Cat5e 10/100/1000BaseT

FEATURES:

  • Automatic switch to secondary line when no data is detected on primary line.
  • All pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • Interface meets Cat5e performance.
  • All switched signals are passed via latching copper contact relays that maintain their position and continuity even in the event of a power loss.
  • Control of the switch position from a 10/100-Base-T LAN Ethernet environment.
  • Remote Control Telnet command interface or Graphical User Interface that allows the user to control switch position, configure Automatic Fallback Mode, lockout front panel operations and obtain switch status.
  • Remote Control actions logged by sending time stamped events to a remote SysLog server. User enters internet address of a SysLog and an NTP server to assign time stamp events.
  • Enhanced password security imposing a 13-character mimimum length password forcing at least a (1) numeric character and (1) special character.
  • Simple Network Management Protocol (SNMP) V2.
  • Front panel LEDs display switch position, the switch mode (Automatic
  • Fallback or Manual) and power status.
  • Certified for Cat5e compliance and supports 10/100/1000Base-T connections.
  • Cables for the switch are available from stock!

 The PathWay® Model 7339  CAT5E 10/100/1000BASE-T RJ45 A/B Automatic Fallback Switch with 10/100 Base-T LAN Telnet Access and GUI, allows the user the capability of sharing a single port interface device connected to the "COMMON" port among two other devices connected to the "A" and "B" ports with remote access functionality. Remote Control access can be accomplished using an Ethernet 10/100-Base-T connection and either Telnet commands or Graphical User Interface (GUI).   The Model 7339 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

When in Automatic Fallback Mode the unit monitors data activity on ports A and B.  If activity is lost on port A, the unit checks for data on Port B and in the presence of data, switches to position B.  The Model 7339 data switch will maintain its connection to port B until data activity is detected on port A, at which time the unit will automatically return to the A position.  If no data is present on either port A or on port B, the unit will stay in the A position and continue to monitor for data.  The user can override Automatic Fallback Operation from the front panel or GUI interface and force the unit to operate as an A/B switch.

SOFTWARE FEATURES:

  • Access User Interface via standard web browser.
  • Easy to use, simple point and click operation.
  • Remotely access to control or monitor the Model 7339 RJ45 A/B Auto Fallback Switch System.
  • Users can change the switch's IP address.
  • LAN access gives users across the LAN or over the internet access to control if the user Network is configured accordingly

UTILIZING THE USER FRIENDLY REMOTE GRAPHICAL USER INTERFACE SOFTWARE

To connect to the switch from a workstation or computer having access to the LAN that the Model 7339 LAN port is connected to, simply launch a standard web browser and type in the appropriate IP address.  The Java Applet will be automatically uploaded from the switch upon connection.  The environment requirement for the GUI is Java 1.7 and above.

LOGGING INTO REMOTE CONTROL GUI

There is no authentication enabled by default. Enable authentication by clicking the "Enable Authentication" button. From the pop-up "Please enter a new admin password and then click "Enable" Button. See Figure 1.

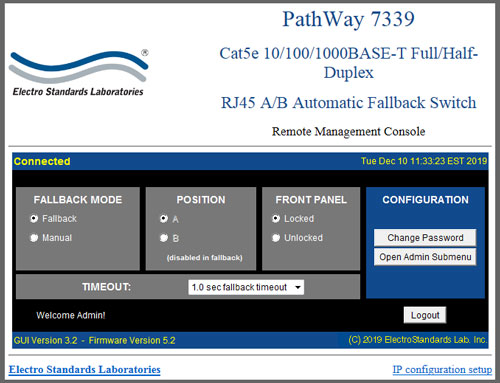

Model 7339 Main Panel GUI

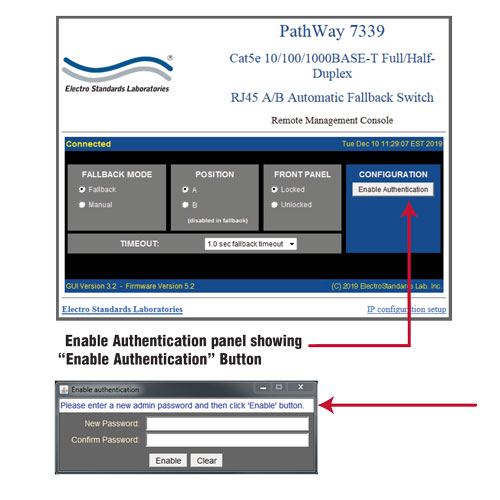

Figure 1: Enable Authentication.

When authentication is enabled, the GUI will prompt for the username and password to be entered before any operation can be done. See Figure 2.

Model 7339 Please enter a password, then click enter

Figure 2: Enabled Log In prompting username and password.

CHANGING POSITION AND LOCK STATUS

To change position, click the radio button for "A" or "B" as desired. Locking and unlocking the front panel pushbutton can be done by clicking on the "Locked" radio buttons, respectively. See Figure 3.

Model 7339 changing position and lock status

CHANGING THE MODE OF THE SWITCH

To change the mode of the switch, click the radio button for "Fallback" or "Manual". While in Automatic Fallback Mode, the unit changes position based on the data. In Manual Mode, the front panel pushbutton and A/B GUI buttons are operational.  See Figure 3.

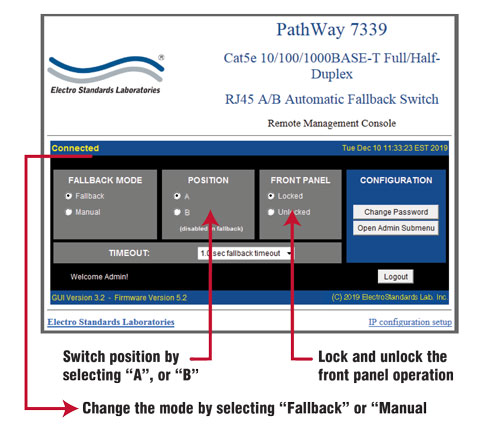

Figure 3: Change the switch position and lockout front panel from the GUI.

CHANGING THE FALLBACK TIMEOUT VALUE

To change the Fallback Timeout Value, select the desired value from the drop-down menu. This selection will set the unit to that time value. See Figure 4.

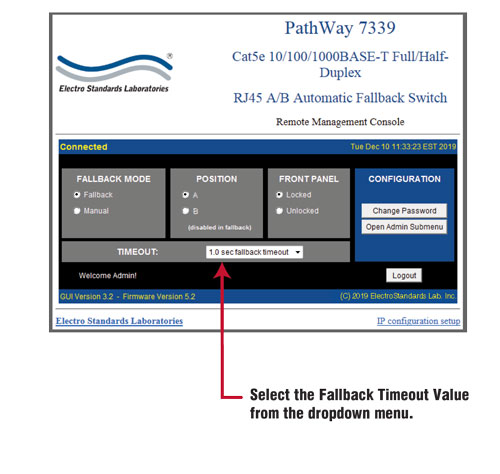

Figure 4: Select the Fallback Timeout Value from the drop-down menu.
