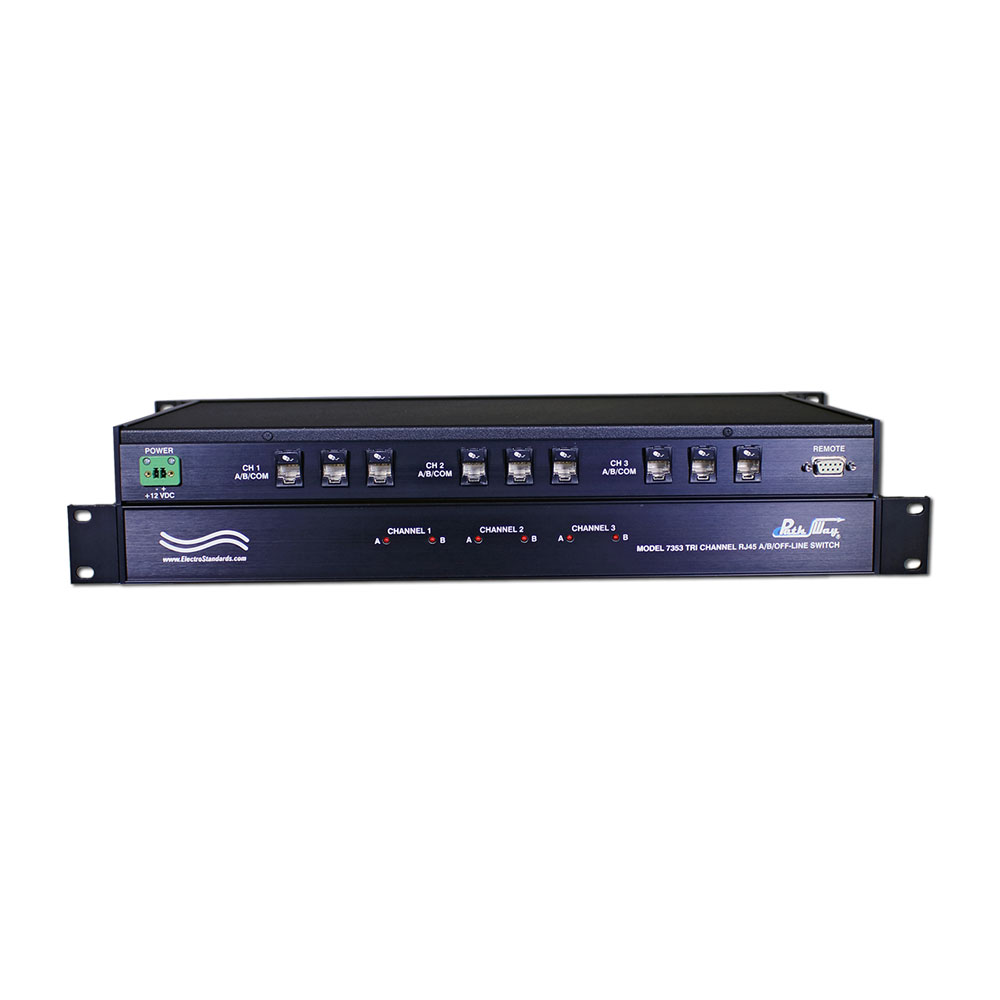

Catalog# 307353 Model 7353 3-Channel RJ45 Cat 5 A/B/Off-Line Switch

    3-Channel RJ45 Cat 5 A/B/Off-Line Switch3-Channel RJ45 Cat 5 A/B/Off-Line Switch3-Channel RJ45 Cat 5 A/B/Off-Line Switch3-Channel RJ45 Cat 5 A/B/Off-Line Switch
Click image to enlarge
    • 3-Channel RJ45 Cat 5 A/B/Off-Line Switch
    • 3-Channel RJ45 Cat 5 A/B/Off-Line Switch
    • 3-Channel RJ45 Cat 5 A/B/Off-Line Switch
    • 3-Channel RJ45 Cat 5 A/B/Off-Line Switch
Base Price:
$3,023.00
Catalog No: 307353
Model No: 7353
Product Type:Switches: Copper
Positions:3, Offline
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:3
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Independent Channel Control
Remote Control:Contact Closure
Security:Exclusive Remote Control, Offline Position
Compliance/Standards:Cat5
Configuration:Rackmount
Pins Switched:8
Remote Port:DB9
Local Control:None
Protocol:Contact Control Signals

Add to Cart
  • Three Independent Channels A/B/OFFLINE
  • No Local Control
  • Remote Control via Contact  Closure Signaling
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

  PathWay®

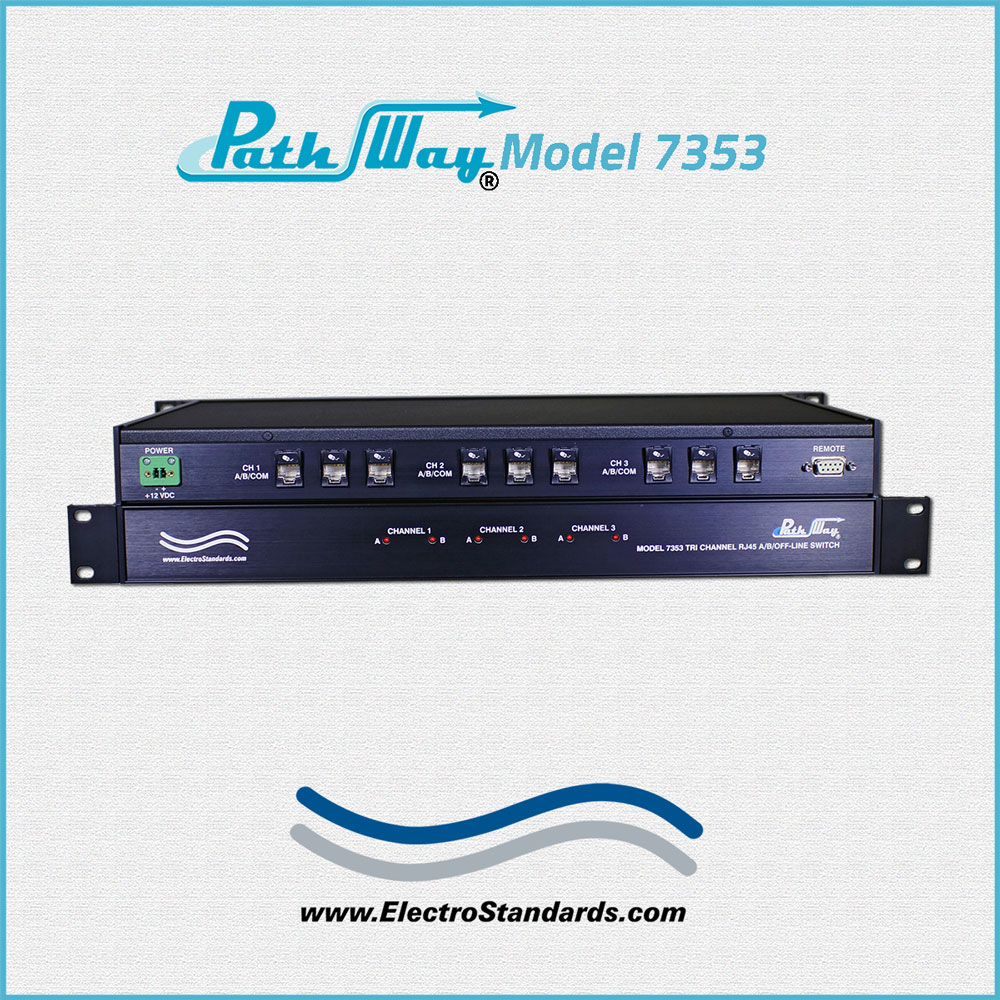

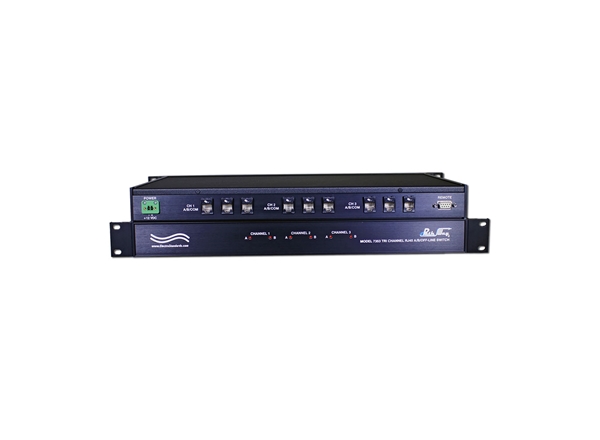

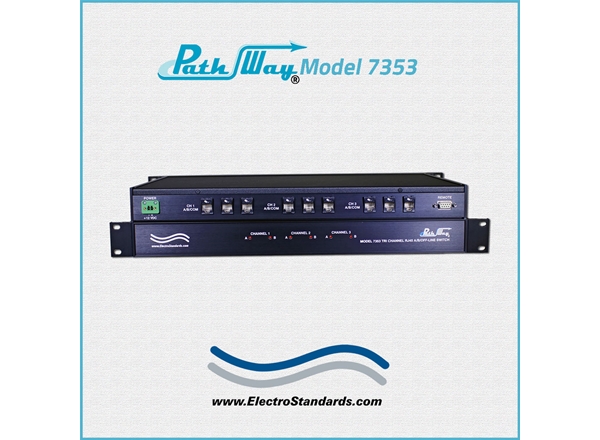

PathWay® Model 7353 Tri-Channel RJ45 Cat 5 A/B/Off-Line Switch with Remote Control via Contact Closure

The PathWay® Model 7353 is a 3-channel RJ45 Cat5 A/B/Off-Line switch engineered for environments where security, control, and signal integrity are critical. Each channel independently connects a COMMON device to either of two networks—or completely disconnects via a dedicated OFF-LINE position, delivering absolute data isolation when it matters most.

Built for secure and controlled operations, the Model 7353 operates exclusively through remote contact closure, eliminating local access points and ensuring that switching actions are intentional, controlled, and protected. With independent channel control, you can manage each connection individually for precise, real-time network routing.

Designed with break-before-make switching across all 8 pins, transparent signal handling, and a rugged rackmount chassis, it delivers reliable performance in mission-critical systems—automatically defaulting to offline mode during power loss to protect your network.

  • Switches ANY RJ45 interface!

  • An OFF-LINE switch position for absolute security.

  • Exclusive Remote Contact Closure Control to switch the position of each individual channel (No front panel control)

FEATURES:

  • Three independent switch channels.
  • Each channel allows access to two RJ45 Cat5 networks from one COMMON network or device.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via a break-before-make electromechanical relays.
  • No front panel-control.
  • Exclusive Remote Contact Control to switch the position of each individual channel.
  • Upon power down, the unit will switch to Offline position and pass no data.
  • Upon power up, the unit will switch to Offline position and pass no data.

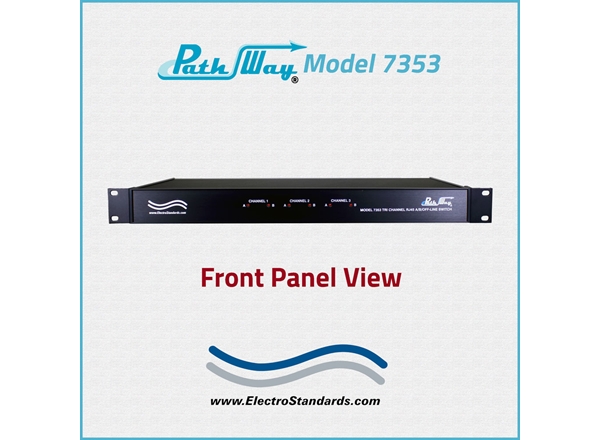

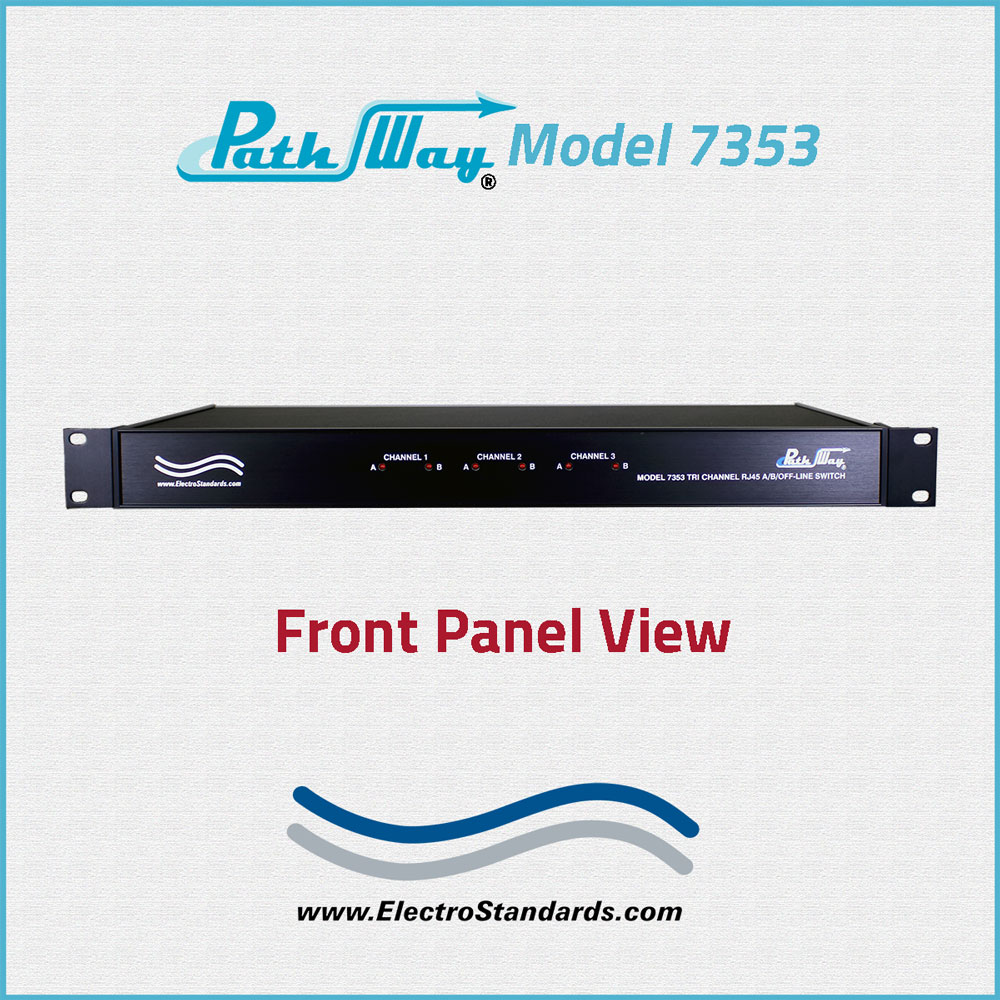

  • Front panel LED’s display the present position of each channel and the power status.
  • Certified for Cat5 compliance.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Municipalities, schools, government: This product is on GSA Schedule

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 7353 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

MODEL 7353 3-CHANNEL RJ45 CAT5 A/B/OFFLINE SWITCH OPERATION:

  • The PathWay® Model 7353 Tri-Channel RJ45 Cat5 A/B/Off-Line Switch with Remote Contact Control allows the user the capability of accessing two separate devices, ports A & B via connection through a device connected to the Common port for each of the switch's three channels.  The Model 7353 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

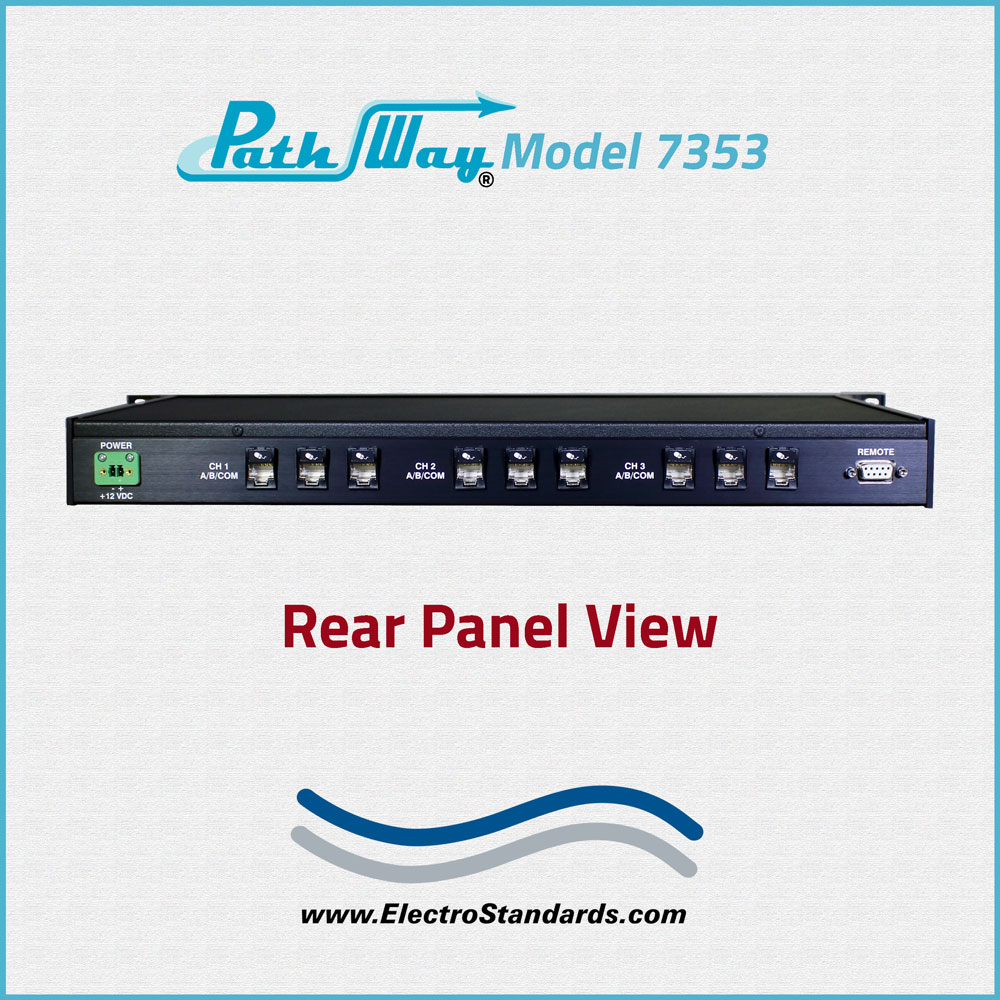

  • There is no "local" or front panel switch control on the unit. The Model 7353 network switch can ONLY be switched remotely from a DB9 (female) Contact Control Remote port located on the rear of the unit.  Switch position states may be attained via the front panel LED displays.

SPECIFICATIONS:

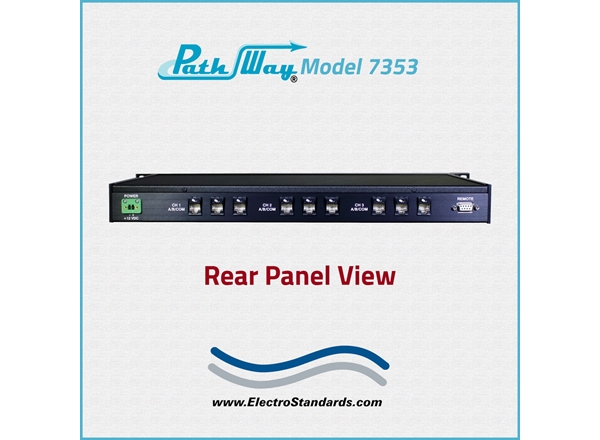

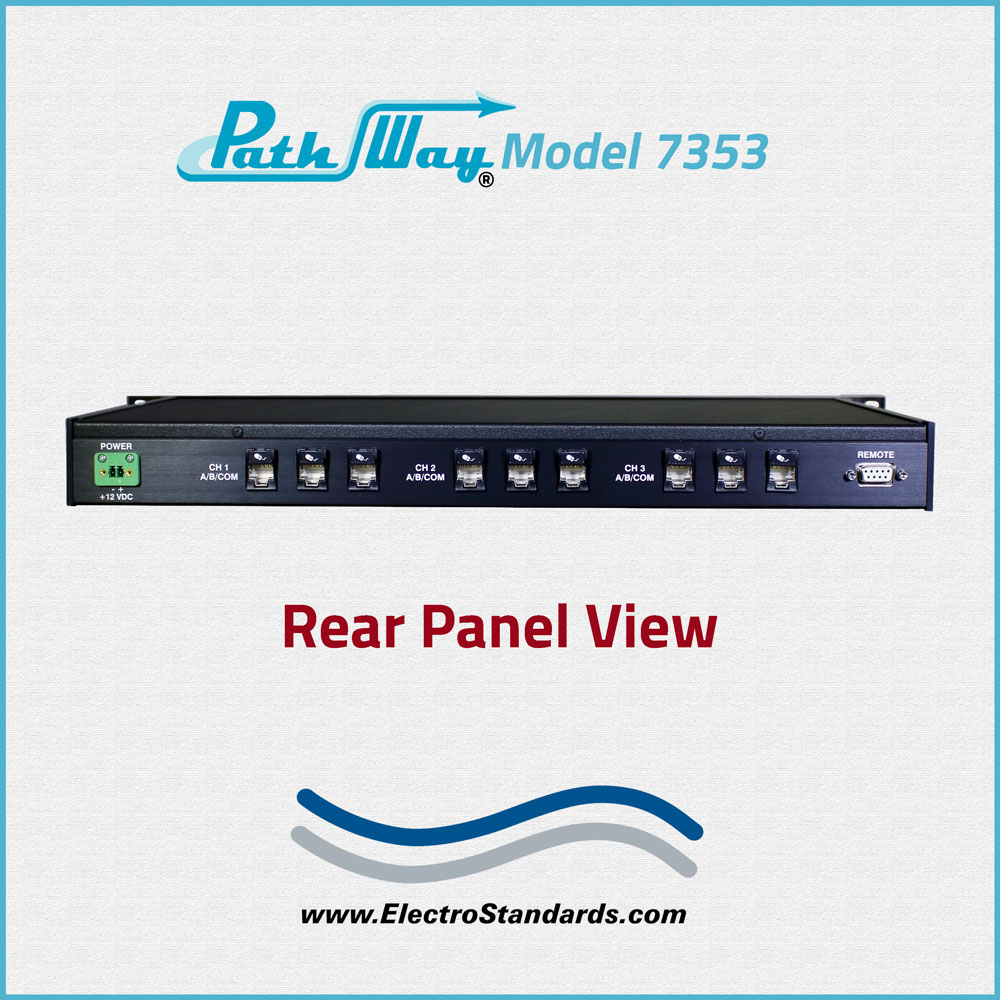

  • PORT CONNECTORS: (9) Shielded RJ45(F) connectors for A, B, and COMMON for each of three channels labeled Channel 1, Channel 2, and Channel 3.
  • REMOTE CONTROL: (1) DB9(F) Connector accepts contact closure signals.
  • DISPLAY: (6) LED's on front panel indicate switch position and power status. No front panel control.
  • POWER: UL Approved 110VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, nonpolarized plug.
  • DIMENSIONS: 19" W x 1.75" H x 8.25" D. (48.3 x 4.4 x 21.0 cm)
  • WEIGHT: 4.8 lbs (2.2 kg)

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC-240 VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

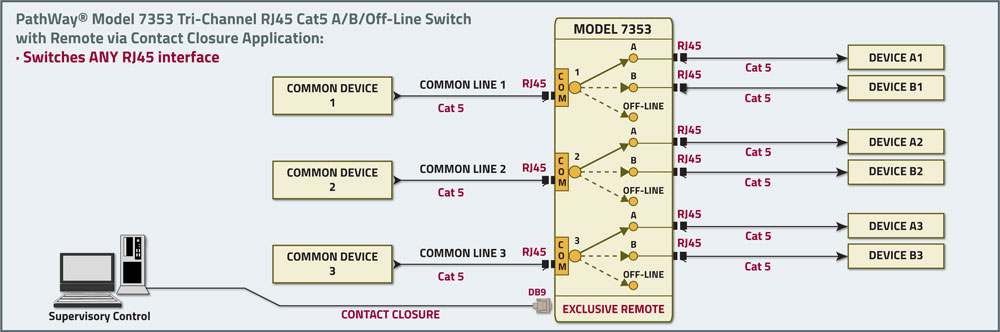

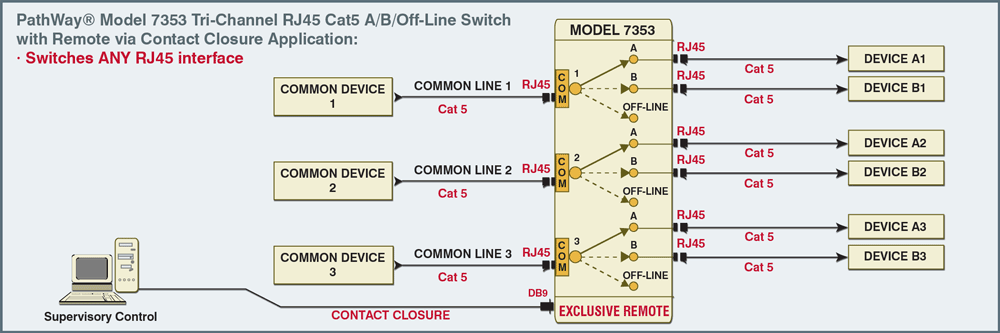

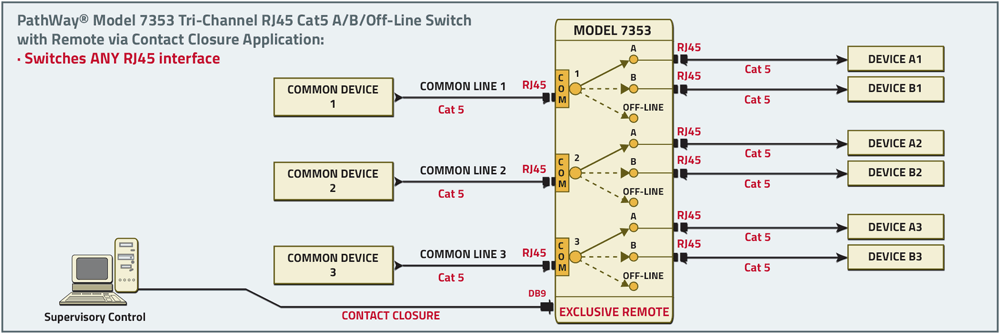

PathWay® Model 7353 Cat5 Tri-Channel RJ45 A/B/Off-Line Switch application with Exclusive Contact Closure Remote

The drawing illustrates three independent channels switching of A/B/OFF-LINE positions.  Each channel has a device connected to the COMMON port with access to two devices connected to the A and B ports. The user has the choice of an OFF-LINE position for each of the three channels. The switch is exclusively controlled via the DB9 REMOTE port which accepts contact closure signaling. There is no local control on this unit!

PathWay® Model 7353 Cat5 Tir-Channel A/B/OFFLINE Switch with Exclusive Remote Control Application drawing
