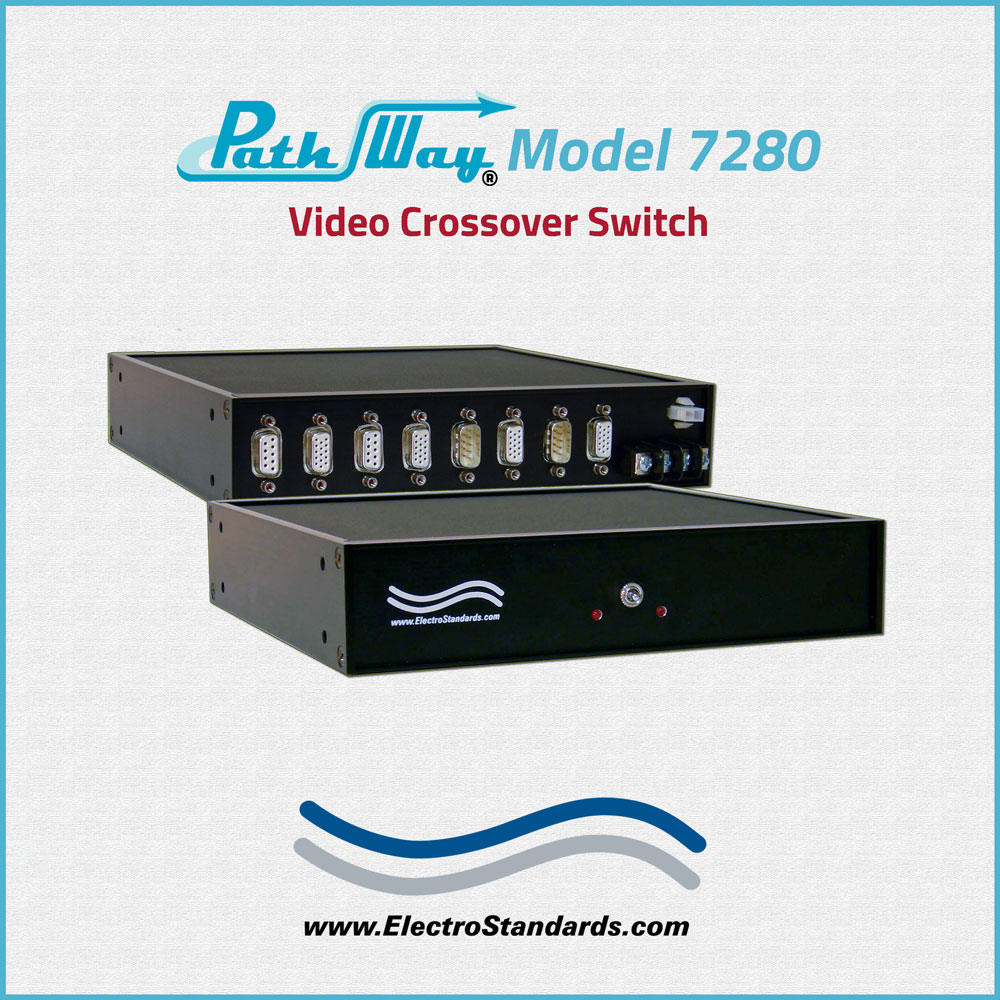

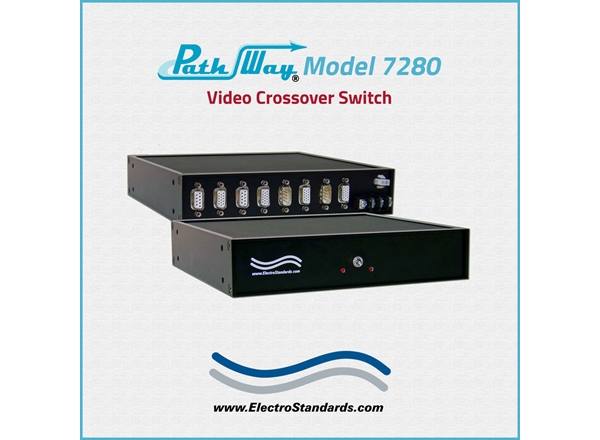

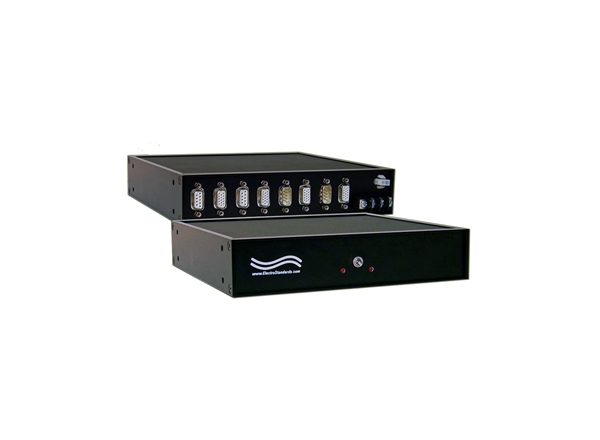

Model 7280 HD15/DB9 Video Normal / Crossover Switch with Remote, Catalog # 307280

    HD15/DB9 Video Crossover Network SwitchHD15/DB9 Video Crossover Network SwitchHD15/DB9 Video Crossover Network SwitchHD15/DB9 Video Crossover Network Switch
Click image to enlarge
    • HD15/DB9 Video Crossover Network Switch
    • HD15/DB9 Video Crossover Network Switch
    • HD15/DB9 Video Crossover Network Switch
    • HD15/DB9 Video Crossover Network Switch
Base Price:
$1,430.00
Catalog No: 307280
Model No: 7280
Product Type:Switches: Copper
Positions:Normal/Crossover
Cable Type/Port Connector:DB9 Switch Ports, HD15 Switch Ports
Channels per Switch Chassis:4
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Contact Closure
Configuration:Desktop
Pins Switched:(24) Signal lines of combination interface supported
Remote Port:Terminal/Barrier Strip
Local Control:Toggle
Feature:Normal & Crossover Switching

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Path Way® Model 7280 HD15 VGA & DB9 Video Crossover Toggle Switch with Remote Contact Control

Overview

The PathWay® Model 7280 HD15 (VGA) and DB9 Video Crossover toggle network switch with remote contact control allows two pairs of compatible devices to exchange interconnections. The Model 7280 network switch can be manually controlled via the front panel toggle switch or remotely controlled via the rear panel screw terminal Remote port. The remote port screw terminal supports 14/16 AWG wiring.

Each channel, A, B, C, D, contains one HD15 (VGA) port and one DB9 port. Front panel LEDs display the current switch position: Normal or Crossover. In the NORMAL position, A connects to C and B connects to D. In the CROSSOVER position, A connects to D, and B connects to C. When the toggle switch is in the Crossover position, remote control is disabled.

Additionally, the Model 7280 network switch features side-plate mount holes. There is a separate power supply for the Model 7280. One end of the cord plugs directly into the rear panel connector labeled Power, the other end plugs into a 100VAC/240VAC, 50Hz/60Hz power outlet. Power to the unit is 12 VDC.

FEATURES OF THE MODEL 7280 HD15 VGA & DB9 SWITCH:

  • HD15 (VGA) video connector interface and DB9 serial connector interfaces for each of the A, B,C, and D ports.
  • All (24) signal lines of the combination interface are supported.
  • Local switch position control via toggle switch, or Remote Control via Contact Closure across Screw Terminal Remote port.
  • LEDs display switch position Normal or Crossover, and power status.
  • Connection through the switch, and switch position are maintained in the event of a power loss.
  • Unit has mounting holes to mount on left or right-side plate.
  • Municipalities, schools, government: This product on GSA Schedule!

TECHNICAL SPECIFICATIONS:

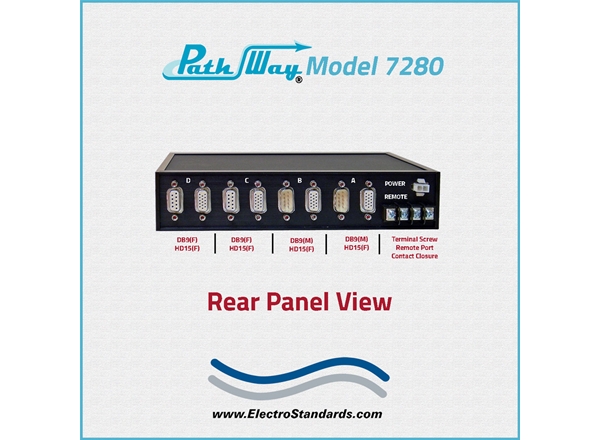

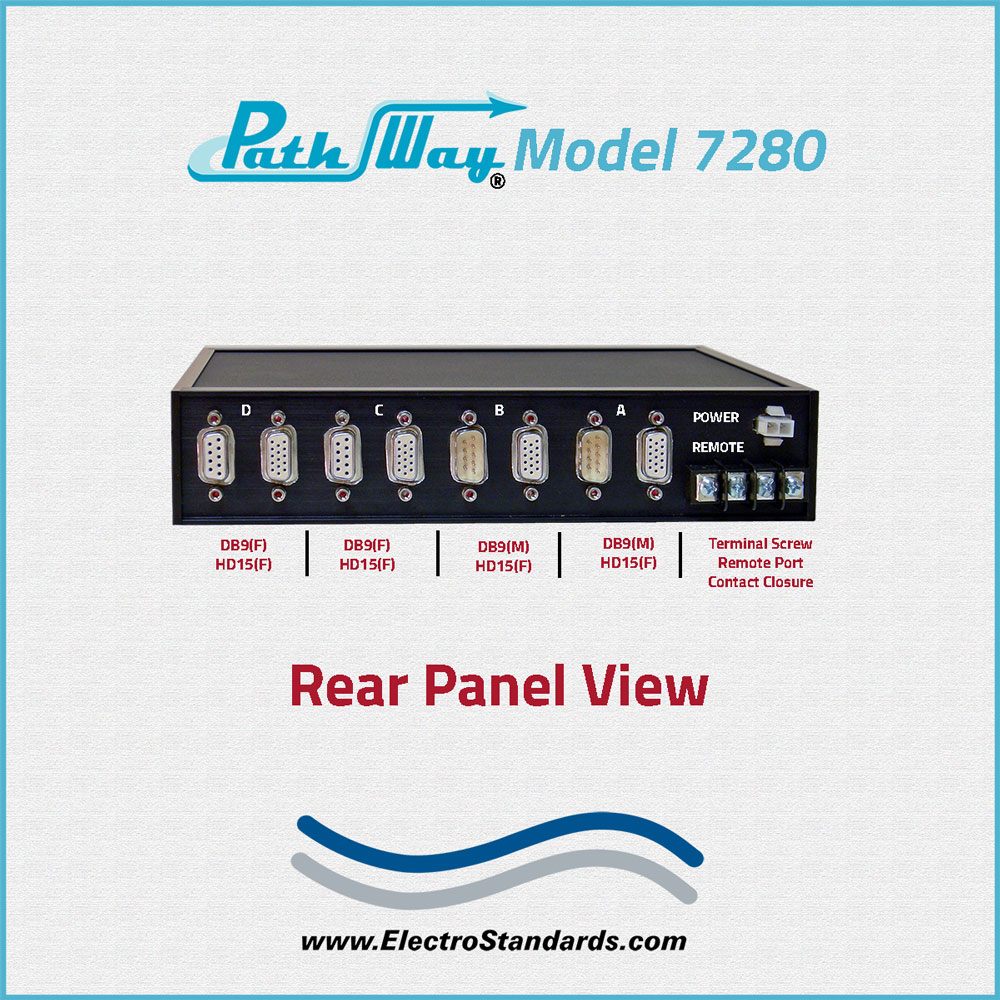

  • PORT CONNECTORS:
  • PORT A:
    • (1) DB9 (Serial) male connector
    • (1) HD15 (VGA) female port connector
  • PORT B:
    • (1) DB9 (Serial) male connector
    • (1) HD15 (VGA) female port connector
  • PORT C:
    • (1) DB9 (Serial) female connector
    • (1) HD15 (VGA) female port connector
  • PORT D:
    • (1) DB9 (Serial) female connector
    • (1) HD15 (VGA) female port connector

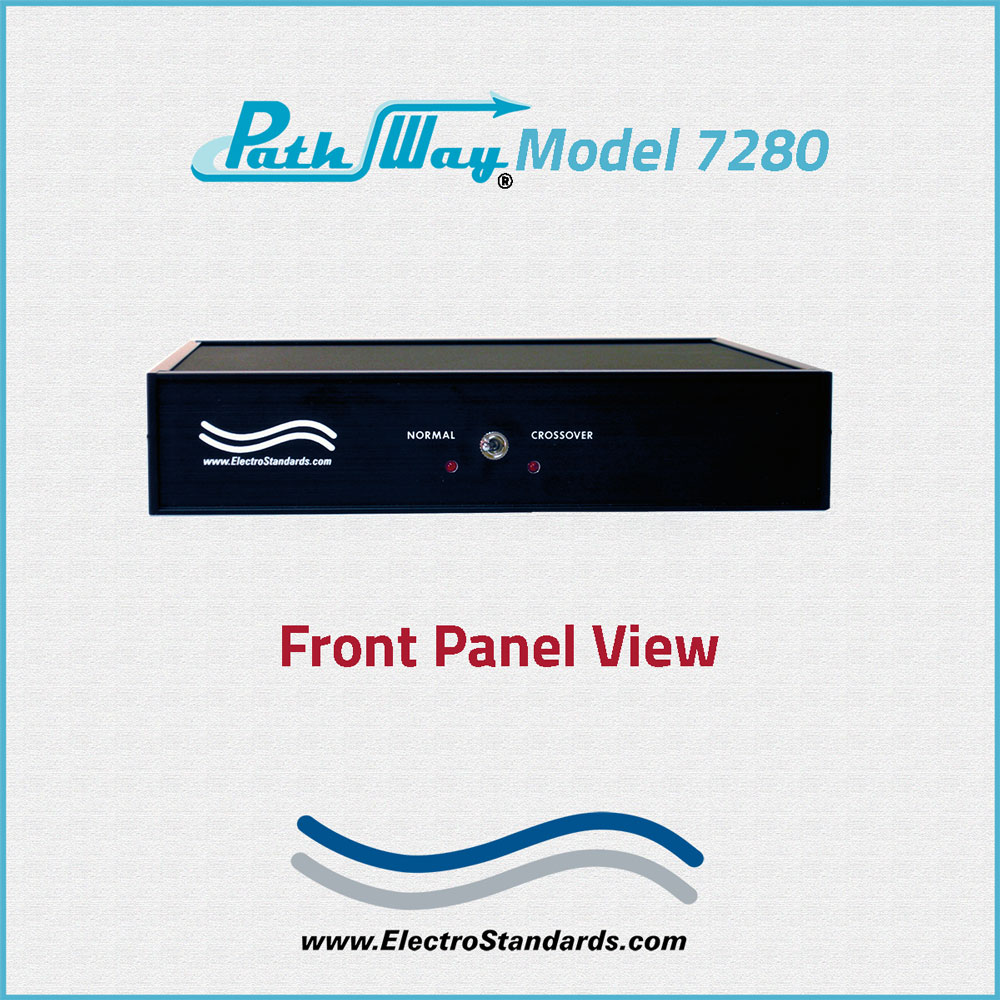

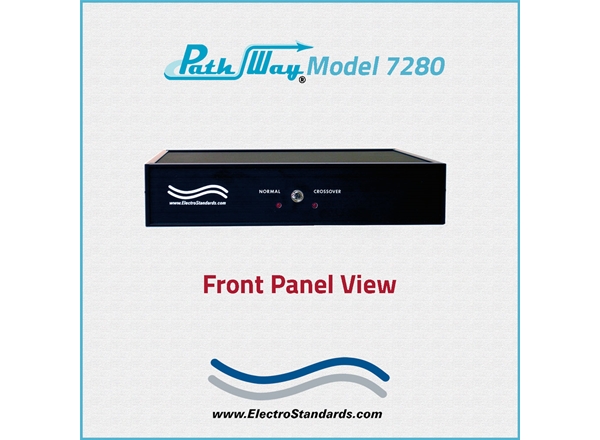

  • CONTROL: (1) Manual toggle switch on front panel to select NORMAL or CROSSOVER position.
  • DISPLAY: (2) Front panel LED's indicate switch position and power status.
  • REMOTE CONTROL: (1) 2-position Terminal strip for Remote Contact Closure. (2-Wire 14/16 AWG wiring)
  • POWER: UL approved, wall mount 100VAC/240VACm 50Hz/60Hz power module supplies 12 VDC, 500 mA to the unit. Has 2-prong US, non-polarized plug.
  • DIMENSIONS: 8.0" W x 8.0" D x 1.75" H. (20.3 x 20.3 x 4.4 cm)
  • WEIGHT: 2.5 lbs. (1.1kg)

PathWay® Model 7280 HD15 VGA & DB9 Video Crossover Toggle Switch Application with Contact Closure Remote, (2-Wire 14/16 AWG Wiring)

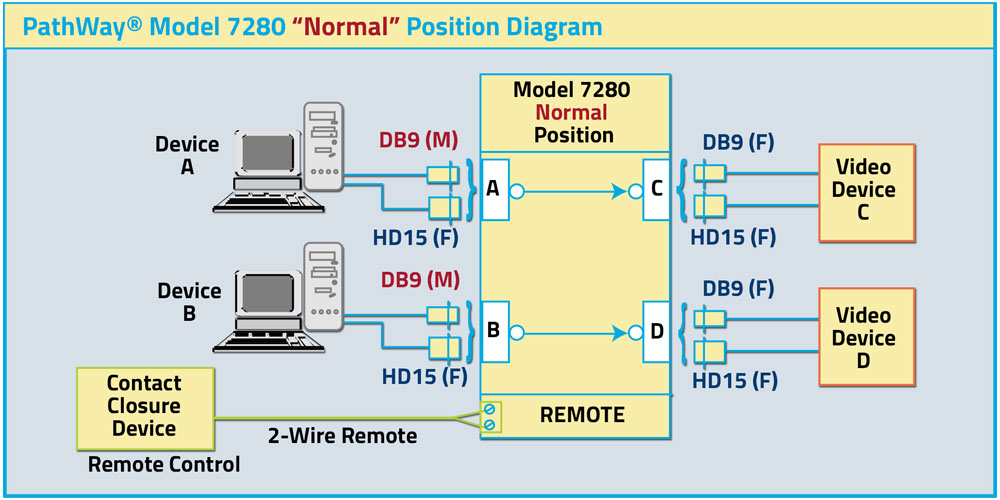

NORMAL POSITION

  • The Pathway® Model 7280 application drawing illustrates NORMAL position.
  • In Normal Position Device A is connected to Device C and Device B is connected to Device D.

PathWay Model 7280 Normal Position diagram

PathWay® Model 7280 HD15 VGA & DB9 Video Crossover Toggle Switch Application with Contact Closure Remote, (2-Wire 14/16 AWG Wiring)

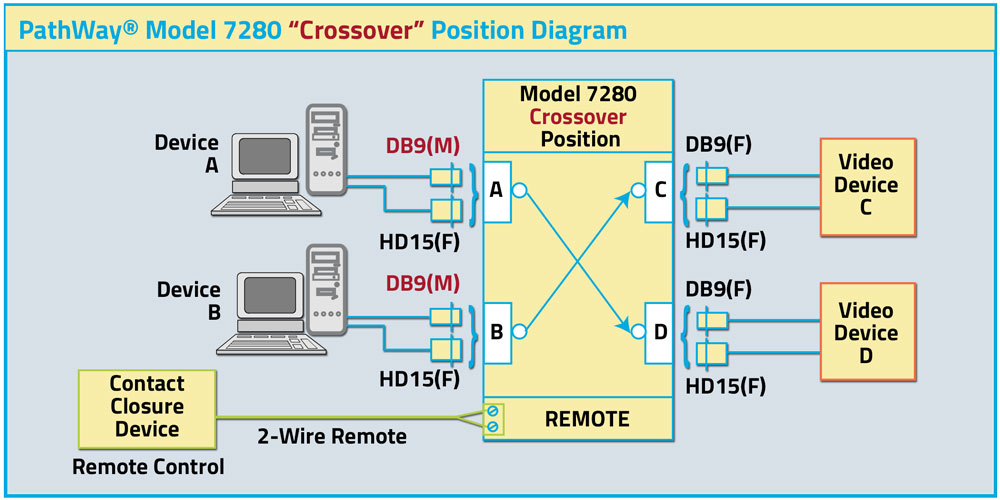

CROSSOVER POSITION

  • The Pathway® Model 7280 application drawing illustrates CROSSOVER position.
  • In Crossover Position Device A is connected to Device D and Device B is connected to Device C.

PathWay Model 7280 Crossover Position Diagram

Ordering Information

  • Catalog Number: 307280
  • Model Number: 7280
  • Base Price: See website or contact us for current pricing and availability.
  • Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.

Shipping and Returns           UPS

  • Shipped via UPS ground (unless otherwise requested).
  • Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
  • Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

Option: Wide Range Power Supply: (Cat No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50/60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 7280 HD15 VGA & DB9 Video Crossover Switch, unit is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.
