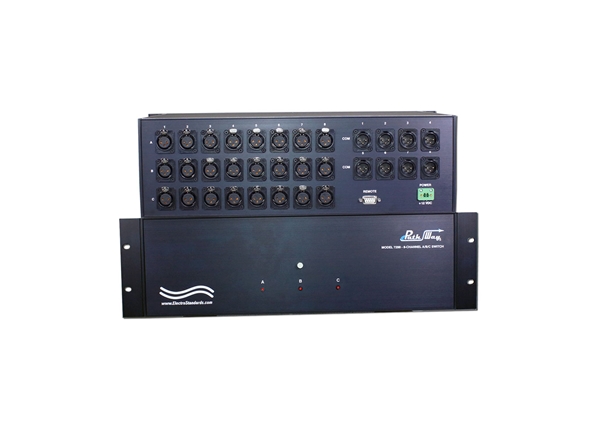

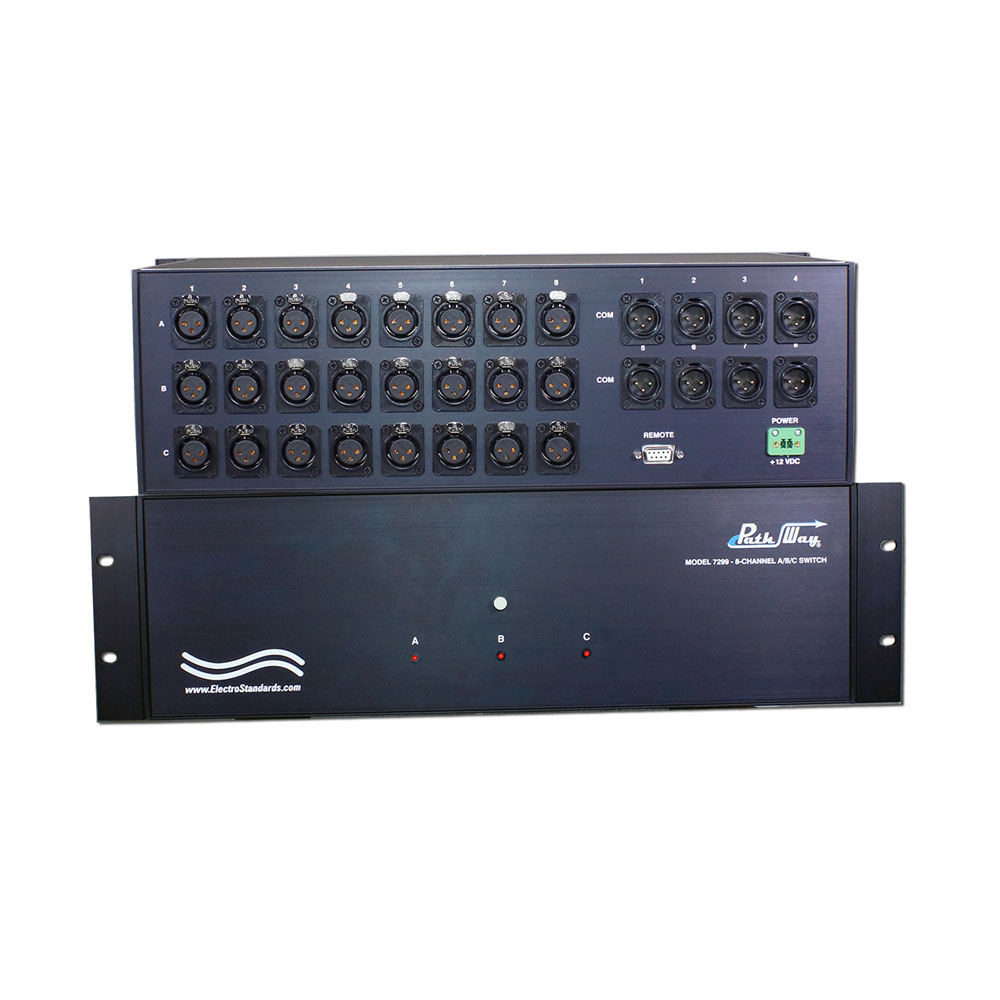

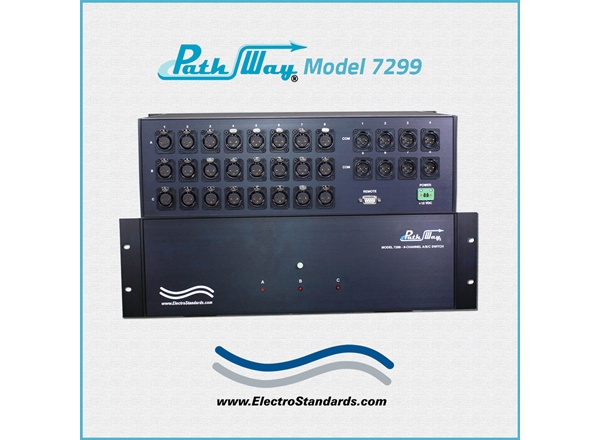

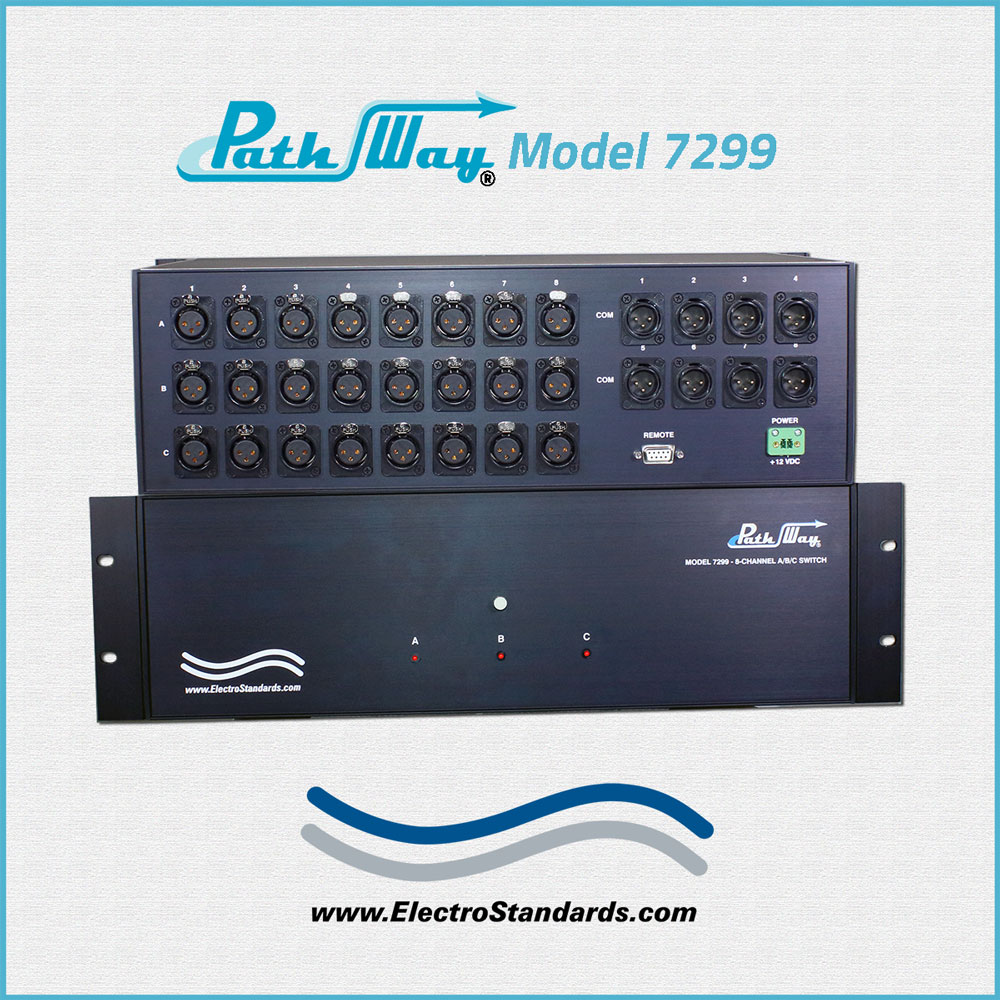

Model 7299 8-Channel XLR Audio 3-Position Switch, Contact Closure Remote, Catalog # 307299

    XLR Audio 3-Position SwitchXLR Audio 3-Position SwitchXLR Audio 3-Position SwitchXLR Audio 3-Position Switch
Click image to enlarge
    • XLR Audio 3-Position Switch
    • XLR Audio 3-Position Switch
    • XLR Audio 3-Position Switch
    • XLR Audio 3-Position Switch
Base Price:
$3,591.00
Catalog No: 307299
Model No: 7299
Product Type:Switches: Copper
Positions:3
Switch Application:Audio/Video Switching
Cable Type/Port Connector:XLR
Channels per Switch Chassis:8
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control
Remote Control:Contact Closure
Configuration:Rackmount
Pins Switched:3
Remote Port:DB9
Local Control:Pushbutton
Feature:Ideal Network Switch for Radio and TV Stations

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

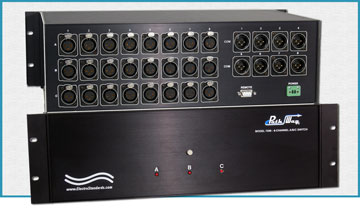

Path Way® Model 7299 Eight-Channel XLR Audio A/B/C Switch, with Contact Control Remote Port, 3U Rackmount

Overview

The PathWay® Model 7299 Eight-Channel XLR A/B/C Switch with Contact Control Remote Port allows the user the capability of accessing eight channels of three separate devices, connected to ports A, B, and C, via connection through a device connected to the COMMON port for each channel. The Model 7299 is enclosed in a 3U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

The switch may be controlled manually via the front panel pushbutton or remotely from a DB9 port located on the rear of the unit.  Switch position state may be attained via the front panel LED's.

  • Ideal Network Switch for Radio and TV Stations.

  • Applicable to switching professional Audio, Video and Stage Lighting Equipment.

FEATURES OF THE MODEL 7299 8 CHANNEL XLR AUDIO SWITCH:

  • Each of eight channels allows access to three XLR interface devices from one COMMON XLR device.
  • All eight channels switch simultaneously.
  • All (3) pins of the XLR interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • When power is restored, the Model 7299 will check the setting of the Remote Contact control port and move to that setting.
  • Front panel pushbutton control.
  • Remote Contact Closure Control provides dry contact logic to allow control of the switch position and lockout state.
  • Front panel LED's display present position and power status.
  • Attractive all metal, black box packaging provides EMI/RFI shielding

TECHICAL SPECIFICATIONS:

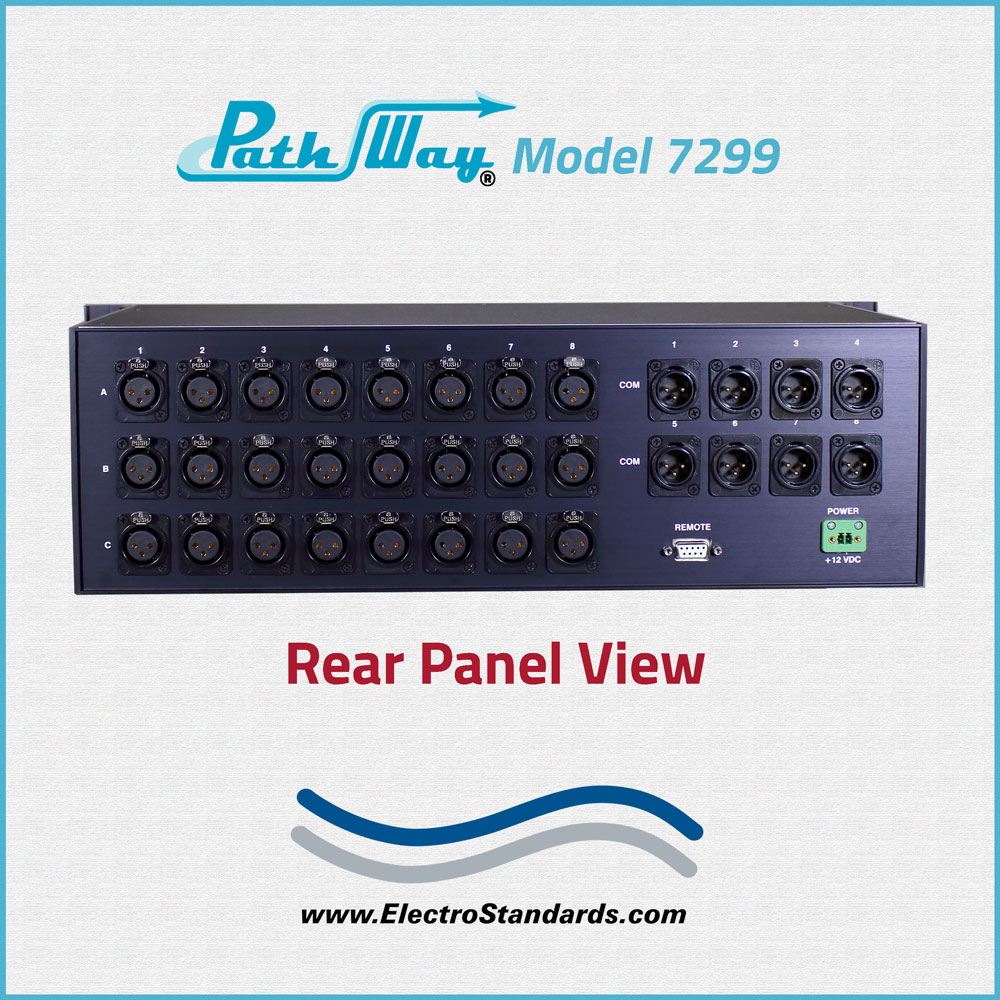

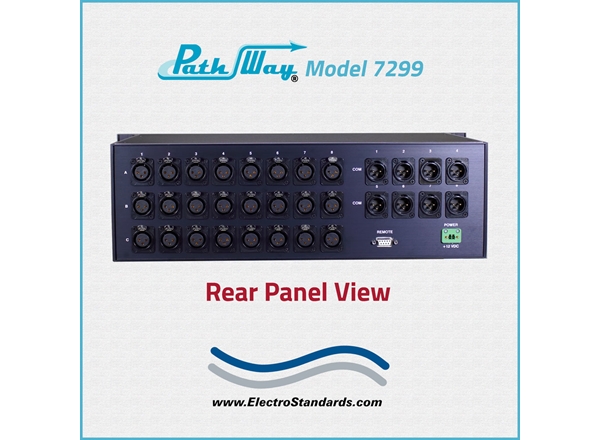

  • PORT CONNECTORS: (3) XLR female connectors labeled A, B, and C for each of the eight channels. (1) XLR male connector labeled COMMON for each of eight channels.

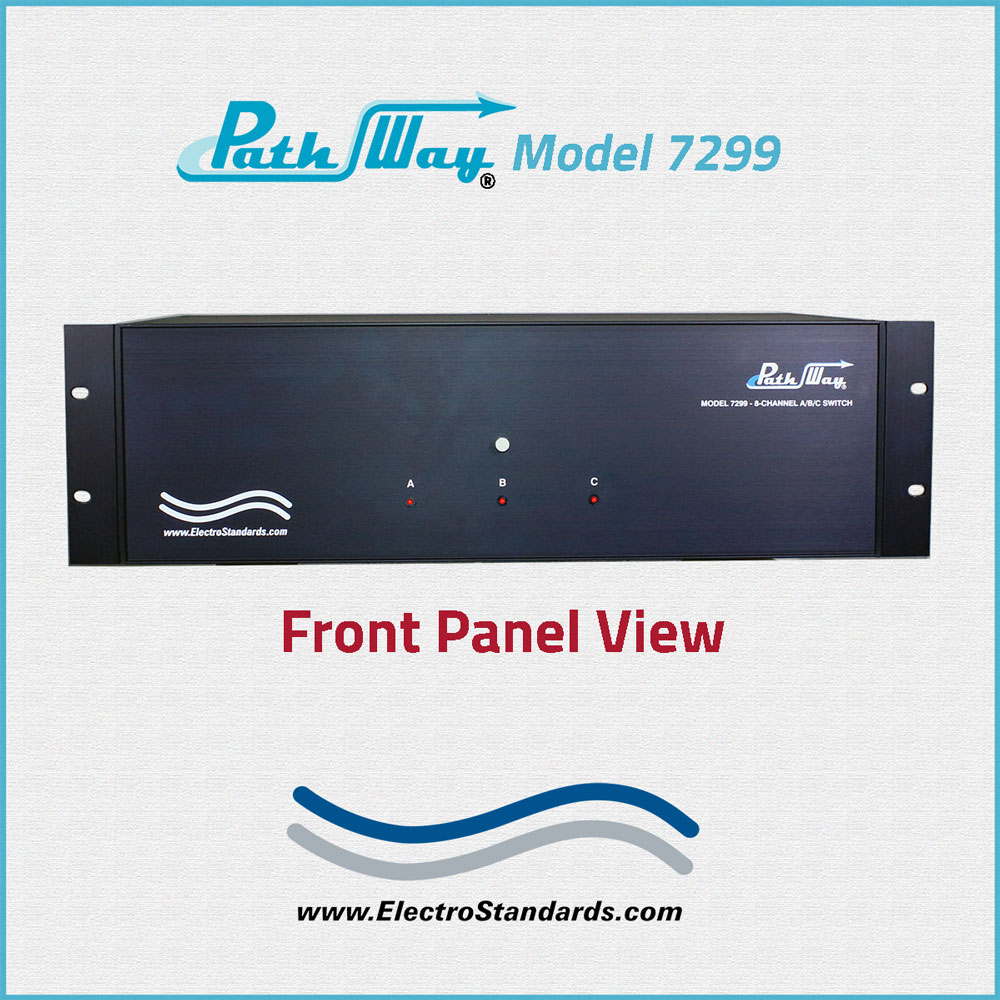

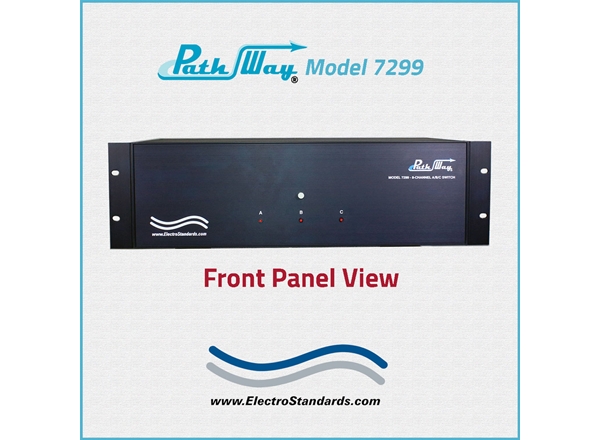

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (3) Front panel LED's display switch position and power status.
  • REMOTE: (1) DB9 (F) connector on rear panel accepts contact closure transition signals for Remote Control operation.
  • POWER: UL Approved 100VAC-240VAC, 50Hz60Hz wall mount power modules supplies 12VDC, 500mA to the unit. Has 2-prong US, non-polarized plug.
  • DIMENSIONS: Rackmount configuration, 19.0" W x 5.25" H x 10.0" D. (48.3 x 13.3 x 25.4 cm)
  • WEIGHT: Approximately 8.3 lbs. (3.8 kg)

PathWay® Model 7299 8-Channel XLR Audio A/B/C Switch Application

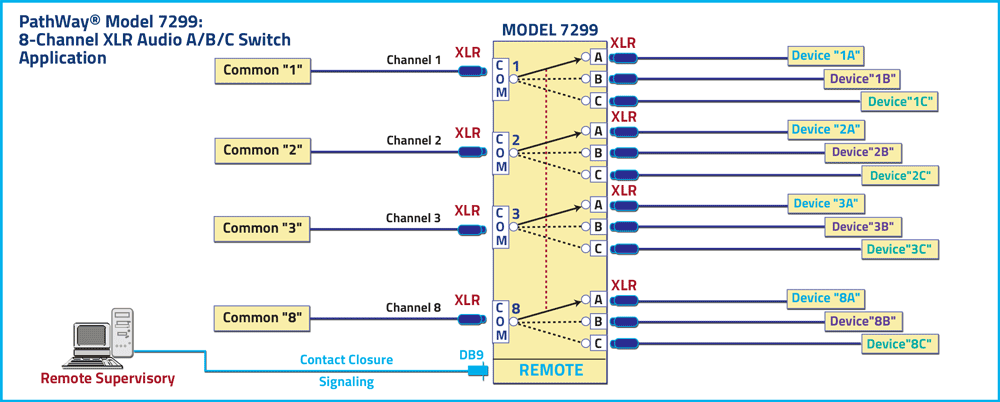

The drawing illustrates 8 channels of simultaneous switching denoted by the dotted red line.  Each channel has a single device connected to the XLR COMMON port which can access three other devices connected to the XLR A, B, and C ports.  The DB9 Remote accepts contact closure signaling for remote control operation of the switch.
