Catalog # 307244 - Model 7244 DB9 A/B/C Switch, 10/100Base-T LAN

    DB9 A/B/C Switch, 10/100Base-T LANDB9 A/B/C Switch, 10/100Base-T LANDB9 A/B/C Switch, 10/100Base-T LANDB9 A/B/C Switch, 10/100Base-T LAN
Click image to enlarge

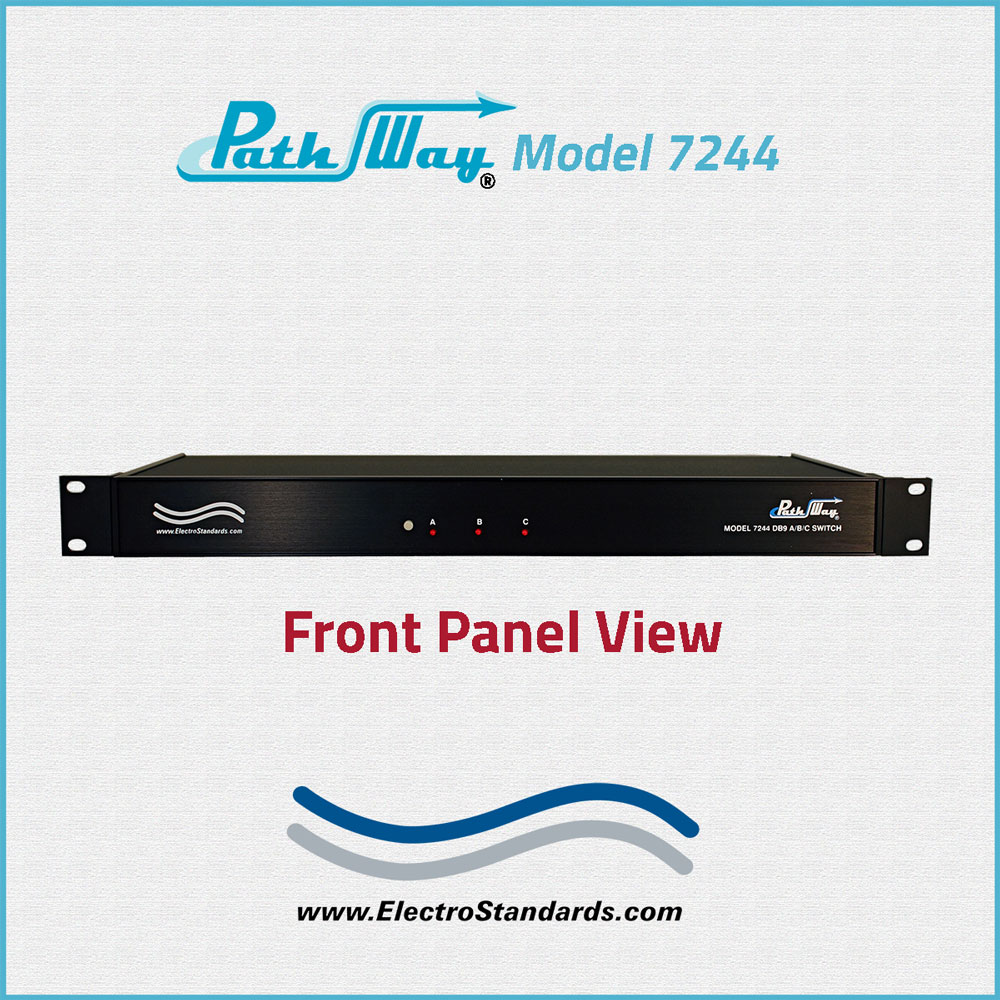

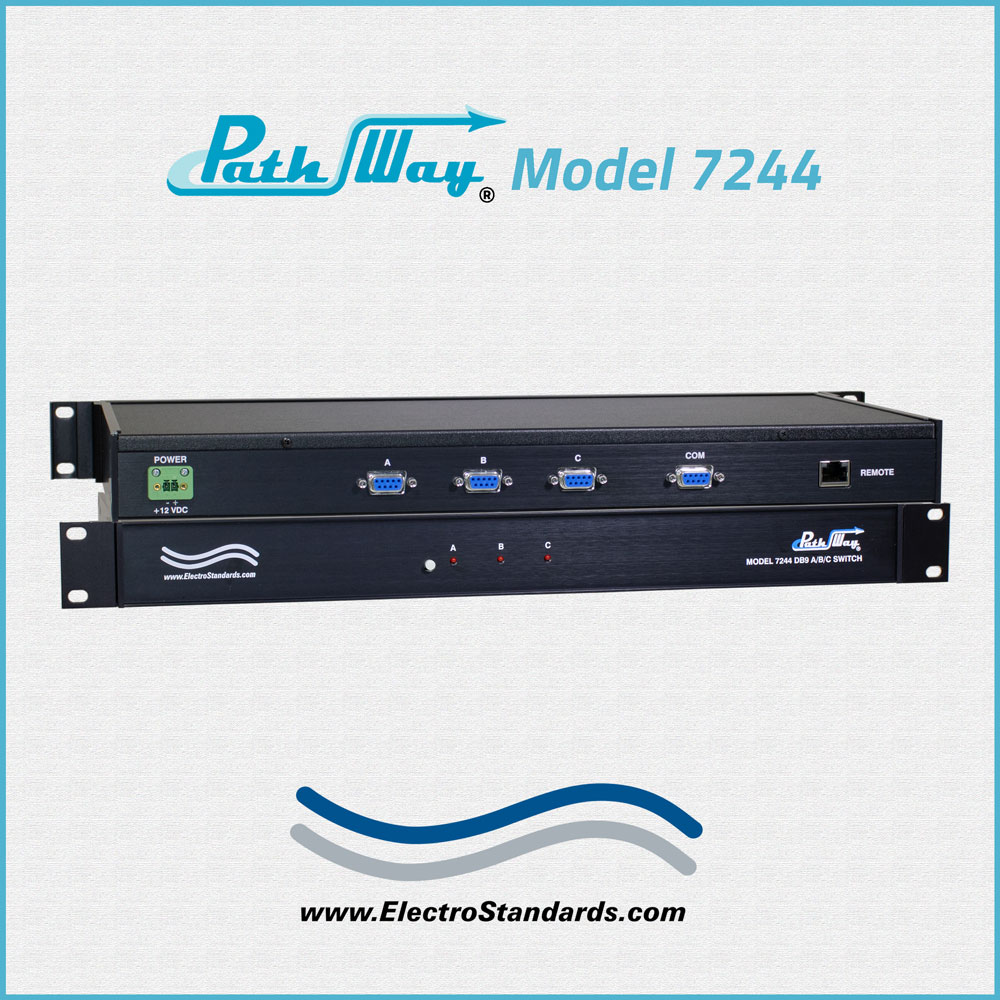

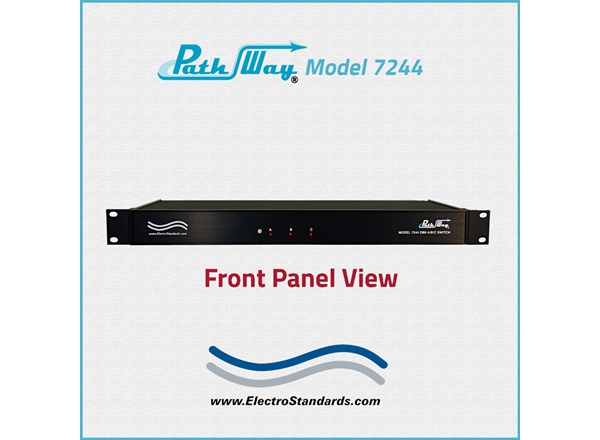

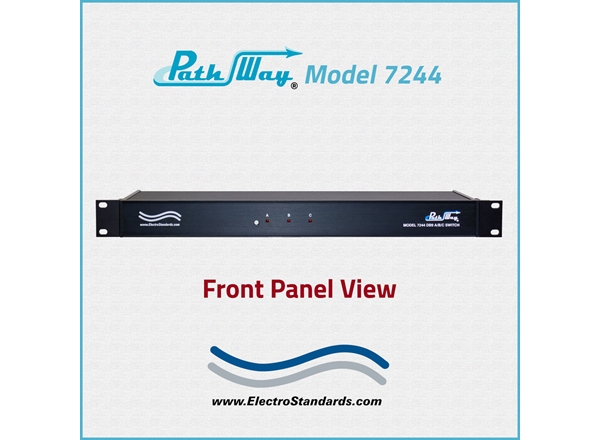

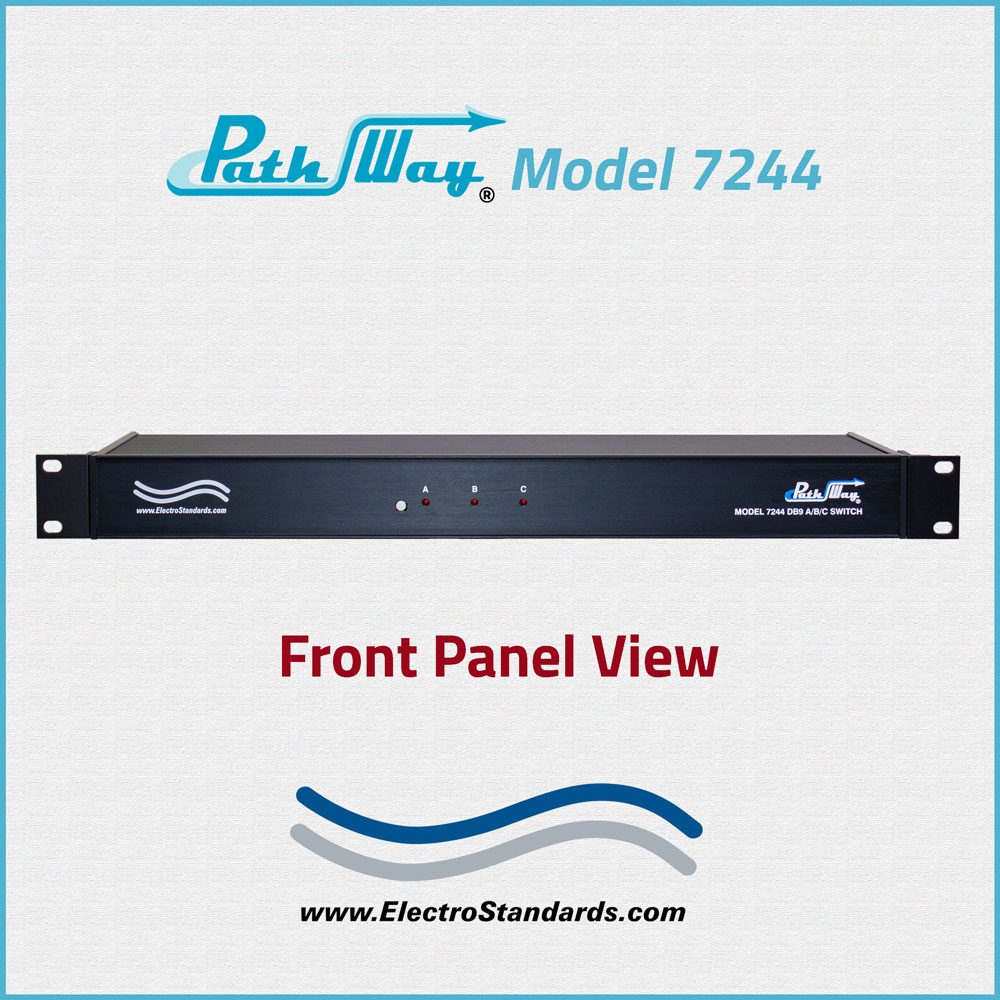

    • DB9 A/B/C Switch, 10/100Base-T LAN
    • DB9 A/B/C Switch, 10/100Base-T LAN
    • DB9 A/B/C Switch, 10/100Base-T LAN
    • DB9 A/B/C Switch, 10/100Base-T LAN
Base Price:
Catalog No: 307244
Model No: 7244
Product Type:Switches: Copper
Cable Type/Port Connector:DB9 Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Ethernet
Pins Switched:9
Remote Port:RJ45
Local Control:Pushbutton
Feature:IP Addressable


Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request


Path Way® Remotely Controllable Network Switches, DB9|

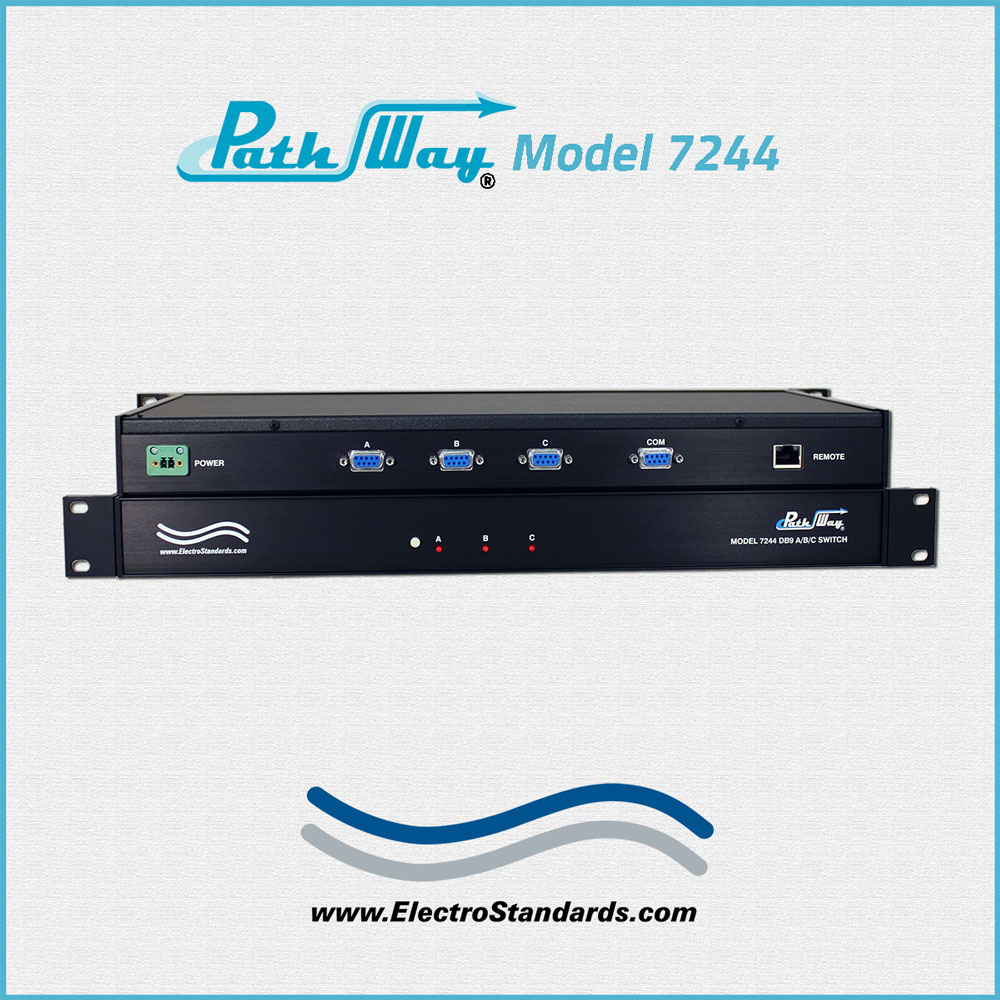

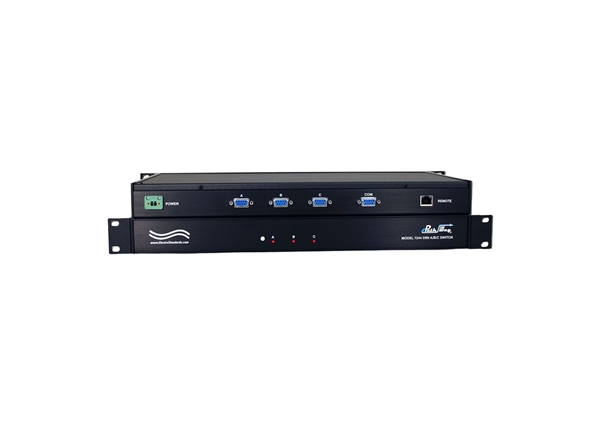

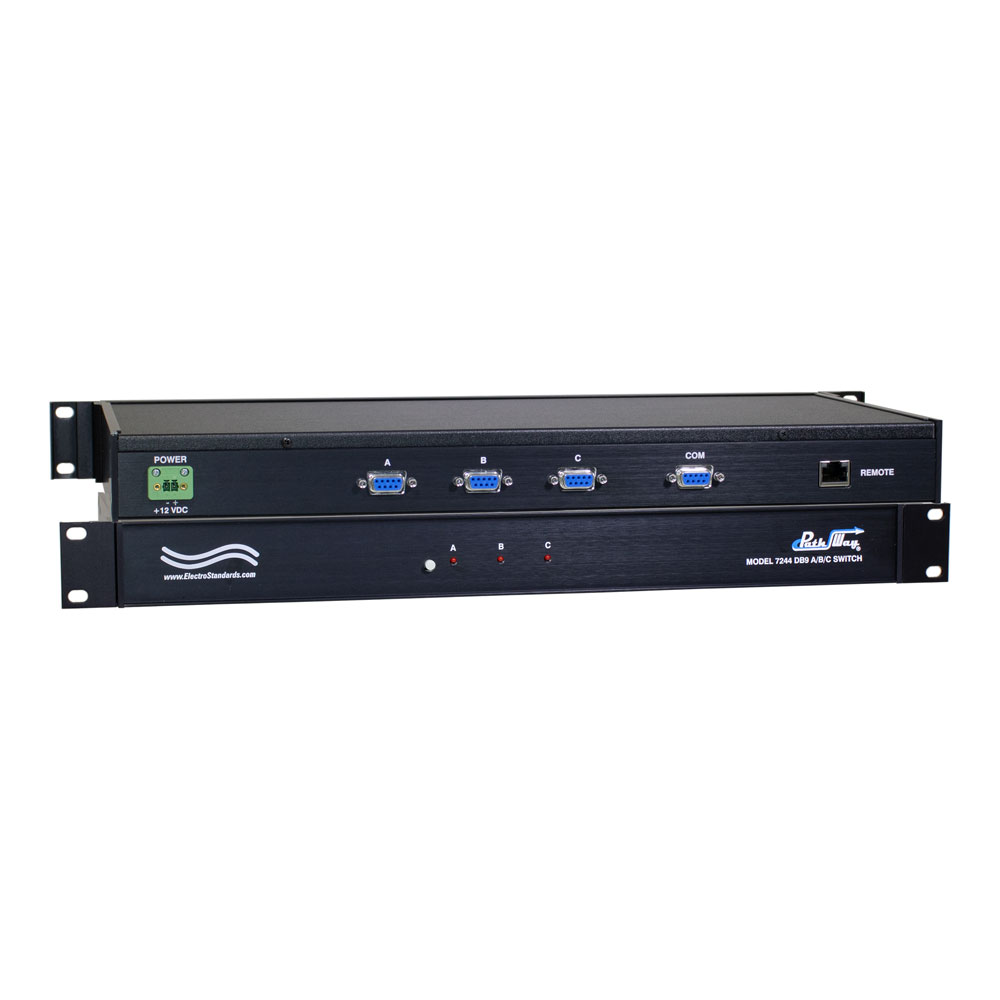

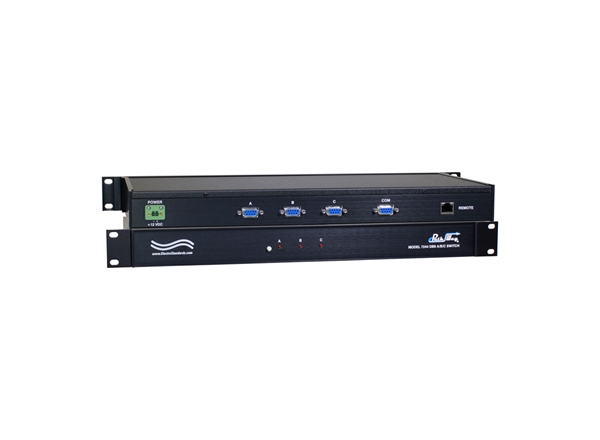

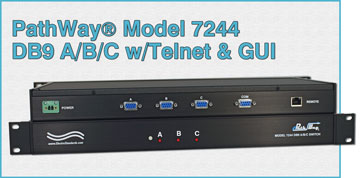

Model 7244 Single Channel DB9 A/B/C Switch with 10/100Base-T LAN Access Remote Control, and Telnet and GUI

  • Extensive user manual covers Remote Ethernet Connection 10/100Base-T LAN Setup, Remote Telnet Session, and Remote-Control GUI Operation

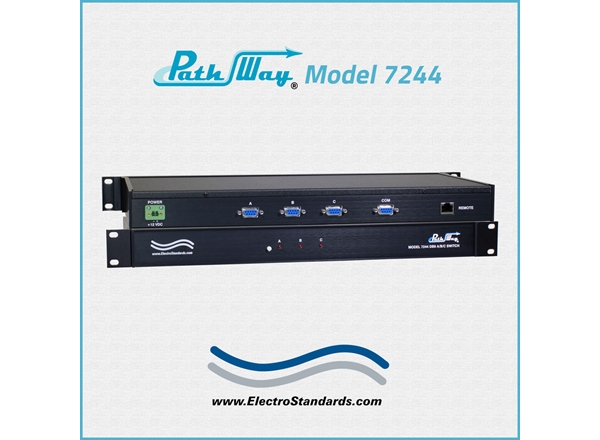

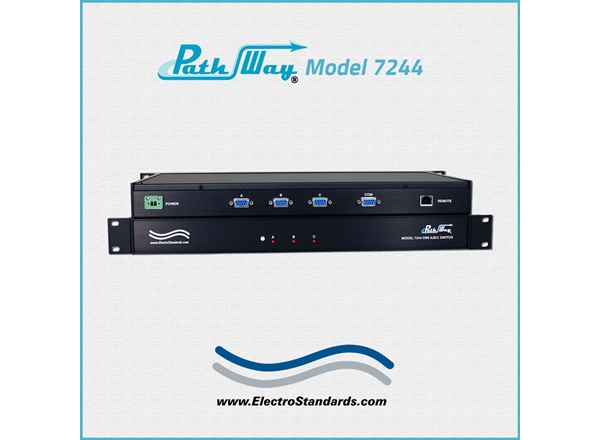

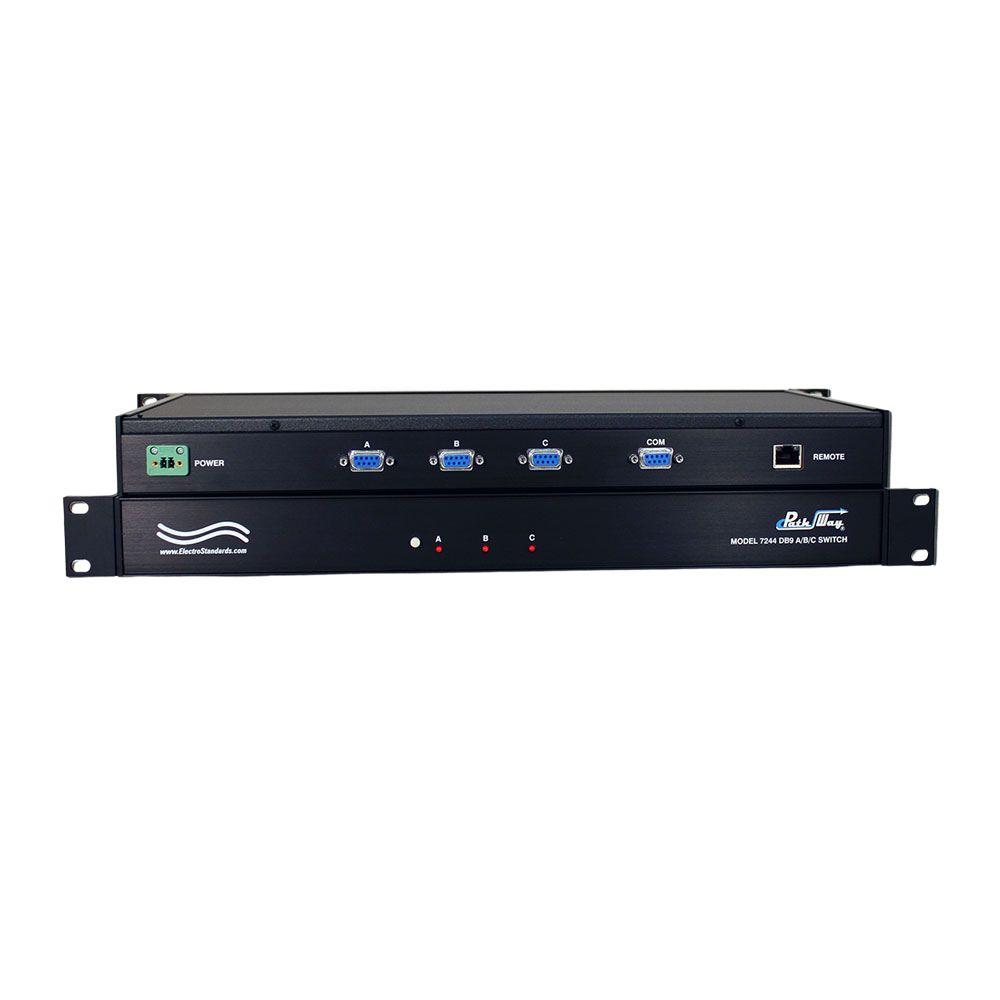

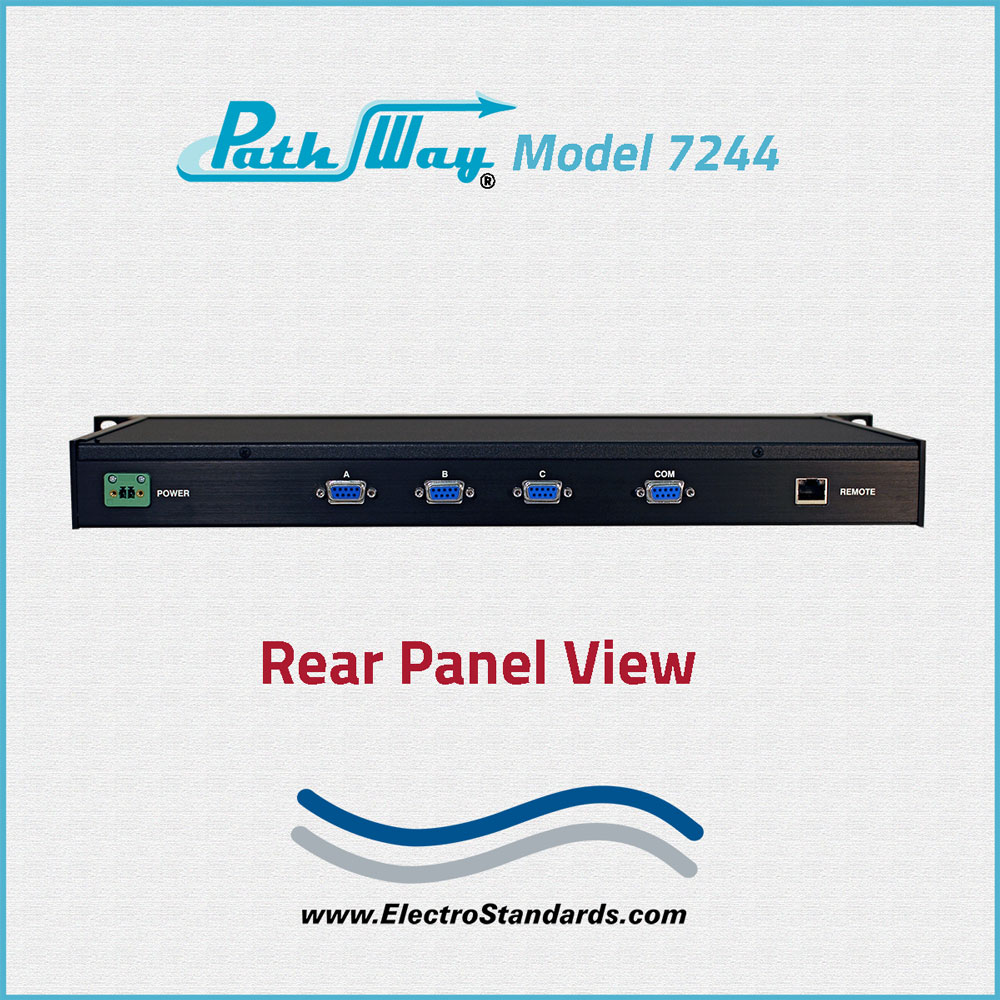

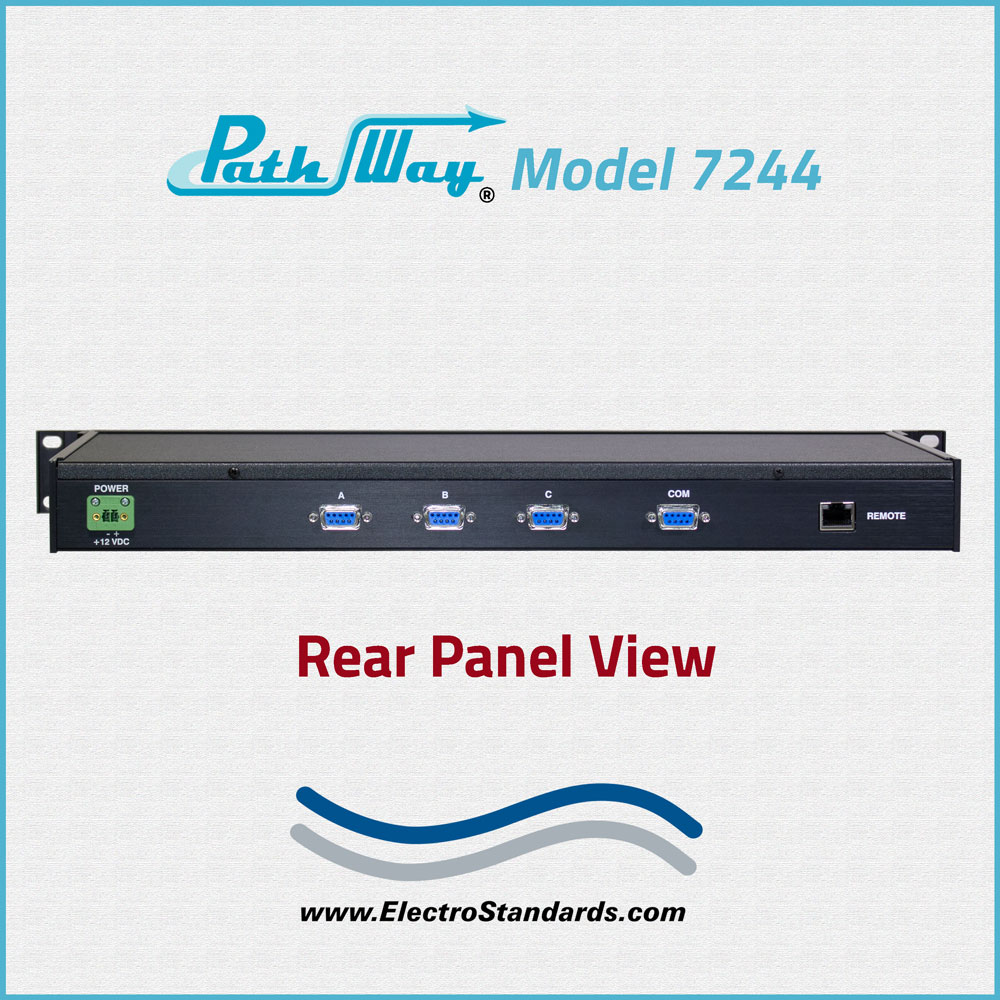

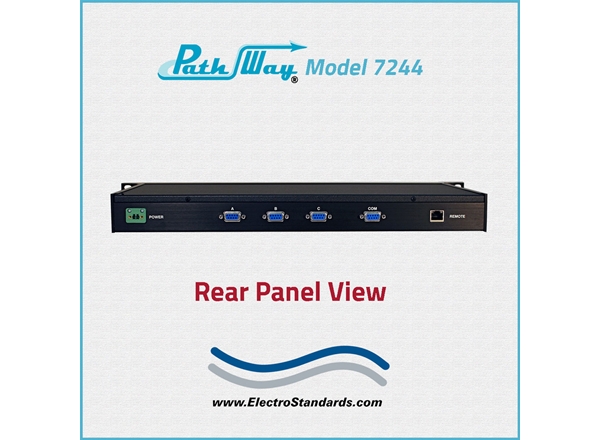

  • PORT CONNECTORS: (4) DB9 Female connectors labeled A, B, C and COMMON.
  • FRONT PANEL CONTROL: (1) manual pushbutton allows local switching.
  • DISPLAY: (3) Front panel LED's display switch position and power status.

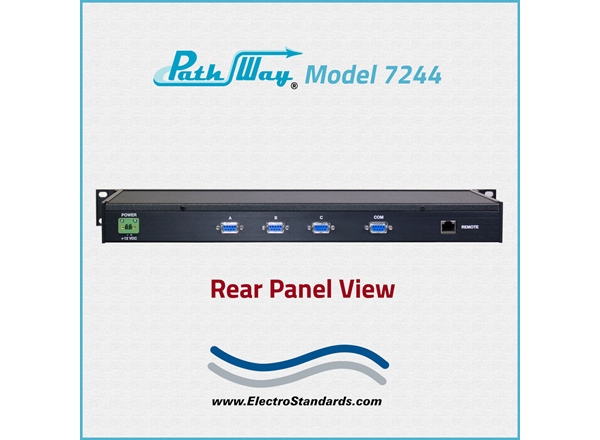

  • REMOTE CONTROL: (1) RJ45 Female connector on rear panel accepts Ethernet 10/100Base-T connection Telnet commands or Graphical User Interface for Remote Control operation.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12VDC, 500mA to the unit. Has 2-prong, US non-polarized plug.
  • DIMENSIONS: 19.0" W x 1.75" H x 8.24" D. (48.3 x 4.4 x 21.0 cm)
  • WEIGHT: Approximately 4.3 lbs. (2.0 kg)

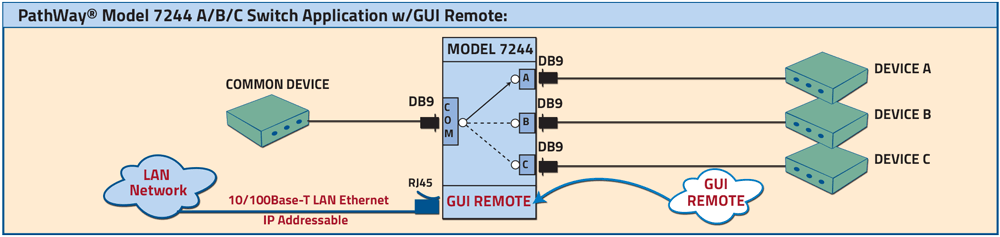

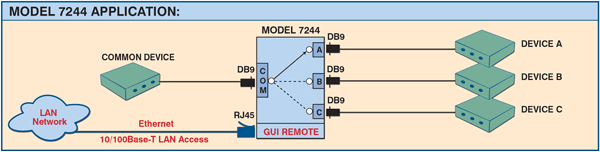

The diagram illustrates a COMMON device connected to the COMMON DB9 port with access to three devices, Device A, Device B, and Device C, connected to the DB9 A, B and C ports respectively. The RJ45 port is 10/100Base-T LAN Ethernet which can be used to control the unit via Telnet Commands or Graphical User Interface.

PathWay Model 7244 Single Channel DB9 A/B/C Switch with Telnet and GUI Application


  • Model 7244 is an IP Addressable Data Network Switch!
  • Allows quick connection of any one of three devices from one COMMON device.
  • The switch ports are transparent to all data.
  • All 9 pins of the DB9 interface are switched via break-before-make electromechanical relays.
  • Switch maintains position on power loss and continues to pass data.
  • Front-panel pushbutton control.
  • Control of the switch from a 10/100Base-T LAN Ethernet Environment.
  • Remote control Telnet command interface or Graphical User Interface that allows the user to control switch position, lockout front panel operations, obtain switch status, as well as query firmware version number, query serial number and enable/disable autosend of switch positions.
  • Front panel LED's display switch position and power status.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Custom length DB9 cables available for your switch installation.
  • Municipalities, schools, government: On GSA Schedule!

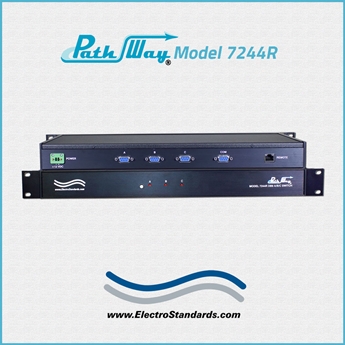

  • For a RoHS Version of the Model 7244, See Model 7244R, Cat No 307244R!

The PathWay® Model 7244 Single Channel DB9 Interface A/B/C Switch with Telnet and GUI allows the user the capability of sharing a single port interface device connected to the COMMON port among three other devices connected to the A, B, and C ports with remote access functionality.  Remote Control access can be accomplished using an Ethernet 10/100BASE-T connection.  The Graphical User Interface allows for remote switch position control and monitoring as well as front panel lockout features.  The Model 7244 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

Option: Wide Range Power Supply: (Cat No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC-240VAC, 50-60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 7244 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.


To connect to the switch from a workstation or computer having access to the LAN that the Model 7244 LAN port is connected to, simply launch a standard web browser and type in the appropriate IP address.  The Java Applet will be automatically uploaded from the switch upon connection.  The environment requirement for the GUI is Java 1.7 and above.

PathWay Model 7244 DB9 A/B/C Switch GUI Main Panel

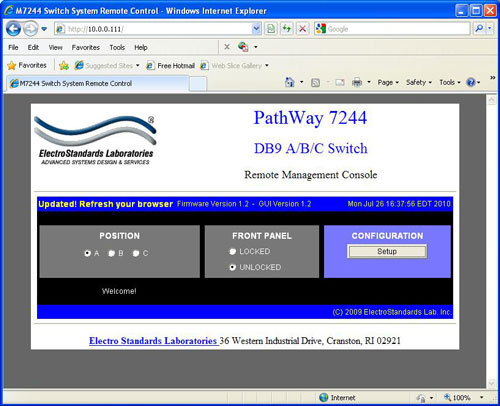

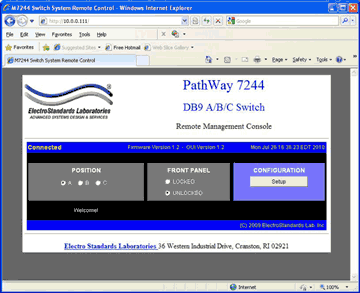

 Figure 1: Model  7244 GUI in a Standards Web Browser


Network Setup

The switch is configured from the factory to use DHCP to automatically get its IP address from a DHCP server on the local area network when connected to the network and powered up. Therefore, a DHCP server is needed on the local area network for the initial configuration. After that, the switch can be configured to use a static IP address.  To find the IP address of a switch that it has gotten from the DHCP server, or to reconfigure the IP Address of the switch, use the Lantronix® DeviceInstaller application.

Getting DeviceInstaller

DeviceInstaller requires Microsoft’s .NET Framework version 4.0 or higher. If the .NET Framework is not already installed, it must first be installed. The .NET Framework can be downloaded from Microsoft’s website, either as a web install, or as a standalone installation.  The latest version of DeviceInstaller can be downloaded from Lantronix’s website.


  • Access User Interface via standard web browser.
  • Easy to use, simple point and click operation.
  • Remotely access to control or monitor the Model 7244 Switch System.
  • Users can change the switch’s IP address.
  • LAN access gives users across the LAN or over the Internet access to control if user network is configured accordingly.

LOGGING into the GUI

  • Once logged in, the user can perform one of several actions:
  • Change the switch position
  • Lockout control of the switch’s front panel
  • Change the login password
  • Enable or Disable password protection
  • Re-configure the switch’s IP address

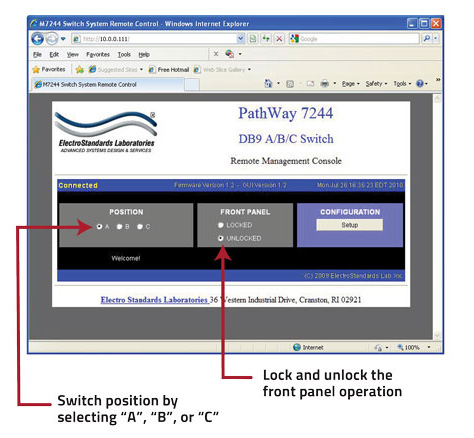

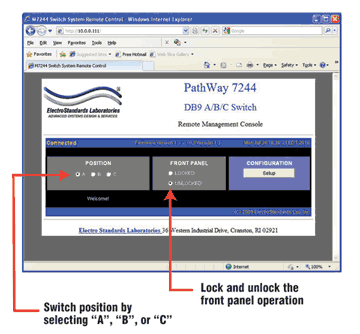

To change the switch position, click on the radio button "A", "B", or "C" as desired.  Locking and unlocking the front panel pushbutton can be done by clicking on the "Locked" or "Unlocked" radio buttons. See Figure 2.
