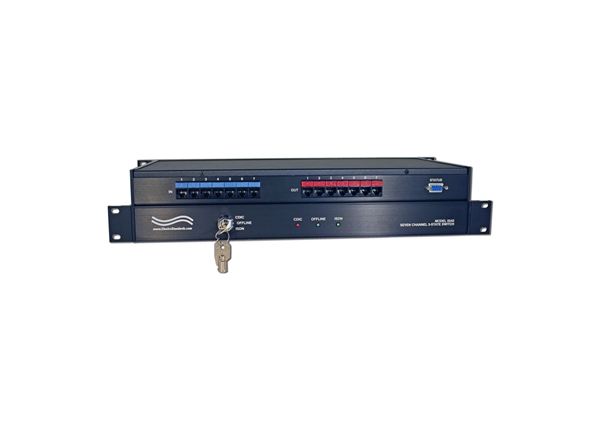

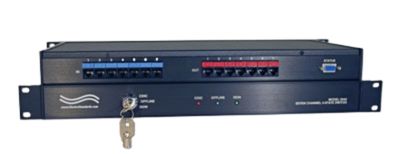

LineSelect® Model 5542 7-Channel 3-State CDIC/ISDN/OFFLINE RJ45 Cat5e/ISDN Switch

Overview

The LineSelect® Model 5542 7-Channel 3-State CDIC/ISDN/OFFLINE RJ45 Cat5e/ISDN Switch allows the user the capability of connecting two separate devices, ports IN and OUT, via an Online or Offline connection, for each channel.  In the CDIC position, Channel 1 is Online.  In the ISDN position, Channels 2-7 are Online.  Users can link this model to the Model 5543 CDIC/ISDN/OFFLINE Display Indicator unit for a robust Conference Communications Switching System.  The Model 5542 is enclosed in a 1U, full rack size, black anodized chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

  • Ideal for secure conference room communication applications!

  • Custom labeling available, call us with your requirement 401-943-1164!

FEATURES OF THE MODEL 5542 3-STATE CAT5E/ISDN SWITCH:

  • The switch ports are transparent to all data.
  • Certified for Cat5e compliance on Channel 1 only.
  • The following pins are switched:
  • Channel 1: All (8) pins of the RJ45 interface.
  • Channels 2-7: Pins 3-6 of the RJ45 interface.
  • Unit switched via front panel keylock actuator.
  • Unit connects/isolates as follows:
  • CDIC position: Channel 1 connects ports IN and OUT, Channels 2-7 isolated.
  • OFFLINE position: All channels isolated.
  • ISDN position: Channels 2-7 connect ports IN and OUT, Channel 1 isolated.
  • Status port for linking switch system unit to the Model 5543 CDIC/ISDN/OFFLINE Display Indicator unit.
  • Front panel LED's on Model 5542 display the position status of unit when linked to a powered Model 5543 unit.
  • The position of the Model 5542 will follow, the keylock actuator position, at all times.
  • Key can only be removed from actuator in the OFFLINE position.
  • No power is required to operate The Model 5542 unit.

TECHNICAL SPECIFICATIONS:

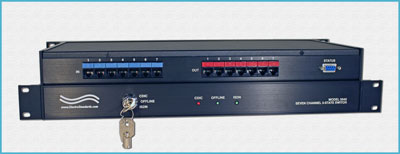

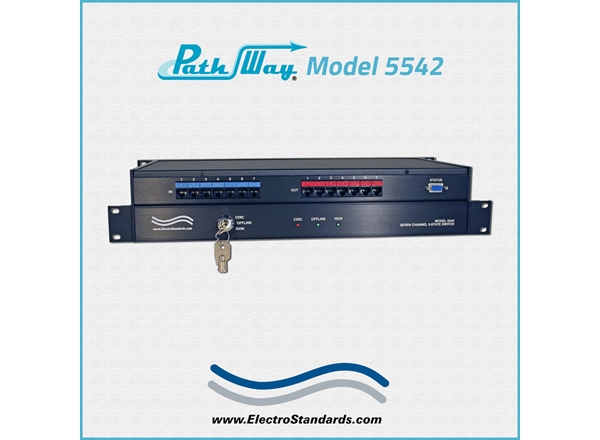

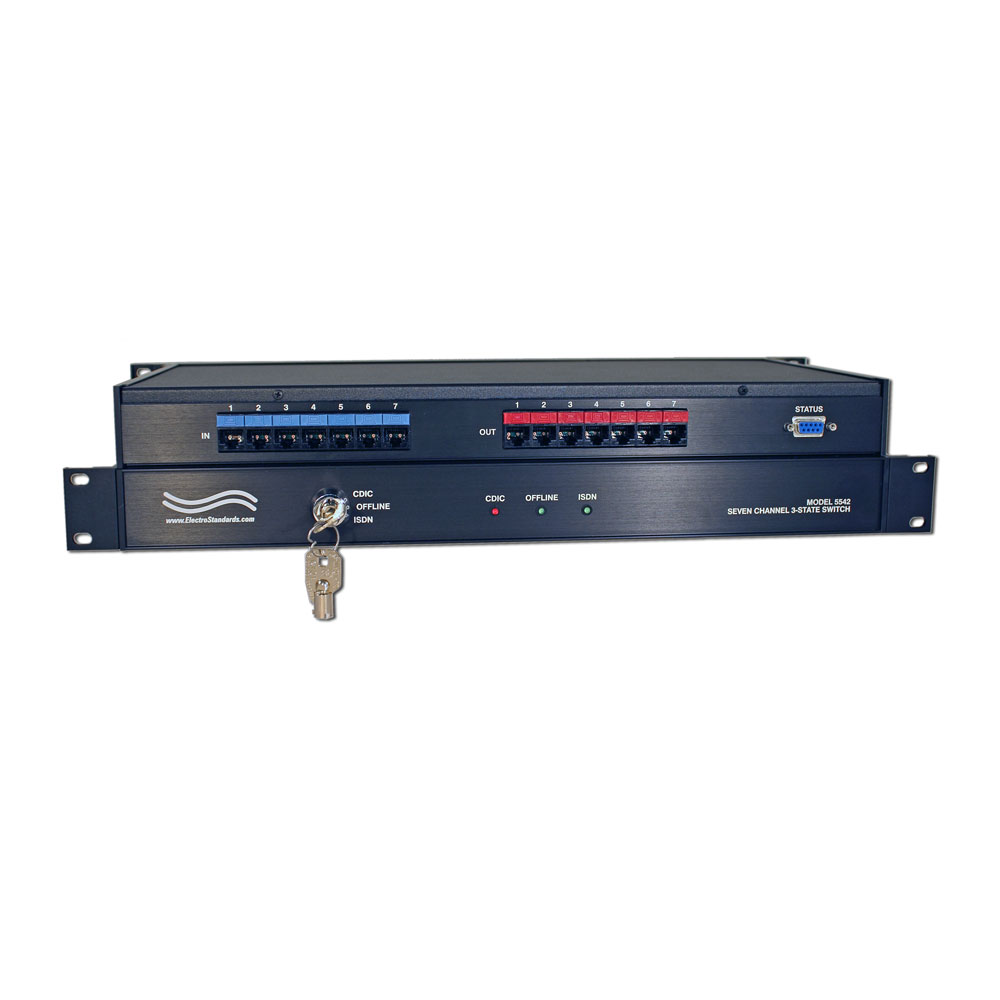

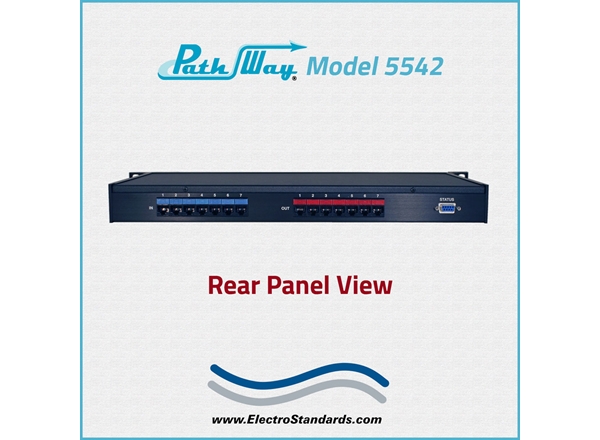

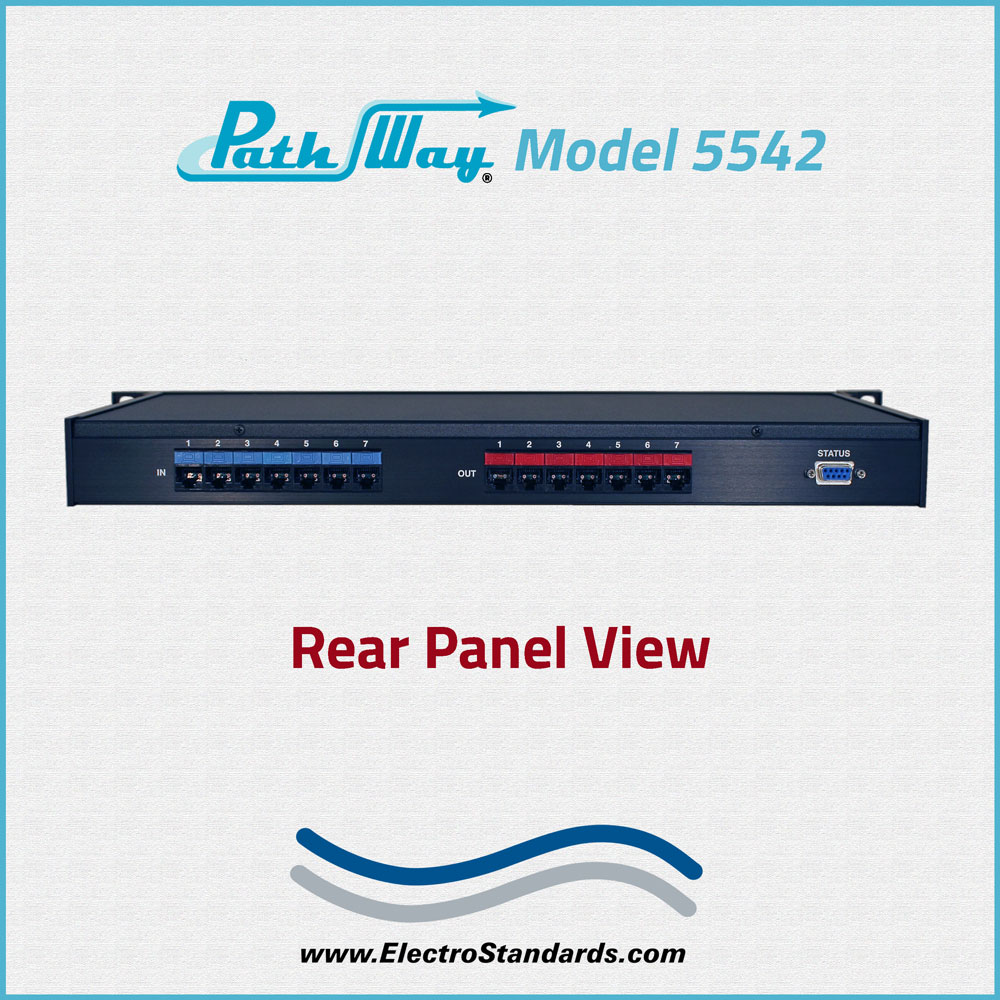

  • PORT CONNECTORS: (7) RJ45 female connectors labeled IN and (7) RJ45 female connectors labeled OUT.

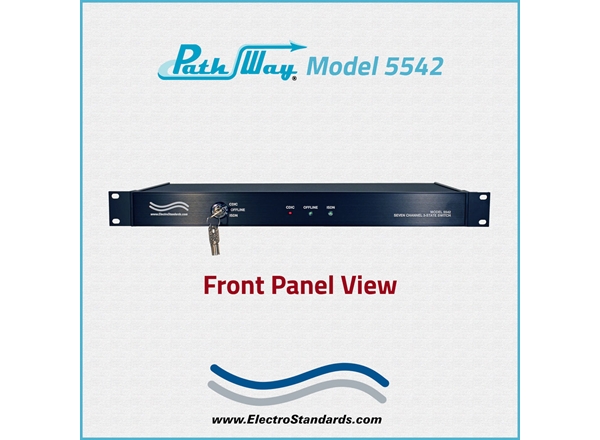

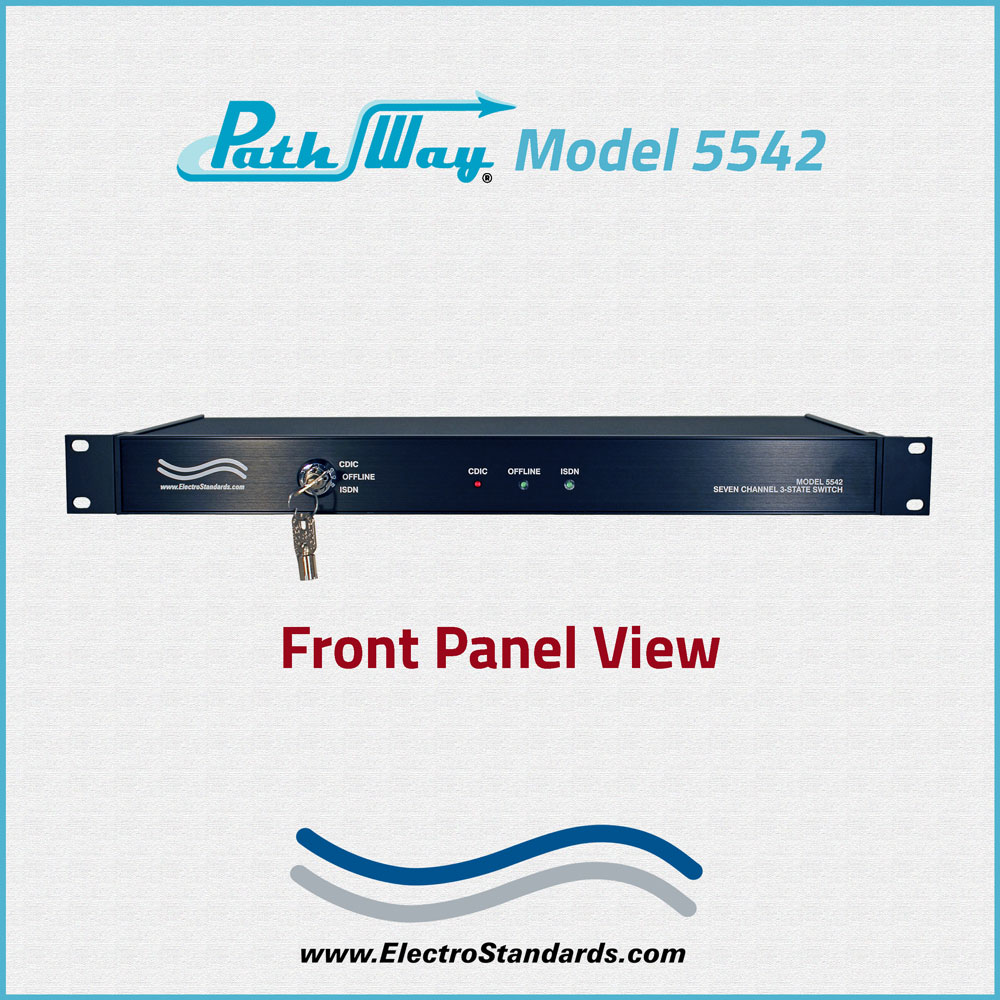

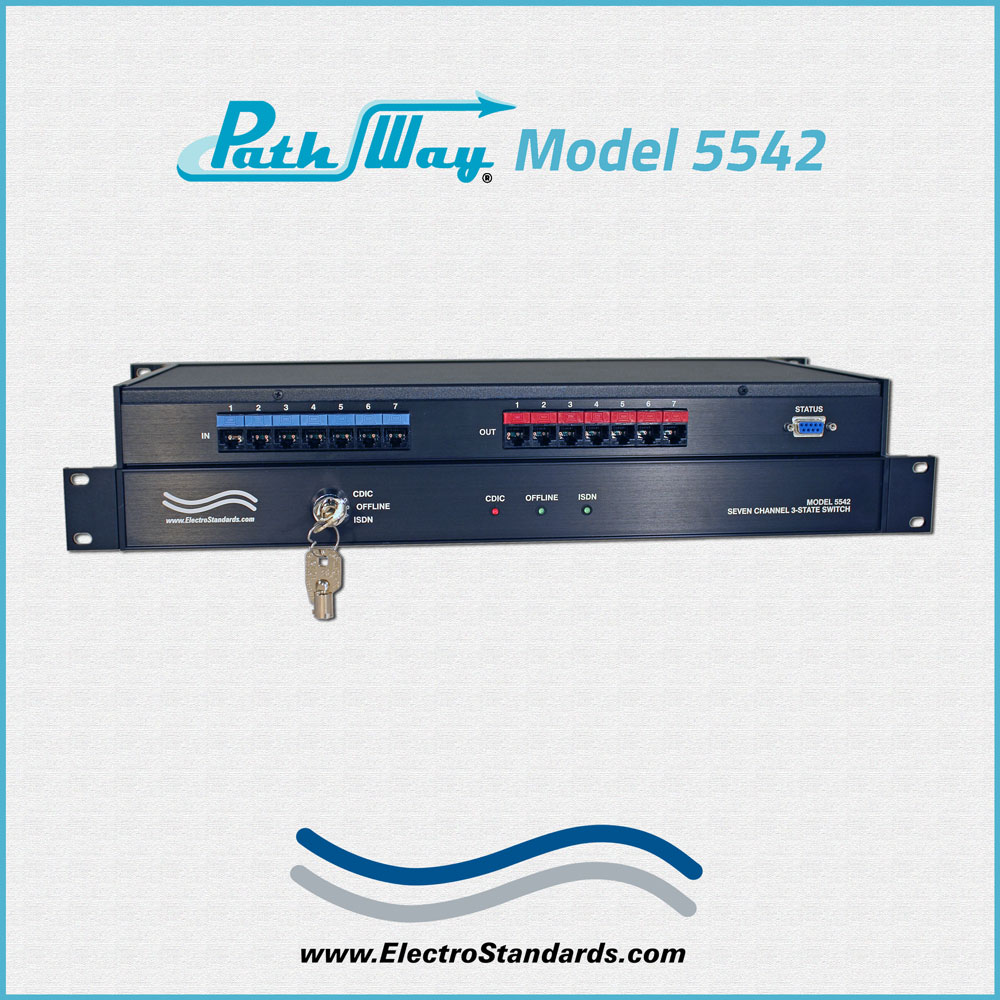

  • FRONT PANEL CONTROLS: (1) Three-position keylock actuator labeled CDIC, OFFLINE, and ISDN.
  • DISPLAY: (3) Front panel LED's display present position and power status.
  • STATUS PORT: (1) DB9 (F) Custom Contact Closure Monitor and Power Input port allows linking the Model 5542 switch to a remote color graphic display unit, Model 5543, which indicates switch position: CDIC, ISDN, and OFFLINE.
  • POWER: No power required to operate the switch.  Power for LED's provided from connection to the Model 5543 Display Unit.
  • DIMENSIONS: 19" W x 1.75" H x 8.0" D. (48.3 x 4.4 x 20.3 cm)
  • WEIGHT: 4.5 lbs. (2.1 kg)

Model 5542 7-Channel Conference Room Application:

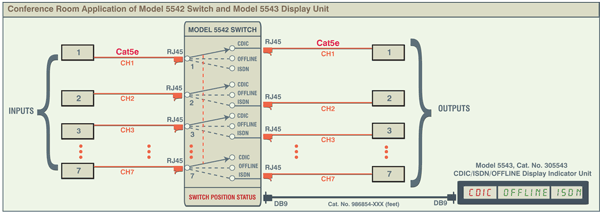

  • The drawing illustrates in the CDIC position, Cat5e Channel One is ONLINE and Channels 2 - 7 are isolated.

  • In the ISDN position, Channels 2 -7 are ONLINE and Cat5e Channel 1 is isolated. The OFFLINE position isolates all 7 channels.

  • The switch positions are displayed on the Model 5543 Display Unit. The switch and display are connected by a cable, Cat No. 986854 (feet).

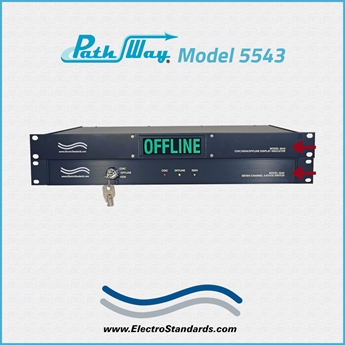

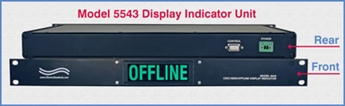

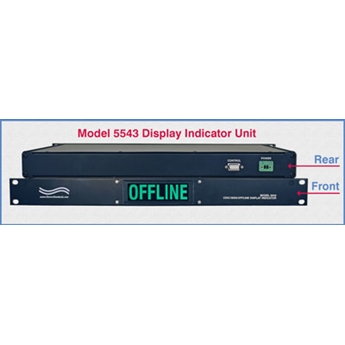

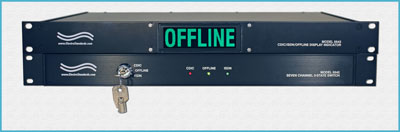

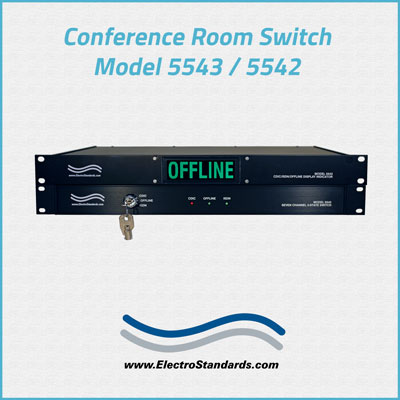

Model 5542 Switch shown with the Model 5543 Display Indicator Unit.

Ordering Information

  • Catalog Number: 305543
  • Model Number: 5543
  • Base Price: See website or contact us for current pricing and availability.

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.
