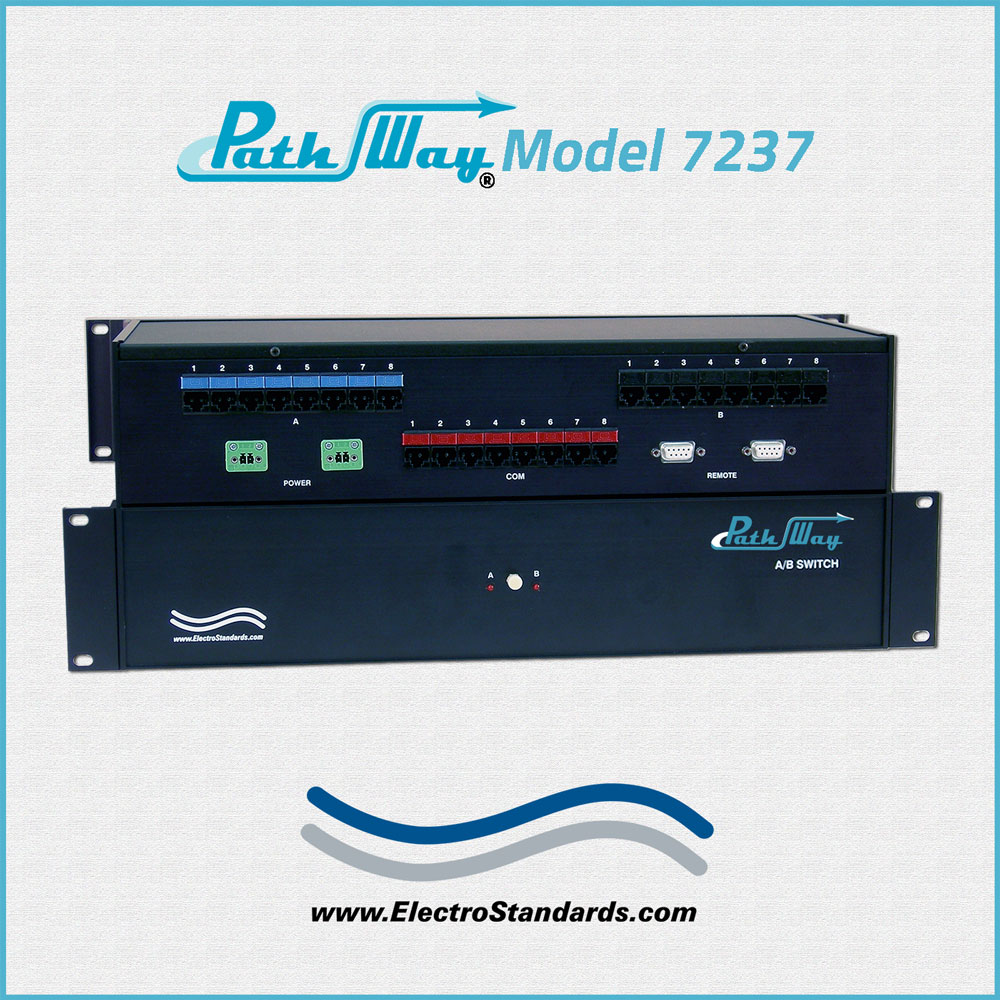

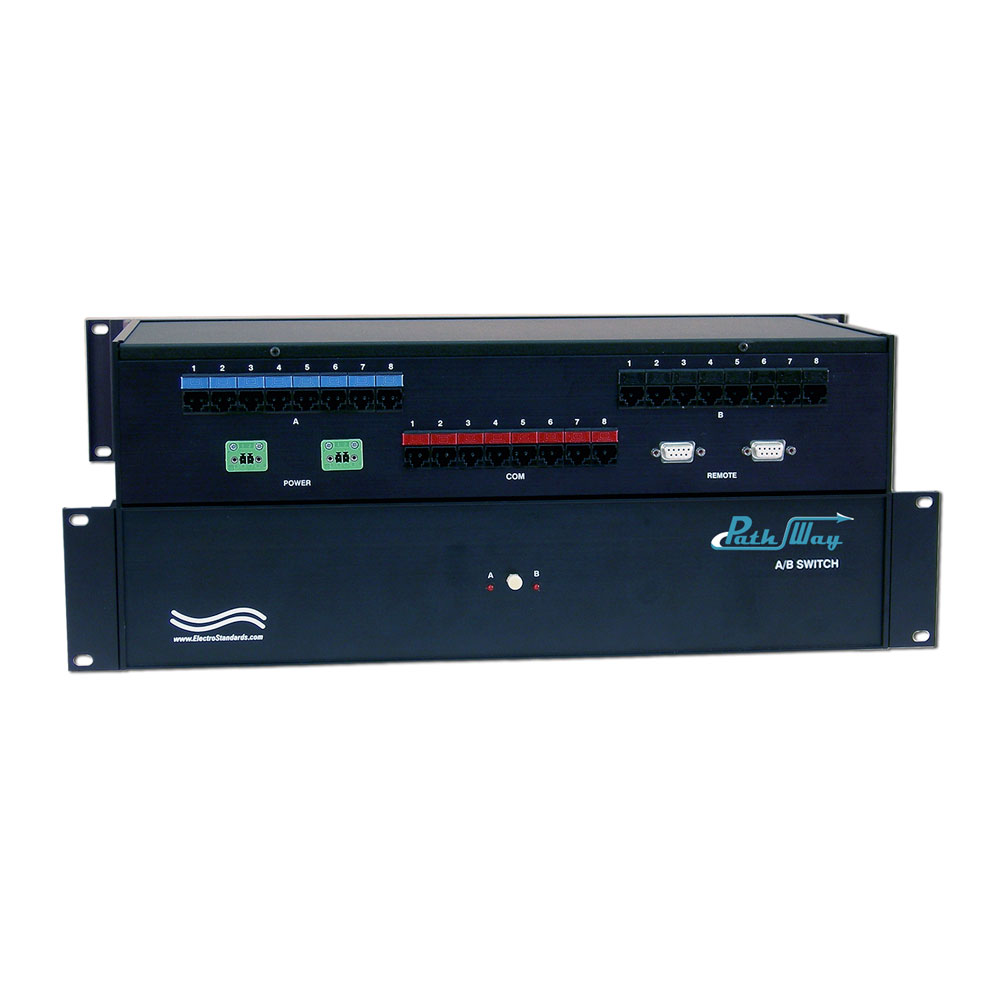

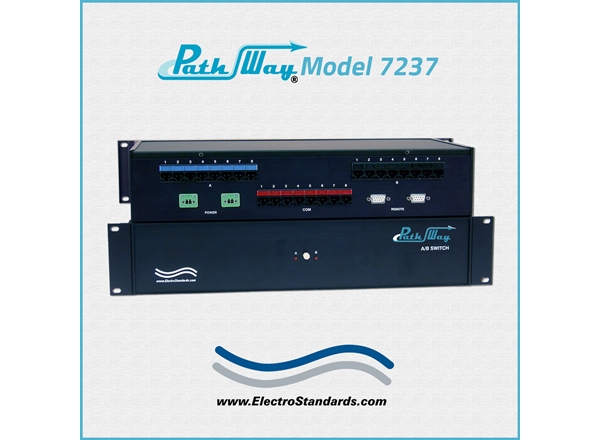

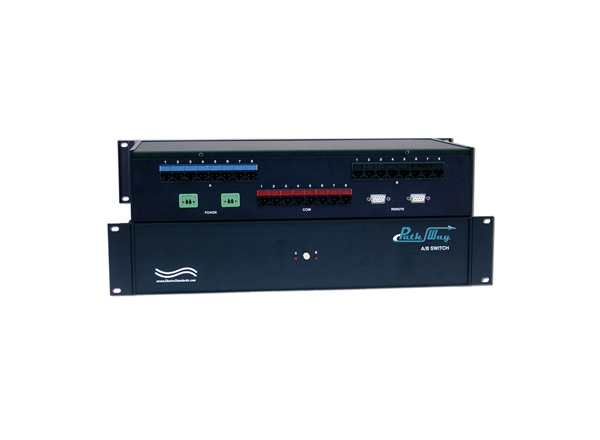

Catalog # 307237 - Model 7237 8-Channel RJ45 A/B Switch

    8-Channel RJ45 A/B Switch8-Channel RJ45 A/B Switch8-Channel RJ45 A/B Switch8-Channel RJ45 A/B Switch
Click image to enlarge
    • 8-Channel RJ45 A/B Switch
    • 8-Channel RJ45 A/B Switch
    • 8-Channel RJ45 A/B Switch
    • 8-Channel RJ45 A/B Switch
Base Price:
$3,023.00
Catalog No: 307237
Model No: 7237
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:8
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control
Remote Control:Contact Closure, RS232 Serial
Configuration:Rackmount
Pins Switched:8
Remote Port:DB9
Local Control:Pushbutton
Feature:Redundant Power Supply
Protocol:ASCII

Add to Cart
  • High reliability through redundancy: Dual Power Supplies and Dual Remote Ports
  • Redundant Power Supplies helps reduce downtime due to power loss.





UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Path Way® Remotely Controllable Network Switch
Path Way® Model 7237 8-Channel RJ45 A/B Switch with Redundant Remote Control and Power Supply

SPECIFICATIONS:

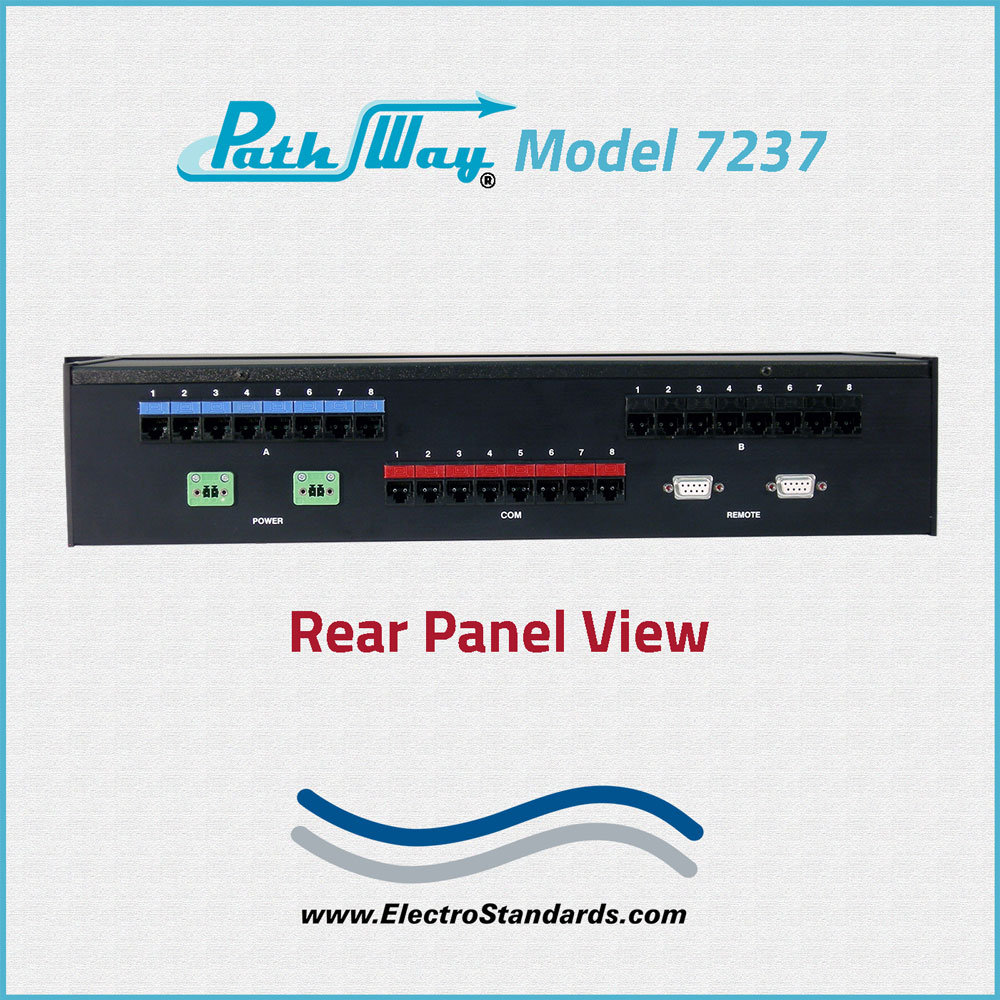

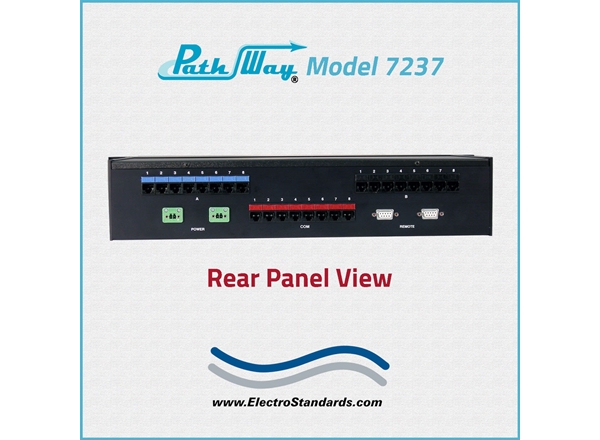

  • PORT CONNECTORS: (24) RJ45(F) connectors labeled A, B, and COM (3 for each of the 8 channels).
  • DUAL REMOTE CONNECTORS: (2) DB9(F) connectors labeled REMOTE accept RS232 serial data.
  • DUAL POWER: (2) UL approved 120VAC, 60Hz wall mount power modules supply 12VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
  • DISPLAY: (2) LED's indicate switch position and power.
  • CONTROL: (1) Pushbutton control allows local switching.
  • DIMENSIONS: Rackmount configuration 19" W x 3.5" H x 8" D. (48.2 X 8.9 X 20.3 cm)
  • WEIGHT: Approximately 7.0 lbs (3.18kg)

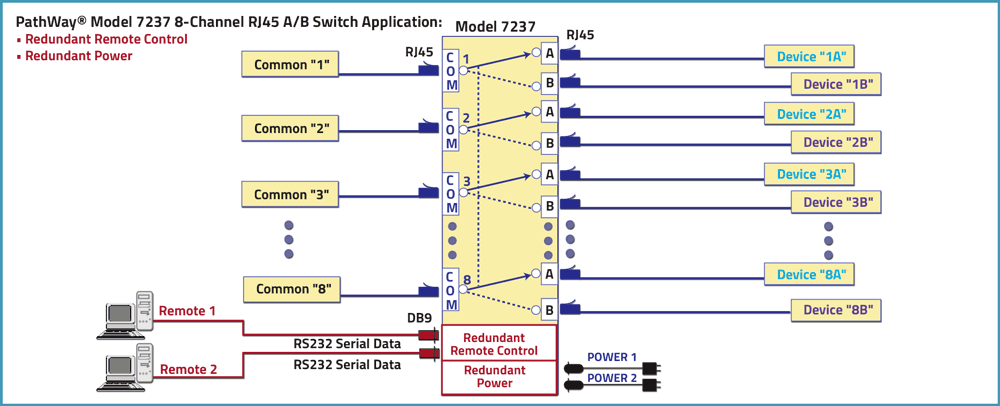

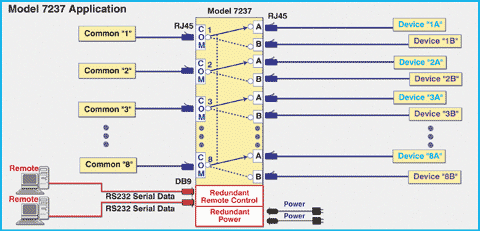

PathWay® Model 7237 8-Channel RJ45 A/B Switch application with Redundant Power Supplies:

The PathWay® Model 7237 drawing illustrates one COMMON port connected to one of two separate devices for each of eight channels. There are two DB9 remote connectors for ASCII RS232 Serial Data Remote Control operation.  The redundant power supplies are illustrated in the application drawing, as well.

PathWay Model 7237 8-Channel RJ45 A/B Application

FEATURES:

  • High reliability through redundancy: Dual Power Supplies and Dual Remote ports.
  • The switch ports are transparent to all data.
  • All (8) pins of each RJ45 interface are switched via break-before-make electro-mechanical relays.

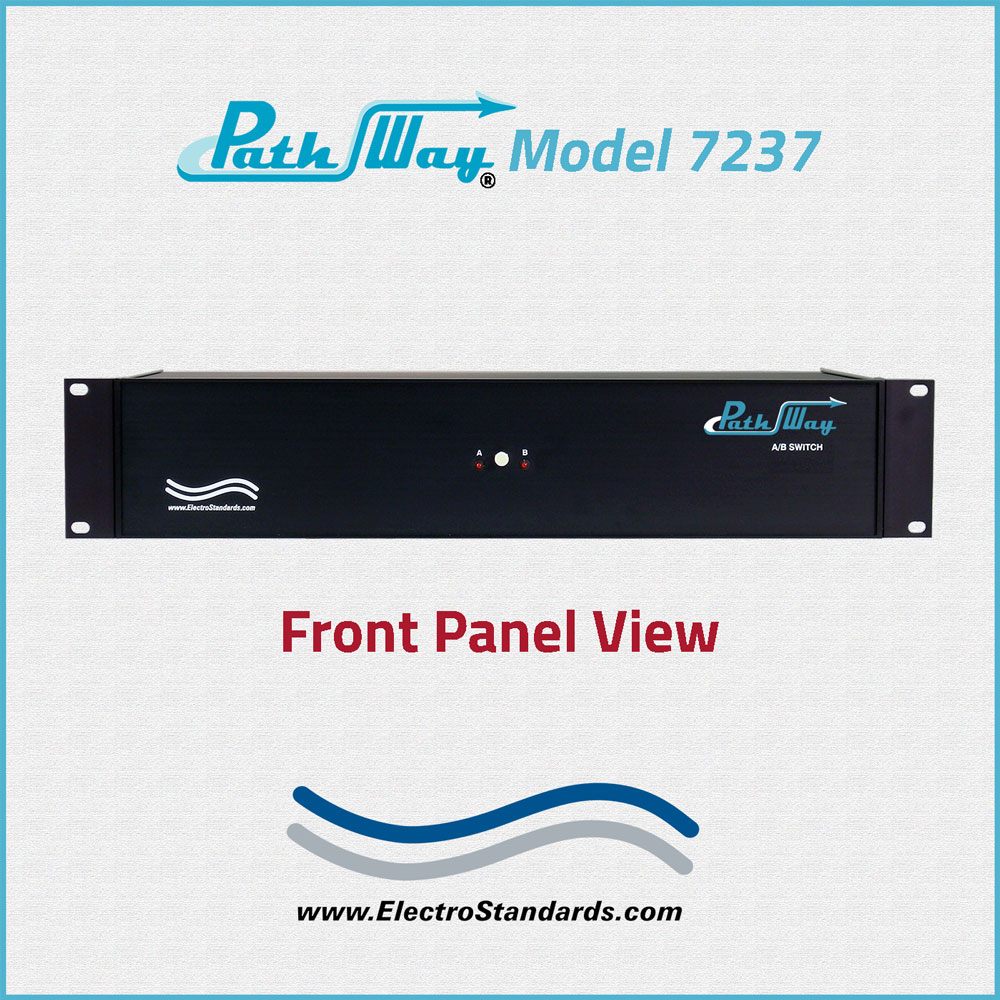

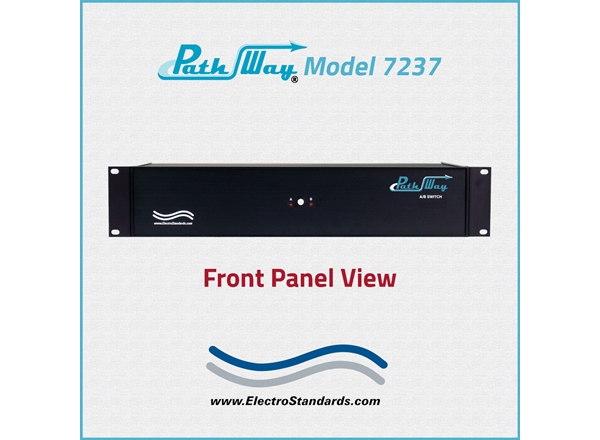

  • Front panel pushbutton control.
  • Remote RS232 ASCII Commands that allow the user to control switch position, lockout front panel operations and obtain switch status.
  • Remote Contact Closure control provides dry contact logic to allow the control of switch position.
  • Simultaneous control of all channels
  • Switches maintain position in the event of power loss and continue to pass data.
  • Front panel LEDs display the current switch position and power status.
  • Redundant Power Supplies helps reduce downtime due to power loss.
  • Municipalities, schools, government: On GSA Schedule!

The PathWay® Model 7237 8-Channel RJ45 A/B Switch with Redundant Remote Control and Power allows the user the capability of accessing, on each channel, one of two separate devices via a device connected into the channel's Common port.

The switch may be controlled manually by a front panel pushbutton or remotely from either RS-232 serial port located on the rear of the unit.

Switch position status may be attained via the front panel LED display via one of the dual Remote RS-232 serial ports (DB9) located on the rear of the unit.

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC-240 VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

SPECIFICATIONS: USB to DB9 Serial Converter Cable Available! If only USB ports are available on the computer or if a USB port is chosen to be used for any reason, a USB to DB9 serial converter cable will be needed.  This cable can be provided by ESL under part number 528693.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 7237 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form at https://www.electrostandards.com/support/custom-product-request/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
