Switch/Converter Catalog # 306185 - Model 6285 Gigabit A/B Fiber

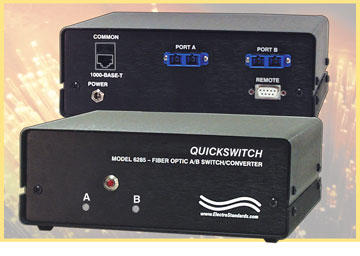

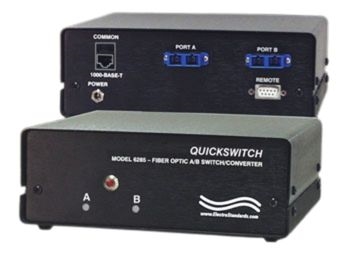

    Gigabit A/B Fiber Switch / ConverterGigabit A/B Fiber Switch / Converter
Click image to enlarge
    • Gigabit A/B Fiber Switch / Converter
    • Gigabit A/B Fiber Switch / Converter
Base Price:
$4,279.00
Catalog No: 306185
Model No: 6285
Product Type:Switches: Copper, Switches: Fiber Optic
Cable Type/Port Connector:RJ45, SC
Channels per Switch Chassis:1
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Configuration:Desktop
Fiber Mode:Multimode
Fiber Size:62.5/125
Fiber Type:Duplex
Mirror Technology:OO
Speed:Gigibit
Wavelength Nano:850

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

QuickSwitch® Fiber Optic Network Switch
QuickSwitch® 6285 Gigabit SC Duplex Fiber Optic Mirror  Switch / Converter with Remote Control

  • Utilizes High-Speed Fiber Optic/Copper 1000-Base-T Converter

Gigabit Fiber Optic Mirror Switch/Converter with Remote, Model 6285

QuickSwitch® Specifications:

  • PORT CONNECTORS: Ports A and B are Fiber Optic SC duplex ports; COMMON Port is 1000-Base-T RJ45.
  • FIBER OPTIC PORT INTERFACE: Ports A & B are fiber optic SC duplex ports that accept standard fiber optic SC duplex connectors.
  • WAVELENGTH: 850 nanometer
  • FIBER SIZE: 62.5/125 micron
  • COMMON PORT INTERFACE: The Common port is an RJ45 GigE interface that accepts standard CAT5e patchcords.
  • REMOTE PORT INTERFACE: RS232 (DB9) serial port, 9600 bps, located on rear of unit, may be connected to any standard RS232 port or computer.
  • CONTROLS: Manual pushbutton or via remote DB9 RS232 serial port.
  • DISPLAY: Front panel LED or computer terminal via remote port.
  • POWER: 115 VAC / 60 Hz, wall mount supply
  • DIMENSIONS: 3" H x 8" D x 8" W (7.6 x 20.3 x 20.3 cm)
  • WEIGHT: Approx. 2.8 lbs. (1.3 Kg)

Model 6285 Gigabit Fiber Optic Mirror Switch/Converter Network Application Diagram

QuickSwitch® 6285 AB Switch enables a device connected to the Gigabit 1000-Base-T RJ45 COMMON port to access either of two separate fiber optic networks via SC Duplex ports. This cutting-edge switch utilizes MEMS-based (Micro Electro Mechanical System) multimode switches and high-speed fiber optic / copper 1000-Base-T converter electronics.  The switch position of the QuickSwitch 6285 can be controlled manually via a front panel pushbutton or remotely using the RS232 serial port located on the rear of the unit. Once connected to the REMOTE port, the computer can use and common terminal emulation software to manipulate the control and monitor the switch position.

QuickSwitch® 6285 Fiber Optic Network Switch Features:

  • Access any one of two SC Duplex fiber optic networks from one Gigabit Ethernet network.
  • Internal data interface conversion circuitry allows Fiber Optic-to-Copper network interconnection.
  • MEMS-based mirror/prism switch technology supports Gigabit data rates.
  • Service protocol transparent.
  • The fiber ports are SC duplex, multimode, 62.5/125 micron and support a wavelength of 850nm.
  • The COMMON port is an RJ45 female connector with a Cat5e Gigabit 1000-Base-T interface.
  • Local control via front-panel pushbutton.
  • The remote port accepts RS232 Serial Data commands for switch position control and monitoring.
  • Front-panel LED's display switch positon and power status.
  • Custom length rigorously tested and certified SC duplex fiber optic cables available for your switch installation.
  • Municipalities, schools, government: This product is on GSA Schedule!

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here or on GSA icon for details.

 1000-BASE-T
A specification for Gigabit Ethernet (GigE) over copper wire (IEEE Std 802.3ab). The standard defines 1 Gb/s data transfer over distances of up to 100 meters using four pairs of Cat5 balanced copper cabling and a 5-level coding scheme.
Since many companies already use Cat5 cabling, 1000-Base-T can be easily implemented.
Other 1000-Base-T benefits include compatibility with existing network protocols (i.e. IP, IPX, Apple Talk) existing applications, Network Operating Systems, network management platforms and applications.



Electro Standards can supply all of your Fiber Optic Cable requirements. Please click here to reach our Fiber Optic Cable Categories Webpage.

QuickSwitch
®
® is a registered trademark of Electro Standards Laboratories.

QuickSwitch® Fiber Optic Switches are available in many configurations: auto fallback, switch/converters, multimode & single mode, and secure off-line positions. Interfaces include: SC, ST, LC, and ESCON. Check out our complete line of QuickSwitch® fiber optic switches.

For custom fiber optic network switches contact our friendly sales support staff at 401-943-1164; or email: eslab@electrostandards.com, or complete our On-Line Custom Fiber Optic Switch Form: /Products-Custom/Fiber-Switch/

All data switch boxes, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

 *Prices online are subject to change and verification.
All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateurs à fibres optiques, interruptores de fibra óptica, switch in fibra ottica, switches de fibra óptica, fiberoptiska switcher.
