PathWay® Model 5532 OFF/SVCN/XNET/GPCN DISPLAY INDICATOR UNIT

Overview

The PathWay® Model 5532 is designed to display the isolation/connection status of the Model 5535 Single Channel 4 State Cat5e switch. Users can link these units to create a robust conference communication switching system. The dimensions of the Model 5532 are 1.75"H x 6.75"D x 19"W and the unit mounts in a standard 1U equipment rack. The unit weight is approximately 2.0 lbs.

Video Conference Room Switch, Display Indicators

FEATURES OF THE MODEL 5532 DISPLAY INDICATOR UNIT:

  • The front panel LED Display on the Model 5532 will display the OFF/SVCN/XNET/GPCN status of the connected Model 5535 switch.
  • Display Indicator unit connects to status port of the Model 5535 switch.
  • Display is always showing one of the four possible states of the companion switch.
  • Power for the LED's of the Model 5535 switch is provided via the Control port of the Model 5532 Display Indicator Unit.
  • Installs in a standard 19" wide equipment rack.  Occupies only 1U height (1.75").
  • Power: UL approved 100VAC/240VAC, 50 Hz/60Hz wall mount power module supplies 12VDC, 500mA to the unit.

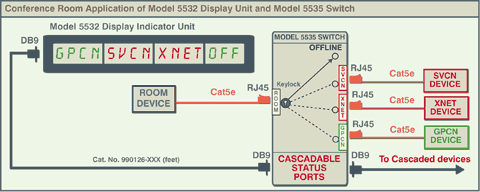

Conference Room Application of Model 5532 Display Unit and Model 5535 Switch Application drawing!

Network Application for Model 5532 Display Indicator Unit and Model 5535 RJ45 Cat5e Switch

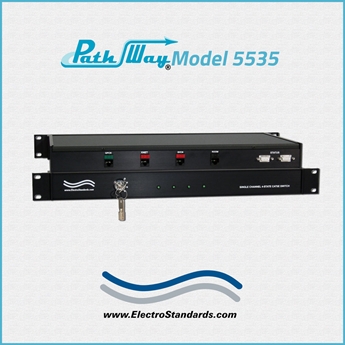

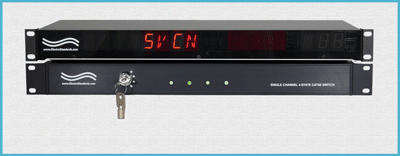

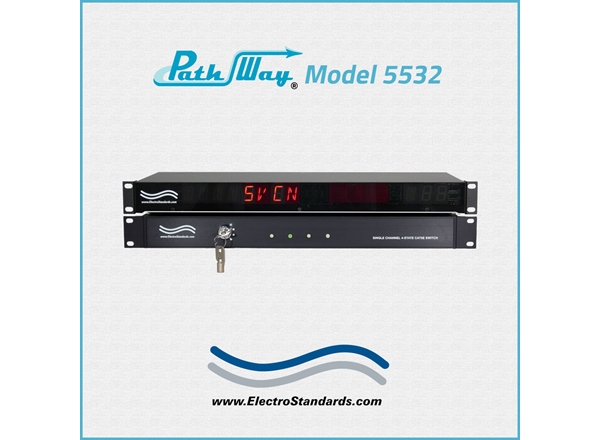

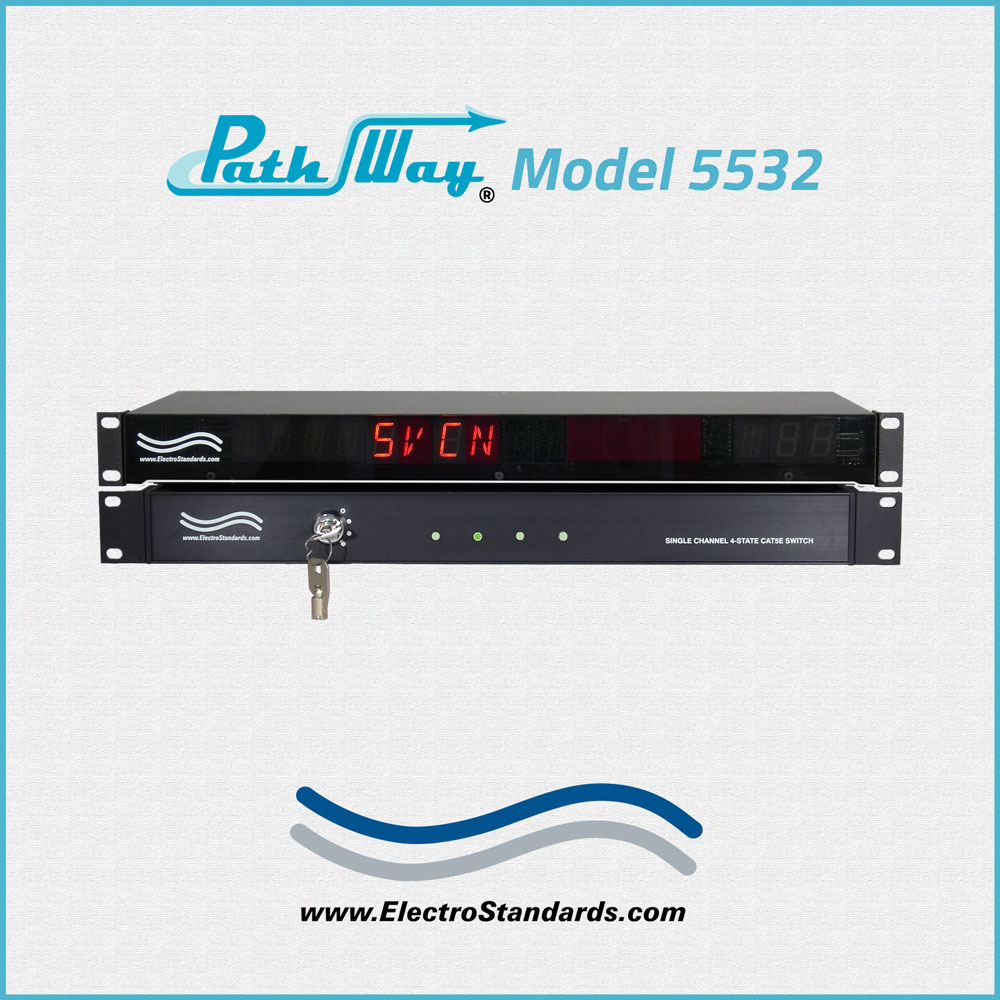

Model 5532 Display Indicator Unit showing the SVCN position of the Model 5535, Cat. No. 305535

Model 5532 Display Indicator Unit SVCN Position

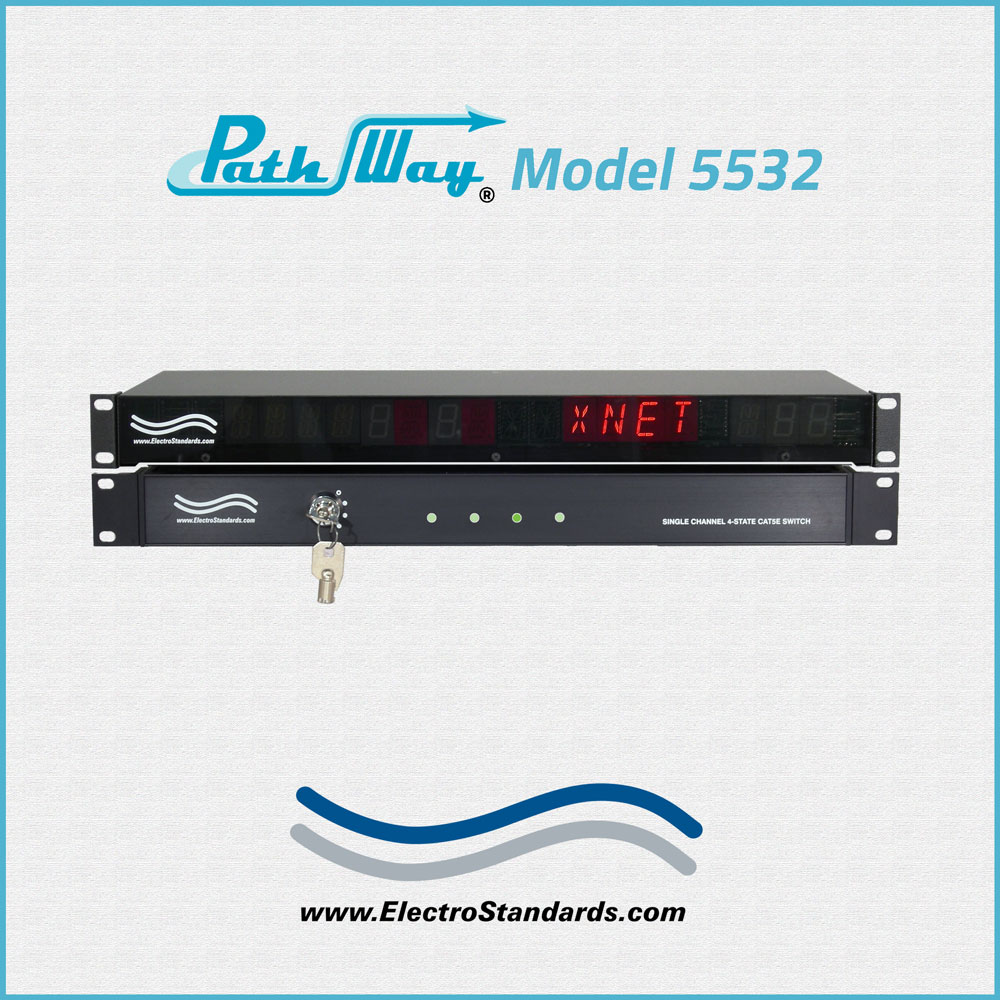

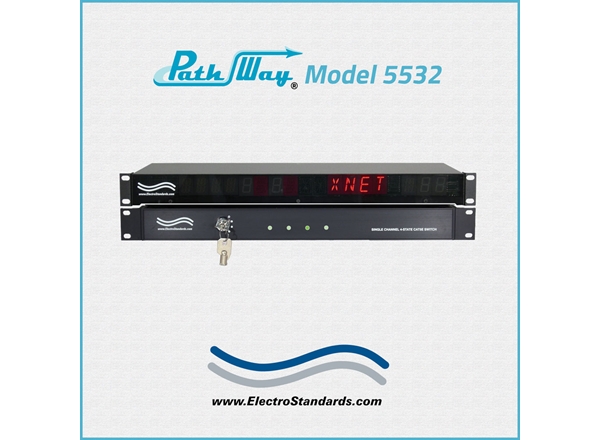

Model 5532 Display Indicator Unit showing the XNET position of the Model 5535, Cat. No. 305535

Model 5532 Display Indicator Unit XNET Position

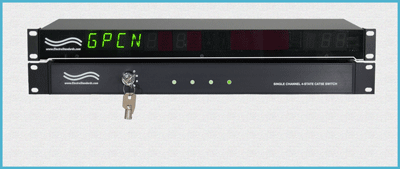

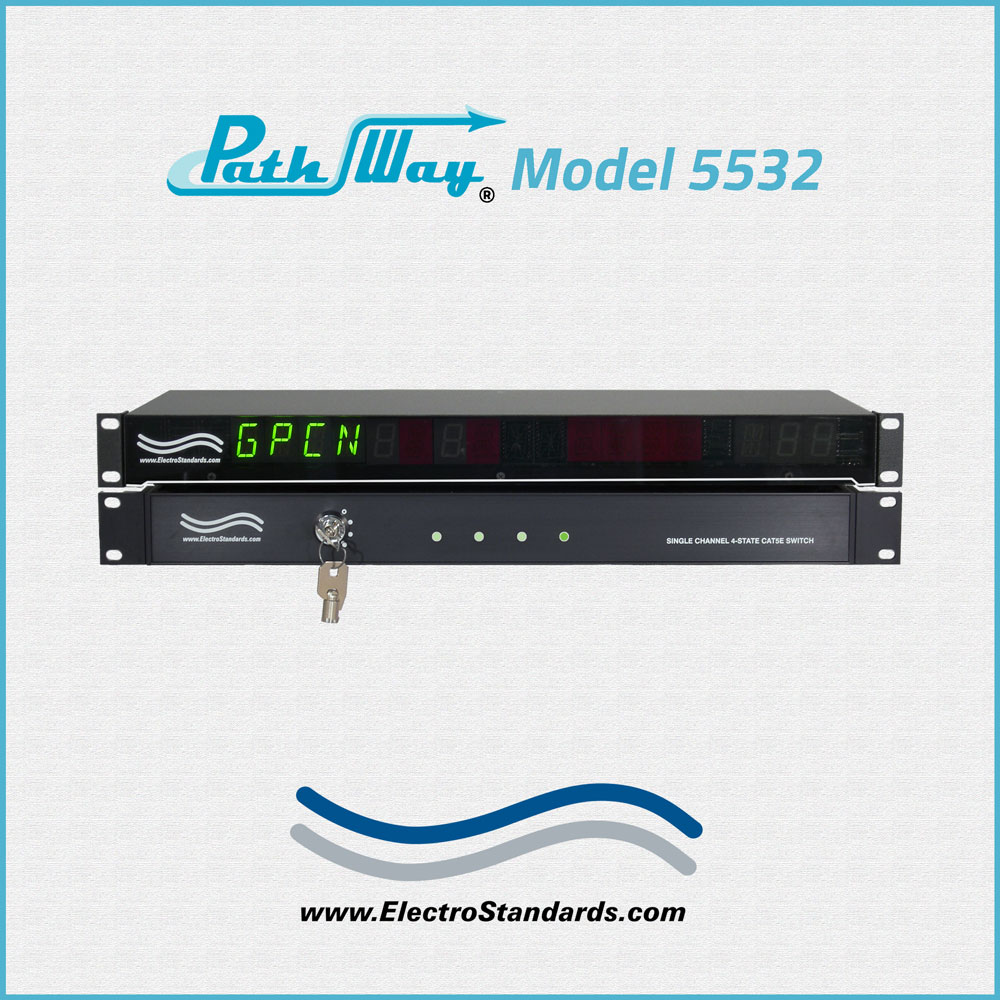

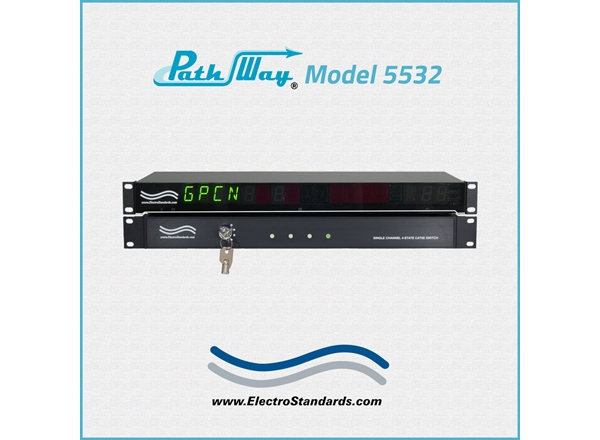

Model 5532 Display Indicator Unit showing the GPCN position of the Model 5535, Cat. No. 305535

Model 5532 Display Indicator Unit GPCN Position

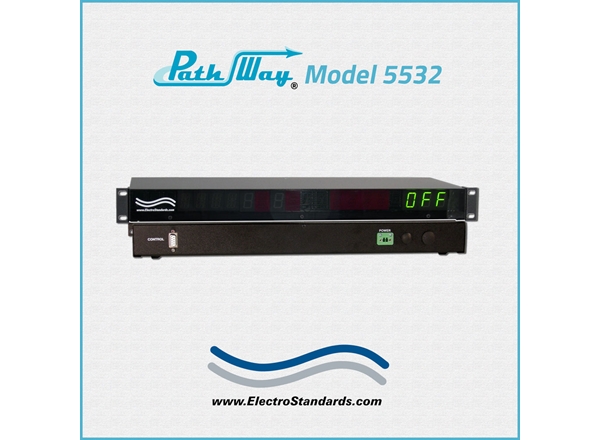

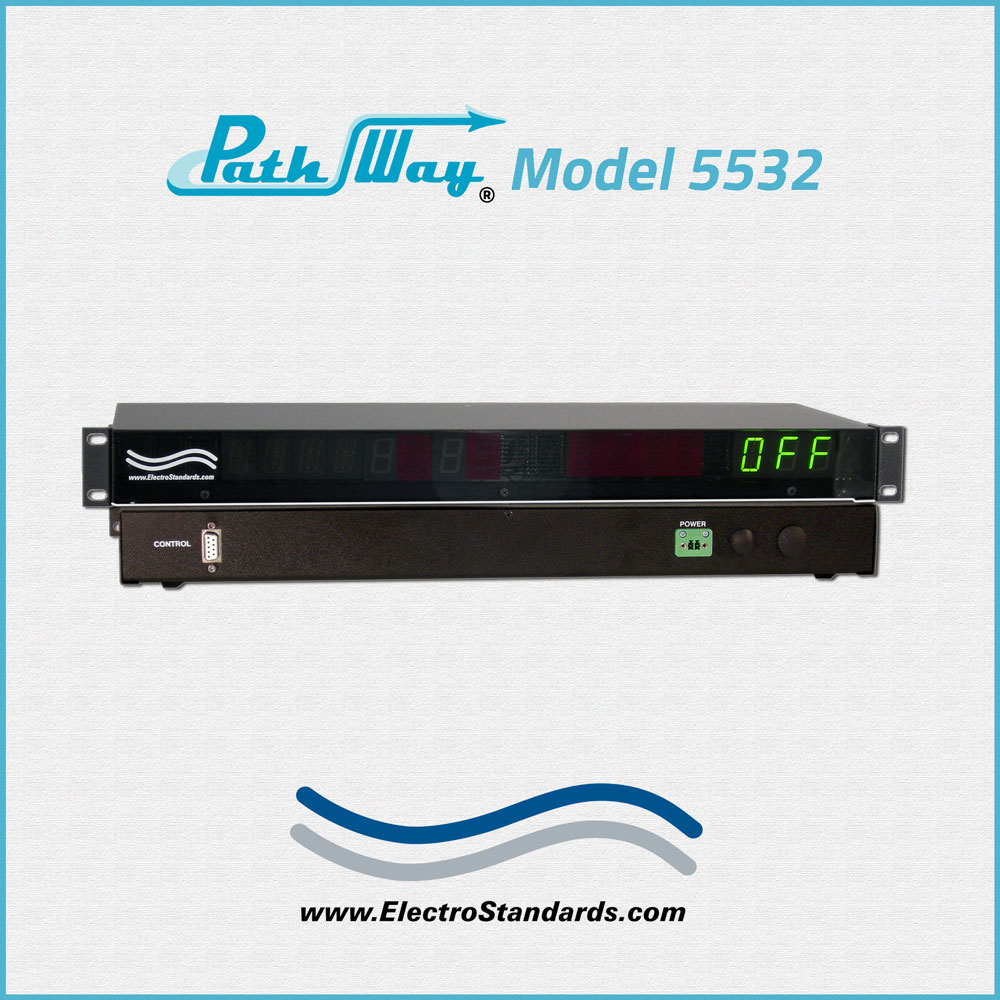

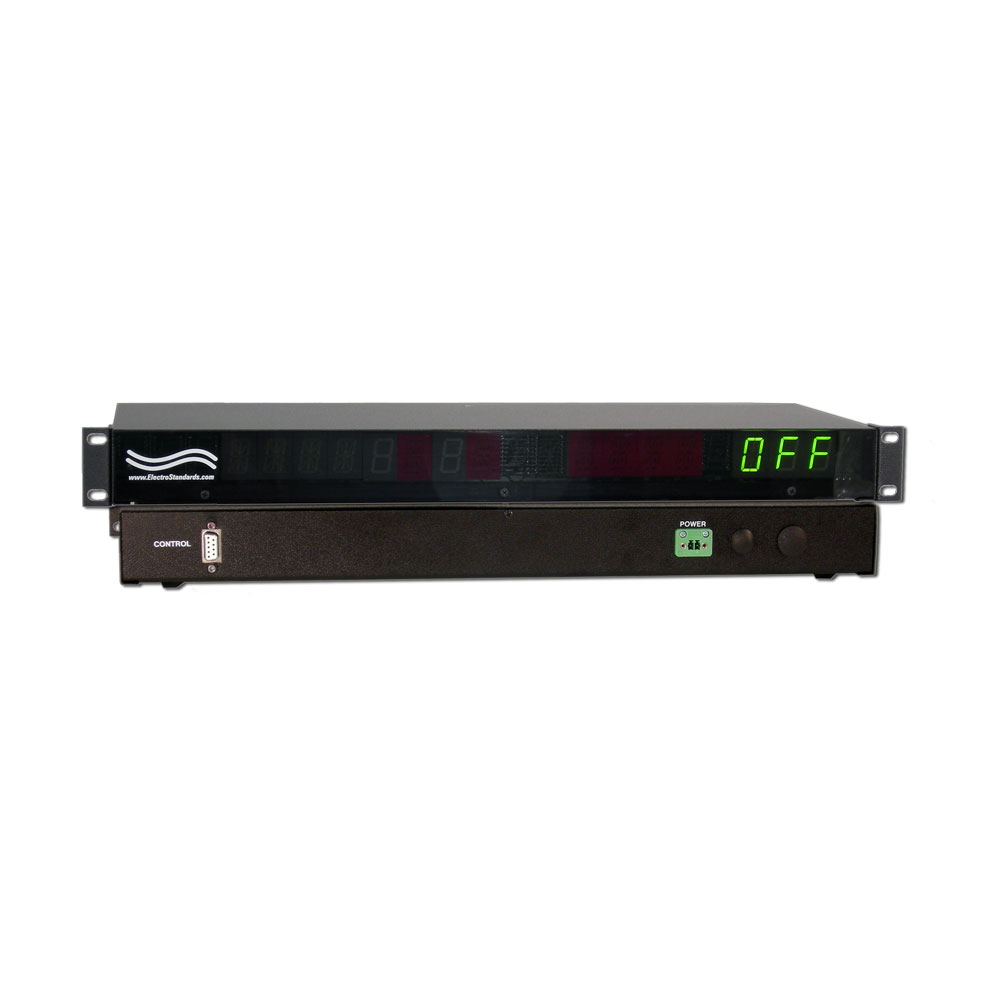

Model 5532 OFF/SVCN/XNET/GPCN Display Indicator Unit

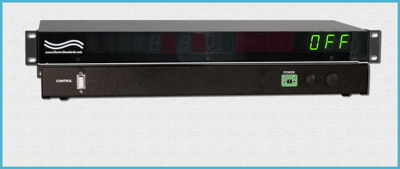

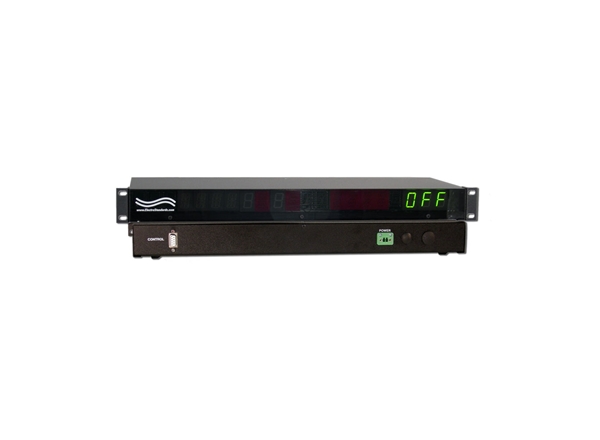

Model 5532 Display Indicator Unit OFF Position

Ordering Information

  • Catalog Number: 305532
  • Model Number: 5532
  • Base Price: See website or contact us for current pricing and availability.
  • Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
