Path Way® Model 4522 DB15 A/B Switch with Exclusive Contact Closure Remote

Overview

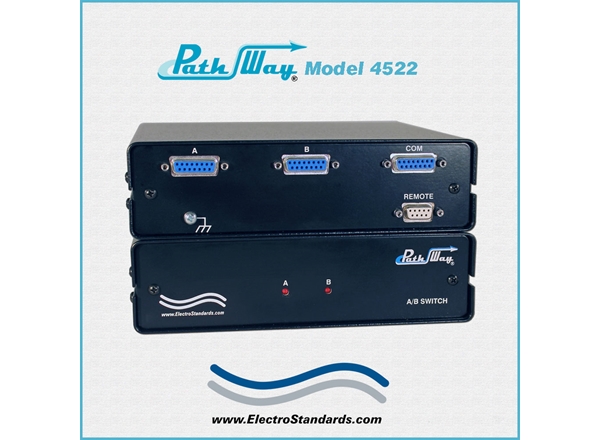

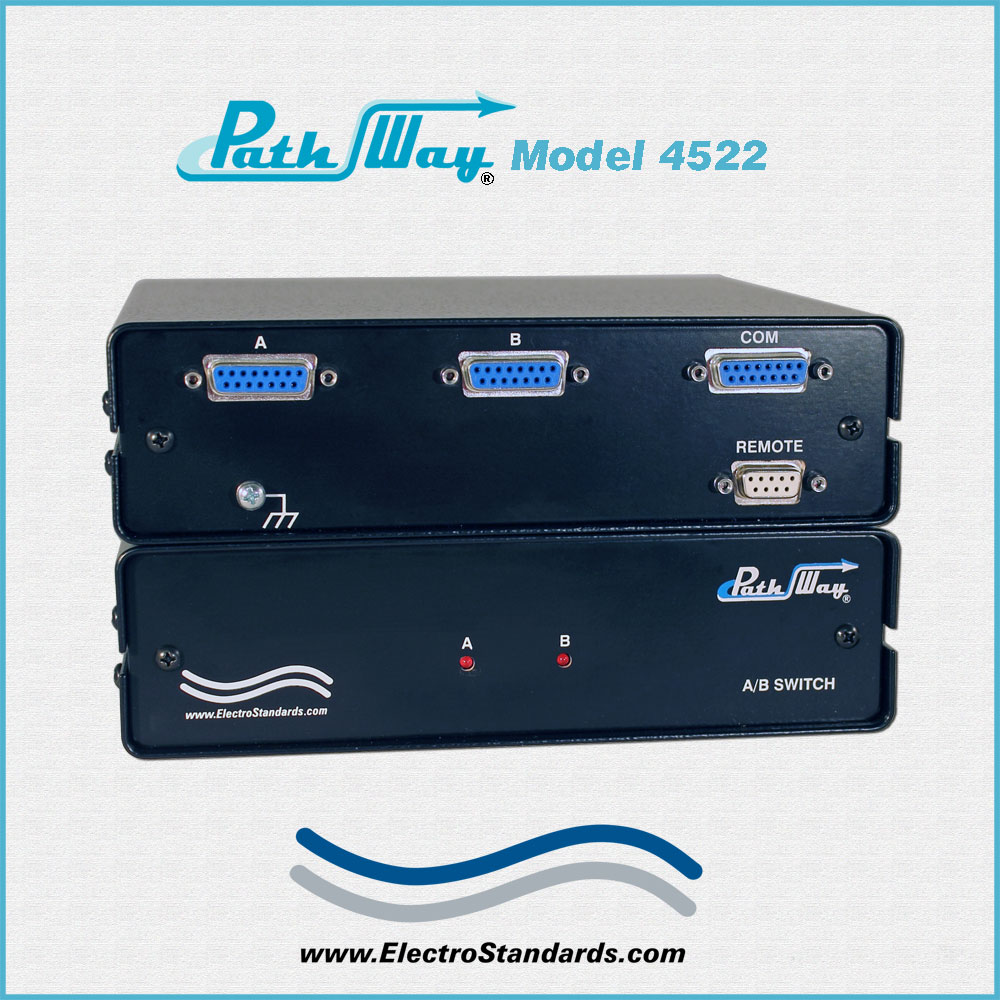

The PathWay® Model 4522 is a Single Channel DB15 A/B Switch with Contact Closure Remote allows the user the capability of sharing a single port interface device, connected to the "COMMON" port, among two other devices, connected to the "A" and "B" ports, with remote access functionality. The Model 4522 is packaged in a slim desktop style enclosure.

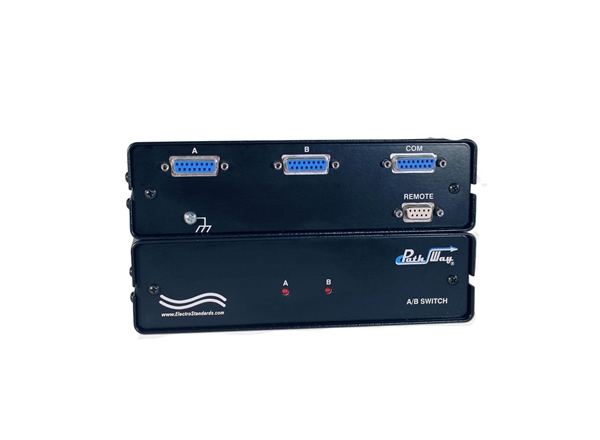

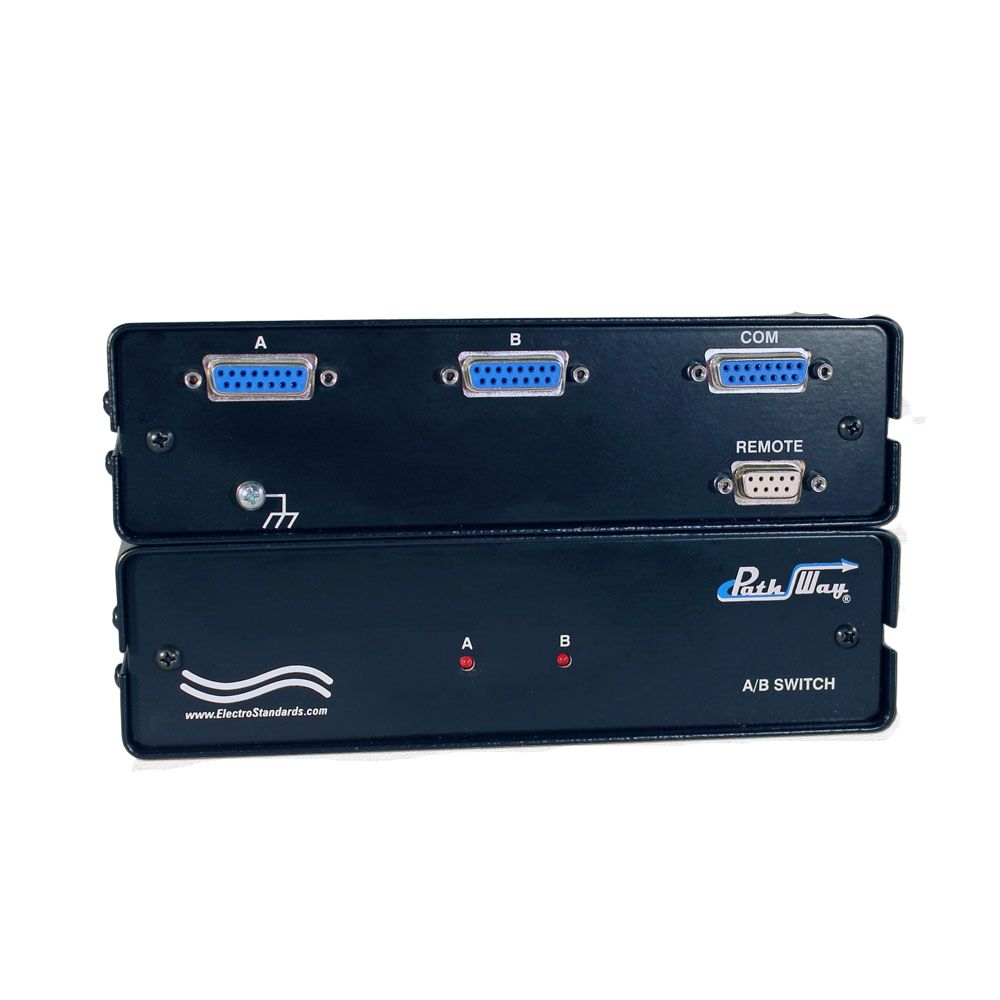

The switch may be controlled remotely from the DB9 Contact Control Remote port located on the rear of the unit. The front panel LED display indicates the switch position and power status.

Operates on 24 VDC Supplied to Unit.
Ideal for marine applications requiring operation of 24 volts DC.
Switches all 15 pins. Allows compatibility with All DB15 interfaces.

FEATURES OF THE MODEL 4522 DB15 REMOTE SWITCH:

Allows quick connection to any one of two DB15 devices from one COMMON DB15 device.
The switch ports are transparent to all data.
All (15) pins of the DB15 interface are switched via break-before-make electromechanical relays.
Remote control operation only. No local control.
Powered by 24 VDC, required to be supplied across pins 7 and 8 of the REMOTE port.
Remote Contact Closure control provides dry contact logic to allow the control of the switch position.
Front panel LED's display position and power status.
The unit reverts to the A position on power down and continues to pass data.
On power up, the unit maintains its position.
Ground stud on rear panel to provide single point chassis connection for shielding.
Mounting holes provided on the bottom of the unit for securing the unit in a fixed location.
Attractive all metal black box packaging provides EMI/RFI shielding.
Rubber feet provided for desktop applications.
Custom length DB15 cables available for you switch installation.

TECHNICAL SPECIFICATIONS:

PORT CONNECTORS: (3) DB15 female connectors A, B, and COMMON.
SHIELDING: A ground stud on the rear panel provides conductive access to the shielded aluminum enclosure.

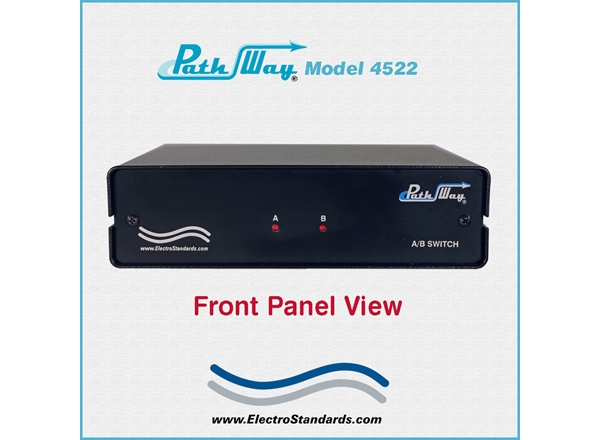

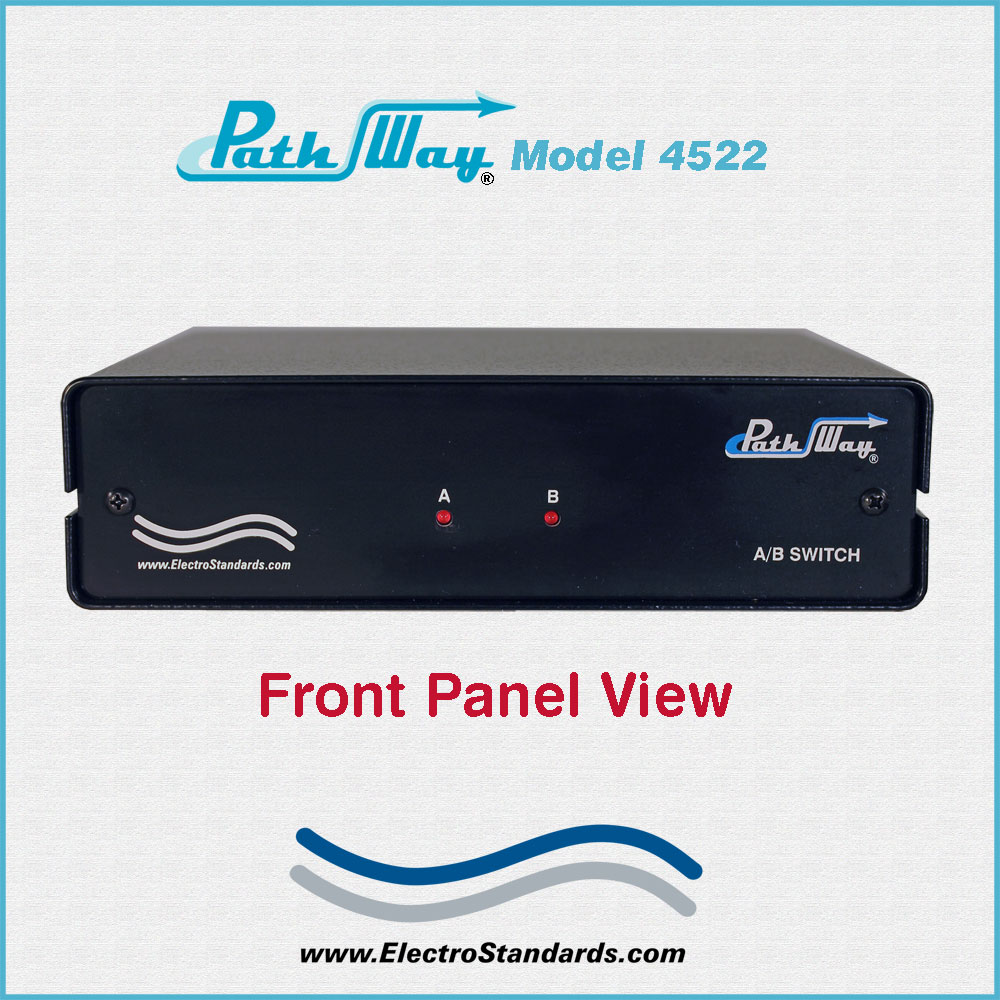

DISPLAY: (2) Front panel LED's display switch position and power status.

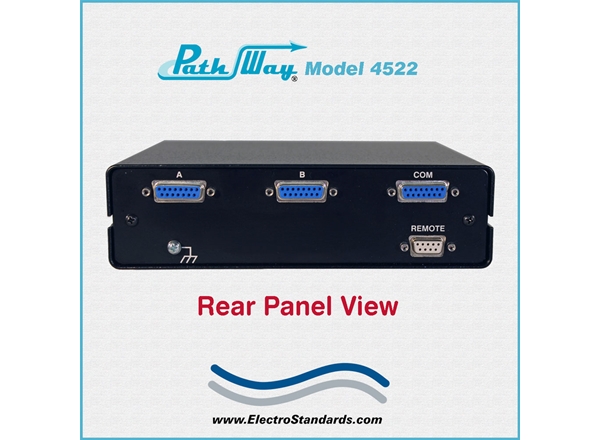

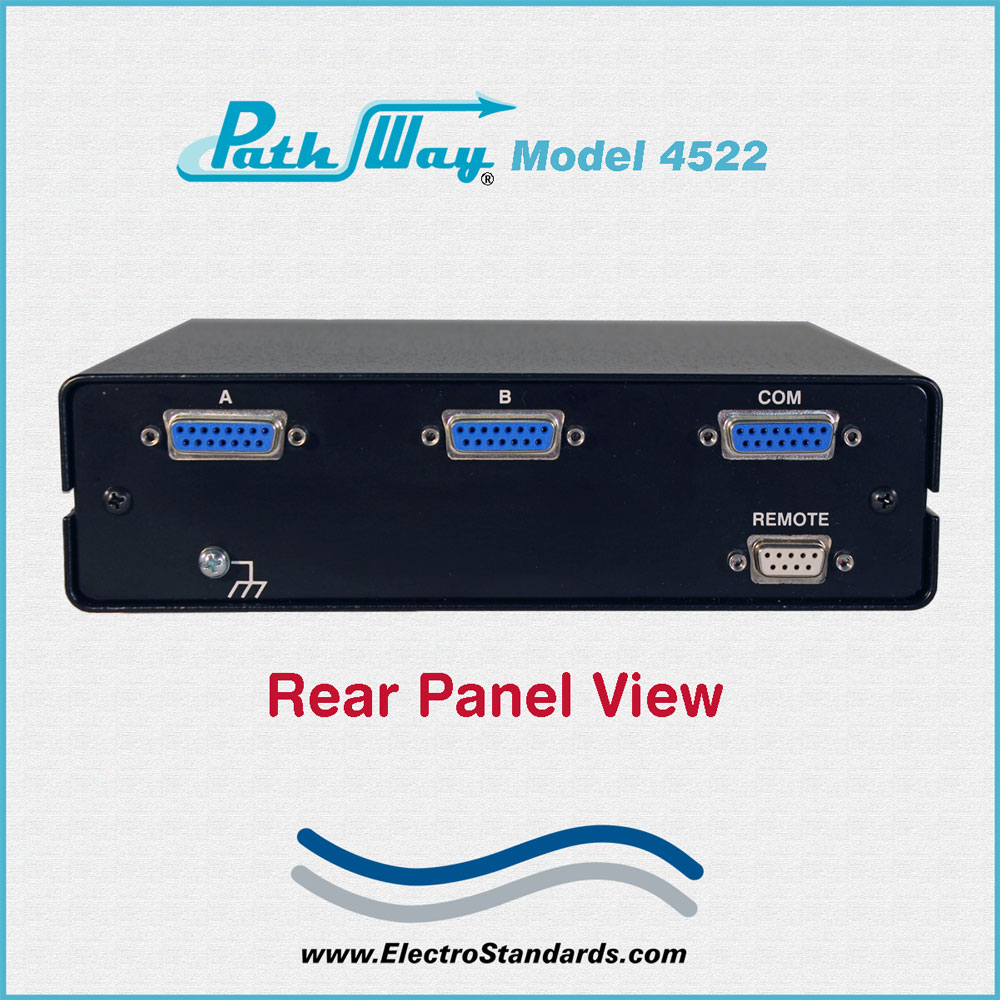

REMOTE CONTROL: (1) DB9 female connector on rear panel accepts Contact Closure signaling for Remote Control operation.
ENVIRONMENT:
Operation Temperature: 0°C to 50°C
Storage Temperature: -40°C to 85°C
Humidity: 10% to 90% without condensation
POWER: 24 VDC power is required to be supplied across pins 7 & 8 of the DB9 connector.
DIMENSIONS: Desktop, 8.10" W x 2.17" H x 7.27"D.
(20.6 x 5.6 x 18.5 cm)
WEIGHT: Approx. 1.8 lbs. (0.8 kg)

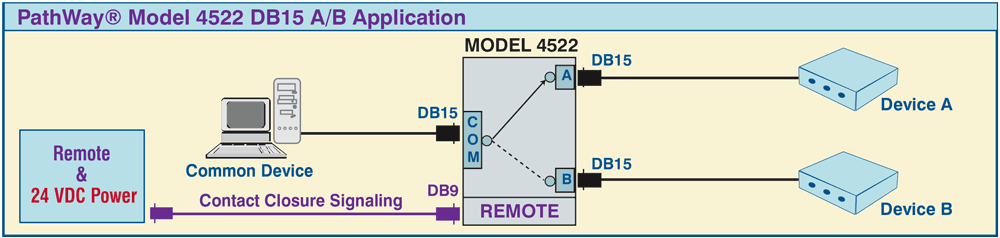

DB15 A/B APPLICATION WITH EXCLUSIVE REMOTE CONTROL OPERATION:

The drawing illustrates a COMMON Device connected to the DB15 COMMON port with access to two other devices. Device A is connected to the DB15 A port and Device B is connected to the DB15 B port. A REMOTE Device and 24 VDC Power are connected to the DB9 Remote port for Exclusive Remote Control of the switch position via Contact Closure signaling.

PathWay® Model 4522 DB15 A/B Switch Application

Ordering Information

Catalog Number: 304522
Model Number: 4522
Base Price: See website or contact us for current pricing and availability.

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

Custom length DB15 cables available for your switch installation.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
