Catalog # 305969 - Model 7224 X.21 Interface DB15 A/B Network Switch

    X.21 Interface DB15 A/B Network Switch

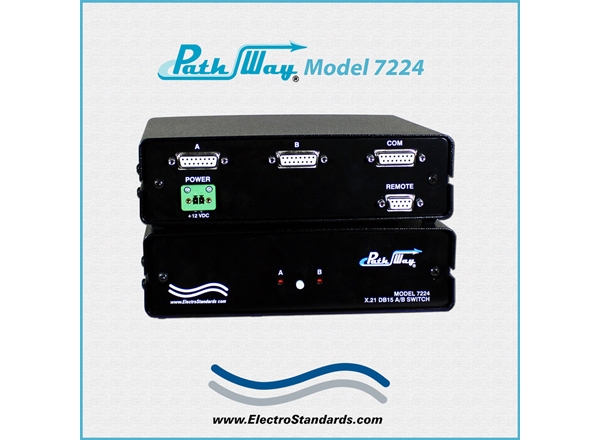

Click image to enlarge
Base Price:
$597.00
Catalog No: 305969
Model No: 7224
Switch Media:Copper
Interface:X.21
Positions:2
Channels per Switch Chassis:1
Connector/Port:DB15
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS232 Serial
Enclosure Configuration:Desktop
Remote Port:DB9
Local Control:Pushbutton

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview


Path Way® Remotely Controllable Network Switch, X.21 Interface DB15
Model 7224 X.21 Interface DB15 A/B Switch, Serial Remote Control

Model 7224 X.21 Interface DB15 A/B Switch, Remotely Controllable

  SPECIFICATIONS:

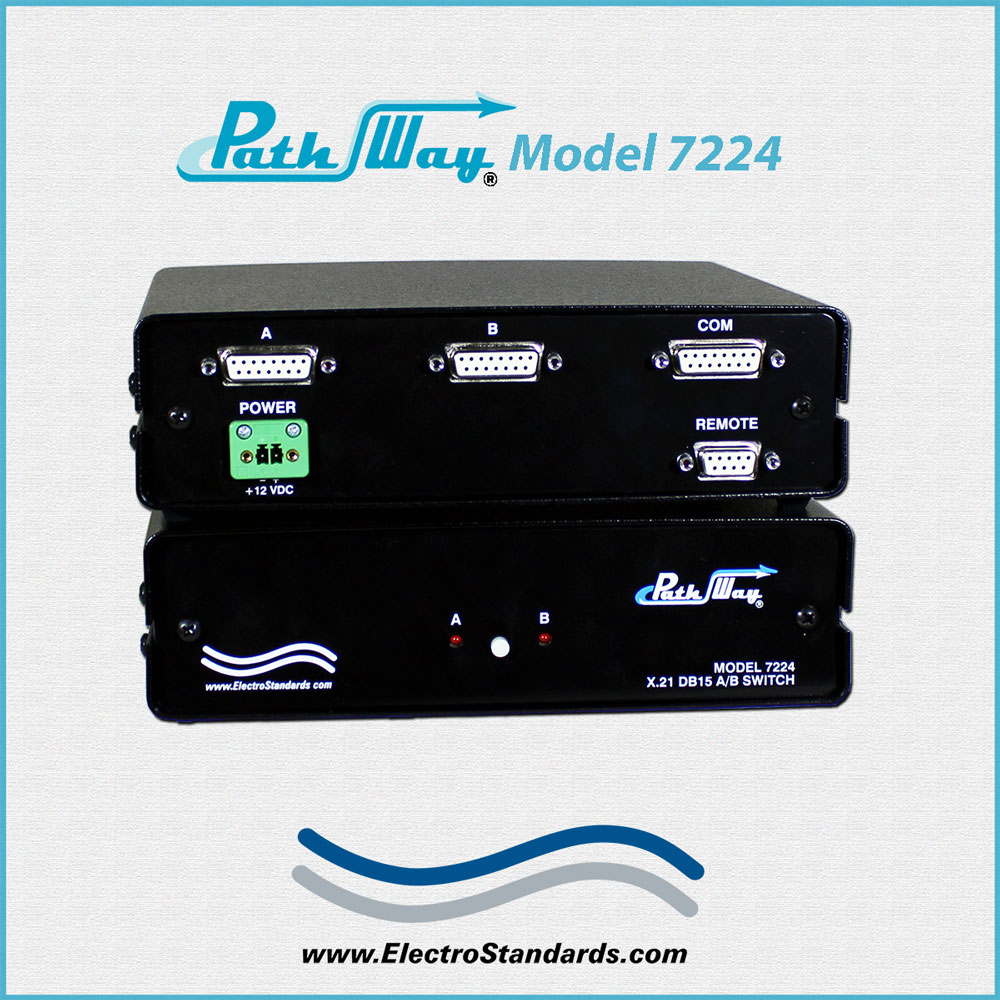

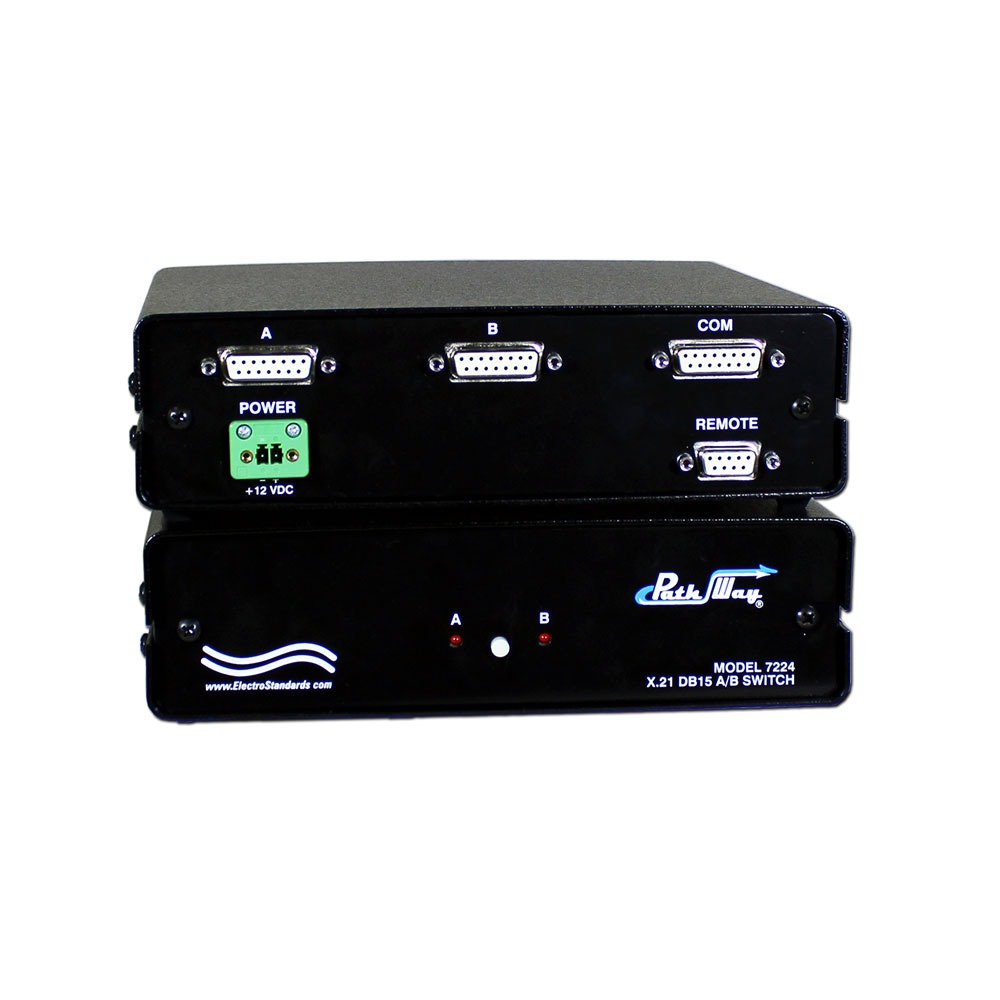

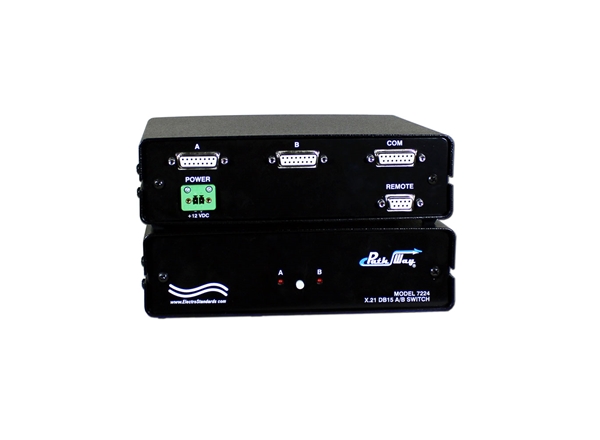

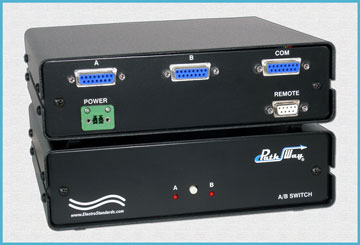

  • PORT CONNECTORS: (3) DB15 (F) Connectors labeled A, B, and COMMON.

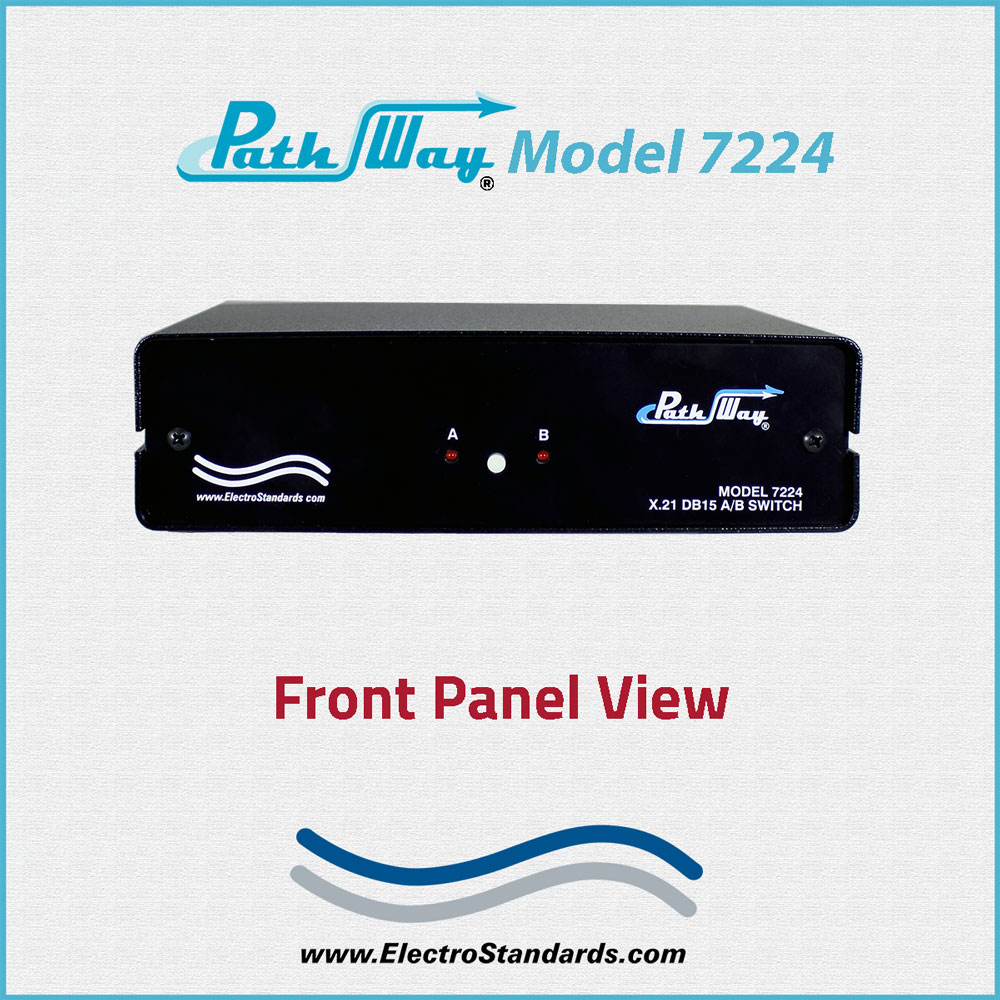

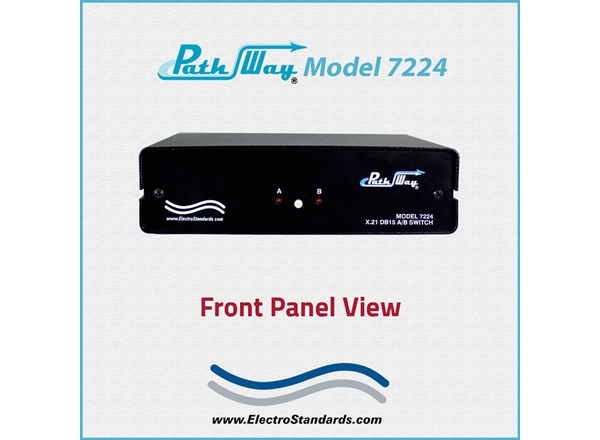

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.

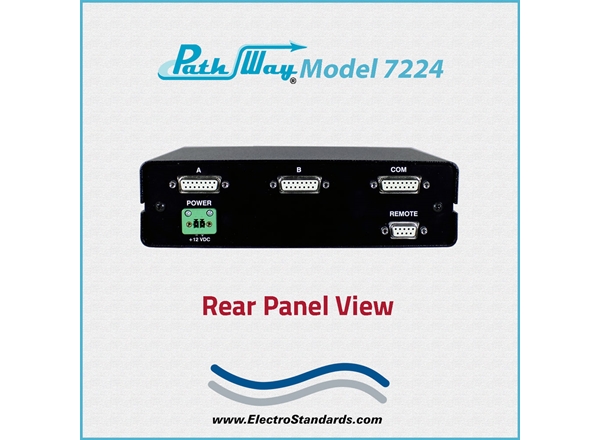

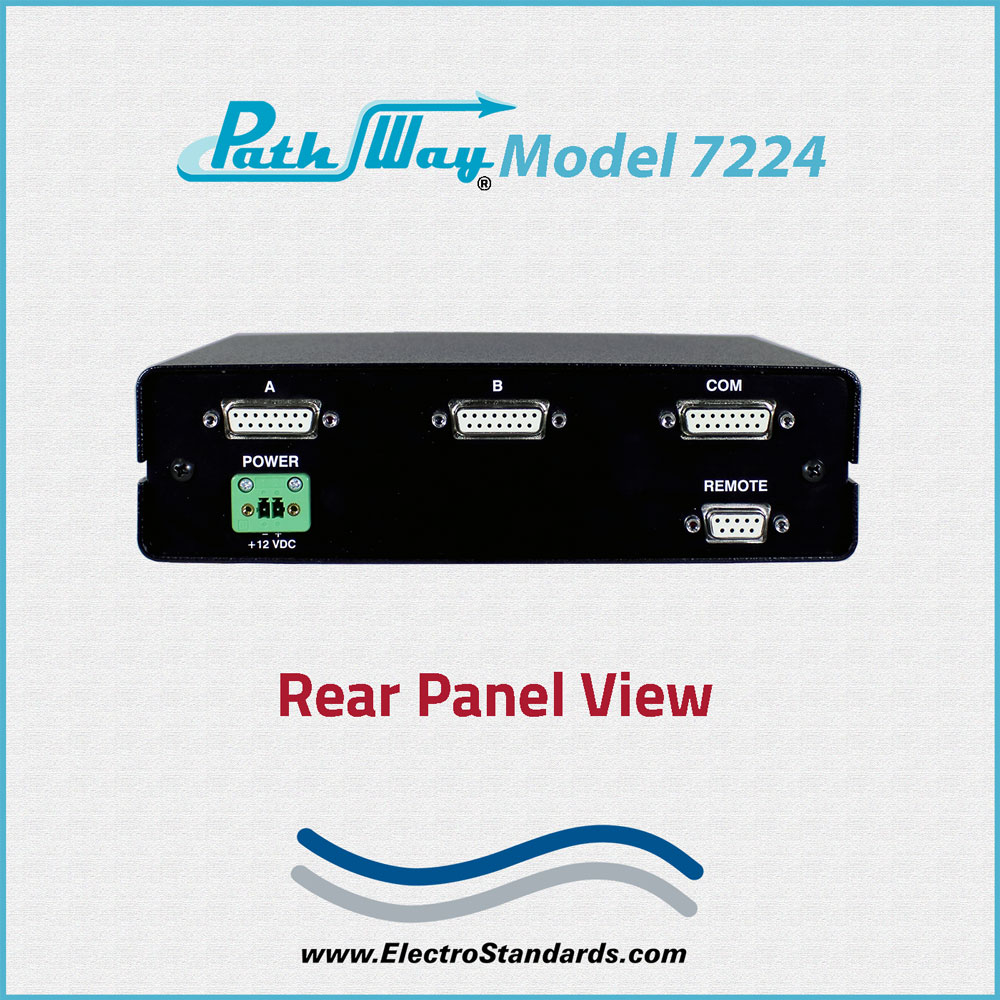

  • REMOTE CONTROL: (1) DB9 (F) connector on rear panel accepts RS232 Serial Data for Remote Control operation.
  • POWER: UL Approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500mA  to the unit.  Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: 7.75" W x 2.0" H x 7.25" D. (19.7 x 5.1 x 18.4 cm)
  • WEIGHT: Approximately 2.5 lbs, (1.13 kg)

 DB15/X.21 Interface A/B APPLICATION with SERIAL REMOTE:

  • X.21 Interface DB15 AB Switch with a DB9 RS232 Serial Remote Control.
  • Ideal for Remote Control Applications.

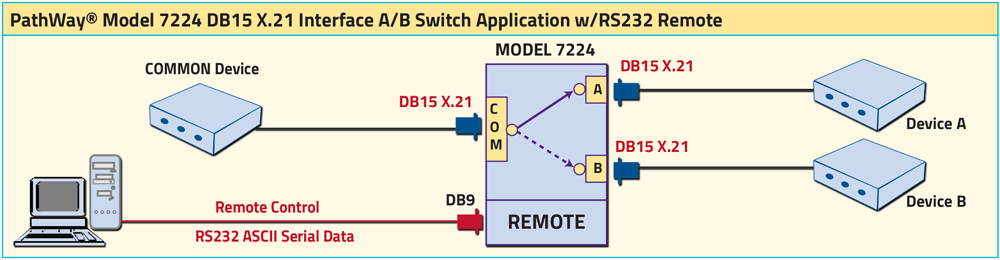

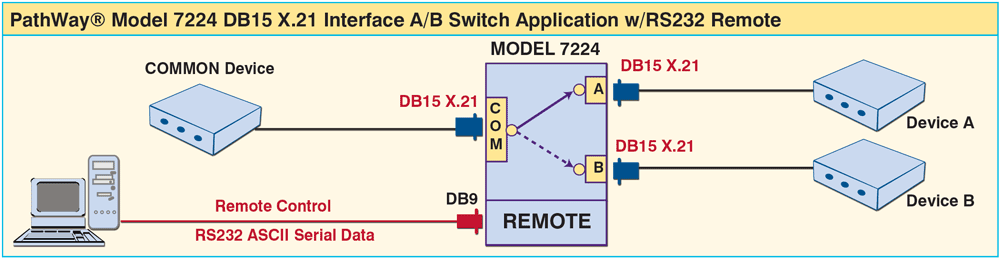

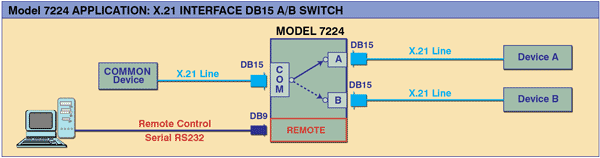

The drawing illustrates a COMMON Device connected to the DB15 COMMON port with access to Device A and Device B, connected to the DB15 A port and DB15 B port, respectively. A Remote Computer is connected to the DB9 Remote port. The DB9 port can receive Serial RS232 ASCII commands for Remote Control Operation of the Model 7224.
