*Most Popular* USB3 2-Position Switch, RS232 Remote Model 4508 Catalog # 304508

    USB 3.0 AB Switch w/RemoteUSB 3.0 AB Switch w/RemoteUSB 3.0 AB Switch w/RemoteUSB 3.0 AB Switch w/RemoteUSB 3.0 AB Switch w/RemoteUSB 3.0 AB Switch w/RemoteUSB 3.0 AB Switch w/Remote
Click image to enlarge
    • USB 3.0 AB Switch w/Remote
    • USB 3.0 AB Switch w/Remote
    • USB 3.0 AB Switch w/Remote
    • USB 3.0 AB Switch w/Remote
    • USB 3.0 AB Switch w/Remote
    • USB 3.0 AB Switch w/Remote
    • USB 3.0 AB Switch w/Remote
Base Price:
$1,066.00
Catalog No: 304508
Model No: 4508
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:USB
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS232 Serial
Configuration:Desktop
Pins Switched:All 8 pins of the USB 3.0 Interface are Supported.
Remote Port:DB9
Local Control:Pushbutton
Feature:Compatible with Hi-Speed USB 3.0 devices.
Protocol:ASCII

  • USB 3.0, Connects (2) USB Devices to (1) Computer.

  • For product selection, compare both Models 4508 and 4509 by viewing USB Type A and Type B Connector layouts in application diagram or call 401-943-1164 for technical support.
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

PathWay® Remotely Controllable Network Switch, USB Type-A, Type-B

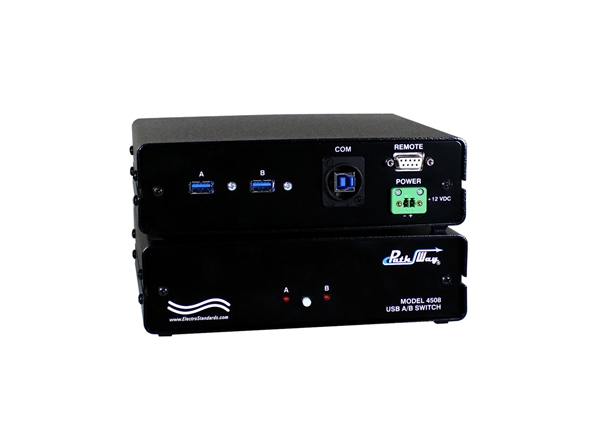

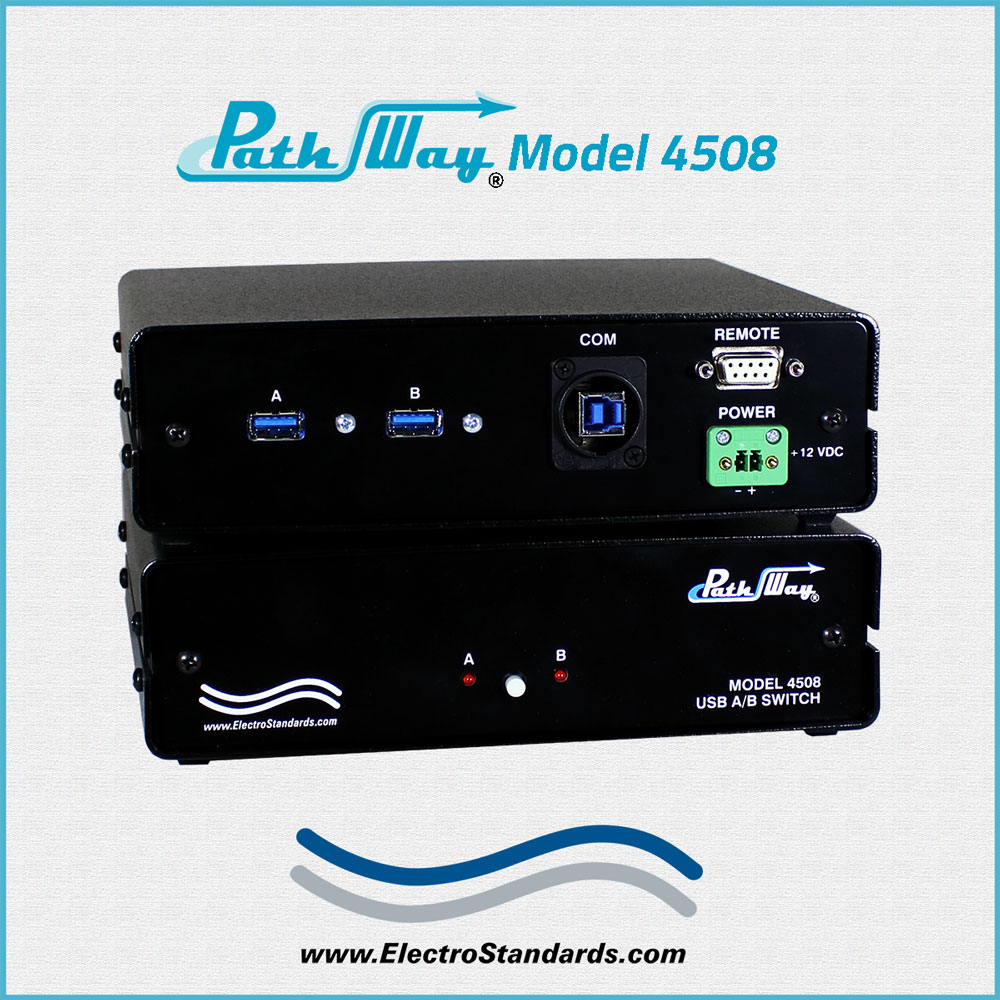

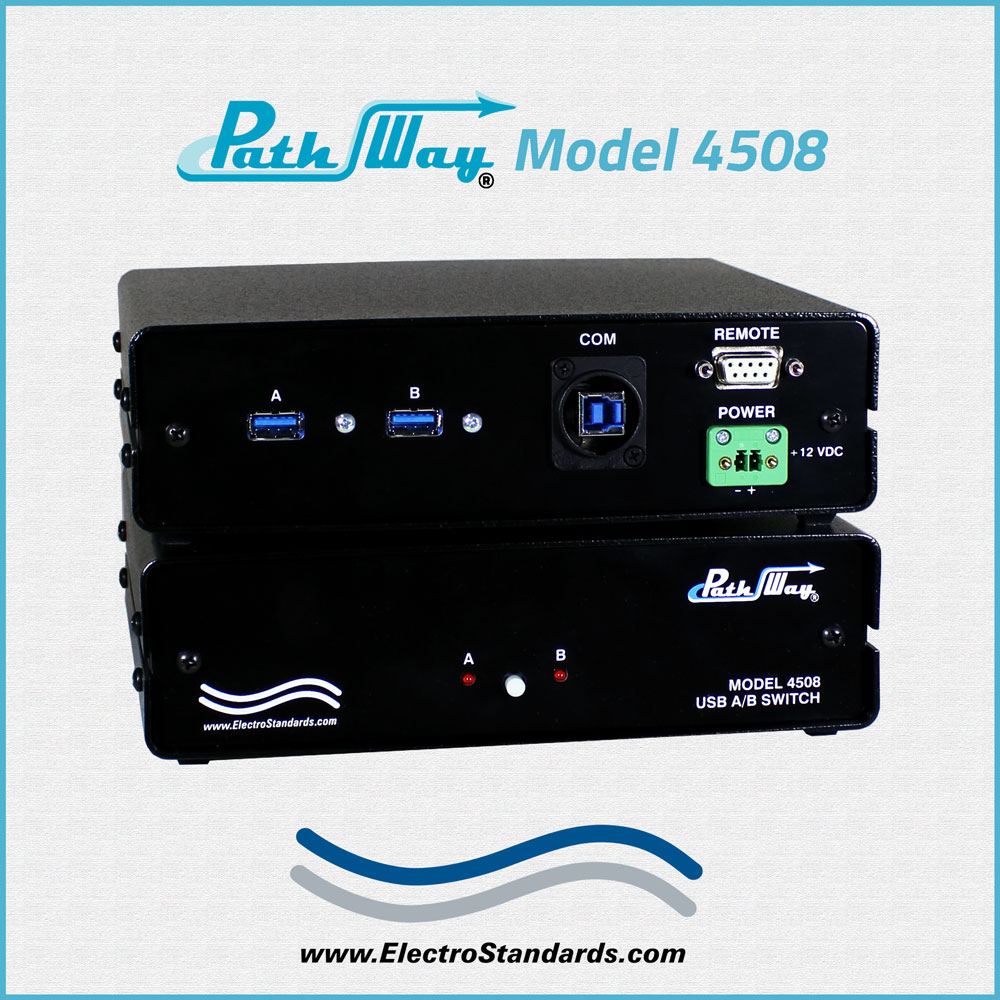

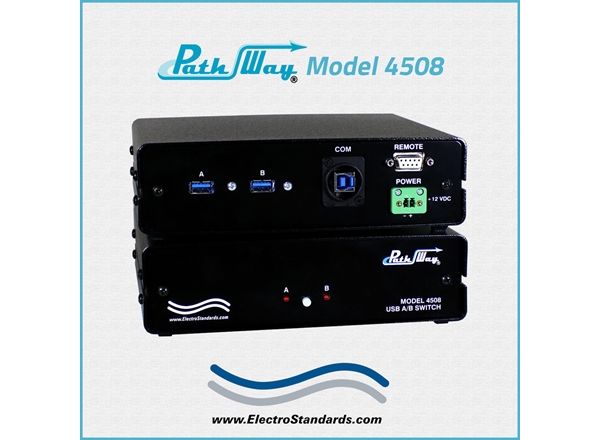

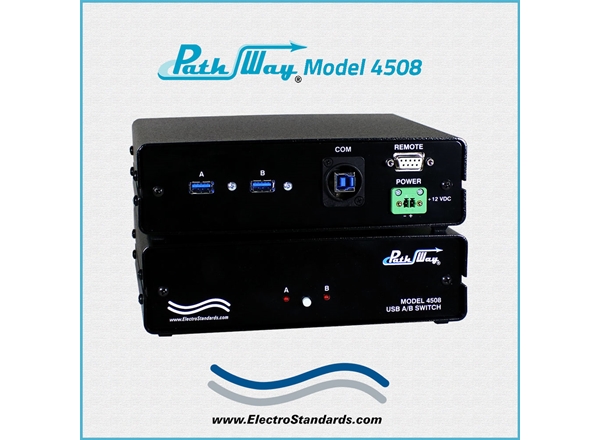

Model 4508 USB 3.0 A/B Switch with RS232 Serial Remote Control, Desktop

  • *Most Popular* Manually or Remotely Switch between two USB 3.0 Type A devices to one USB 3.0 Type-B device without having to disconnect cables

  • Share multiple USB 3.0 devices between one Host or PC.

  • Field proven in Conference Rooms for Switching Creston Processor Camera Systems

  • Perfect to connect a computer to multiple USB 3.0 peripherals such as cameras, printers or scanners.

  • Model 4508 is both USB 3.0 and USB 2.0 Compatible!

SPECIFICATIONS:

  • PORT CONNECTORS:
    • (2) USB 3.0 Type-A connectors labeled A, B
    • (1) USB 3.0 Type-B connector labeled COMMON.

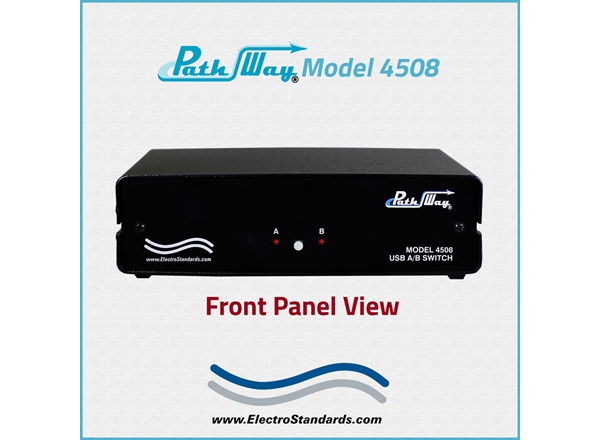

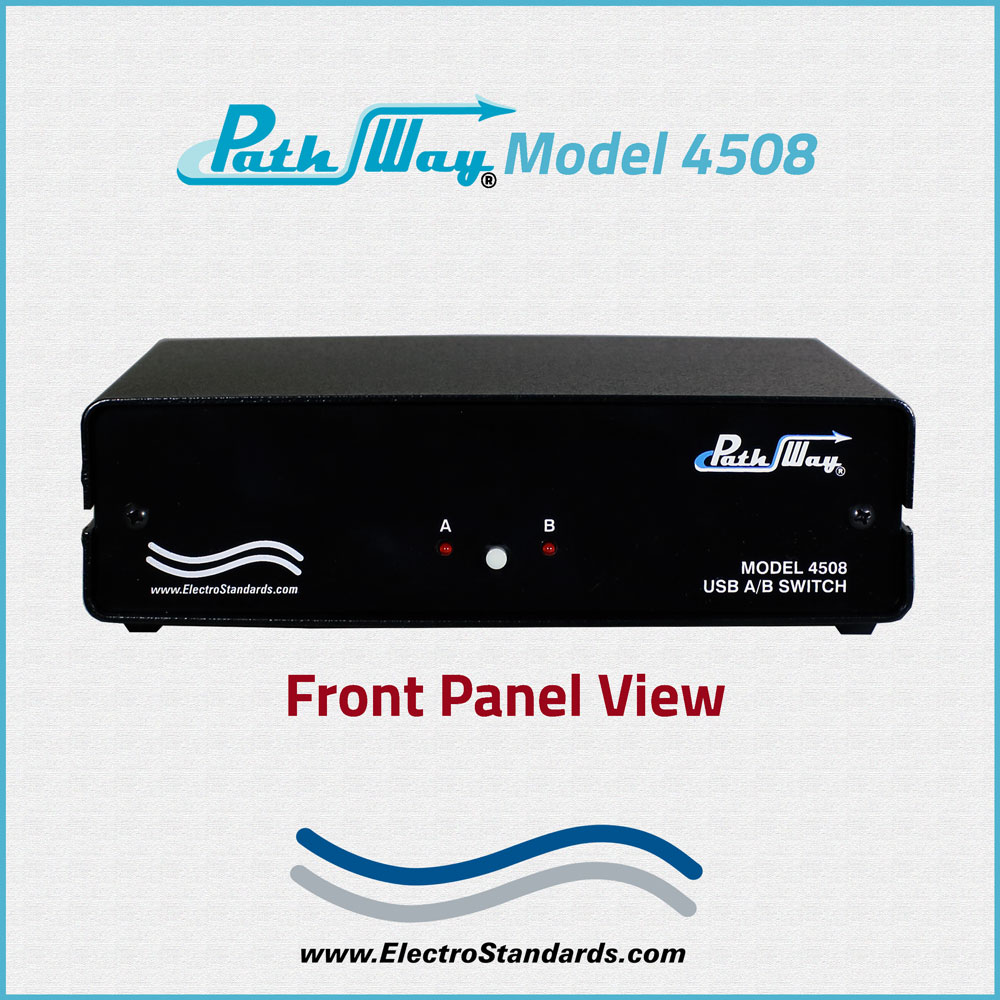

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.

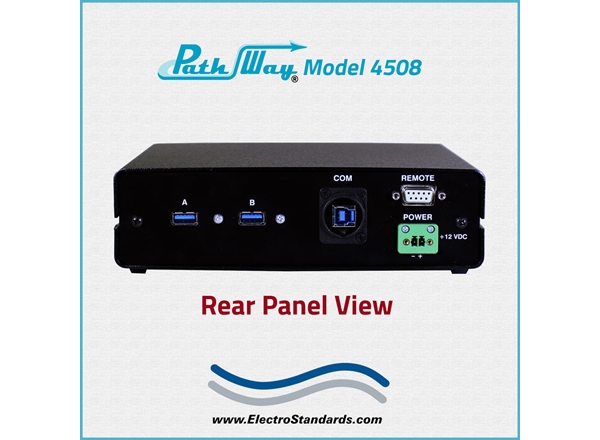

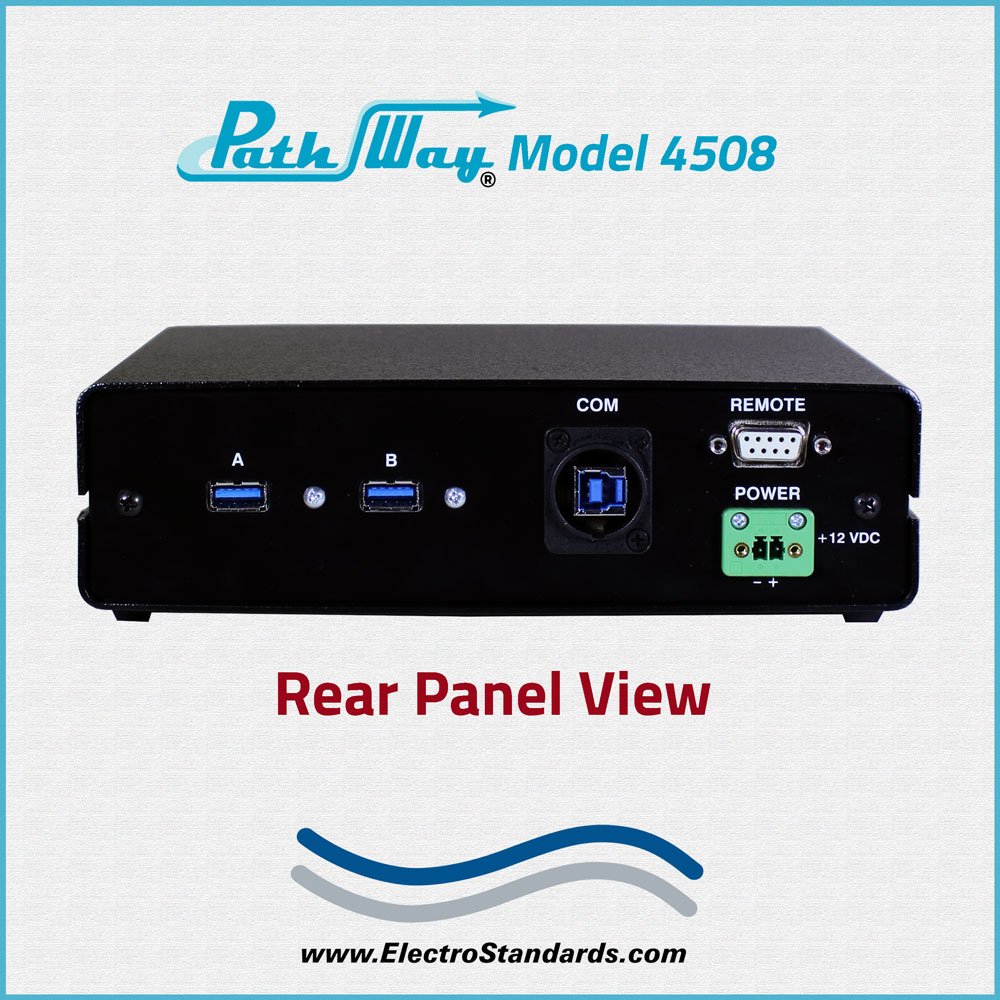

  • REMOTE: (1) DB9 (F) connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Desktop configuration 8.11" W x 2.39" H x 7.34" D (20.6 x 6.1 x 18.7 cm)
  • WEIGHT: Approximately 1.8 lbs (0.9 kg)

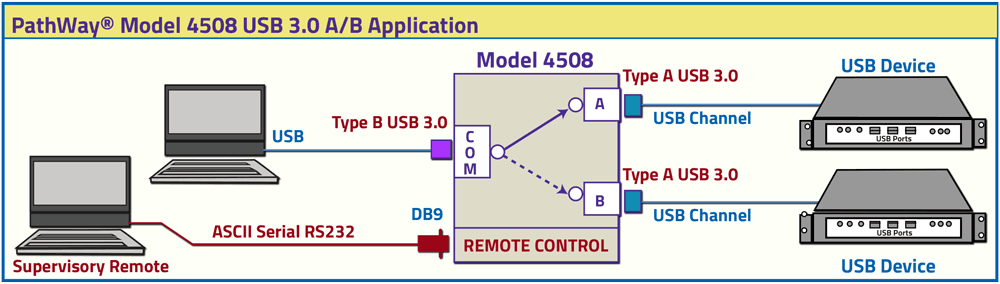

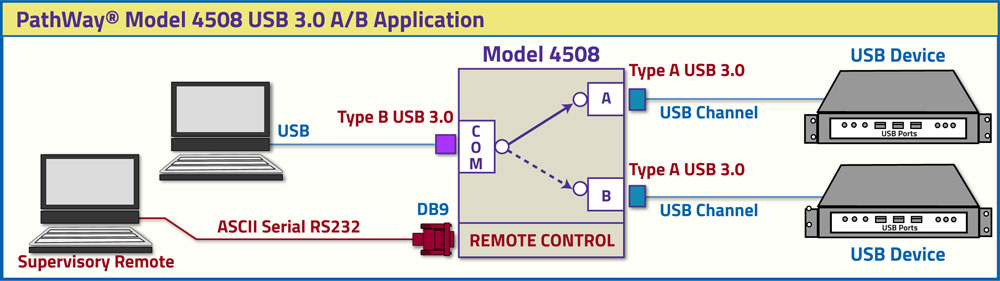

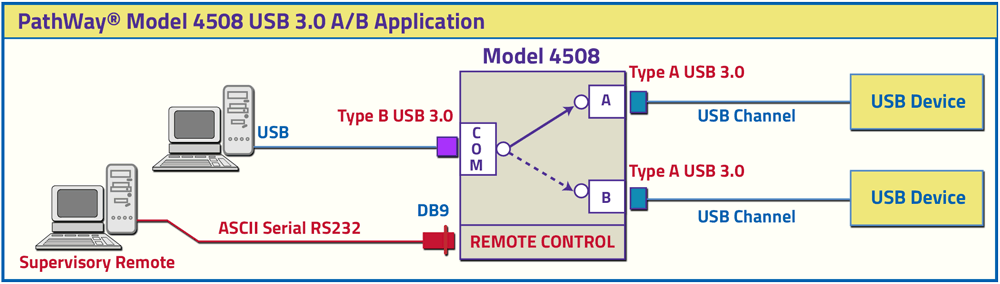

PathWay® Model 4508 USB 3.0 A/B SWITCH w/RS232 SERIAL REMOTE APPLICATION:

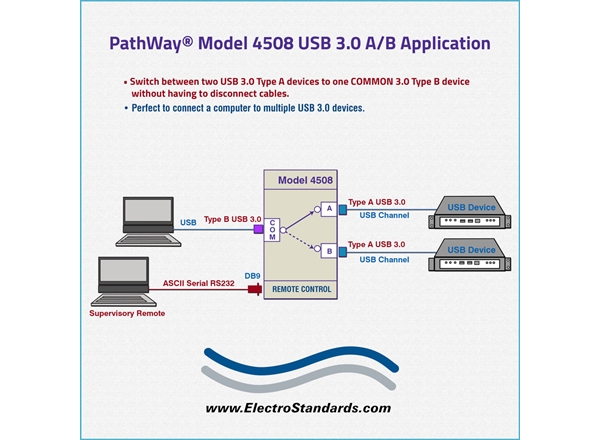

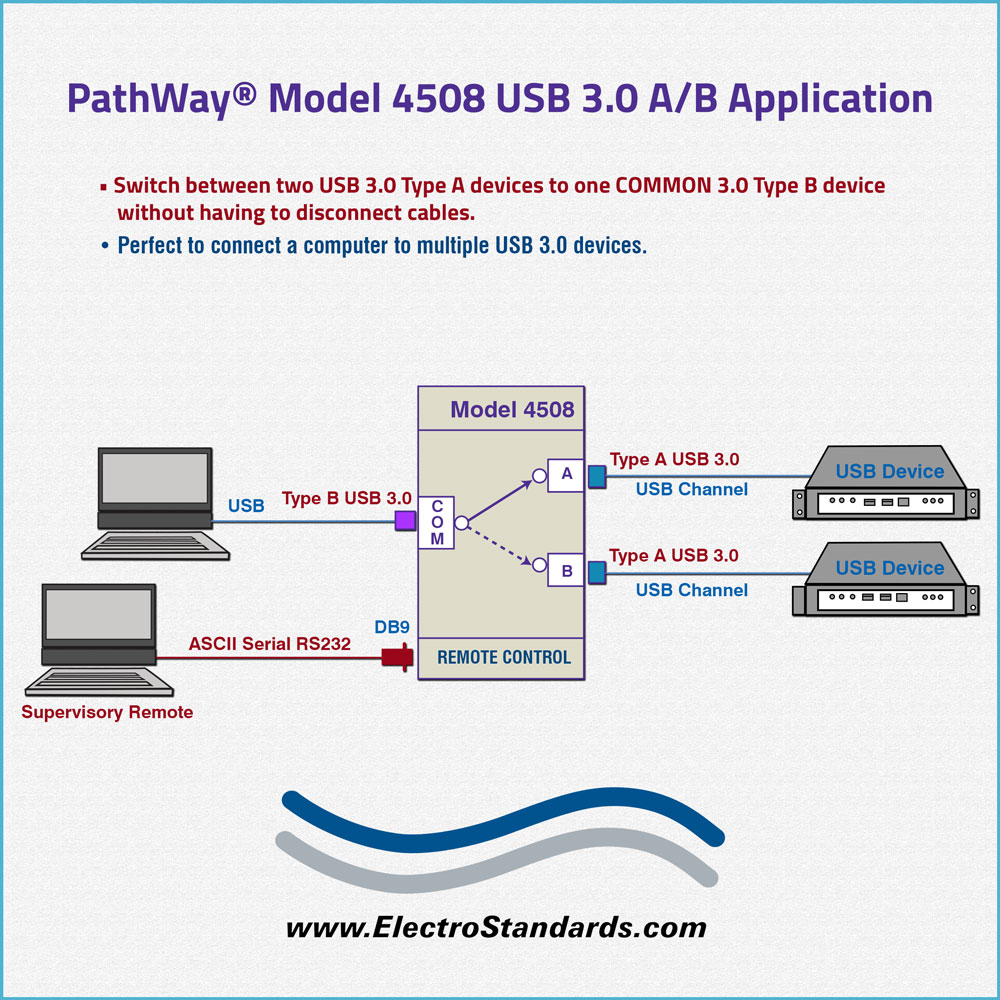

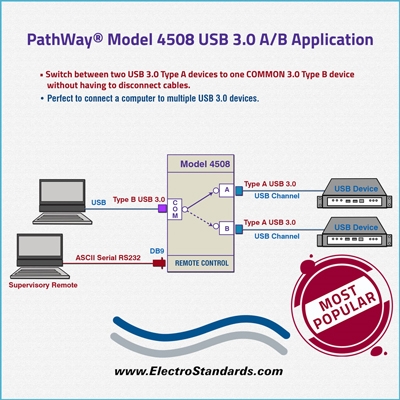

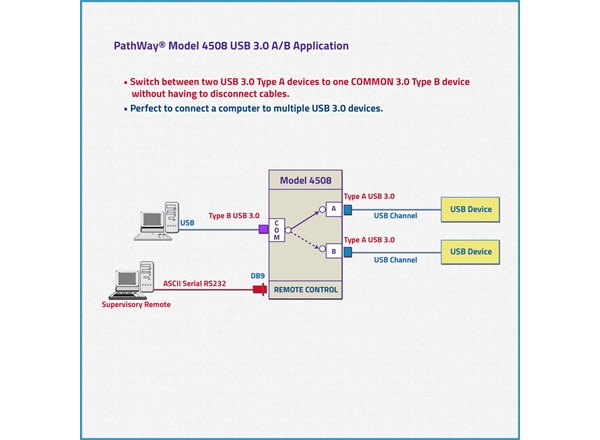

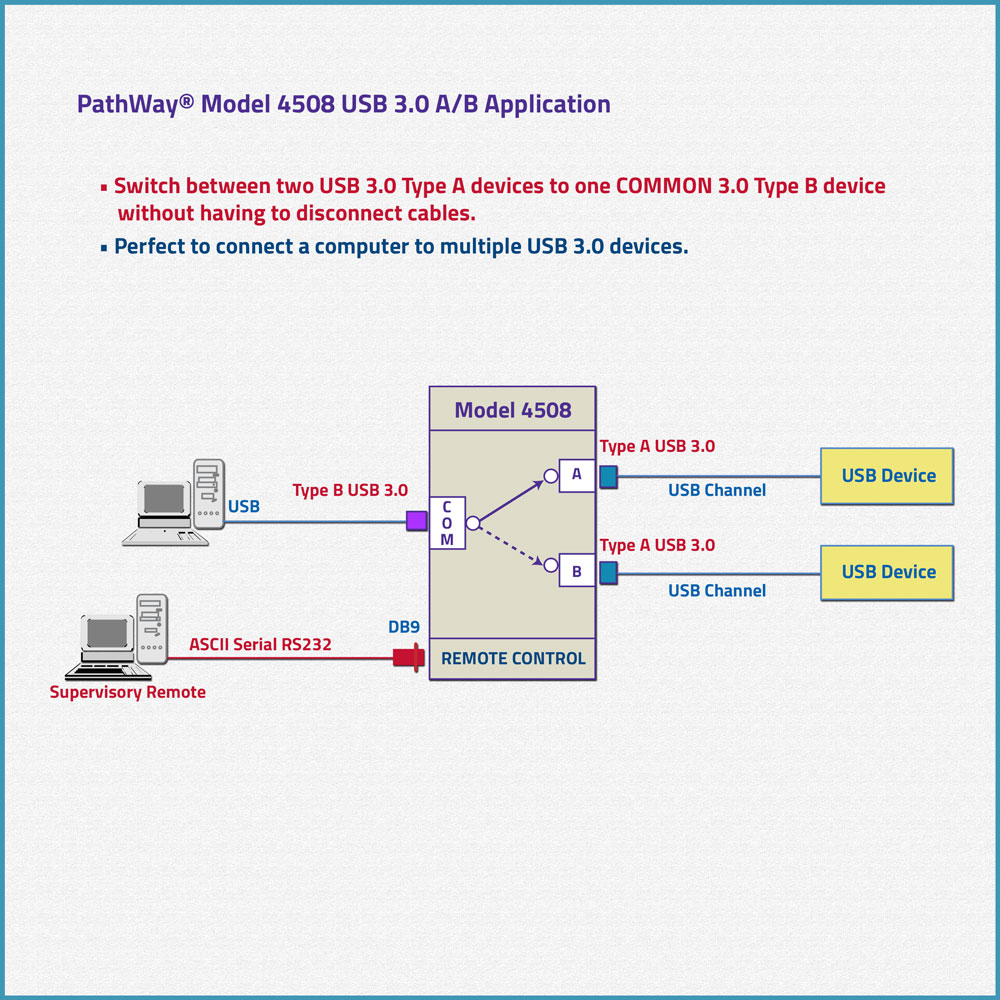

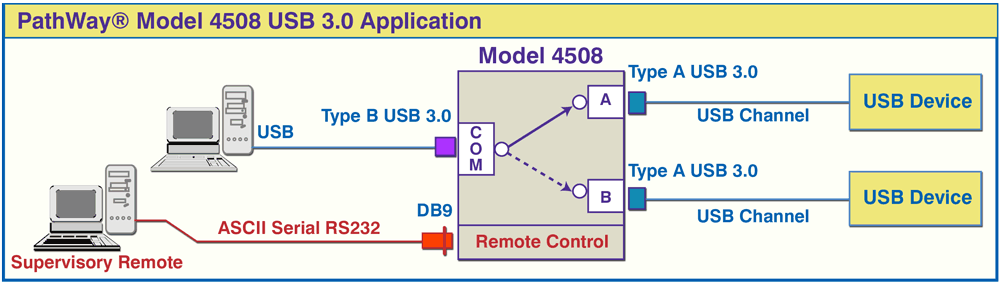

The drawing illustrates a Type-B USB 3.0 COMMON port connector with access to two Type-A USB 3.0 connectors ports labeled A and B. A computer or device connected to the COMMON port has access to two USB Devices with Type-A USB ports. The DB9 REMOTE port accepts ASCII RS232 Serial so the user can remotely control the unit operations.

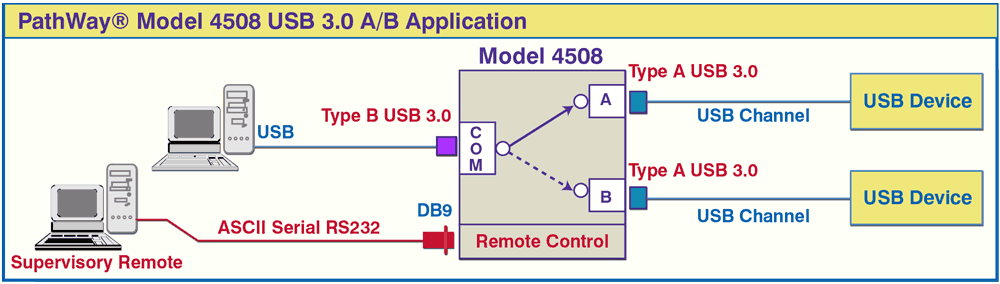

PathWay Model 4508 USB 3.0 A/B Application

FEATURES:

  • The Pathway USB 3.0 Model 4508 allows quick connection to any one of two USB 3.0 interface devices from one COMMON device!
  • Compatible with Hi-Speed USB 3.0 devices.
  • The switch ports are transparent to all data.
  • All 8 pins of the USB 3.0 interface are supported.
  • The unit maintains last set position on power loss.
  • Front-panel pushbutton control.
  • The REMOTE RS232 ASCII commands that allow the user to control switch position, lockout front panel operations, obtain switch status, as well as, query firmware version number, query serial number, and enable/disable autosend of switch positions.
  • Front panel LED's display switch position and power status.
  • Attractive all metal black box packaging provides EMI/RFI shielding.

The PathWay® Model 4508 USB 3.0 A/B Switch with Remote Control allows the user the capability of sharing a single PC connected to the COMMON port among two USB devices connected to the "A" and "B" ports.  The Model 4508 is packaged in a slim desktop style enclosure. The switch may be controlled manually via the front panel pushbutton or remotely from an RS232 serial port located on the rear of the unit.  Switch position status may be attained via the front panel LED display or the REMOTE RS232 serial port (DB9) located on the rear of the unit.

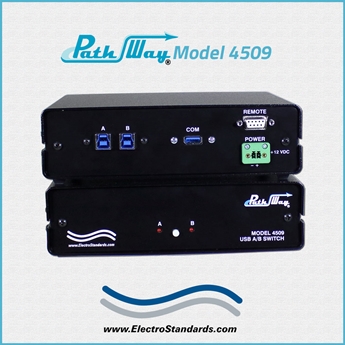

For a similar unit, see Model 4509, Catalog# 304509

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC / 240 VAC, 50Hz/60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

USB (Universal Serial Bus) is designed to connect peripherals such as, keyboards, mice, scanners, digital cameras, printers, hard disks, and networking components to the PC USB interface.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

This is the switch you need. It has been field-proven! Reliable! It comes complete with Tech Support.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
