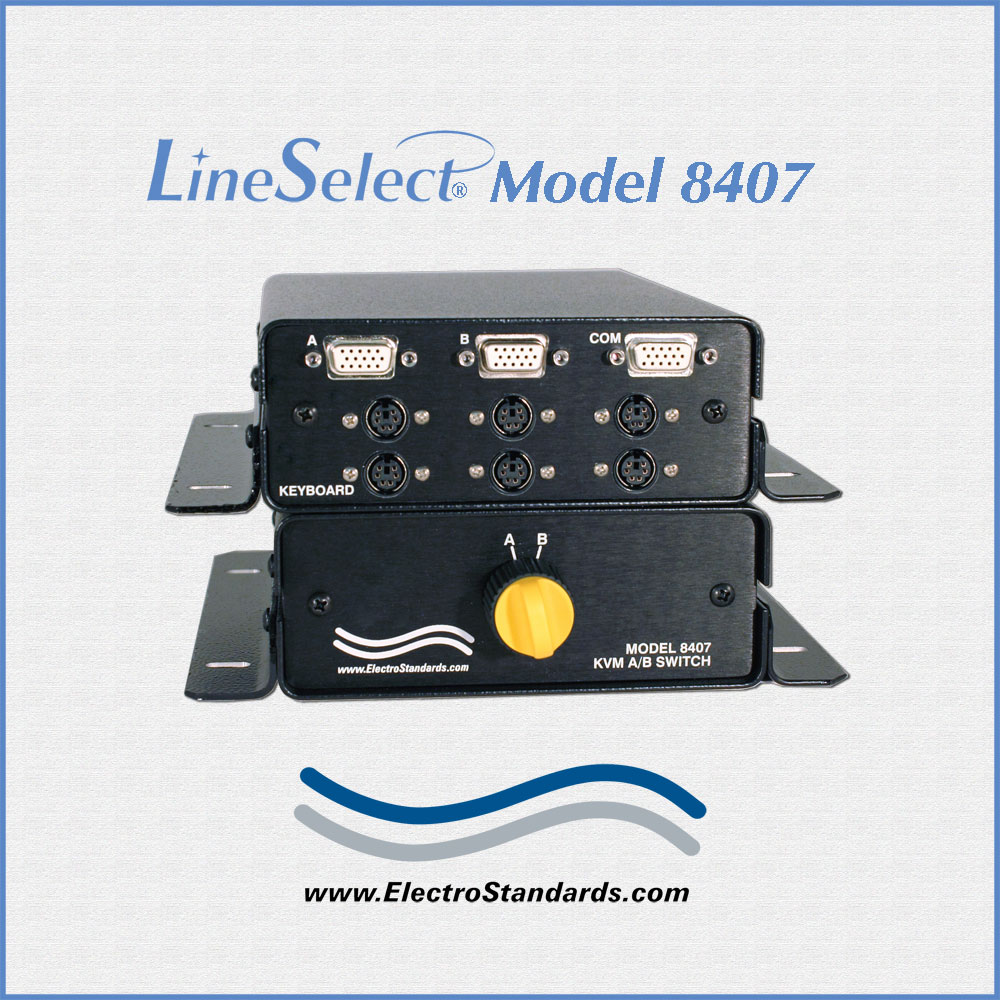

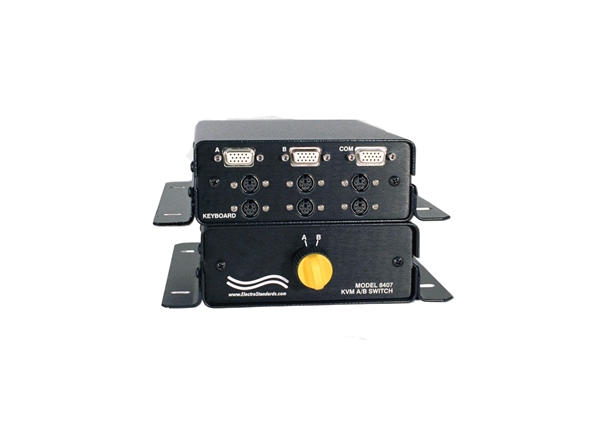

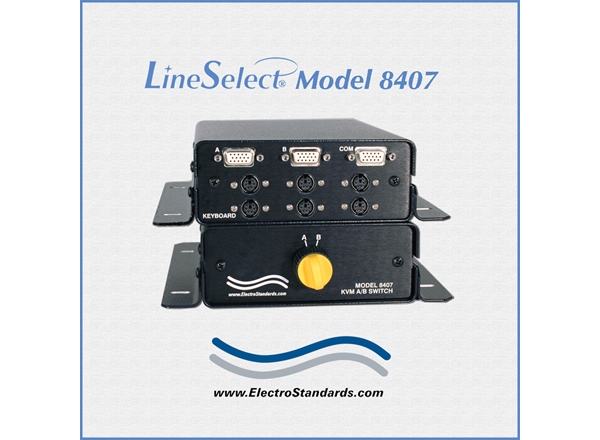

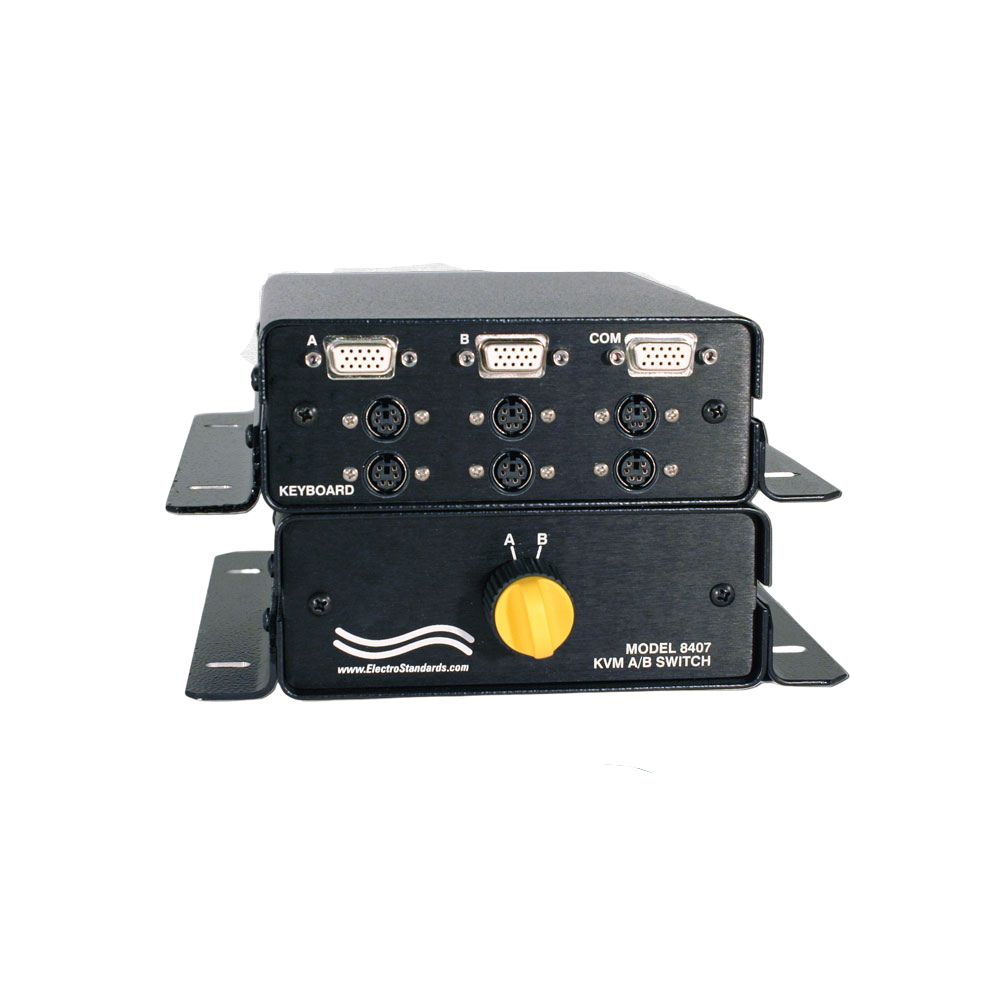

Catalog # 304264 Model 8407 2-Positions, Mounting Brackets, KVM Switch with MIL Knob, Manual Switch

Click image to enlarge

Base Price:

$536.00

Catalog No:

304264

Model No:

8407

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

HD15 Switch Ports, Mini-DIN

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Compliance/Standards:

MIL Spec

Configuration:

Desktop

Local Control:

Rotary Knob

Feature:

Mounting Brackets and Mil Knob

Qty

Add to Cart

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

LineSelect® Model 8407 KVM A/B Switch, MIL Knob PS/2 Keyboard, VGA Monitor & PS/2 Mouse A/B Manual Data Network Switch

Overview

The LineSelect® Model 8407 PS/2 Keyboard, Monitor and Mouse A/B Switch is designed to allow access from one PS/2 computer to two locations having a keyboard, monitor, and mouse.

Alternately, the LineSelect® Model 8407 can also be used where two PS/2 computers need to be shared among one keyboard, monitor, and mouse location. A front panel selector allows quick and easy switching of the shared device.

Ruggedized configuration includes mounting brackets and MIL Knob.
Ideal for Commercial-Off-The-Shelf (COTS) purchase applications.
Field Proven, high reliability!
NSN 5930015795847

FEATURES OF THE MODEL 8407 KVM A/B SWITCH:

Ruggedized configuration includes mounting brackets and MIL knob
High Quality sealed switch with self-wiping contacts
Attractive and rugged aluminum case provides shielding
No external power required with the Model 8407 Manual Data Network AB switch
Custom length cables available for your switch installation.
Municipalities, schools, government: This product is on GSA Schedule!

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 8407 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

TECHNICAL SPECIFICATIONS:

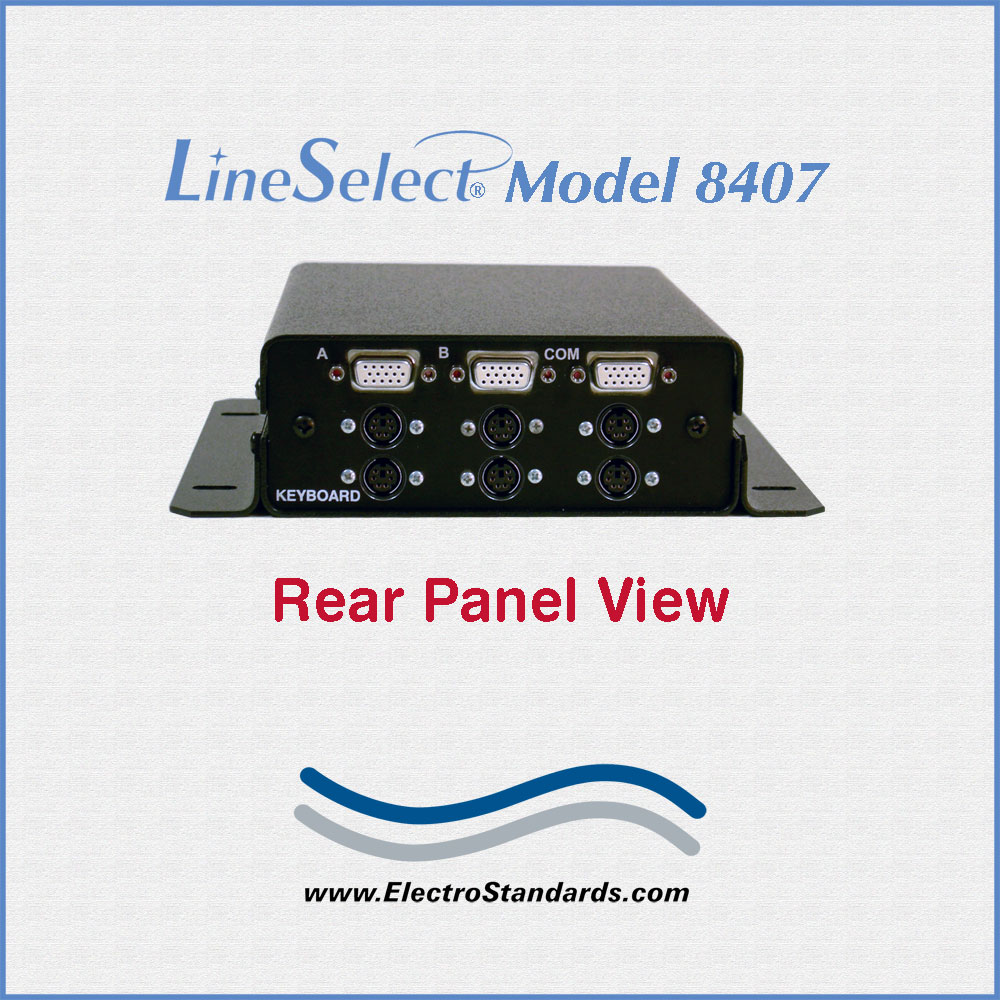

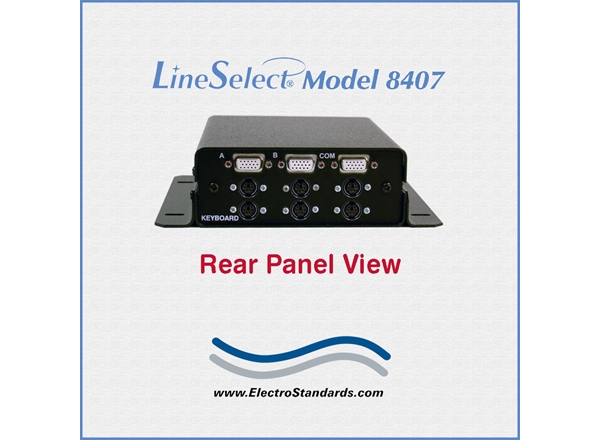

Port Connectors:
- (3) HD15 (F) connectors (VGA Monitor Interface) labeled A, B, and COM
- (3) 6-Pin MiniDIN (F) connectors (Keyboard Interface)
- (3) 6-Pin MiniDIN (F) connectors (PS/2 Mouse).

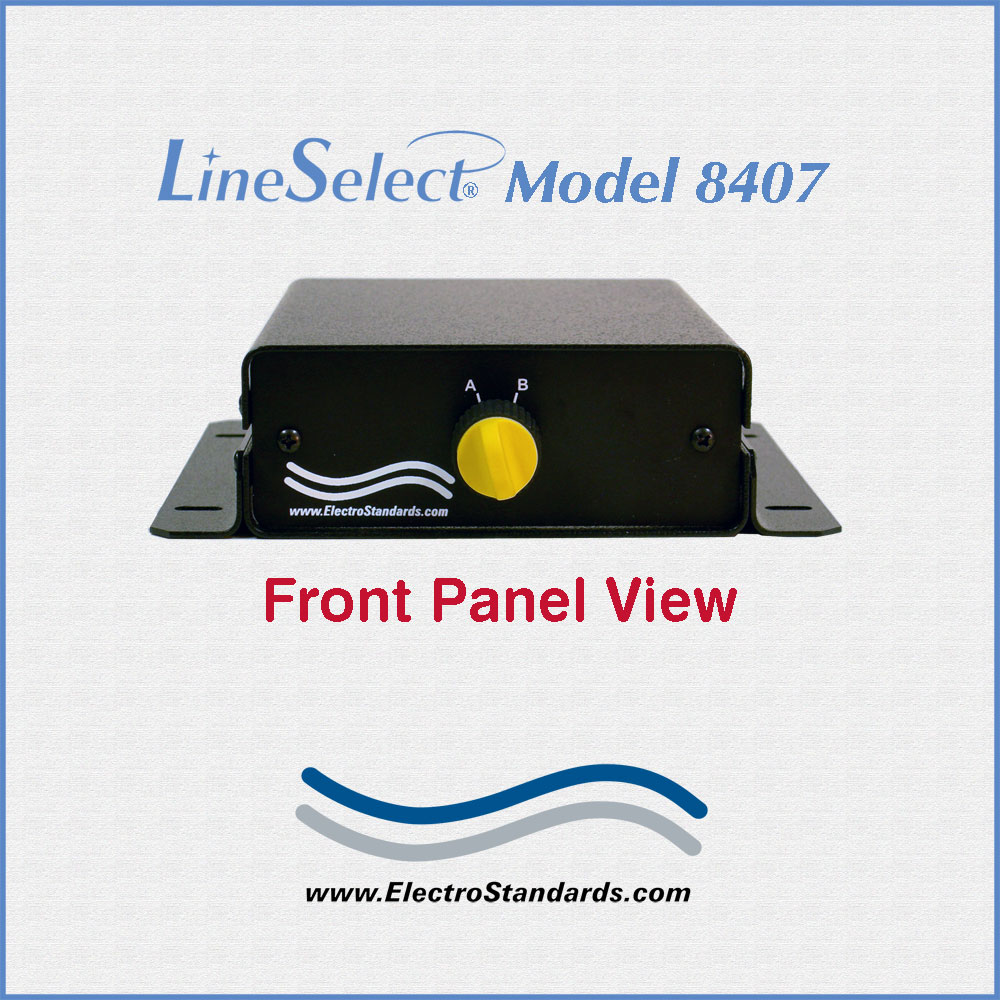

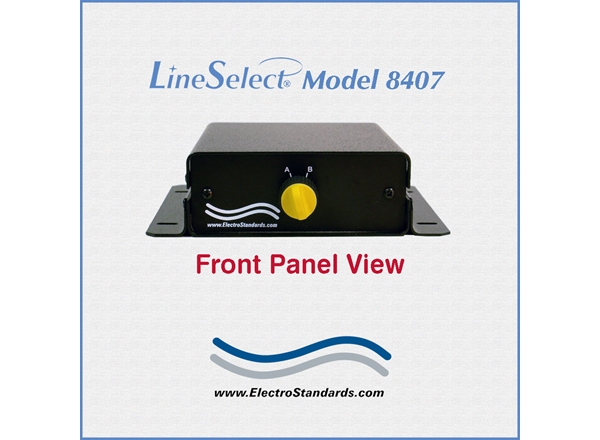

Front Panel Control: (1) Rotary Mil Knob selects A or B position.
Power: No power required. Manually operated.
Dimensions:
- 5.24" W x 2.02" H x 8.34" D (13.3 x 5.2 x 21.2 cm) (Without Brackets)
- 7.24" W x 2.02" H x 8.34" D (18.4 x 5.2 x 21.2 cm) (With Brackets)
Weight: 1.4 lbs. (0.7 kg)
Included: mounting brackets and MIL knob.

PS/2 KEYBOARD, VGA MONITOR & PS/2 MOUSE A/B SWITCH APPLICATION:

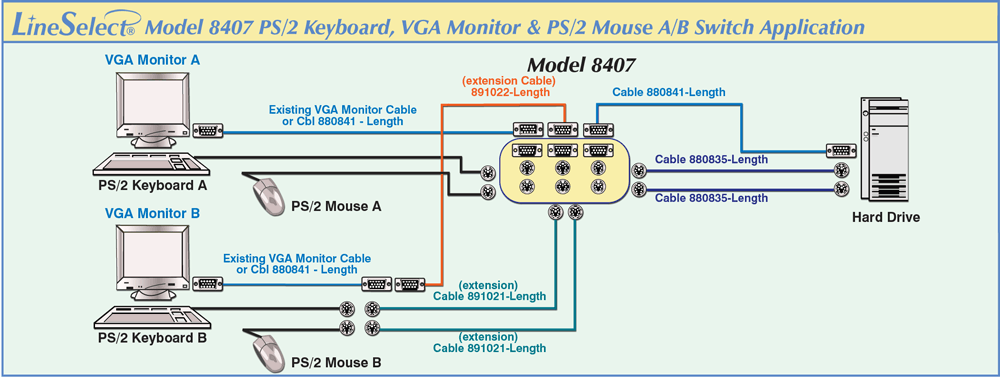

The diagram shows a PS/2 computer connected to the Model 8407. The hard drive can access one of two locations. Select Location A for (PS/2 Keyboard A, VGA Monitor A, & PS/2 Mouse A) setup or select location B for (PS/2 Keyboard B, VGA Monitor B, & PS/2 Mouse B) setup using the front panel MIL Knob.

LineSelect® Model 8407 PS/2 Keyboard, Monitor & PS/2 Mouse Application

Ordering Information

Catalog Number: 304264
Model Number: 8407
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

State cable length (in Feet) when ordering.

Part Number Description

880841 VGA Monitor Cable, HD15 (M/M)

891022 VGA Extension Cable HD15 (M/F)

880835 PS/2 Keyboard/Mouse/Extension Cable, Mini DIN-6 (M/M)

891021 PS/2 Keyboard/Mouse/Extension Cable, Mini DIN-6 (M/F)

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
