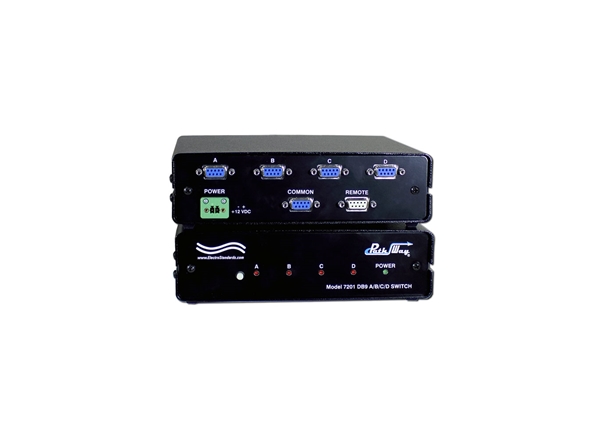

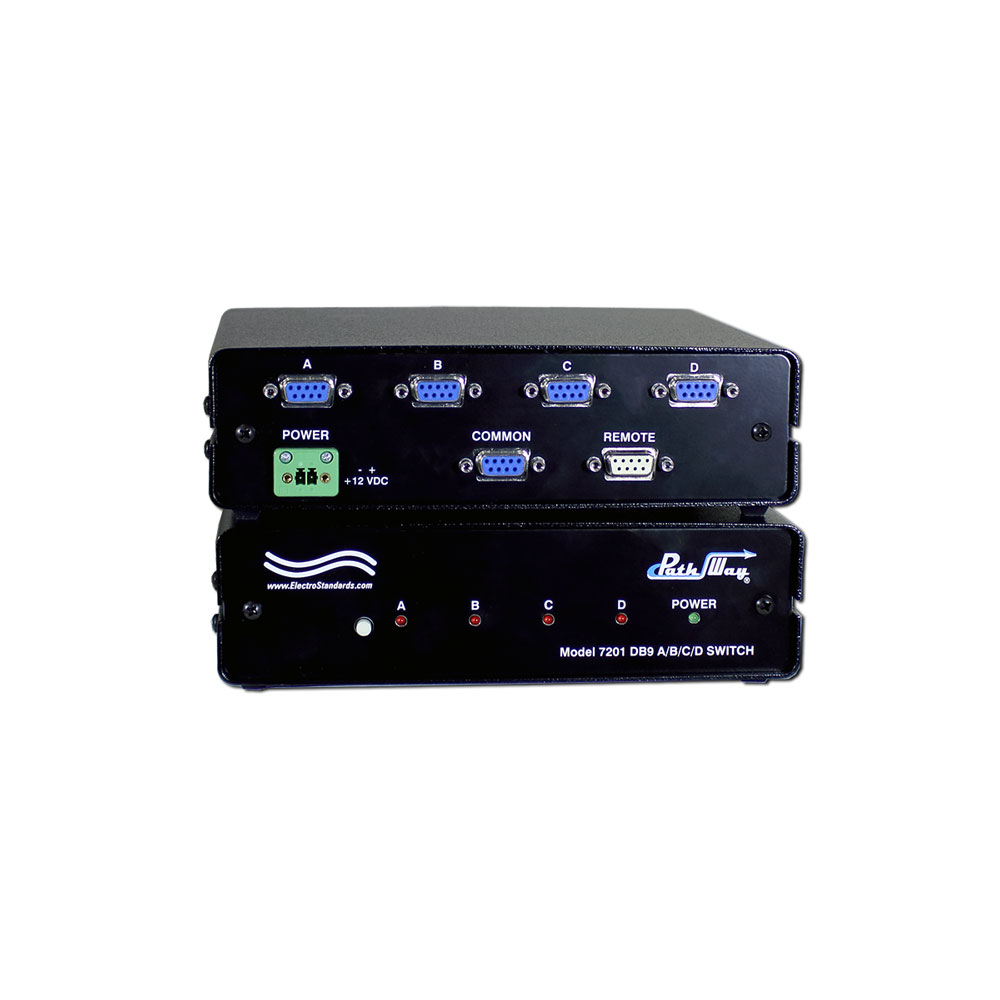

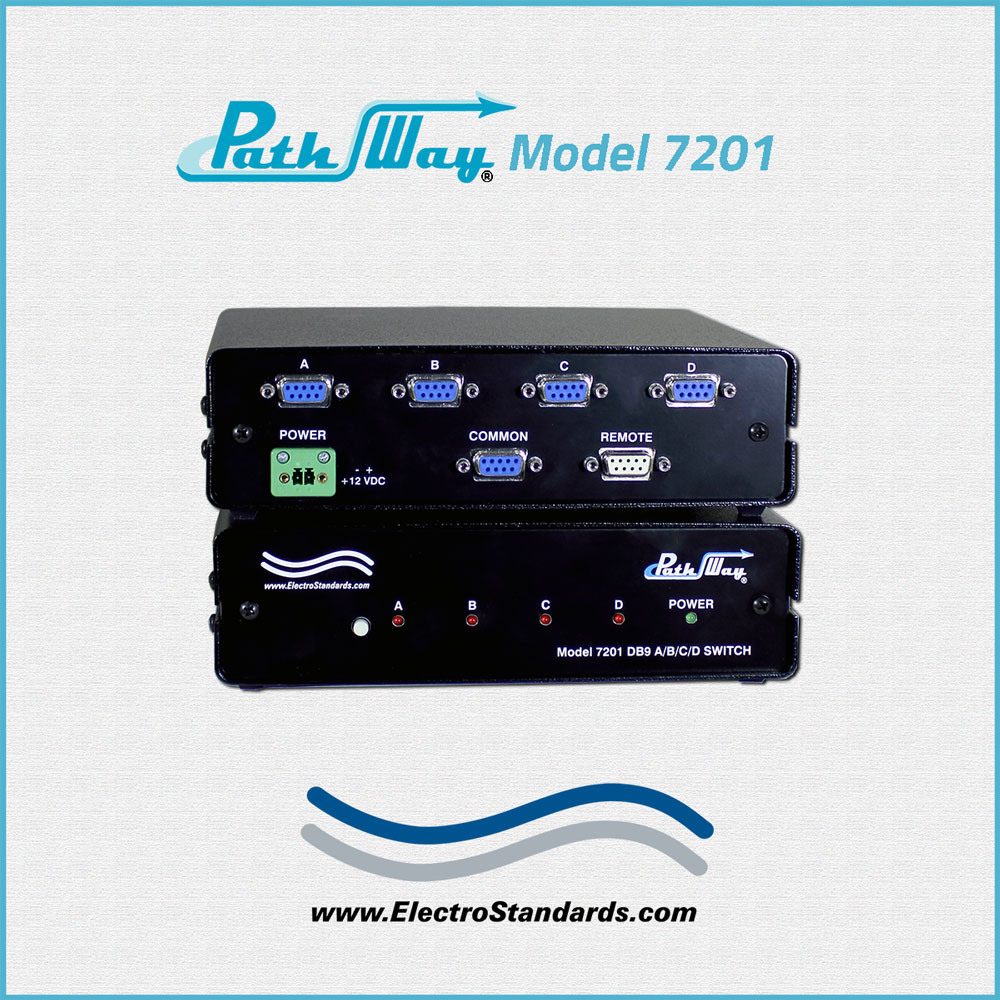

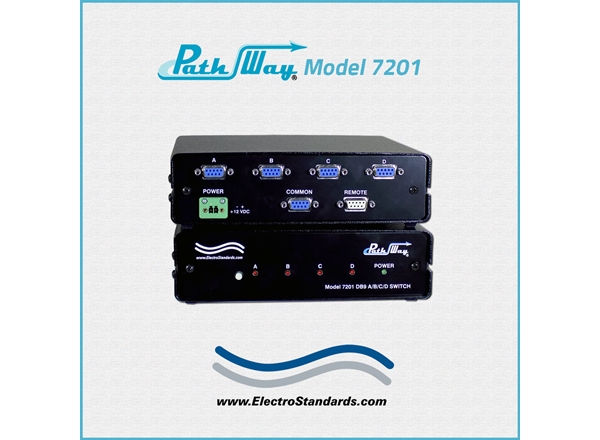

Model 7201 DB9 A/B/C/D Switch for Audio/Video Monitoring Systems, RS232 Remote, Catalog # 307201

    DB9 A/B/C/D SwitchDB9 A/B/C/D SwitchDB9 A/B/C/D SwitchDB9 A/B/C/D Switch
Click image to enlarge
    • DB9 A/B/C/D Switch
    • DB9 A/B/C/D Switch
    • DB9 A/B/C/D Switch
    • DB9 A/B/C/D Switch
Base Price:
$1,199.00
Catalog No: 307201
Model No: 7201
Product Type:Switches: Copper
Positions:4
Switch Application:Audio/Video Switching
Cable Type/Port Connector:DB9 Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS232 Serial
Configuration:Desktop
Pins Switched:9
Remote Port:DB9
Local Control:Pushbutton
Feature:Remote Control

Add to Cart
  • Compatible with most Audio/Video Controller Systems such as AMX A/V Controllers and Creston Programmable Controller.
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual


PathWay® Model 7201 DB9 A/B/C/D Switch with RS232 Remote Control, Desktop

Overview

The PathWay® Model 7201 DB9 A/B/C/D Switch with RS232 Remote allows the user the capability of sharing a single DB9 interface device connected to the COMMON port among four other devices connected to the "A", "B", "C", and "D" ports. The Model 7201 is packaged in a slim desktop style enclosure. The Model 7201 can be switched locally by using its front panel pushbutton or remotely from the DB9 RS232 serial interface remote port located on the rear of the unit.  The front panel LED display indicates the switch position and unit power status.

  • Ideal for device-sharing applications such as Audio/Video and Security Camera Monitoring Systems.  Applicable to ANY DB9 interface devices.

FEATURES OF THE MODEL 7201 DB9 A/B/C/D SWITCH:

  • Compatible with most Audio/Video Controller Systems such as AMX A/V Controllers and Creston Programmable Controller.
  • Allows quick connection to any one of four devices from one COMMON device.
  • Switches all 9 pins of the DB9 interface.
  • Transparent to data speed and format.
  • Eliminates the need to plug and unplug cables.
  • Local control via front-panel pushbutton.
  • Remote RS232 ASCII commands that allow the user to control switch position and obtain switch status, as well as query firmware version number, query serial number and enable/disable autosend of switch position.
  • Front panel LED's display switch position and power status.
  • Retains last set position in the event of power loss and continues to pass data.
  • Attractive anodized aluminum black box packaging provides EMI/RFI shielding.
  • Desktop configuration is standard.
  • Custom length DB9 cables available for your switch installation.

TECHNICAL SPECIFICATIONS:

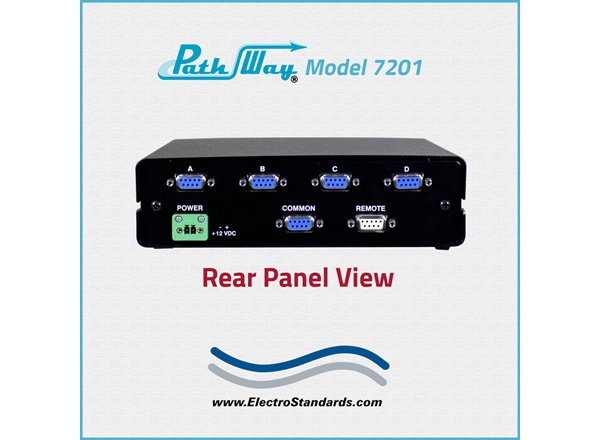

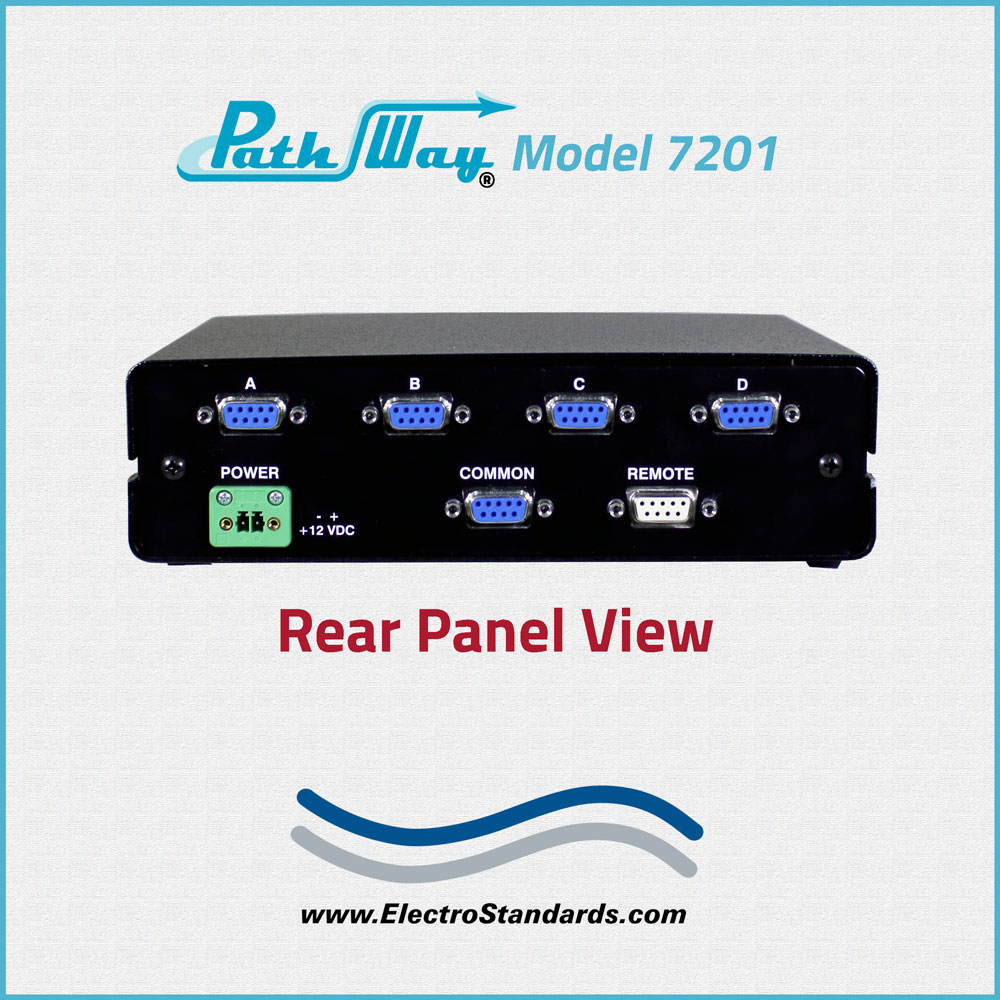

  • PORT CONNECTORS: (5) DB9(F) connectors labeled A, B, C, D, and COMMON.
  • REMOTE CONTROL: (1) DB9(F) connector labeled REMOTE accepts RS232 serial data ASCII commands.

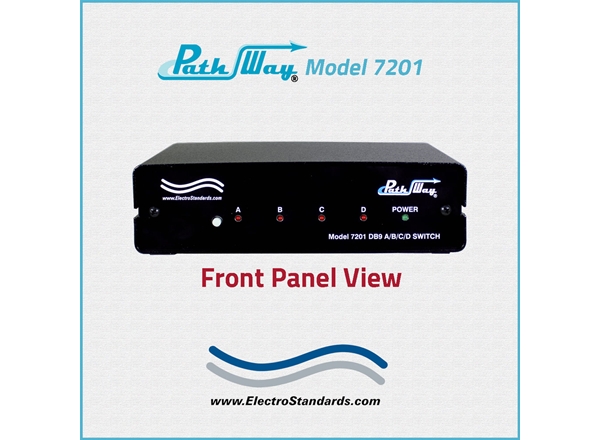

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (4) LED's labeled A, B, C, and D display switch position and (1) LED labeled POWER displays power status.
  • POWER: UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12VDC, 500mA to the unit.  Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Desktop configuration 8.15" W x 2.39 H x 7.27 (20.8 x 6.1 x 18.5 cm)
  • WEIGHT: Approximately 2.1 lbs (1.0 kg)

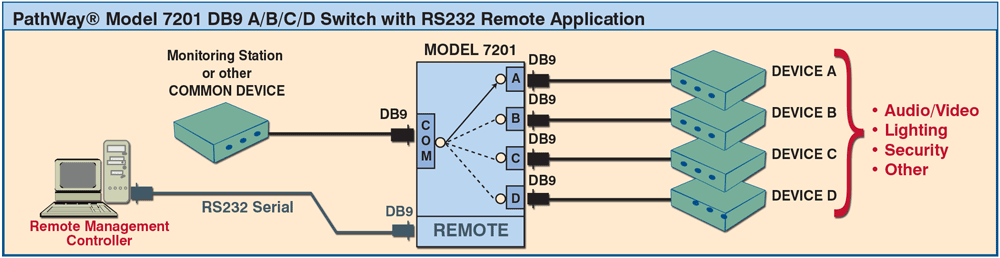

PathWay® DB9 A/B/C/D APPLICATION WITH RS232 REMOTE:

The diagram illustrates a DB9 interface device connected to the COMMON port sharing among four DB9 interface devices via the A, B, C, and D ports. The DB9 Remote port accepts ASCII RS232 Serial data commands for remote control operation. The RS232 Remote is shown connected to a Remote Management Controller.

  •  The A, B, C, and D ports can be connected to Audio/Video, Lighting, Security, and other equipment.

PathWay® Model 7201 DB9 A/B/C/D Switch application

Ordering Information

  • Catalog Number: 307201
  • Model Number: 7201
  • Base Price: See website or contact us for current pricing and availability.
  • Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.

Shipping and Returns           UPS

  • Shipped via UPS ground (unless otherwise requested).
  • Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
  • Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC-240 VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

Custom length cables are available for quick delivery!

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
