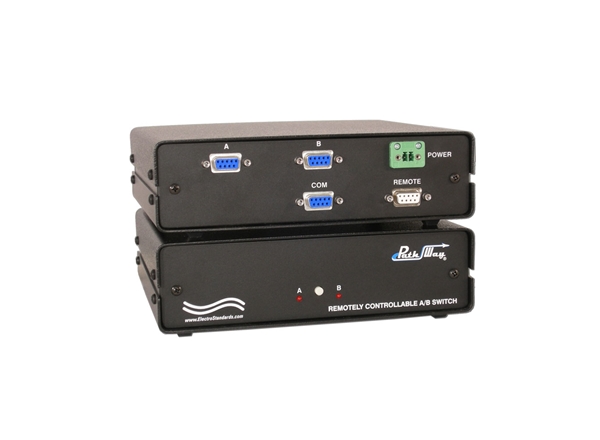

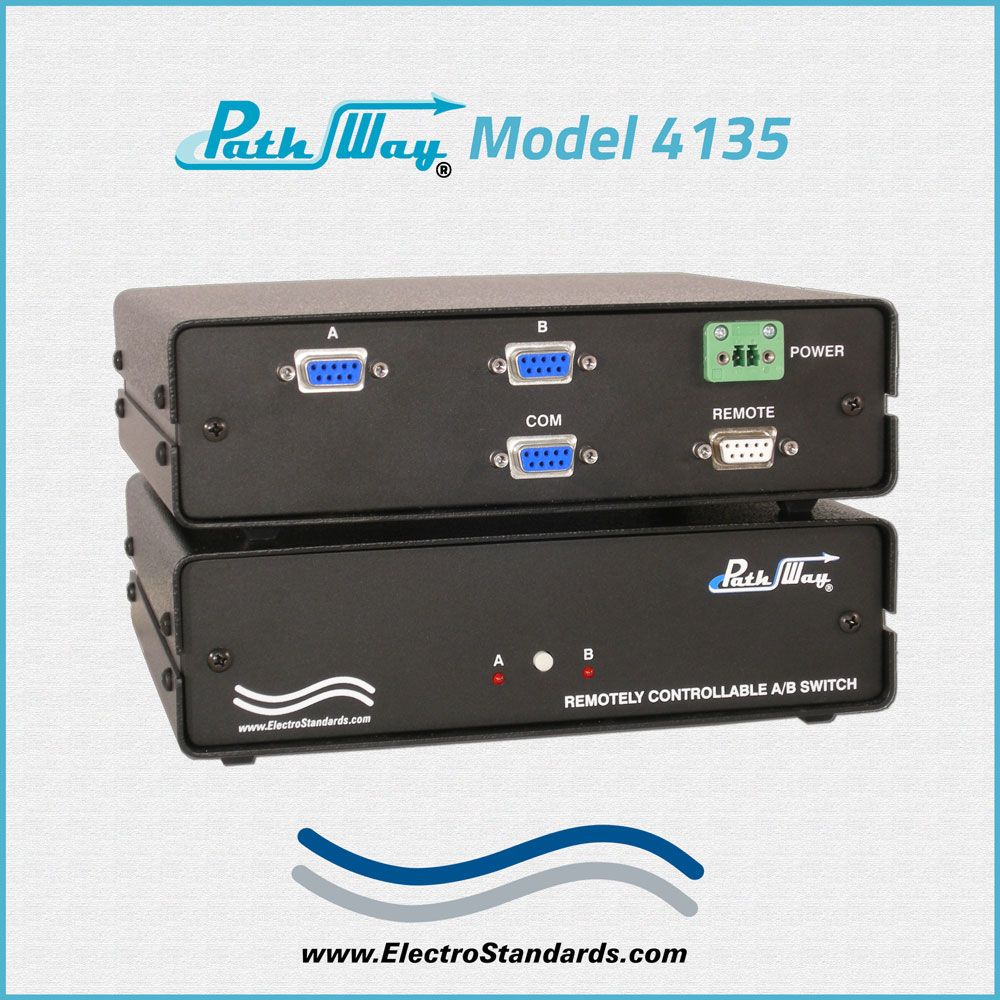

Model 4135 DB9 A/B Switch with TTL Signaling & Contact Closure Remote Control, Desktop, Catalog # 303135

    DB9 A/B Network SwitchDB9 A/B Network SwitchDB9 A/B Network SwitchRemote Toggle Switch Control CableDB9 A/B Network Switch
Click image to enlarge
    • DB9 A/B Network Switch
    • DB9 A/B Network Switch
    • DB9 A/B Network Switch
    • Remote Toggle Switch Control Cable
    • DB9 A/B Network Switch
Base Price:
$876.00
Catalog No: 303135
Model No: 4135
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:DB9 Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Contact Closure, Voltage Control
Configuration:Desktop
Pins Switched:9
Remote Port:DB9
Local Control:Pushbutton
Feature:Optional Remote Toggle Switch Control Cable Available
Protocol:TTL Voltage Control Signaling

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Path Way® Remotely Controllable Model 4135 Single Channel DB9 A/B Switch via TTL Signaling and Contact Closure Remote, Desktop Configuration

Overview

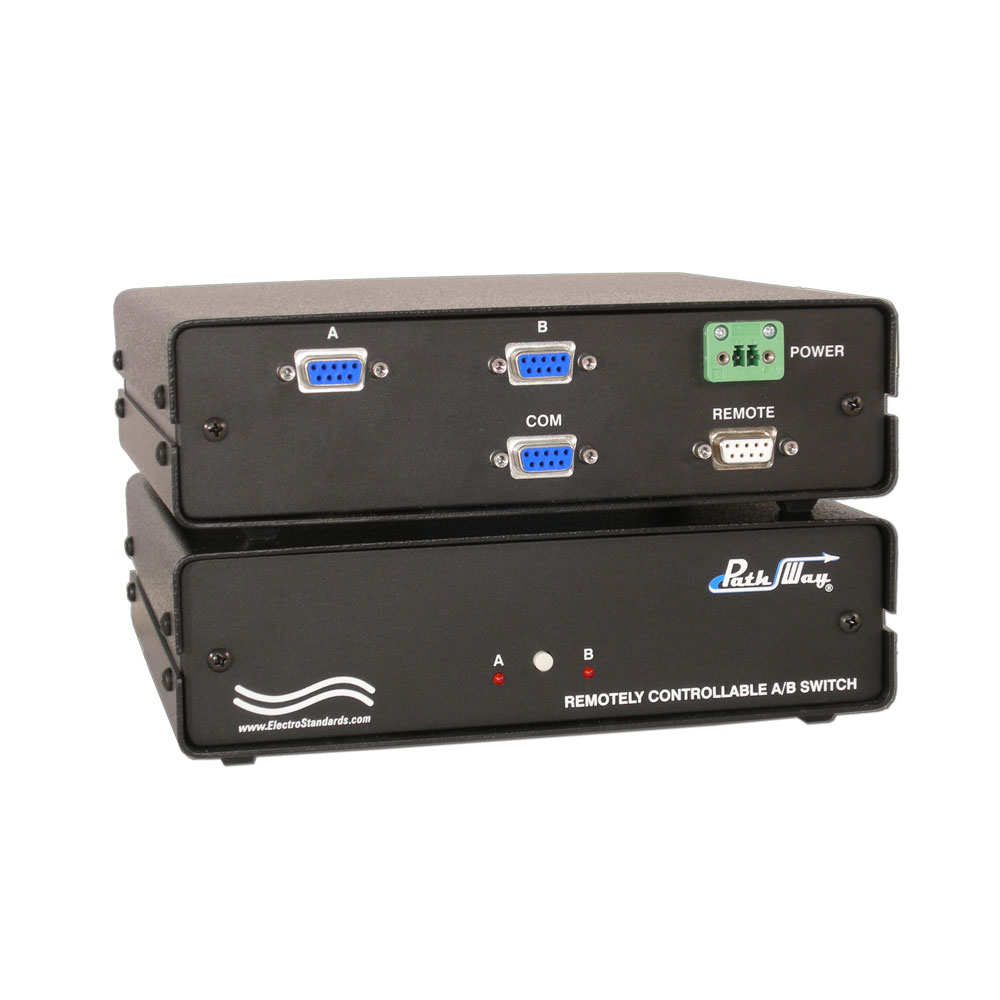

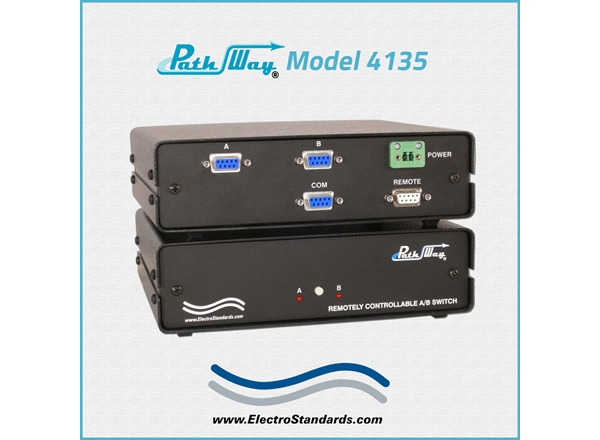

The PathWay® Model 4135 Single-Channel DB9 A/B Switch provides simple, reliable sharing of one DB9 serial device between two systems in a compact desktop enclosure. Designed for space-constrained environments, the Model 4135 supports local front-panel pushbutton control or remote operation via TTL signaling and Contact Closure or an optional remote toggle switch. Front-panel LEDs clearly indicate active channel selection and power status, while all nine DB9 pins are switched simultaneously to ensure full signal integrity for RS-232 and other serial communication applications.

  • Ideal for device sharing applications.

  • Remote Control via TTL Signaling or Contact Closure

  • Convenient Desktop Size

  • Optional Remote Toggle Switch Control Cable Available, Cat# 986479

FEATURES OF THE MODEL 4135 TT CONTACT CLOSURE SWITCH:

  • Allows quick connection to any two devices from one COMMON device.
  • All (9) pins of the DB9 interface are switched via break-before-make electromechanical relays.
  • The switch ports are transparent to all data.
  • Front panel pushbutton control!
  • When the Remote is in use, the front panel pushbutton will be locked out.
  •  The DB9 Remote port provides access to remotely switch the unit by dry contact open/close logic or from a toggle switch.
  • Front-panel LED's display switch position and power status.
  • The unit maintains last set position on power loss and continues to pass data.
  • Upon power up, unit can be switched based on TTL or Contact Closure or remain in the position it was in at power down.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length DB9 cables available for your switch installation.
  • For rackmount version, see Model 7120, Cat. No. 307120.
  • Municipalities, schools, government: This product is on GSA Schedule!

TECHNICAL SPECIFICATIONS:

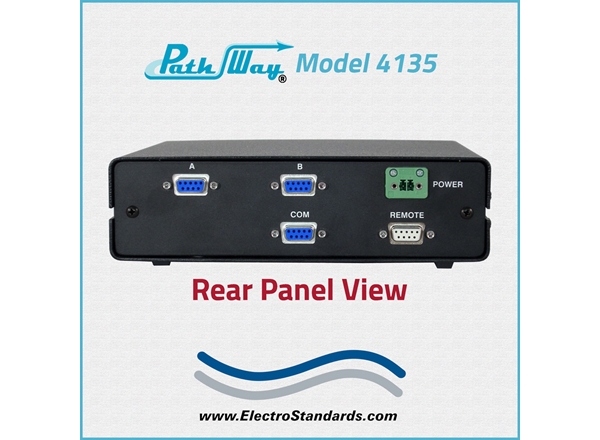

  • PORT CONNECTORS: (3) DB9 (F) port connectors labeled A, B, and COMMON.

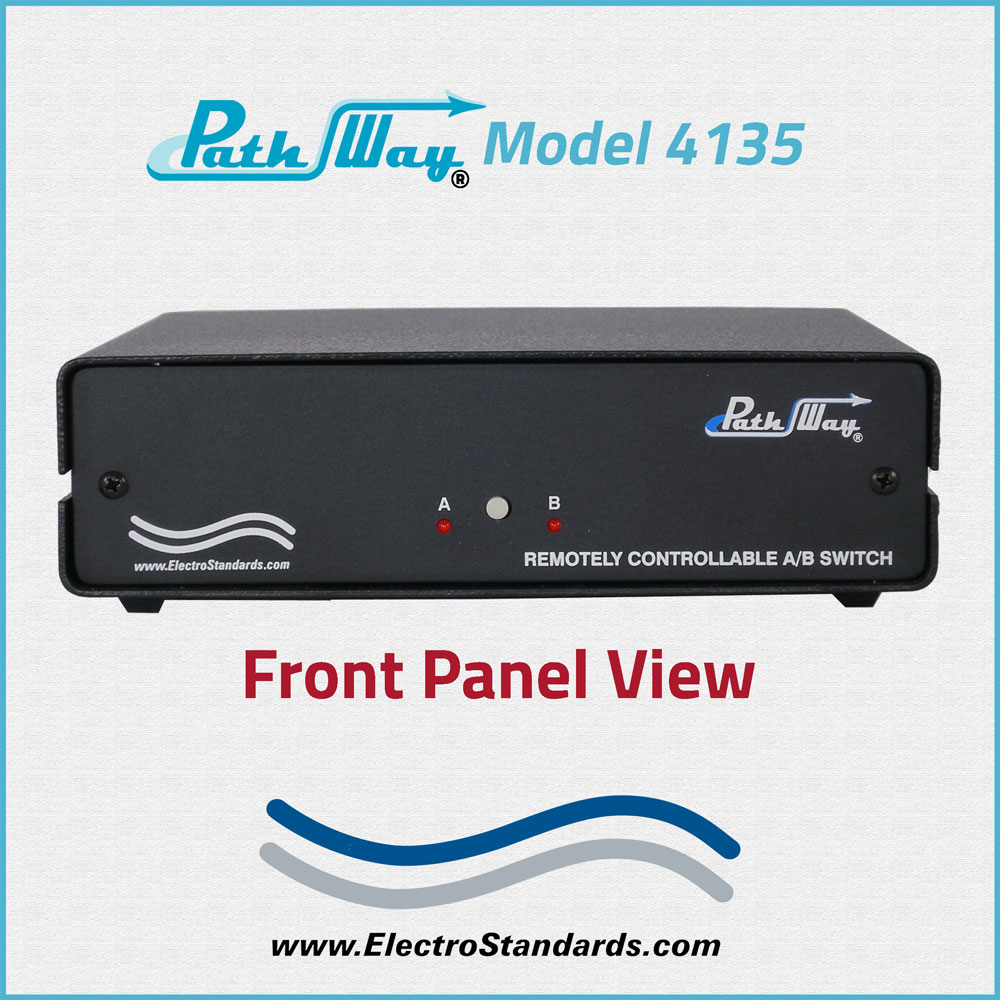

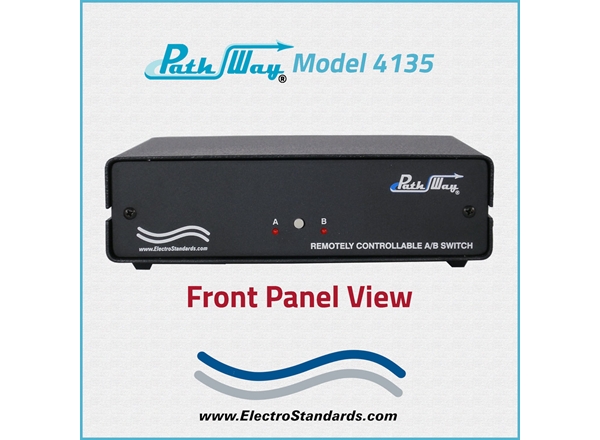

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.

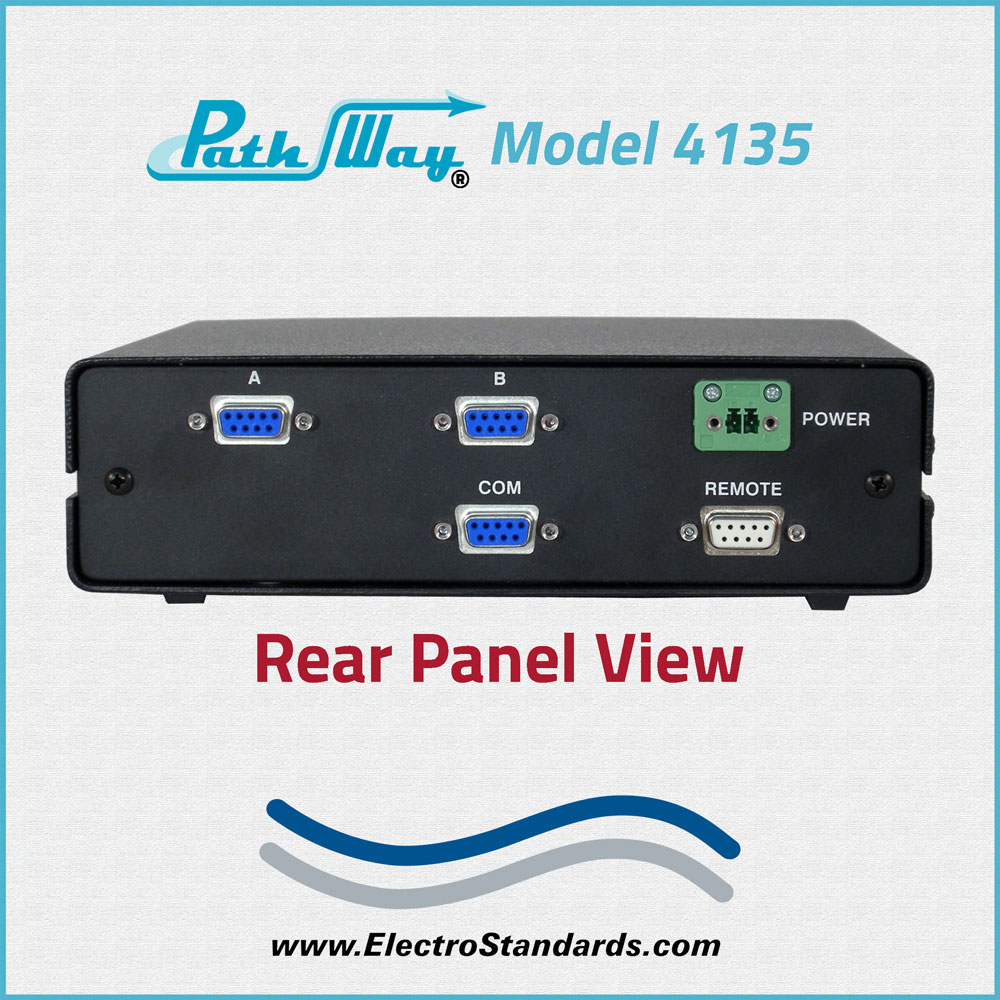

  • REMOTE CONTROL: (1) DB9 female connector on rear panel accepts TTL signaling or contact closure switch commands for Remote Control operation.
  • POWER: UL Approved 100VAC-240 VAC, 50Hz-60Hz wall mount power module supplies 12VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Desktop Enclosure, 8.0" W x 2.1" H x 7.25" D. (20.3 x 5.3 x 18.4 cm).
  • WEIGHT: Approximately 1.7 lbs. (0.8 kg)

DB9 A/B NETWORK APPLICATION WITH AVAILABLE REMOTE TOGGLE SWITCH CONTROL CABLE:

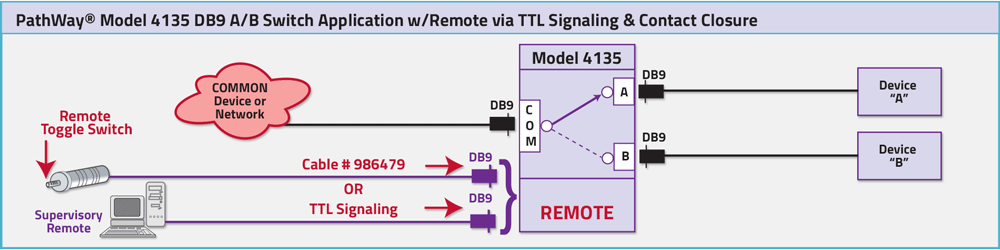

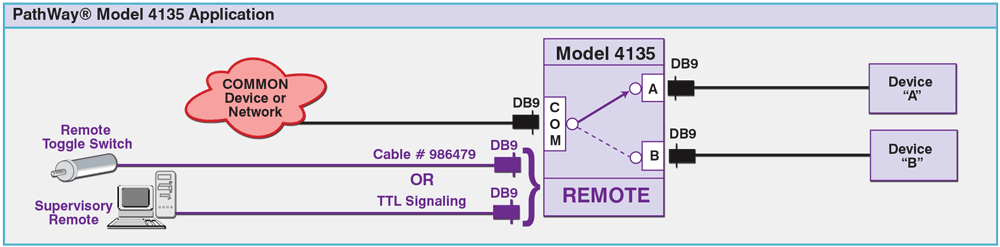

The diagram illustrates two DB9 interface devices, (Device A, and Device B) sharing a connection to the COMMON DEVICE or NETWORK via the COMMON port.  The switch can be remotely controlled using the Remote Control Toggle Cable (Cat No 986479) connected to the REMOTE port or a computer connected to the DB9 REMOTE port.

PathWay® Model 4135 DB9 A/B Switch Application

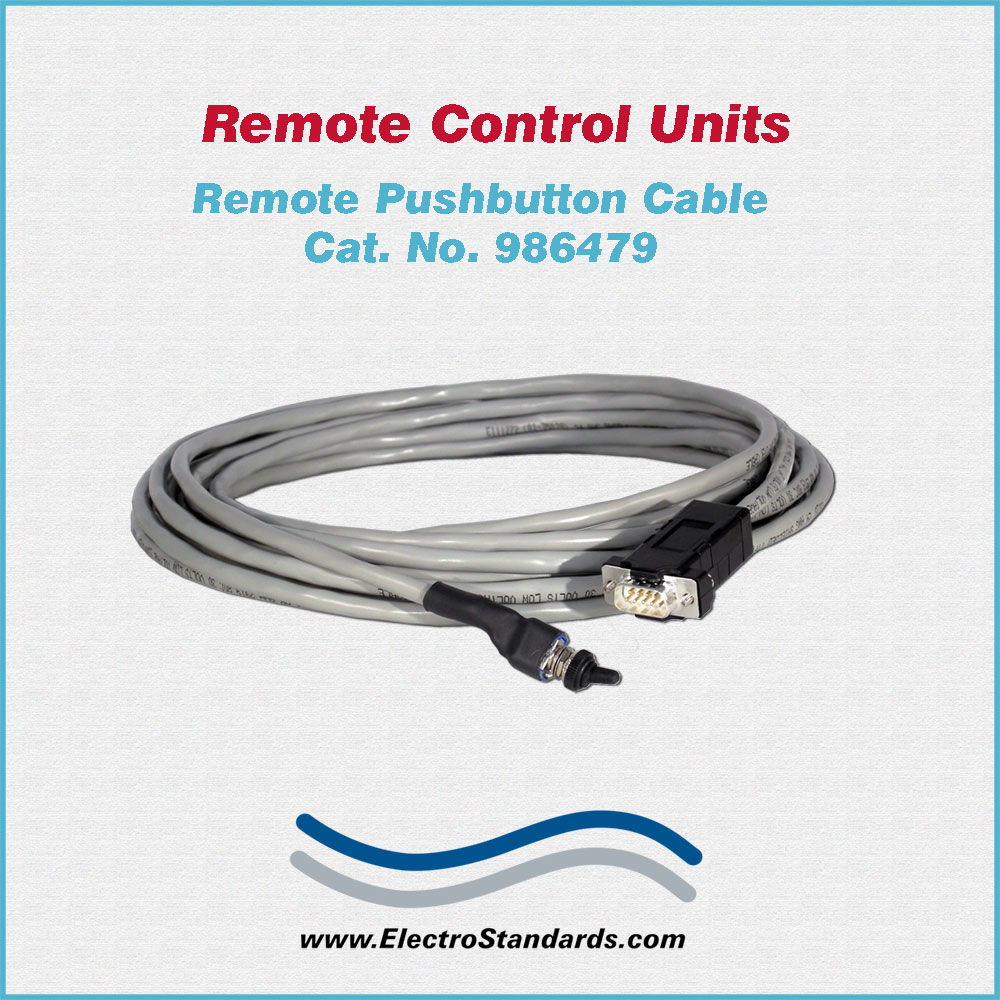

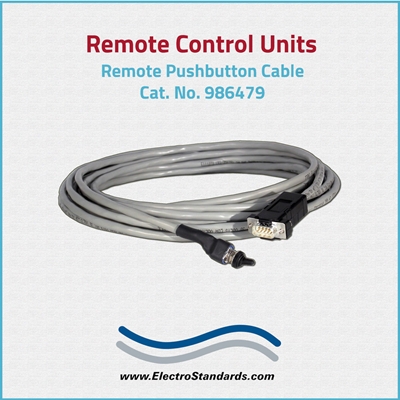

Option Available: Cable 986479 - Remote Toggle Switch Control Cable with Water Resistant Mounting

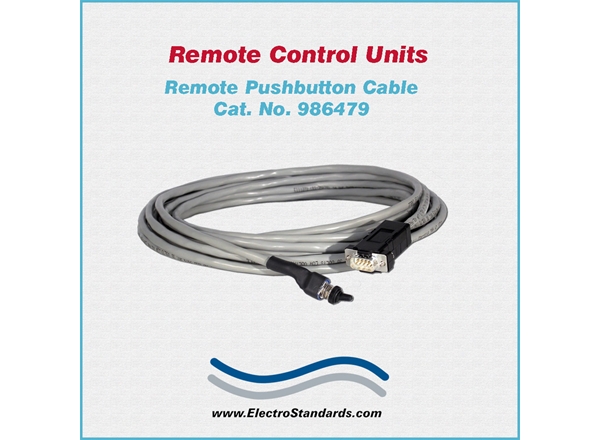

Option: Catalog No. 986479 Remote Toggle Switch Control Cable for Model 4135
