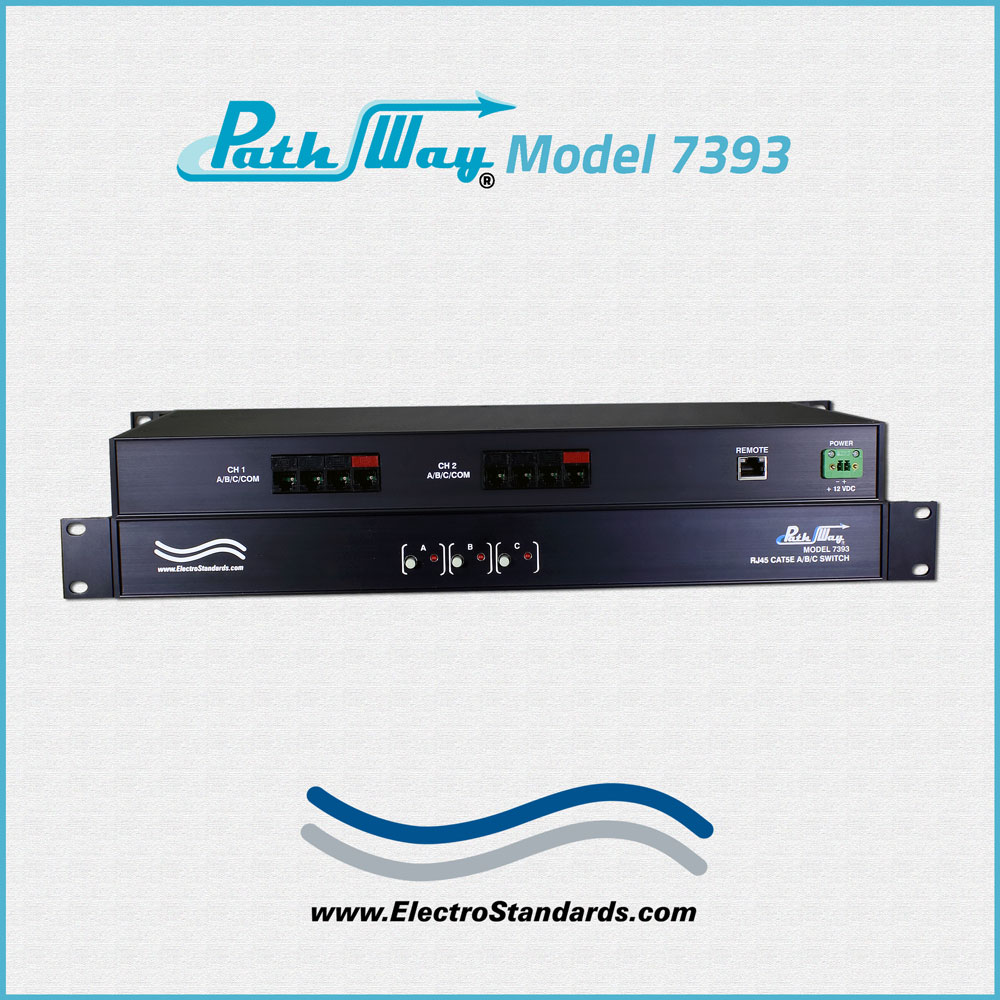

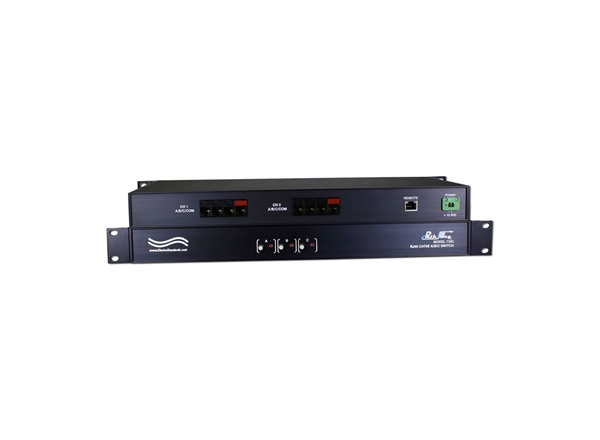

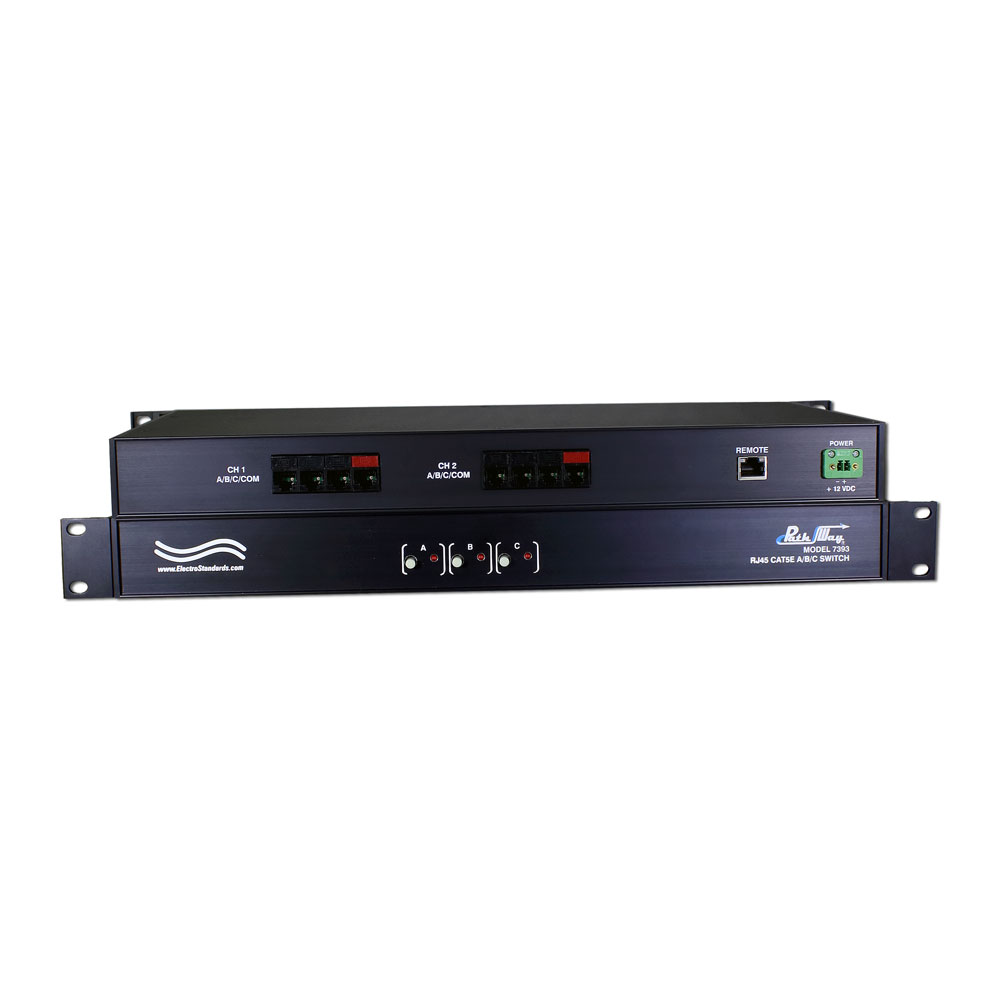

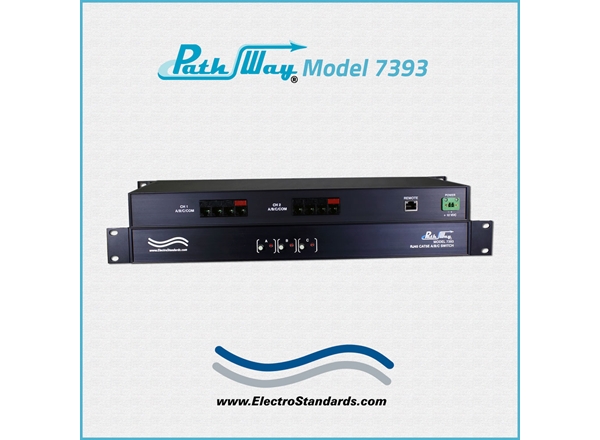

Catalog # 307393 - Model 7393 Dual Channel RJ45 Cat5e A/B/C Switch with SSH & HTTPS GUI

    Model 7393 Dual Channel RJ45 Cat5e ABC Switch w/SSH, HTTPS GUIModel 7393 Dual Channel RJ45 Cat5e ABC Switch w/SSH, HTTPS GUIModel 7393 Dual Channel RJ45 Cat5e ABC Switch w/SSH, HTTPS GUI
Click image to enlarge
    • Model 7393 Dual Channel RJ45 Cat5e ABC Switch w/SSH, HTTPS GUI
    • Model 7393 Dual Channel RJ45 Cat5e ABC Switch w/SSH, HTTPS GUI
    • Model 7393 Dual Channel RJ45 Cat5e ABC Switch w/SSH, HTTPS GUI
Base Price:
$3,048.00
Catalog No: 307393
Model No: 7393
Feature:IP Addressable, Secure Shell Protocol
Protocol:Telnet Commands/GUI
Product Type:Switches: Copper
Positions:3
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:2
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control
Remote Control:Ethernet
Security:Password Protection
Compliance/Standards:Cat5e
Configuration:Rackmount
Remote Port:RJ45
Remote Security:TLS/SSL Security Cryptographic Protocols
Local Control:Pushbutton

  • PathWay® Model 7393
  • Dual-Channel RJ5 Cat5e A/B/C
  • w/ SSH & HTTPS GUI
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Model 7393 Dual Channel RJ45 Cat5e A/B/C Switch with SSH and HTTPS GUI

  • IP Addressable! Communicate with Switch via Internet Explorer running a PC.

  • Switches all 8 pins. Allows compatibility with all RJ45 interfaces.

  • Field-proven, high reliability!

SPECIFICATIONS:

  • PORT CONNECTORS: (4) RJ45 female connectors labeled A, B, C and COMMON for each of the two channels.

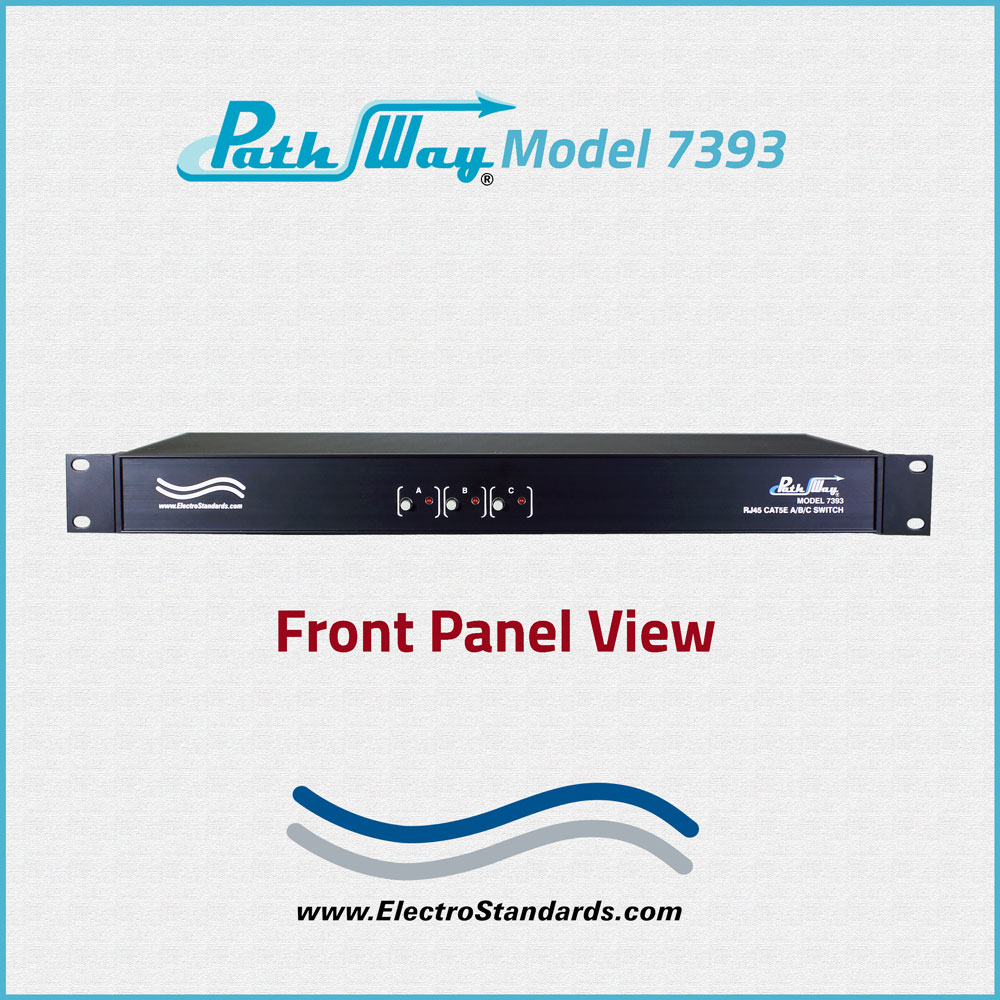

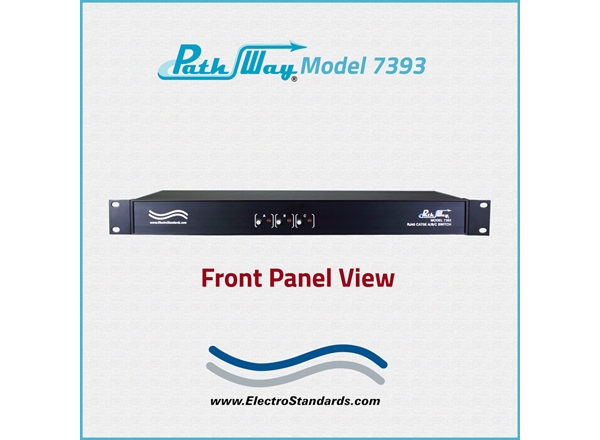

  • FRONT PANEL CONTROL: (3) Manual pushbuttons allow local switching.
  • DISPLAY: (3) Front panel LED's display switch position and power status.

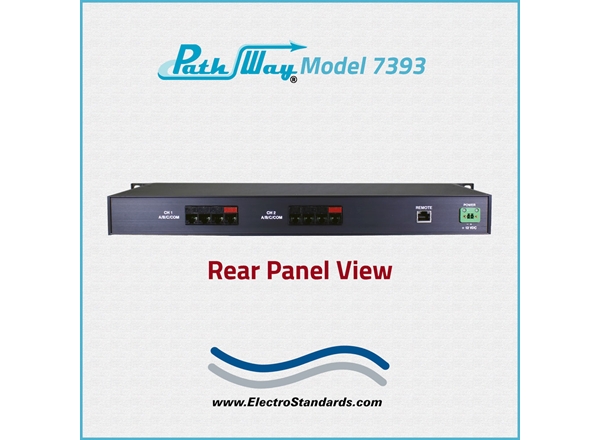

  • REMOTE CONTROL: (1) RJ45 female connector on rear panel accepts Ethernet 10/100 Base-T connection and either TELNET commands or Graphical User Interface for Remote Control operation.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60 Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount, 19.0" W x 1.75" H x 8.07" D. [48.3 x 4.4 x 20.5 cm]
  • WEIGHT: Approximately 3.7 lbs [1.7 kg]

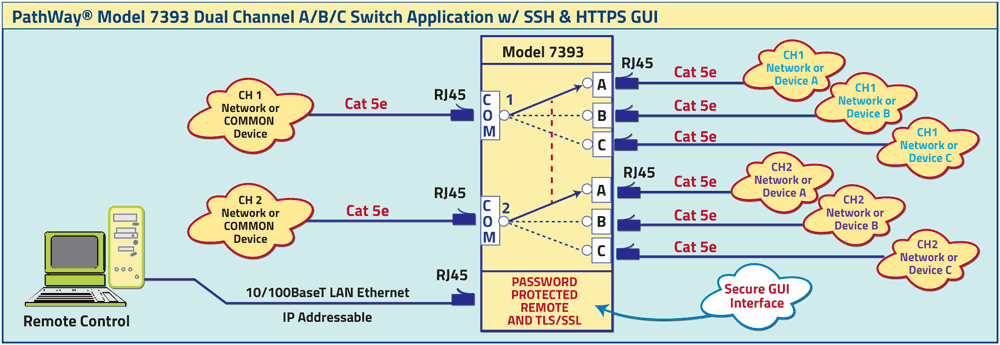

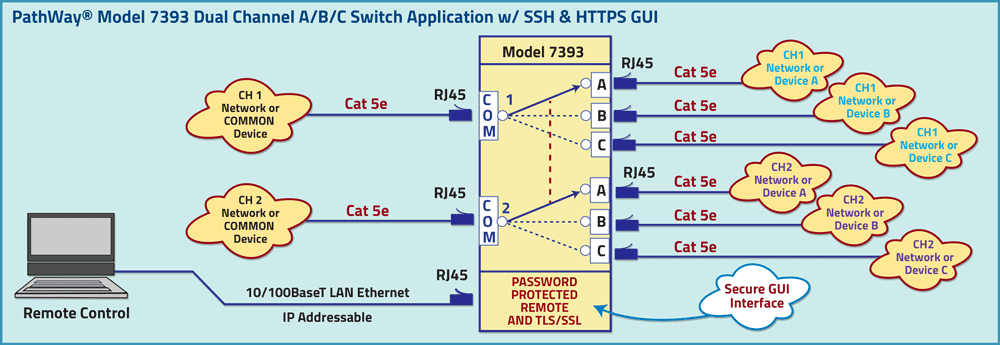

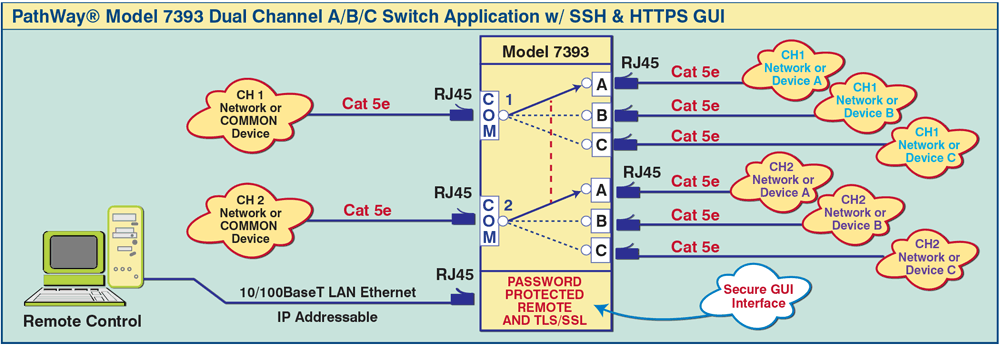

PathWay® Model 7393 Dual-Channel RJ56 Cat5e A/B/C Application w/ SSH & HTTPS GUI:

The drawing illustrates a dual-channel A/B/C Switch.
Each Channel has a COMMON Device or Network that can be connected to one of three Devices or Networks. Both channels change position simultaneously.
The RJ45 Remote port is 10/100 Base-T LAN Ethernet port, and is Password Protected as well.
The Graphical User Interface is Secure via SSH and HTTPS protocols.

PathWay® Model 7393 Dual Channel DB25 A/B Switch w/Auto Fallback Application drawing

FEATURES:

  • Each channel allows access to three Cat5e RJ45 networks from one COMMON network or device.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • Certified Cat5e performance.
  • Unit will switch to the A position, upon sensing power loss, and continue to pass data.
  • Upon the return of power, the unit will remain in the A position.
  • Simultaneous control of all channels.
  • Front panel pushbutton control.
  • Control of the switch position from a 10/100Base-T LAN Ethernet environment.
  • Remote Control SSH Command Interface of Graphical User Interface that allows the user to control switch position, lockout front panel operations, obtain switch status, as well as query firmware version number, query serial number, and enable/disable autosend of switch positions.
  • Remote control of the switch is secured by user login with password protection and TLS/SSL cryptographic protocols.
  • Front panel LED's display position and power status.
  • For a similar unit, see Model 7395 Dual Channel Cat6a A/B/C Switch with Telnet and GUI Remote

The PathWay® Model 7393 Dual Channel Cat5e A/B/C Switch with Telnet and GUI Remote, allows the user the capability of sharing a single port interface device, connected to the COMMON port, among three other devices, connected to the A, B, and C ports for each channel. Remote access can be accomplished using an Ethernet 10/100Base-T connection and either Telnet commands or Graphical User Interface.

The Model 7393 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

Proper authentication is required for Remote access via the 10/100Base-T connection.  The user can monitor status and control switch functions.

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC / 240 VAC, 50Hz/60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

UTILIZING THE USER FRIENDLY REMOTE GRAPHICAL USER INTERFACE SOFTWARE

To connect to the switch from a workstation or computer having access to the LAN that the Model 7393’s LAN port is connected to, simply launch a standard web browser and type in the URL: https://<ip address of switch> Note that the “s” in “https” is required.  The Java Applet will be automatically be uploaded from the switch upon connection.  The environment requirement for the GUI is Java 1.7u40 or the latest.

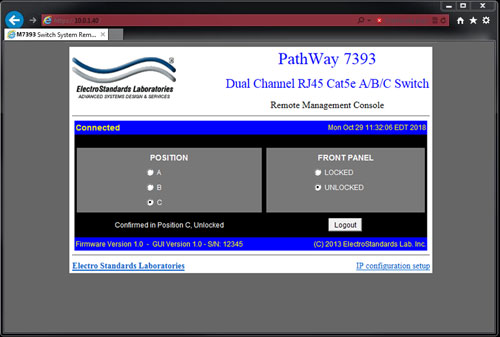

Figure 1: GUI in a standard Web Browser.

PathWay Model 7393 RJ45 Cat5e A/B/C Switch Main GUI

SOFTWARE FEATURES:

  • Access User Interface via standard web browser.
  • Login password authentication required.
  • Easy to use, simple point and click operation.
  • Remotely access to control or monitor the Model 7393 Dual RJ45 A/B/C Switch System with SSH and HTTPS GUI.
  • Users can change the login password and/or the switch’s IP address.
  • LAN access gives users across the LAN or over the internet access to control if user network is configured accordingly.

CHANGING POSITION AND LOCK STATUS

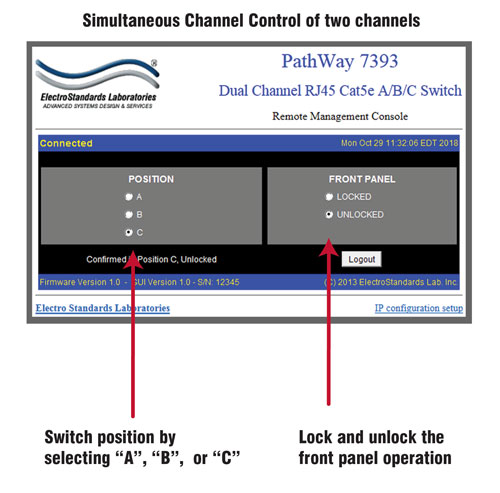

To change the switch position, click on the radio button “A”, “B” or “C” as desired.  Locking and unlocking the front panel pushbutton can be done by clicking on the “Locked” or “Unlocked” radio buttons. See Figure 2.

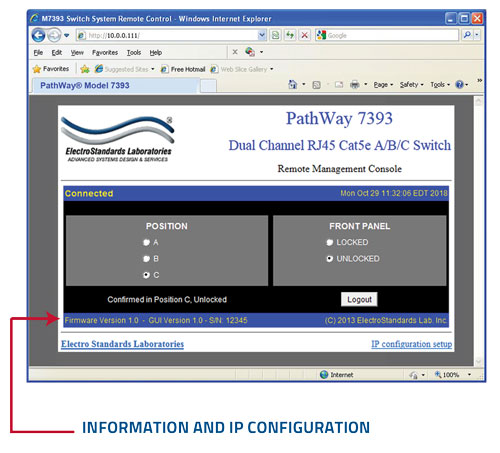

INFORMATION AND IP CONFIGURATION

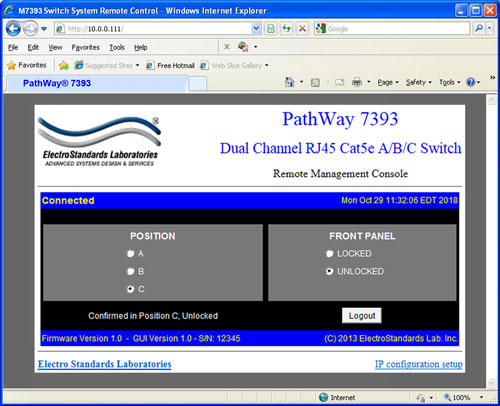

The Remote Control GUI also provides access to unit information such as the firmware/software version and the serial number.  It also provides a link to the Remote Configuration GUI.  Note that the Remote Configuration GUI link works regardless of whether the user is logged into the Remote Control GUI or whether the applet loads at all. See Figure 2

Figure 2 shown below:

QUERYING THE STATUS OF THE UNIT

Once connected, the GUI will stay up-to-date on the present position and status of the unit.  Any changes that are made outside of the GUI, such as by pushbutton, will be reflected in the GUI.  These changes will cause the radio buttons of the GUI to automatically change to show the new status.  The GUI will report the source of the most recent change in the bottom left of the panel.   See Figure 3.

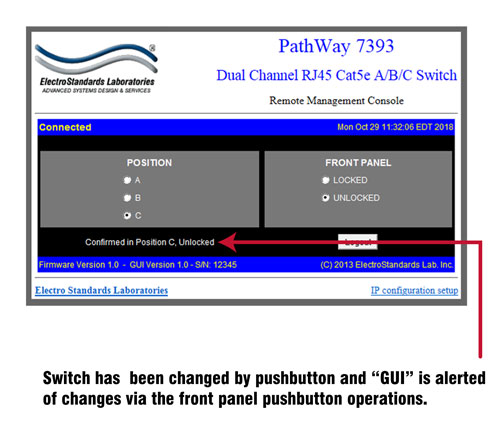

Figure 3: The GUI is alerted to changes in the unit status.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
