Catalog # 307120 - Model 7120 DB9 A/B Network Switch, Rackmount

    DB9 A/B Network SwitchDB9 A/B Network SwitchDB9 A/B Network SwitchRemote Toggle Switch Control Cable
Click image to enlarge
    • DB9 A/B Network Switch
    • DB9 A/B Network Switch
    • DB9 A/B Network Switch
    • Remote Toggle Switch Control Cable
Base Price:
Catalog No: 307120
Model No: 7120
Product Type:Switches: Copper
Cable Type/Port Connector:DB9 Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Contact Closure, Voltage Control
Pins Switched:9
Remote Port:DB9
Local Control:Pushbutton
Feature:Remote port overrides pushbutton activity


Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request


Path Way® Remotely Controllable Network Switch, DB9
Model 7120 Single Channel DB9 A/B Switch with Remote Control Port

  • Ideal for device sharing applications.

  • Remote Control via TTL Signaling or Contact Closure.

  • Optional Remote Toggle Switch Control Cable Available!


  • PORT CONNECTORS: (3) DB9 (F) port connectors labeled A, B, and COMMON.

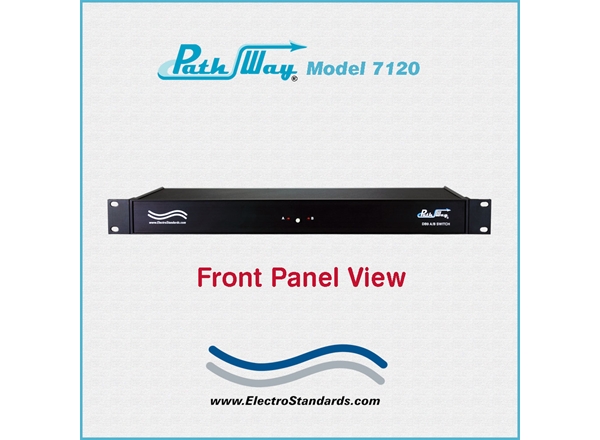

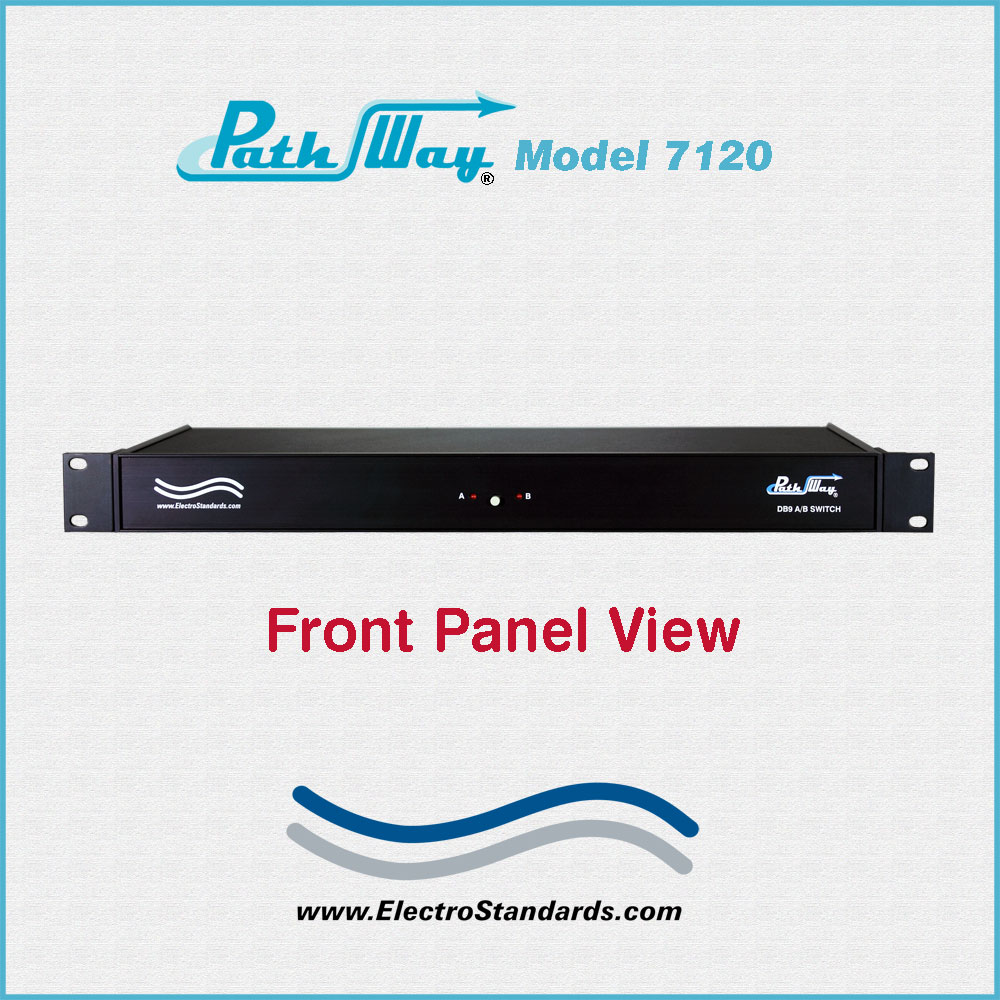

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.

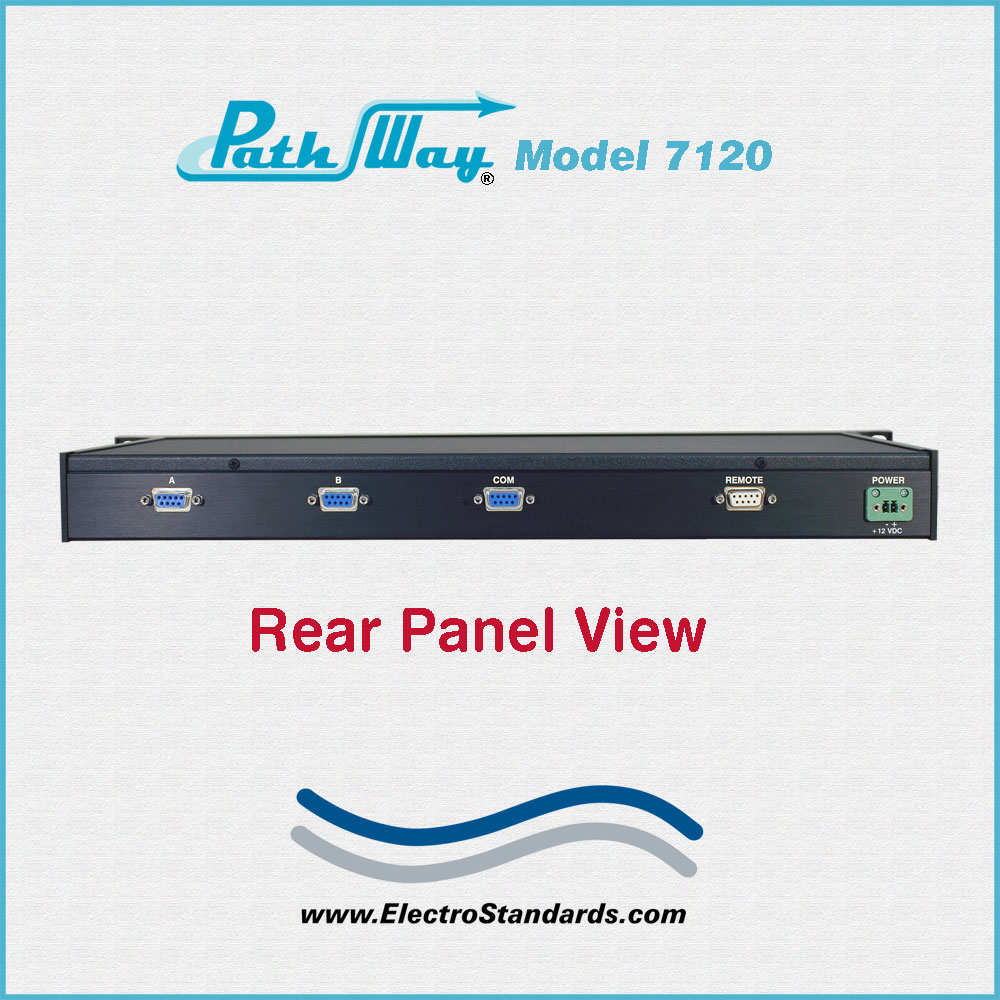

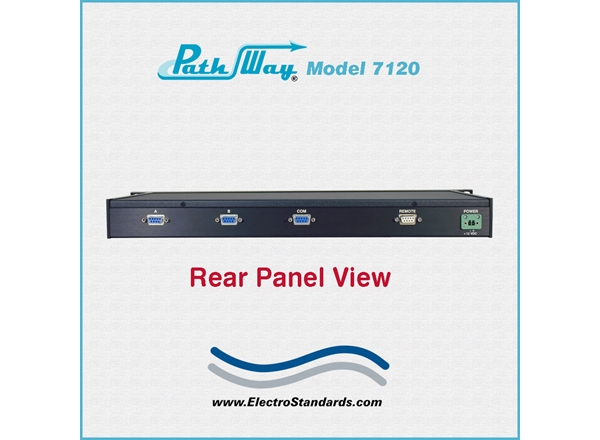

  • REMOTE CONTROL: (1) DB9 female connector on rear panel accepts TTL signaling or contact closure switch commands for Remote Control operation.
  • POWER: UL Approved 100VAC-240 VAC, 50Hz-60Hz wall mount power module supplies 12VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount 19.0" W x 1.75" H x 8.22" D
  • (48.3 x 4.5 x 20.9 cm).
  • WEIGHT: Approximately 4.2 lbs. (1.9 kg)

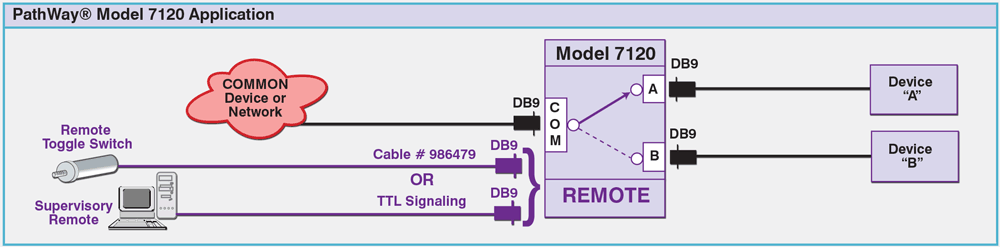

The diagram illlustrates two DB9 interface devices, (Device A, and Device B) sharing a connection to the COMMON DEVICE or NETWORK via the COMMON port.  The switch can be remotely controlled using the Remote Control Toggle Cable (Cat No 986479) connected to the REMOTE port or a computer connected to the DB9 REMOTE port.

Network Diagram for Model 7120 DB9 A/B Switch with Contact Closure Remote


  • Allows quick connection to any two devices from one COMMON devce.
  • All (9) pins of the DB9 interface are switched via break-before-make electromechanical relays..
  • The switch ports are transparent to all data.
  • Front panel pushbutton control!
  • When the Remote is in use, the front panel pushbutton will be locked out.
  • The DB9 Remote port provides access to remotely switch the unit by dry contact open/logic or from a toggle switch.
  • Front-panel LED's display switch position and power status.
  • The unit maintains last set position on power loss and continues to pass data.
  • Upon power up, unit can be switched based on TTL or Contact Closure, or remain in the position it was in at power down.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Custom length DB9 cables available for your switch installation.
  • For desktop version, see Model 4135, Cat. No.303135.

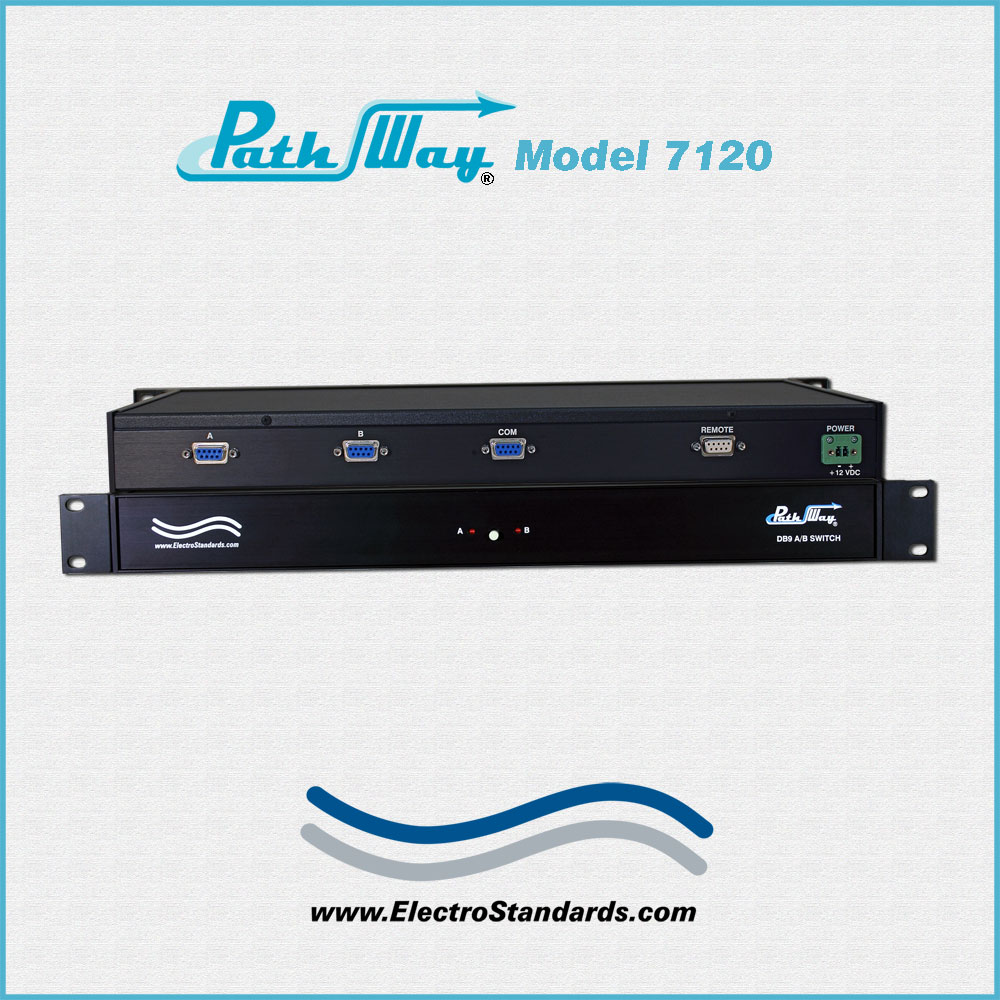

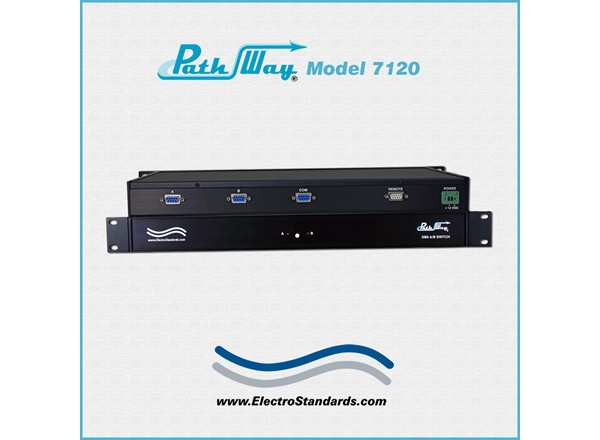

The PathWay® Model 7120 Single Channel DB9 A/B Switch allows the user the capability of sharing a single DB9 device, connected to the COMMON port connector, among two other devices connected to the "A" and "B" ports.  The interface is made up of DB9 female connectors.  The Model 7120 is enclosed in a 1U, full size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

The PathWay® Model 7120 switch may be controlled locally by manually operating the front panel pushbutton or remotely using the Remote port on the rear.  The Remote port allows the user to control switch position using TTL signaling or using a Remote Toggle Switch, (ESL Cable p/n 986479) connected to the DB9 (female) Interface Remote port located on the rear of the unit.  The front panel LED display indicates the present position and unit power status. All connectors are switched simultaneously for a total of 9 pins switched.

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100VAC-240VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

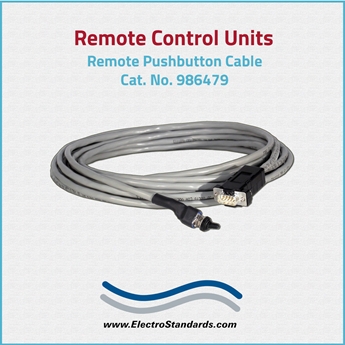

Option: Cable 986479 - Remote Toggle Switch Control Cable

Option: Catalog No. 986479 Remote Toggle Switch Control Cable for Model 4135

  • Provides remote toggle switch control for Model 7120
  • Includes water resistant mounting of toggle switch
  • Cable has compatible connector to Remote Port of Model 7120 on one end,
  • and a toggle switch with waterproof mounting boot on the other.
  • Cable length is 2.5 ft. (other lengths are available.)

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

All ESL products are available for export. Electro Standards welcomes inquiries from International accounts: commutateur de réseau, conmutador de red, switch di rete, przelacznik sieciowy , switch de rede, nätverksswitch
