Model 9438 DB9 Female, 6-Position ABCDEF Rotary Switch, Manual, Catalog # 309438

DB9 Manual Network Switch, Rotary Switch LineSelect® Model 9438 DB9 A/B/C/D/E/F Switch, Manual Rackmount

Click image to enlarge

Base Price:

$979.00

Catalog No:

309438

Model No:

9438

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

DB9 Switch Ports

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Configuration:

Rackmount

Pins Switched:

Local Control:

Rotary Knob

Qty

Add to Cart

DB9 Female Port Connectors; A/B/C/D/E/F ports.

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

LineSelect® Model 9438 DB9 A/B/C/D/E/F Rotary Switch, Manual Rackmount

Overview

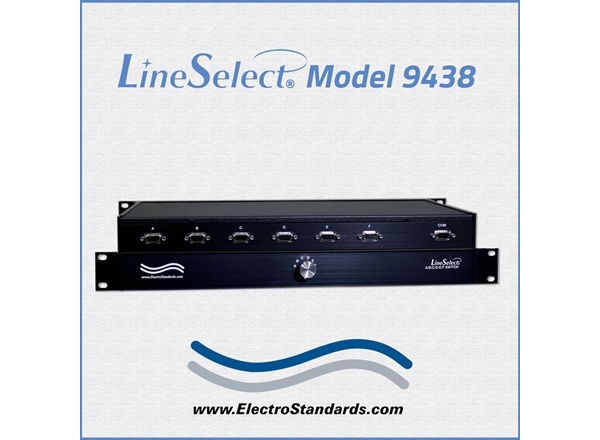

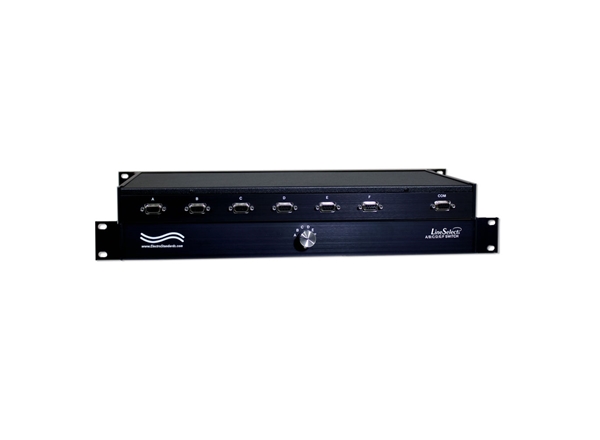

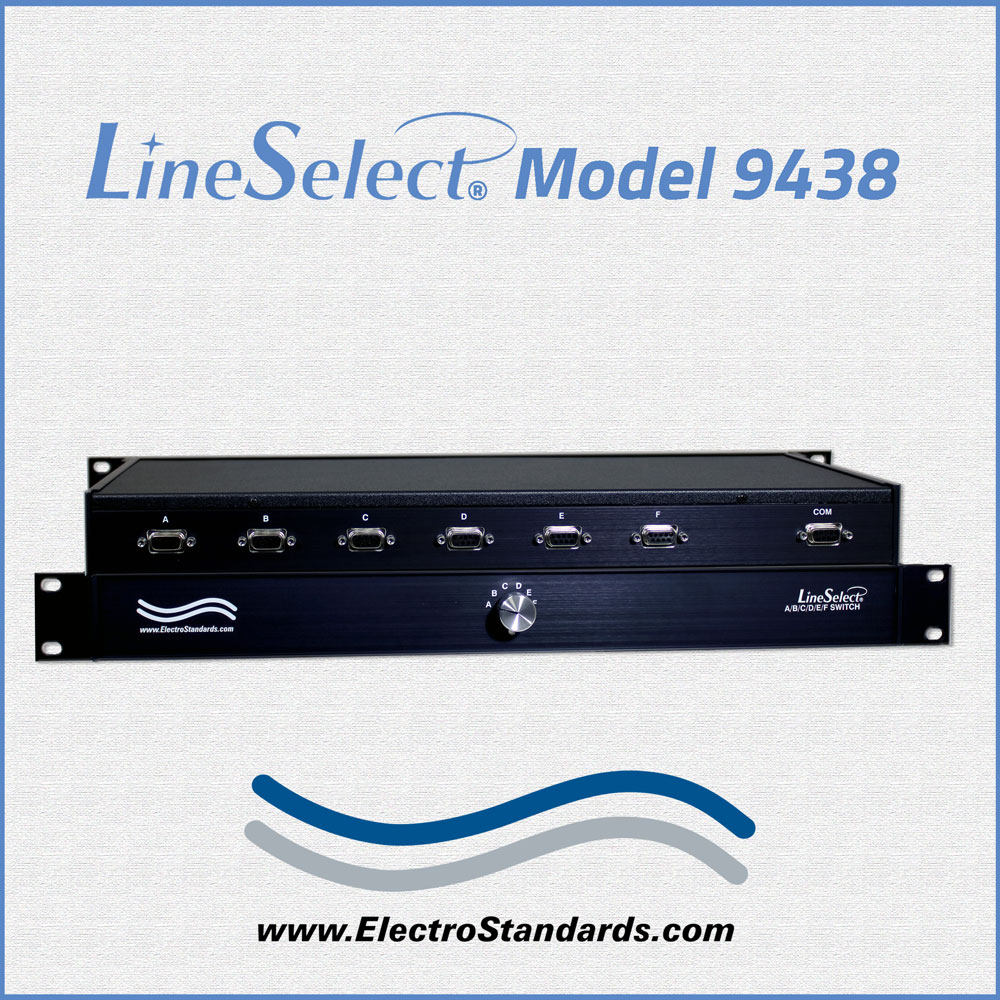

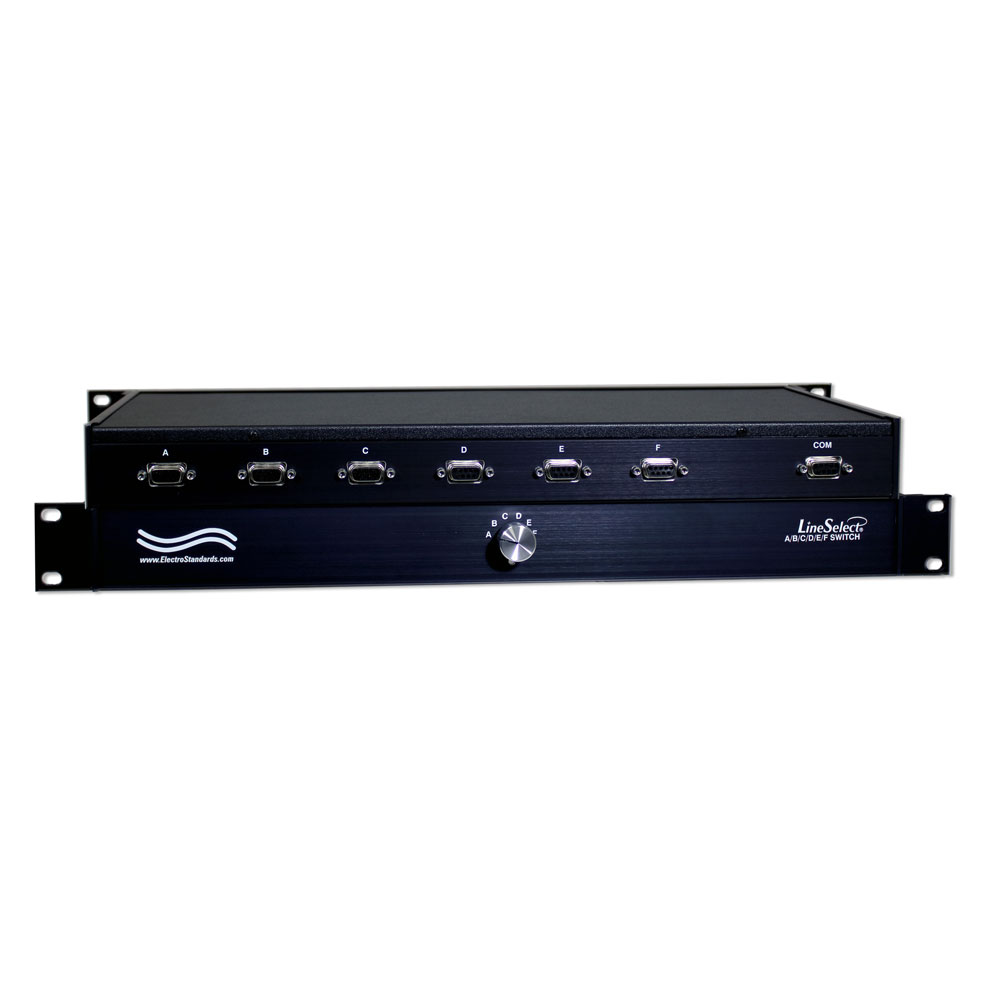

**The LineSelect® Model 9438** DB9 A/B/C/D/E/F Switch allows the user to reroute data between any one of six devices to one COMMON device with the simple rotation of a selector switch. All nine pins of the DB9 interface are supported. No need to plug and unplug interconnection cables thereby eliminating connector wear and/or errors when reconfiguring networks. The LineSelect® Model 9438 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

Ideal for device-sharing applications; Applicable to ANY DB9 interface device

FEATURES OF THE MODEL 9483 DB9 ROTARY SWITCH:

Allows quick connection to any one of six devices from one COMMON port.
Manual operation via front-panel rotary switch.
High quality sealed switch with self-wiping precious metal contacts.
Eliminates the need to plug and unplug cables.
Transparent to data speed and format.
All 9 pins of the DB9 interface are switched via break-before-make rotary switch.
No external power required.
Attractive all metal black box packaging provides EMI/RFI shielding.
Custom length DB9 cables available for your switch installation.
Lifetime warranty against manufacturing defects.
For a 4- port switch with DB9 Male ports, See Model 9435, Cat. No. 309435.

TECHNICAL SPECIFICATIONS:

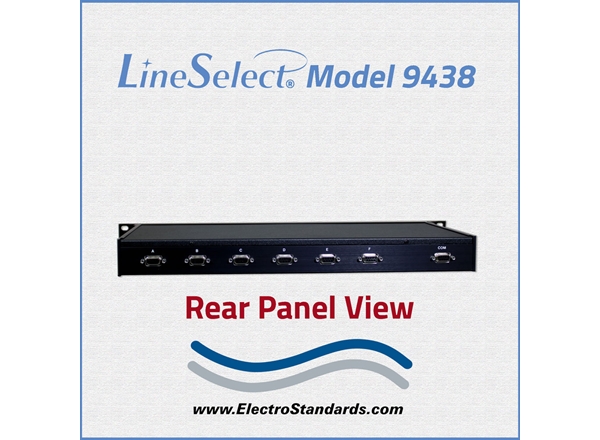

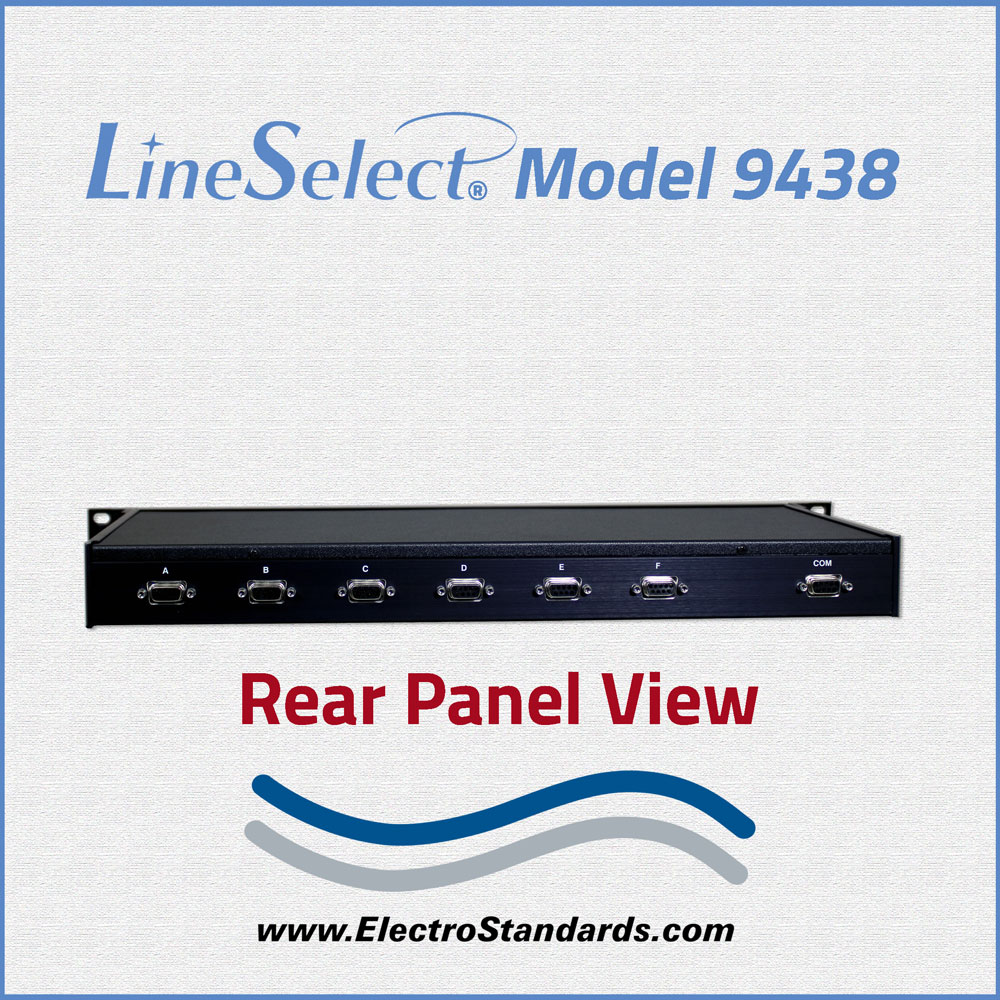

PORT CONNECTORS: (7) DB9 female connectors on rear panel labeled A, B, C, D, E, F and Common.

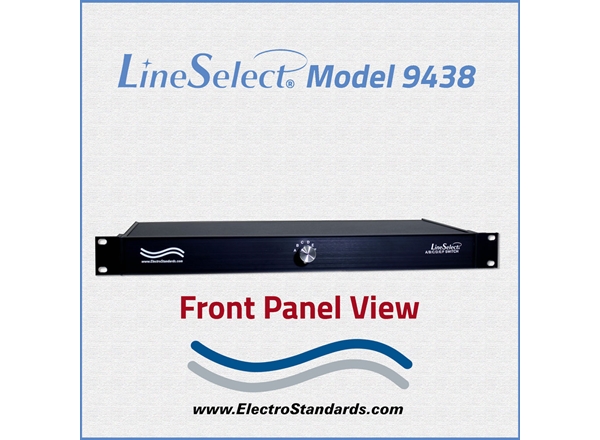

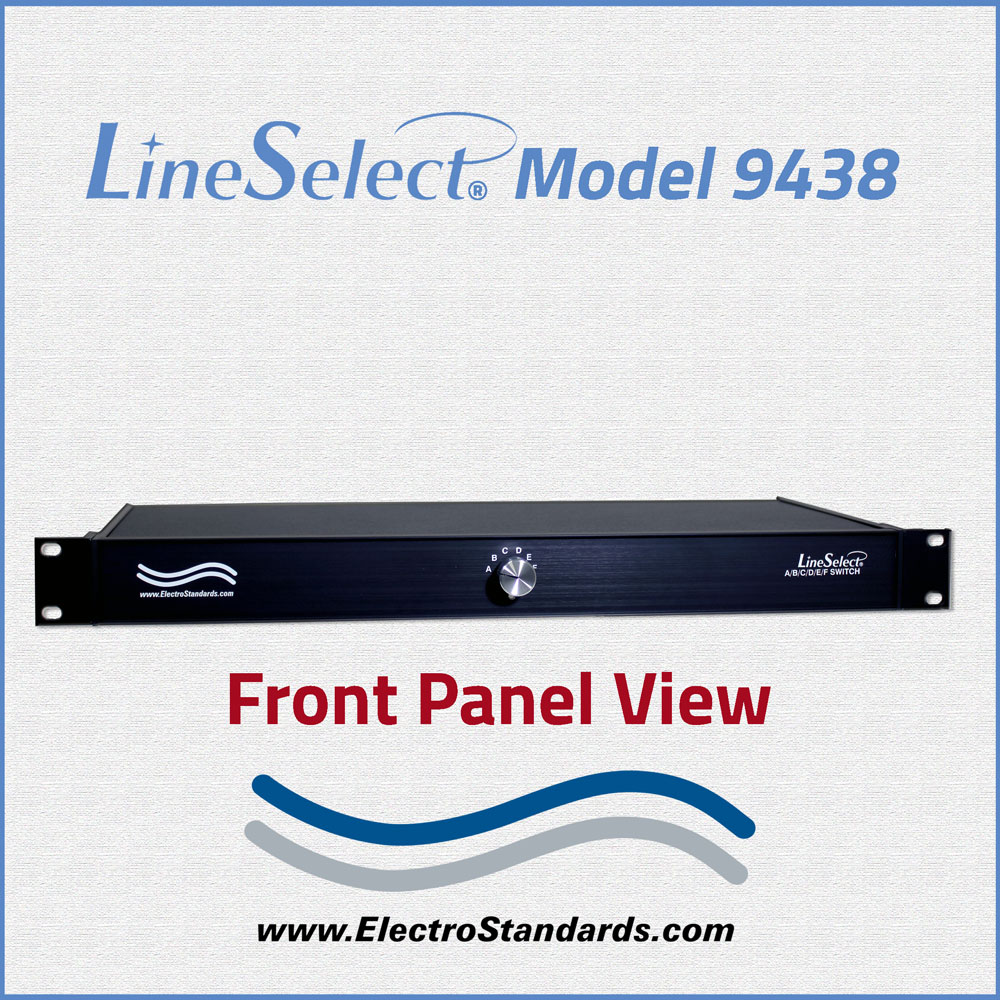

FRONT PANEL CONTROL: (1) Rotary switch on front panel selects A, B, C, D, E, or F.
POWER: No power required. Manually operated.
DIMENSIONS: 18.84" W x 1.72" H x 8.81" D. (48.3 X 4.5 X 22.4 cm)
WEIGHT: Approximately 4.2 lbs. (1.9 kg)

DB9 Female 4-Position Application:

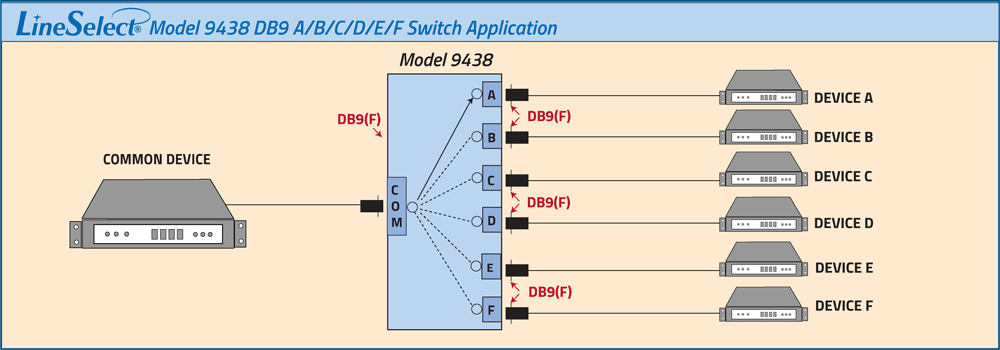

The drawing illustrates a COMMON device connected to the DB9 Female COMMON port with access to any one of six DB9 interface devices connected to the DB9 Female ports A, B, C, D, E, and F. The COMMON Device has access to one Device at a time.

Network Application Diagram for Model 9438 DB9 Manual Network Switch, Rotary Switch LineSelect® Model 9438 DB9 A/B/C/D/E/F Switch, Manual Rackmount

Ordering Information

Catalog Number: 309438
Model Number: 9438
Base Price: See website or contact us for current pricing and availability.

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

Don't forget to order your DB9 Cables!

Custom Length DB9 cables available for your switch installation. State cable length in Feet when ordering.
Part Number	Description
990127	DB9 F/F, 9-Conductor Unshielded PVC Cable
990125	DB9 M/F, 9-Conductor Unshielded PVC Cable
990126	DB9 M/M, 9-Conductor Unshielded PVC Cable
