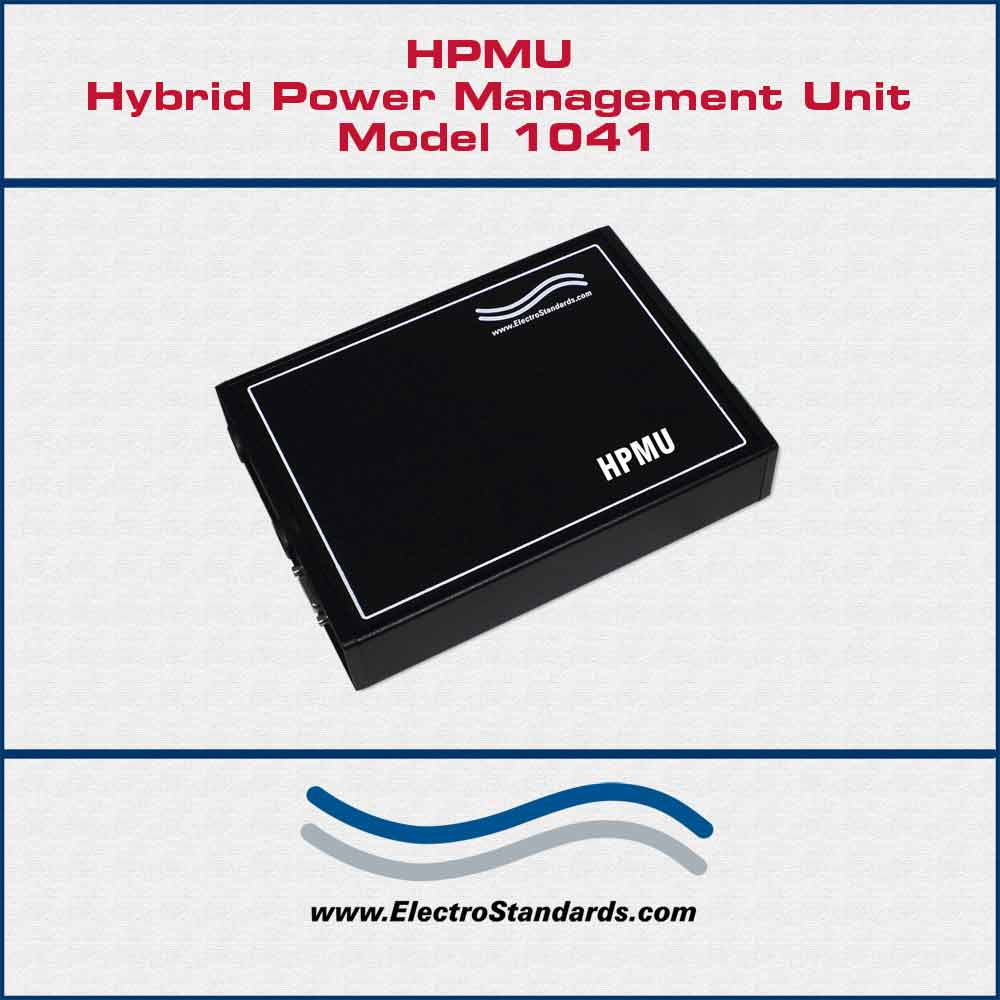

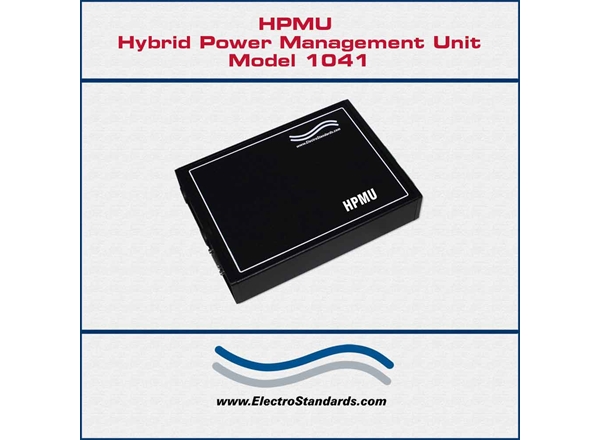

Hybrid Power Management Unit (HPMU), 1500 LIC, Model 1041, Catalog #301041

    Hybrid Power Management Unit
Click image to enlarge
Base Price:
Call for Price
Catalog No: 301041
Model No: 1041

  • Hybrid Unit allows Battery Life to be Extended
  • Applicable to Portable Communications Devices
  • Military Communications & Other Applications

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request

Hybrid Power Management Unit (HPMU), 1500 LIC

  • The Model 1041 Hybrid Power Management Unit combines the strength of a high-power capacitor and a high energy battery.


  • Supports 12V nominal battery systems and provides 12V or 24V output
  • Nominal load pulse support for 60 seconds @ 100W. Contains a 1500F Lithium Ion Capacitor (LiC).
  • Supports bidirectional operation allowing pulsed power into and out of HPMU system 1
  • Hybrid technology scalable in terms of peak power and pulse duration support to suit customer needs.
  • Non-Lithium Super Capacitor options available if required.
  • Compatible with wide variety of COTS and custom battery systems.
  • Reusable to support the lifetime operation of many primary and secondary type battery systems.
  • Custom systems are available to meet specific peak power and pulse duration requirements.

Hybrid Power Management Concept

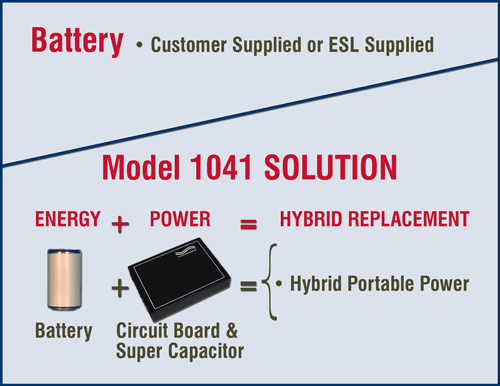

Model 1041 Hybrid Operation Diagram


 The Model 1041 Hybrid Power Management Unit combines the strength of a high-power capacitor and a high energy battery. A power management board integrates the two energy-storage devices and provides the user with a light-weight, high performance, and safe power source.  This hybrid technology greatly benefits pulsed power load systems that are typically supported by “battery-only” systems. Battery technologies are inherently energy dense systems with limited power capability. Where energy transfer to the load is equal, primary and secondary chemistries have shown reduced performance when subjected to pulsed loading as compared to operation at low constant rates. Primary chemistries exhibit reduced discharge time or usable capacity while secondary chemistries suffer from both reduced usable capacity as well as reduced cycle life. The hybrid technology pairs the energy dense battery system with the power dense ESL Hybrid Power Management Unit (HPMU) to improve overall system performance. The HPMU contains ESL’s hybrid power management circuitry and a high-power Super Capacitor (SCap) element. The HPMU enables the battery system to operate at a reduced rate supporting the baseline load and the recharge of the SCap while the SCap is utilized to support peak pulse requirements of the load. The result is improved lifetime, reduced battery heating, and extended cycle life of the battery system.

Application to Portable Systems and Devices

The Model 1041 Hybrid Power Management Unit is particularly applicable to portable communication devices. When battery power alone cannot meet power requirements, the batteries are stressed beyond their limits. The hybrid power unit allows batteries to operate at lower current level so that the operation can be achieved and the battery life is extended. Once the batteries are exhausted, they can be replaced, while the hybrid unit can be used again, repeatedly. The hybrid unit contains a 1500F LiC. The battery is sold separately allowing use of a customer supplied battery. Time extensions will vary with power requirements. Custom systems are available to meet specific power extension requirements.

Military Communications and Other Applications

Currently, extensive work has been done supporting military communications load profiles such as SATCOM (1min @ 100W, 9min @ 12W) and SINCGARS (1min @ 20W, 9min@ 6W). Additionally, the HPMU has been integrated into unmanned underwater vehicles hybridizing the thruster load used for station keeping or depth control which experiences pulsed loading on the order of 100W to 150W. Further applications with larger systems upwards of 250kW which use the lithium ion capacitors in a different hybrid architecture to provide load leveling support have been successfully completed.

Additional Capabilities and Uses

Existing system design supports nominal 12V battery systems as input with 12V or 24V output support. 60s @ 100W possible over full LiC voltage range. Higher power is possible over shorter pulse widths (shorter LiC operating voltage range). Supports bidirectional operation in which the system is able to regulate the battery during pulsed power loads and also when absorbing pulsed power from external sources. Note the hybrid technology is scalable to accommodate different sized systems in terms of energy and power required. The nominal 100W system provides the opportunity for hybridizing the intended battery chemistry/technology in a subscale setting for performance evaluation before moving to the full-sized system.


Electrical Specifications

  • Input:
    •  Voltage: 12V (Range: 10V – 17V)
    • Current: 2.0A (10A MAX)
  • Output:
    • Voltage: 12V or 24V Operation
    • Current: 10A MAX
  • Power
    • 100W Nominal
    • Higher Power Possible at Shorter Durations (See Figure 1 & 2)
  • Energy Storage
    • 1500F Lithium Ion Capacitor (Super Capacitor)
  • Mechanical Specifications
    • Weight: 0.45kg (1lb)
    • Dimensions: 125mm X 110mm X 35mm (4.92in X 4.33in X 1.38in)
  • Connectivity
    • Power Interface
    • Connector: SC-C-179495 (BB2590 Female Connector)
    • Cabling: HPMU Battery to Load Cable (Parallel), (ESL PN: 989960)
    • HPMU Battery to Load Cable (Single) (ESL PN: 989959)
  • Serial Communications
    • Connector: Micro DB-9
  • Cabling
    • HPMU Serial Communications Cable (ESL PN: 989881)
  • User Interface
    • Switches
    • Load Connect
    • 12V/24V Operation
    • HPMU Enable
  • LED Indicators
    • Green LED – Operating Mode Indicator
    • Red LED – Data Logging Status

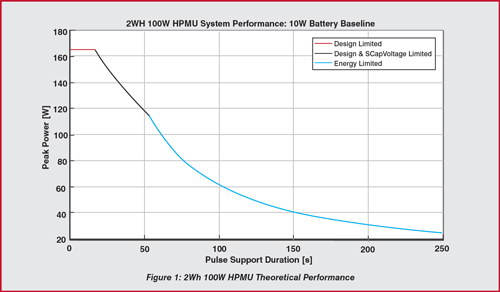

2Wh 100W HPMU System Performance: 10W Battery Baseline

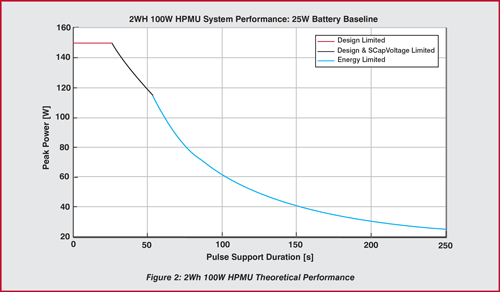

2WH 100W HPMU System Performance: 25 W Battery Baseline

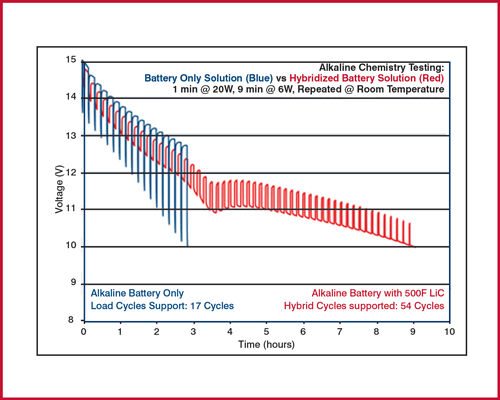

Alkaline Chemistry Test

  • Battery Only solution (Blue) versus Hybridized Battery Solution (RED).
  • 1 min @20W, 9 min @ 6W, Repeated @ Room Temperature
  • Alkaline Battery Only Load Cycles Support 17 Cycles.
  • Alkaline Battery with 500F LiC Hybrid Cycles supported 54 Cycles.

Alkaline Chemistry Test

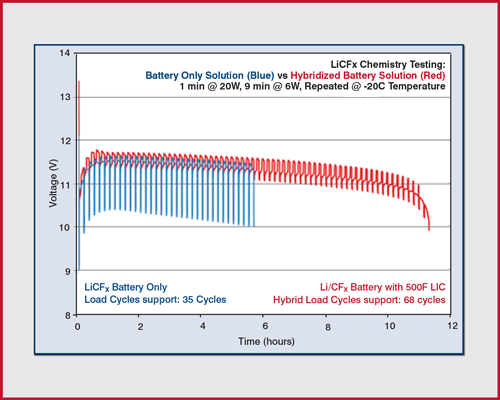

LiCFx Chemistry Test

  • Battery Only solution (Blue) versus Hybridized Battery Solution (RED).
  • 1 min @20W, 9 min @ 6W, Repeated @ -20C Temperature
  • LiCFx Battery Only Load Cycles Support 35 Cycles.
  • LiCFx Battery with 600F LiC Hybrid Cycles supported 68 Cycles.

LiCFx Chemistry Test

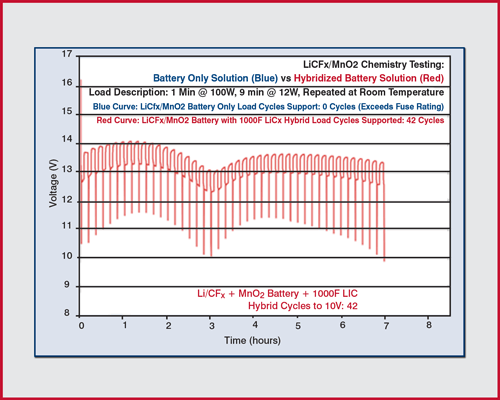

LiCFx/MnO2 Chemistry Test

  • Battery Only solution (Blue) versus Hybridized Battery Solution (RED).
  • Load Description: 1 min @ 100W, 9 min @ 12 W, Repeated at room temperature
  • Blue Curve: LiCFx/MnO2 Battery only load cycles support 0 (Exceeds Fuse Rating)
  •  Red Curve: LiCFX/MnO2 Battery with 1000F LiCx Hybrid Load Cycles Supported: 42 Cycles.

LiCFx/MnO2 Chemistry Test
