ESL Pathway Model 7305C Cat5e Single Channel Remote Voltage Control Network Switch with RoHS & CE Compliance

December 6, 2022

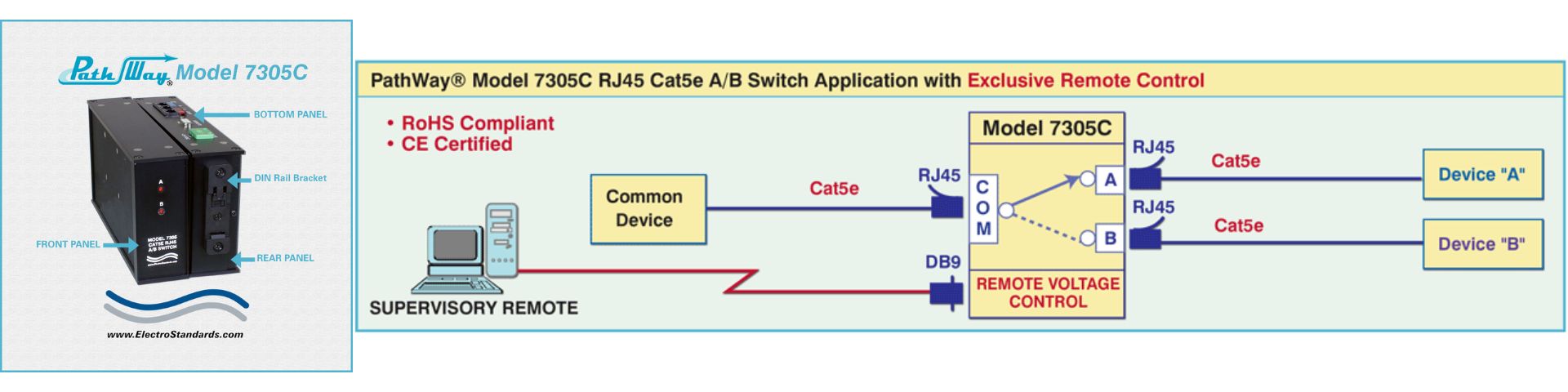

The highly skilled design engineers at Electro Standards Laboratories of Cranston, RI, have launched their Pathway Model 7305C Single Channel RJ45 Cat5e A/B Switch with Exclusive Remote Control. This single channel A/B Switch allows for rapid connection to any one of two RJ45 devices from one COMMON device.

This Model 7305C is exclusively controlled remotely with no front panel control. Its remote voltage control provides low power dry contact logic to allow the control of the switch position. All 8 pins of the RJ45 interface are switched via break-before-make electromechanical relays and the Switch reverts to A position on power loss, continuing to pass data. Upon power up, the unit switches based on the state of the Remote port and the front panel LED’s display switch position and power status. There is no need to plug and unplug cables because of its exclusive remote control.

The Model 7305C is both RoHS compliant and CE certified, making it an extremely reliable single channel A/B switch. The Switcher is enclosed in metal, black box packaging to provide EMI/RFI shielding and its custom length RJ45 cables are available for convenience of switch installation.

The Model 7305C switch electronics are neatly enclosed in a DIN rail mount package with dimensions of 1.75” Wx4.3” H x8.3” D (4.4 x 11.0 x 21.1 cm) and weighs approximately 1.4 lbs (0.4 kg). Its configuration makes it easy to install in new or newly constructed walls. This 7305C Model unit has a year long warranty against any manufacturing defects and its enclosure in an all metal, black chassis is designed to provide EMI/RFI shielding and mount easily on a standard DIN Rail. The network switch is built for quick connection in process control systems and its remote control makes it easier to use.

For more information on the 7305C, visit https://www.electrostandards.com/catalog-307305c-model-7305c-rj45-cat5e-ab-switch-exclusive-remote-control-din-rail-rohs.html. Electro Standards’ staff of sales engineers can be reached at 401-943-1164 or via email at eslab@electrostandards.com
