Catalog # 309214 - Model 9214 Module Rack Feedthrough Patch Panel, 4 RJ45 Cat5e Ports

    Model 9214 Module Rack Feedthrough Patch Panel, 4 RJ45 Cat5e Ports
Click image to enlarge
Base Price:
$141.00
Catalog No: 309214
Model No: 9214

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Model 9214 Module Rack Feedthrough Patch Panel with Four RJ45/RJ45 Cat5e Ports, Catalog No. 309214

SPECIFICATIONS

  • PORT CONNECTORS: (4) RJ45/RJ45 Cat5e (F/F) feedthrough connectors.

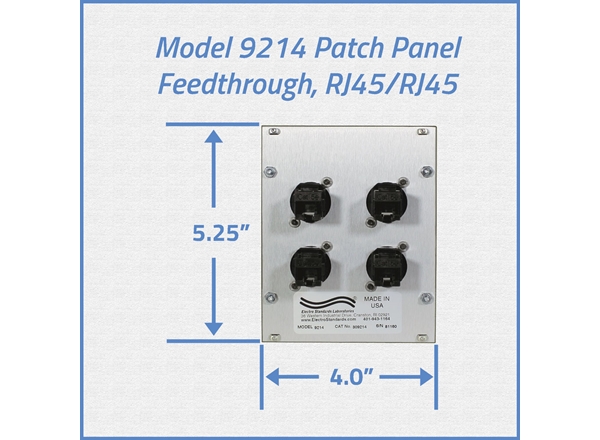

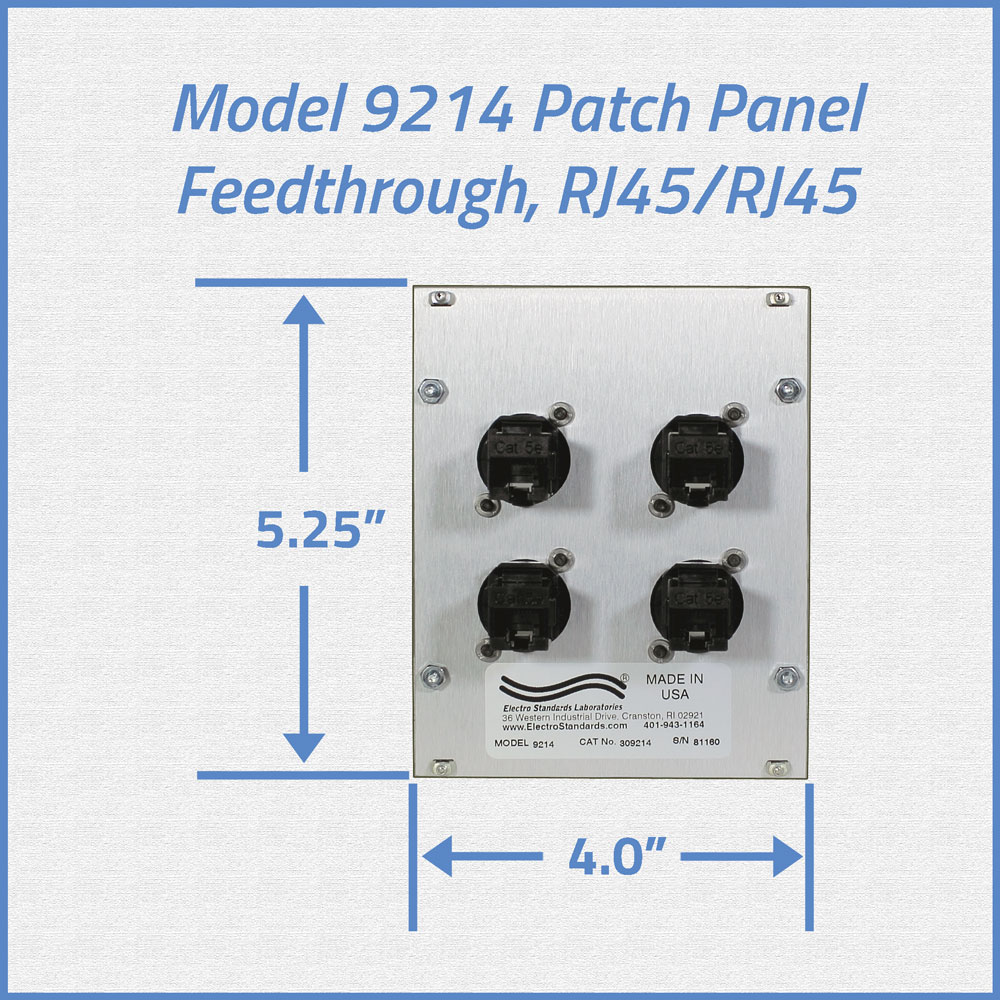

  • DIMENSIONS: Module 4.0"W x 5.25" H.
  • APPLICATION: For use with Model 9025, Cat No 305972 Rackmount Chassis.

Model 9214 (P/N 309214) RJ45/RJ45 Feedthrough Patch Panel is designed to mount in the Model 9025, Cat. No. 305972 Rackmount Chassis.  It occupies 4.0 inches of panel width and provides four feedthrough RJ45 ports.

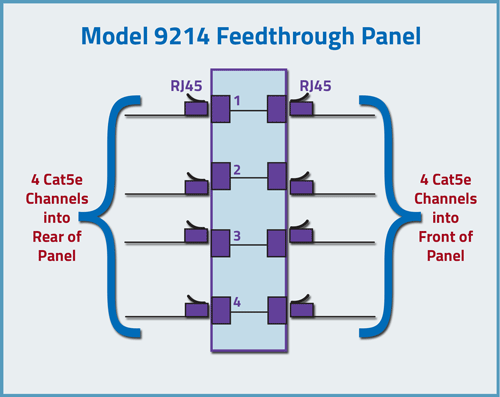

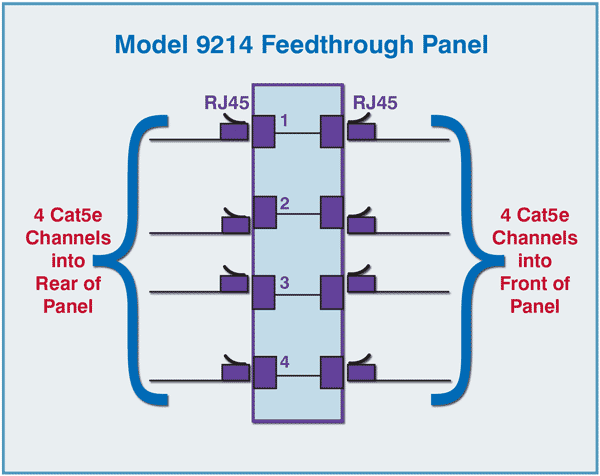

Model 9214 Patch Panel Feedthrough Application

FEATURES:

  • Provides four ports of RJ45 Cat5e feedthrough.
  • The feedthrough connections are of high quality to withstand numerous install/remove cycles Ethernet cables from the front side.
  • Certified for Cat5e compliance.
  • Quickly, easily install in Model 9025 Rackmount Chassis along with switch modules and filler panels.
  • Attractive brushed aluminum finish.
  • Lifetime warranty against manufacturing defects.



Model 9025 Rackmount Chassis for Switch Modules, Feedthrough Patch Panels, and various Filler Panels Features:

  • Rack Size: 19" W x 5.25" H x 7" D. (48.3 x 13.3 x 17.8 cm)
  • Full opening for modules is 16.8" W. (42.7 cm)

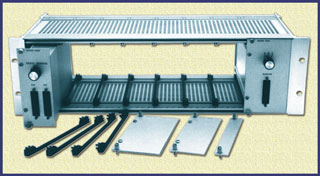

Model 9025 Rack Chassis illustrated with a 2" filler panel Model 9008 and Module Guides. Other filler panel sizes are available!

Optional:

  • Module rack filler panel, 2.0" W, Cat No 305983 - Model 9008.
  • Module rack filler panel, 0.8" W, Cat No 305981 - Model 9011.
  • Other filler sizes available.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
