LineSelect® Model 8268 DB25 A/B Switch, Manual Operation via Keylock, Custom Wired, Desktop

Overview

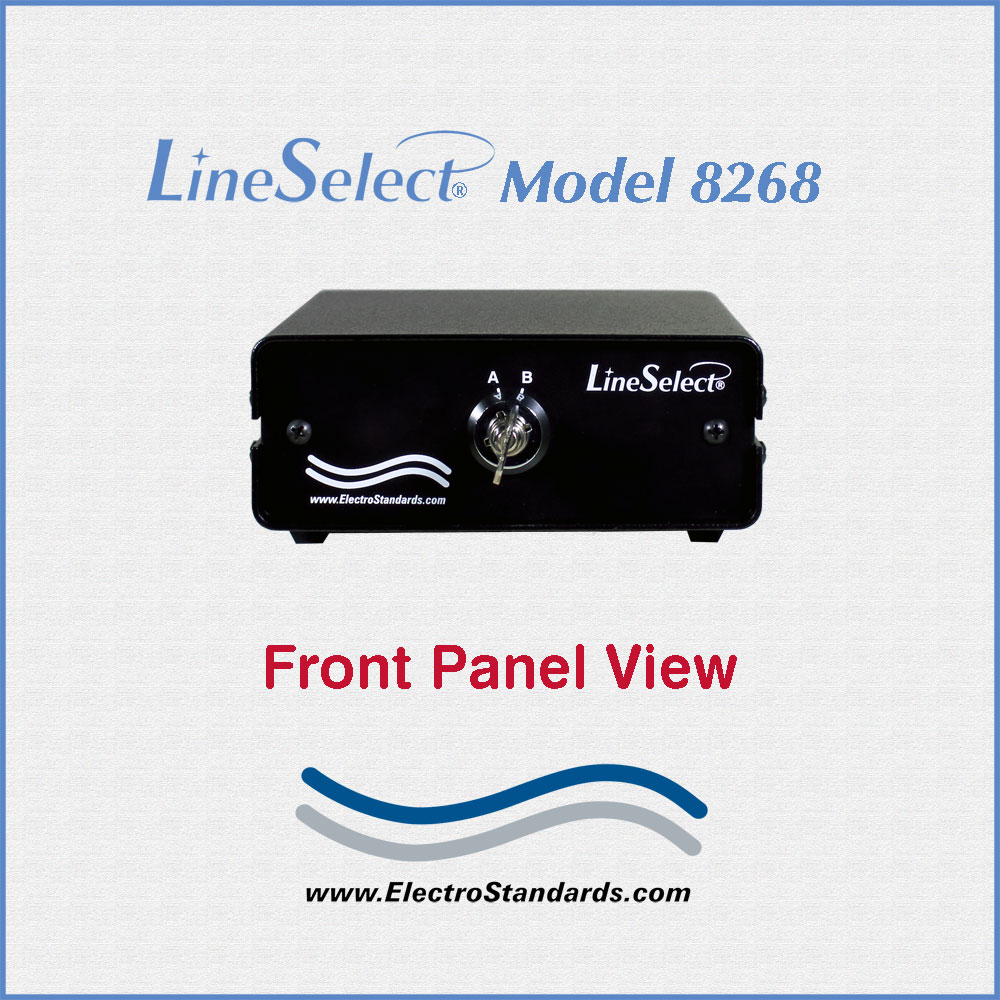

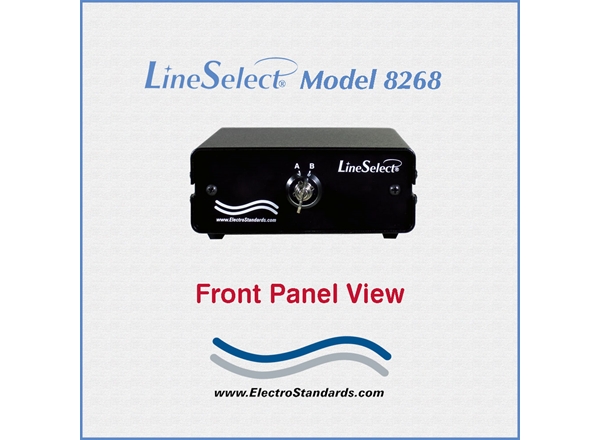

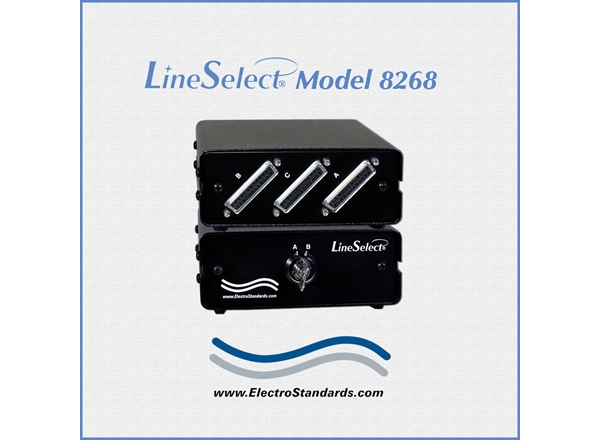

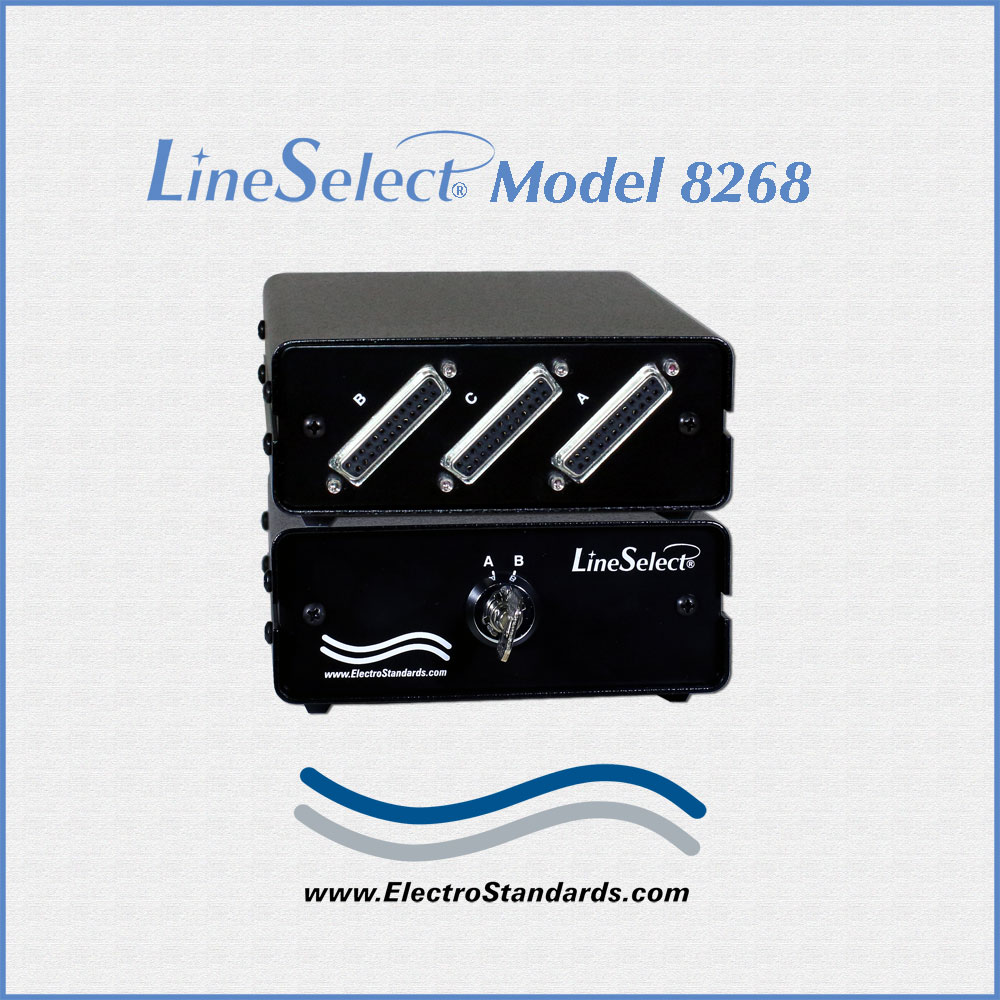

The LineSelect® Model 8268 DB25 A/B Switch allows the user to access to DB25 devices connected to the A and B ports from one DB25 COMMON port. Switching between devices A and B is quick and easy via the front-Panel Keylock switch. The LineSelect® Model 8268 is packaged in a slim desktop style enclosure.

  • Key Operated Control Provides Secure A/B Switching.

  • Robust, High Integrity Switch.

  • No Power Required.

FEATURES OF THE MODEL 8268 MANUAL KEYLOCK SWITCH:

  • Allows access to two networks from one computer or workstation.
  • High reliability sealed switch with self-wiping precious metal contacts.
  • Eliminates the need to plug and unplug cables.
  • No external power required.
  • Transparent to data speed and format.
  • Manual operation via front panel keylock switch.
  • Key is captive in position B.
  • Key can only be removed in the A position
  • Switches (24) pins of the DB25 interface.
  • Pin 1 and pins 3 thru 25 are switched via a break-before-make keylock switch.
  • Pin 2 is tied common to all ports and is not switched.
  • Attractive anodized aluminum black box packaging provides EMI/RFI shielding.
  • Custom length DB25 cables available for your switch installation.
  • Lifetime guarantee against manufacturing defects.

TECHNICAL SPECIFICATIONS:

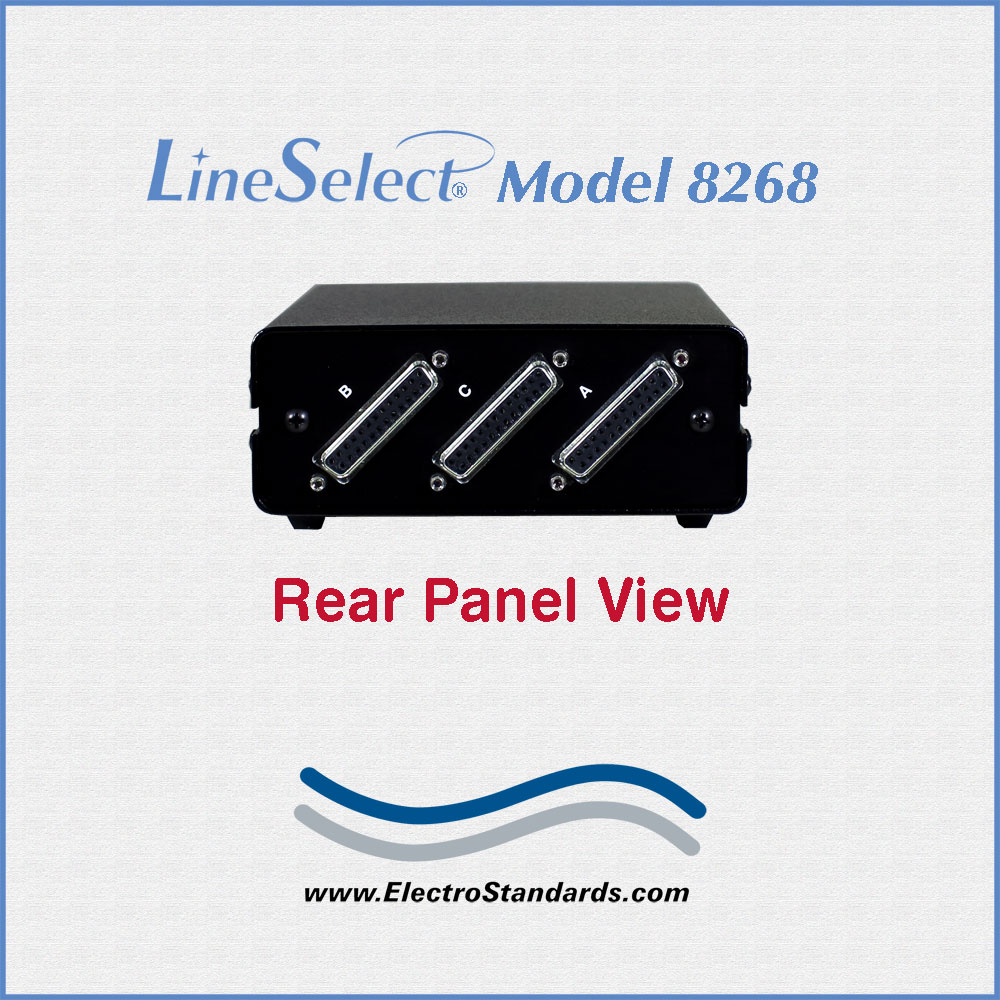

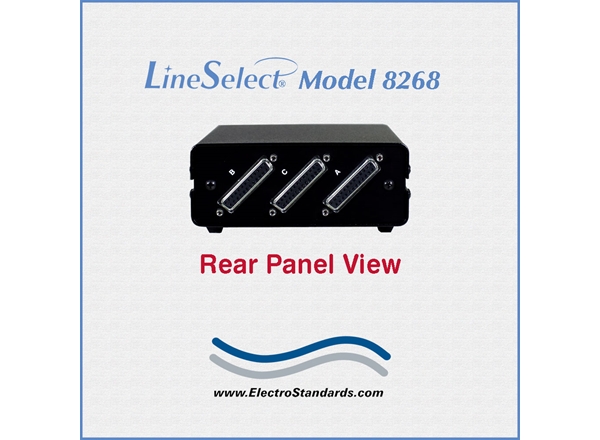

  • PORT CONNECTORS: (3) DB25 female connectors labeled A, B, and C (for COMMON).
  • FRONT PANEL CONTROLS: (1) Keylock Switch allows local switching. Unit includes two keys.
  • POWER: Manually operated. No power required.
  • DIMENSIONS: 5.44” W x 2.02” H x 7.27” D. (13.9 x 5.2 x 18.5 cm)
  • WEIGHT: Approximately 1.5 lb. (0.7 kg.)
  • Operating & Storage Temp: -10° C to 60° C.
  • Humidity: 0 - 95% Relative Humidity, non-condensing.
  • Life Test: 10K Cycles, no load, contact resistance <50 milliohms.

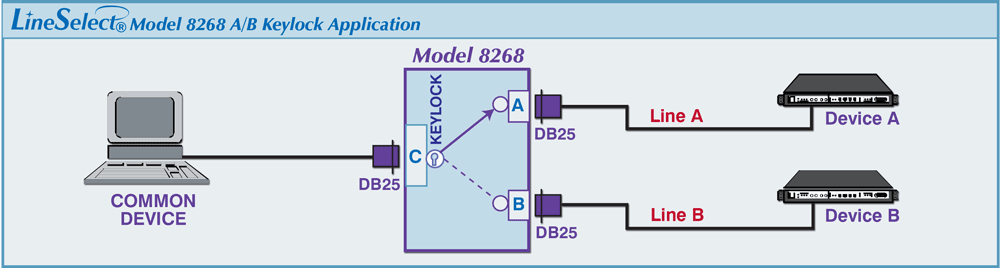

LineSelect® Model 8268 DB25 A/B Switch Application: Front-Panel Keylock Switch, Custom Wired

The COMMON Device is connected to the DB25 C Port with access to two devices connected to the A and B ports, respectively. the Front panel is controlled by a Keylock Switch.

LineSelect® Model 8268 DB25 AB Switch, Front Panel Keylock, Custom Wired application

Ordering Information

  • Catalog Number: 308268
  • Model Number: 8268
  • Base Price: See website or contact us for current pricing and availability.

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.
