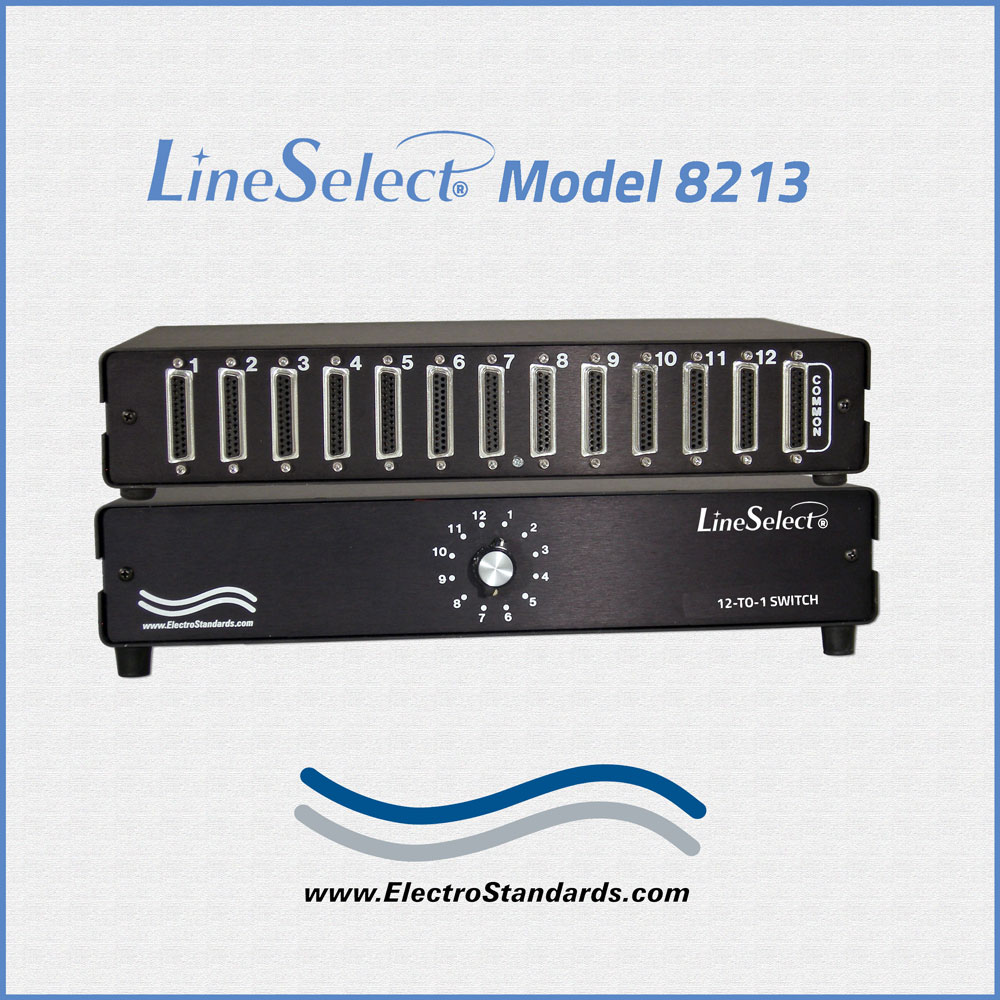

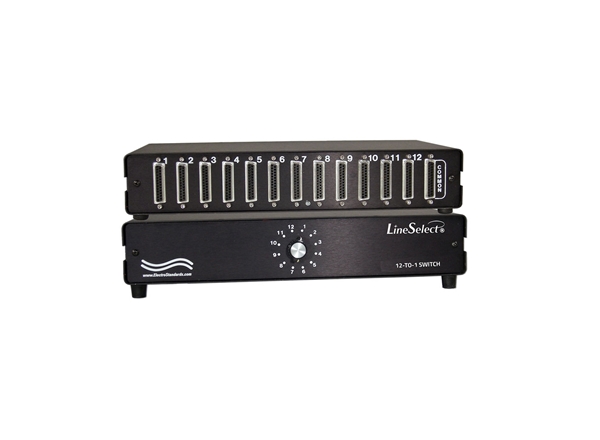

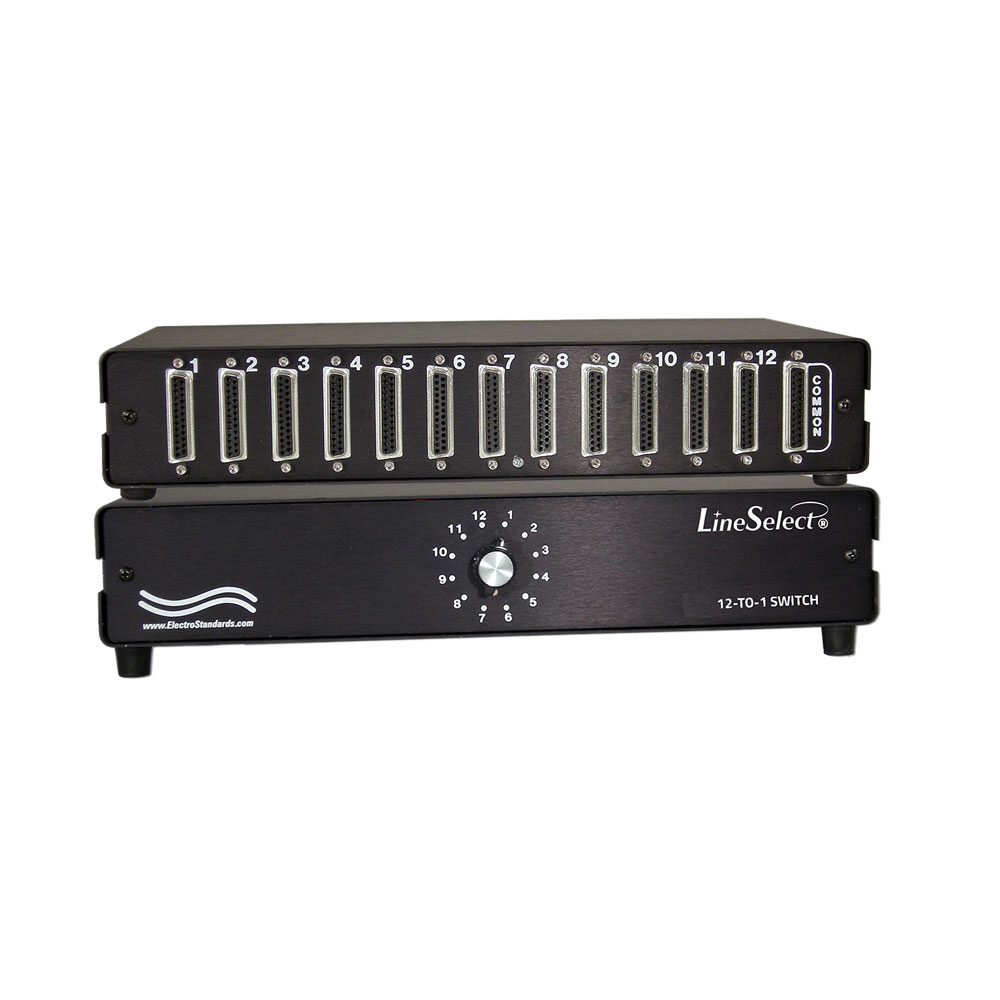

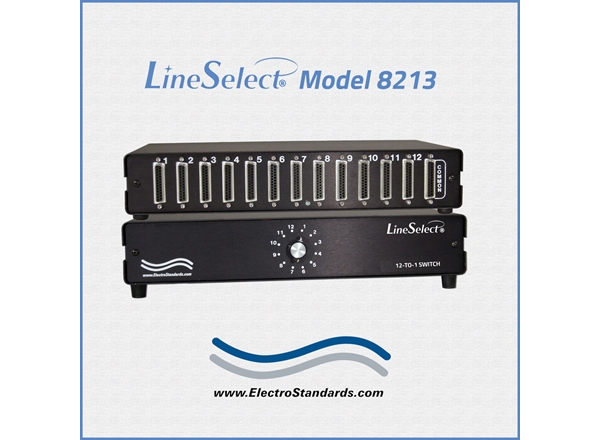

Model 8213 DB25 RS232 12-Position Switch, Manual Operation, Catalog# 308213

    DB25 12-Position SwitchDB25 12-Position Switch
Click image to enlarge
    • DB25 12-Position Switch
    • DB25 12-Position Switch
Base Price:
$994.00
Catalog No: 308213
Model No: 8213
Product Type:Switches: Copper
Positions:12
Cable Type/Port Connector:DB25 Switch Ports
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Configuration:Desktop
Pins Switched:1 thru 8 and 20
Local Control:Rotary Knob

Add to Cart

*Switches pins 1 through 8 and 20 of the DB25 Interface.

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

LineSelect® Model 8213 Twelve-Position DB25 RS232 Switch, Desktop, Manual Operation

Overview

The LineSelect® Model 8213 Twelve-Position DB25 RS232 Switch allows the user the capability of sharing a DB25 interface device connected to the “COMMON” port among twelve other devices connected to the ports labeled 1 thru 12.

  • Quickly, Easily, Reliably Select Any One of Twelve RS232 Devices.

  • Increases network efficiency by facilitating sharing of peripherals!

  • Field Proven, Highly Reliable!

FEATURES OF THE MODEL 8213 DB25 RS232 SWITCH:

  • Allows quick connection to any one of twelve DB25 RS232 devices from one COMMON device.
  • Manual operation via front-panel rotary switch.
  • High quality sealed switch with self-wiping low impedance contacts.
  • Switches Pins 1 through 8 and 20 of the DB25 Interface.
  • All (13) DB25 female ports located on the rear panel.
  • Transparent to data speed and format.
  • No external power required.
  • Eliminates the need to plug and unplug cables.
  • Improves computer network efficiency by allowing sharing of peripherals.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length DB25 cables available for your switch installation.
  • Lifetime guarantee against manufacturing defects.

TECHNICAL SPECIFICATIONS:

  • PORT CONNECTORS: (13) DB25 female connectors labeled 1 through 12, and COMMON.
  • FRONT PANEL CONTROL: (1) Rotary switch on front panel selects 1 through 12.
  • POWER: No power required. Manually operated.
  • DESKTOP ENCLOSURE: 13.5” W x 3.0”H x 8.0” D. (34.3 x 7.6 x 30.32 cm)
  • WEIGHT: 2.8 lbs. (1.3 kg)

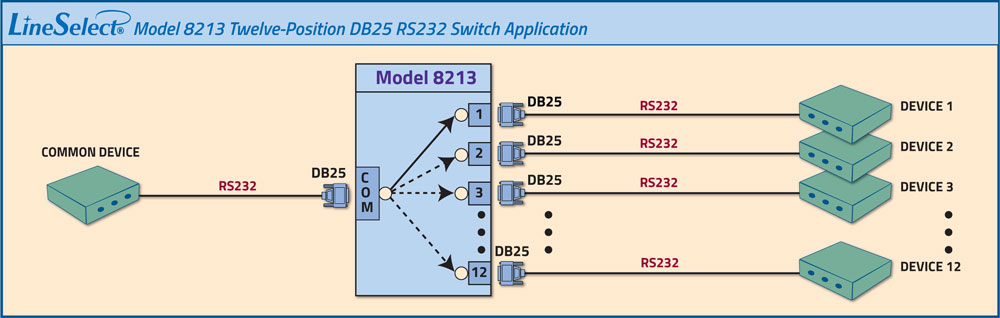

LineSelect® Model 8213 12-Position DB25 RS232 Application:

The drawing illustrates a COMMON DB25 interface device connected to the DB25 COMMON port with access to twelve other devices connected to the DB25 ports 1 through 12.
Connect between the COMMON device and any one of the 12 Devices at a time.

LineSelect Model 8213 Twelve-Position DB25 RS232 Switch Application

Ordering Information

  • Catalog Number: 308213
  • Model Number: 8213
  • Base Price: See website or contact us for current pricing and availability.

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.

Shipping and Returns           UPS

  • Shipped via UPS ground (unless otherwise requested).
  • Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
  • Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

Custom Network Switches are available. Contact us by phone, email, or complete the Online Custom Products Form, by clicking here.

Electro Standards can supply all your Network Cable requirements. Click here to reach our Copper Cable Assemblies Webpage.

All ESL Secure Offline Switches are available for export.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
