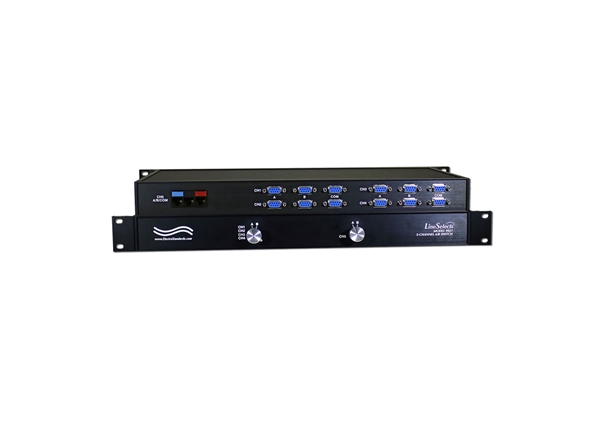

309927 Model 9927 4-Channel DB9 & 1 Channel RJ45 Cat5e A/B Switch

    4-Channel DB9 & 1 Channel RJ45 Cat5e A/B Switch4-Channel DB9 & 1 Channel RJ45 Cat5e A/B Switch4-Channel DB9 & 1 Channel RJ45 Cat5e A/B Switch
Click image to enlarge
    • 4-Channel DB9 & 1 Channel RJ45 Cat5e A/B Switch
    • 4-Channel DB9 & 1 Channel RJ45 Cat5e A/B Switch
    • 4-Channel DB9 & 1 Channel RJ45 Cat5e A/B Switch
Base Price:
$738.00
Catalog No: 309927
Model No: 9927
Feature:RJ45 Channel is Certified for Cat5e Compliance
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:RJ45, DB9 Switch Ports
Channels per Switch Chassis:5
Manual Control/No Power Required:LineSelect® Manual Operation
Channel Control:Simultaneous Channel Control, Independent Channel Control
Compliance/Standards:Cat5e
Configuration:Rackmount
Pins Switched:All 8 Pins of RJ45, All 9 pins of DB9
Local Control:Rotary Knob

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Multi Interface Copper Network Switches
Cat5e Manual Network Switch, RJ45, DB9

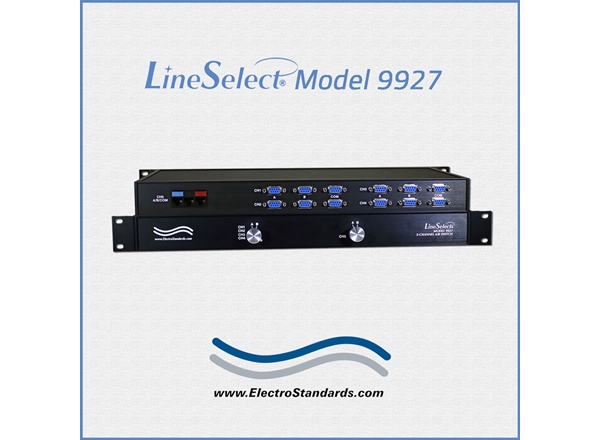

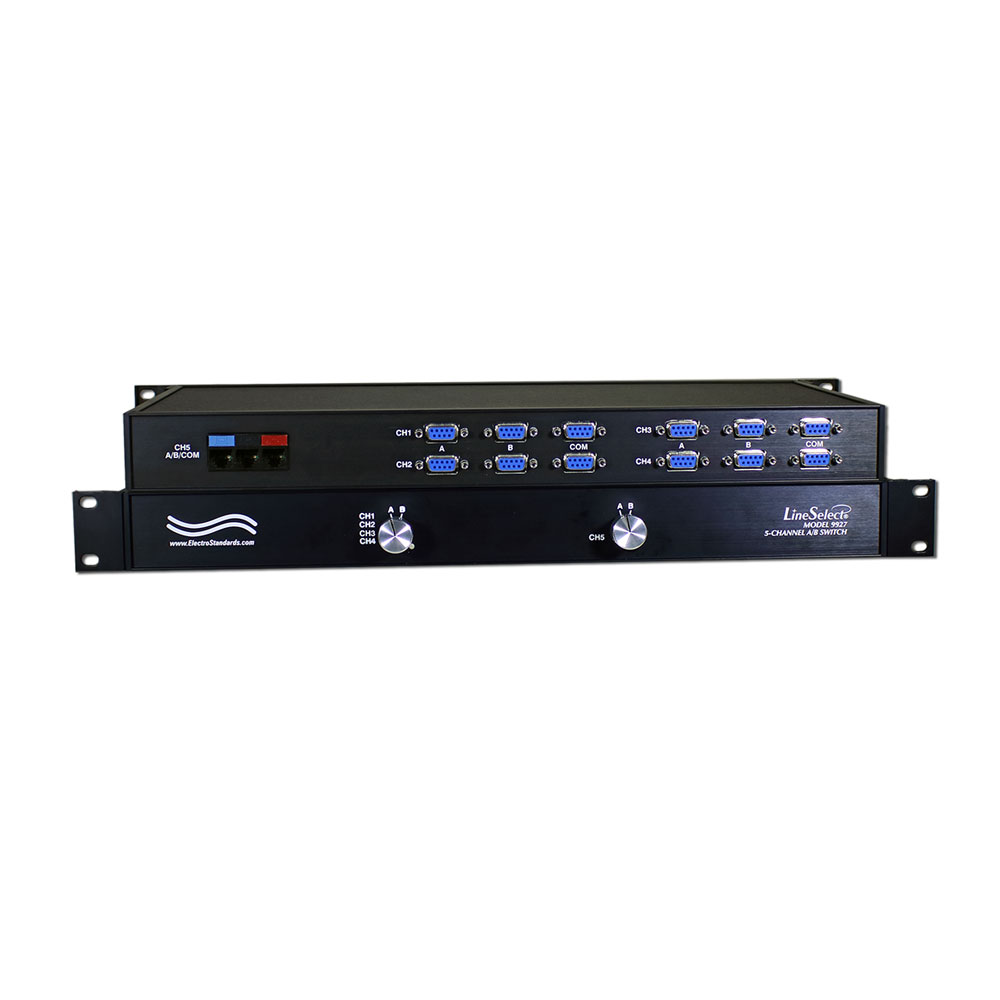

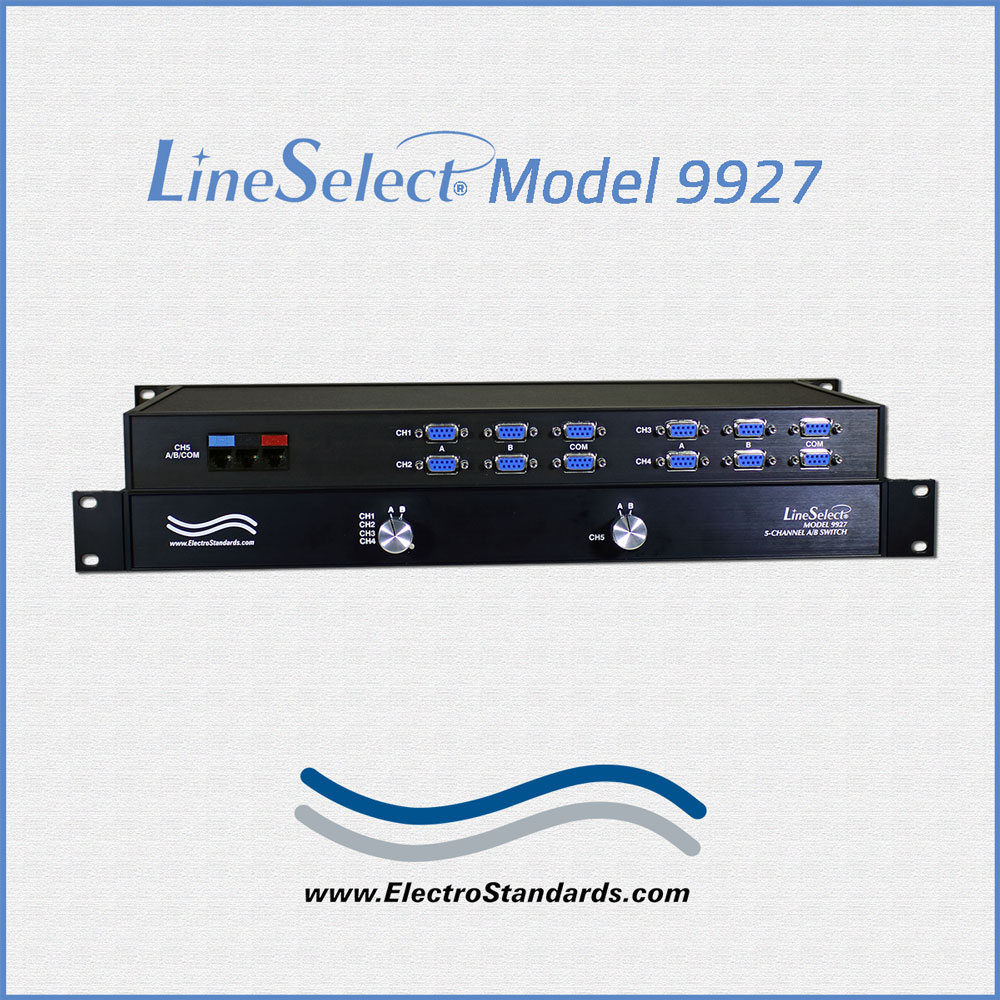

  • Model 9927 Five-Channel A/B Switch: Four-Channel DB9, Single Channel RJ45 Cat5e, Manual, Rackmount

  • Simultaneously switches four DB9 channels, Independently switches the single RJ45 Cat5e Channel

SPECIFICATIONS:

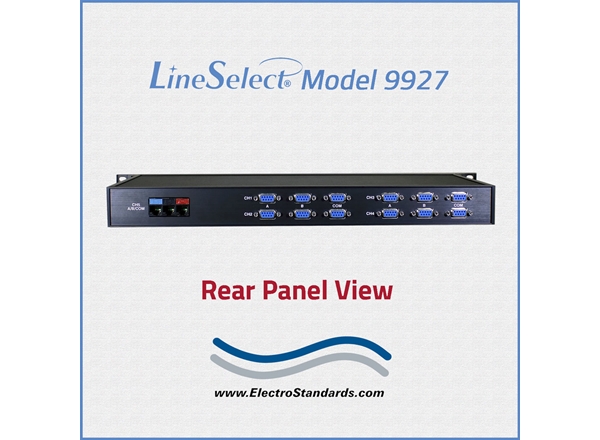

  • PORT CONNECTORS:

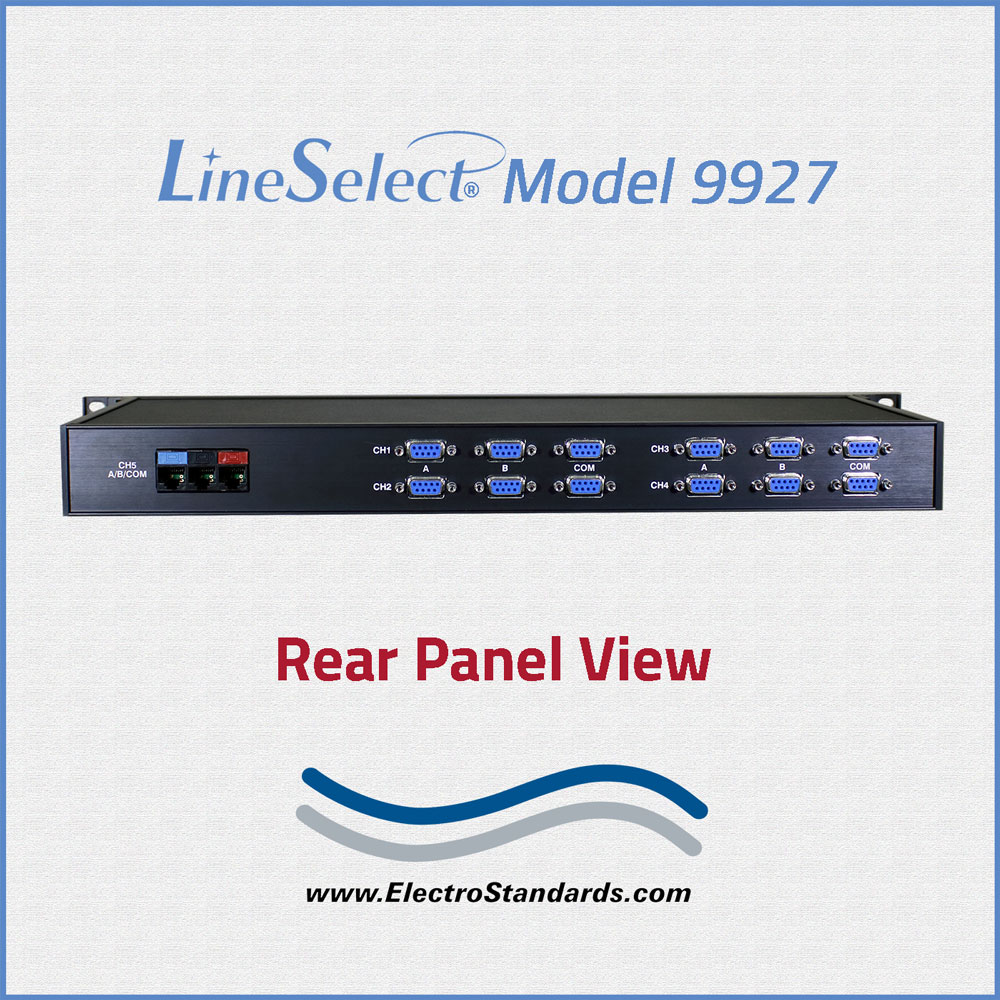

    • (3) DB9 female connectors labeled A, B, and COMMON for each of four channels.
    • (3) RJ45 female connectors labeled A, B, and COMMON for the one RJ45 channel.
  • FRONT PANEL CONTROL: (2) Rotary switches on front panel.
    • One knob for Channels 1, 2, 3 and 4 (DB9 interface).
    • The other knob switches Channel 5 (RJ45 Cat5e interface).
  • POWER: No power required.Manually operated.
  • DIMENSIONS: Rackmount configuration, 19.0" W x 1.75" H x 8.63" D. (48.3 x 4.5 x 22.1 cm)
  • WEIGHT: Approximately 4.3 lbs. (2.0 kg)

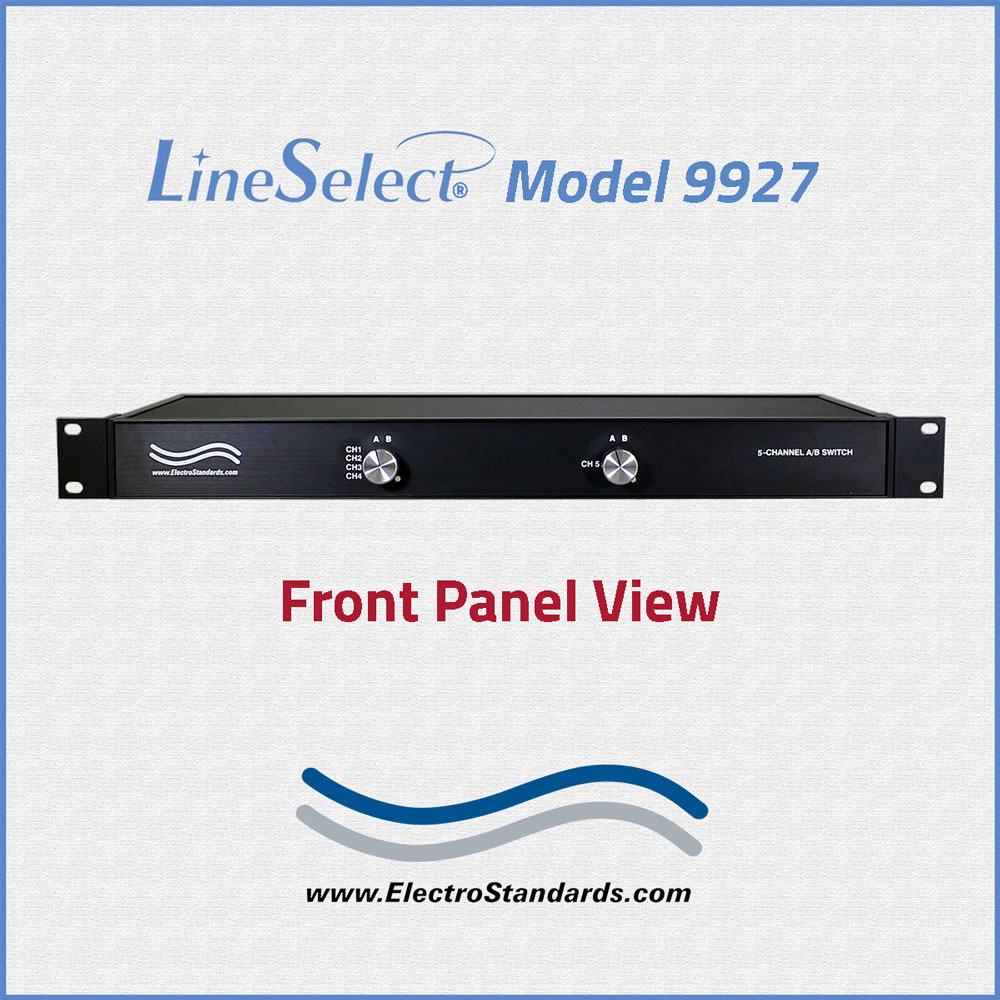

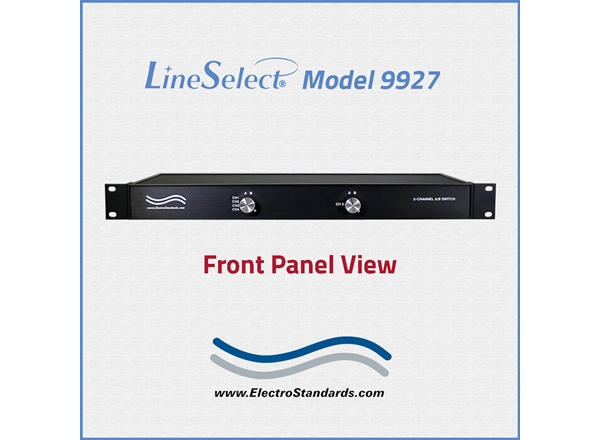

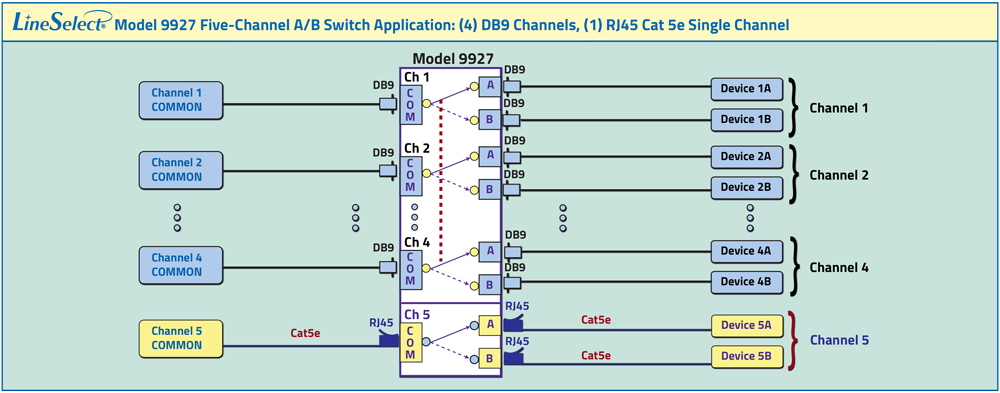

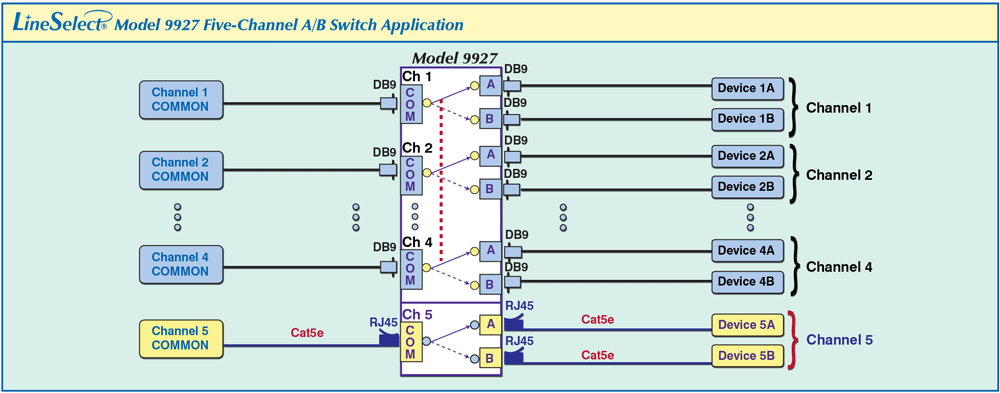

FIVE-CHANNEL A/B SWITCHING APPLICATION: The drawing illustrates five channels of A/B switching.

  • Four channels of DB9 A/B switching.
  • Simultaneously switch all four DB9 A/B switches between position A and position B.
  • A single channel of Cat5e RJ45 A/B switching.
  • Independently switch the Cat5e Channel between position A and B.

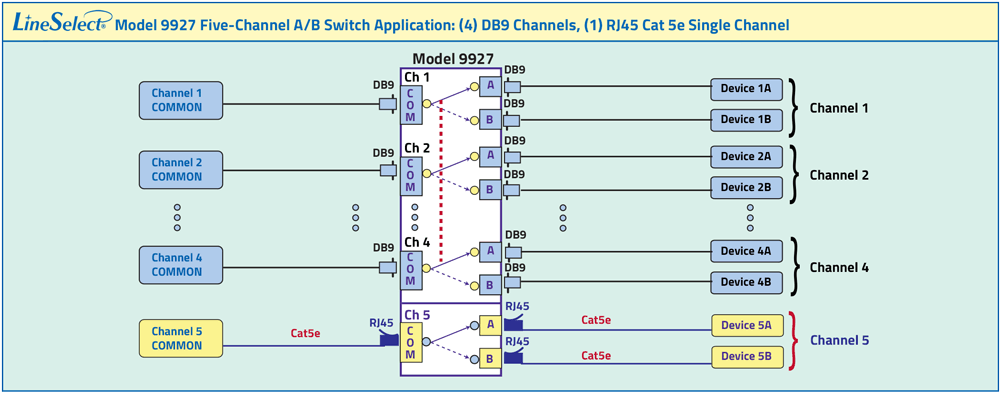

Network Diagram for Model 9927 Four Channel DB9 and Single Channel RJ45 Cat5e Switch Application
