Model 9461 RJ45 3-Channel, 2-Channels RJ45 ONLINE/OFFLINE A/B Switch, Catalog # 309461

    RJ45 3-Channel, 2-Channels RJ45 ONLINE/OFFLINE A/B SwitchRJ45 3-Channel, 2-Channels RJ45 ONLINE/OFFLINE A/B Switch
Click image to enlarge
    • RJ45 3-Channel, 2-Channels RJ45 ONLINE/OFFLINE A/B Switch
    • RJ45 3-Channel, 2-Channels RJ45 ONLINE/OFFLINE A/B Switch
Base Price:
$1,483.00
Catalog No: 309461
Model No: 9461
Product Type:Switches: Copper
Interface:Cat5e, RJ45
Positions:2, Offline
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:3
Manual Control/No Power Required:LineSelect® Manual Operation
Channel Control:Simultaneous Channel Control, Independent Channel Control
Security:Offline Position
Compliance/Standards:Cat5e
Configuration:Rackmount
Pins Switched:8
Local Control:Rotary Knob

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Model 9461 RJ45 3-Channel Switch, 2-Channels RJ45 ONLINE/OFFLINE A/B Switch

Overview

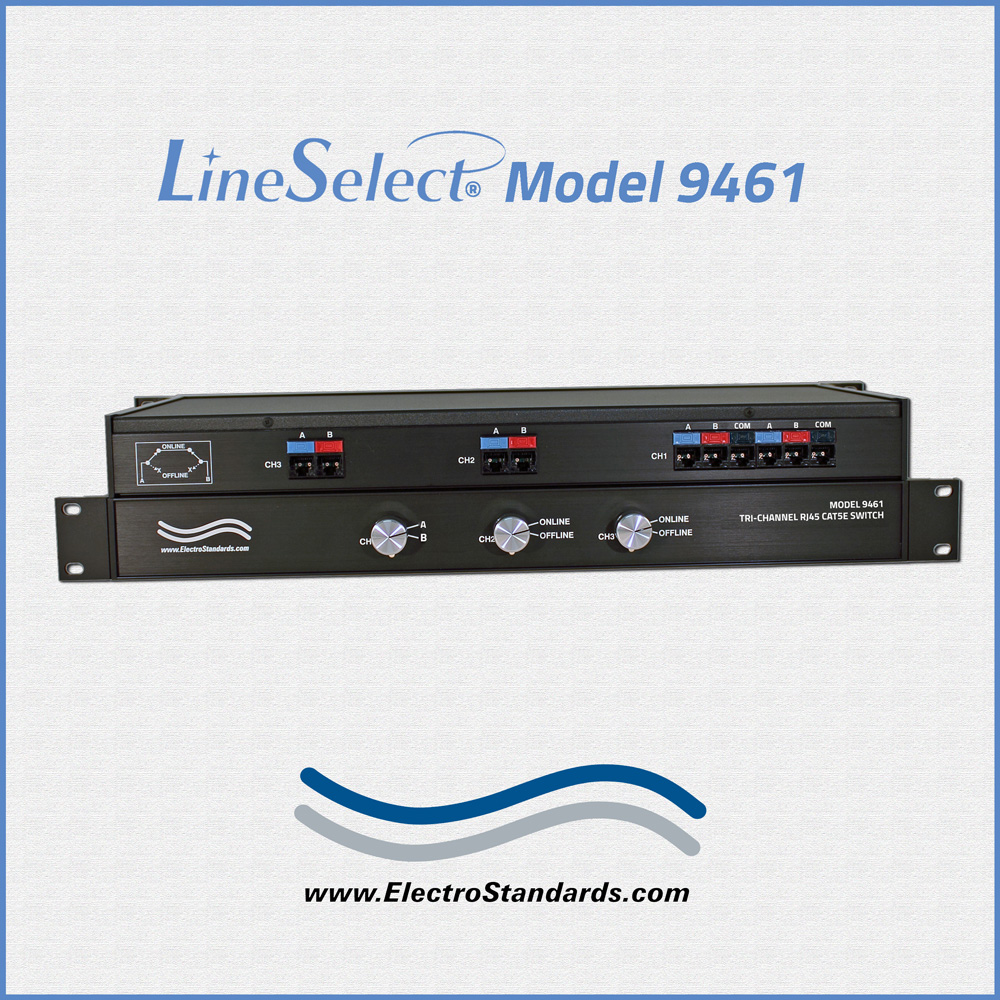

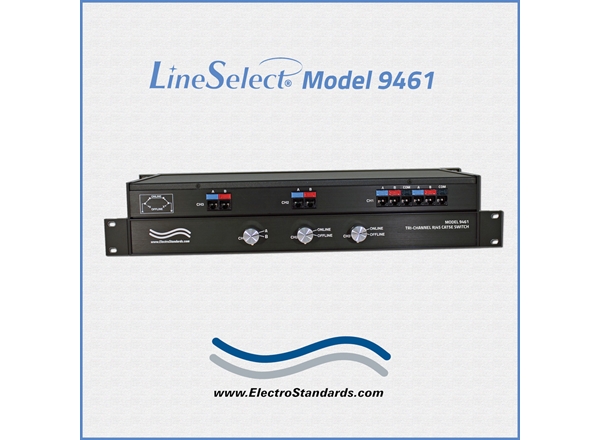

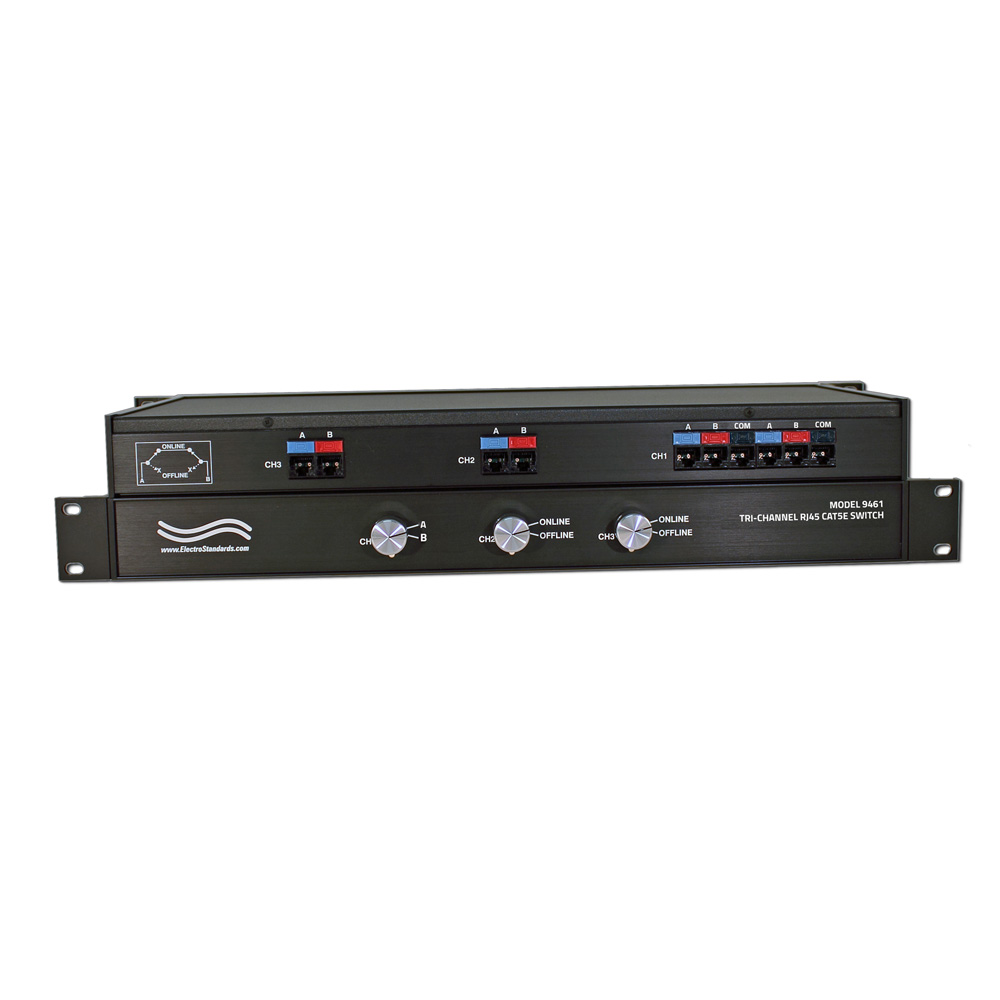

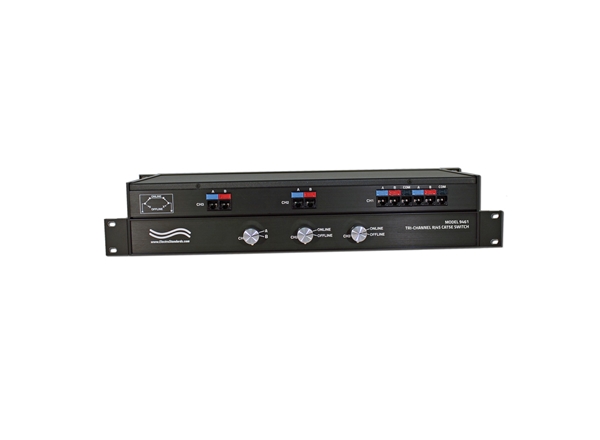

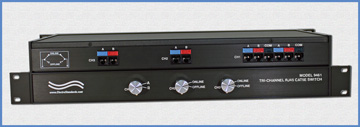

The LineSelect® Model 9461 Three Channel Switch allows simultaneous switching of Channel 1 (Dual Channel A/B Switch) and ONLINE/OFFLINE switching for Channel 2 and Channel 3.  No need to plug and unplug cables thereby eliminating connector wear.  The Model 9461 is enclosed in a slim 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

  • Quick and Easy ONLINE/OFFLINE Connection!

  • Certified for Cat5e Compliance.

FEATURES OF THE MODEL 9461 3-CHANNEL SWITCH:

  • Manually control each of three channels independently via the (3) Rotary manual switches located on the front panel:
    • (2) Rotary manual switches; 1 for each ONLINE/OFFLINE switch.
    • (1) Rotary manual switch for the dual channel A/B switch.
  • Tested for Cat5e compliance.
  • All (10) RJ45 Female ports are located on the rear panel.
  • Transparent to data speed and format.
  • All (8) pins of the RJ45 interface are switched.
  • High quality sealed break-before-make switches with self-wiping low impedance contacts.
  • Eliminates the need to plug and unplug cables.
  • No external power required.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Lifetime warranty against manufacturing defects.
  • Custom length Cat5e cables available for your switch installation.

TECHNICAL SPECIFICATIONS:

  • CH1 PORT CONNECTORS: (6) RJ45 female connectors:
    • (3) labeled A1, B1, and COM 1
    • (3) labeled A2, B2, and COM 2
  • CH2 PORT CONNECTORS: (2) RJ45 female connectors labeled A and B.
  • CH3 PORT CONNECTORS: (2) RJ45 female connectors labeled A and B.
  • CH1 FRONT PANEL CONTROL: (1) Rotary switch selects A or B.
    • CH2 and CH3 FRONT PANEL CONTROL: Each has (1) Rotary switch to select ONLINE or OFFLINE.
  • POWER: Manually operated.  No power required.
  • DIMENSIONS: 19 W x 1.75 H x 8.0 D (48.3 x 4.4 x 20.4 cm)
  • WEIGHT: 4.2 lbs (1.9 kg)

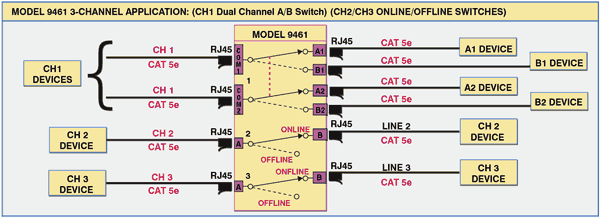

LineSelect® Model 9461 Cat5e RJ45 3-Channel Application:

Channel 1: Dual Channel A/B Switch: Simultaneously switch Channel 1 COMMON Devices from Device A1 and Device A2 to Device B1 and Device B2, respectively, or from the B Devices back to the A Devices.

Channel 2: ONLINE/OFFLINE Switch: Select ONLINE to connect the Channel 2 devices and select the OFFLINE position to disconnect the Channel 2 Devices.

Channel 3: ONLINE/OFFLINE Switch: Select ONLINE to connect the Channel 3 devices and select the OFFLINE position to disconnect the Channel 3 Devices.

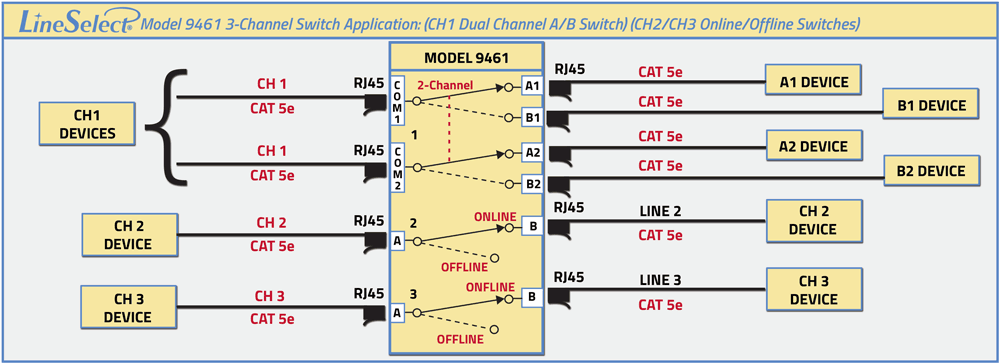

LineSelect Model 9461 3-Channel Switch Application

Ordering Information

  • Catalog Number: 309461
  • Model Number: 9461
  • Base Price: See website or contact us for current pricing and availability.

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.

Shipping and Returns           UPS

  • Shipped via UPS ground (unless otherwise requested).
  • Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
  • Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

lectro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
