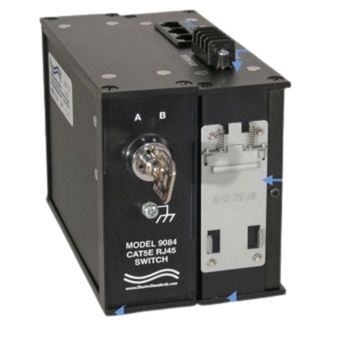

    • RJ45 A/B Switch
    • RJ45 A/B Switch
Base Price:
$739.00
Catalog No: 309084
Model No: 9084
Product Type:Switches: Copper
Interface:RJ45
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Security:Keylock
Compliance/Standards:Cat5e
Configuration:DIN Rail Mount
Pins Switched:8
Local Control:Keylock

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

LineSelect® Model 9084 RJ45 Secure A/B Keylock Switch w/Position Feedback, Manual Control, DIN Rail Mounted, Cat5e Compliant

Overview

Manually switch a single Ethernet device between two networks or devices with confidence using this rugged, keylock-secured RJ45 A/B switch - delivering true 8-wire Cat5e performance, zero power requirements, and reliable control for mission-critical environments.

  • Convenient DIN rail mounting, ideal for use in process control systems.

  • Secure Switching with Keylock Control – Integrated keylock prevents unauthorized changes, making it ideal for controlled IT, lab, and secure network environments.

  • Instant Manual A/B Switching (No Power Required) – Easily toggle between two RJ45 connections via a reliable rotary switch—no software, no latency, no external power needed.

  • Full 8-Wire, Cat5e Signal Integrity – Switches all eight pins to support 10/100/1000 Ethernet while preserving performance and minimizing signal loss.

  FEATURES OF THE MODEL 9084 A/B KEYLOCK SWITCH:

  • Allows (1) COMMON RJ45 port to be shared among either of (2) RJ45 ports A and B.
  • Key can be removed in the A position only.
  • Manual operation via front panel mounted keylock switch.
  • Switches all 8 leads of the RJ45 interface via break-before-make keylock switch.
  • Position feedback for the "B" position via short or closed circuit on 2 screw terminals mounted next to the RJ45 ports.
  • Certified for category 5e compliance.
  • Manually operated keylock switch. No power required.

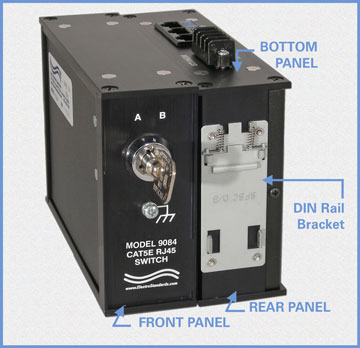

  • DIN-rail bracket on rear panel.
  • Grounding screw is mounted on the front panel.
  • Custom length Cat5e RJ45 cables available.

TECHNICAL SPECIFICATIONS:

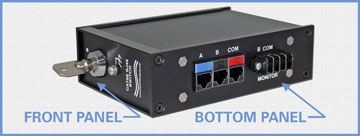

  • PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and COMMON.
  • FRONT PANEL CONTROL: (1) Keylock switch allows local switching.
  • MONITOR PORT: (1) Barrier strip allows position feedback.
  • POWER: No power required. Manually operated.
  • ENCLOSURE: Shielded all metal black enclosure.
  • DIMENSIONS: DIN Rail Mount Package: 1.75" W x 4.70" H x 6.30" D. (4.5 x 12.0 x 16.1 cm)
  • WEIGHT: Approximately 1.4 lbs. (0.6 kg)

The Model 9084 RJ45 A/B Switch with Position Feedback Switch Operation:  Access two RJ45 devices connected to its A and B ports with one RJ45 device connected to its COMMON port.  The unit is a manually operated keylock switch, requiring no power.  Port selection is quick and easy via a front panel keylock switch.  The Model 9084 switch is easily integrated as a system component by utilizing its rear panel DIN rail mounting bracket.

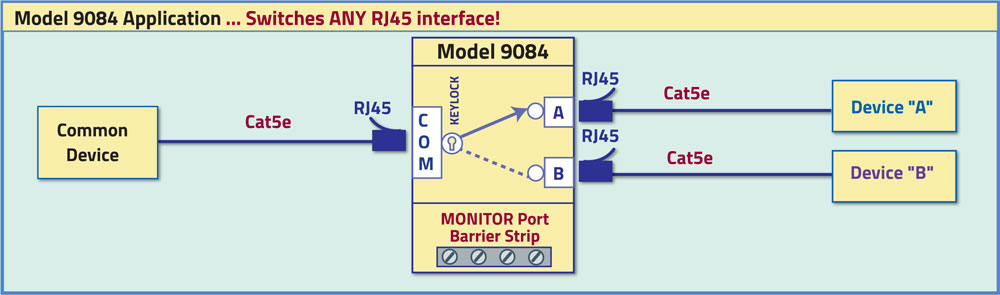

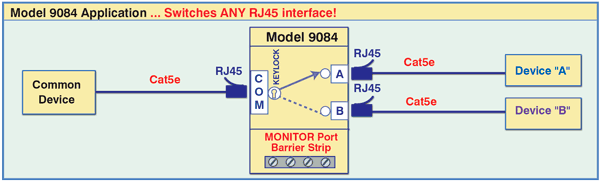

CAT5e KEYLOCK A/B SWITCH APPLICATION WITH BARRIER STRIP: The drawing illustrates a COMMON device connected to the RJ45 COMMON port with access to either a Device A or Device B via a Keylock switch. The illustration also shows a MONITOR Port Barrier Strip for position feedback.

Diagram for Model 9084 Cat5e RJ45 A/B Switch Network Application
