Catalog # 309082 - Model 9082 RJ45 Cat5e 2-Position Switch w/Monitor Port, DIN Rail

Click image to enlarge

Base Price:

$710.00

Catalog No:

309082

Model No:

9082

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

RJ45

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Compliance/Standards:

Cat5e

Configuration:

DIN Rail Mount

Pins Switched:

Local Control:

Rotary Knob

Qty

Add to Cart

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

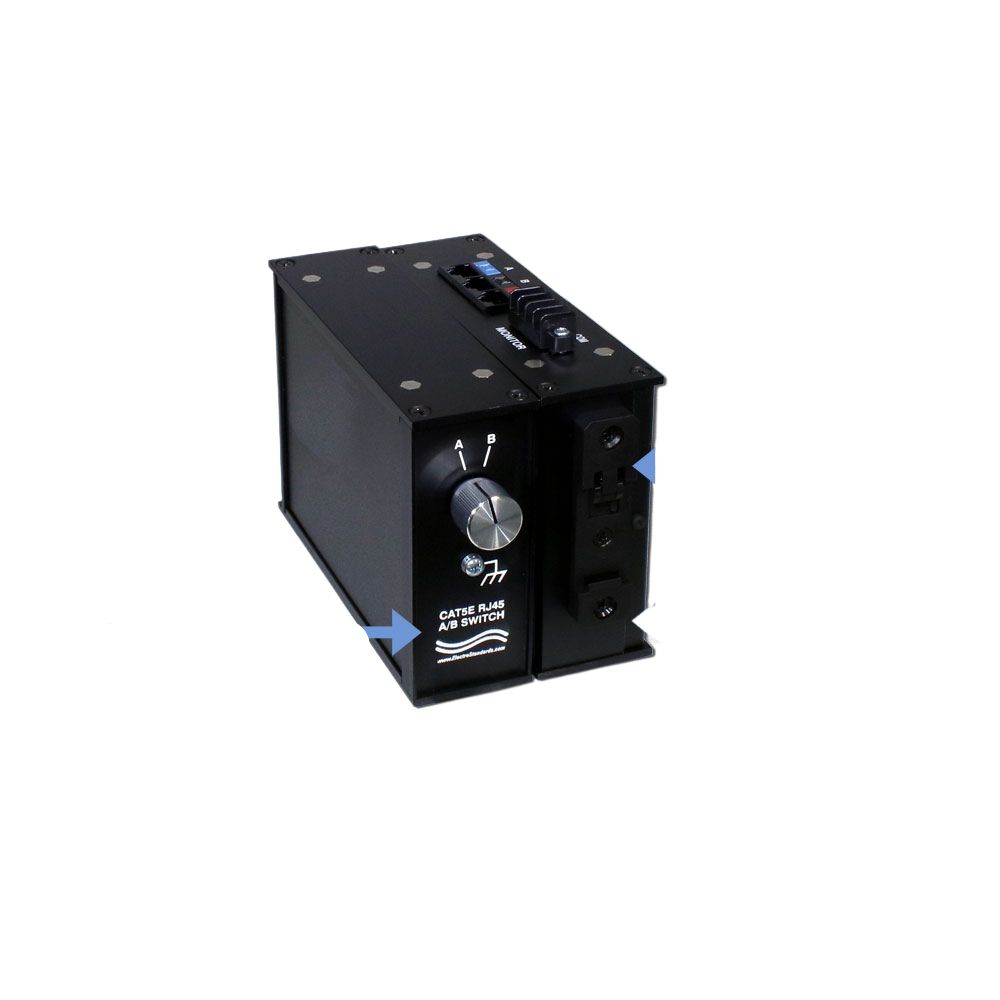

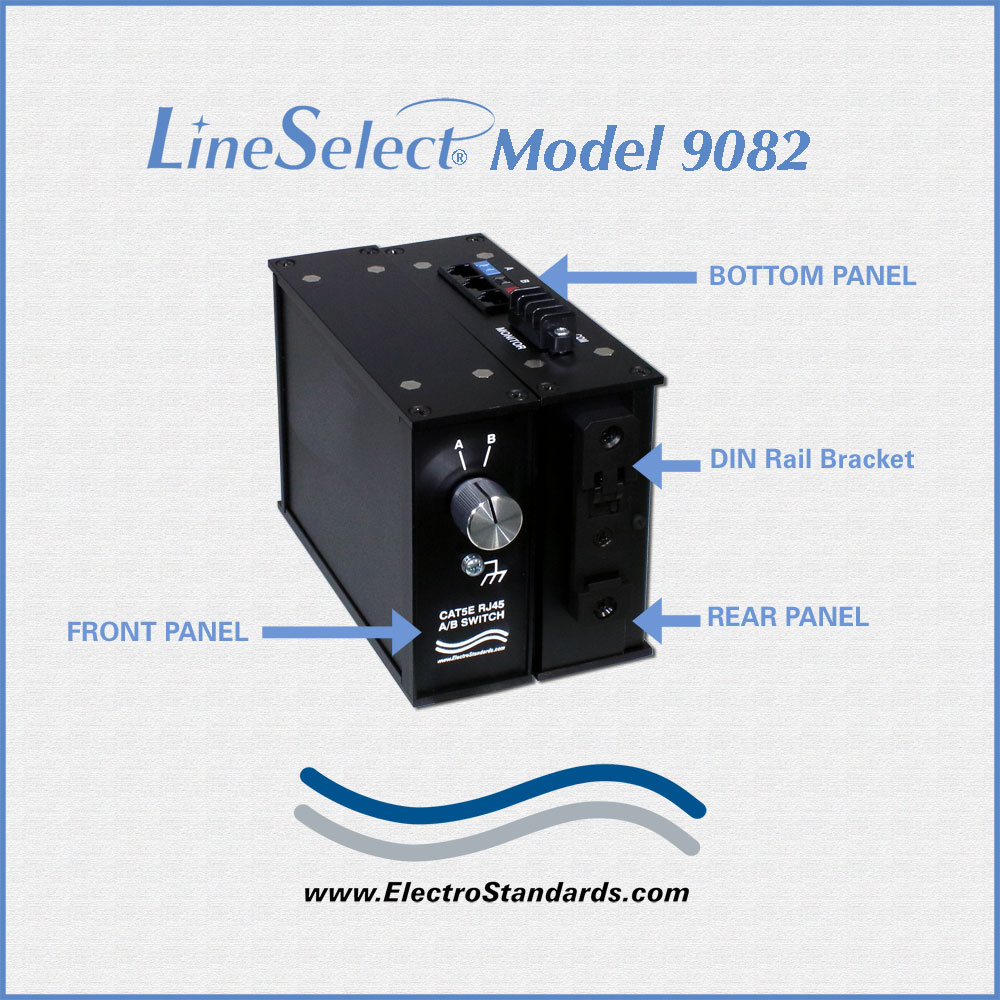

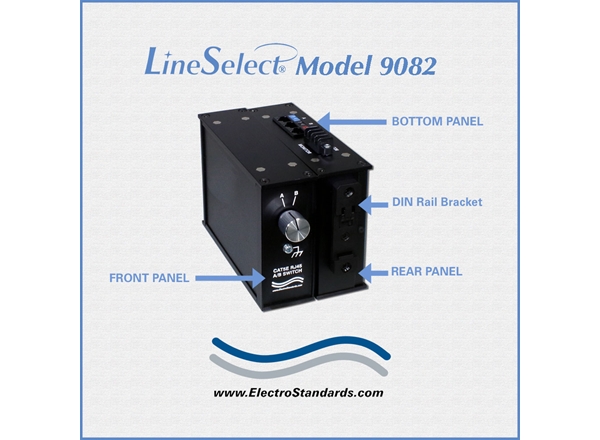

Model 9082 RJ45 A/B Rotary Switch with Manual Control & DIN Rail Mount Configuration, Cat5e Compliance and Mini Barrier Strip Monitor Port

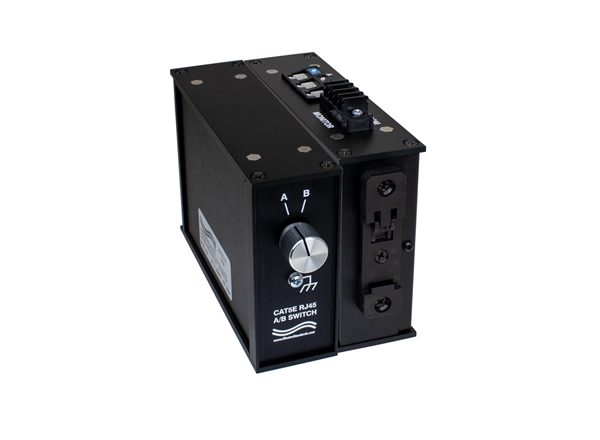

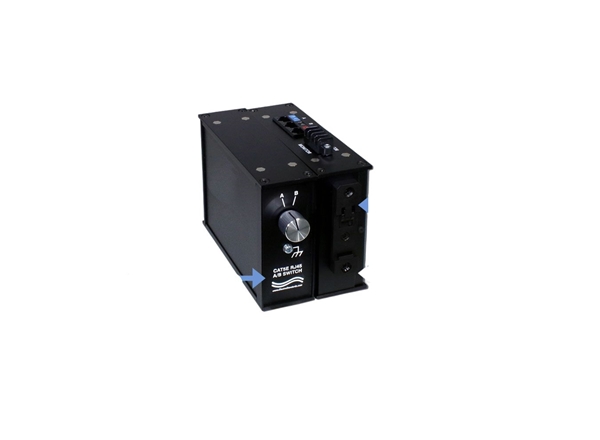

The LineSelect® Model 9082 RJ45 A/B switch allows the user to access two RJ45 devices connected to its A and B ports with one RJ45 device connected to its Common port. The unit is a manually operated switch, requiring no power. Port selection is quick and easy via a front panel rotary selector switch with mini barrier strip port for monitoring switch position. The LineSelect® Model 9082 RJ45 switch is easily integrated as a system component by utilizing its rear panel DIN rail mounting bracket.

Convenient DIN rail mounting, ideal for use in process control systems.

FEATURES:

Allows (1) COMMON RJ45 port to be shared among either of (2) RJ45 ports A and B.
Manual operation via front panel mounted rotary switch.
Switches all 8 leads of the RJ45 interface via break-before-make rotary switch.
Certified for category 5e compliance.

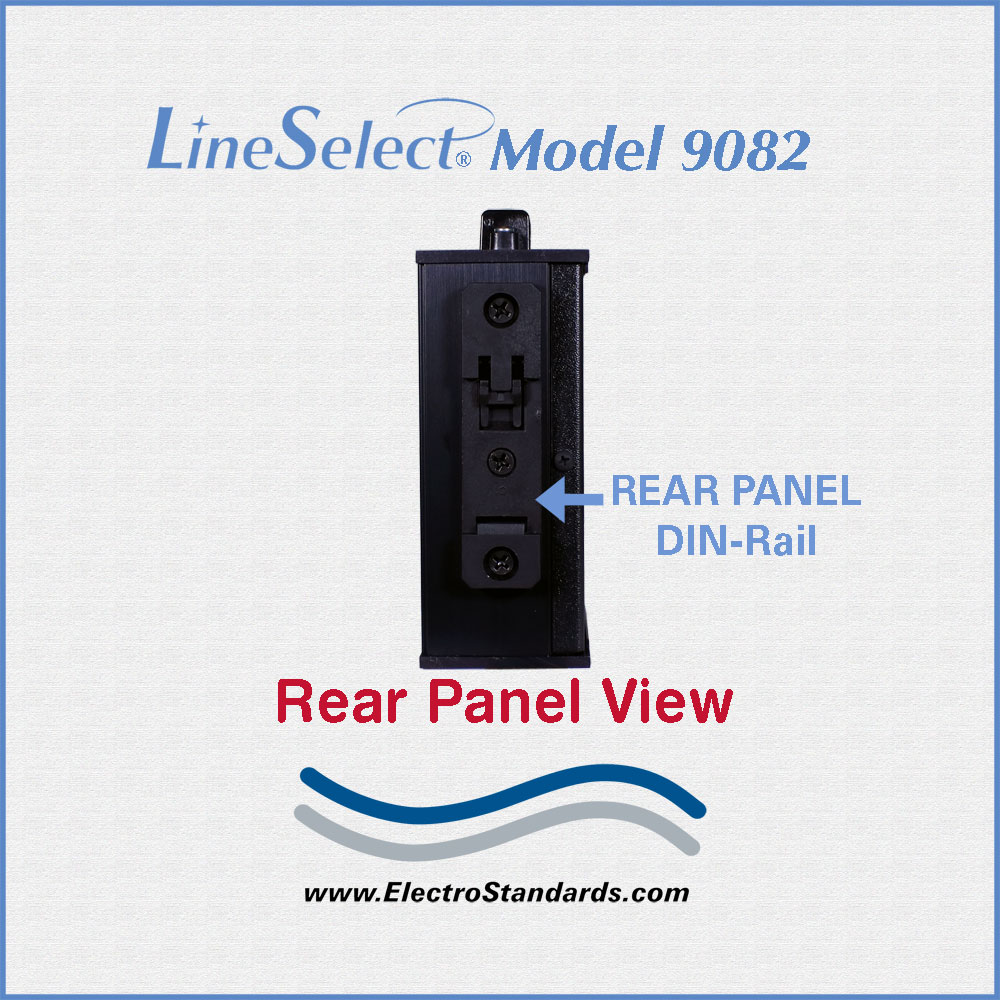

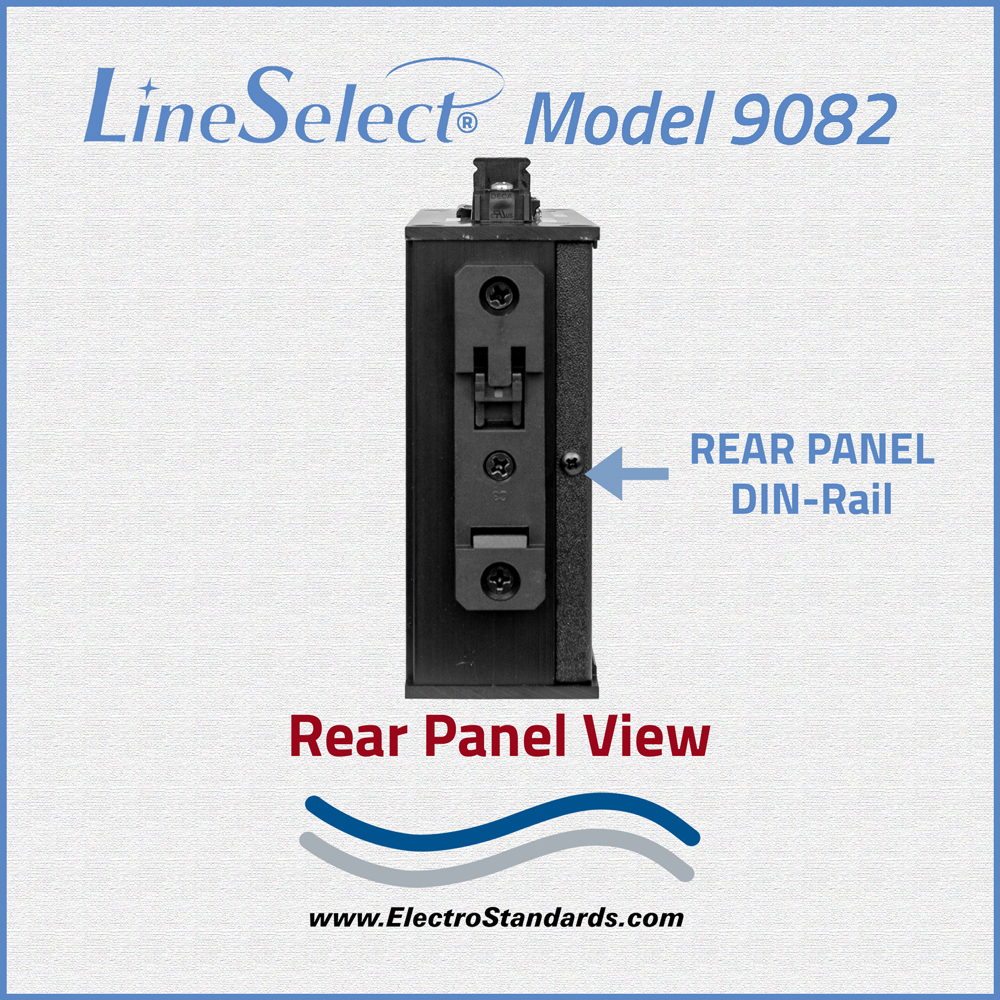

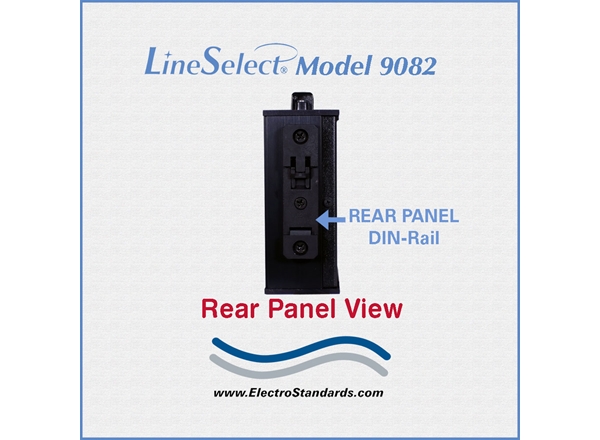

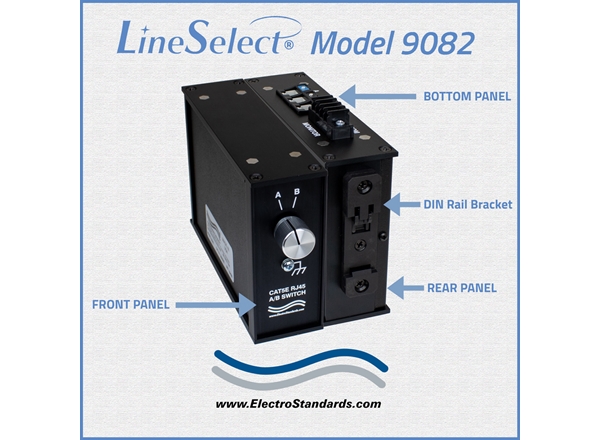

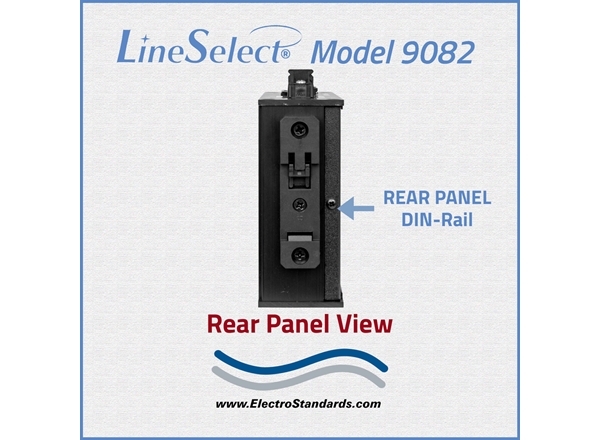

DIN-rail bracket on rear panel.

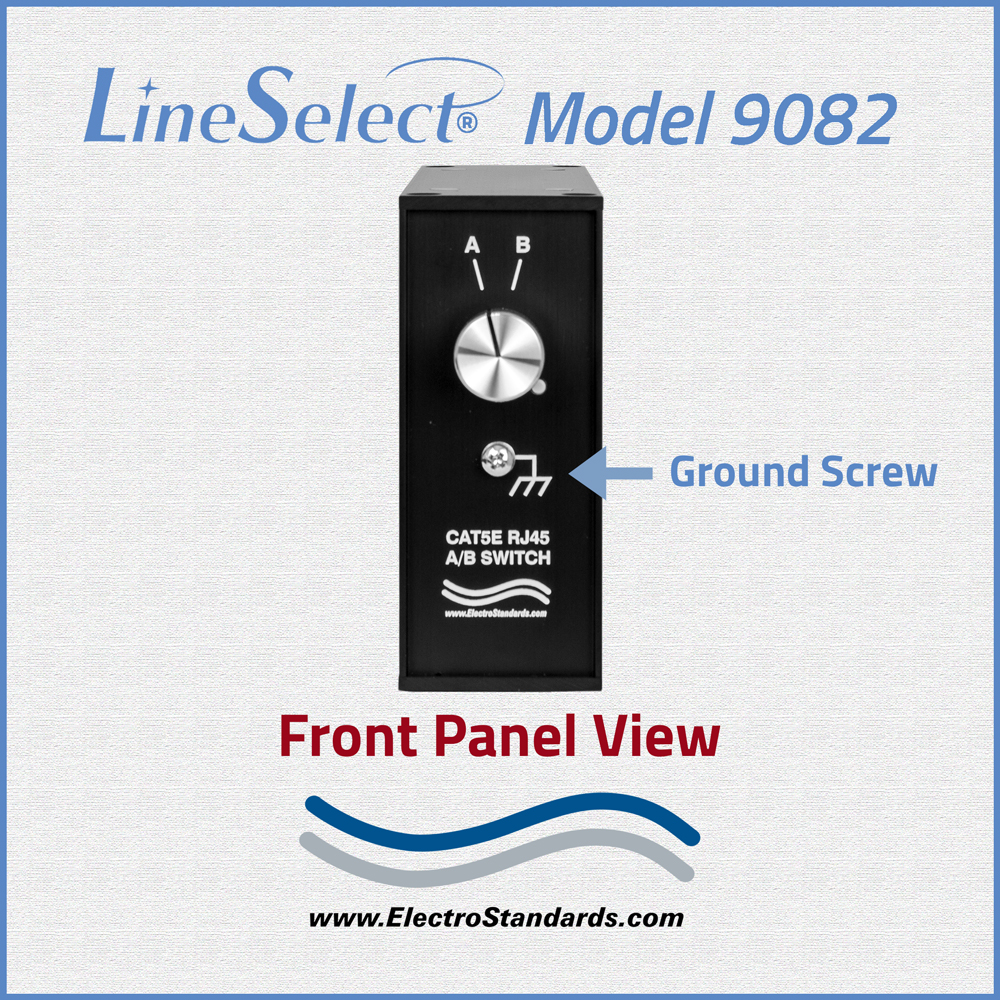

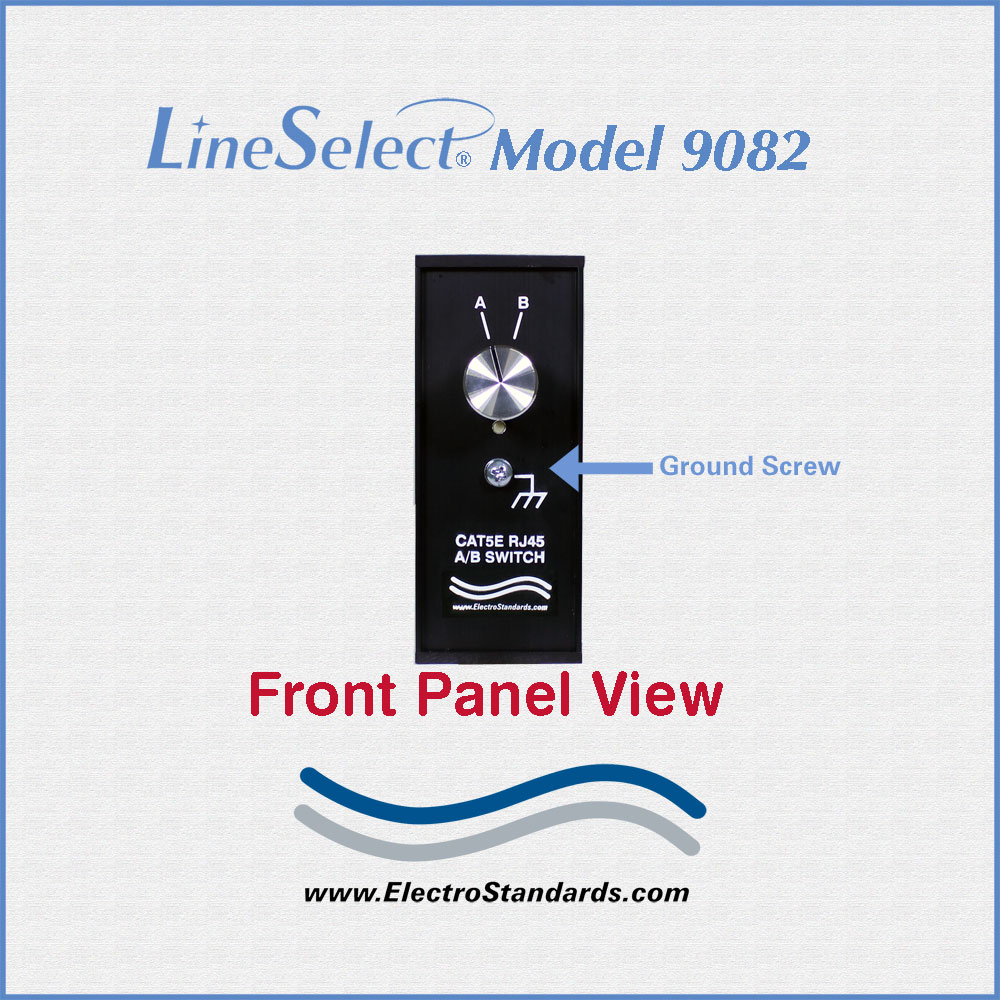

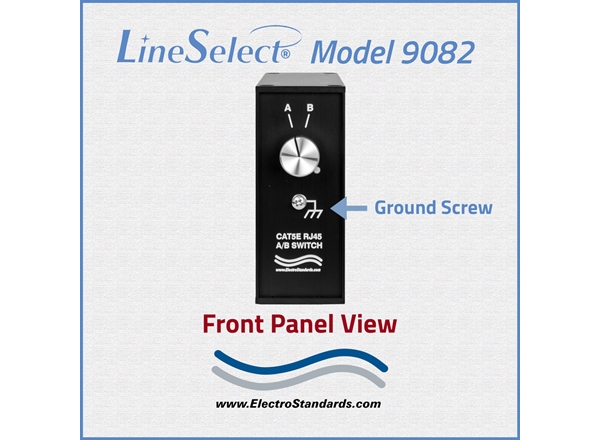

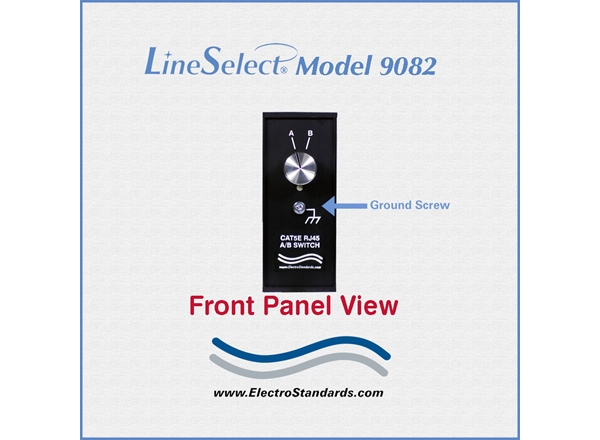

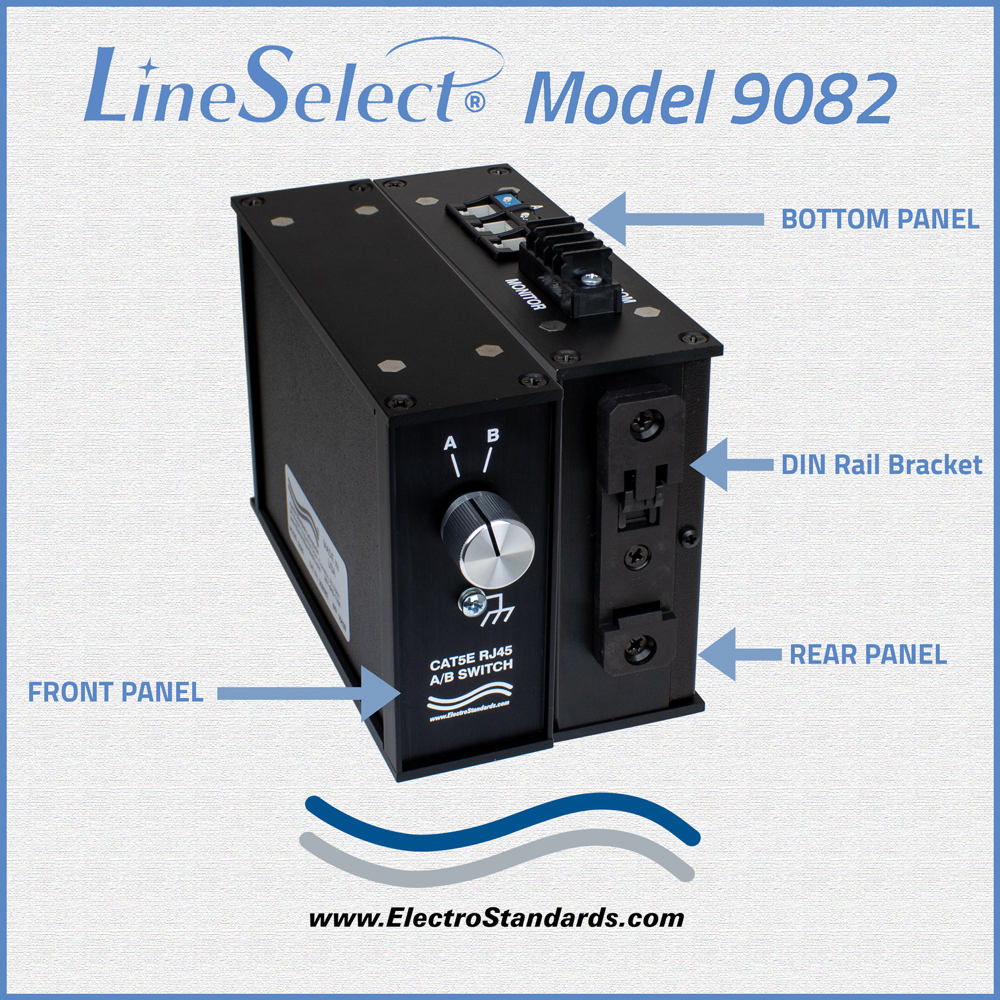

Grounding screw is mounted on the front panel.

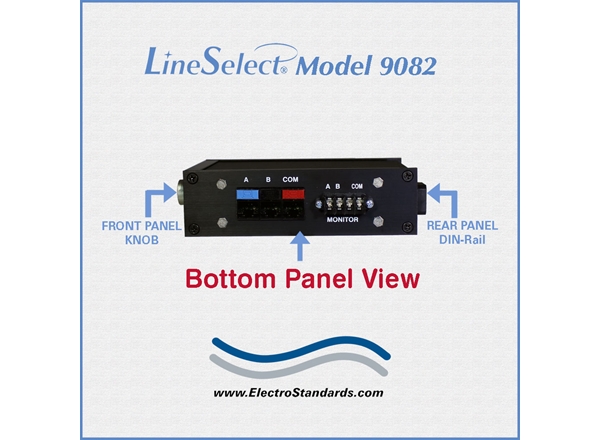

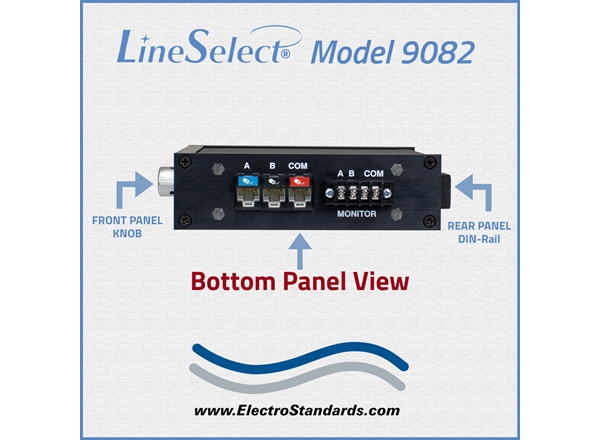

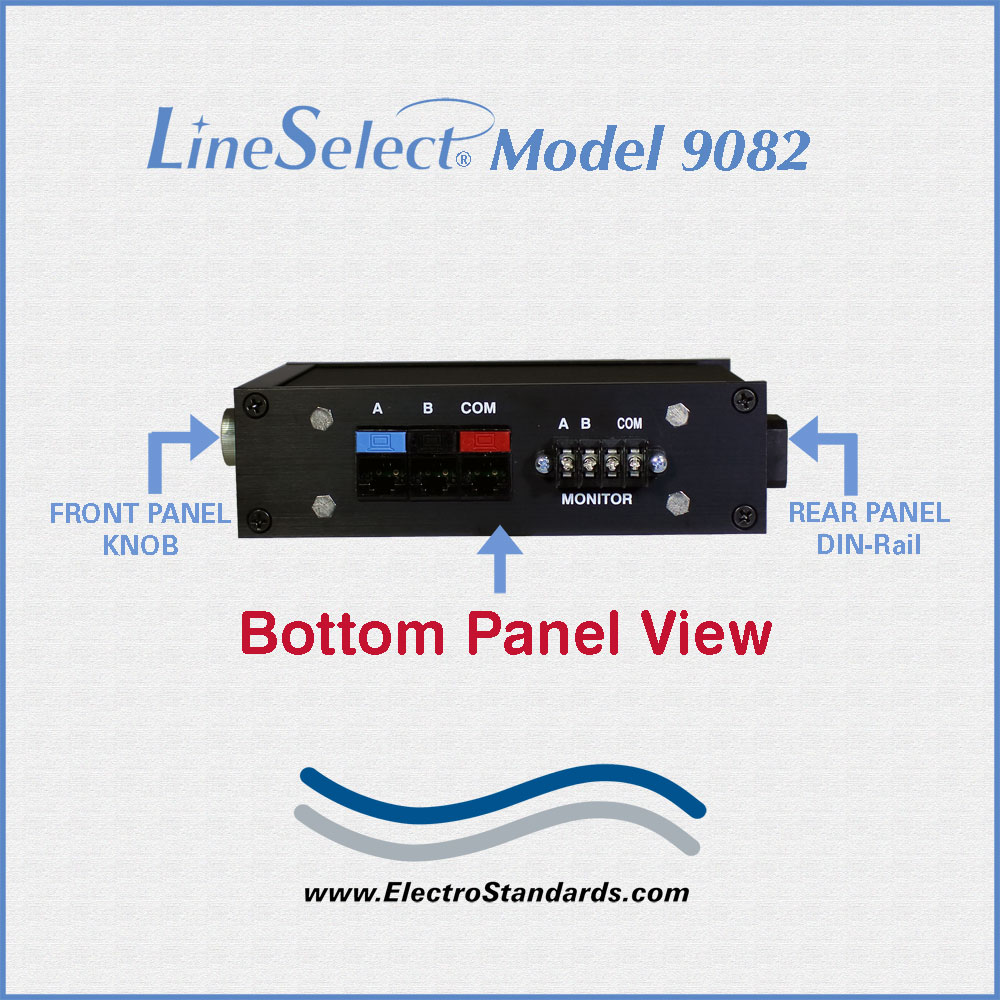

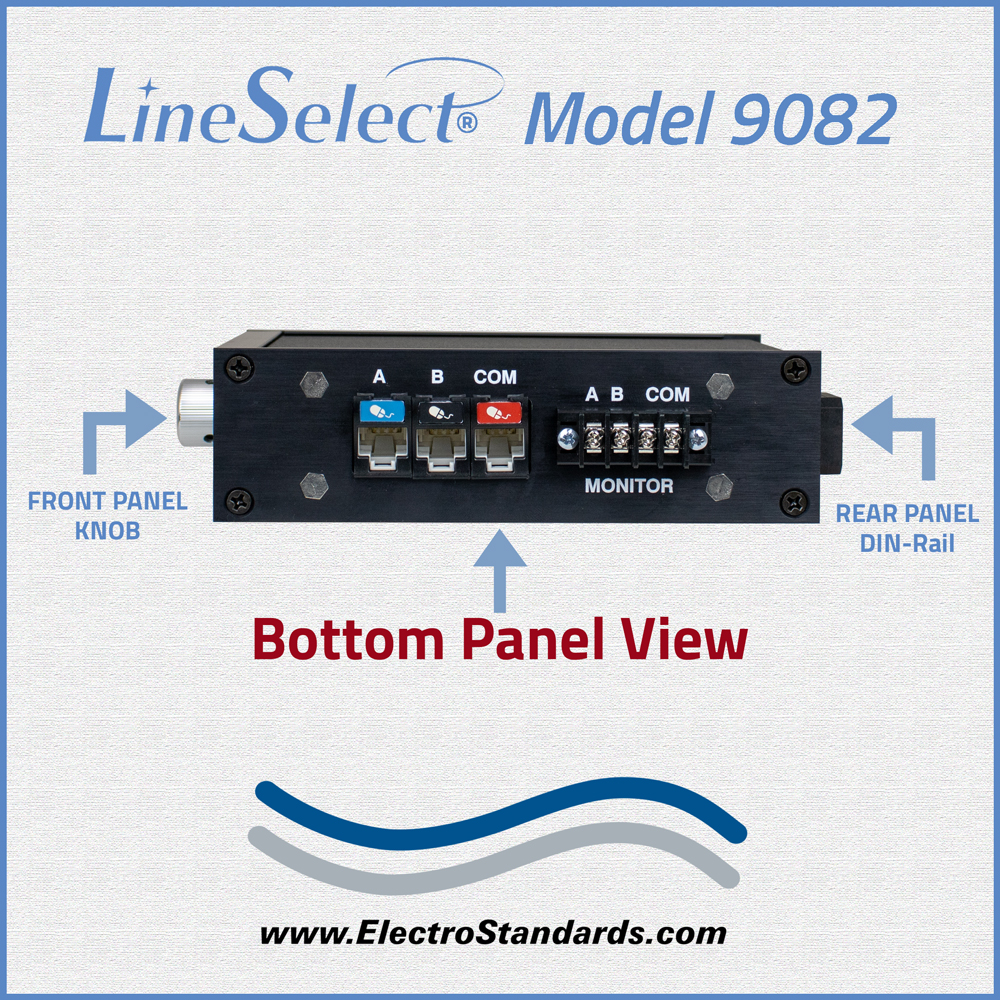

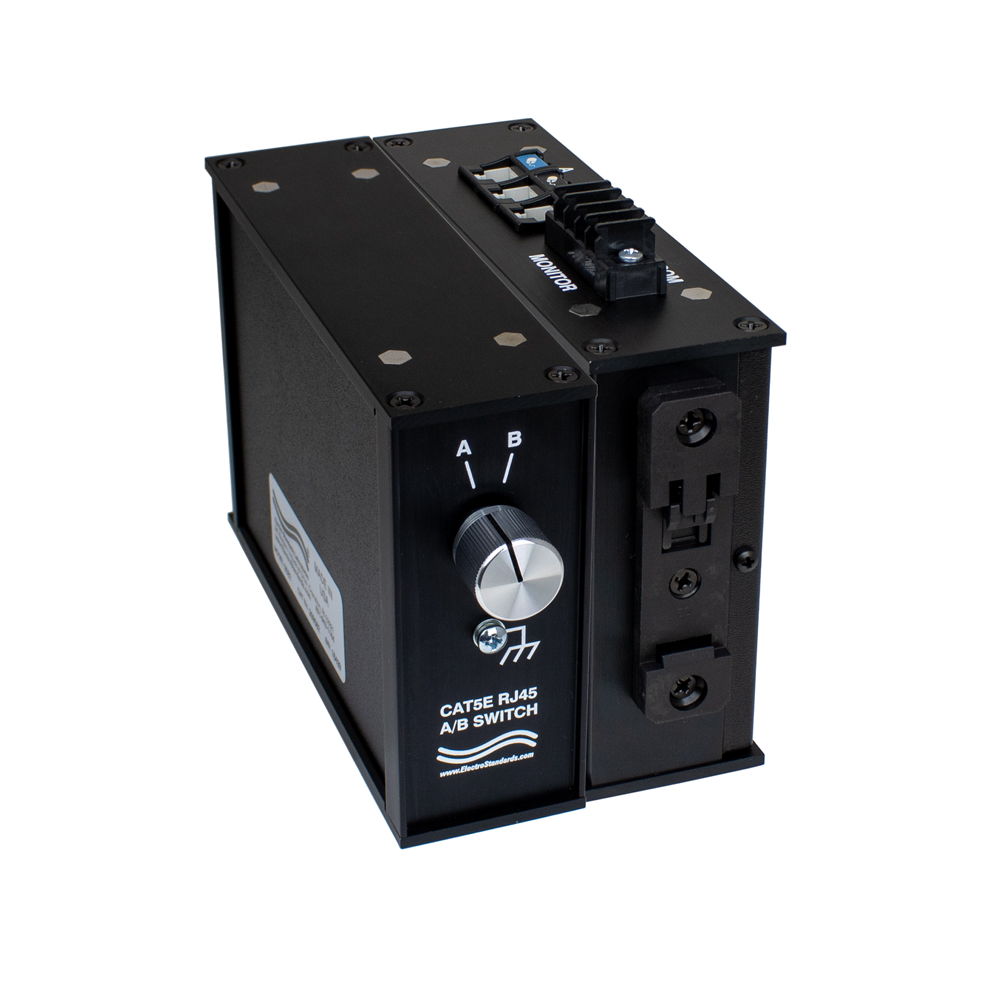

Monitor switch position via three contacts of the mini barrier strip MONITOR port located on the rear panel.

SPECIFICATIONS:

PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and COMMON.
FRONT PANEL CONTROL: (1) Rotary selector switch allows local switching.
MONITOR PORT: (1) Barrier strip allows monitoring of switch position.
POWER: No power required. Manually operated.
ENCLOSURE: Shielded Aluminum Enclosure.
DIMENSIONS: DIN Rail Mount Package: 1.75" W x 4.25" H x 6.0" D. [4.4 x 10.8 x 15.2 cm]
WEIGHT: Approximately 1.2 lbs. (0.6 kg)

CAT5e RJ45 A/B APPLICATION, DIN Rail Mounted:

LineSelect® Model 9082 switches ANY RJ45 interface.
The Model 9082 RJ45 switch is easily integrated as a system component by utilizing its rear panel DIN rail mounting bracket. Ideal for use in process control systems and manufacturing operations management.

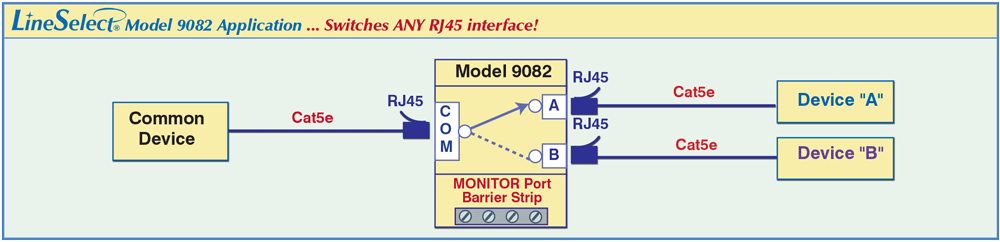

The diagram illustrates a COMMON device connected to the RJ45 COMMON port with access to Device A and Device B connected to the RJ45 A and B ports. The MONITOR Port Barrier Strip has three contacts to monitor the switch position.

LineSelect®Model 9082 RJ45 A/B Switch Application

The Electro Standards LineSelect® Model 9082 is a DIN-rail mount RJ45 Cat5e A/B network switch designed to support industries like utility companies and industrial control environments. This passive, no-power-required switch enables secure selection between primary and backup Ethernet paths without re-cabling, supporting reliable operation for network applications commonly found in substations, SCADA networks, and smart grid infrastructure.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.
