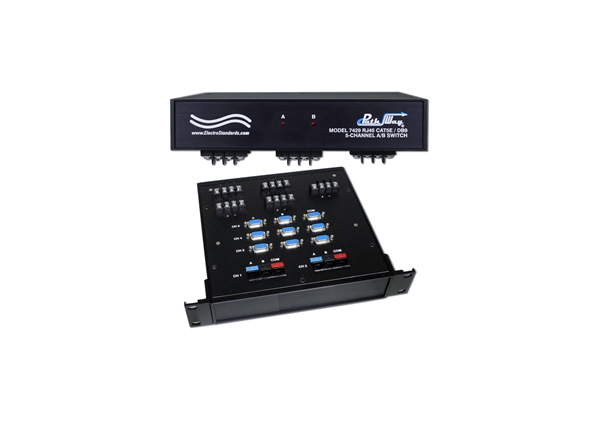

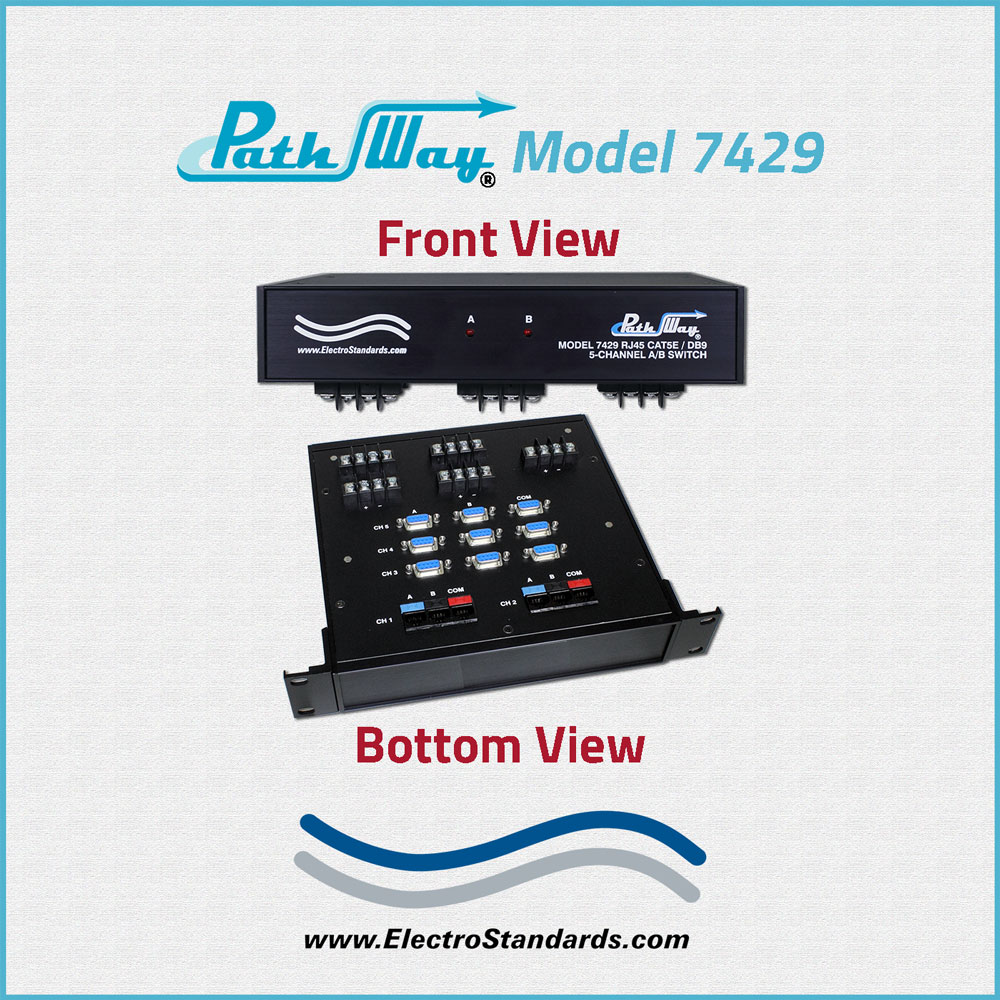

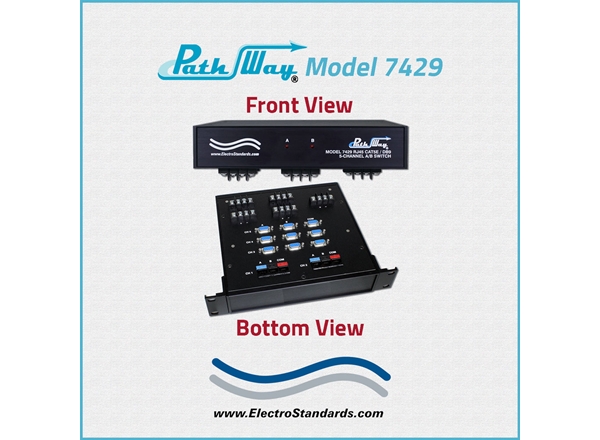

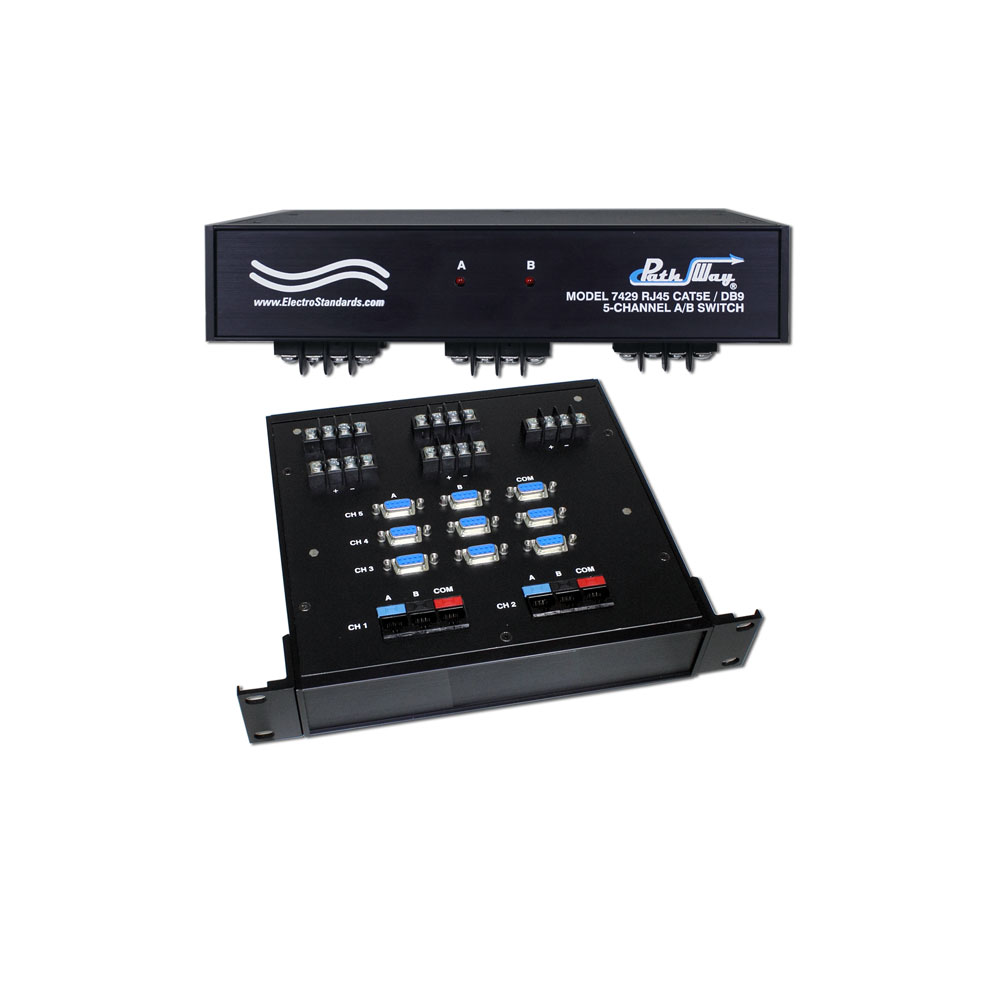

Catalog # 307429 - Model 7429 5-Channel DB9/RJ45 Cat5e A/B Switch

    5-Channel DB9/RJ45 Cat5e A/B Switch5-Channel DB9/RJ45 Cat5e A/B Switch5-Channel DB9/RJ45 Cat5e A/B Switch5-Channel DB9/RJ45 Cat5e A/B Switch
Click image to enlarge
    • 5-Channel DB9/RJ45 Cat5e A/B Switch
    • 5-Channel DB9/RJ45 Cat5e A/B Switch
    • 5-Channel DB9/RJ45 Cat5e A/B Switch
    • 5-Channel DB9/RJ45 Cat5e A/B Switch
Base Price:
$2,289.00
Catalog No: 307429
Model No: 7429
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:RJ45, DB9 Switch Ports
Channels per Switch Chassis:5
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control
Remote Control:Contact Closure
Security:Exclusive Remote Control
Compliance/Standards:Cat5e
Configuration:Rackmount
Pins Switched:9 pins of DB9 and 8 pins of RJ45
Remote Port:Terminal/Barrier Strip
Local Control:None
Feature:Remotely Controllable
Protocol:Dry contact logic

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

PathWay®

PathWay® Remotely Controllable Network Switch, DB9, RJ45
Multi Interface Copper Network Switches
Cat5e Remotely Controllable Network Switch, RJ45, DB9s

  • Model 7429 5-Channel (3) DB9 / (2) RJ45 Cat5e A/B Switch, with Contact Closure Remote

SPECIFICATIONS:

  • PORT CONNECTORS:
    • For each of Channels 1-2, (6) RJ45 female connectors labeled A, B, and COMMON.
    • For Channels 3, 4 & 5, (9) DB9 female connectors labeled A, B, and COMMON.
  • REMOTE CONTROL PORTS: (4) 2-Position Terminal Strips labeled REMOTE A, REMOTE B, STATUS A and STATUS B control the unit via contact closure signals.

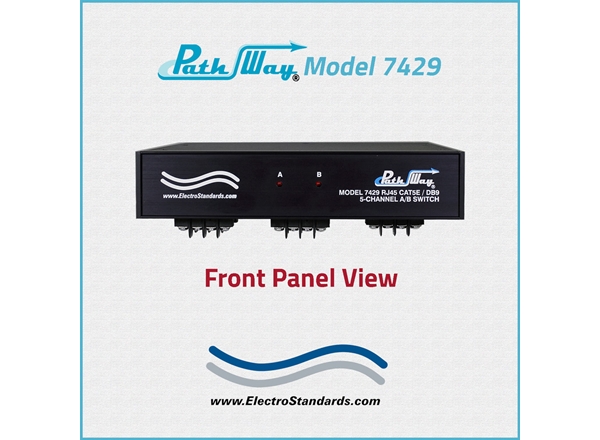

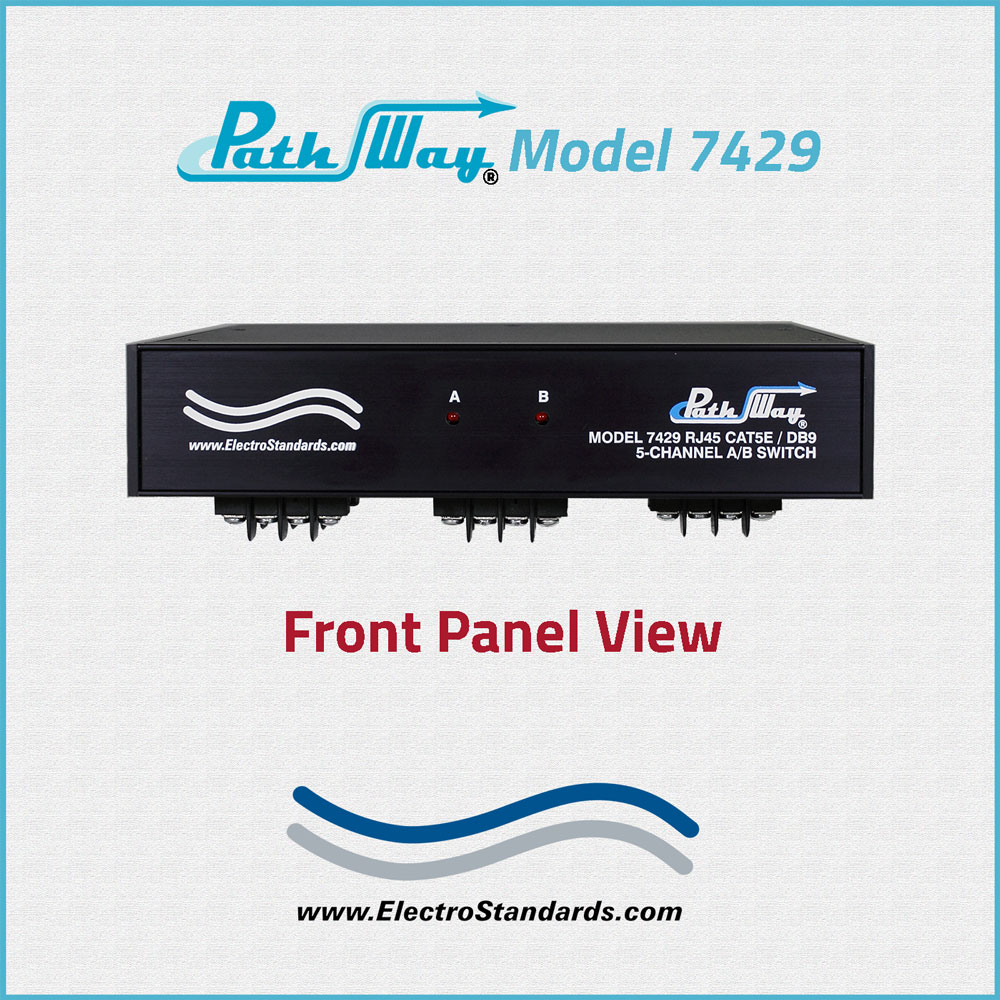

  • DISPLAY: (2) Front panel Red LED's display switch position and power status.
  • POWER: (1) 2-Position Terminal Strip accepts customer supplied 24 VDC power.
  • OVERALL DIMENSIONS: Rackmount 10.56" W x 2.35" H x 8.0" D. (26.9 x 6.0 x 20.4 cm)
  • WEIGHT: Approximately 3.0 lbs. (1.4 kg)

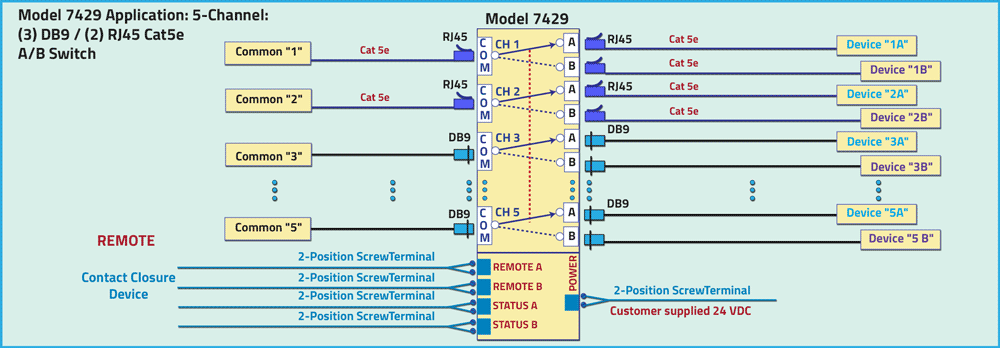

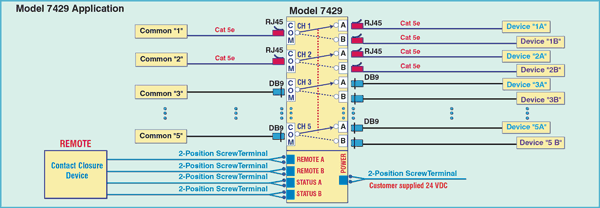

5-CHANNEL MULTI-INTERFACE (DB9 & RJ45) APPLICATION w/CONTACT CLOSURE REMOTE:

  • The diagram illustrates five channels of A/B Switching and five 2-Position Terminal Strips.
  • Channel 1 & Channel 2 are RJ45 Cat5e certified A/B Switches.
  • Channels 3, 4 & 5 are DB9 A/B Switches.
  • The unit can only be controlled via 2-Position Screw Terminal Strips.
  • REMOTE A & REMOTE B control switch position via Contact Closure.
  • STATUS A & STATUS B provide position status via Contact Closure.
  • A 2-Postion Screw Terminal is for 24 VDC Power.
  • Power is customer supplied.

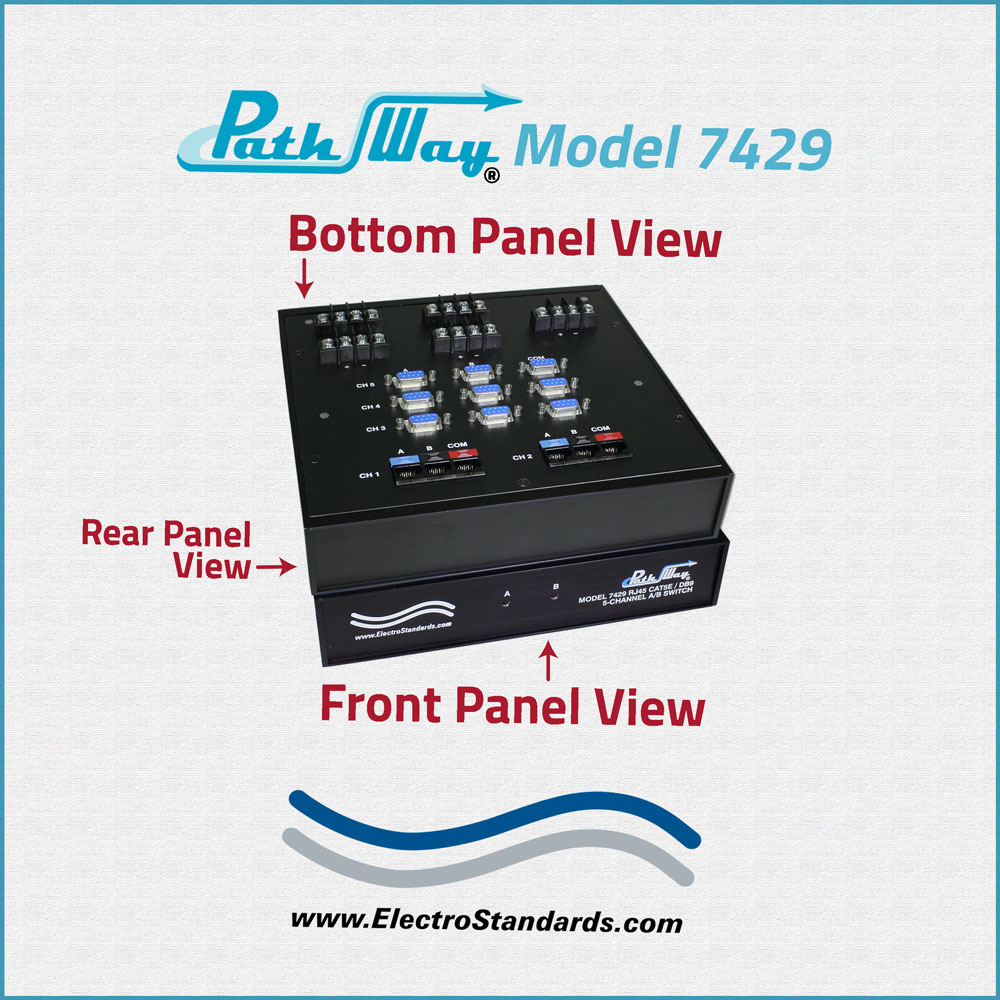

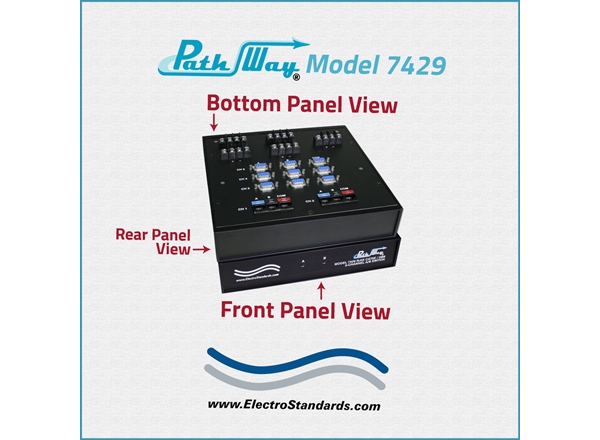

  • *All ports are located on the bottom panel.

PathWay Model 7429 Application: 5 Channel

FEATURES:

  • Each of two RJ45 Cat5e channels allows access to two RJ45 Cat5e networks or devices from one COMMON port.
  • Each of three DB9 channels allows access to three DB9 networks or devices from one COMMON port.
  • The switch ports are transparent to all data.
  • The RJ45 Channels 1 & 2 are certified for Cat5e compliance.
  • All (8) pins of the RJ45 Channels are switched, Channel 1-2.
  • All (9) pins of the DB9 Channels are switched, Channel 3-5.
  • The unit maintains last set position on power loss and continues to pass data.
  • Upon power up, the unit switches based on state of the REMOTE contact closure inputs.
  • Remote Control via dry contact signals using the terminal strips located on the bottom of the Model 7429.
  • Simultaneous control of all channels.
  • Remote Contact Closure control provides dry contact logic to allow the control of the switch position via two sets of dry contacts.
  • No local control.
  • Remote Contact Closure status provides dry contact logic to obtain the switch position via two sets of dry contacts.
  • Rear panel mounting via two ear brackets.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.

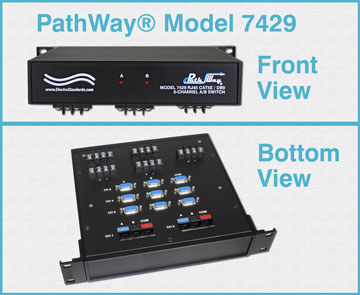

The PathWay® Model 7429 5-Channel (3) DB9 / (2) RJ45, Cat5e A/B Switch with Contact Closure Remote allows the user the capability of accessing two separate devices, ports A and B, via connection through a device connected to its COMMON port for each channel. The Model 7429 consists of three channels of DB9 interface switching and two channels of RJ45 interface switching.  The Model 7429 is enclosed in a 1U, half rack size, all metal, black chassis designed to provide EMI/RFI shielding with rear panel ears for wall mounting.

The switch is controlled remotely from two terminal strips located on the bottom of the unit.  Switch position state may be attained via the front panel LED or by a set of dry contacts on the two terminal strips located on the bottom panel of the unit.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
