Catalog # 307370 - Model 7370 RJ45 CAT6A A/B Network Switch

    RJ45 CAT6A A/B Network SwitchRJ45 CAT6A A/B Network SwitchRJ45 CAT6A A/B Network Switch
Click image to enlarge

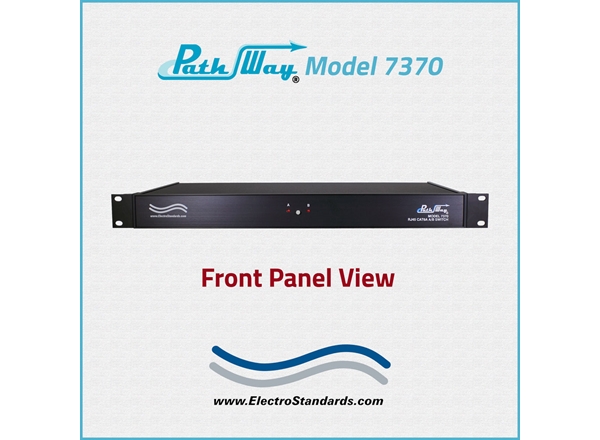

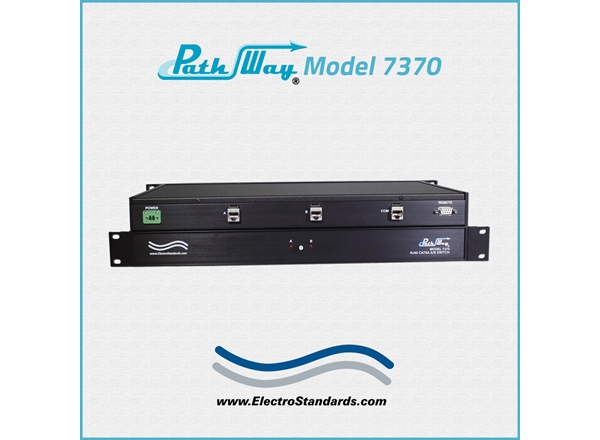

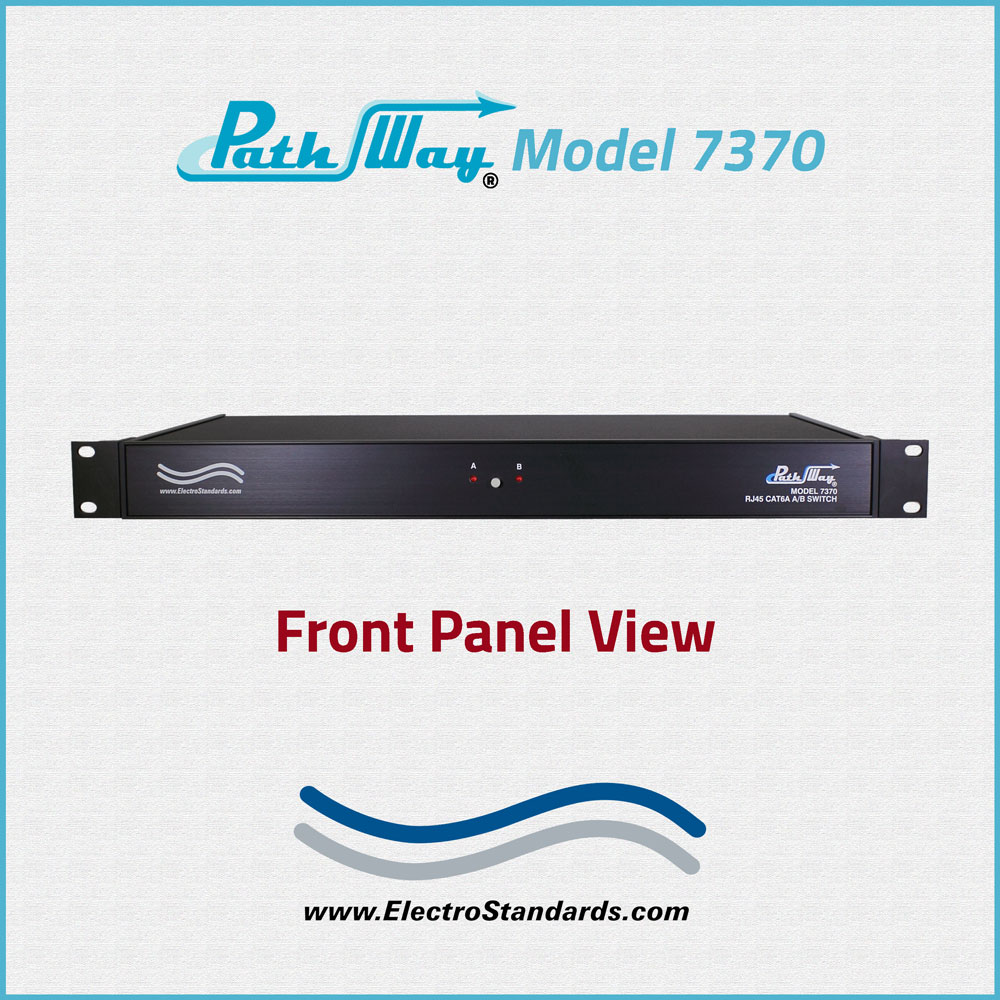

    • RJ45 CAT6A A/B Network Switch

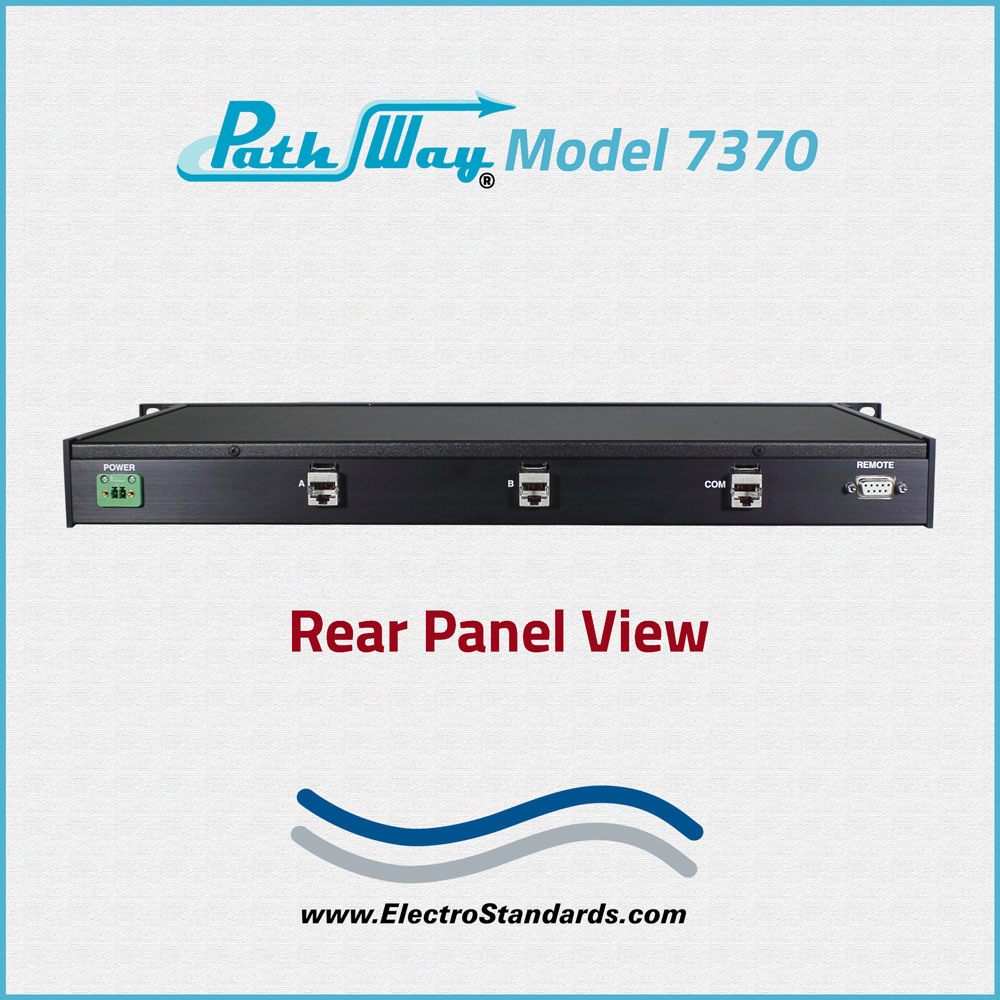

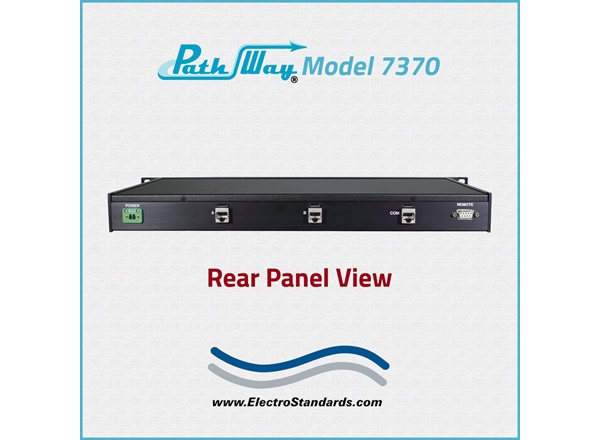

    • RJ45 CAT6A A/B Network Switch
    • RJ45 CAT6A A/B Network Switch
Base Price:
$1,032.00
Catalog No: 307370
Model No: 7370
Switch Media:Copper
Positions:2
Channels per Switch Chassis:1
Connector/Port:RJ45
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS232 Serial
Compliance/Standards:Cat6a
Enclosure Configuration:Rackmount
Pins Switched:8
Remote Port:DB9
Local Control:Pushbutton

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Path Way® Remotely Controllable Network Switch, Cat6A, RJ45

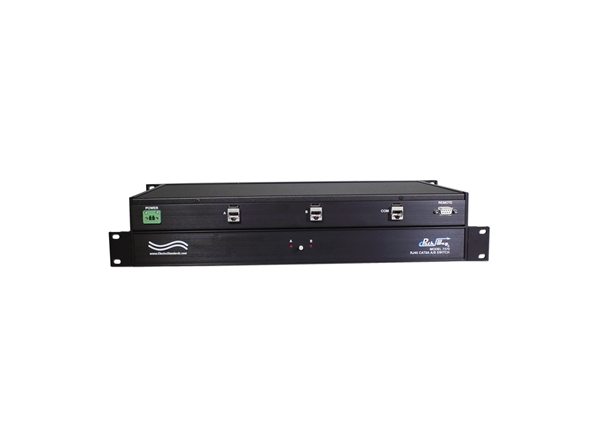

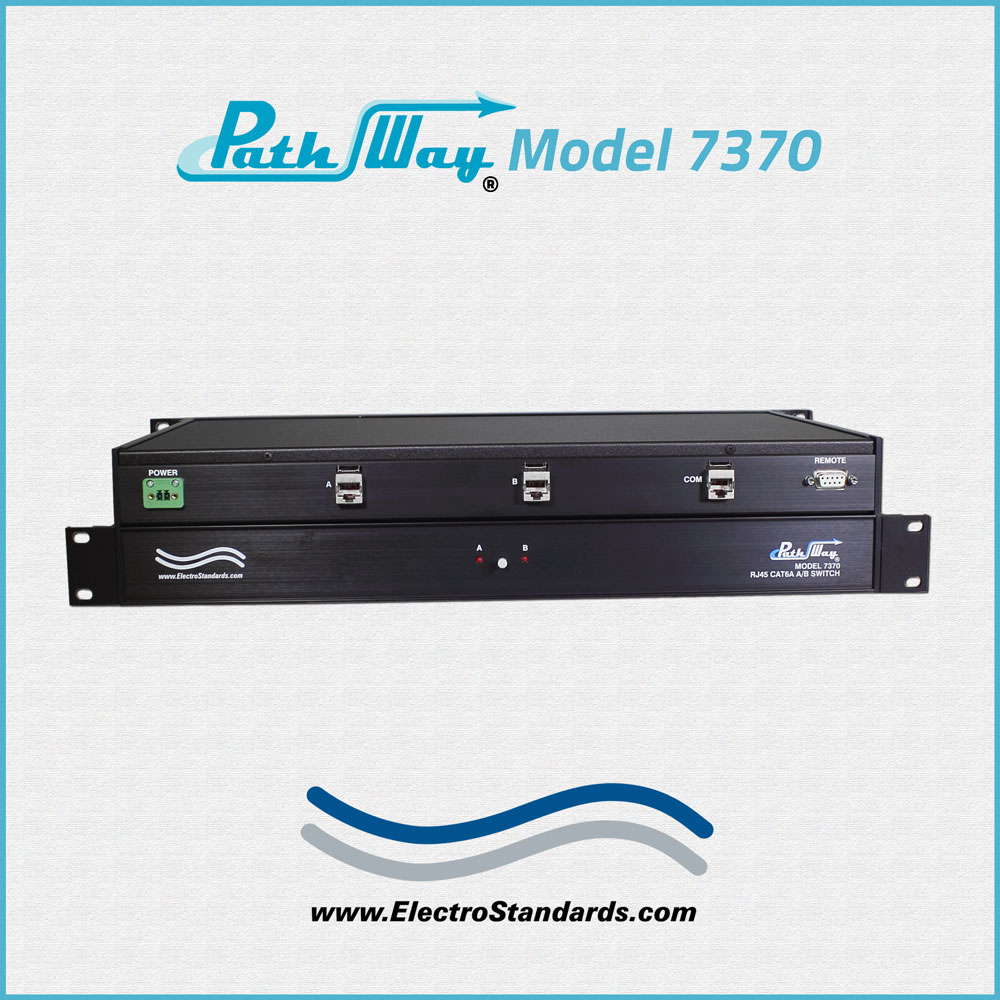

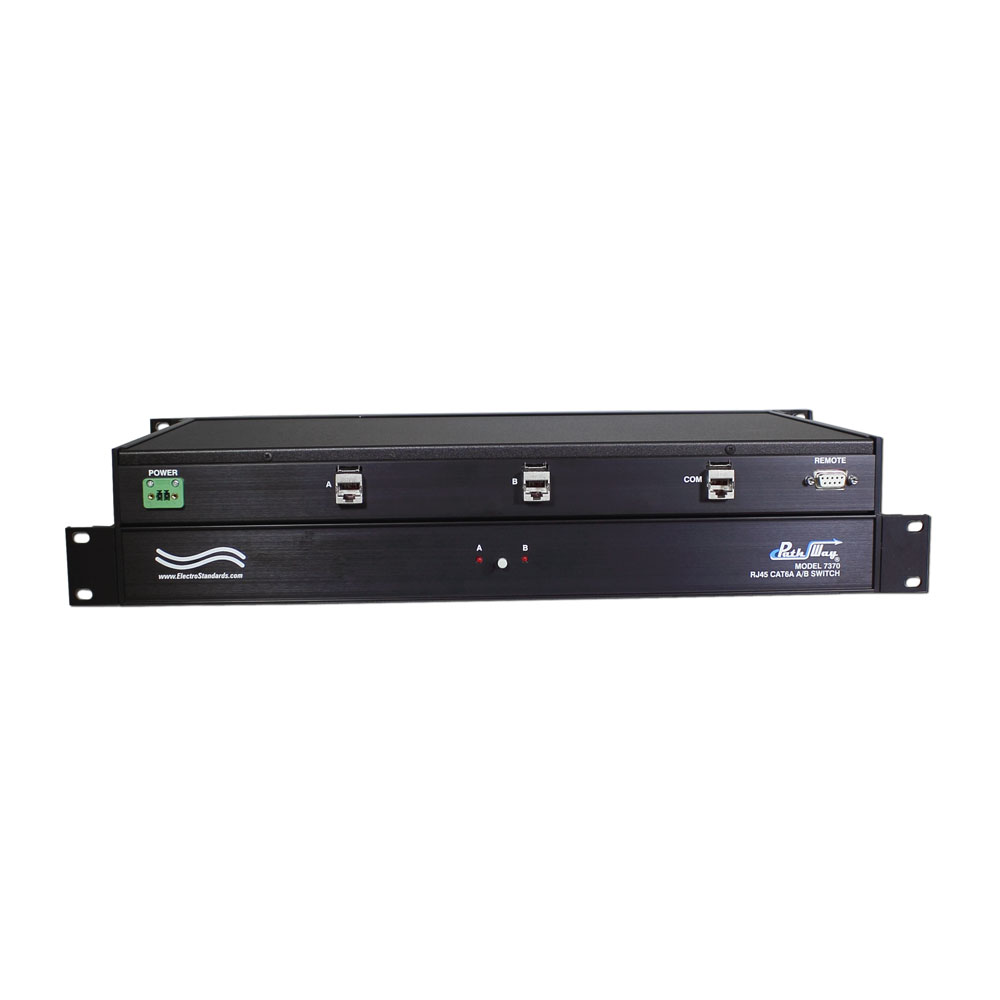

Model 7370 Single Channel Cat 6A RJ45 A/B Switch, with Serial Remote Control Port

  • Certified For Cat6A Compliance!

  • Utilizes High Performance Shielded RJ45 Connectors.

SPECIFICATIONS:

  • PORT CONNECTORS: (3) RJ45(F) shielded connectors labeled A, B and COMMON.
  • COMPLIANCE: Interface meets or exceeds Cat 6A performance.
  • CONTROLS: (1) Pushbutton to select A or B.
  • DISPLAY: (2) Red LED's display switch position and indicate power presence.
  • REMOTE CONTROL: (1) DB9 (F) connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit.Has 2-prong, US non-polarized plug.
  • DIMENSIONS: 19.0" W x 1.75" H x 10.31" D (48.3 x 4.4 x 26.2 cm)
  • WEIGHT: Approximately 5.1 lbs. (2.4 kg)

CAT6A RJ45 A/B SWITCH APPLICATION w/RS232 SERIAL REMOTE:

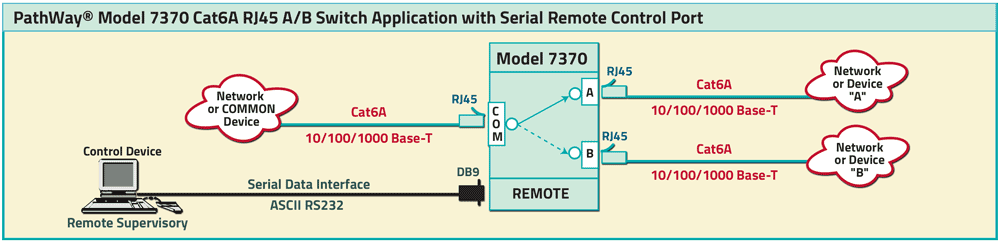

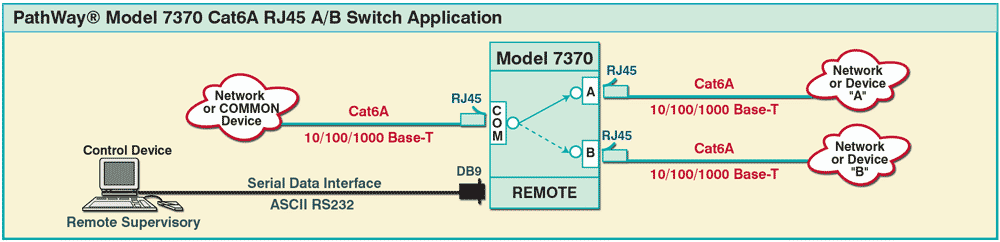

The drawing illustrates an RJ45 interface device or network connected to the RJ45 COMMON port.  The device or network has access to either of two devices or networks connected to the RJ45 A and B ports. The drawing also illustrates Cat6A compliant and 10/100/1000 Base-T.  A Remote Supervisory control device is connected to the DB9 Remote port allowing the user to control the switch remotely using RS232 Serial Data ASCII commands.
