Catalog # 307284 - Model 7284 Mouse, Keyboard, USB A/B Network Switch

    Mouse, Keyboard, USB A/B Network Switch, USBMouse, Keyboard, USB A/B Network Switch, USB

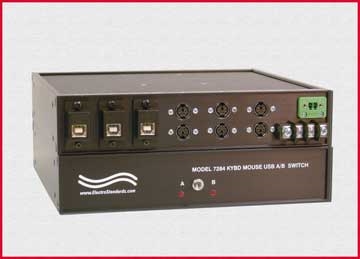

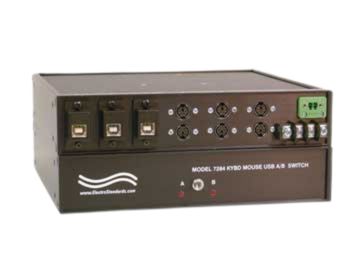

Click image to enlarge
    • Mouse, Keyboard, USB A/B Network Switch, USB
    • Mouse, Keyboard, USB A/B Network Switch, USB
Base Price:
$1,130.00
Catalog No: 307284
Model No: 7284
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:USB, Mini-DIN
Channels per Switch Chassis:3
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control
Remote Control:Contact Closure
Configuration:Desktop
Remote Port:Terminal/Barrier Strip
Local Control:Toggle
Feature:Mounting Screw Holes Designed for Secure Fastening

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview


Path Way® Remotely Controllable Network Switch, multi-peripheral
Model 7284, 2-Position Multi-Peripheral A/B Sharing Switch, PS/2 Mouse, PS/2 Keyboard, and USB Combination Interface, with Remote Control

SPECIFICATIONS:

  • SWITCHED CONNECTORS ON REAR PANEL:
    • (3) 6-Pin MiniDIN (F) Connectors PS/2 Mouse Ports labeled A, B, and COMMON.
    • (3) 6-Pin MiniDIN (F) PS/2 Keyboard Ports labeled A, B and COMMON.
    • (3) USB Ports labeled A, B and C (For COMMON).
  • CONTROLS:
    • Front Panel: (1) Toggle for A/B Switch Control.
    • Rear Panel: (1) 4-Position Screw Terminal Strip for Remote Contact Closure.
  • DISPLAY: Front Panel, (2) LEDs (indicate switch position), Labeled A and B.
  • POWER: Rear Panel, (1) 2-Pin input power connector (mating connector included). Accepts 24 VDC to power the unit. A power supply is not included with this unit.
  • DIMENSIONS: 1.75" H x 8" W x 8" D.
  • WEIGHT: 2.5 lbs.

 The PathWay® Model 7284 Multi-Perpherial A/B Sharing Switch with Remote Contact Control provides a powerful tool to manage switching requirements. The Model 7284 network switch switches mouse, keyboard and USB ports simultaneously.

The Model 7284 network switch can be manually controlled via the front panel or remotely controlled via the rear panel screw terminal Remote port. Each channel, A, B, and COMMON, contains a 6-Pin MiniDIN Female PS/2 mouse port, one 6-Pin MiniDIN Female PS/2 Keyboard port, and one USB port.

FEATURES:

  • Model 7284 AB network switch switches mouse, keyboard and USB ports simultaneously
  • Control via front-panel toggle
  • Control remotely via rear panel screw terminal Remote port
  • Each channel, A, B, and COMMON contains a 6-Pin MiniDIN Female PS/2 mouse port, one 6-Pin MiniDIN Female PS/2 Keyboard port, and one USB port
  • Mouse and Keyboard emulation as required; USB connector, all pins switched
  • LED's display switch position A or B and power status
  • Connection through the switch, and switch status maintained during power loss to the unit
  • Unit has mounting holes to mount on right or left side plate
  • Power from 24 VDC source (not included with unit)
  • Panel mount power connector 2 position Phoenix (mating connector included)

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here or on GSA icon for details.

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.





 The Model 7284 was featured in Automation.com:
http://www.automation.com/content/electro-standards-laboratories-announces-peripheral-toggle-switch

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

 *Prices online are subject to change and verification.
All ESL products are available for export.



For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/
