Path Way® Model 7267 Dual Channel RS232 / RS530 A/B Switch with Remote Control via Contact Closure

Overview

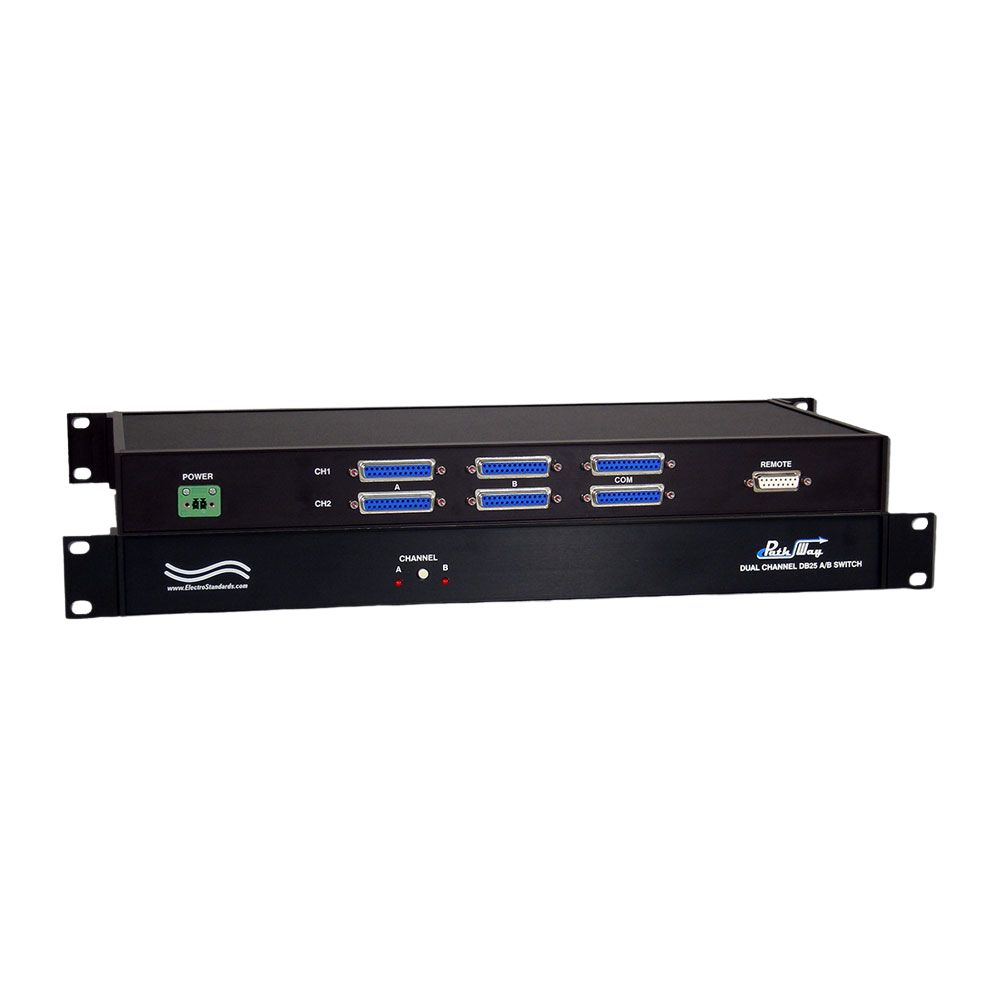

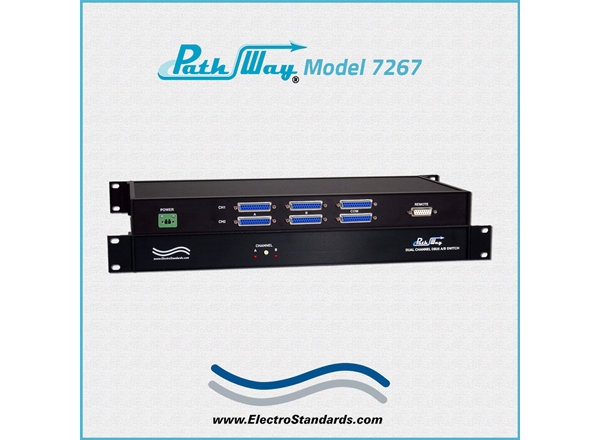

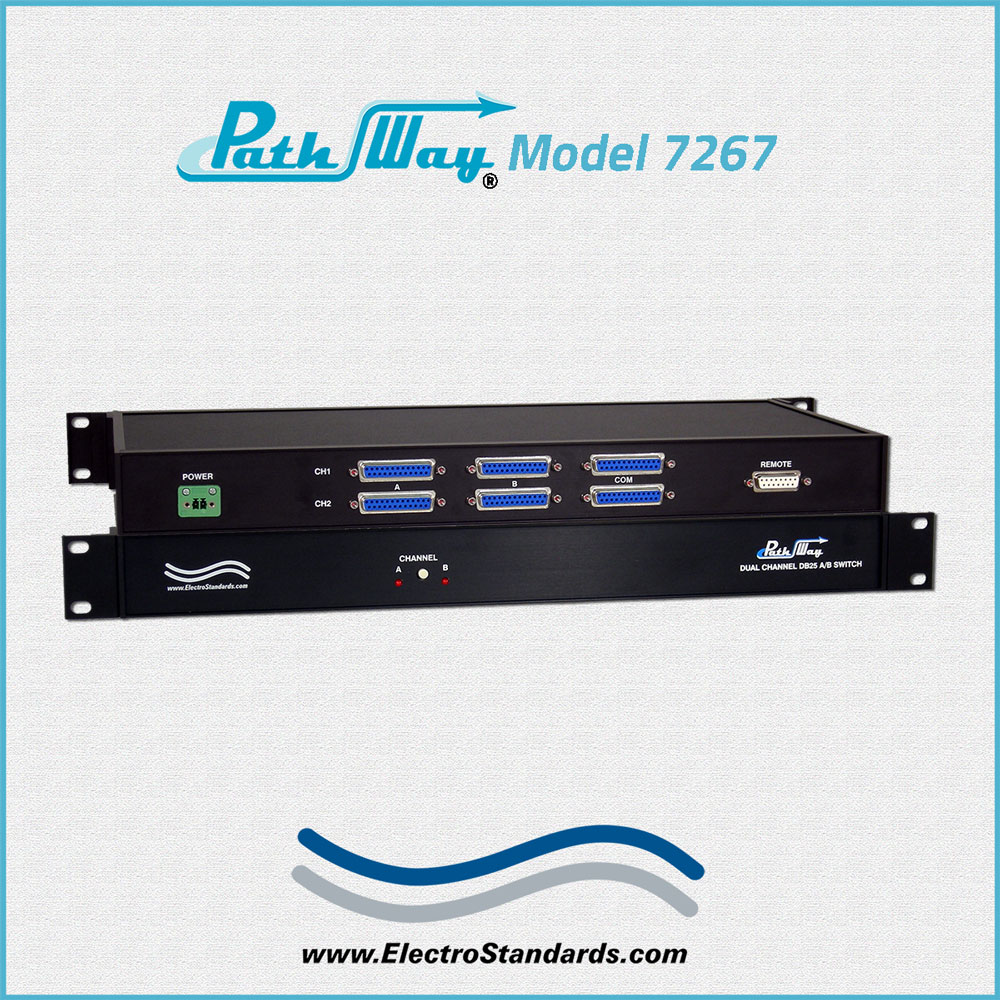

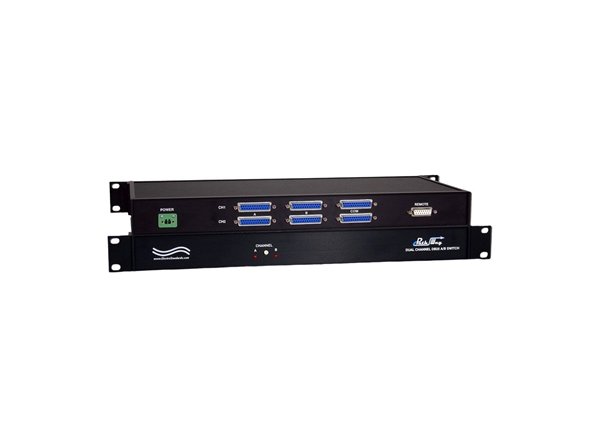

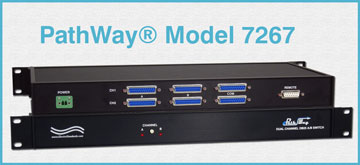

The PathWay® Model 7267 Dual Channel RS232 / RS530 Switch allows the user the capability of sharing a single DB25 interface device, connected to the COMMON port, among two other devices, connected to the "A" and "B" ports for each channel. The Model 7267 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in standard 19" rack.

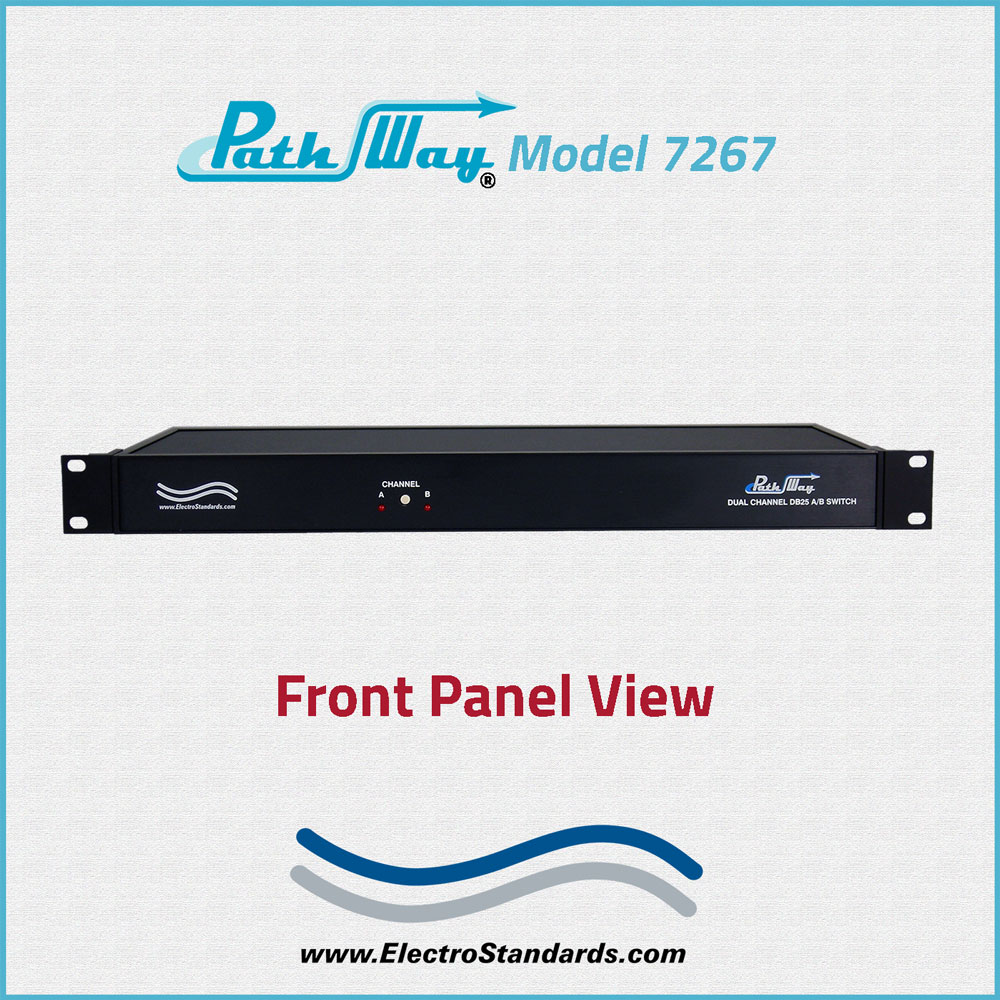

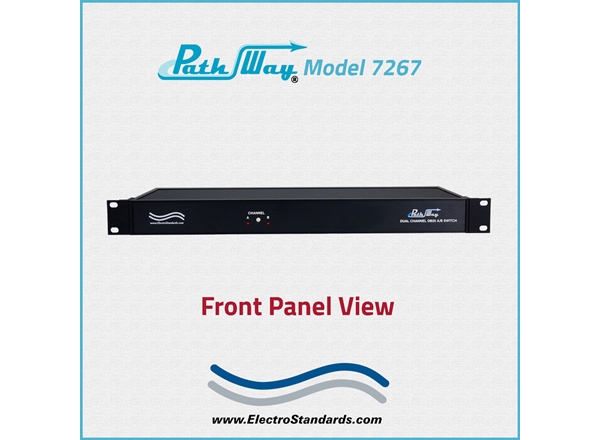

The switch may be controlled locally by manually operating the front panel pushbutton or remotely from the DB15 Control port located on the rear of the unit. The front panel LED display indicates the switch position and unit power status.

Applicable to ANY DB25 Interface!

FEATURES OF THE MODEL 7267 DUAL CHANNEL A/B SWITCH:

PathWay® Model 7267 allows quick connection to any one of two devices from one COMMON device for each channel.
The switch ports are transparent to all data.
All 25 pins of the DB25 interface are switched via break-before-make electromechanical relays.
The unit maintains last set position on power loss and continues to pass data.
Front panel pushbutton control.
Simultaneous control of all channels.
Remote Contact Closure control and status provides dry contact logic to allow the control of the switch position, as well as obtain the present position.
Front panel LED's display present position and power status.
Front panel pushbutton is locked out when Contact Closure Device is connected to the DB15 Remote port.
48VDC power is required.
Municipalities, schools, government: On GSA Schedule!

TECHNICAL SPECIFICATIONS:

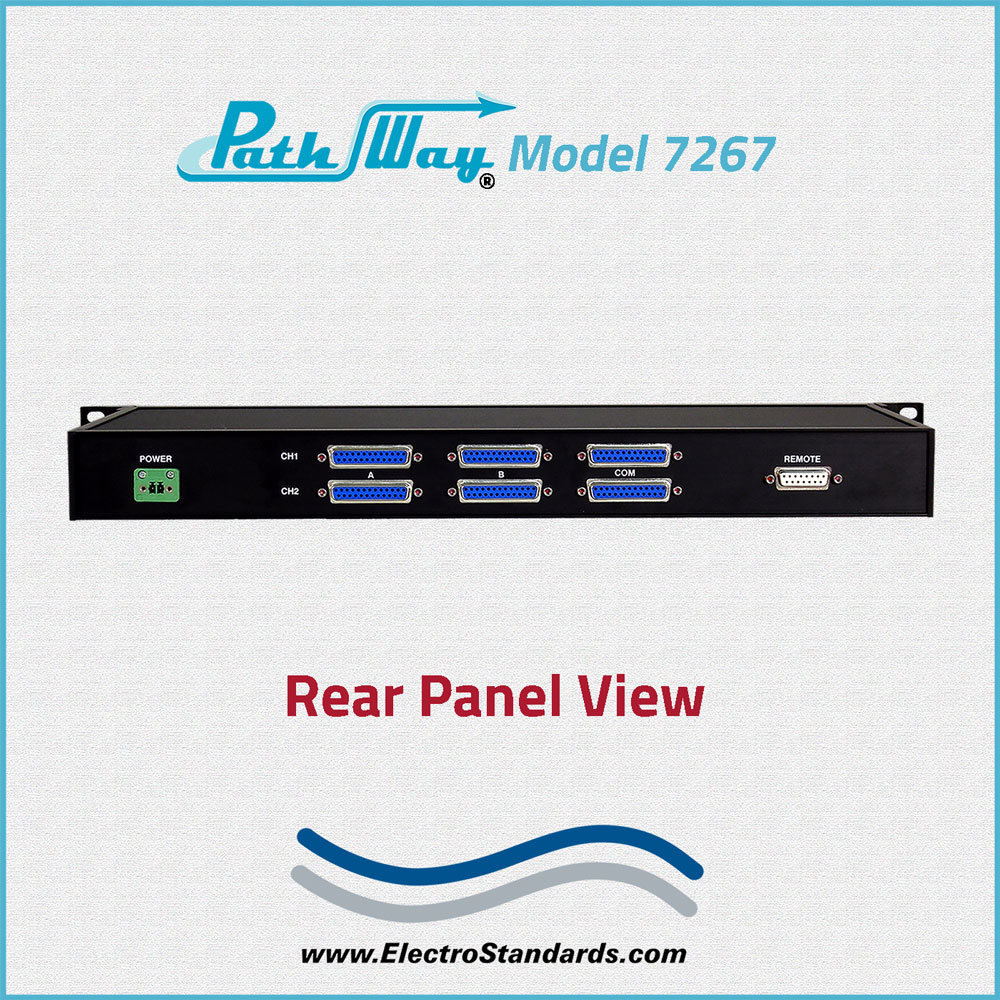

PORT CONNECTORS: (3) DB25 female connectors, labeled A, B, and COMMON for each of two channels.
FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
DISPLAY: (2) Front panel LED's display switch position and power status.

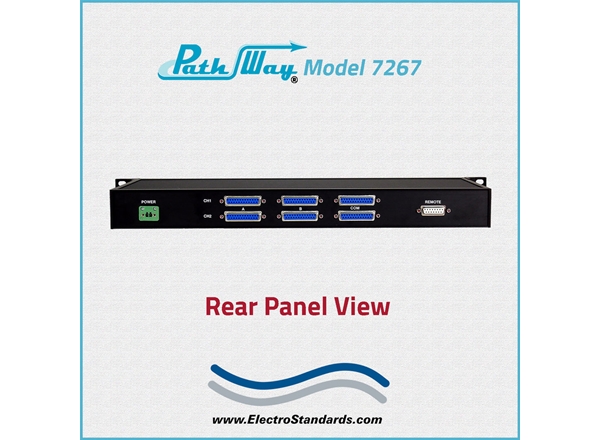

REMOTE CONTROL: (1) DB15 female connector on rear panel accepts Contact Closure switch commands.
POWER: 48VDC power to be supplied by user.
DIMENSIONS: 19.0" H x 1.75" W x 8.16" D. (48.3 x 4.4 x 20.8. cm)
WEIGHT: Approximately 4.6 lbs. (2.1 kg)

PathWay® Model 7267 Dual Channel RS232/RS530 Application with Contact Closure:

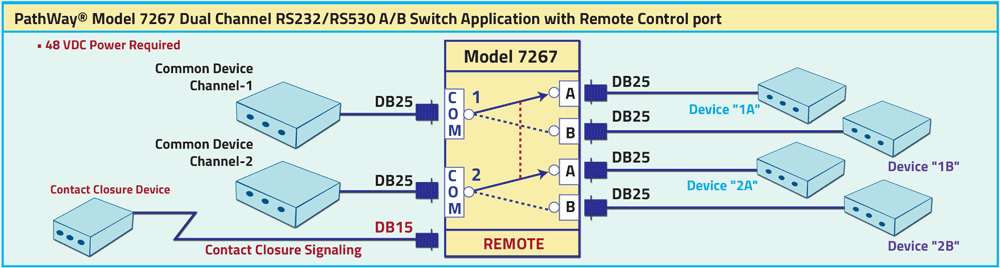

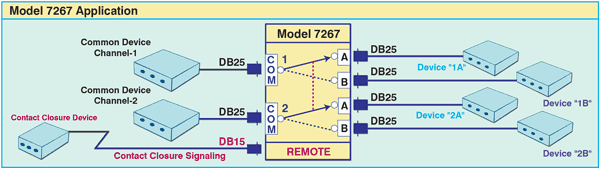

The application illustrates two channels of RS232/RS530 A/B simultaneous switching. Each channel has a COMMON device connected to the DB25 COMMON port sharing between two other devices connected to the DB25 A and B ports. The switch may be controlled from a Contact Closure Device connected to the DB15 REMOTE port via Contact Closure signaling. (Front panel pushbutton is locked out when Contact Closure Device is connected to the DB15 Remote Port)

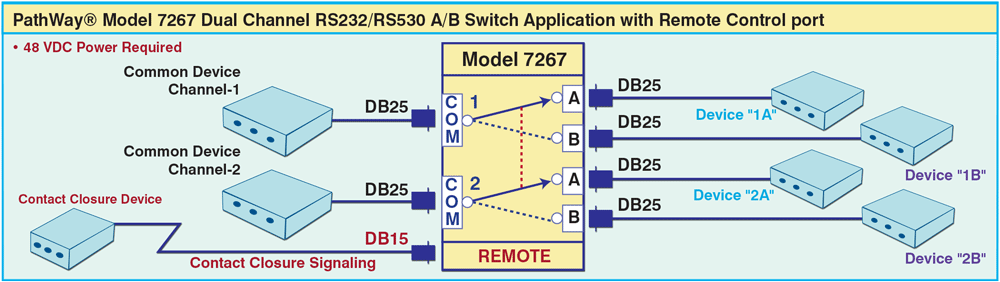

PathWay Model 7267 Dual-Channel RS232/RS530 A/B Switch Application with Contact Closure

DB15 Control Port Signals
DB15 Pin #	Signals
1	Contact Sensor
2	Ground
4	Contact Input
5	Relay Monitor Contact "A"
6	Relay Monitor Contact "COM"
7	Relay Monitor Contact "B"

Pin 1 of the Remote Port is used to sense whether or not the Remote port is connected to the Remote Device.
- Pin 1 must also be connected to the Ground when the Remote Device is connected to the Remote port.
- Pin 1 floats.

Ordering Information

Catalog Number: 307267
Model Number: 7267
Base Price: See website or contact us for current pricing and availability.

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
