Catalog# 307232 Model 7232 RJ45 A/B Switch with RS232 Remote Control, Wallmount

    RJ45 A/B Switch, WallmountRJ45 A/B Switch, WallmountRJ45 A/B Switch, WallmountRJ45 A/B Switch, Wallmount
Click image to enlarge
    • RJ45 A/B Switch, Wallmount
    • RJ45 A/B Switch, Wallmount
    • RJ45 A/B Switch, Wallmount
    • RJ45 A/B Switch, Wallmount
Base Price:
$768.00
Catalog No: 307232
Model No: 7232
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS232 Serial
Configuration:Desktop
Pins Switched:8
Remote Port:DB9
Local Control:Pushbutton
Feature:Copper Contact Relay Switch
Protocol:ASCII

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

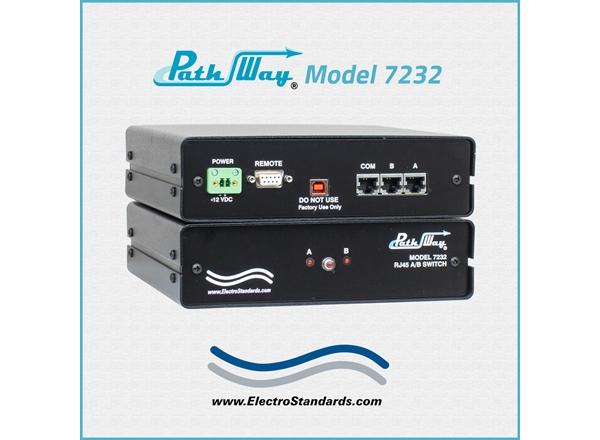

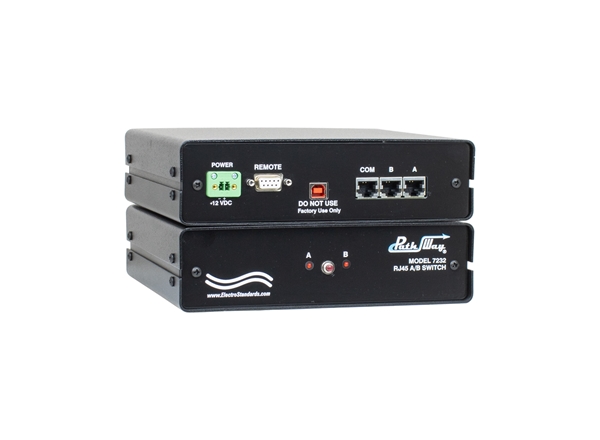

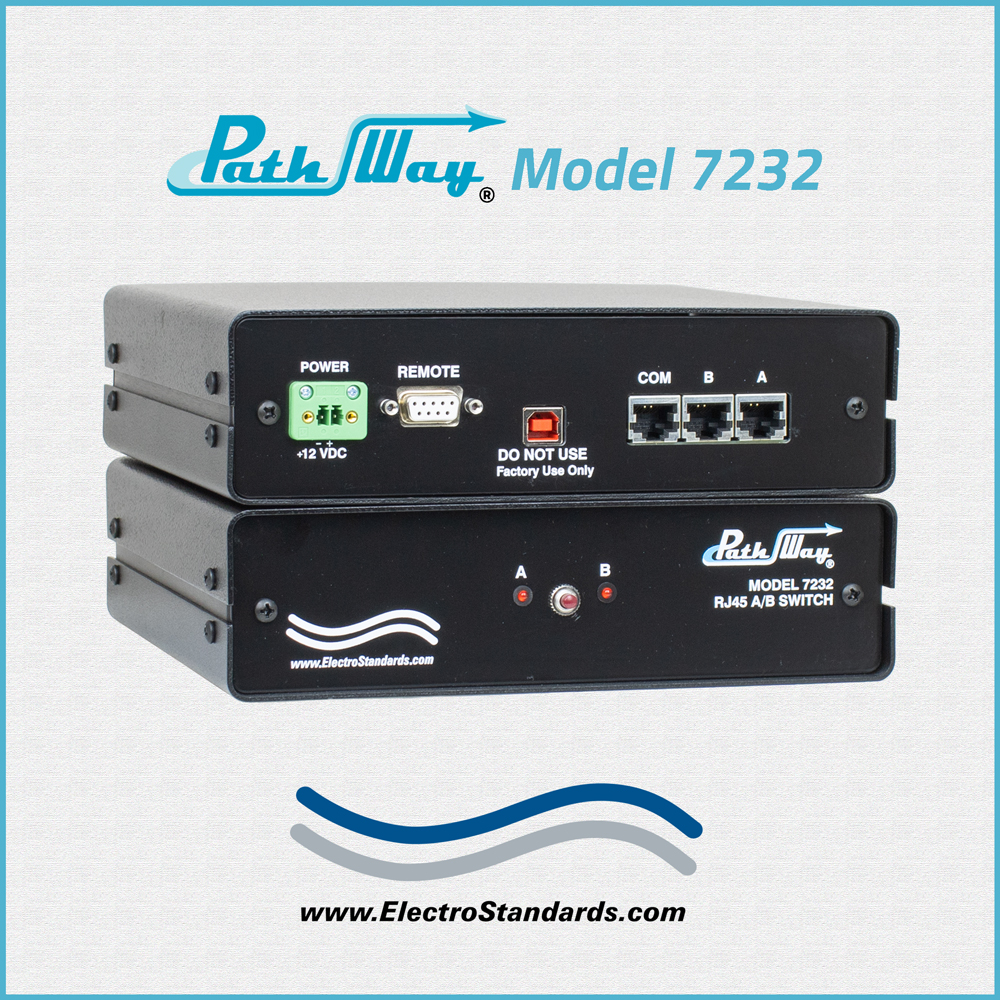

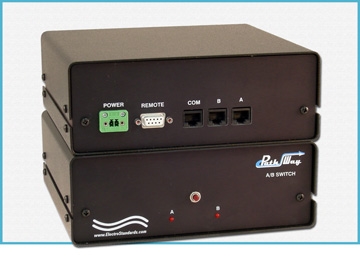

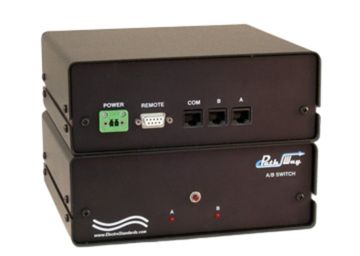

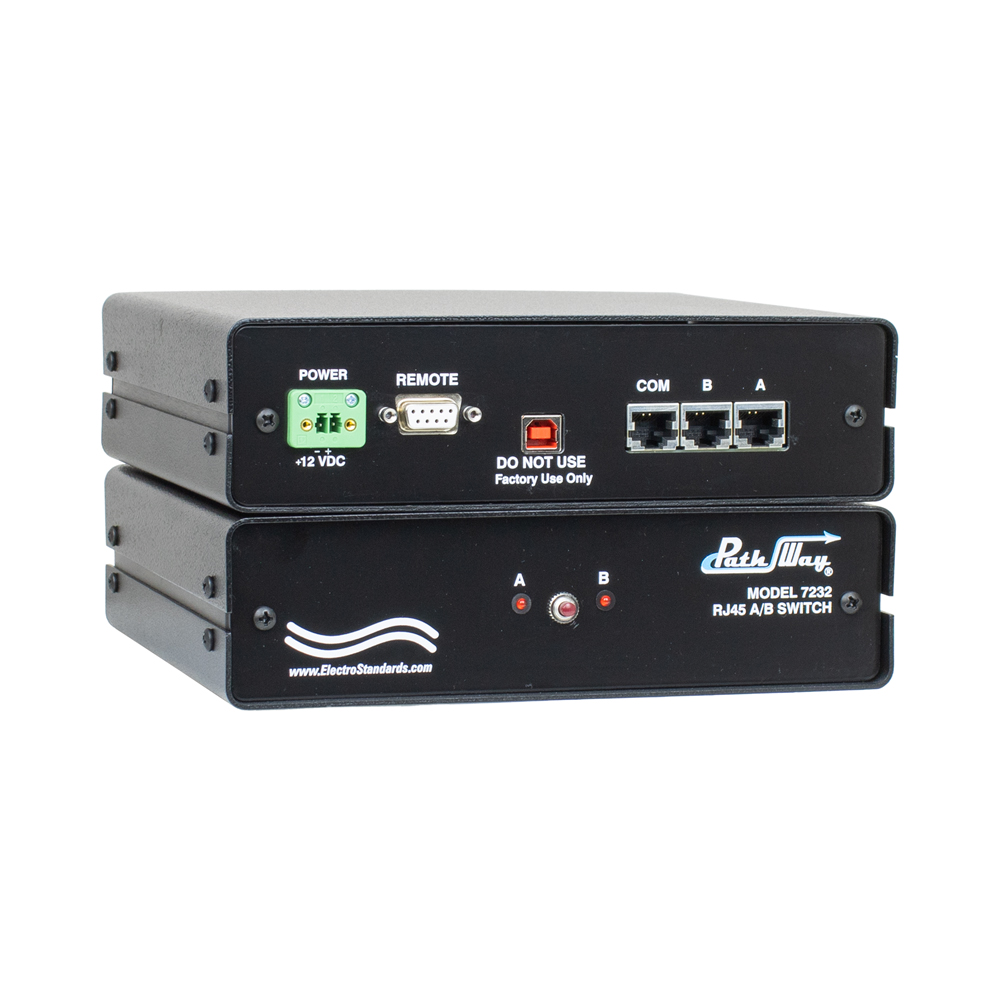

Path Way® Model 7232 Single Channel RJ45 A/B Wall Mount Switch with RS232 Remote Serial Control

Overview

The PathWay® Model 7232 is a wall-mountable RJ45 A/B switch that allows one common device to connect to either of two RJ45 ports. It supports both manual switching and remote control via an RS232 interface, making it suitable for environments where controlled access to network connections is required. The unit switches all eight pins, maintaining signal continuity across standard Ethernet connections. Its break-before-make design ensures that connections are not momentarily tied together during switching.

The Model 7232 provides a straightforward way to manage two RJ45 connections from a single interface, with both local and remote control options. Its design focuses on reliability and compatibility with standard network wiring without requiring software or complex setup.

FEATURES OF THE MODEL 7232 A/B WALL MOUNT SWITCH:

  • Allows quick connection to any one of two devices from one COMMON device.
  • The PathWay® Model 7232 AB network switch ports are transparent to data speed and format.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • Front panel pushbutton control.
  • Remote RS232 ASCII commands that allow the user to control switch position, lockout front panel operations and obtain switch status.
  • Front panel LEDs display present position and power status.
  • Remote Control Lockout of front panel pushbutton.
  • Wall mount style case, key-shaped mounting holes on bottom cover.
  • Custom length RJ45 cables are available.
  • Municipalities, schools, government: This product is on GSA Schedule!

TECHNICAL SPECIFICATIONS:

  • PORT CONNECTORS: (3) RJ45 connectors labeled A, B, and COMMON.
  • CONTROLS: (1) Manual pushbutton allows local switching.

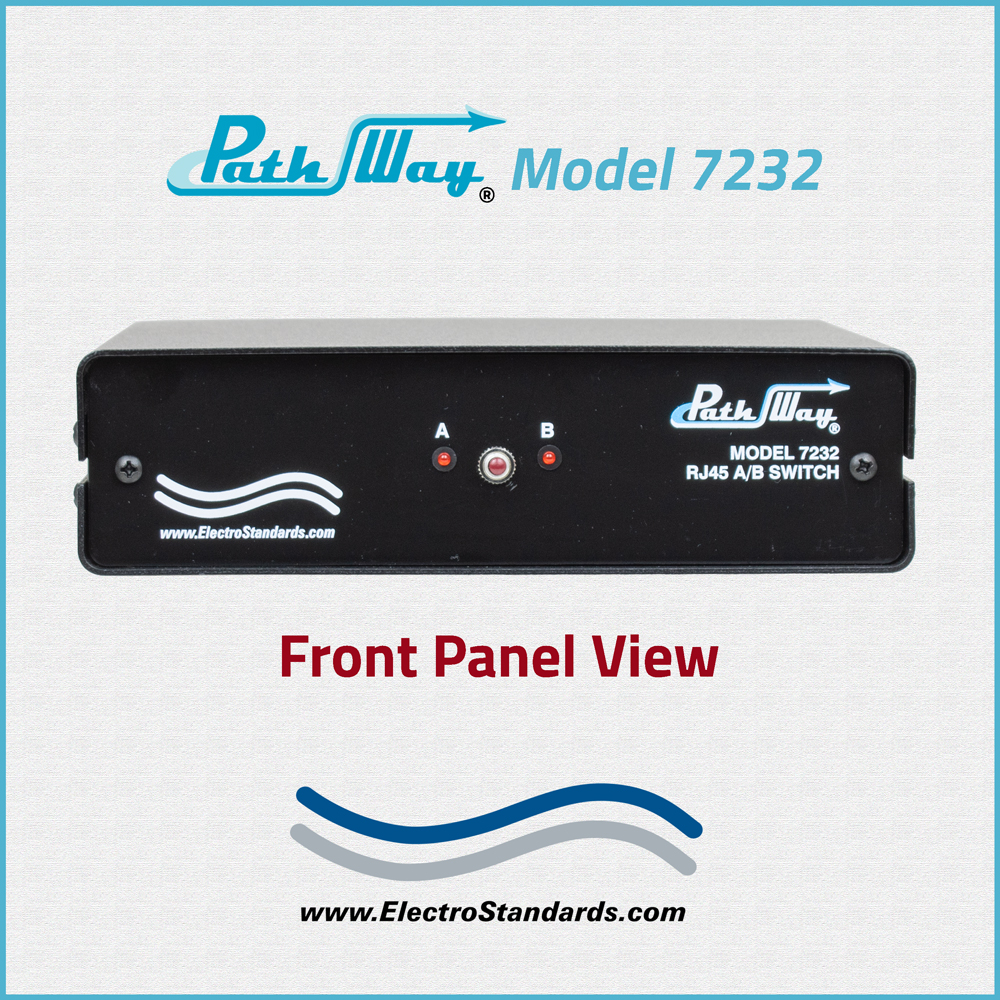

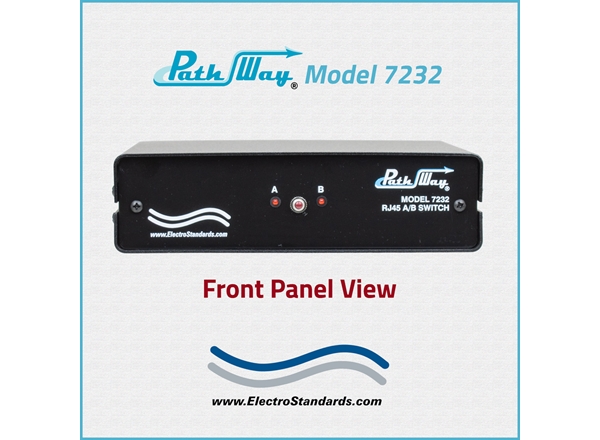

  • DISPLAY: (2) Front panel LEDs display switch position and power status.

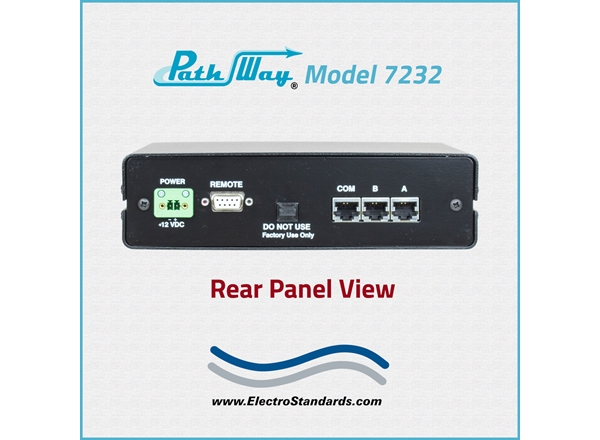

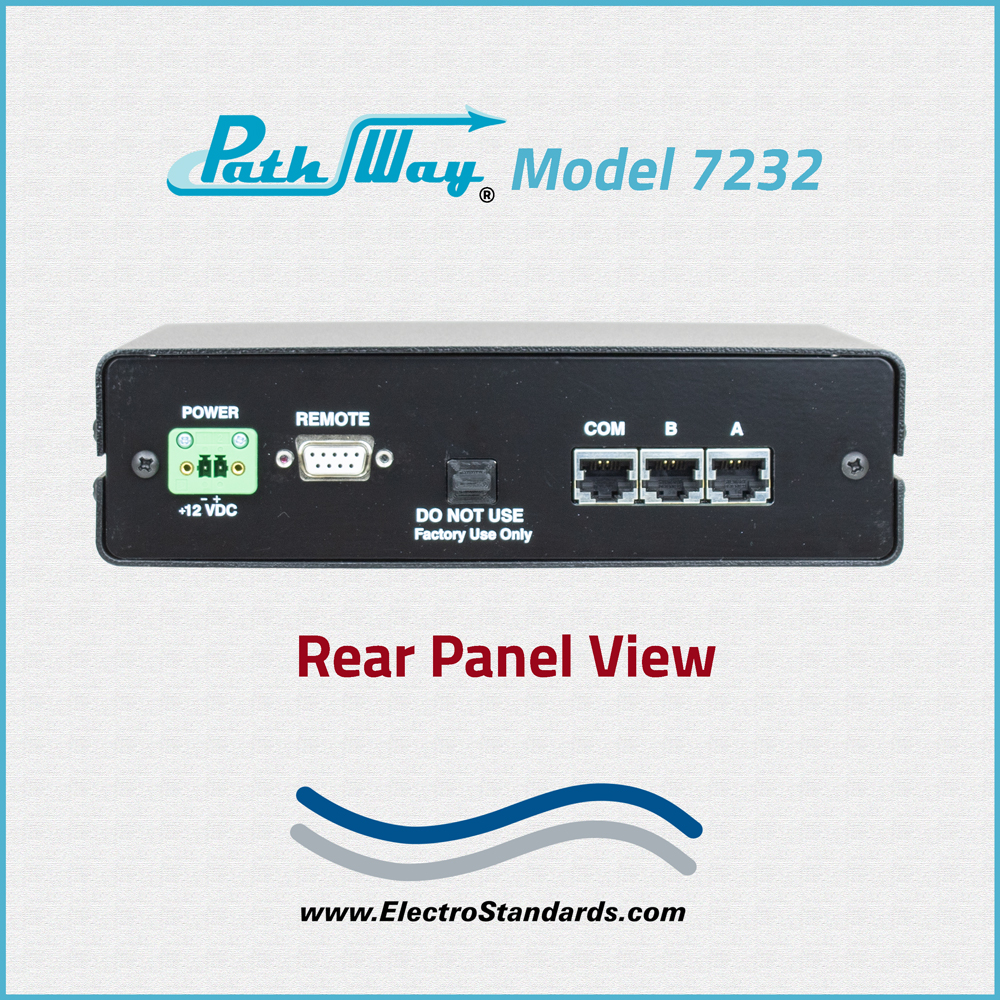

  • REMOTE: (1) DB9 Female connector on rear panel accepts ASCII RS232 Serial Data for Remote control operation.
  • POWER: UL Approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12VDC, 500mA to the unit.  Has 2-prong, US, non-polarized plug.
  • PACKAGING: All aluminum case provides EMI/RFI shielding in noisy environments.
  • DIMENSIONS: 8.15" w x 2.89' H x 7.27" D (20.8 x 7.4 x 18.5 cm)
  • WEIGHT: Approx. 1.7 lbs. (0.8 kg)

OPTION: WIDE RANGE POWER MODULE
(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50Hz/60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here or on GSA icon for details.

Model 7232 Single Channel RJ45 A/B switch with RS232 Remote Operation:

  • The Model 7232 allows the user the capability of sharing a single port interface device connected to the "COMMON" port among two other devices connected to the "A" and "B" ports, with remote access functionality.
  • The Model 7232 is packaged in a slim desktop style enclosure.
  • REMOTE & MANUAL CONTROL: The switch may be controlled locally by manually operating the front panel pushbutton or remotely from the DB9 Female Serial Interface Remote port located on the rear of the unit.
  • The front panel LED display indicates the switch position and unit power status.

RJ45 A/B SWITCH WALL MOUNT APPLICATION WITH SERIAL REMOTE:

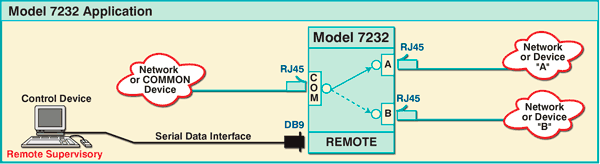

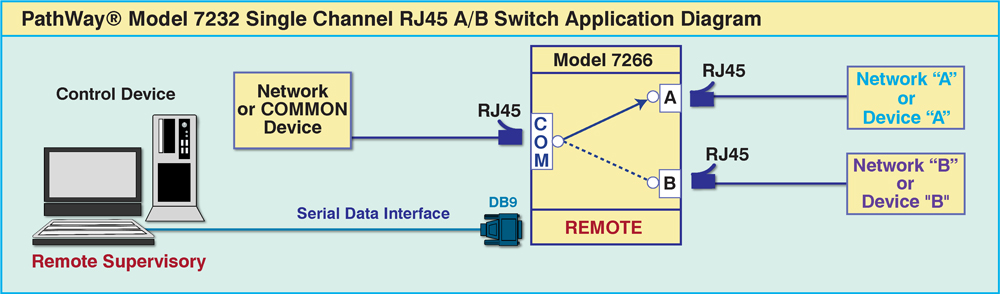

The Model 7232 drawing illustrates a COMMON Network or COMMON Device connected to the COMMON port with access between Network A/Device A and Network/Device B connected to the RJ45 A and B ports respectively. The DB9 Remote port accepts RS232 ASCII commands so the user can remotely control the switch.

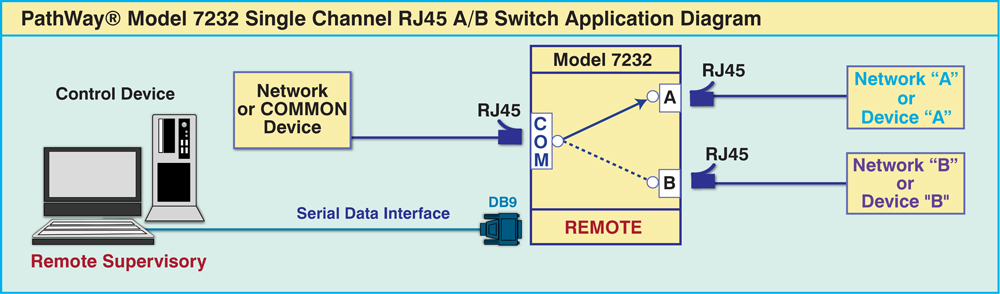

Model 7232 Wall Mount Desktop A/B Switch application drawing.

Ordering Information

  • Catalog Number: 307232
  • Model Number: 7232
  • Base Price: See website or contact us for current pricing and availability.
  • Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.
