 Path Way® Remotely Controllable Network Switch
 Model 7211 Dual Channel DB9 A/B Switch with Remote Contact Control Port

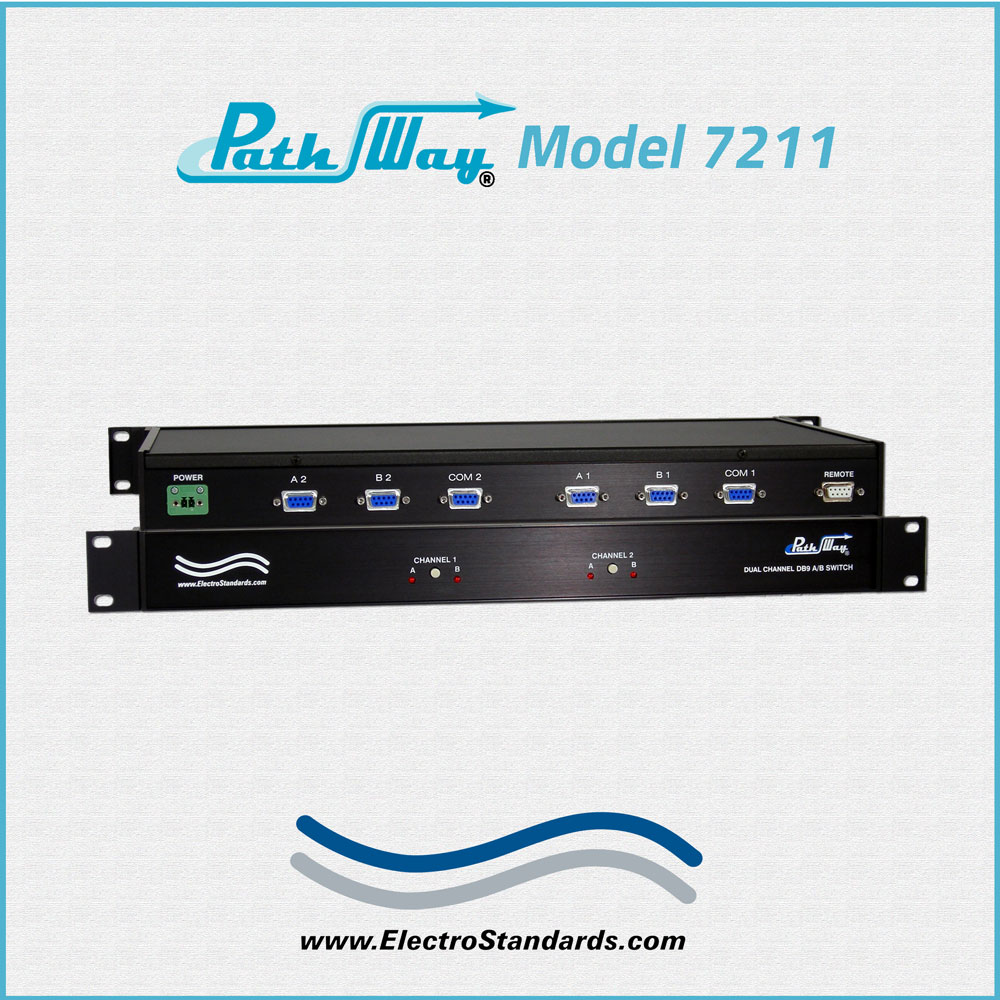

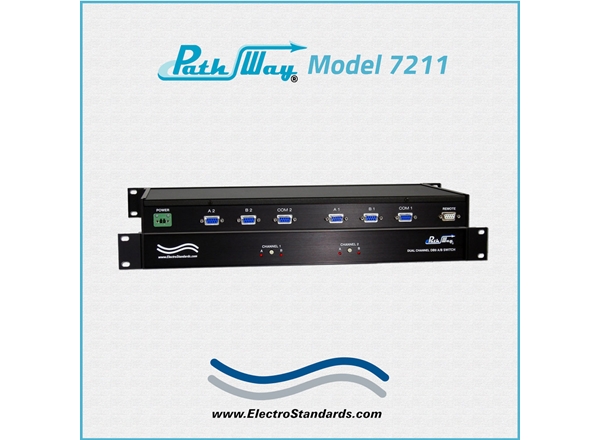

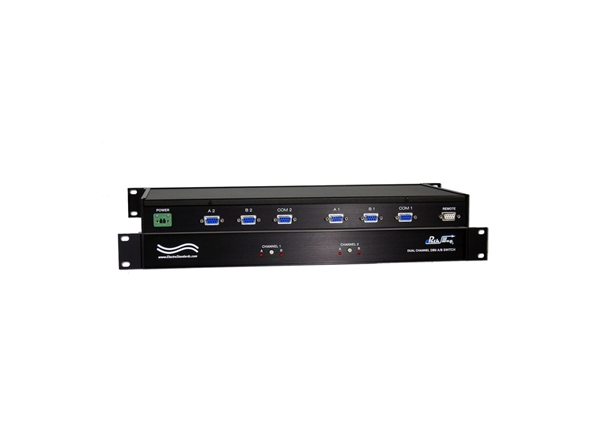

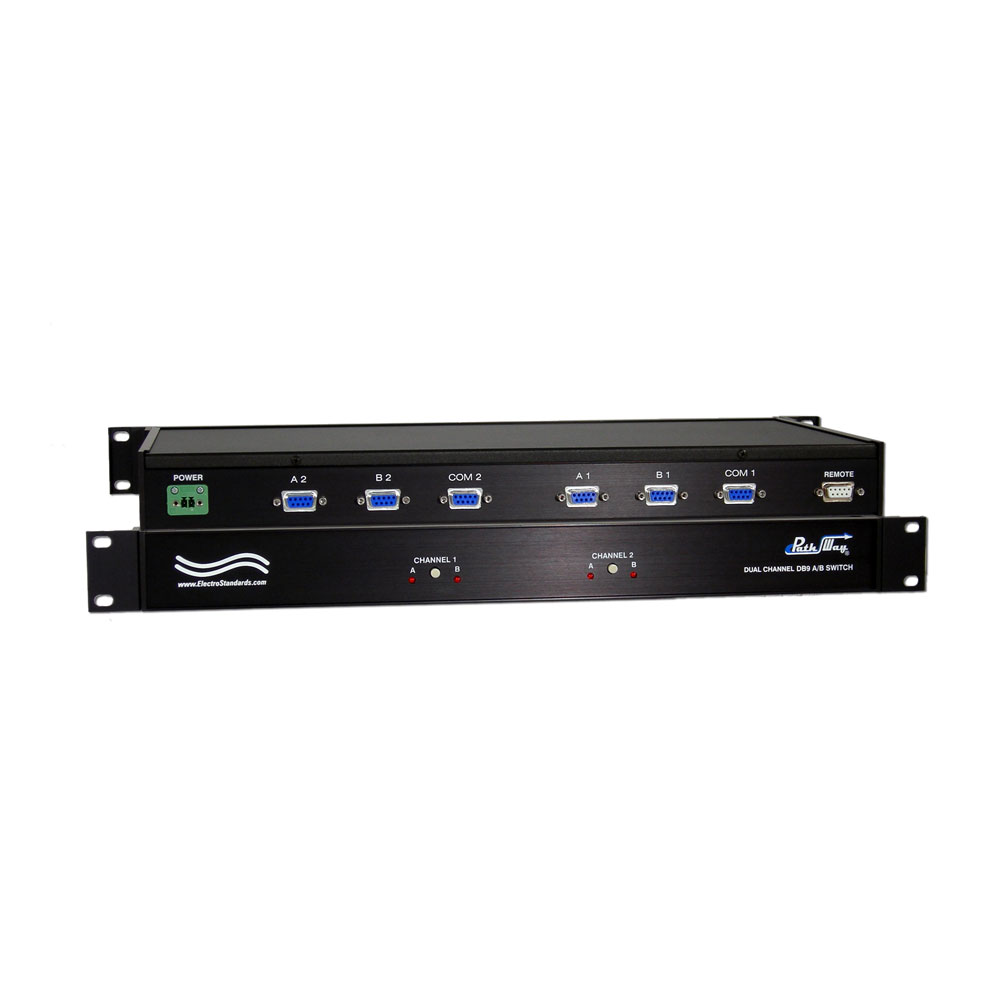

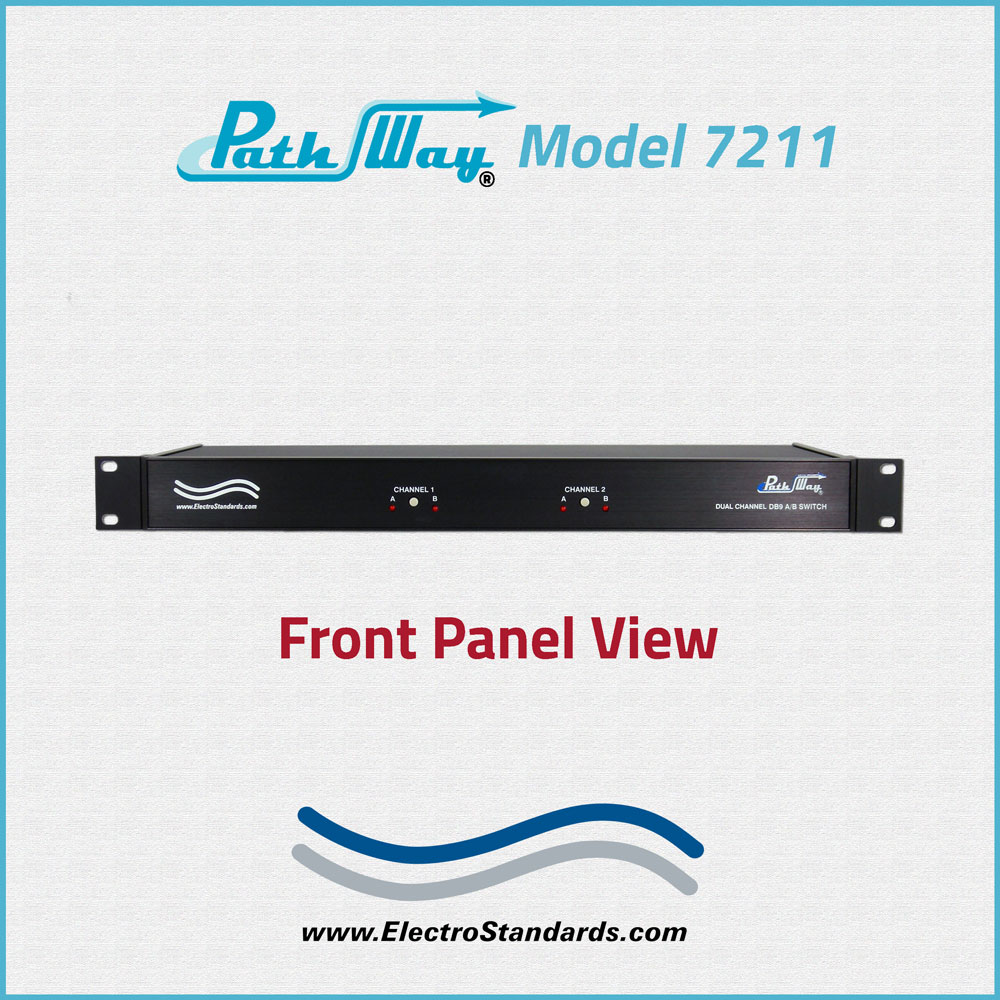

The PathWay® Model 7211 Dual Channel DB9 A/B Switch allows a device connected to either channel Common port access to its respective A or B port.  The Model 7211 Dual Channel Switch is compactly enclosed in a low profile, 19-inch 1U rack unit.  The unit also allows for both channels to be either switched simultaneously or independently controlled.


The network switch may be controlled locally by manually operating the front panel push button or remotely from the DB9 Remote Control port located on the rear of the unit.  The DB9 Remote port provides control by dry contact open/closure logic.

 FEATURES:
  • Supports (2) independent channels of A/B switch function.
  • All 9 pins of each channel are switched.

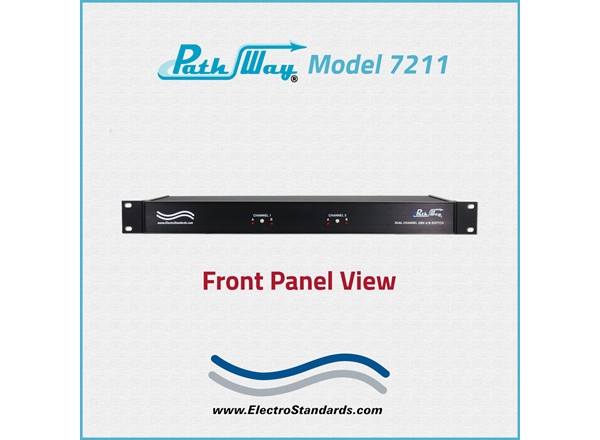

  • Local switching via (2) front panel pushbuttons.
  • (4) Status LED's, A/B, on the front panel indicate the switch position & power status of each channel.
  • A single DB9 female Remote port accepts a straight through DB9 male/male cable to connect to the Model 7211 Remote Unit.
  • This 2-Channel Switch maintains position and signal pathway even if power to the unit is lost.
  • Monitor pins supply the voltage to drive LED indicators at remote location with 5VDC.
 SPECIFICATIONS:
  • PORT CONNECTORS:

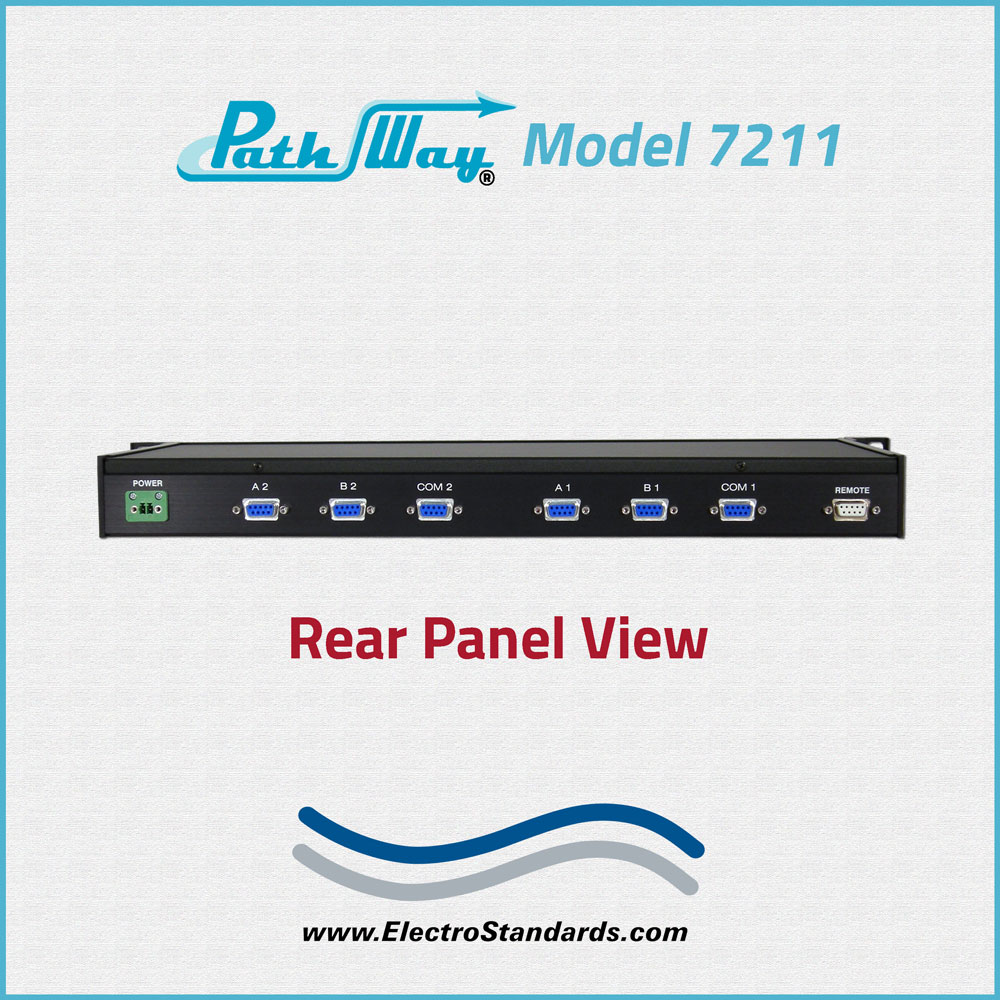

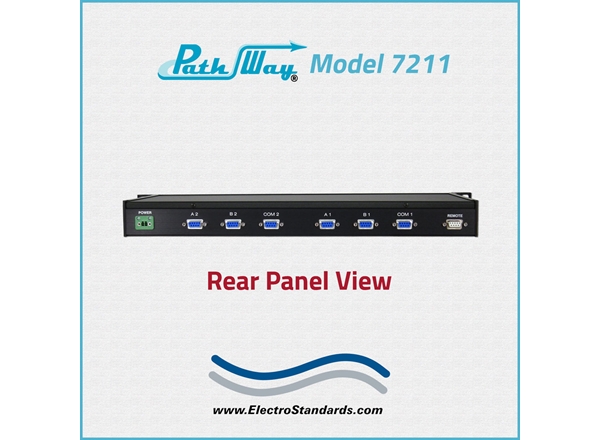

    • Channel 1: (3) DB9/F connectors labeled A, B, and Common.
    • Channel 2: (3) DB9/F connectors labeled A, B, and Common.
  • FRONT PANEL CONTROLS: (2) Manual pushbuttons allow local switching of each channel.
  • DISPLAY: (4) Front panel LED's display switch status, and power status.
  • REMOTE: (1) DB9 female connector on rear panel accepts contact closure transition signals for Remote Control operation.
  • POWER: UL approved 115VAC, 60 Hz wall mount power module supplies 12 VDC, 500mA to the unit.
  • DIMENSIONS: Rackmount 19.0" W x 1.75" H x 8.0" D. (48.3 X 4.4 X 20.3)
  • WEIGHT: Approximately 4.5 lbs. (2.0 kg)
 OPTION: WIDE RANGE POWER MODULE
(Cat No 517277) CE and UL listed table mount power module, 100 VAC / 240 VAC, 50Hz/60Hz in place of standard 115VAC or 120VAC power module.  Ideal for international applications.

APPLICATION: The diagram illustrates a dual channel DB9 A/B Switch sharing a COMMON device between two devices connected to the A and B ports for each channel. Each channel is an independent function.  The DB9 Remote controls the switch using contact closure transition signals.  Model 7211-RU is designed to connect to the DB9 port using  a straight through DB9 male to male cable, Cat No. 990126.


 7211 Dual Channel DB9 A/B Switch Utilizing the Model 7211-RU for Remote Control

Don't Forget to order Your Custom Cables, Custom Length!

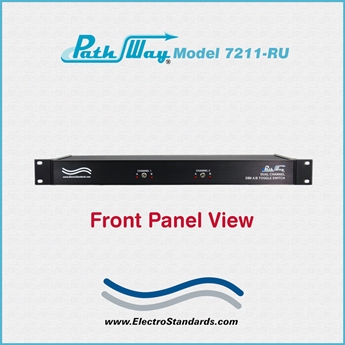

Model 7211-RU Remote Unit, Rackmount
The
Model 7211-RU Remote Unit, is designed to control the PathWay® Model 7211 Dual Channel DB9 A/B Switch by providing the required contact closure control signals.

FEATURES:

  • Two toggle switches control the two DB9 interface A/B  switch channels
    of the Model 7211.
  • LED indicators display the current position of each switch channel.
  • A transition from contact CLOSE (down) to OPEN (up) of the toggle switch will cause the channel to switch to A.  A transition from contact OPEN (up) to CLOSE (down) of the toggle switch will cause the channel to switch to B.
  • Upon power up, the Model 7211 reads the static contact state.  If OPEN, switch to position A; if CLOSED, switch to position B.  After power up, the unit looks for transitions.
  • A single DB9 female Remote port accepts a straight through DB9 cable.
  • Dimensions: 1.75" H x 8" D x 19" W. (48.3 x 4.4 x 20.3 cm)
For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

 PathWay®  is a registered trademark of Electro Standards Laboratories
