Model 6286 SC Duplex Gigabit A/B Fiber Switch with RS232 Secure Remote Control , Catalog # 306186

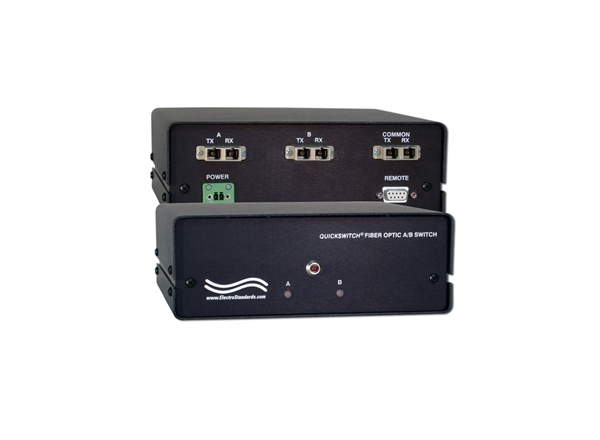

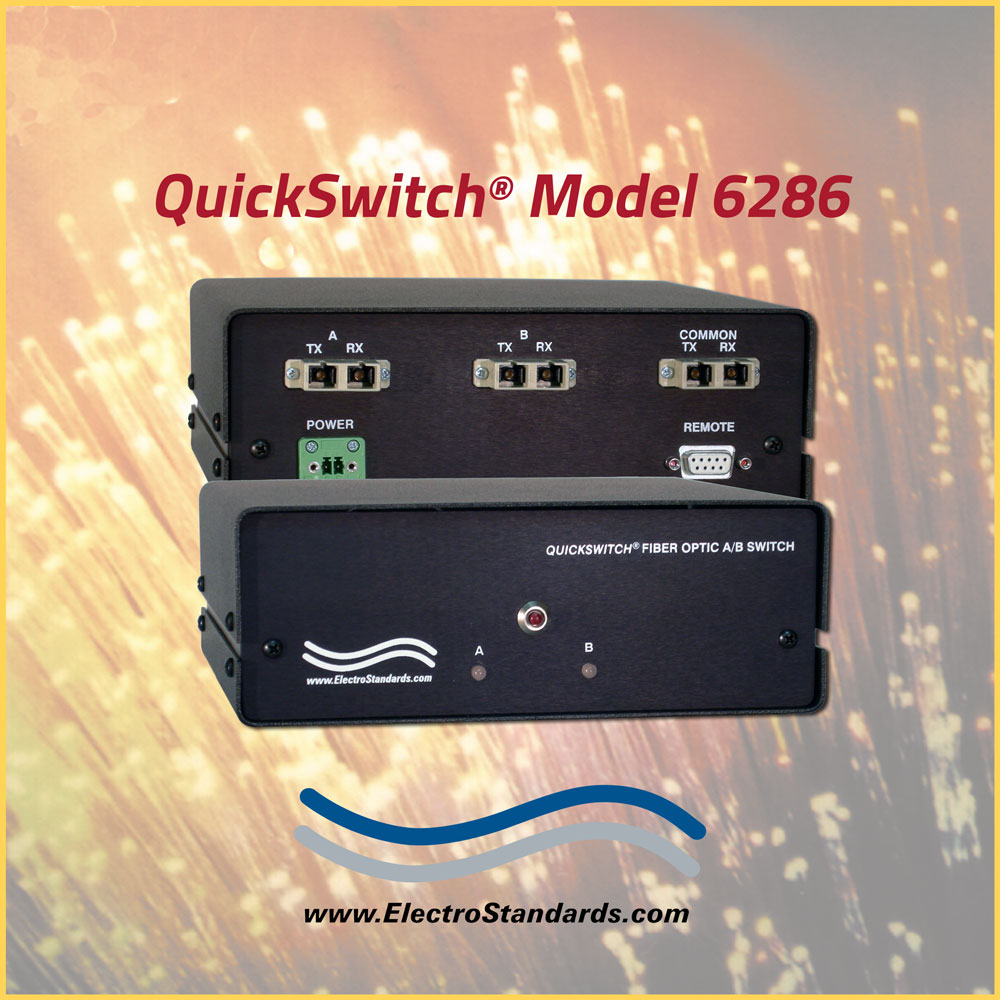

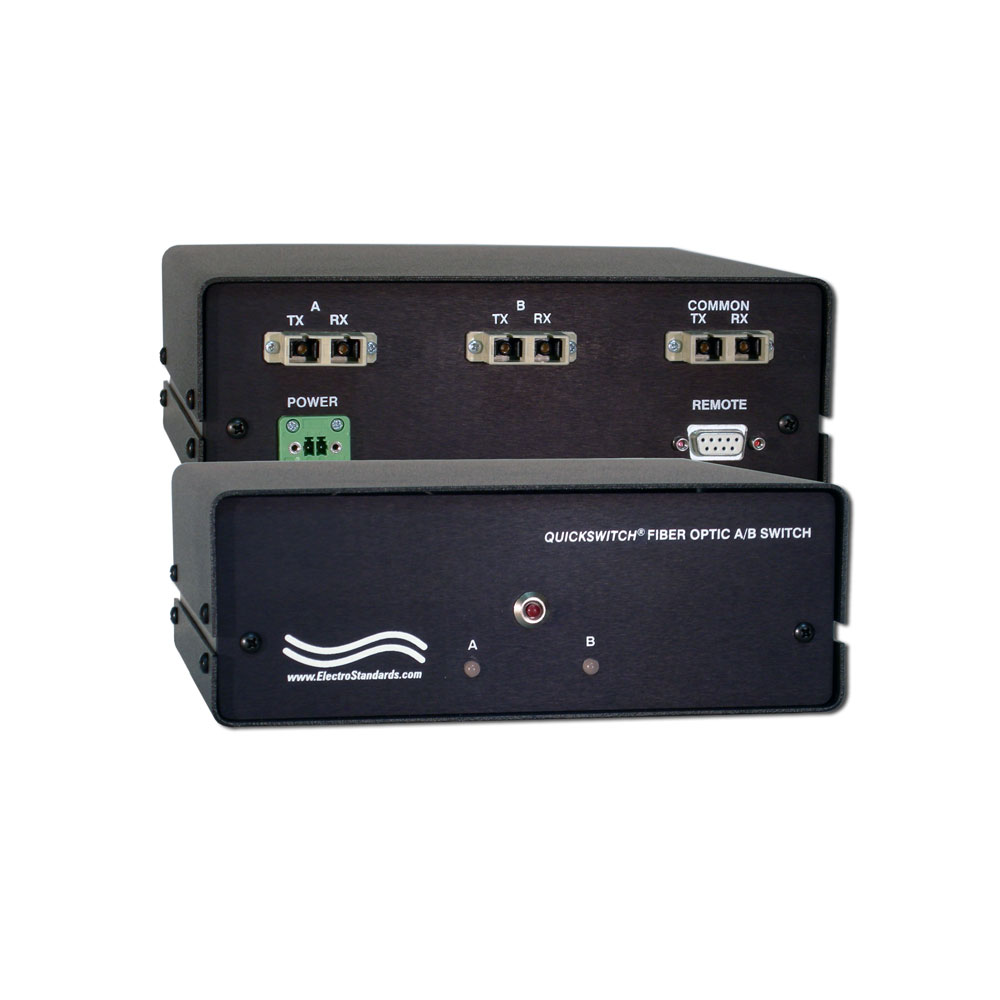

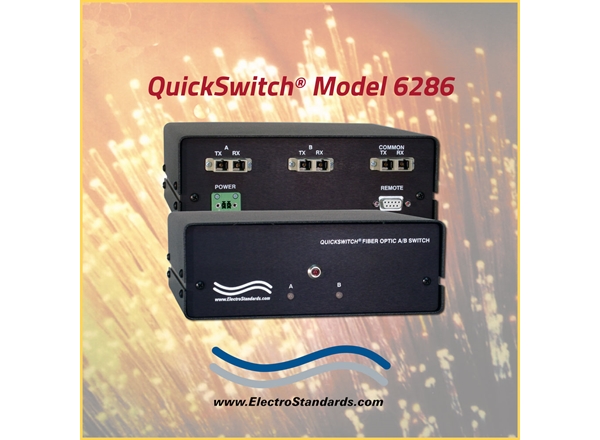

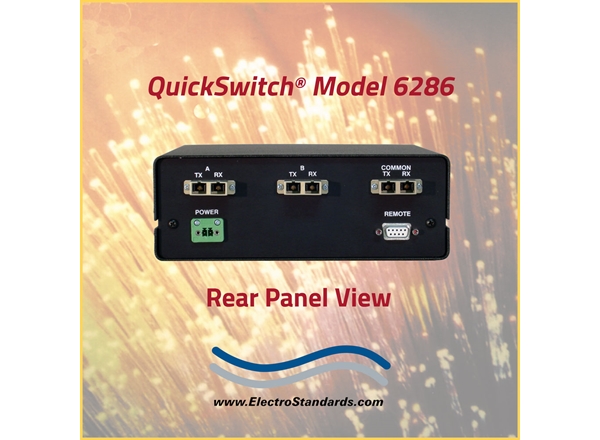

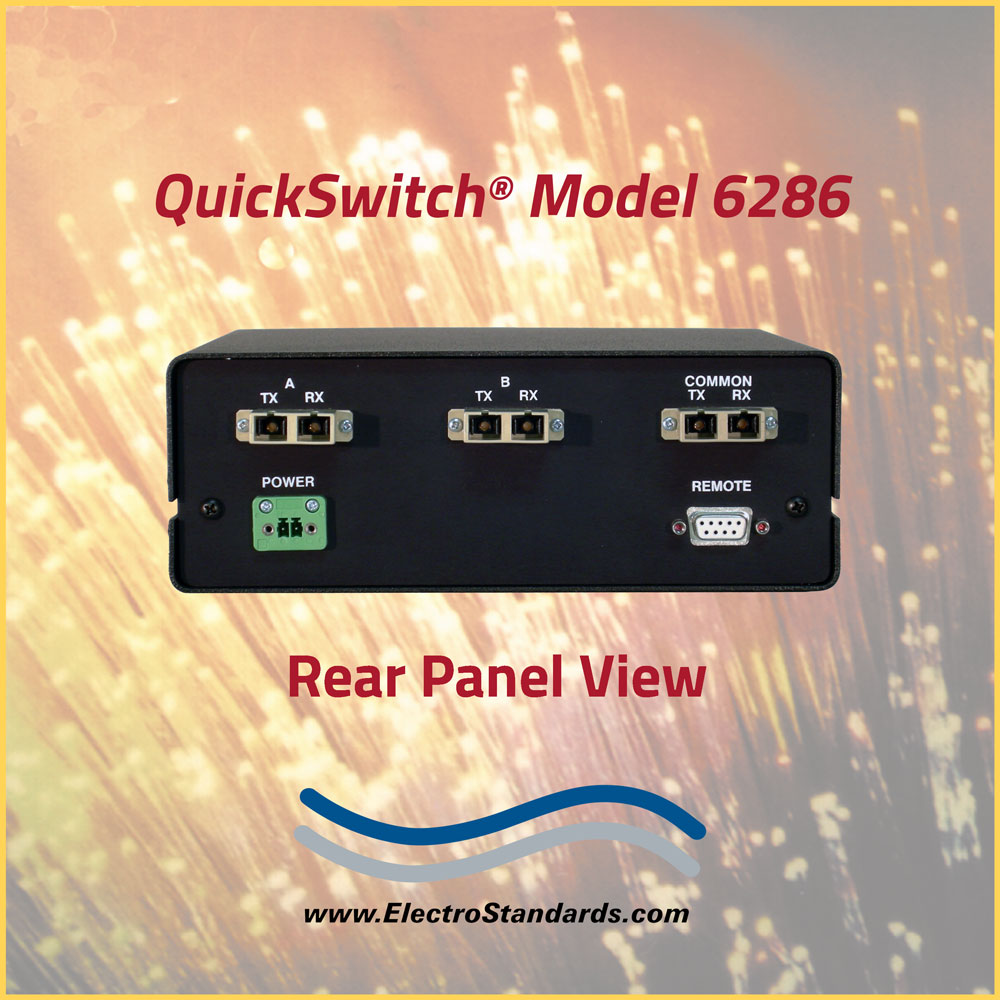

    Gigabit SC Duplex A/B Fiber SwitchGigabit SC Duplex A/B Fiber SwitchGigabit SC Duplex A/B Fiber SwitchGigabit SC Duplex A/B Fiber Switch
Click image to enlarge
    • Gigabit SC Duplex A/B Fiber Switch
    • Gigabit SC Duplex A/B Fiber Switch
    • Gigabit SC Duplex A/B Fiber Switch
    • Gigabit SC Duplex A/B Fiber Switch
Base Price:
$2,596.00
Catalog No: 306186
Model No: 6286
Product Type:Switches: Fiber Optic
Positions:2
Cable Type/Port Connector:SC
Channels per Switch Chassis:1
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Remote Control:RS232 Serial
Configuration:Desktop
Fiber Mode:Multimode
Fiber Size:62.5/125
Fiber Type:Duplex
Remote Port:DB9
Local Control:Pushbutton
Mirror Technology:OO
Speed:Giga
Wavelength Nano:1300

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

QuickSwitch® Model 6286 Fiber Optic Mirror A/B Switch, 1300 nm SC Duplex, Multimode with Remote Control

Overview

The QuickSwitch® Model 6286 Multimode SC Duplex A/B, 1300 nm all optical switch, is designed with fiber optic mirror/prism technology and supports gigbit data rates. The signal is received by the unit as an optical signal over the fiber strand, is redirected by mirror/ prism mechanisms, and leaves the unit as an optical signal over a fiber strand. The Model 6286 allows a fiber optic device connected to the unit’s SC Duplex COMMON connector to access either of the two fiber optic networks connected to the A, B ports. Switch position can be changed via an A/B front-panel pushbutton, or by a serial RS232 device connected to the rear panel Remote port. If power to the Model 6286 is lost, the unit will default to the A position and continue to pass data.

FEATURES OF THE MODEL 6286 SC DUPLEX MIRROR SWITCH:

  • Access either of two SC Duplex Fiber Optic networks from one computer connected to an SC Duplex COMMON port.
  • The switch ports are transparent to all data.
  • All fiber signals are switched via break-before-make MEMS-based mirror/prism switch technology and support Gigabit data rates.
  • Front panel pushbutton control.
  • Remote Control RS232 ASCII command interface that allows the user to control switch position, lockout front panel operations, obtain switch status, as well as query firmware version number.
  • Password Protected Remote Control

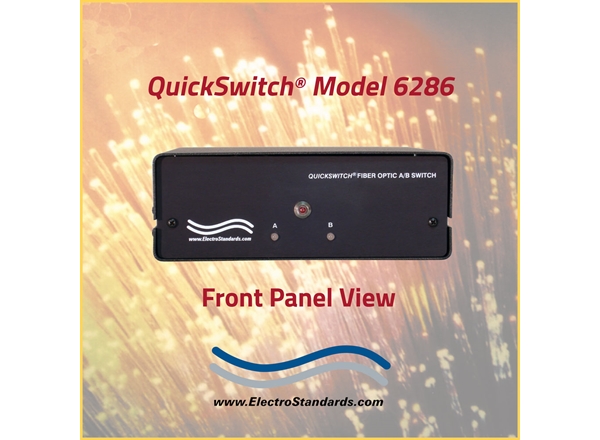

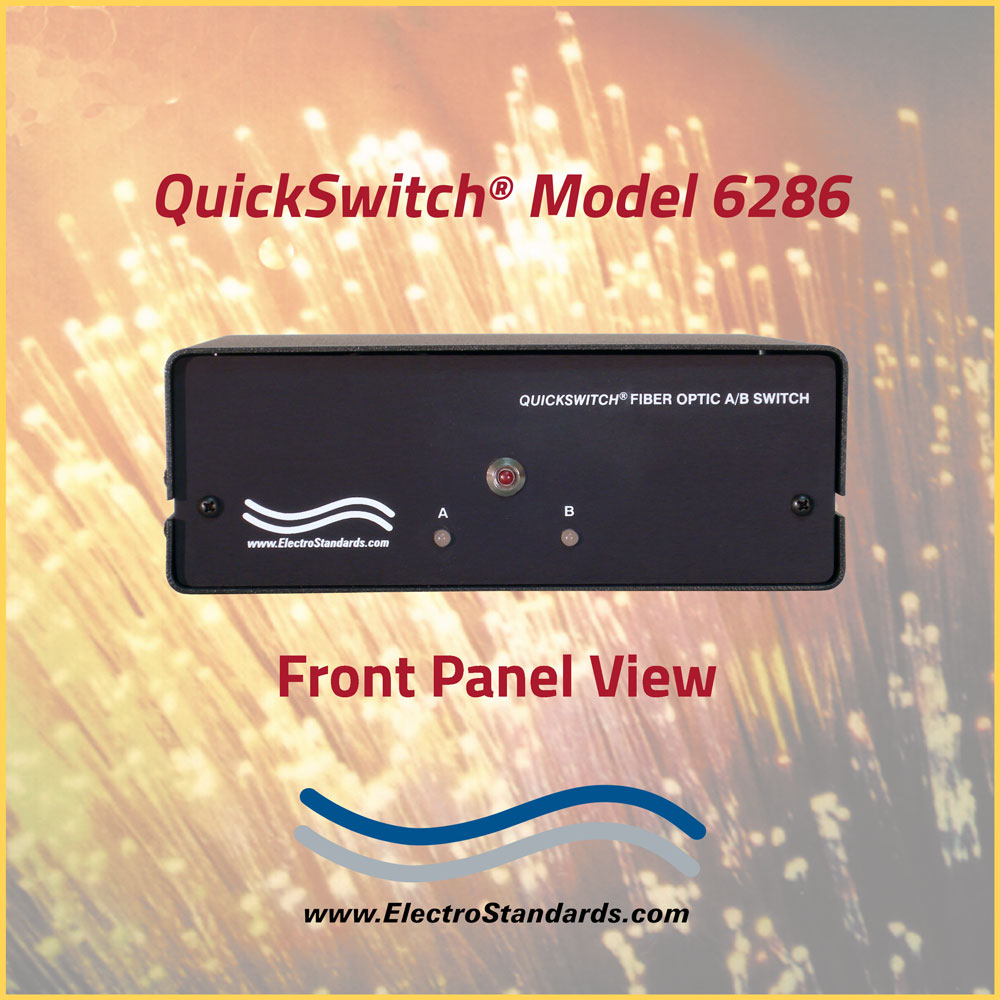

  • Front panel LED’s display present position and power status.
  • All A, B, and COM ports are SC Duplex, Multi-mode, 62.5/125 micron, and support a wavelength of 1300nm.
  • If power to the Model 6286 is lost, the unit will default to the A position and continue to pass data.
  • When power is restored, the unit remains in the A position.
  • Municipalities, schools, government: This product on GSA Schedule!

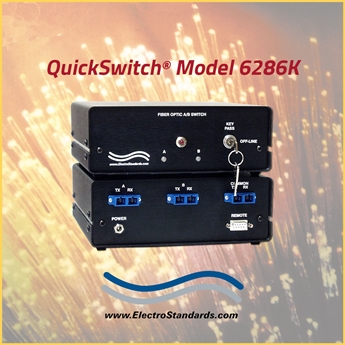

  • For a similar switch with a Keylock Option available, see Model 6286K, Catalog No. 306186K.

TECHNICAL SPECIFICATIONS:

  • PORT CONNECTORS: (3) SC Duplex Fiber Optic rear-panel connectors, A, B, and COMMON.
  • CONTROL: (1) Front-panel Pushbutton to select A and B.
  • DISPLAY: (2) Front-panel red LEDs display switch position A or B and indicate power presence.
  • SUPERVISORY REMOTE PORT: (1) DB9 / female serial RS232 port.
  • POWER: UL approved 100VAC-240VAC, 50-60 Hz wall mount power module supplies 12 VDC, 500mA to the unit.  Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: 8"W x 3.0"H x 8"D. (20.3 x 7.6 x 20.3)
  • WEIGHT: Approx. 2.8 lbs. (1.3 Kg)
  • WAVELENGTH: 1300 nanometers.
  • FIBER SIZE: 62.5/125.

SC DUPLEX FIBER OPTIC A/B SWITCH WITH REMOTE:

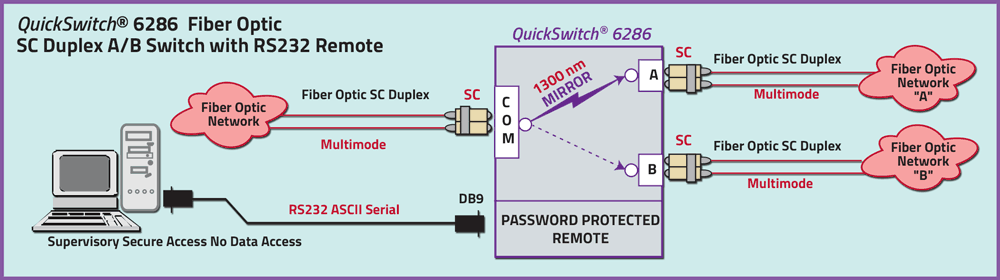

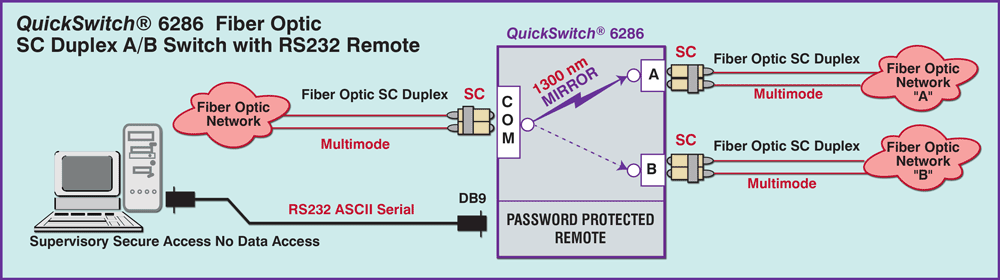

The drawing illustrates a Fiber Optic Network connected to the SC Duplex COMMON port with access to Fiber Optic Network A and Fiber Optic Network B, connected to the SC Duplex A and B ports, respectively. A DB9 Remote port can be used to remotely control the SC Duplex fiber optic switch using RS232 Serial Commands. The supported wavelength is 1300 nm.
