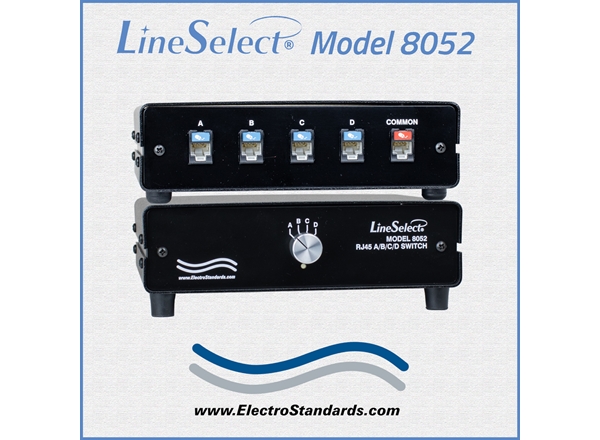

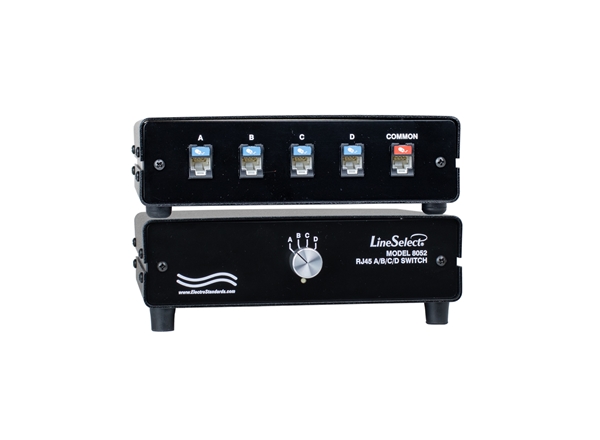

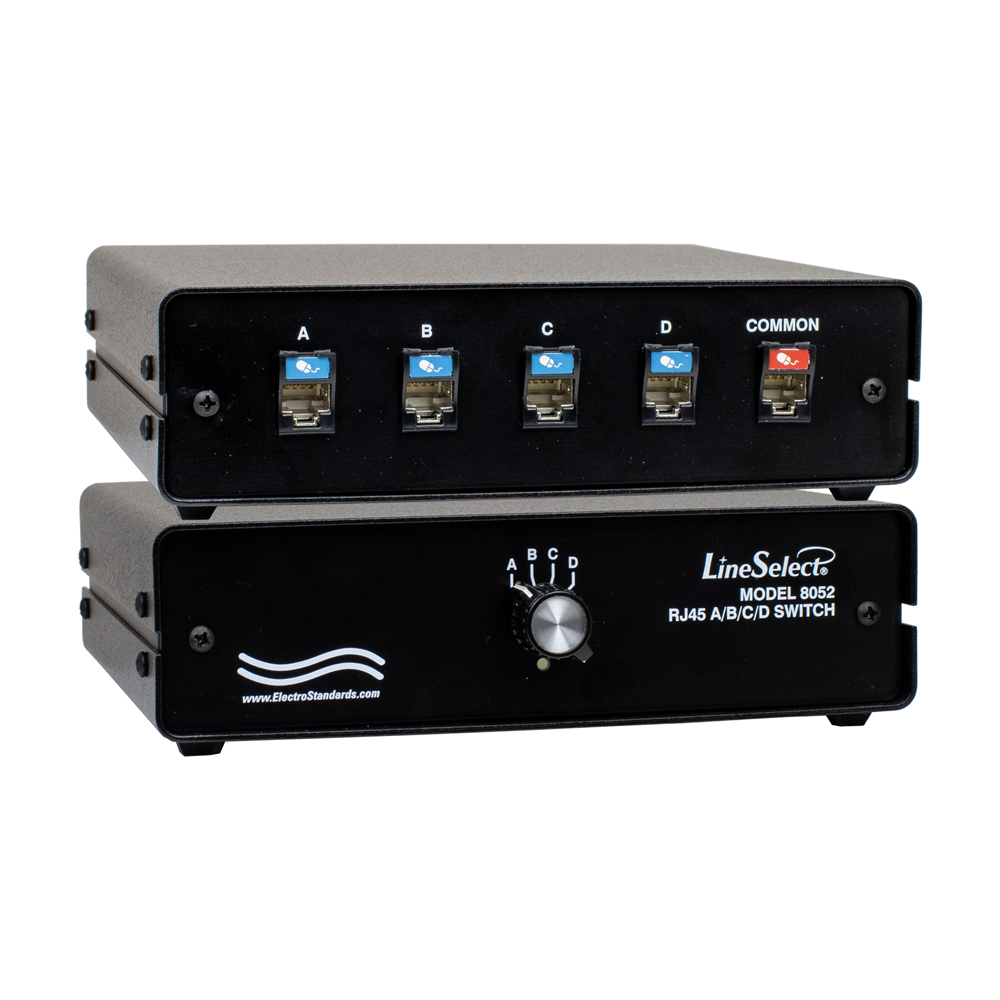

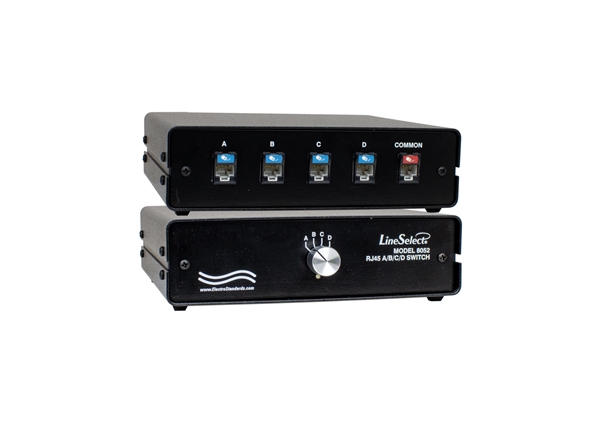

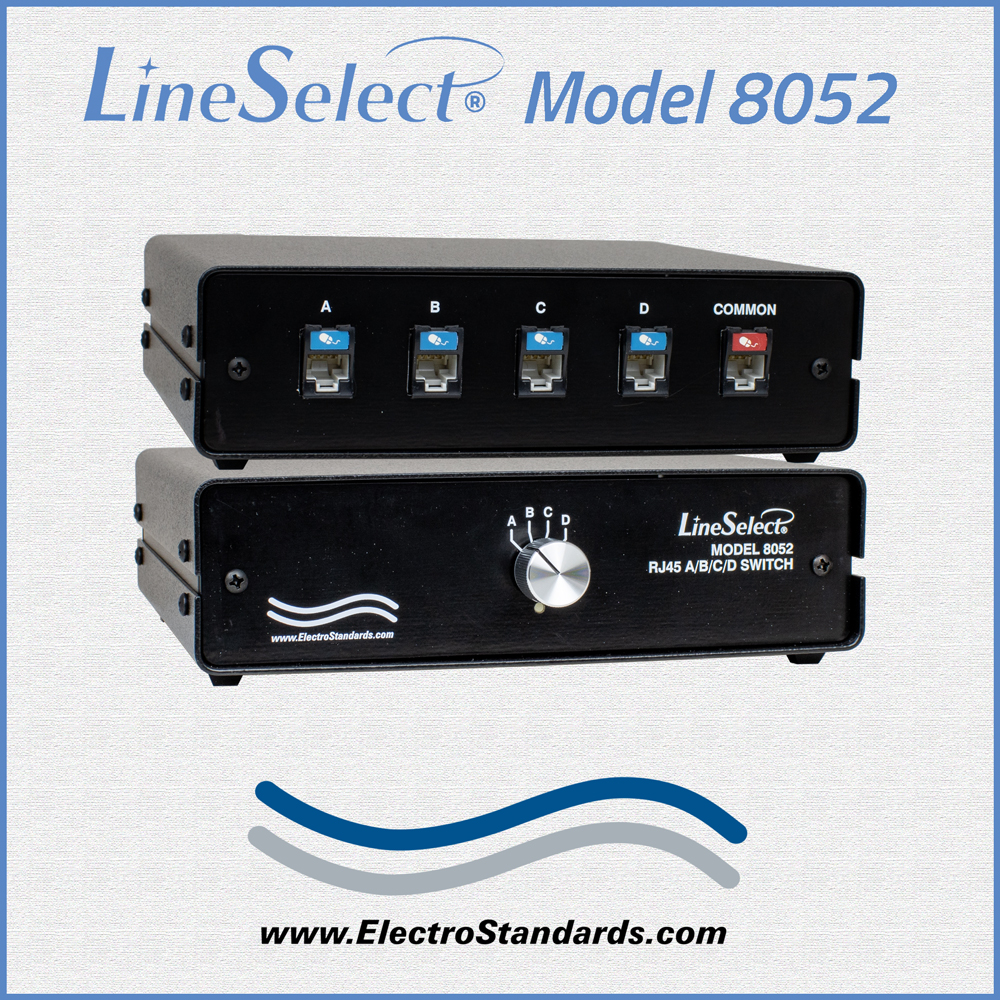

Catalog # 304880 - Model 8052 Cat6 Shielded RJ45 4-Position Switch

    RJ45 4-Position SwitchRJ45 4-Position SwitchRJ45 4-Position SwitchRJ45 4-Position Switch
Click image to enlarge
    • RJ45 4-Position Switch
    • RJ45 4-Position Switch
    • RJ45 4-Position Switch
    • RJ45 4-Position Switch
Base Price:
$730.00
Catalog No: 304880
Model No: 8052
Product Type:Switches: Copper
Interface:RJ45
Positions:4
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Compliance/Standards:Cat6
Configuration:Desktop
Local Control:Rotary Knob

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

LineSelect® Model 8052 Cat6 Shielded RJ45 A/B/C/D Switch, Desktop, Manual Network Switch

Overview

The LineSelect® Model 8052 enables access to four Cat6 RJ45 networks from one COMMON RJ45 device. The Model 8052 A/B/C/D Switch allows the user to reroute data between four networks with a simple flip of a switch. No need to plug and unplug cables thereby eliminating connector wear. The unit supports all eight pins; it is applicable to sharing ANY RJ45 device.

  • Share ANY RJ45 Interface Networks or Devices, "Quick & Easy"!

  • Telco Modular Jack Network Switches

  • Category 6 Rated!

  • All Ports are Shielded RJ45 Connectors

FEATURES OF THE MODEL 8052 MANUAL NETWORK SWITCH:

  • Allows access to four networks from one computer or workstation.
  • Eliminates the need to plug and unplug cables.
  • No external power required.
  • The switch ports are transparent to all data.
  • All 8 pins of the RJ45 interface are switched via break-before-make rotary switch.
  • Manual operation via front-panel rotary switch.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • High quality sealed switch with self-wiping precious metal contacts.
  • Lifetime warranty against manufacturing defects.
  • All ports are shielded Cat 6 RJ45 connectors.
  • Custom length RJ45 cables available for your switch installation.
  • Shielded RJ45 connectors are ideal for environments with potential external interference, such as data centers and industrial environments.

TECHNICAL SPECIFICATIONS:

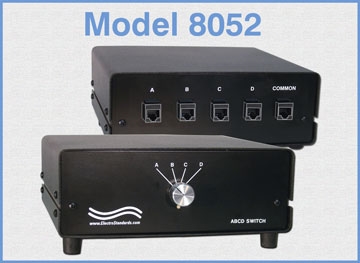

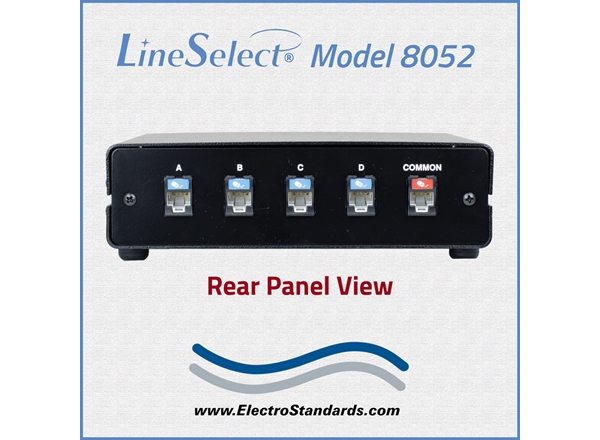

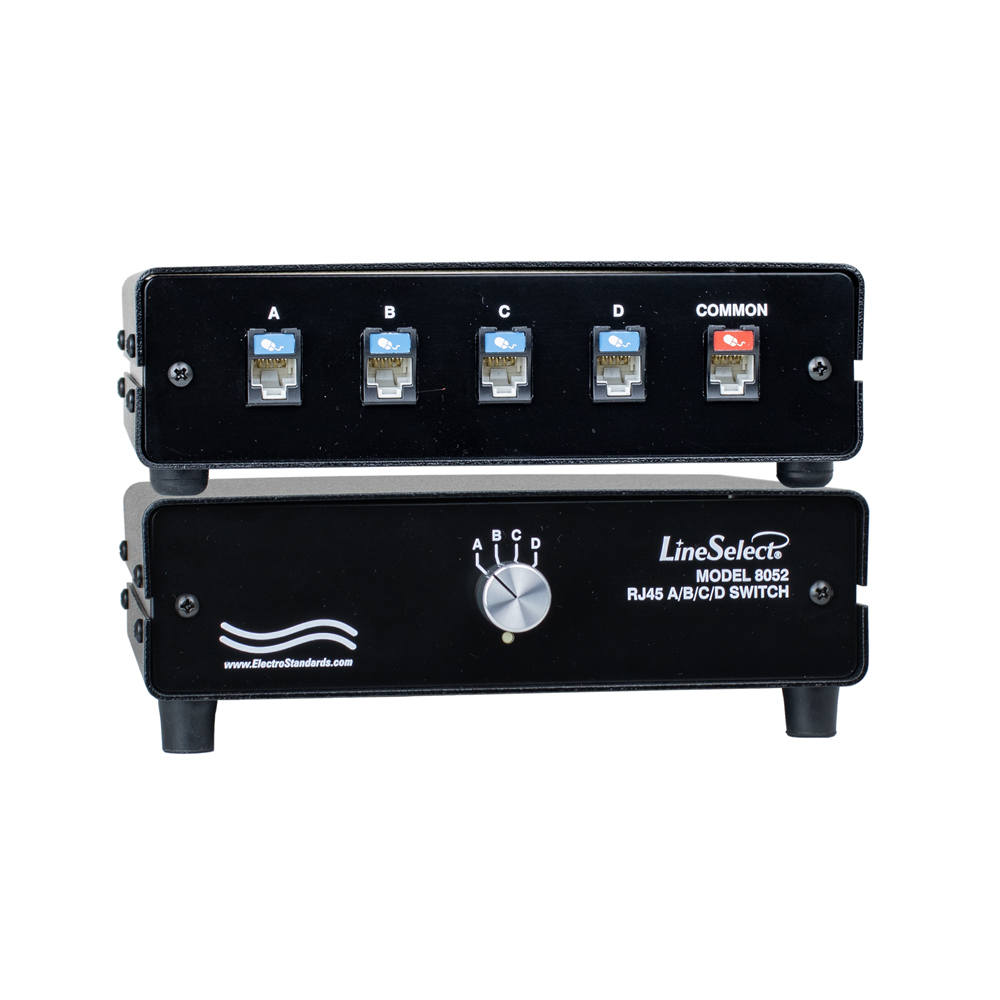

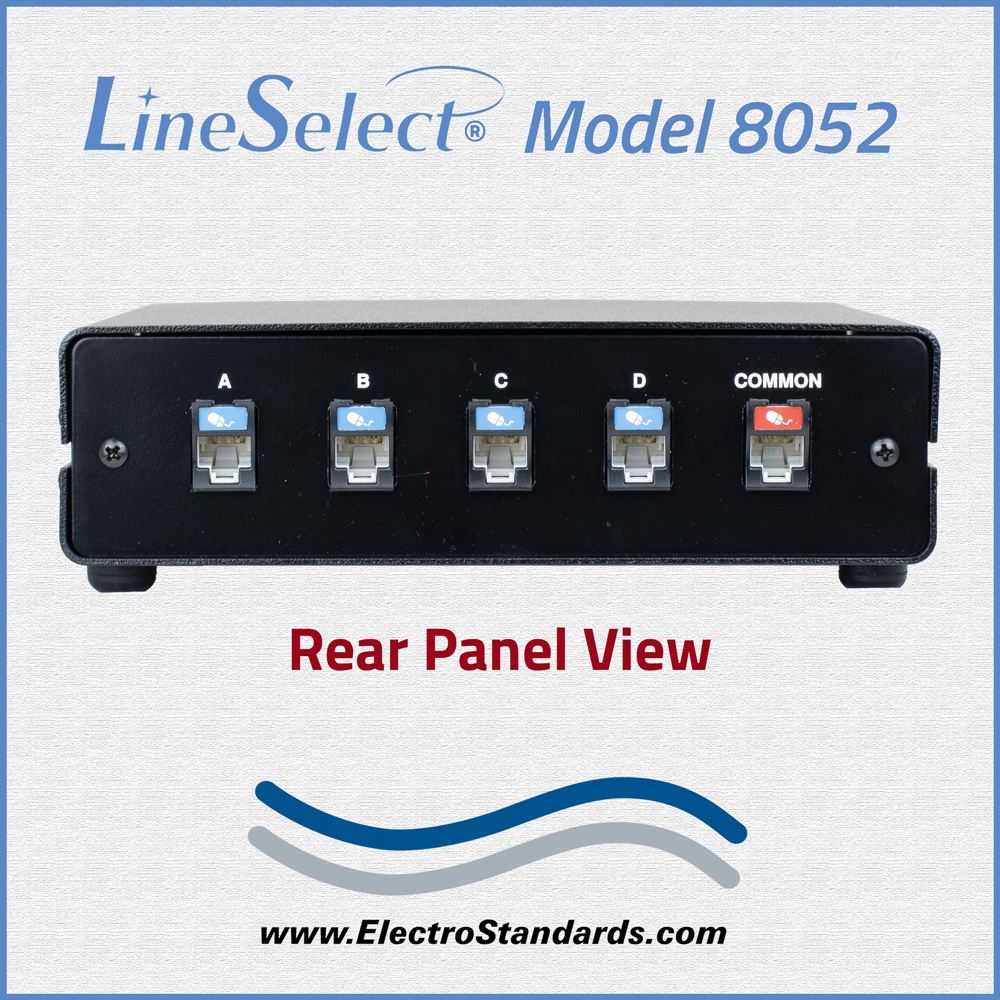

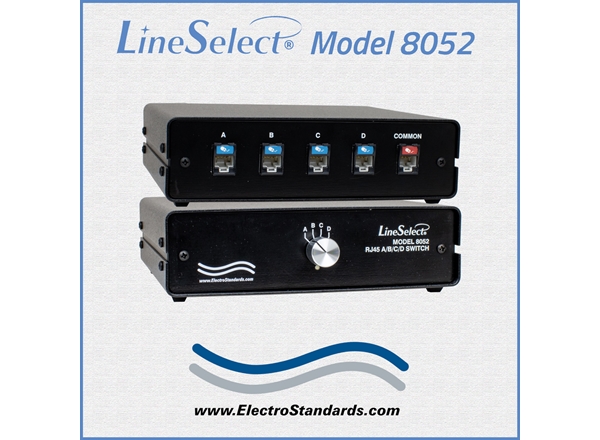

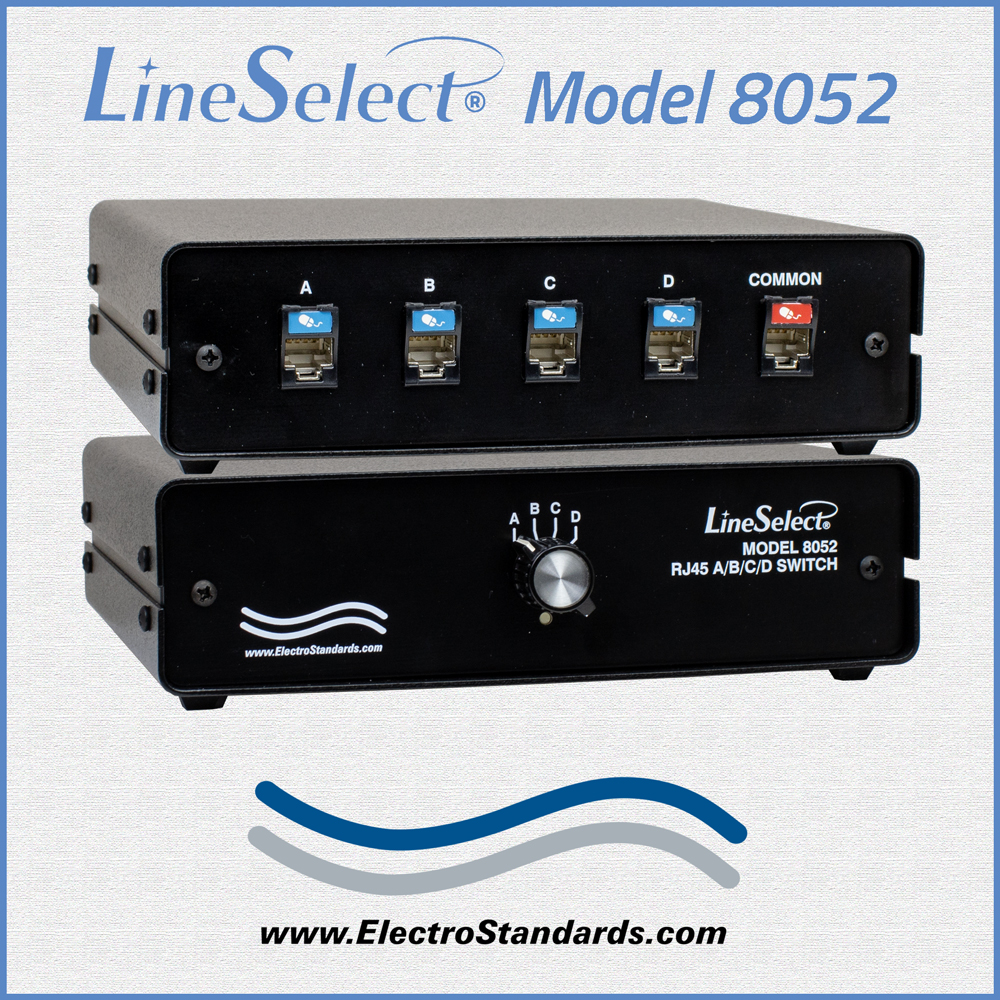

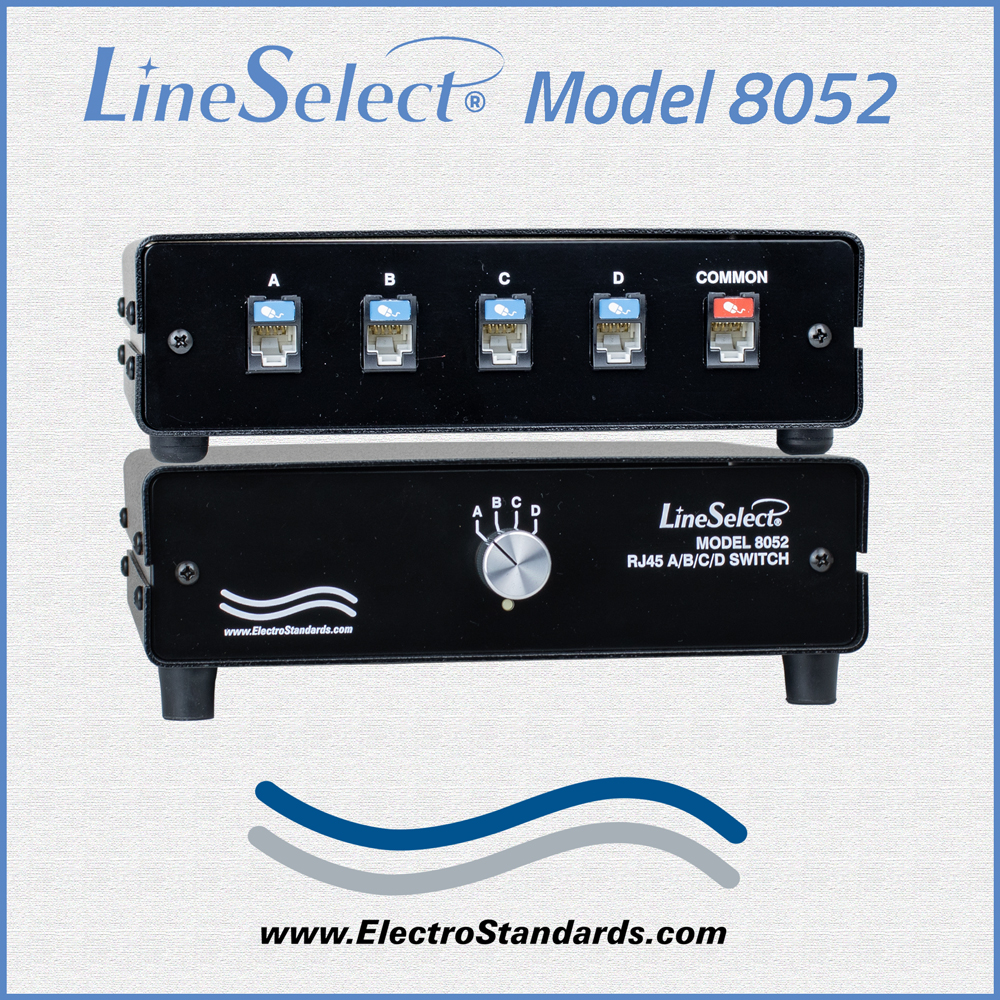

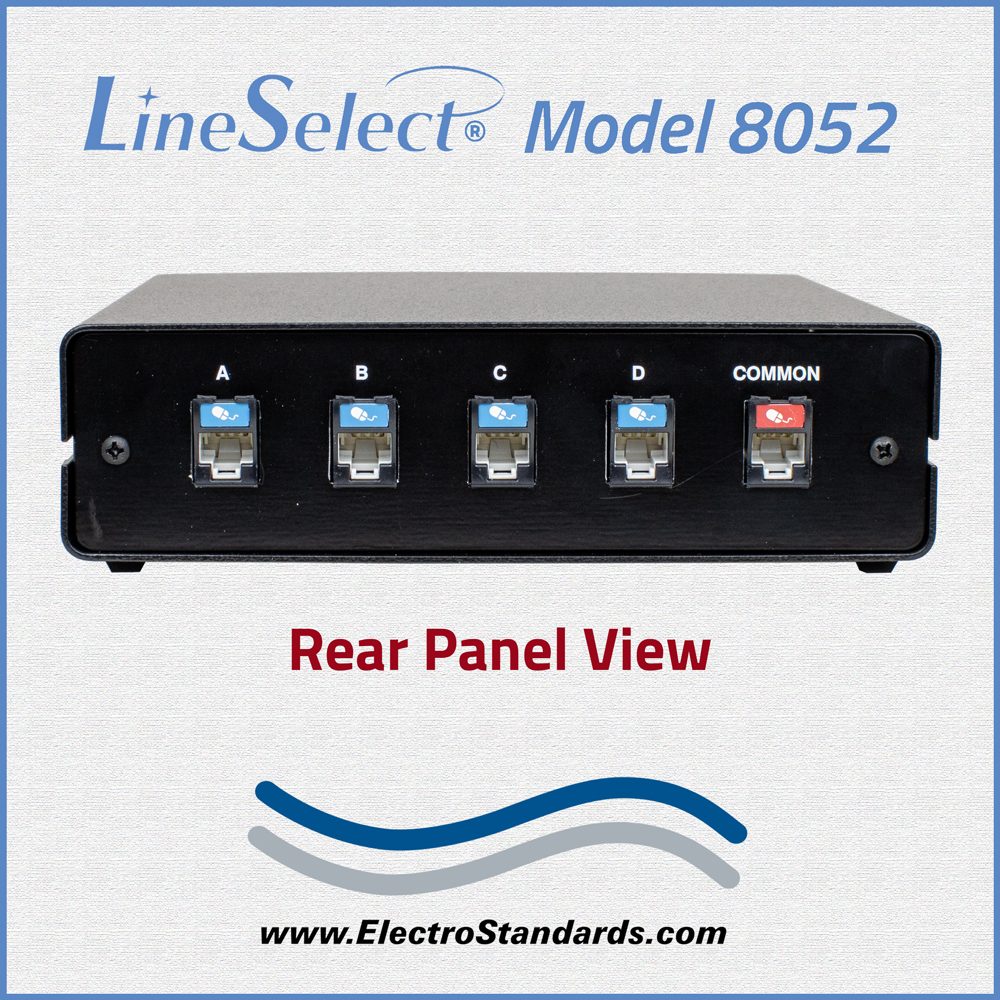

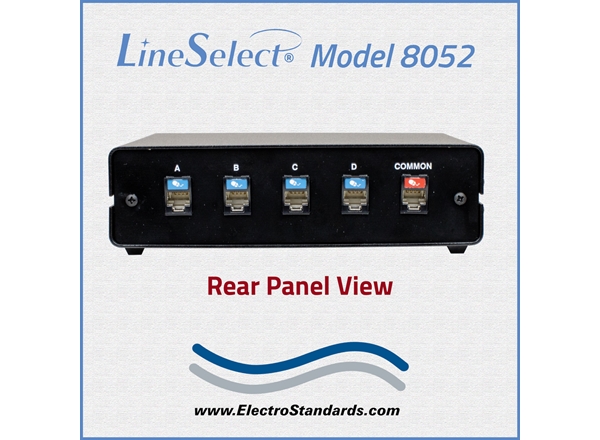

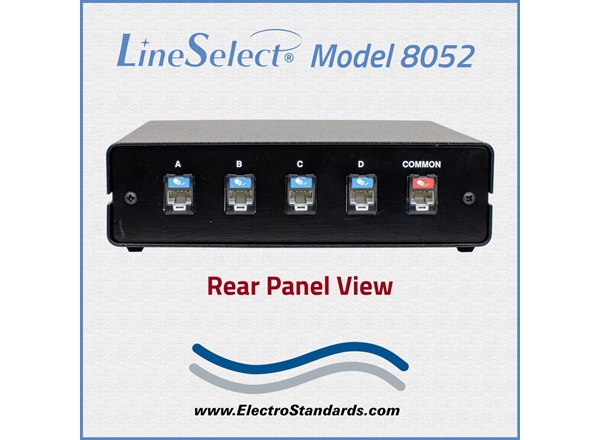

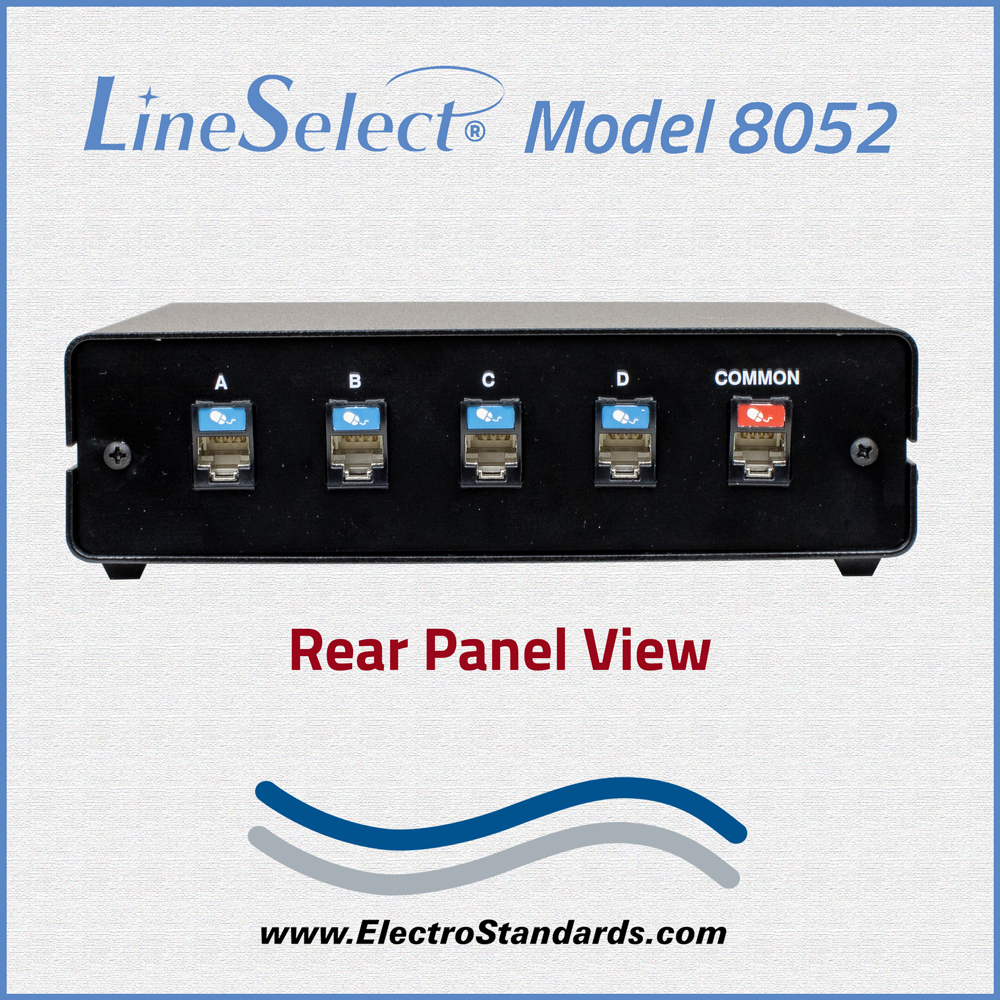

  • PORT CONNECTORS: (5) Shielded Cat6 RJ45 female connectors labeled A, B, C, D and COMMON.

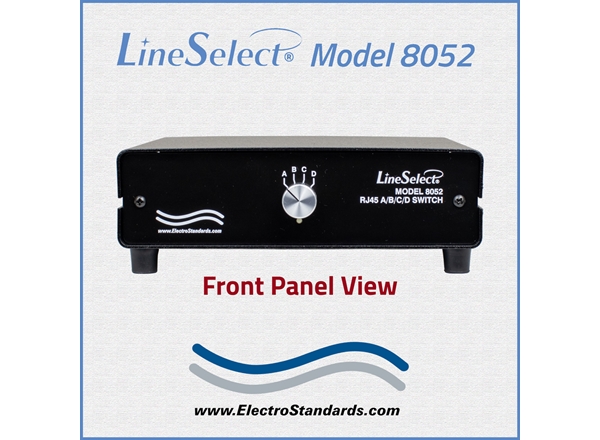

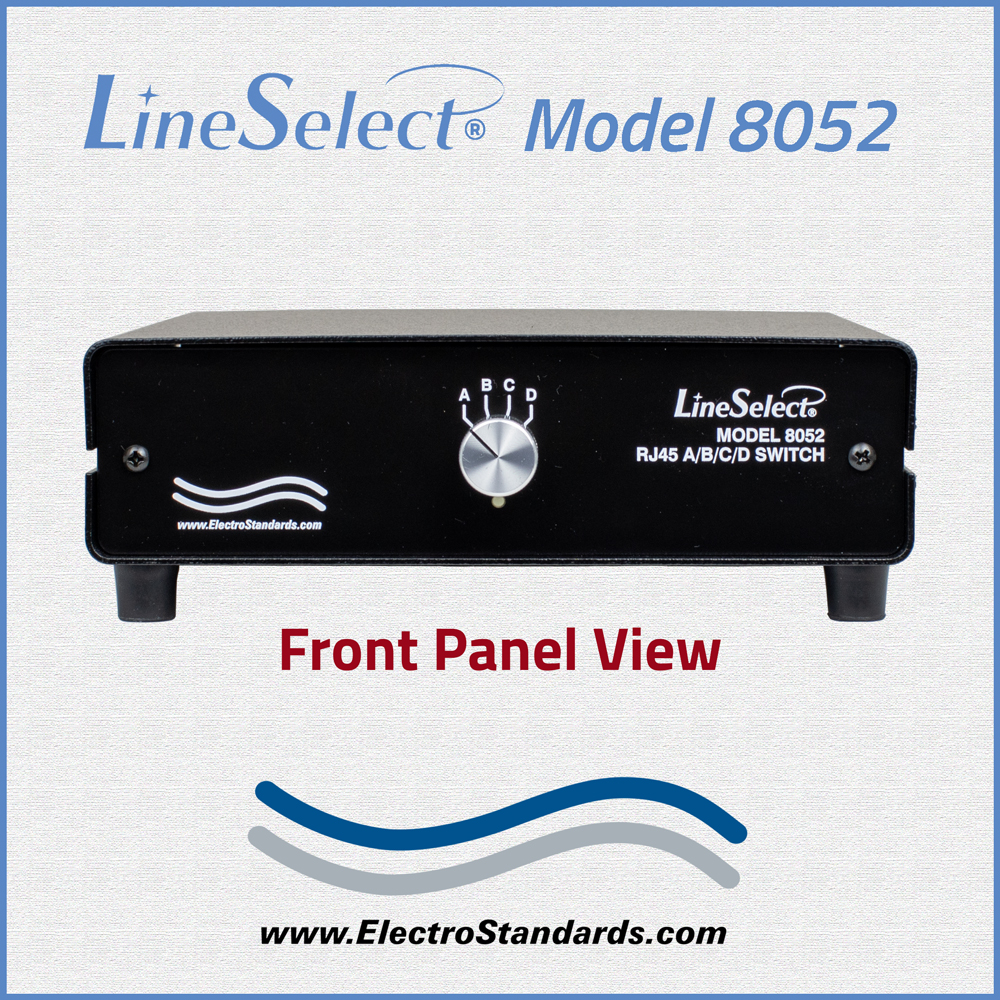

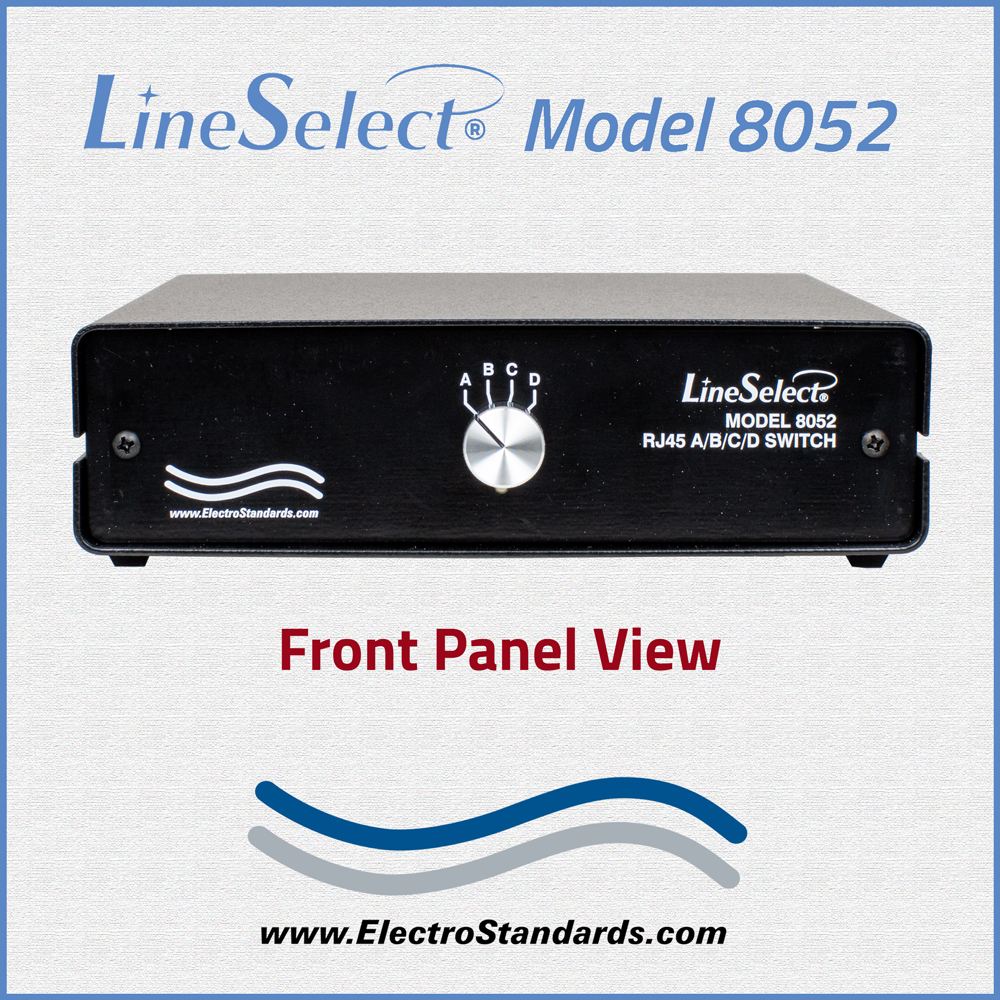

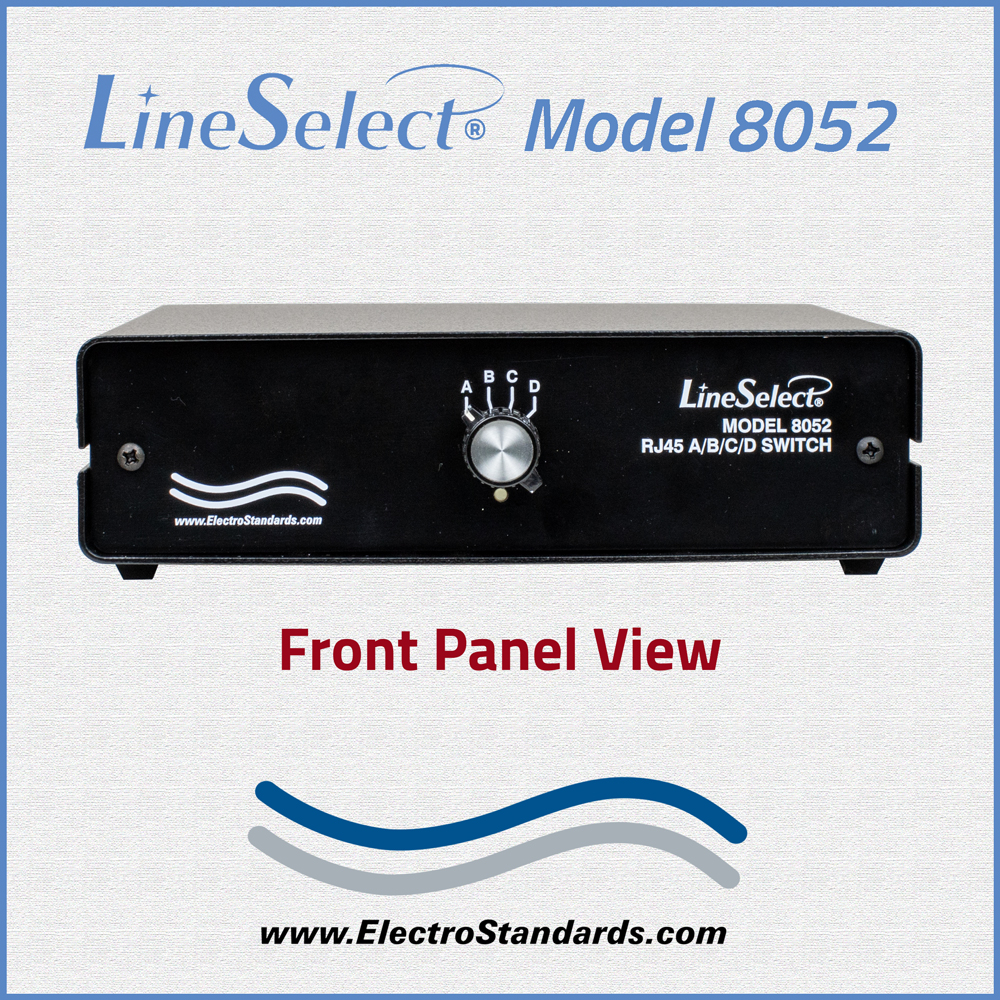

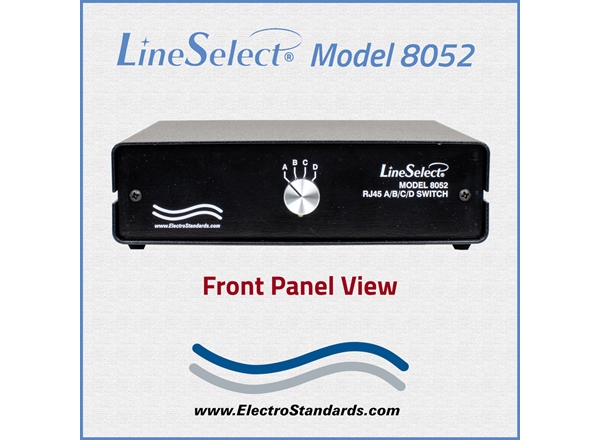

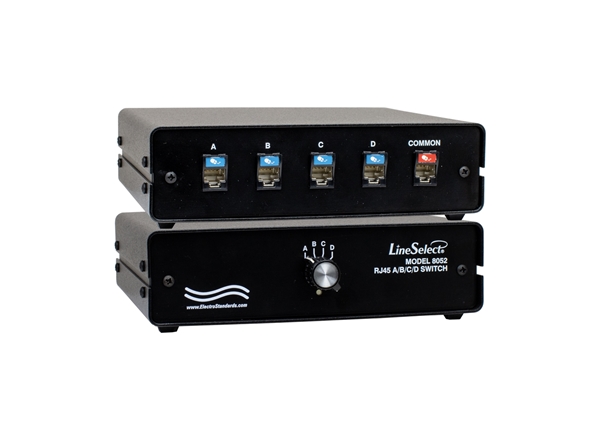

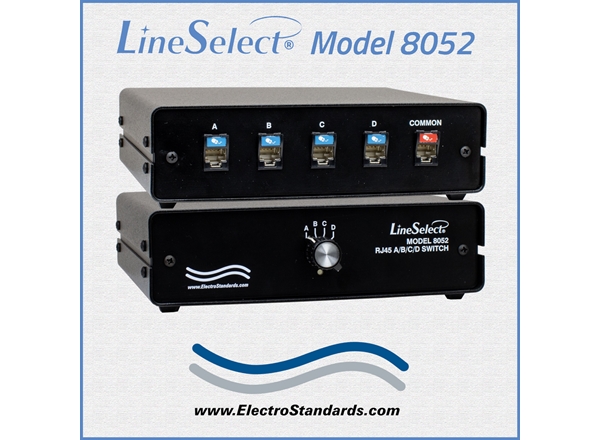

  • FRONT PANEL CONTROL: (1) Rotary switch on front panel selects A, B, C, D.
  • POWER: No external power required. Manually operated.
  • DIMENSIONS:   5.3" W x 2.6" H x 7.3" D. (13.5 x 6.6 x 18.5 cm)
  • WEIGHT: Approximately 1.0 lb., 0.5 kg.

MODEL 8052 Cat6 RJ45 A/B/C/D NETWORK APPLICATION:

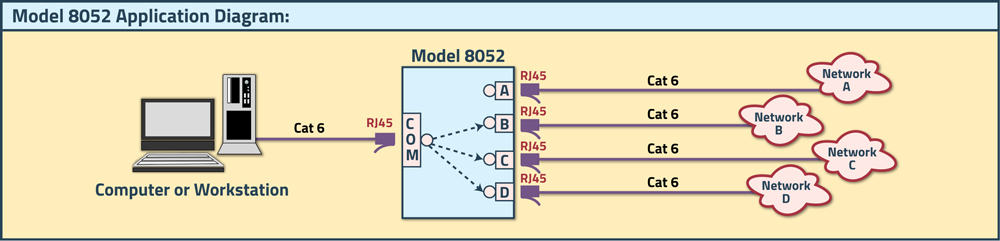

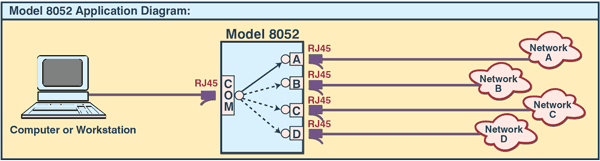

The drawing illustrates a COMMON device (computer or workstation) connected to the Cat6 RJ45 COMMON port with access to four Networks labeled A, B, C and D, which are each connected to the Cat6 RJ45 ports A, B, C, and D respectively.

Model 8052 A/B/C/D Switch Application Diagram

Potential Uses for the Model 8052:

  • The Model 8052 4-Position Switch can physically select devices or networks by turning the knob to the desired position (A, B, C, or D). The switch ports are transparent to all data and all 8 pins of the RJ45 interface are physically switched.

  • The Model 8052 Switch provides a simple, reliable and non-powered method for selecting networks or devices in critical or confidential systems.

  • Some applications could include managing the protection of confidential data and preventing unauthorized access by having an authorized user physically turn the knob to access the confidential data.

  • Ideal for networks in industrial or noisy settings such as factories and manufacturing facilities, military operations or power companies.

Ordering Information

  • Catalog Number: 304880
  • Model Number: 8052
  • Base Price: See website or contact us for current pricing and availability.

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.

Shipping and Returns           UPS

  • Shipped via UPS ground (unless otherwise requested).
  • Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
  • Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

All data switch boxes, data communication products, and data acquisition products are subject to a one-year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
